Rockfon® System T24 X™

Elegant, unbroken ceiling expression
Download system description
Download system description
Back
Easy and fast to install
Low installation height and full de-mountability
Easy integration of services
Rockfon System T24 X is a concealed ceiling system that provides an elegant, unbroken ceiling expression and is used with X-edge tiles. The system can either be installed as suspended ceiling at the desired height using the Chicago Metallic T24 3830 or mounted directly on the soffit by using direct fixing brackets. In Rockfon System T24 X the Chicago Metallic T24 3830 grid comes with a click system providing easy and fast mounting and demounting. The T profiles have a width of 24 mm, and all components are made of galvanised steel with a smooth, white surface hidden by Rockfon X-edge tiles. The system includes main runners, cross tees, hangers and other necessary components. The main runners and cross tees have a uniform height of 38 mm, ensuring stability and easier integration of services. A number of accessories, lighting and ventilation solutions have been developed for Rockfon System T24 X. The system provides full demountability of the mounted tiles. The system is characterized in that, during mounting or de-mounting, the tiles never come over the grid system where there is often installations. Rockfon X-edge tiles are available in different module sizes (see overview on page 3). The grid layout to be used depends on the choice of the module size (see layout possibilities on page 5).
CMC - Click2-DE

Coupling

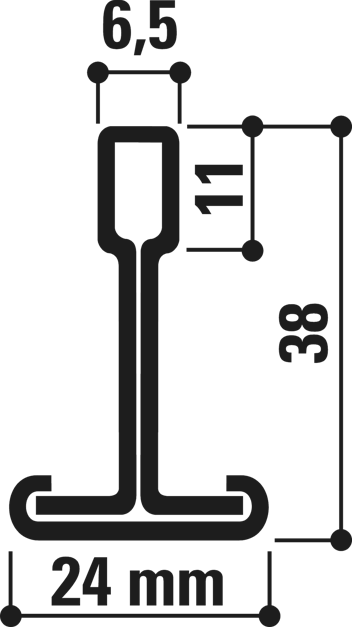

section_-2890

Cross Section

Case studies featuring Rockfon® System T24 X™

DK, Arboretet, Hørsholm, Claus Francke ApS, School, Rockfon Blanka, X edge, 1200x300, White

Project: The Arboretum

See full project
DK, Arboretet, Hørsholm, Claus Francke ApS, School, Rockfon Blanka, X edge, 1200x300, White

Project: The Arboretum

See full project
DK, Arboretet, Hørsholm, Claus Francke ApS, School, Rockfon Blanka, X edge, 1200x300, White

Project: The Arboretum

See full project
Back

Performances

Load Bearing Load Bearing
 Kg/m²
Hanger distance (mm) Maximum deflection
3.3 mm
1200 11
Corrosion Resistance Corrosion Resistance Chicago Metallic grids are manufactured from high quality hot dip galvanised steel with a coloured capping of pre-painted hot dip galvanised steel. It resists corrosion and it can be used in standard humid environments.
Demountability Demountability Tiles mounted in Rockfon System T24 X are fully demountable.
Fire Resistance Fire Resistance Some Rockfon ceiling systems have been tested and classified in accordance with European norm EN 13501-2 and/or national norms. Please contact Rockfon.
Back
 Kg/m²
Hanger distance (mm) Maximum deflection
3.3 mm
1200 11
Back
Back
Back

Perimeter Finishing Options

01

Perimeter finish with wall angle trim.

01

Perimeter finish with W shadow moulding wall angle.

01

Perimeter finish with aluminium W shadow moulding wall angle.

Back

Profiles and Accessories

Main runner

Component Length Height Product number Colours Packaging
Main runner
Image_1_MR1812_or_1920.jpg Main runner T24 Click 3600 38 T24 MR CLICK White 02 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 24 Distance between slots: / / /

Cross tee

Component Length Height Product number Colours Packaging
Cross tee
CT_600.jpg Cross tee T24 Click 600 25 T24 CT CLICK White 02 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: 600 / / /

Wall angle options

Component Length Height Width Product number Colours Packaging
W Profiles
1469.tif W Profile 20 x 10 x 10 x 14mm 3000 20 10 W20x10x10x14 White 02 See Packaging Dimensions
L Profiles
-1420.tif L Wall angle 24 x 24mm 3000 24 24 L24x24 White 02 See Packaging Dimensions

Accessories

Component Height Product number Packaging
Hold down clips & wall springs
Wall spring fixt_v3.tif Wall Spring FIXT WSF See Packaging Dimensions
Quick hangers
QH009009.tif Assembled quick hanger with 2 hooks QH HH 140 See Packaging Dimensions
Suspension clips
ACC SUSP FIX CLIP & NAIL H=80 MM 100C.tif 80 SH 80 See Packaging Dimensions
Various applications
System T24X wall bracket 20190219 A1.jpg Wall & bridging bracket for T profiles WBB T See Packaging Dimensions
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 24 Distance between slots: / / /
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: 600 / / /
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
Rockfon® System T24 X™ | System description
Rockfon® System T24 X™ | System description

pdf
DoP-RFN-ACCQHRP-A02 - Assembled quick hanger with 2 hooks
DoP-RFN-ACCQHRP-A02 - Assembled quick hanger with 2 hooks

pdf
DoP-RFN-ACCSUSPFIX-C02
DoP-RFN-ACCSUSPFIX-C02

pdf
DoP-RFN-ACCVA-D03 - Wall Spring FIXT
DoP-RFN-ACCVA-D03 - Wall Spring FIXT

pdf
DoP-RFN-ACCVA-F01 - Wall & bridging bracket for T profiles
DoP-RFN-ACCVA-F01 - Wall & bridging bracket for T profiles

pdf
