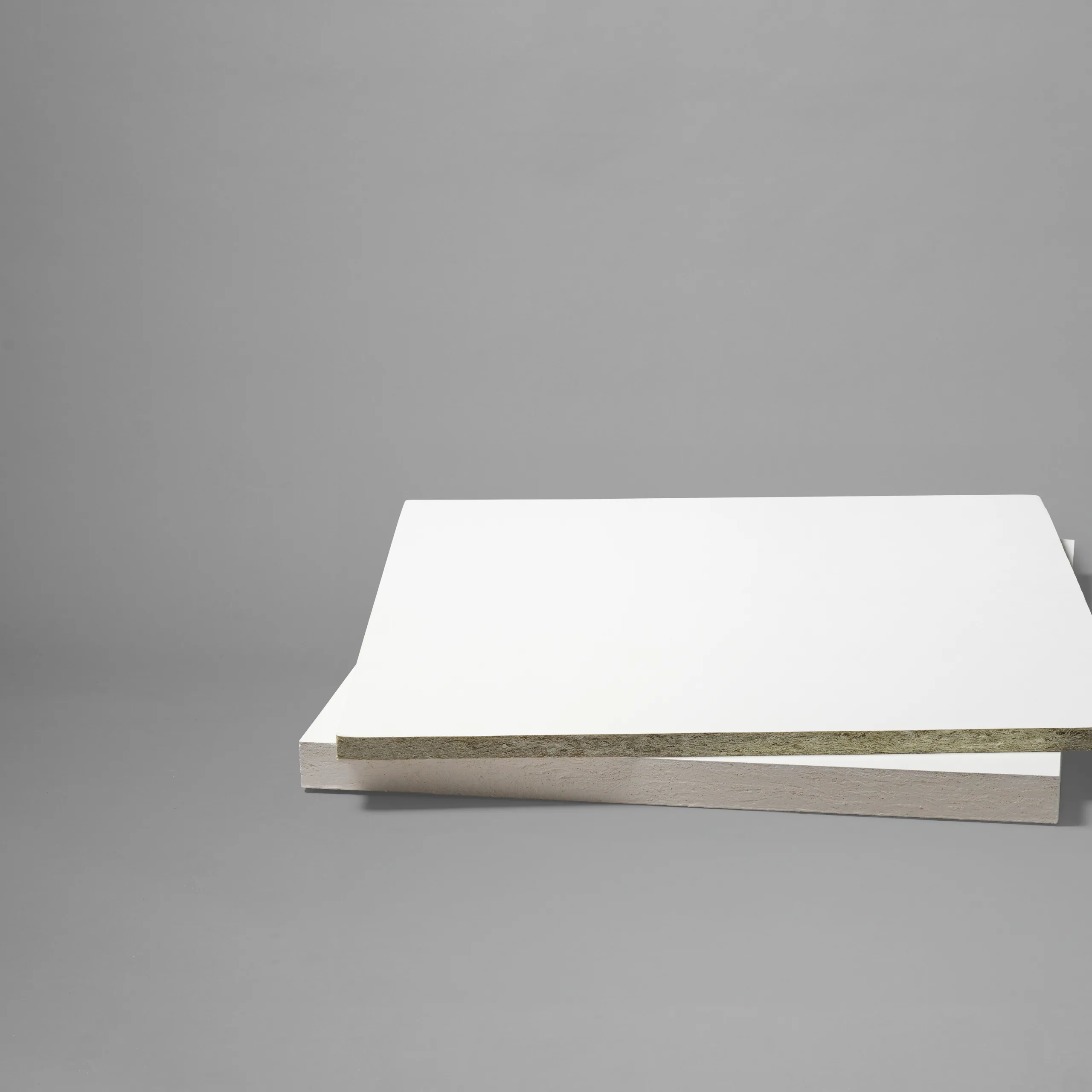

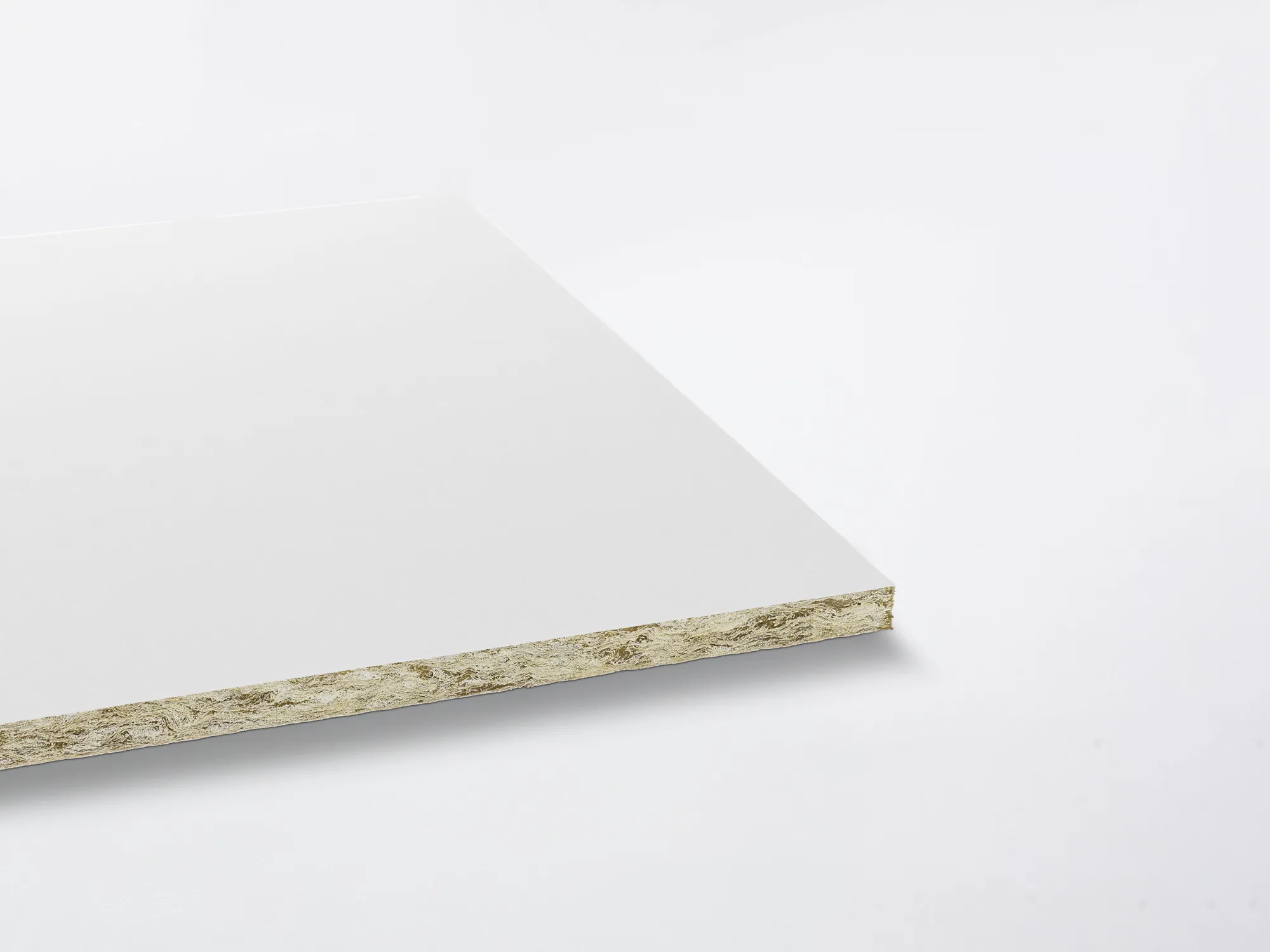

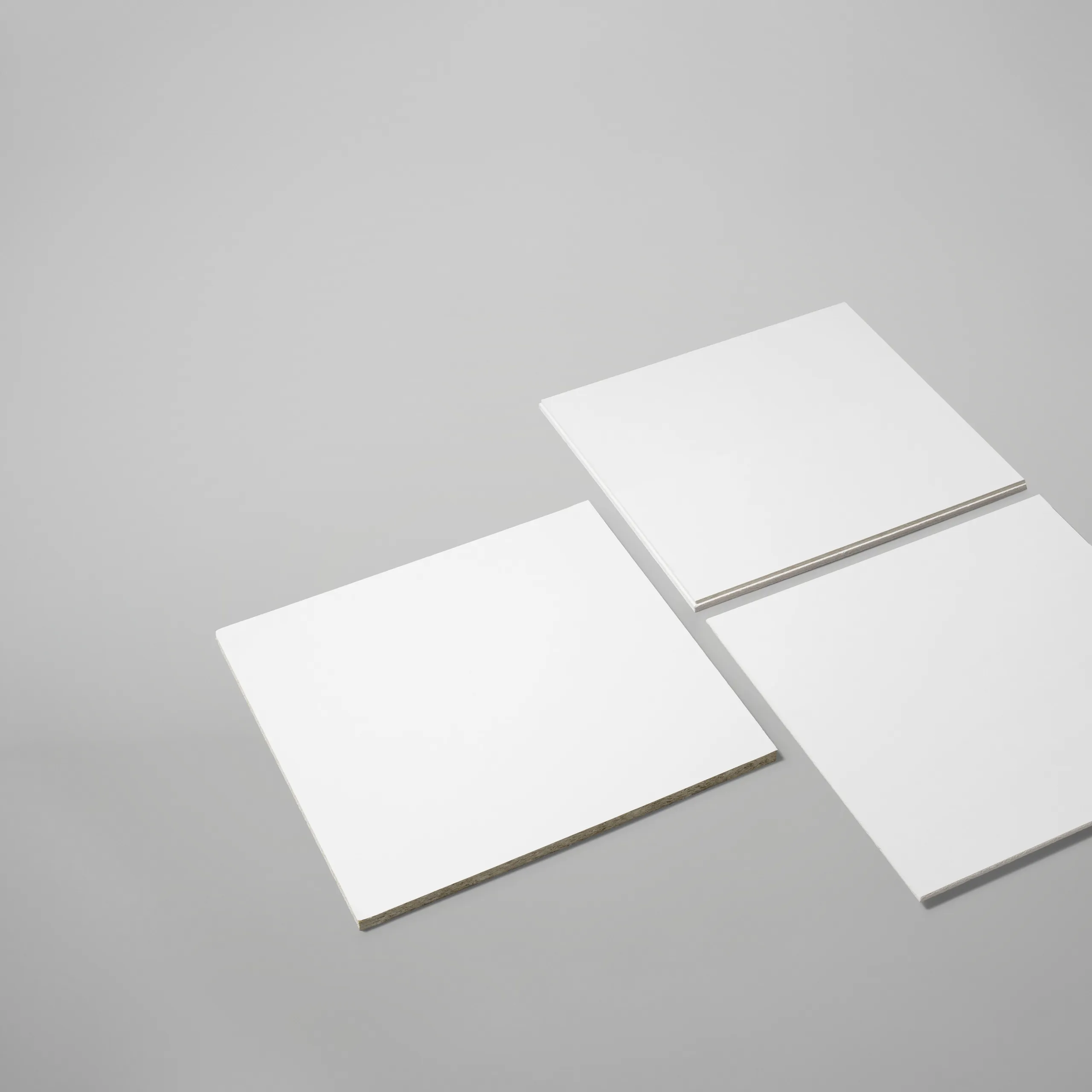

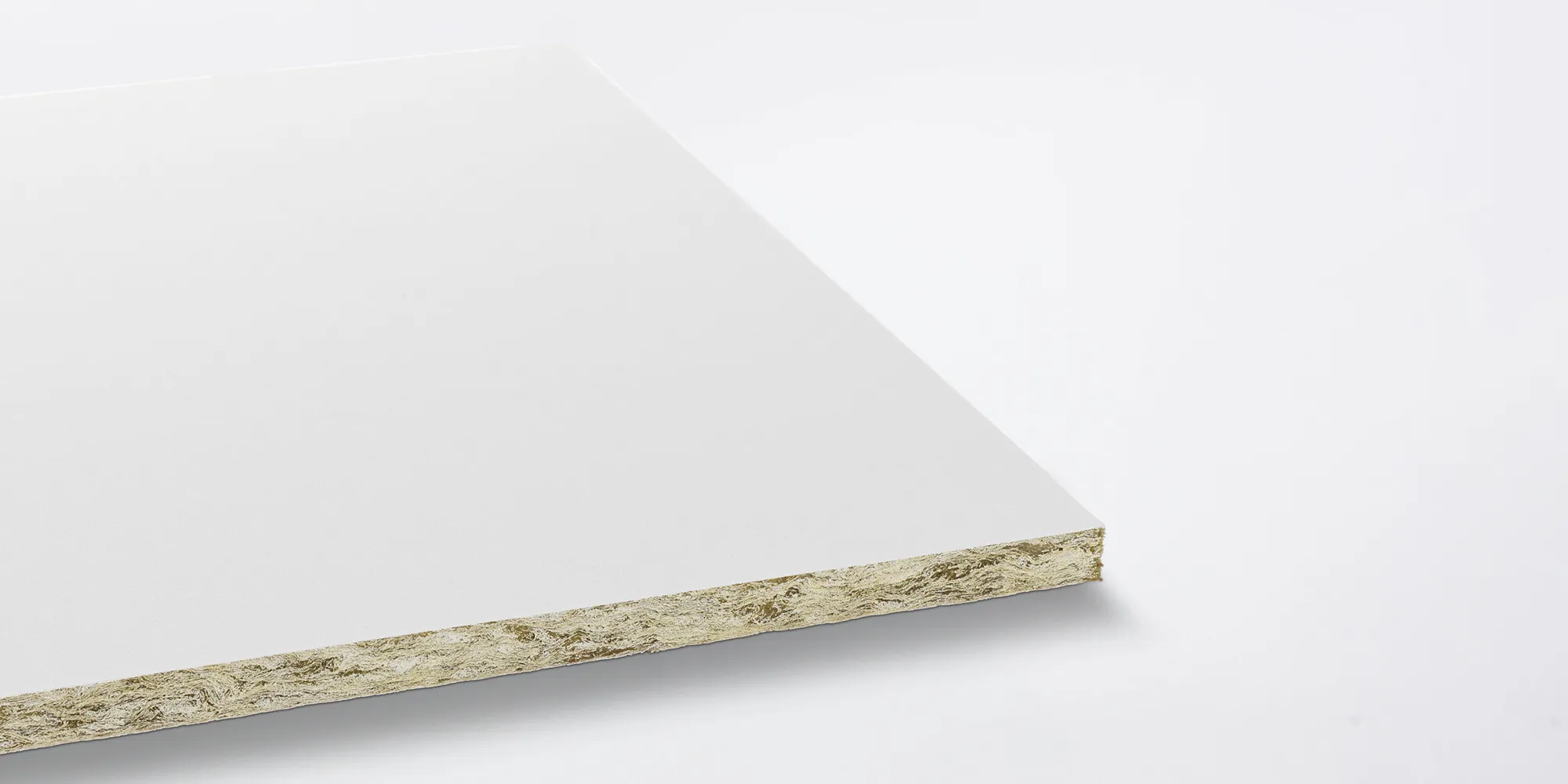

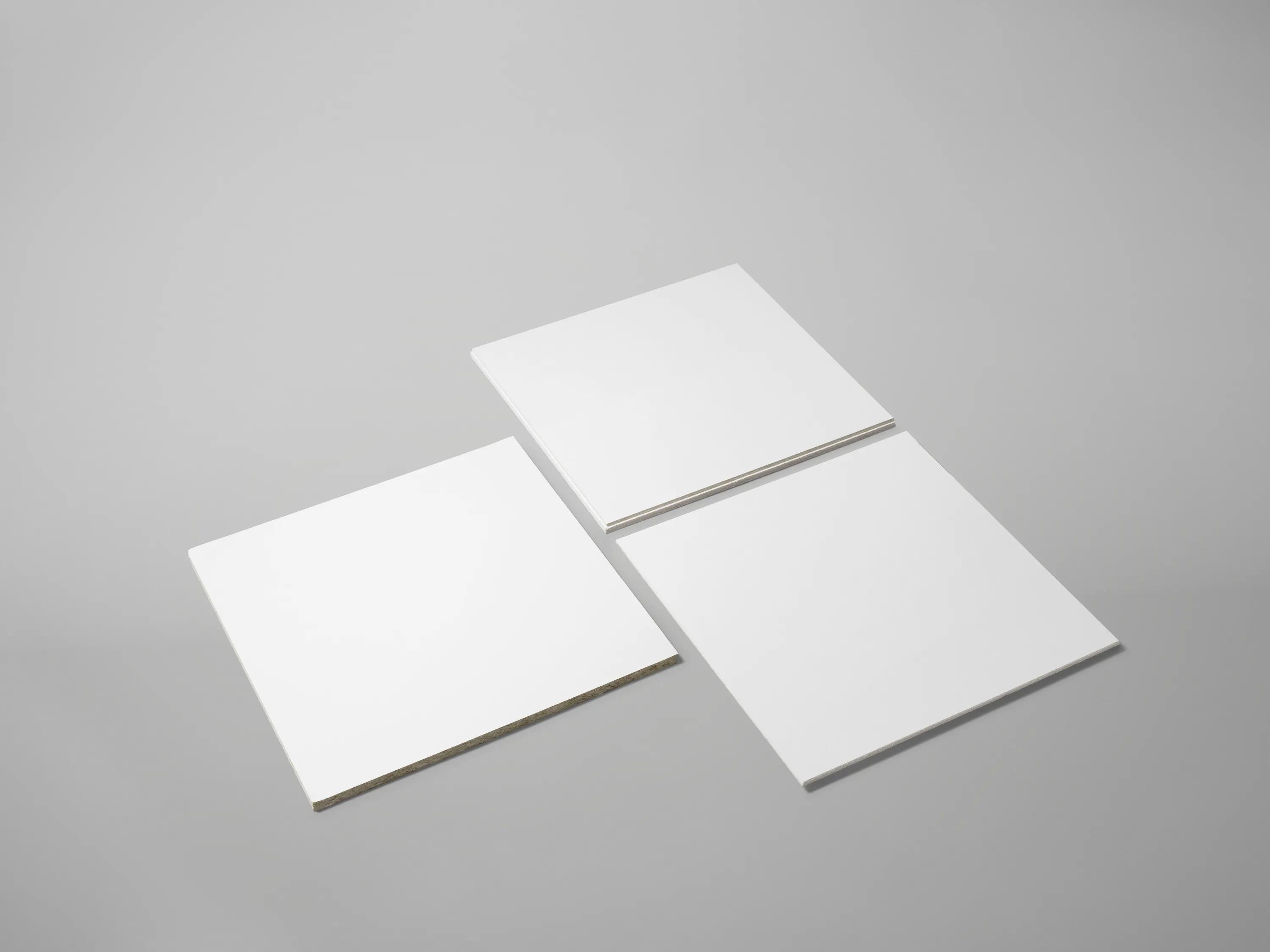

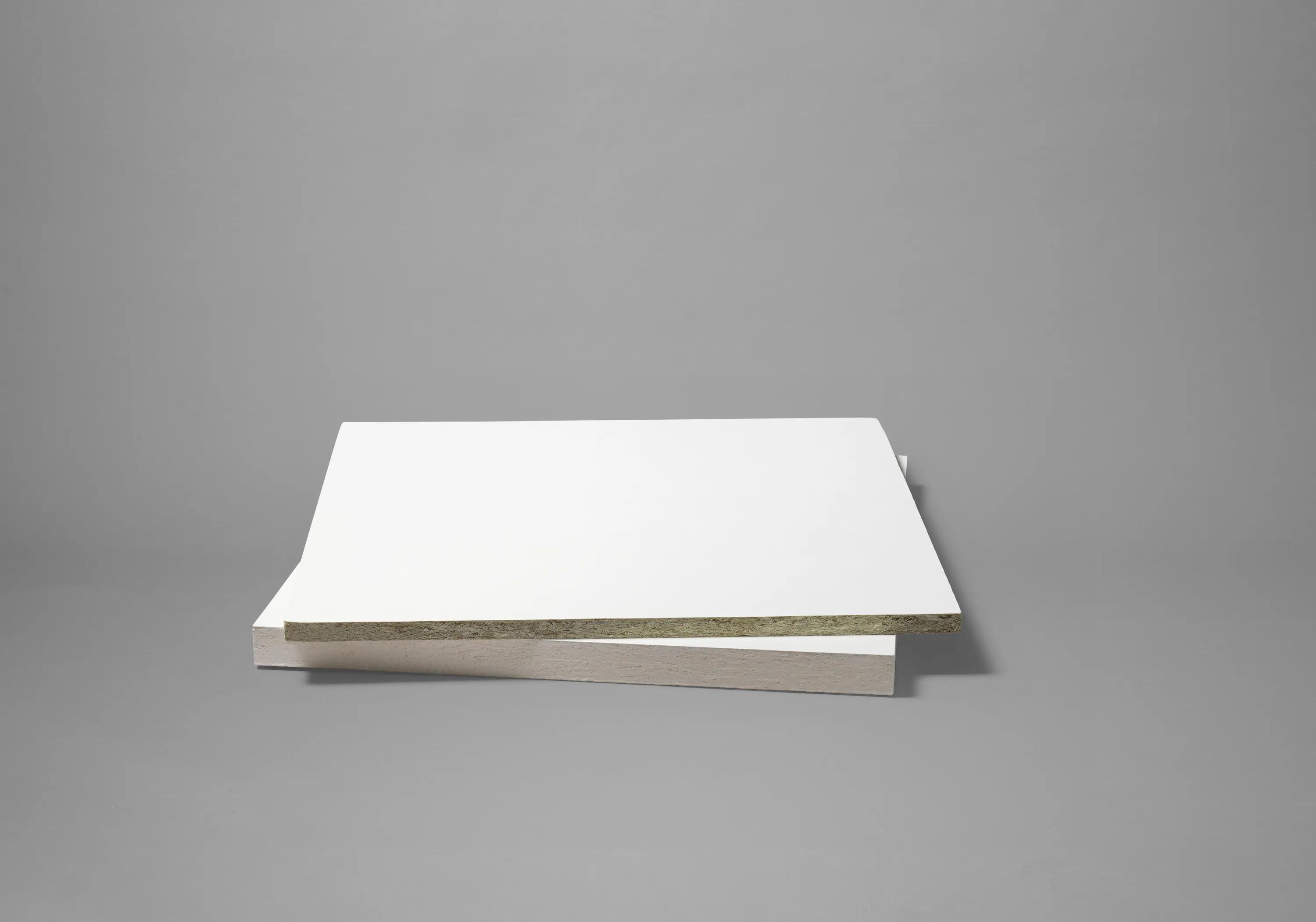

Rockfon® CleanSpace™ Pure

Rockfon CleanSpace Pure is a smooth, deep-matt, pure white cleanable ceiling tile with good acoustic properties. Applicable in various room types with cleanability requirements. The product is long-lasting and withstands numerous cleaning and disinfection methods
Back

Color

White

ColorWhite
Color GroupWhites
Light reflection86
;
Back

Sound absorption details

EdgeThickness (mm)Suspension height (mm)αwNRCSound absorption class (ISO)Sound curve
A24edge icon202001,000,95A
Sound curve
A24edge icon402001,001,05A
Sound curve
E24edge icon202001,000,95A
Sound curve
Xedge icon222000,950,95A
Sound curve

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve

Other performances

Compare
Reaction To Fire Reaction To FireA1
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion86% light reflection >99% light diffusion
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Visual Appearance Visual AppearanceSuper-white surface
L value: 94.5.
Deep matt surface, perfect in critical side-light
Gloss: 0.8 gloss unit at 85° angle
The whiteness (L value) of the product is tested in accordance with ISO 7724 and measured on a scale from 1 (black) to 100 (white).
The gloss of the product is tested in accordance with ISO 2813.
Humidity And Sag Resistance Humidity And Sag ResistanceUp to 100% RH.
No visible deflection in high humidity. There will always be some dust/dirt on the panels after some time, and with regular exposure to high humidity this could lead to fungi growth. Please avoid condensation on the panel
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Surface Durability Surface DurabilityEnhanced durability and dirt resistance.
The surface of some ROCKFON products is specially treated to provide enhanced durability and dirt resistance.
Cleaning CleaningVacuum, Damp cloth, High pressure cleaning (only applicable for A-edge installation). Max. 80 bar, min. 1 meter distance, water spread at 30° angle, max. water flow 360 L/h. The tiles should be clipped into the grid., Chemical resistance: Tested according to ISO 2812-3:2019 and classified in accordance with EN 12720. Rating on a scale from 1 to 5, where 5 is the best. We obtained 5 for the following detergents and disinfectants (weekly disinfection): Active chlorine 2,6%, quaternary ammonium 0,25%, hydrogen peroxide 5%, Ethanol 70% and Isopropanol 70%
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Hygiene HygieneStone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Microbiological class M1 fulfilling the requirements of Zone 4 (very high risk) defined by NF S 90-351:2013.
Tested with:
- Methicillin Resistant Staphylococcus Aureus (MRSA)
- Candida Albicans
- Aspergillus Brasiliensis
- E.Coli
- Bacillus cereus
M1 (zone 4) for the 5 tested pathogens.

The particle elimination kinetics class is conform to CP(0,5)5 according to the norm NF S 90-351:2013.
Clean Room Classification Clean Room Classification3
Clean room classification is measured in accordance with ISO 14644-1.
Bacteriological ClassM1, NF S 90-351:2013
Environment EnvironmentFully recyclable stone wool
Indoor Environment Indoor EnvironmentA selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
The whiteness (L value) of the product is tested in accordance with ISO 7724 and measured on a scale from 1 (black) to 100 (white).
The gloss of the product is tested in accordance with ISO 2813.
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
The surface of some ROCKFON products is specially treated to provide enhanced durability and dirt resistance.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Microbiological class M1 fulfilling the requirements of Zone 4 (very high risk) defined by NF S 90-351:2013.
Tested with:
- Methicillin Resistant Staphylococcus Aureus (MRSA)
- Candida Albicans
- Aspergillus Brasiliensis
- E.Coli
- Bacillus cereus
M1 (zone 4) for the 5 tested pathogens.

The particle elimination kinetics class is conform to CP(0,5)5 according to the norm NF S 90-351:2013.
Back
Clean room classification is measured in accordance with ISO 14644-1.
Back
Back
Back
Back

Full range

EdgeDimensions (mm)Thickness (mm)Weight (Kg/m2)Min. suspension height (mm)Recommended installation system
A241200 x 600202,300 Rockfon® System CleanSpace T24 A, E (ECR)™

Recommended installation system

HygieneRockfon® System CleanSpace T24 A, E (ECR)™Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw1,00
NRC0,95
Sound absorption classA
Sound curve
Sound curve

Tile details

Minimum installation height0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A241200 x 600404,100 Rockfon® System CleanSpace T24 A, E (ECR)™

Recommended installation system

HygieneRockfon® System CleanSpace T24 A, E (ECR)™Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw1,00
NRC1,05
Sound absorption classA
Sound curve
Sound curve

Tile details

Minimum installation height0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A24600 x 600202,300 Rockfon® System CleanSpace T24 A, E (ECR)™

Recommended installation system

HygieneRockfon® System CleanSpace T24 A, E (ECR)™Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw1,00
NRC0,95
Sound absorption classA
Sound curve
Sound curve

Tile details

Minimum installation height0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A24600 x 600404,100 Rockfon® System CleanSpace T24 A, E (ECR)™

Recommended installation system

HygieneRockfon® System CleanSpace T24 A, E (ECR)™Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw1,00
NRC1,05
Sound absorption classA
Sound curve
Sound curve

Tile details

Minimum installation height0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
E241200 x 600202,800 Rockfon® System CleanSpace T24 A, E (ECR)™

Recommended installation system

HygieneRockfon® System CleanSpace T24 A, E (ECR)™Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw1,00
NRC0,95
Sound absorption classA
Sound curve
Sound curve

Tile details

Minimum installation height0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
E24600 x 600202,800 Rockfon® System CleanSpace T24 A, E (ECR)™

Recommended installation system

HygieneRockfon® System CleanSpace T24 A, E (ECR)™Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw1,00
NRC0,95
Sound absorption classA
Sound curve
Sound curve

Tile details

Minimum installation height0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
X1200 x 600223,700

Sound absorption details

αw0,95
NRC0,95
Sound absorption classA
Sound curve
Sound curve

Tile details

Minimum installation height0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
X600 x 600223,700

Sound absorption details

αw0,95
NRC0,95
Sound absorption classA
Sound curve
Sound curve

Tile details

Minimum installation height0 mm

Packaging

Pieces Per Pack
Area Per Pack m2

MS - Minimum Suspension

Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E (ECR)™ Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height0 mm
Easy access-

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E (ECR)™ Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height0 mm
Easy access-

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E (ECR)™ Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height0 mm
Easy access-

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E (ECR)™ Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height0 mm
Easy access-

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E (ECR)™ Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height0 mm
Easy access-

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E (ECR)™ Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height0 mm
Easy access-

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height0 mm
Easy access-

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height0 mm
Easy access-

Packaging

Pieces Per Pack
Area Per Pack m2
Back
