Rockfon Sonar® dB 46

50mm-thick dual-function ceiling tiles delivering 46dB room-to-room sound insulation and Class A sound absorption – featuring a robust micro-textured surface.
Order Sample
Download Datasheet
Download Datasheet
Back
Combines enhanced room-to-room sound insulation as well as a high level of sound absorption (Class A) in areas where privacy and acoustical comfort is important
Made from a 50mm dual layer stone wool core with a high performance membrane sandwich construction which reduces the transmission of noise from room-to-room

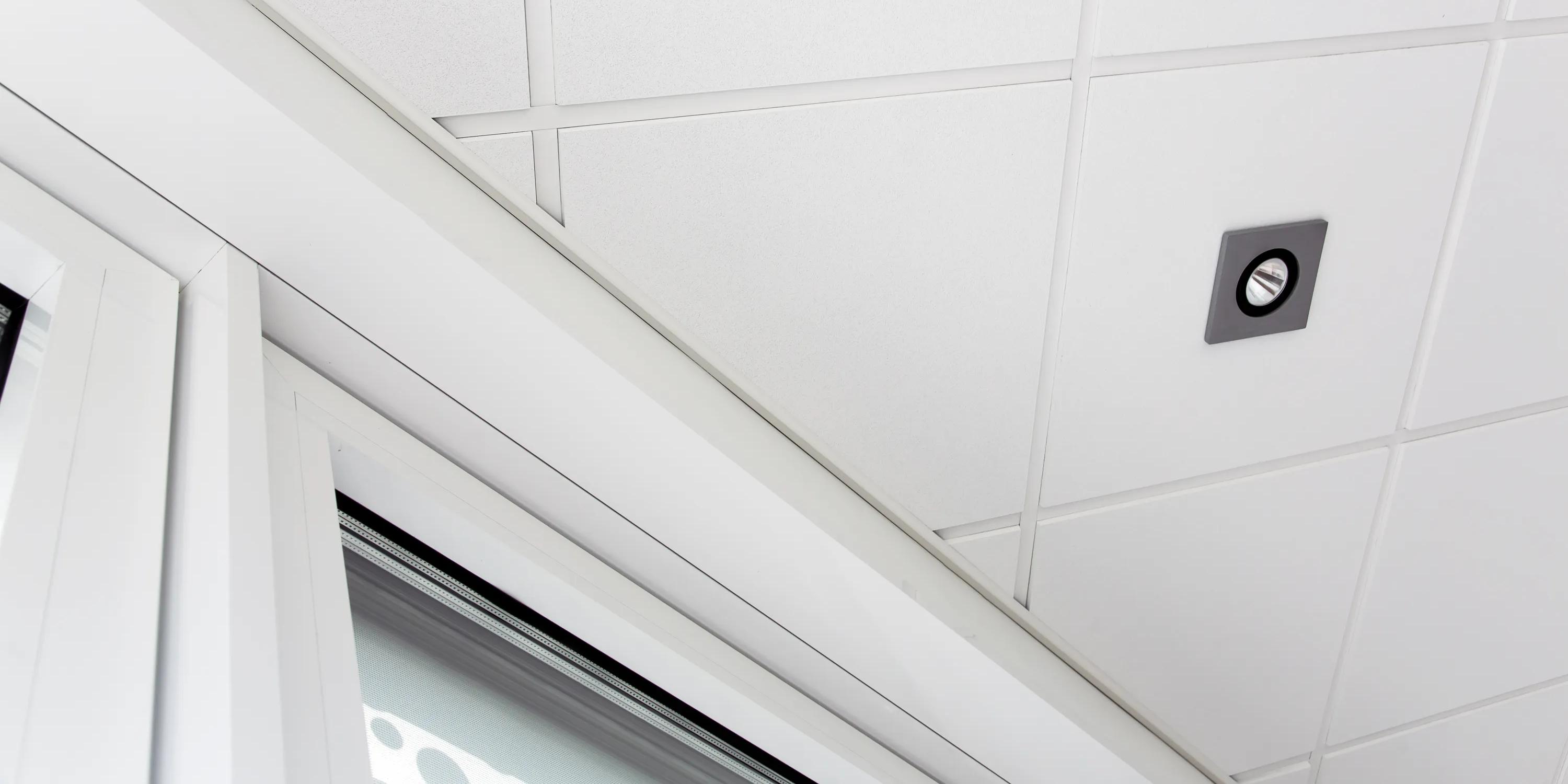

Wide range of dimensions in concealed, semi-concealed and visible grid options
Light weight sound insulating tile, easy to install and clean with a vacuum or damp cloth

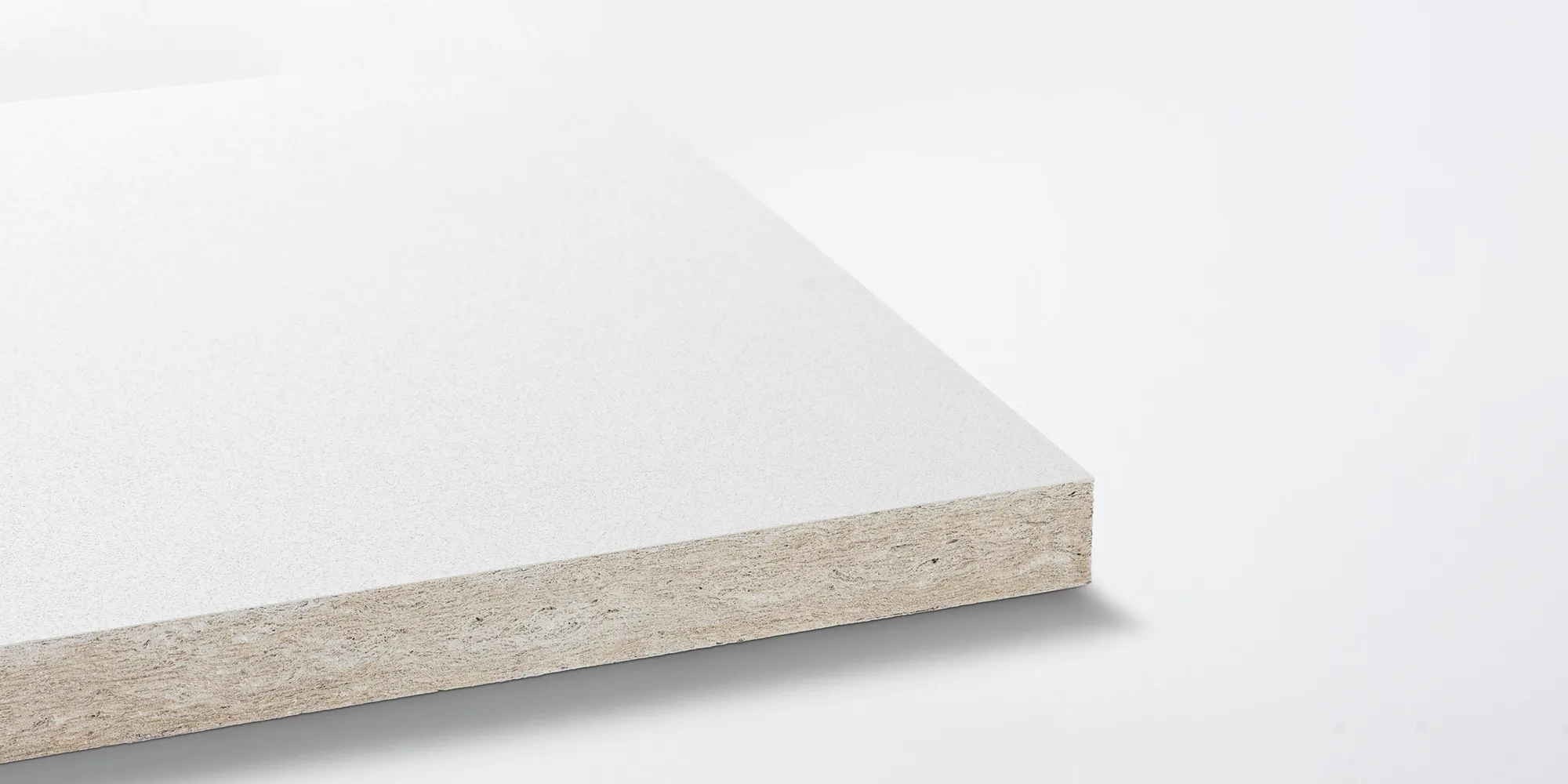

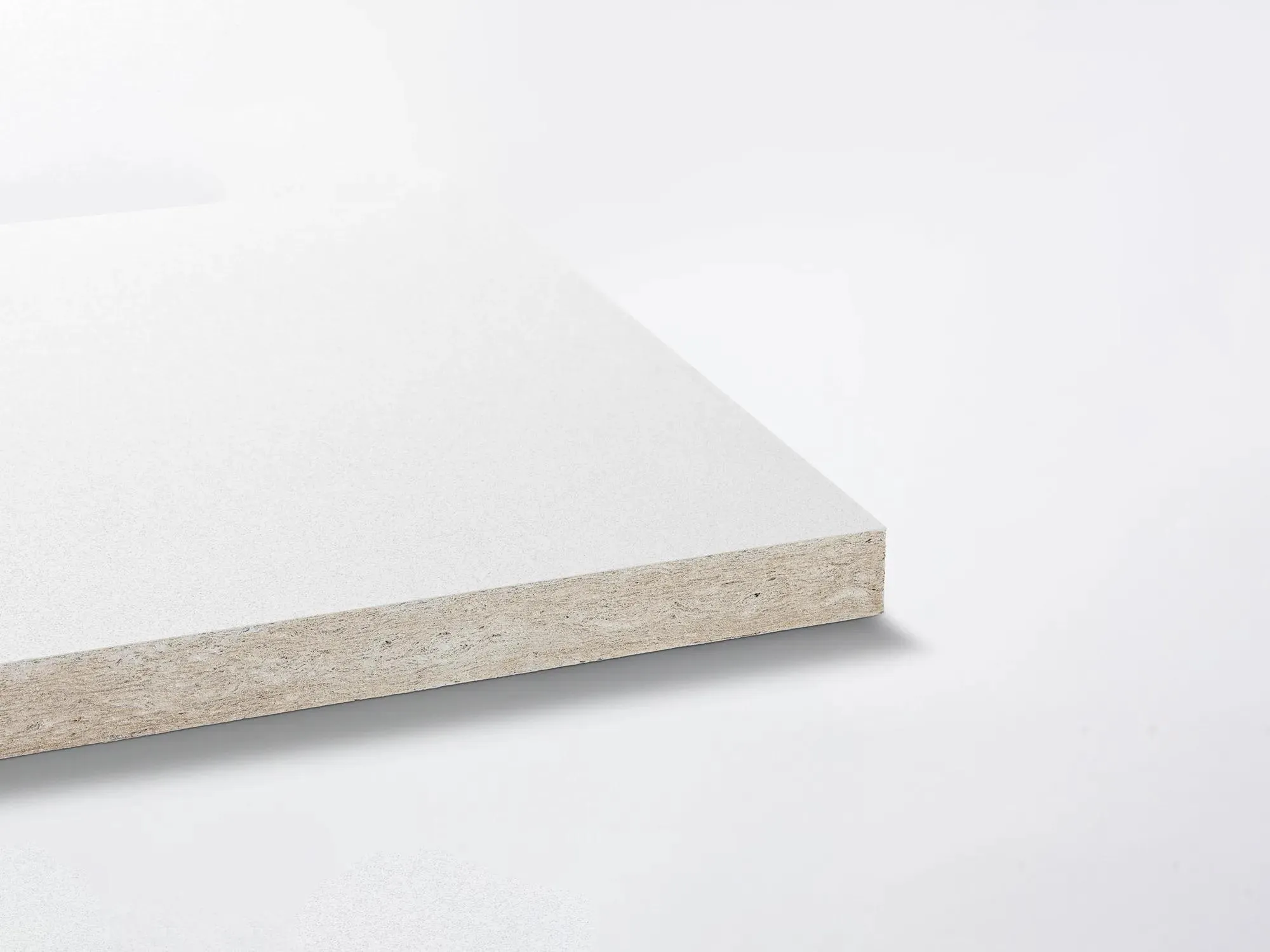

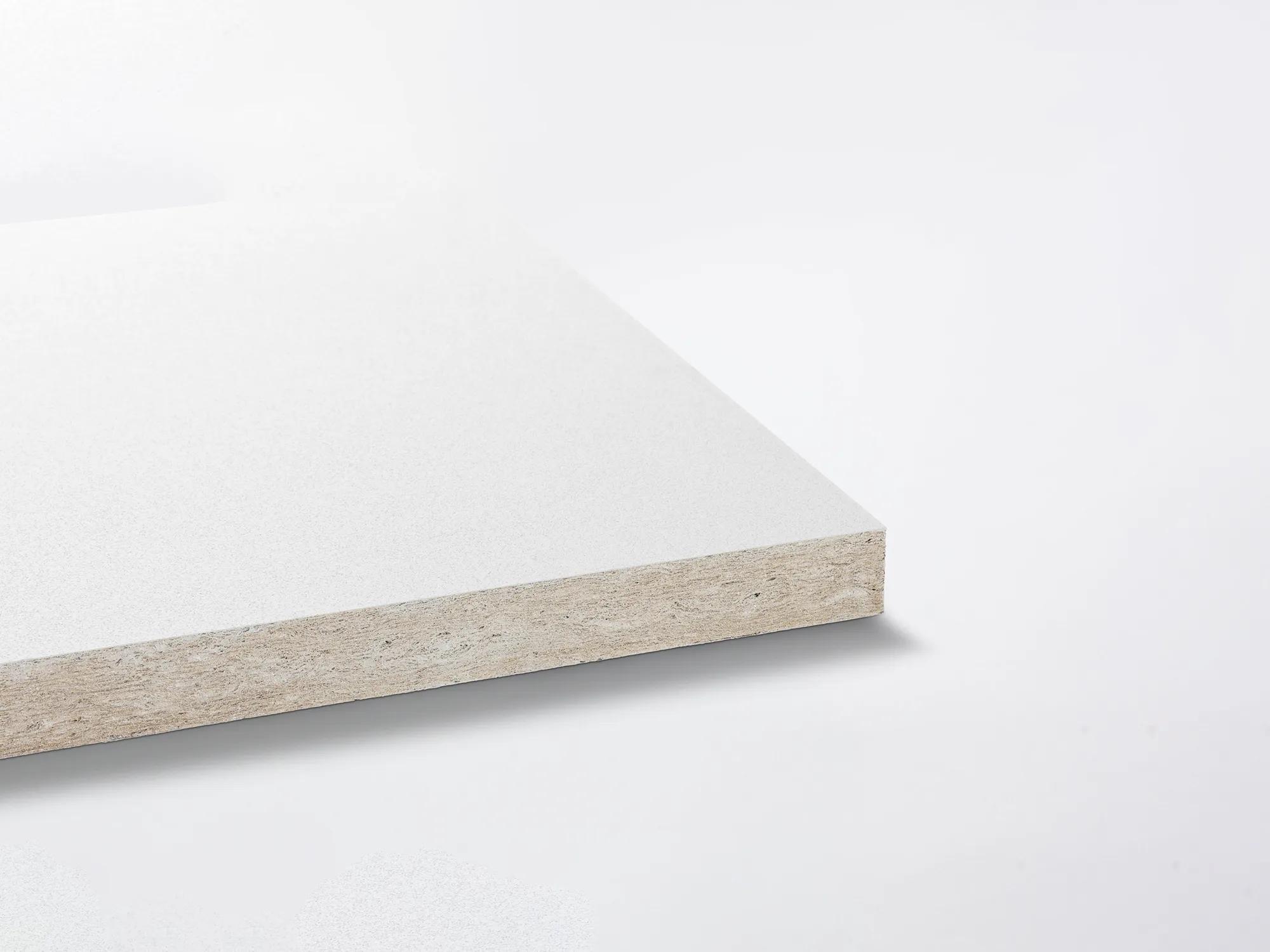

Dual layer stone wool tile with inner high performance membrane
Visible side: micro-textured white painted fleece
Rear side: back fleece

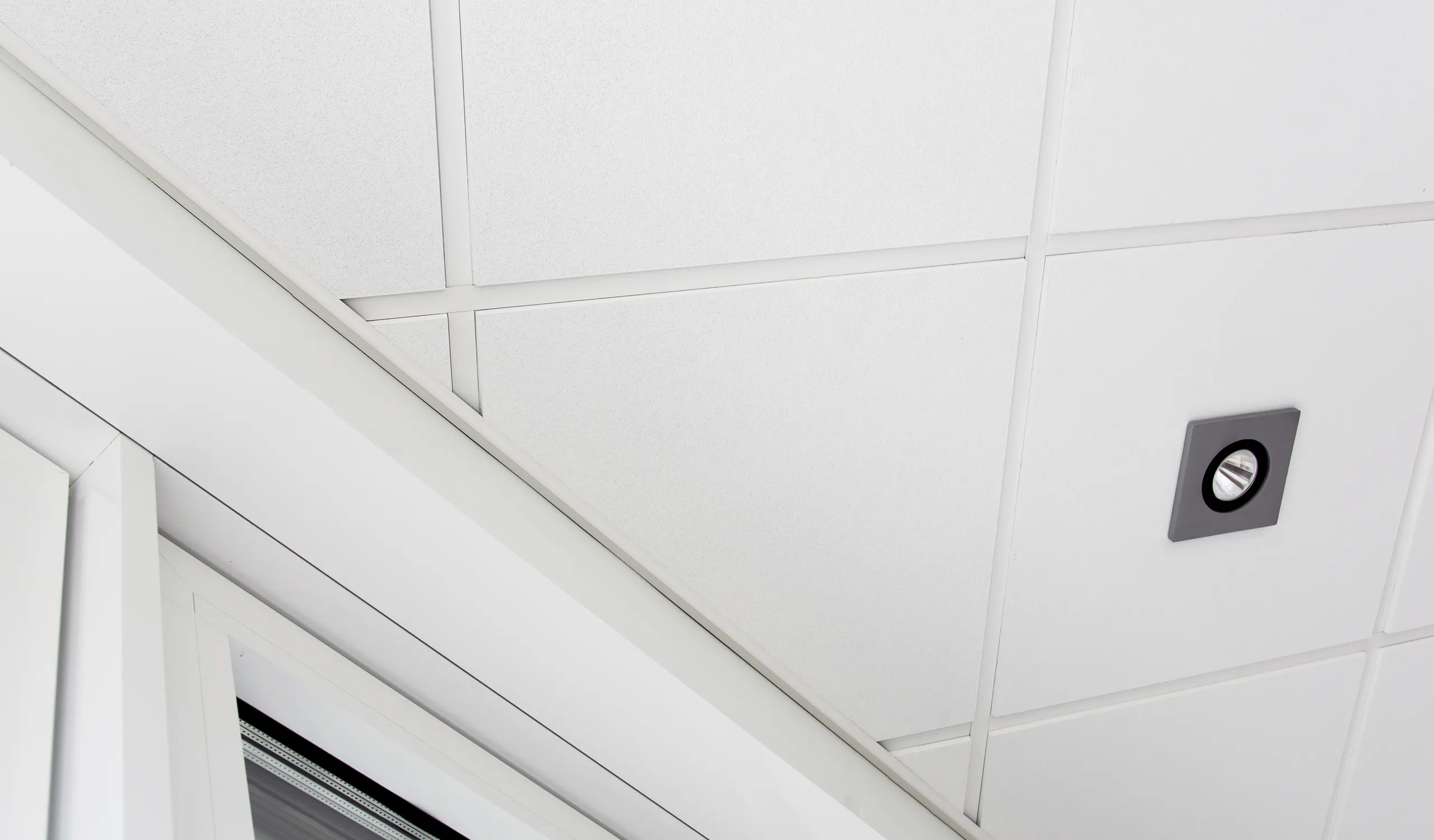

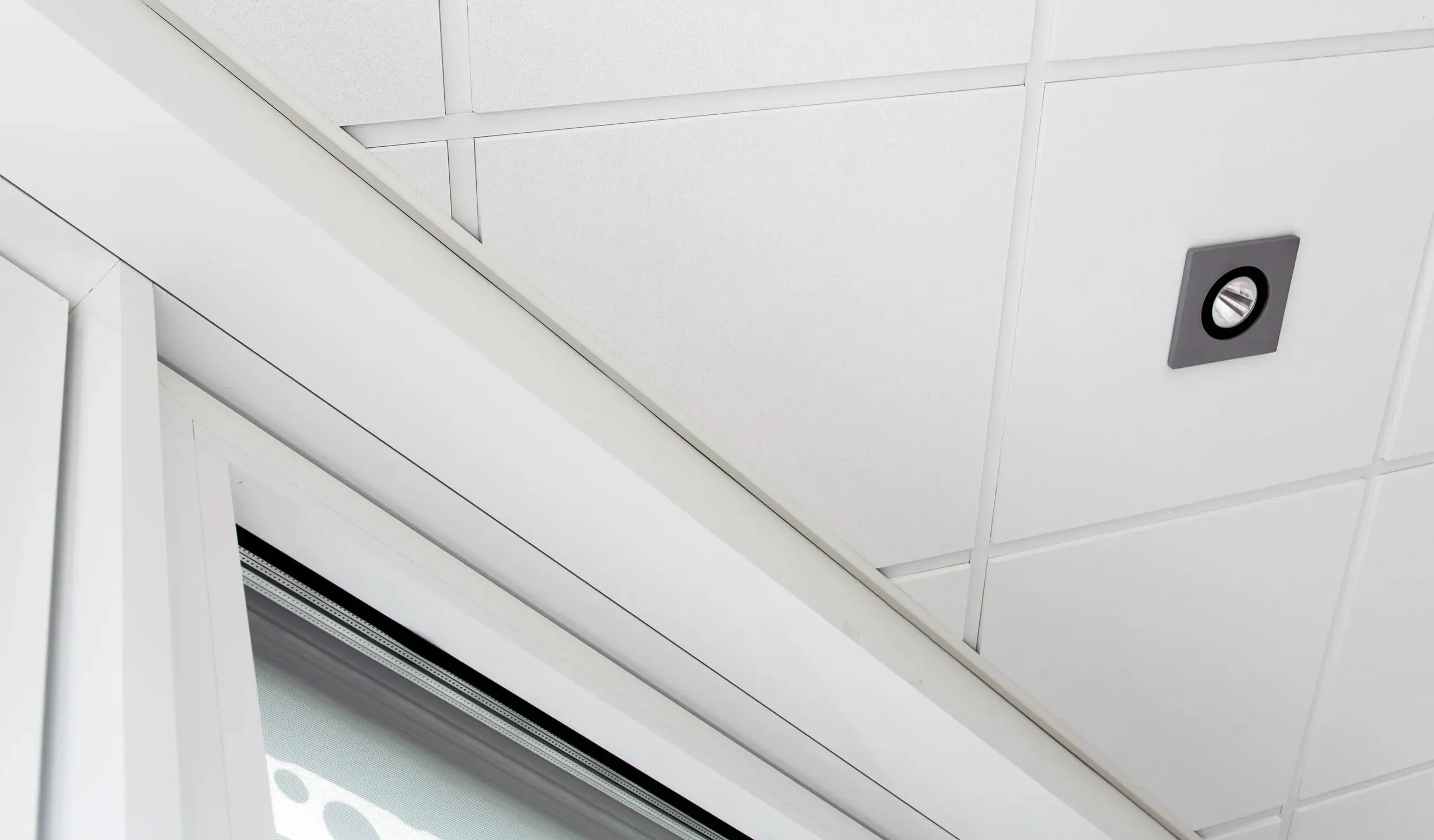

Durable painted edges

Color

White

ColorWhite
Color GroupWhites
NCSNCS S 0500-N
Light reflection85

Order Sample

Quantity:
1

Edge

Select an edge
Select an edge
A24
E24

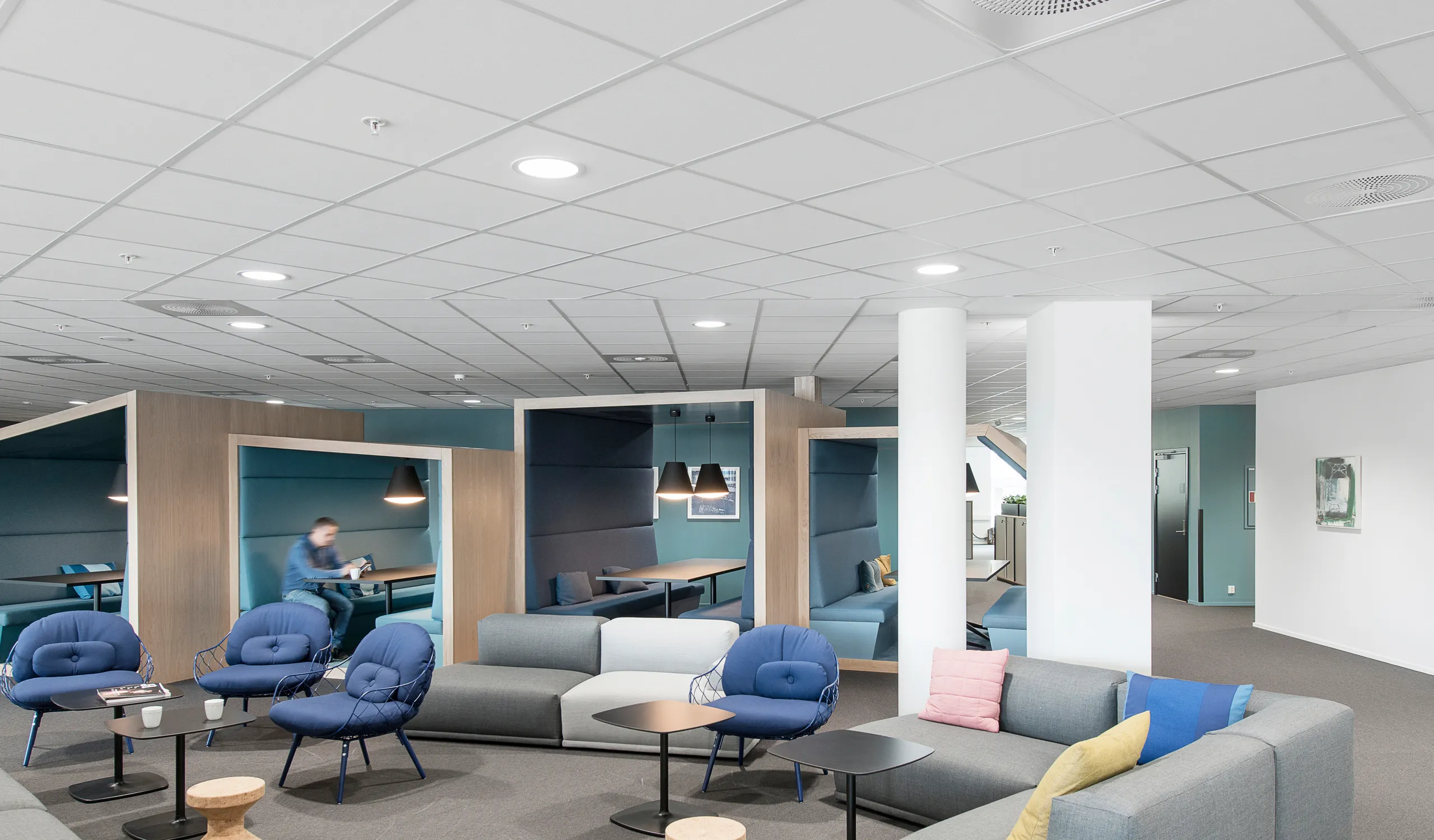

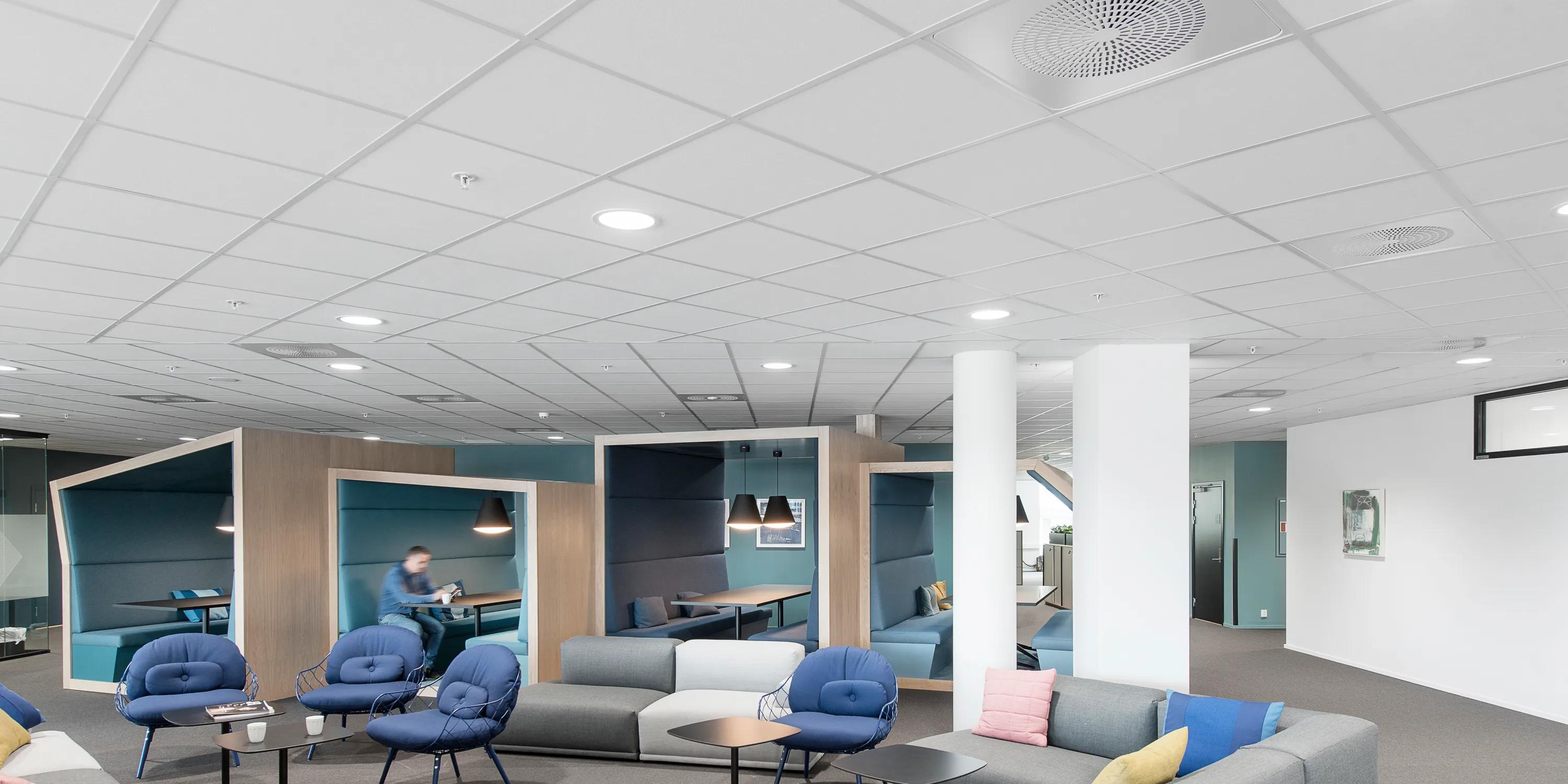

Recommended application areas

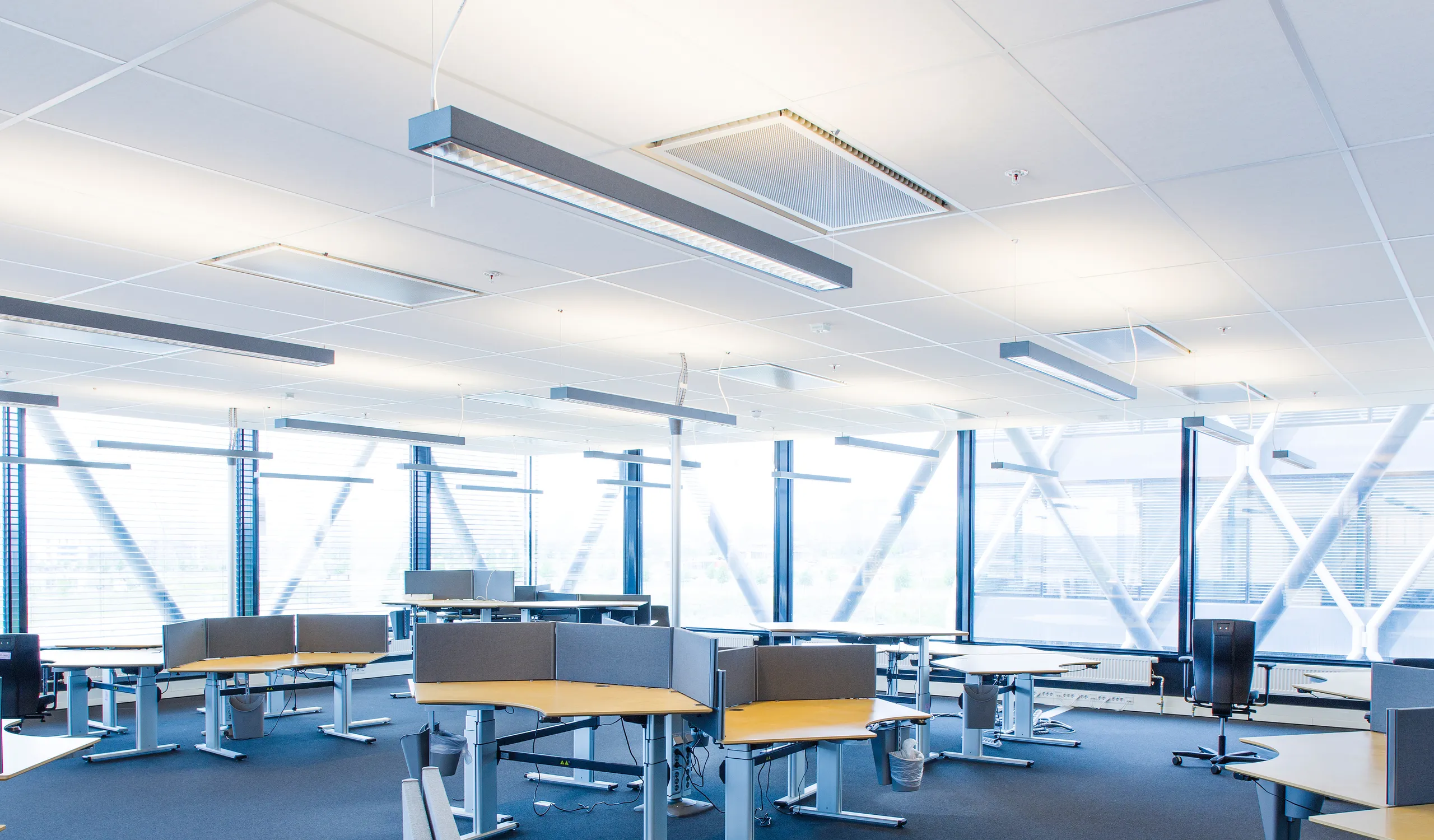

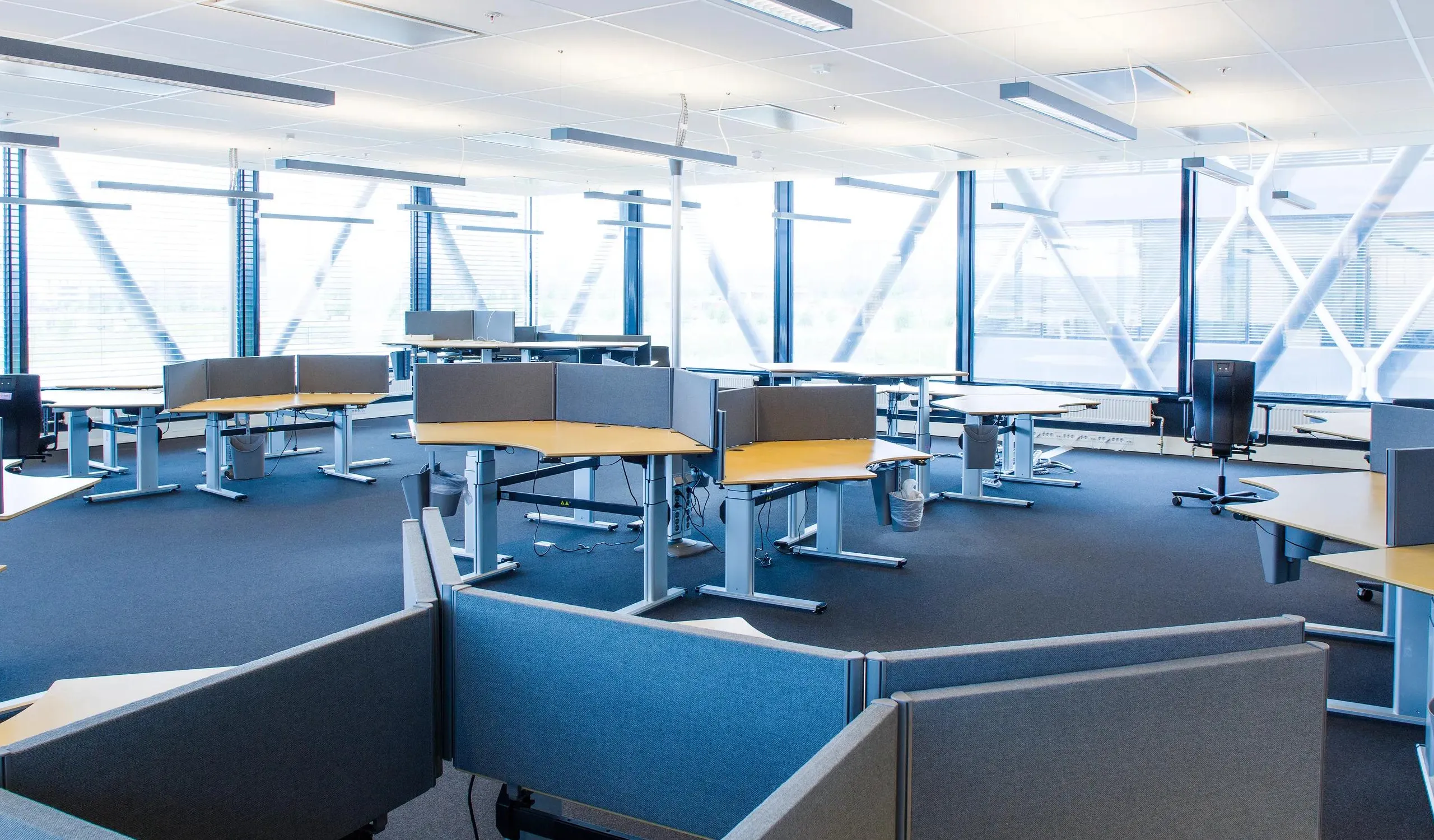

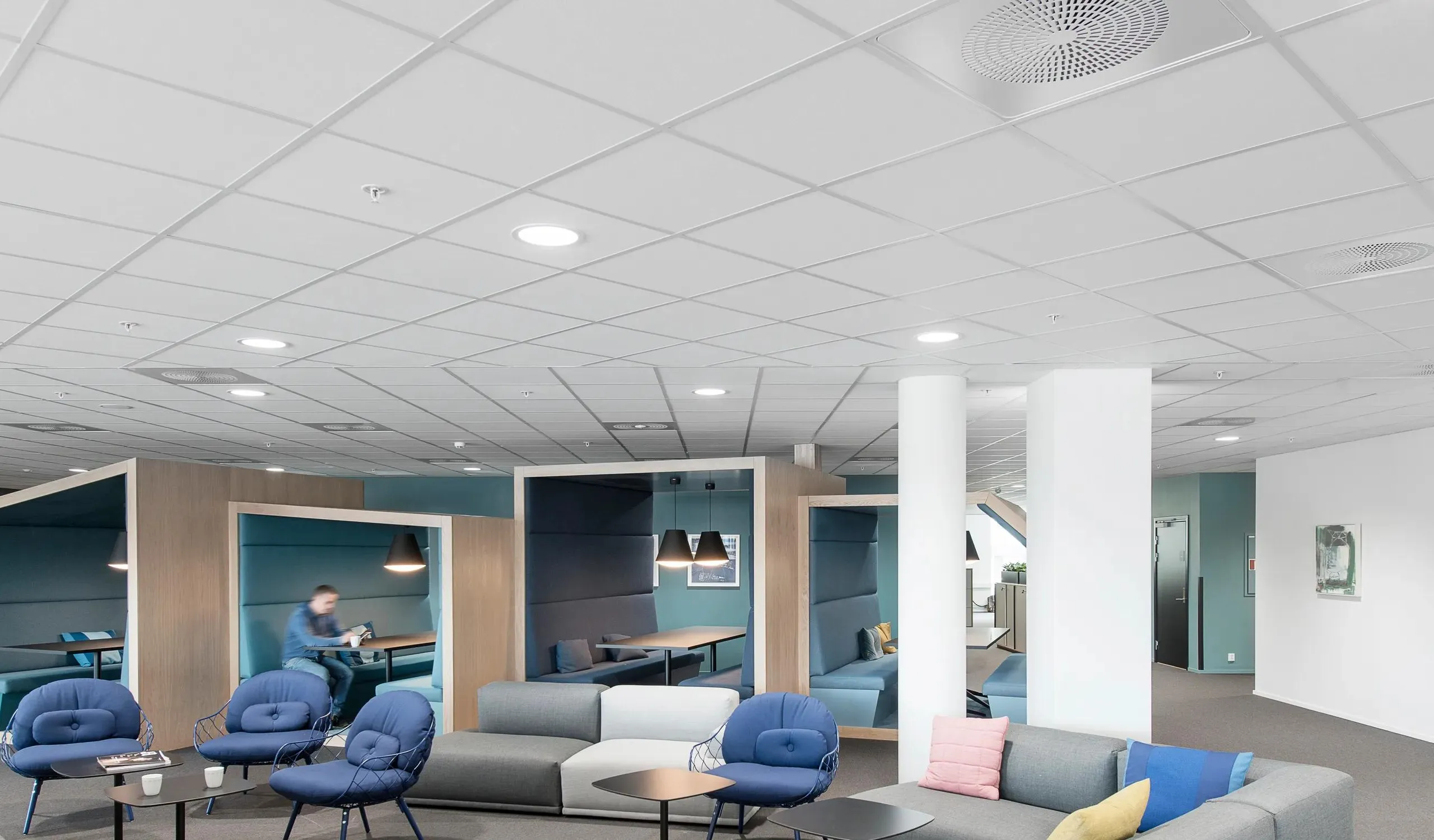

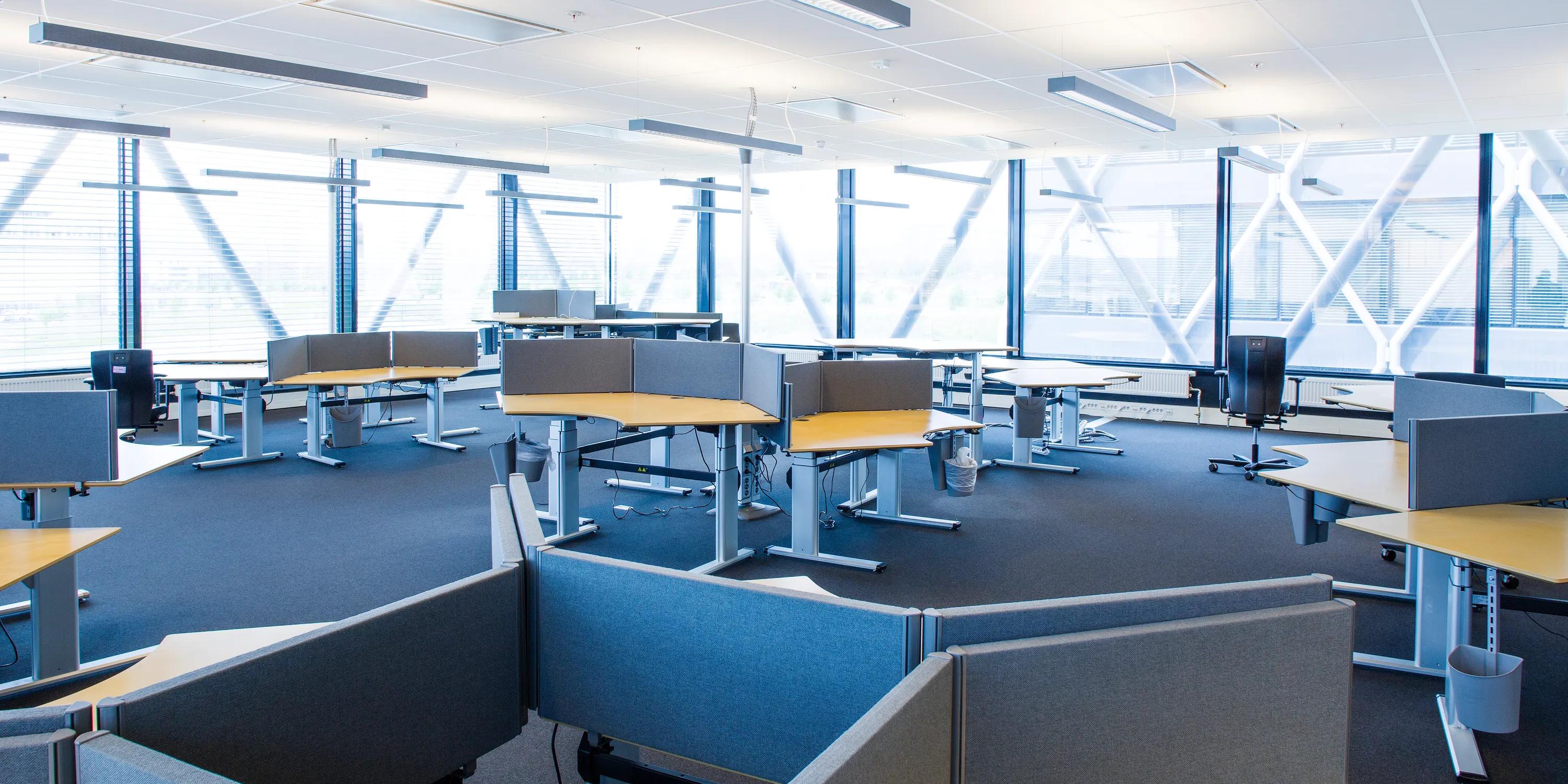

Office

Cellular Office

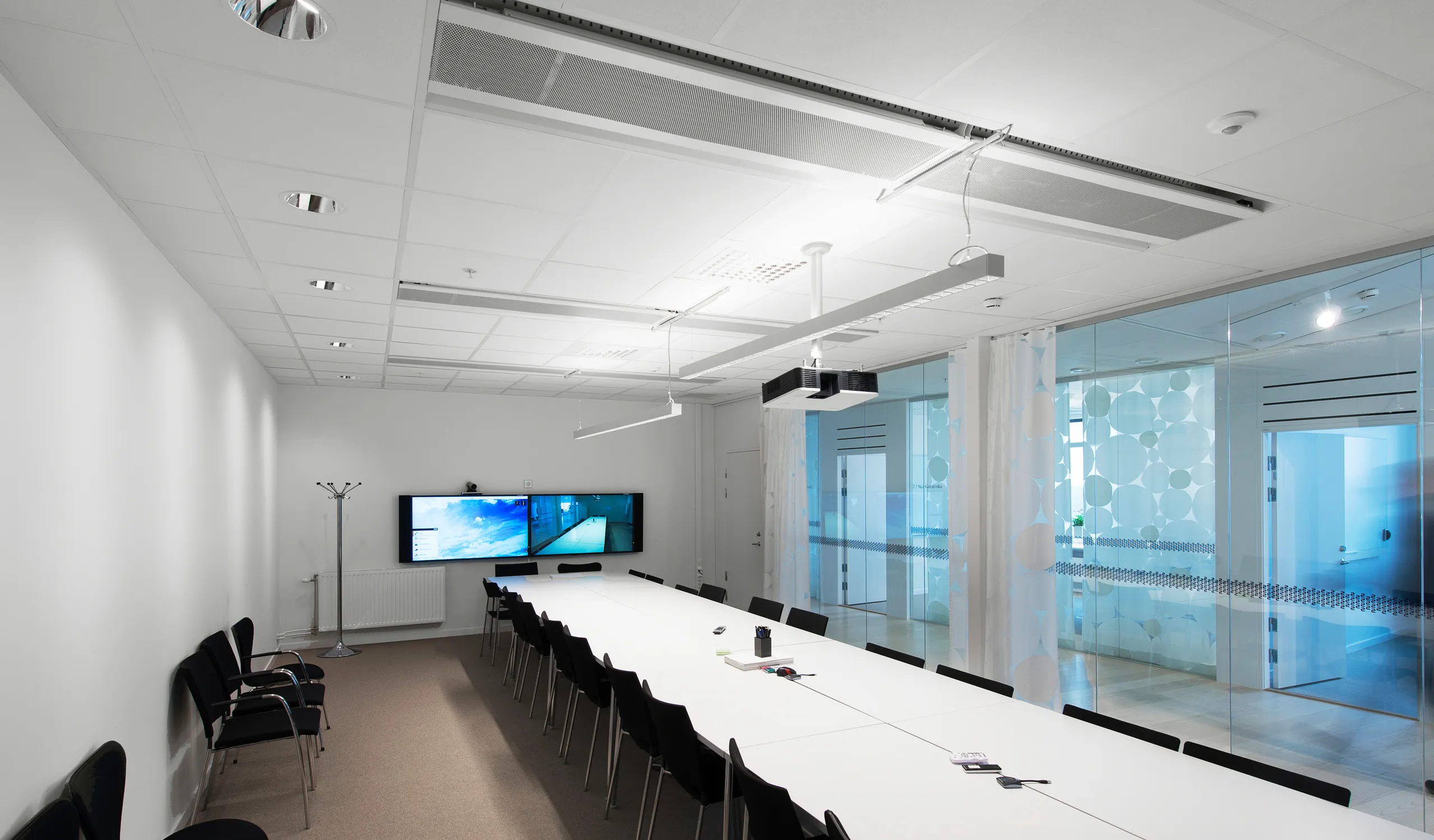

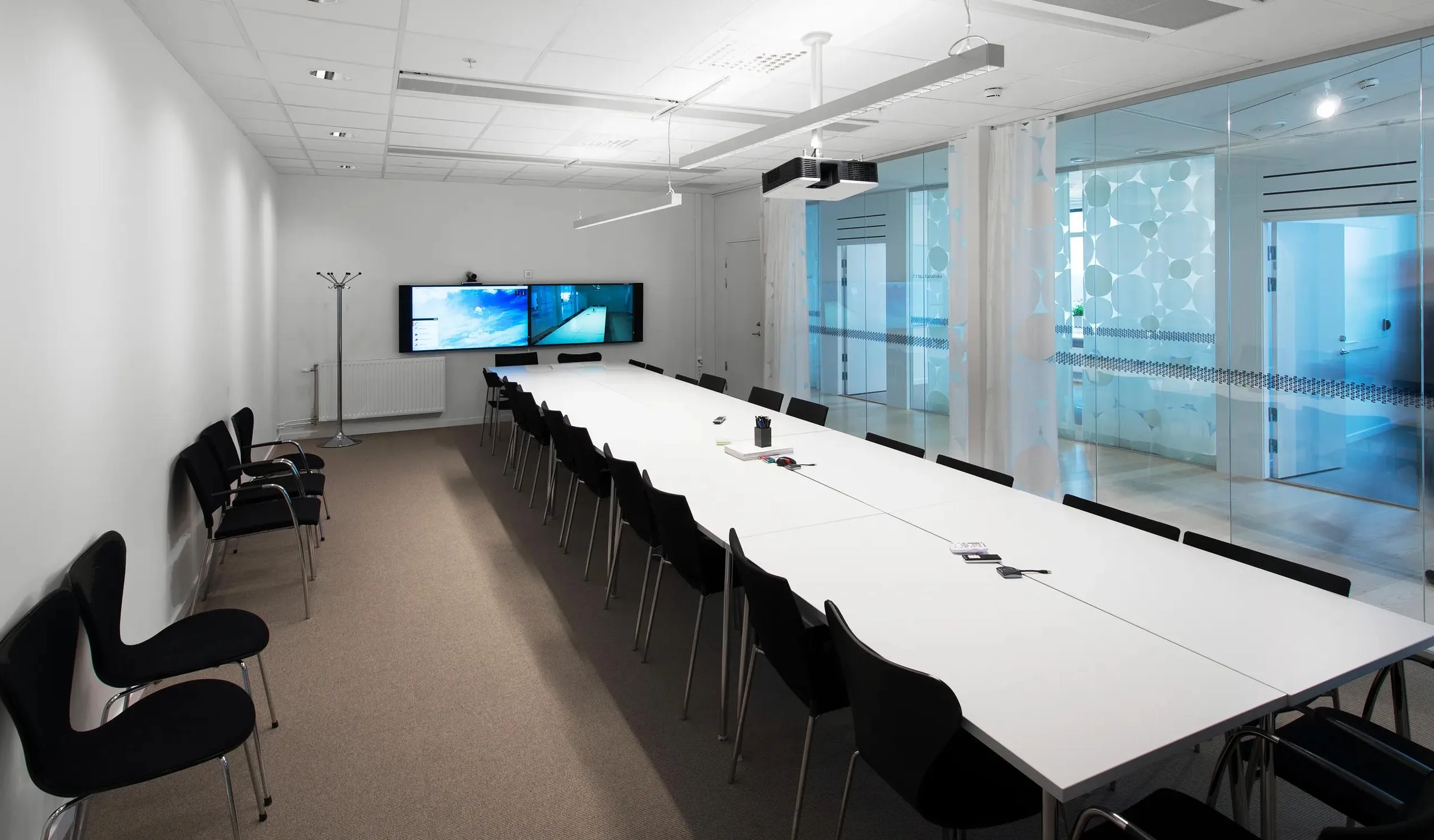

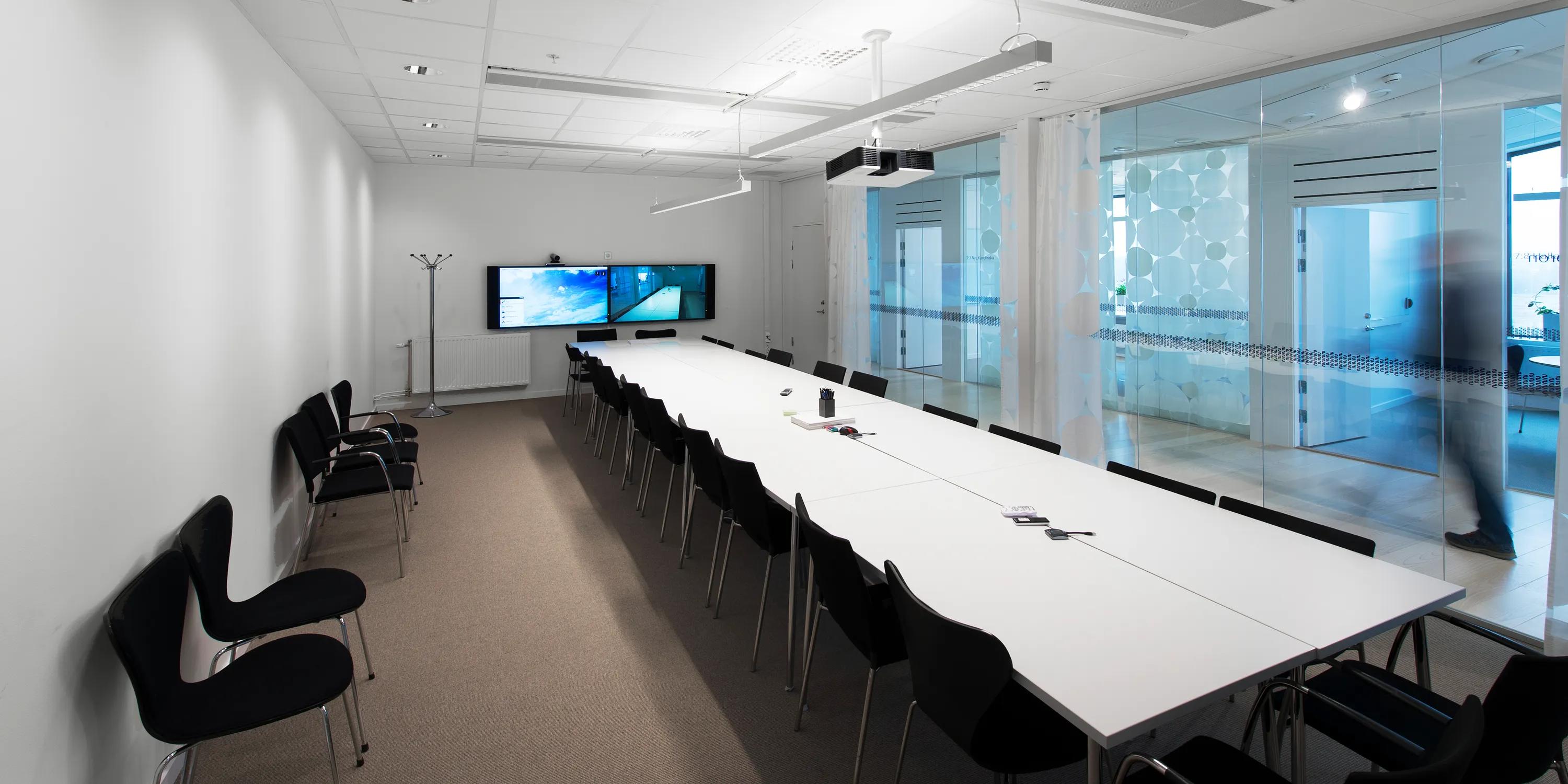

Meeting Room

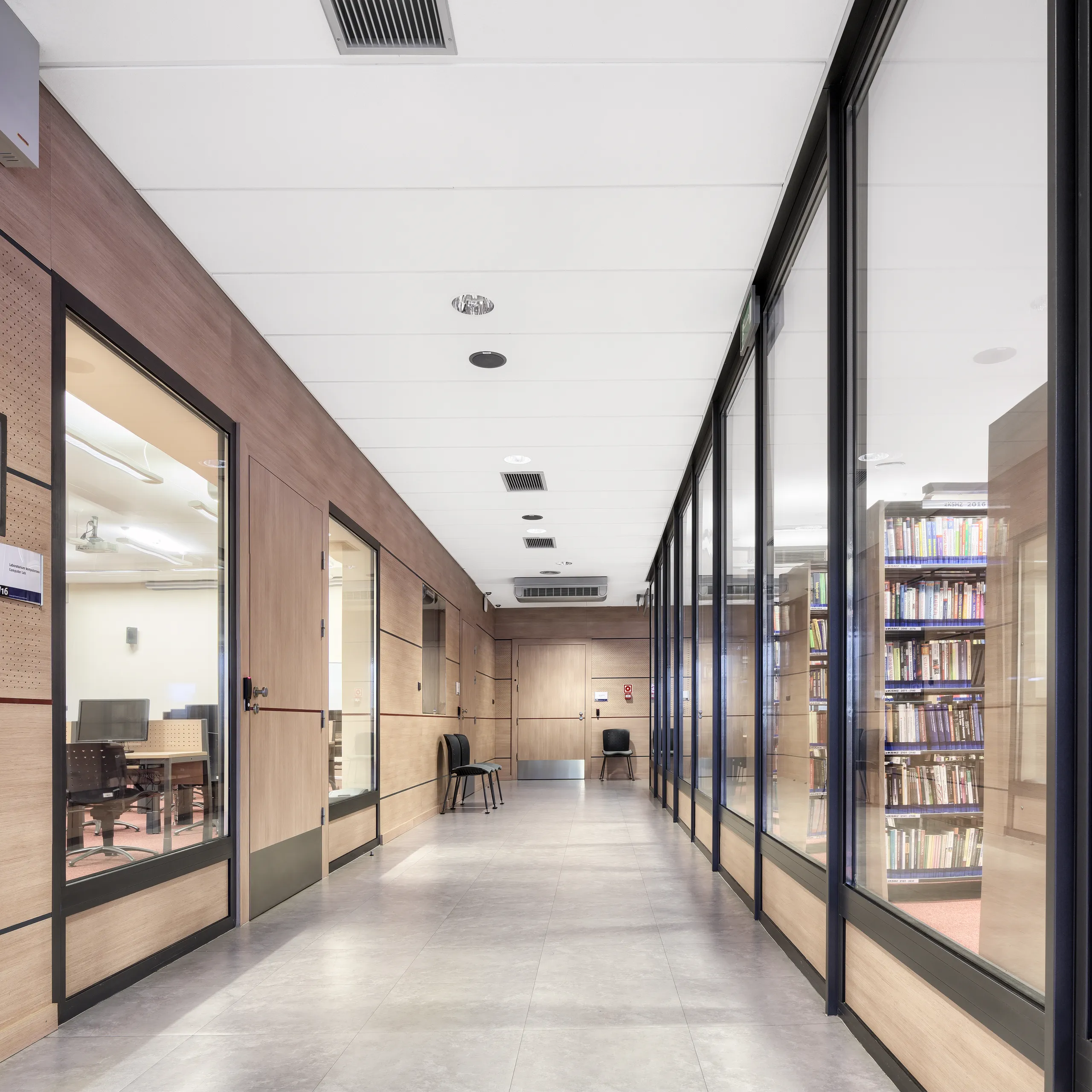

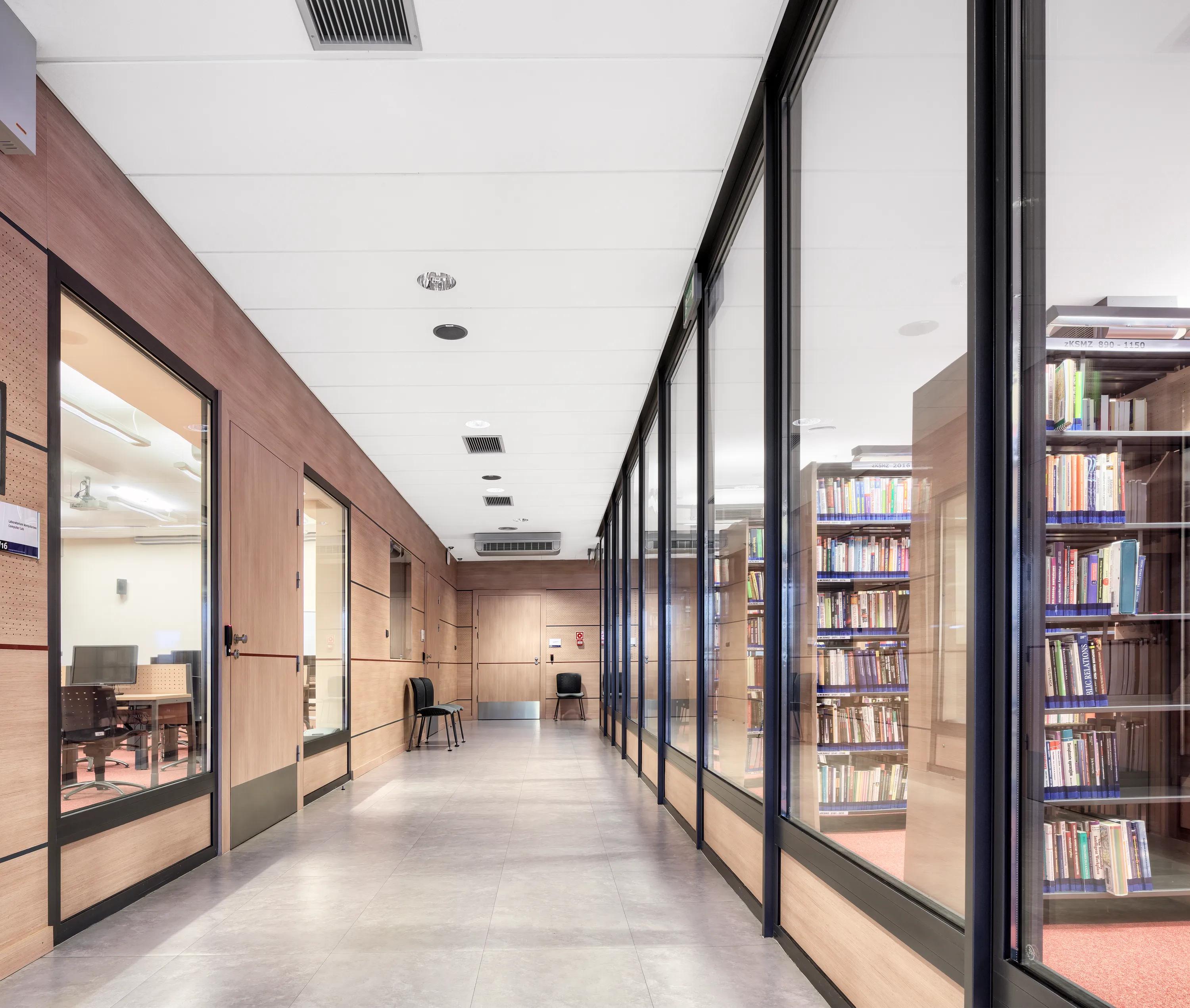

Corridor

Education

Classroom
Library
Music Room
Corridor

Healthcare

Consulting Room
Laboratory
Treatment Room
Corridor

Back

Sound absorption details

Practical Sound Absorption Coefficient (αp)
Edge Thickness Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz Sound absorption class αw NRC
A24, D, E15, E24 50mm 200mm 0.40 0.65 0.90 1.00 1.00 1.00 A 0.90 0.90

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve

Other performances

Compare
Room To Room Sound Insulation Room To Room Sound Insulation Dn,f,w = 46
Room-to-room sound insulation Dn,f,w (C;Ctr) is measured in accordance with ISO 10848-2.
Direct Sound Insulation Direct Sound Insulation Rw = 25
Sound reduction index Rw (C;Ctr) is measured in accordance with ISO 140-3.
Reaction To Fire Reaction To Fire A2-s1,d0 (EN 13501-1)
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion 85%
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH.
No visible deflection in high humidity.
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Cleaning Cleaning Vacuum, Damp cloth, Chemical resistance: resistant to diluted solutions of ammonia, chlorine and hydrogen peroxide
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Environment Environment Fully recyclable stone wool
Indoor Environment Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Thermal Insulation Thermal Insulation Thermal conductivity: λD = 40 mW/mK
Thermal resistance: R = 1,25 m2K/W
The thermal conductivity of products with a thickness ≥ 30mm is measured in accordance with EN 12667 and expressed in mW/mK. Thermal resistance is expressed in m²K/W.
Back
Room-to-room sound insulation Dn,f,w (C;Ctr) is measured in accordance with ISO 10848-2.
Back
Sound reduction index Rw (C;Ctr) is measured in accordance with ISO 140-3.
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Back
Back
Back
The thermal conductivity of products with a thickness ≥ 30mm is measured in accordance with EN 12667 and expressed in mW/mK. Thermal resistance is expressed in m²K/W.
Back

Full range

Edge Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
A24 1200 x 600 50 7.90 0

Sound absorption details

αw 0.90
NRC 0.90
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 4
Area Per Pack 2.88 m2
A24 600 x 600 50 7.90 0

Sound absorption details

αw 0.90
NRC 0.90
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 8
Area Per Pack 2.88 m2
D 600 x 600 50 7.90 0

Sound absorption details

αw 0.90
NRC 0.90
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 4
Area Per Pack 1.44 m2
E15 1200 x 600 50 7.90 0

Sound absorption details

αw 0.90
NRC 0.90
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 4
Area Per Pack 2.88 m2
E15 600 x 600 50 7.90 0

Sound absorption details

αw 0.90
NRC 0.90
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 4
Area Per Pack 1.44 m2
E24 1200 x 600 50 7.90 0

Sound absorption details

αw 0.90
NRC 0.90
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 4
Area Per Pack 2.88 m2
E24 600 x 600 50 7.90 0

Sound absorption details

αw 0.90
NRC 0.90
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 4
Area Per Pack 1.44 m2
Back

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 4
Area Per Pack 2.88 m2
Back

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 8
Area Per Pack 2.88 m2
Back

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 4
Area Per Pack 1.44 m2
Back

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 4
Area Per Pack 2.88 m2
Back

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 4
Area Per Pack 1.44 m2
Back

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 4
Area Per Pack 2.88 m2
Back

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 4
Area Per Pack 1.44 m2
Back
