Rockfon® Mono® Acoustic

Perfect for ceilings and walls, the innovative monolithic surface delivers outstanding acoustic comfort and fire protection
Order Sample
Back

Color

White - Elegant render

ColorWhite - Elegant render
Color GroupWhites
Light reflection87

Order Sample

Quantity:
1

Edge

Select an edge
Select an edge

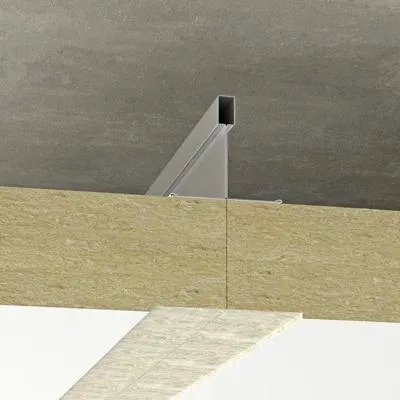

TE Elegant Render
;

Case studies featuring Rockfon® Mono® Acoustic

Corridor in Kipinä in Hyvinkää Finland with Rockfon Mono Acoustic

Project: Kipinä High School, Hyvinkää, Finland

See full project
Corridor in Kipinä in Hyvinkää Finland with Rockfon Mono Acoustic

Project: Kipinä High School, Hyvinkää, Finland

See full project
Corridor in Kipinä in Hyvinkää Finland with Rockfon Mono Acoustic

Project: Kipinä High School, Hyvinkää, Finland

See full project
SDU Det Teknologiske fakultet,DK,Odense,C. F. Møller A/S,Bygningsstyrelsen,Svend Christensen,ROCKFON Mono Acoustic

Project: University of Southern Denmark

See full project
SDU Det Teknologiske fakultet,DK,Odense,C. F. Møller A/S,Bygningsstyrelsen,Svend Christensen,ROCKFON Mono Acoustic

Project: University of Southern Denmark

See full project
FR, Headquarters L'Oréal Paris, 92300 Levallois-Perret (Paris), Office, Rockfon Mono Acoustic, TE edge, White, Canteen

Project: Headquarters L'Oréal Paris
Edge & dimension: TE Elegant Render, 1200 x 1200

See full project
FR, Headquarters L'Oréal Paris, 92300 Levallois-Perret (Paris), Office, Rockfon Mono Acoustic, TE edge, White, Canteen

Project: Headquarters L'Oréal Paris
Edge & dimension: TE Elegant Render, 1200 x 1200

See full project
FR, Headquarters L'Oréal Paris, 92300 Levallois-Perret (Paris), Office, Rockfon Mono Acoustic, TE edge, White, Open Plan Office

Project: Headquarters L'Oréal Paris
Edge & dimension: TE Elegant Render, 1200 x 1200

See full project
UK, Southampton Football Club, Southampton, KSS, Leisure, Rockfon Mono Acoustic 79mm Elegant Render, White

Project: Southampton FC

See full project
UK, Southampton Football Club, Southampton, KSS, Leisure, Rockfon Mono Acoustic 79mm Elegant Render, White

Project: Southampton FC
Edge & dimension: 1200 x 1200

See full project
Comedie Francaise, Mono Flecto, leisure cafe

Project: La Comédie-Française
Edge & dimension: Flecto TE Elegant Render, 1200 x 1200

See full project
Comedie Francaise, Mono Flecto, leisure cafe

Project: La Comédie-Française
Edge & dimension: Flecto TE Elegant Render, 1200 x 1200

See full project
Comedie Francaise, Mono Flecto, leisure cafe

Project: La Comédie-Française
Edge & dimension: Flecto TE Elegant Render, 1200 x 1200

See full project
DK, Vejen Rådhus, Vejen, Transform-Pluskontoret-Rambøll, Office, Reception, Rockfon Mono Acoustic, white

Project: Vejen Rådhus

See full project
DK, Vejen Rådhus, Vejen, Transform-Pluskontoret-Rambøll, Office, Open Plan Office, Rockfon Mono Acoustic, white

Project: Vejen Rådhus

See full project
DK, Vejen Rådhus, Vejen, Transform-Pluskontoret-Rambøll, Office, Open Plan Office, Rockfon Mono Acoustic, white

Project: Vejen Rådhus

See full project
UK, Bewley's Café,  Gilligan Architects, Retail, Restaurant, Rockfon Mono Acoustic, Elegant render, 1800x1200, white

Project: Bewley’s Grafton Street, Dublin

See full project
UK, Bewley's Café,  Gilligan Architects, Retail, Restaurant, Rockfon Mono Acoustic, Elegant render, 1800x1200, white

Project: Bewley’s Grafton Street, Dublin

See full project
UK, Bewley's Café,  Gilligan Architects, Retail, Restaurant, Rockfon Mono Acoustic, Elegant render, 1800x1200, white

Project: Bewley’s Grafton Street, Dublin

See full project
FI, Chydenia, Helsinki, Innovarch Oy, Education, Rockfon Mono Acoustic, Seamless, white, corridor

Project: Chydenia

See full project
FI, Chydenia, Helsinki, Innovarch Oy, Education, Rockfon Mono Acoustic, Seamless, white, corridor

Project: Chydenia

See full project
FI, Chydenia, Helsinki, Innovarch Oy, Education, Rockfon Mono Acoustic, Seamless, white, corridor

Project: Chydenia

See full project
BE, Creagora Namur, Namur, Atelier 4D & Atelier d'Architecture Ad'A, Office, Canteen, Rockfon Mono Acoustic, Seamless, Rockfon Krios, A-edge, E-edge, Chicago Metallic Monolithic, white

Project: Créagora

See full project
BE, Creagora Namur, Namur, Atelier 4D & Atelier d'Architecture Ad'A, Office, Canteen, Rockfon Mono Acoustic, Seamless, Rockfon Krios, A-edge, E-edge, Chicago Metallic Monolithic, white

Project: Créagora

See full project
BE, Creagora Namur, Namur, Atelier 4D & Atelier d'Architecture Ad'A, Office, Reception, Rockfon Mono Acoustic, Seamless, white

Project: Créagora

See full project
Boutique Vorwerk in Lyon France with Rockfon Mono Acoustic white

Project: Boutique Vorwerk
Edge & dimension: TE Elegant Render

See full project
Boutique Vorwerk in Lyon France with Rockfon Mono Acoustic white

Project: Boutique Vorwerk
Edge & dimension: TE Elegant Render

See full project
Boutique Vorwerk in Lyon France with Rockfon Mono Acoustic white

Project: Boutique Vorwerk
Edge & dimension: TE Elegant Render

See full project
Back

Sound absorption details

Practical Sound Absorption Coefficient (αp)
Edge Thickness Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz Sound absorption class αw NRC
TE Elegant Render 40mm 200mm 0,50 0,65 0,85 0,95 1,00 1,00 A 0,90 0,90

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve

Other performances

Compare
Direct Sound Insulation Direct Sound Insulation Rw = 22
Sound reduction index Rw (C;Ctr) is measured in accordance with ISO 140-3.
Reaction To Fire Reaction To Fire A2-s1,d0
Reaction to fire is classified in accordance with EN 13501-1.
Fire Resistance Fire Resistance Rockfon Mono Acoustic achieves up to 60 min. in accordance with European test standards and national approvals.
Please contact Rockfon for fire resistance documentation.
The stone wool core of ROCKFON products is non-combustible with a melting point of more than 1000°C and provides fire protection. Some ROCKFON ceilings have been tested and classified in accordance with European norm EN 13501-2 and/or national norms.
Light reflection and light diffusion Light reflection and light diffusion 87% light reflection (Elegant Render) >99% light diffusion (Elegant Render)
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Visual Appearance Visual Appearance L value: 94.5 (Elegant Render)
The whiteness (L value) of the product is tested in accordance with ISO 7724 and measured on a scale from 1 (black) to 100 (white).
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH.
No visible deflection in high humidity. There will always be some dust/dirt on the panels after some time, and with regular exposure to high humidity this could lead to fungi growth. Please avoid condensation on the panel
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Cleaning Cleaning Vacuum
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Environment Environment Fully recyclable stone wool
Indoor Environment Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Sound reduction index Rw (C;Ctr) is measured in accordance with ISO 140-3.
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
The stone wool core of ROCKFON products is non-combustible with a melting point of more than 1000°C and provides fire protection. Some ROCKFON ceilings have been tested and classified in accordance with European norm EN 13501-2 and/or national norms.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
The whiteness (L value) of the product is tested in accordance with ISO 7724 and measured on a scale from 1 (black) to 100 (white).
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Back
Back
Back

Full range

Edge Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
Flecto TE Elegant Render 1200 x 900 40 6,00 40

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 40 mm

Packaging

Pieces Per Pack 6
Area Per Pack 6,48 m2
TE Elegant Render 1800 x 1200 40 6,00 0

Sound absorption details

αw 0,90
NRC 0,90
Sound absorption class A
Sound curve
Sound curve

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 4
Area Per Pack 8,64 m2

For this product, module size = exact dimension. Panel weight is stated exclusive of filler and render.
Do not install Rockfon Mono Acoustic where a pressure difference can be created between the front and backside of a Rockfon Mono Acoustic ceiling.
Only available in certain countries.

Back

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 40 mm
Easy access -

Packaging

Pieces Per Pack 6
Area Per Pack 6,48 m2
Back

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 4
Area Per Pack 8,64 m2
