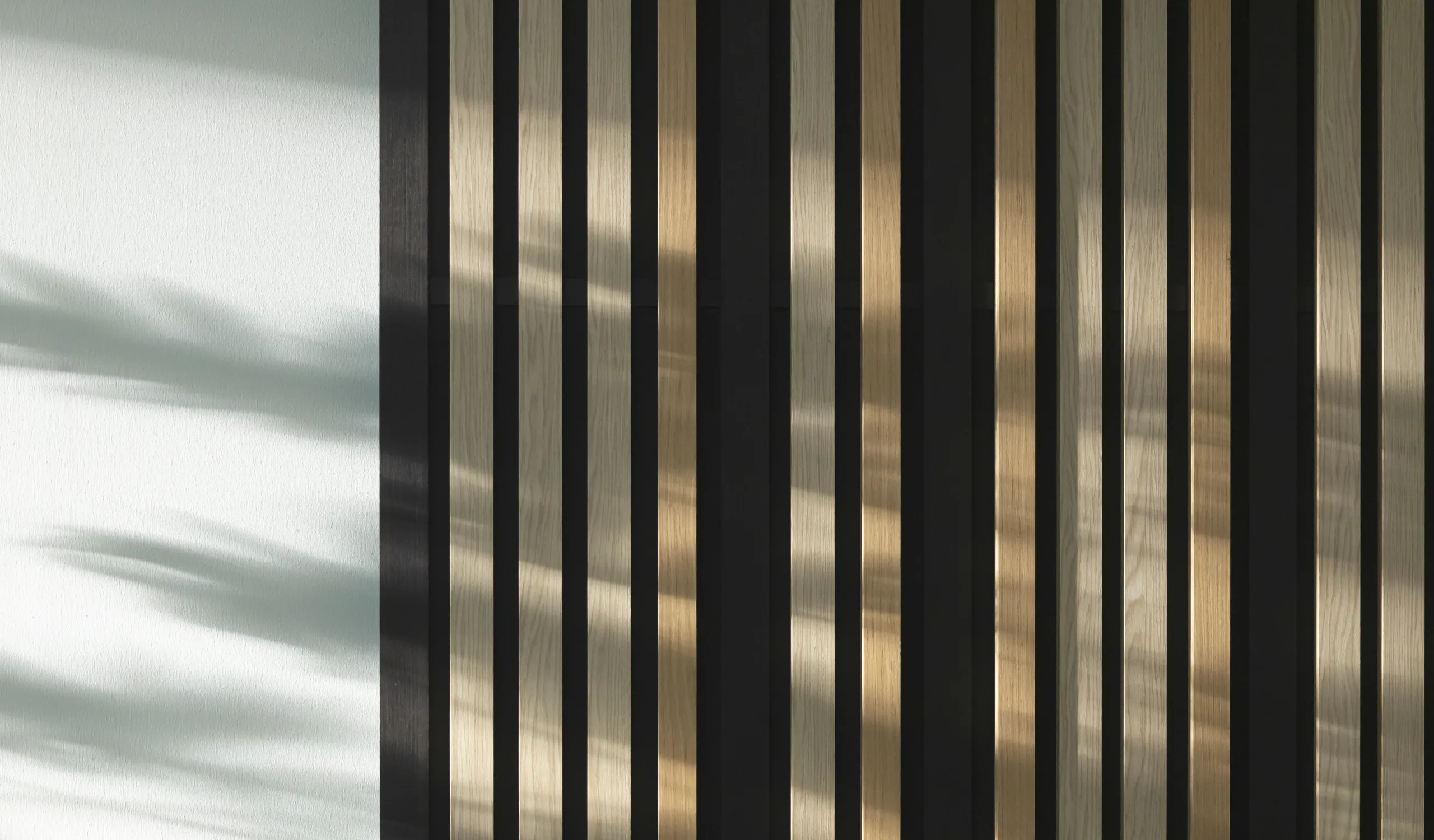

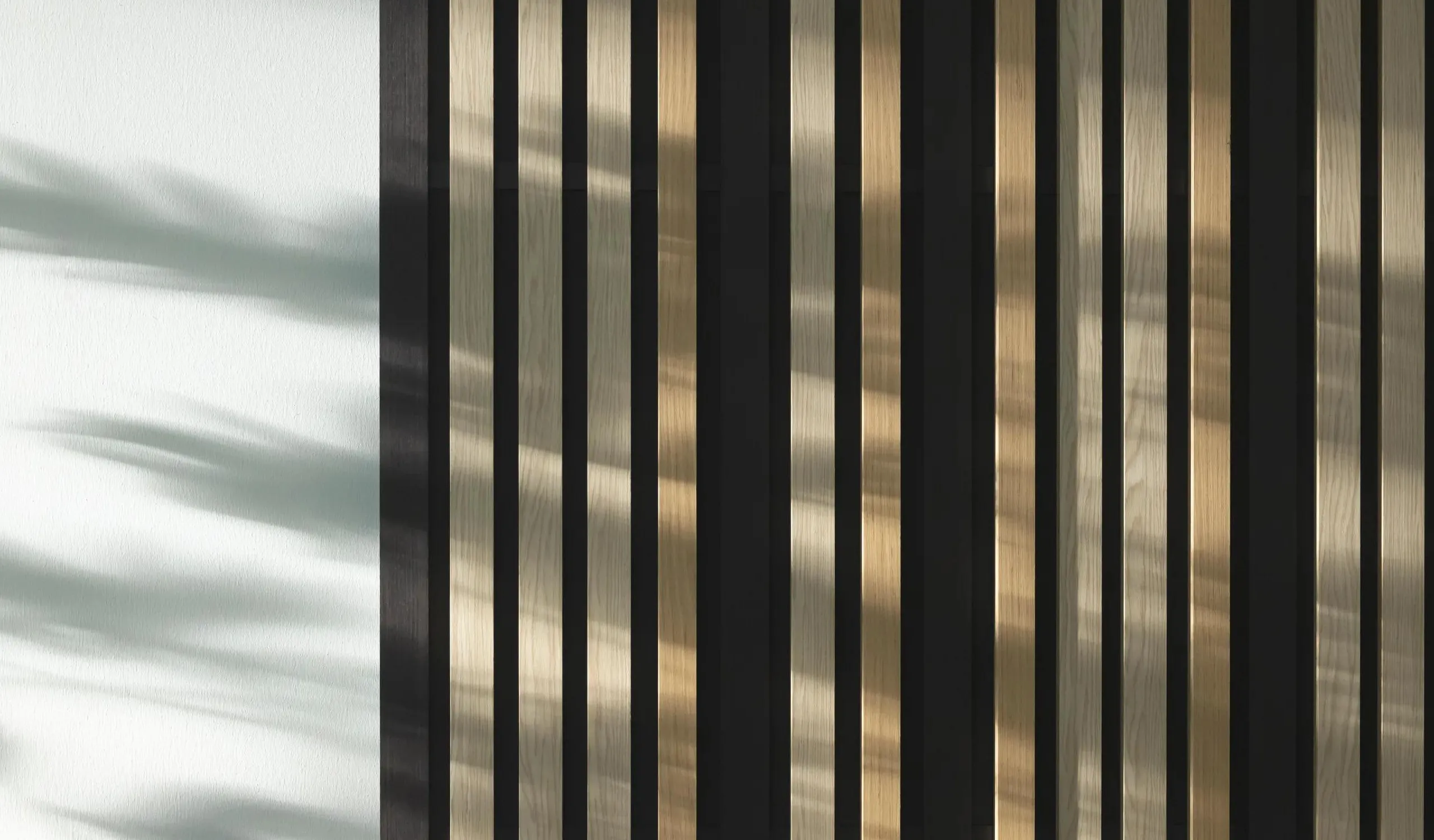

Rockfon® Lamella

The modular acoustic wall system with oak-veneered slats and stone wool sound-absorbing panels, configurable in over 650 000 ways with proprietary clip-based attachment.
Download Datasheet
Download Datasheet
Back
Patented modular platform provides over 650,000 different design possibilities in just one system
Complimentary wood veneers can be combined to create attractive aesthetical expressions
Contrasting lamella widths and profile heights let you experiment with diverse relief patterns and interspacing ideas
Reduction of wall-based reverberation reduces occupant stress levels, improving concentration & performance
Use of natural materials & colours reconnects building occupants with the outside world
Rockfon Lamella unit dimension:
2418mm x 2474mm (W x L)

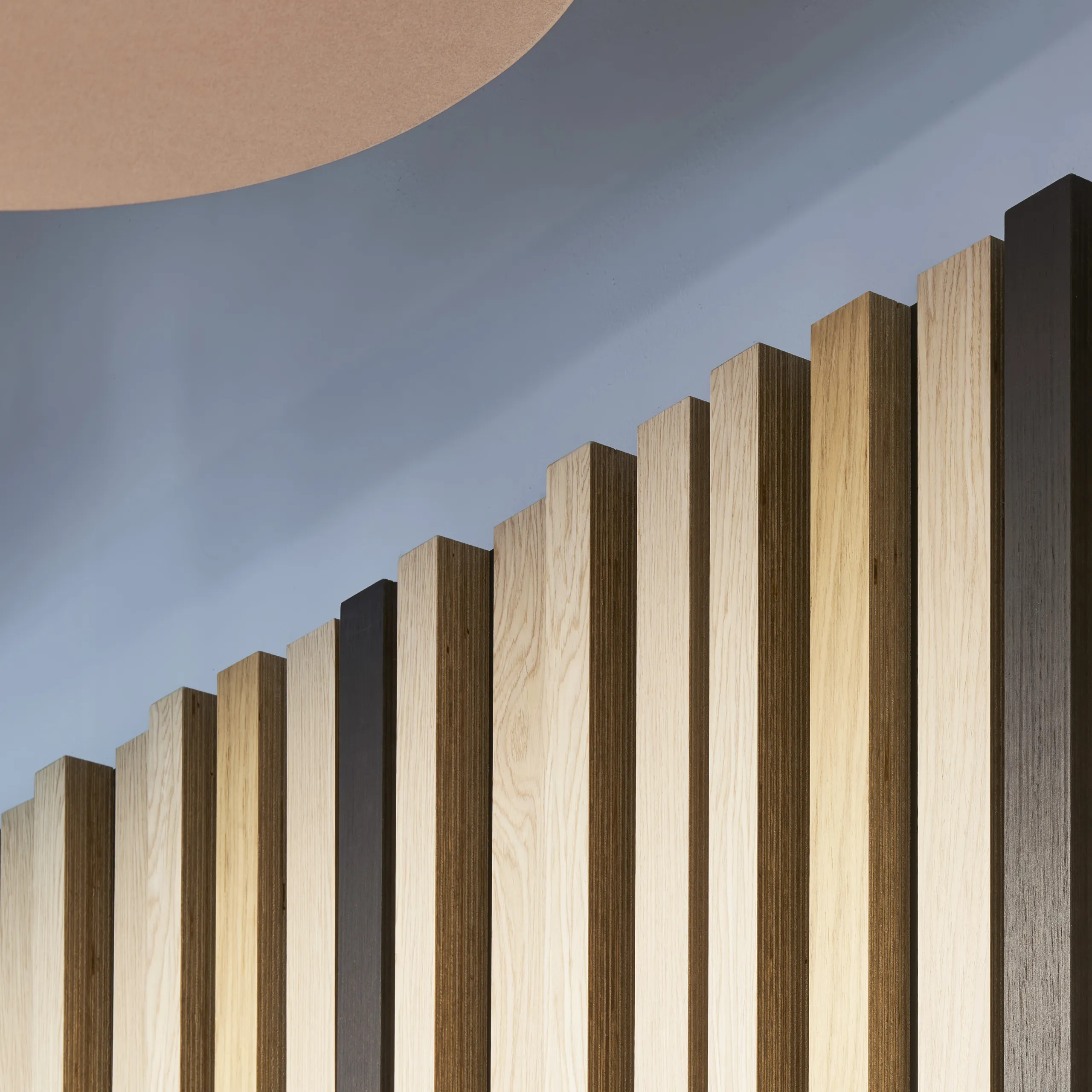

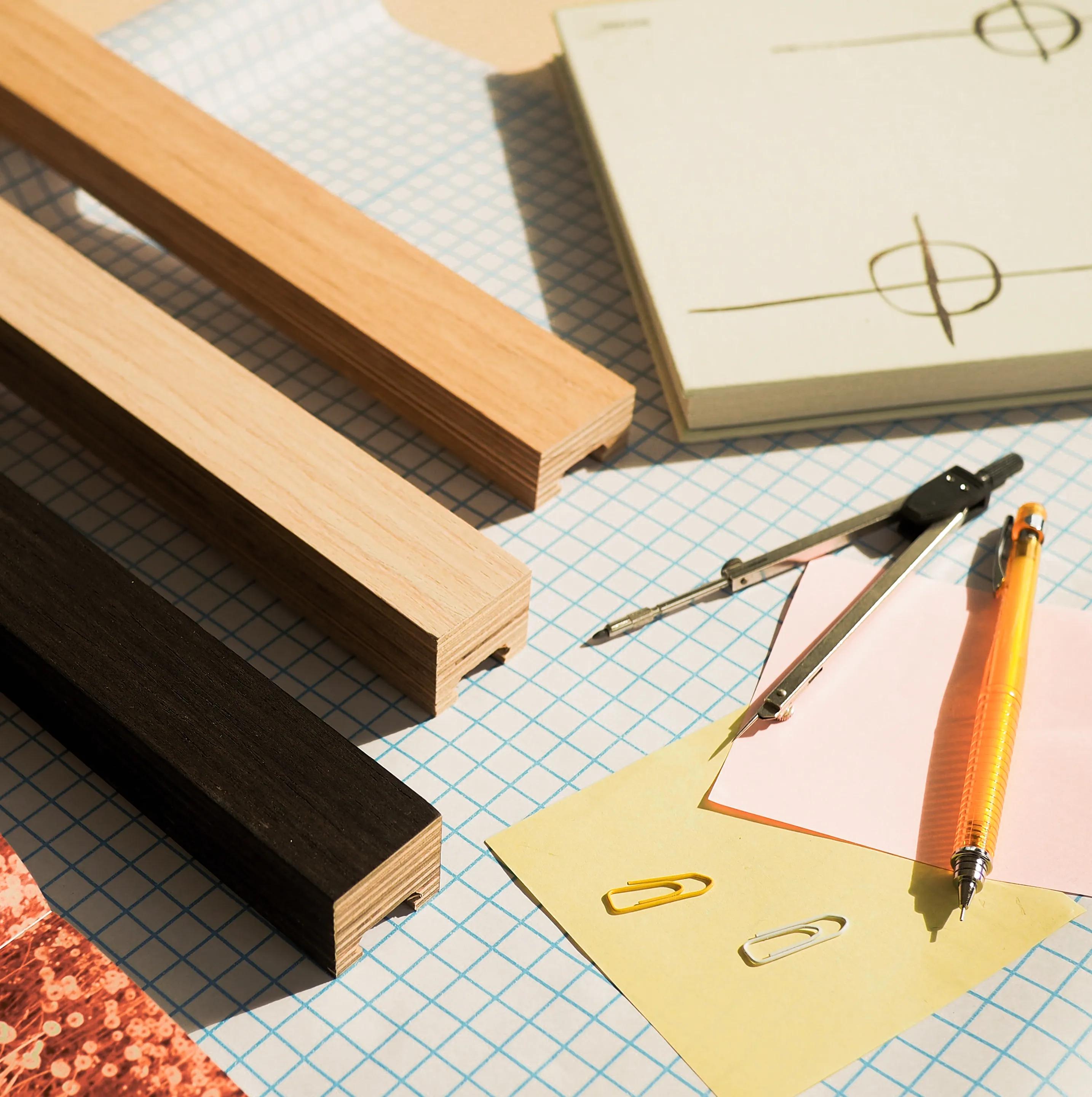

Rockfon Lamella Slats are available in three wood veneer finishes:
1. Light Oak
2. Oak
3. Smoked Oak

Rockfon Lamella Slats are available in three dimensions:
34mm wide x 30mm high
39mm wide x 21mm high
44mm wide x 12mm high

Rockfon Lamella Slats are available in 2474mm length (only).
- 40mm thick stone wool panels in charcoal black (NCS S 8500-N) provide superior sound absorption.

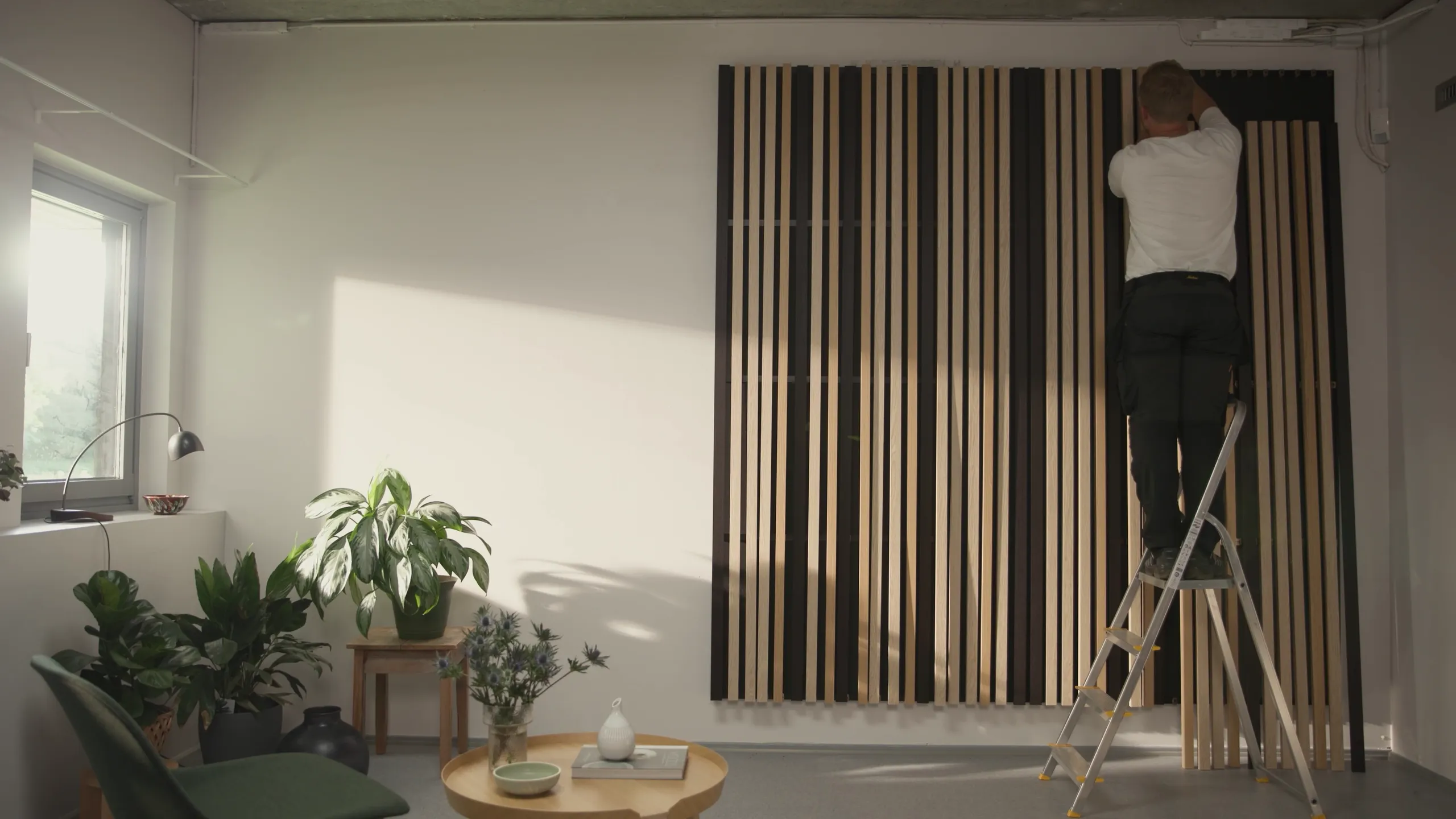

- System is straight-forward to install, thanks to the patented modular platform and clip-based attachment system.
- The complete system is pre-certified for all relevant performance declarations.

Color

Charcoal

ColorCharcoal
Color Code09
Color GroupGreys & Blacks
NCSNCS S 8500-N
Light reflection4

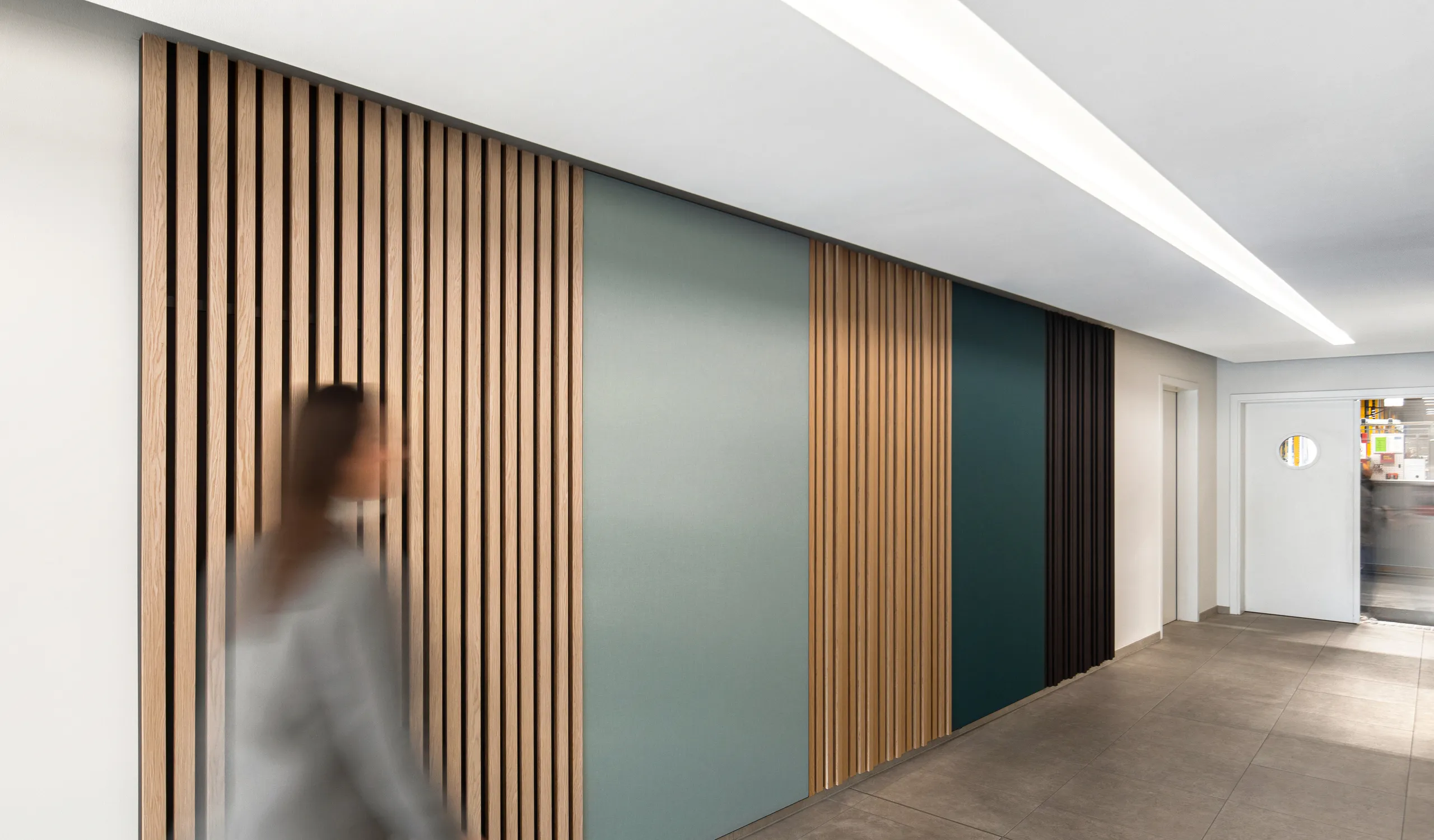

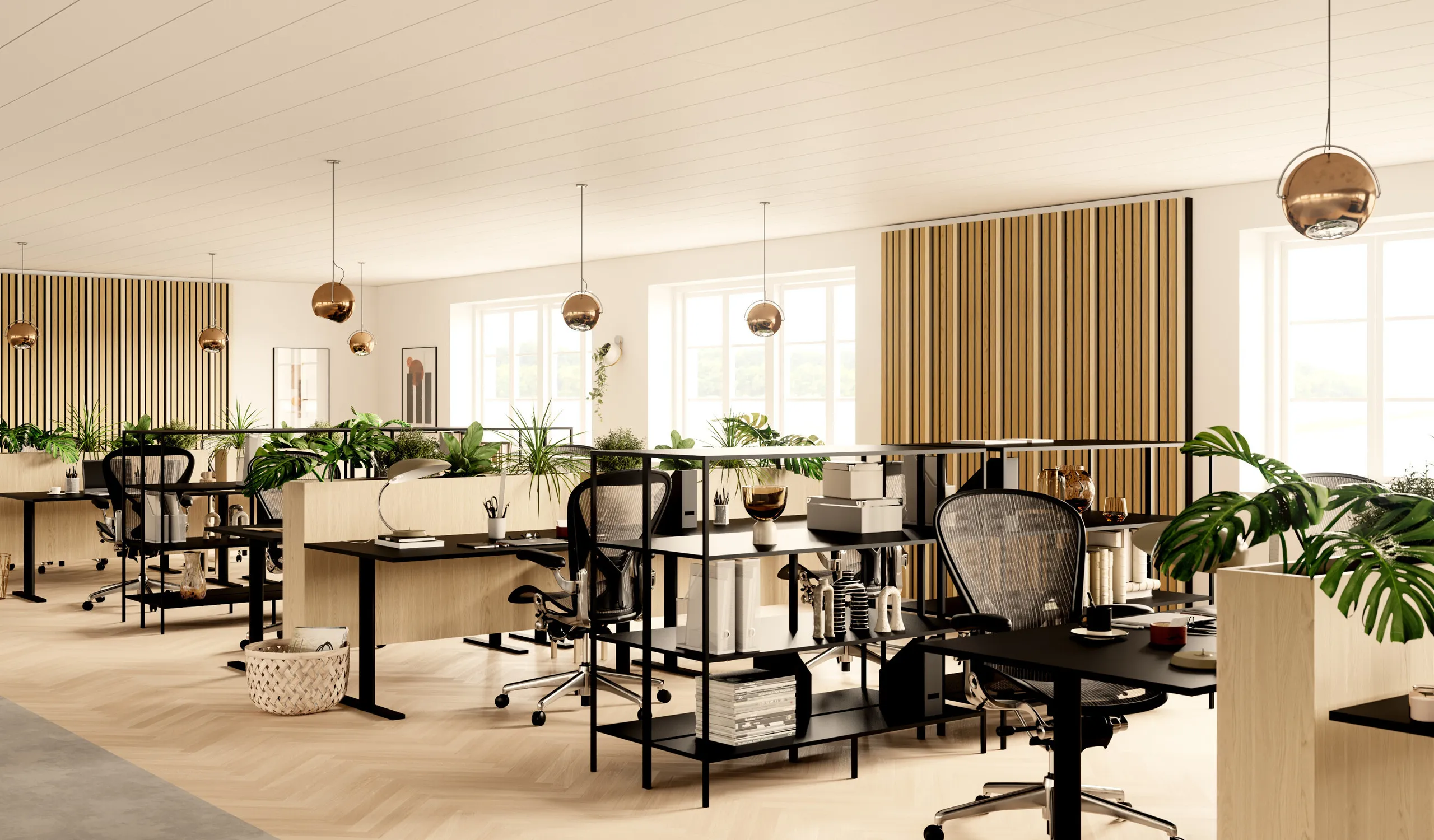

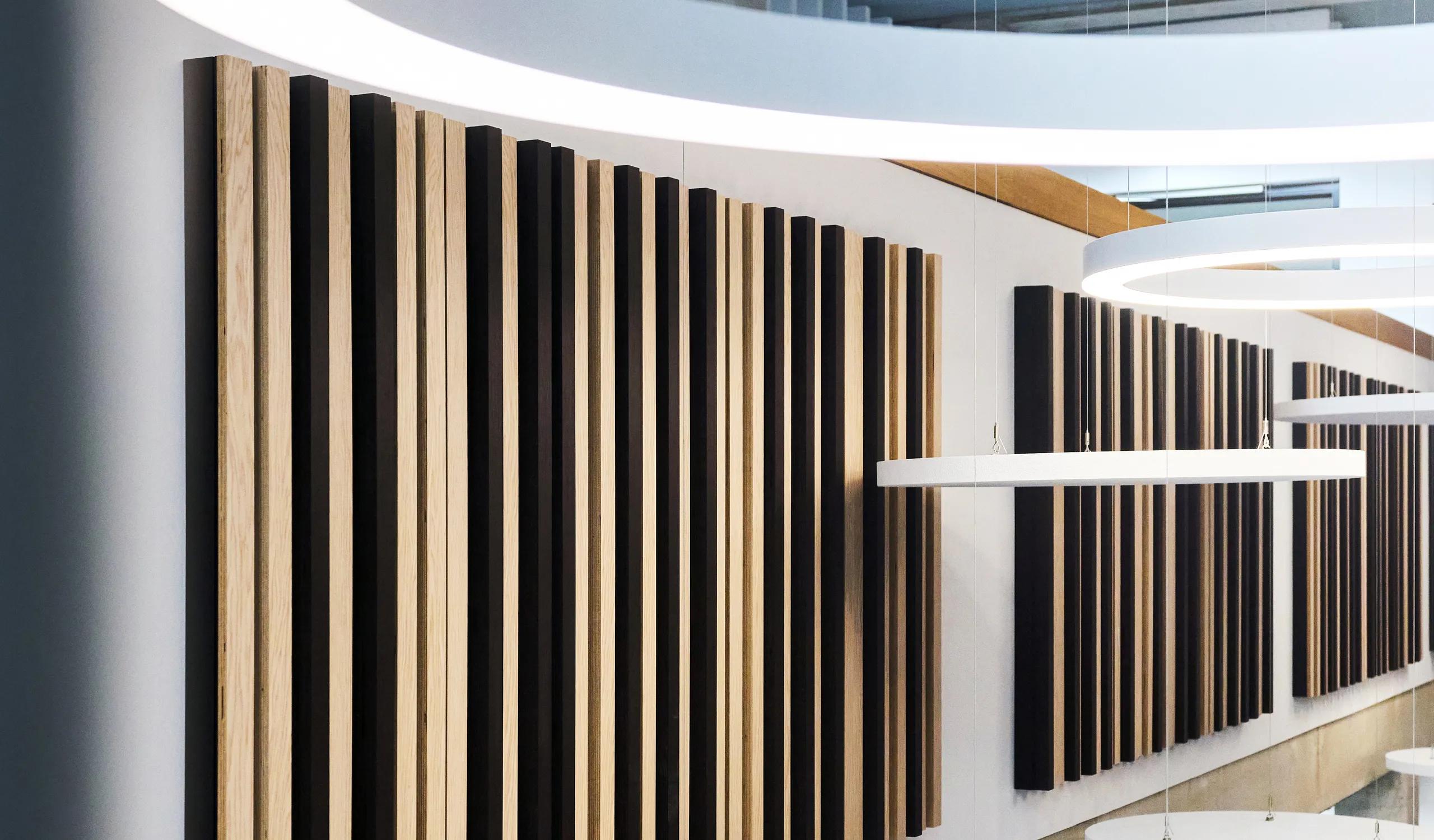

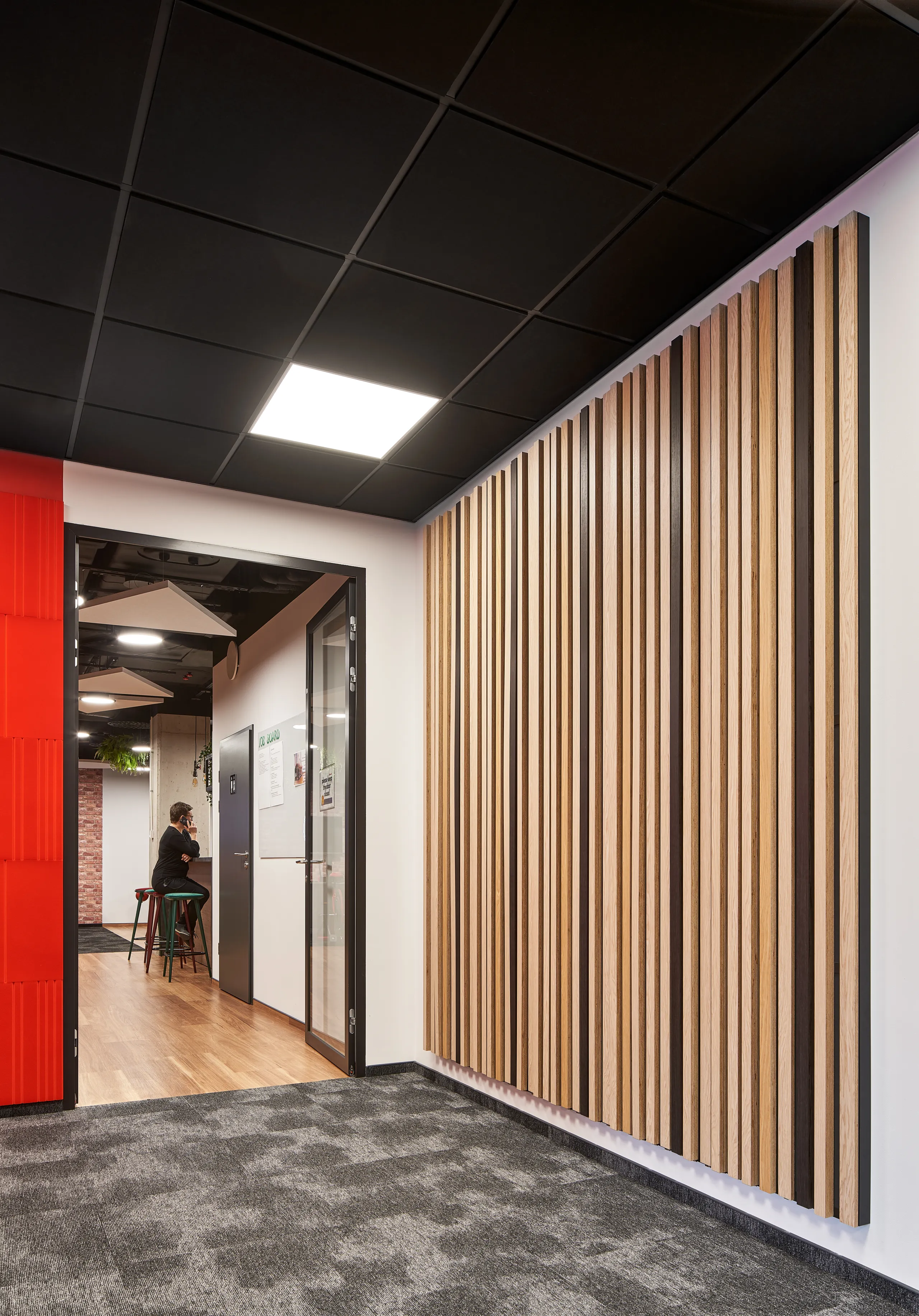

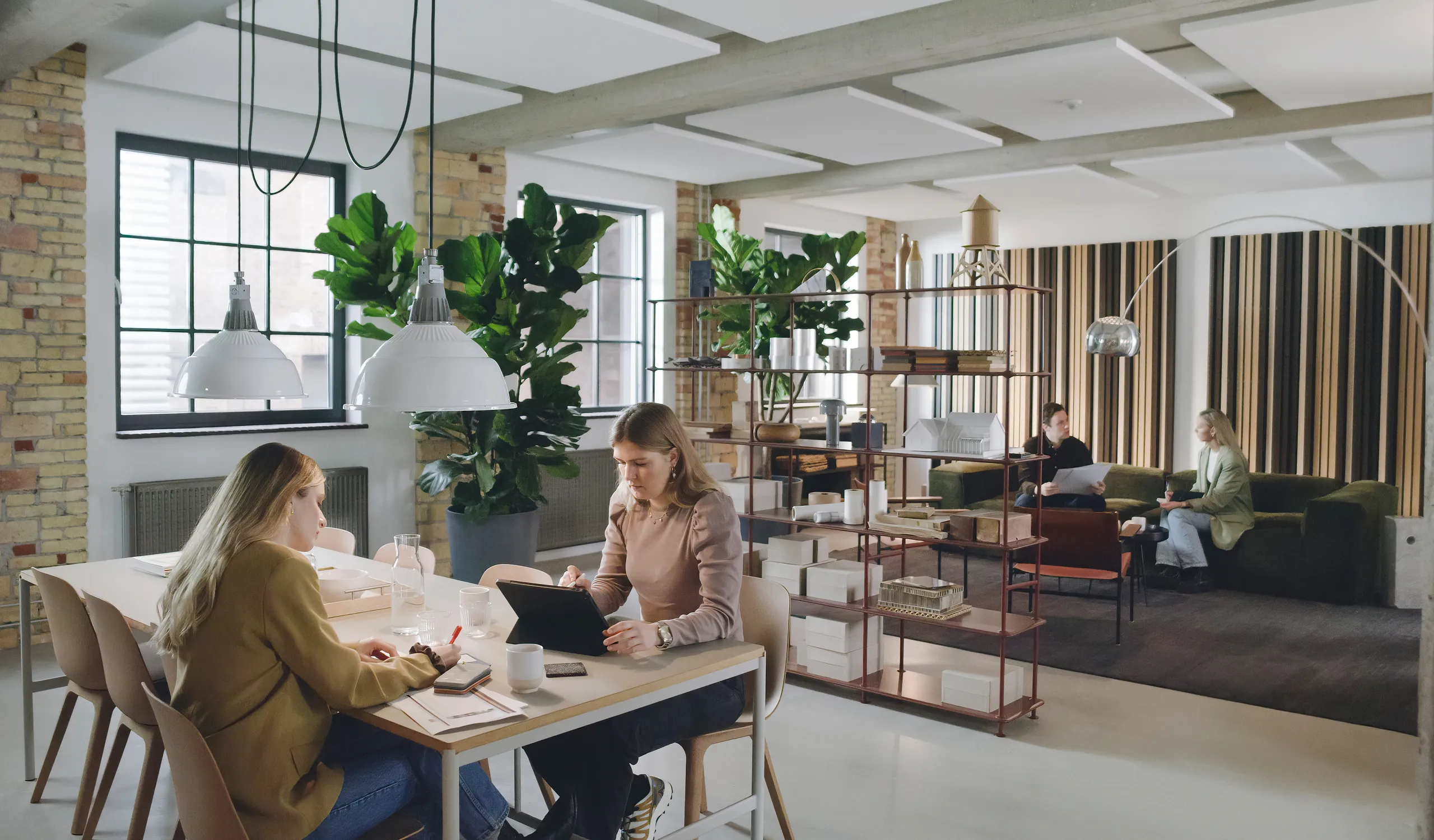

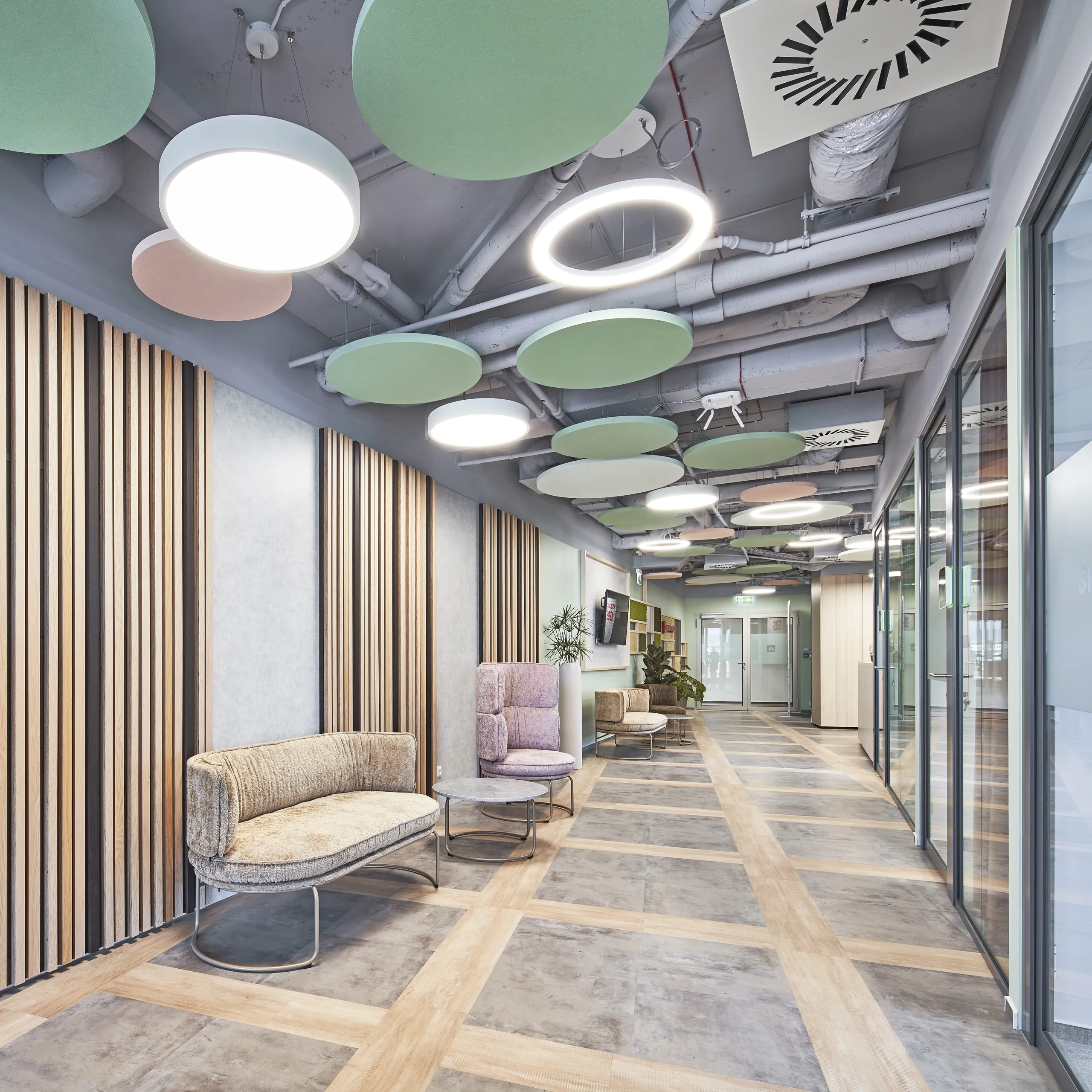

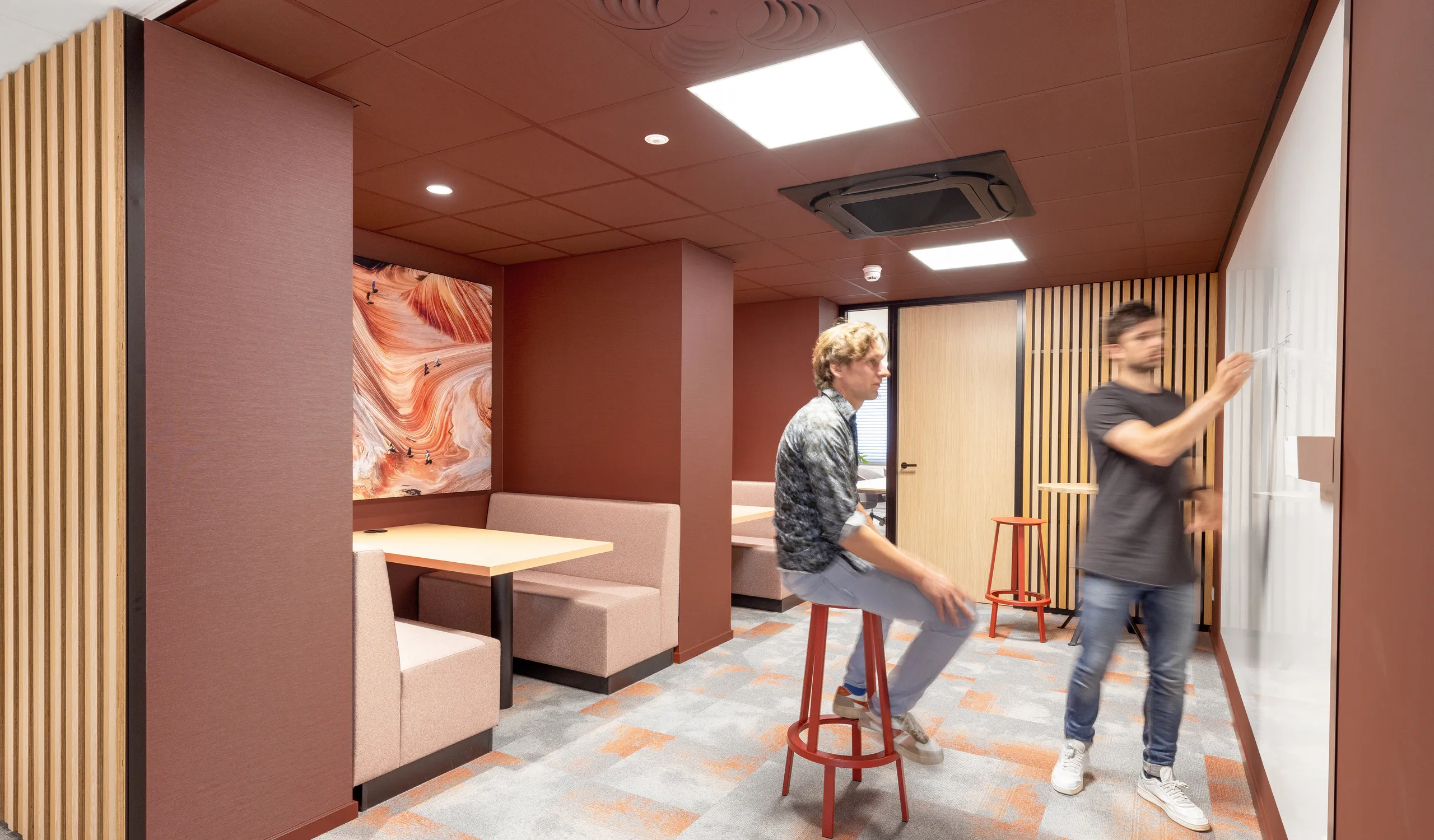

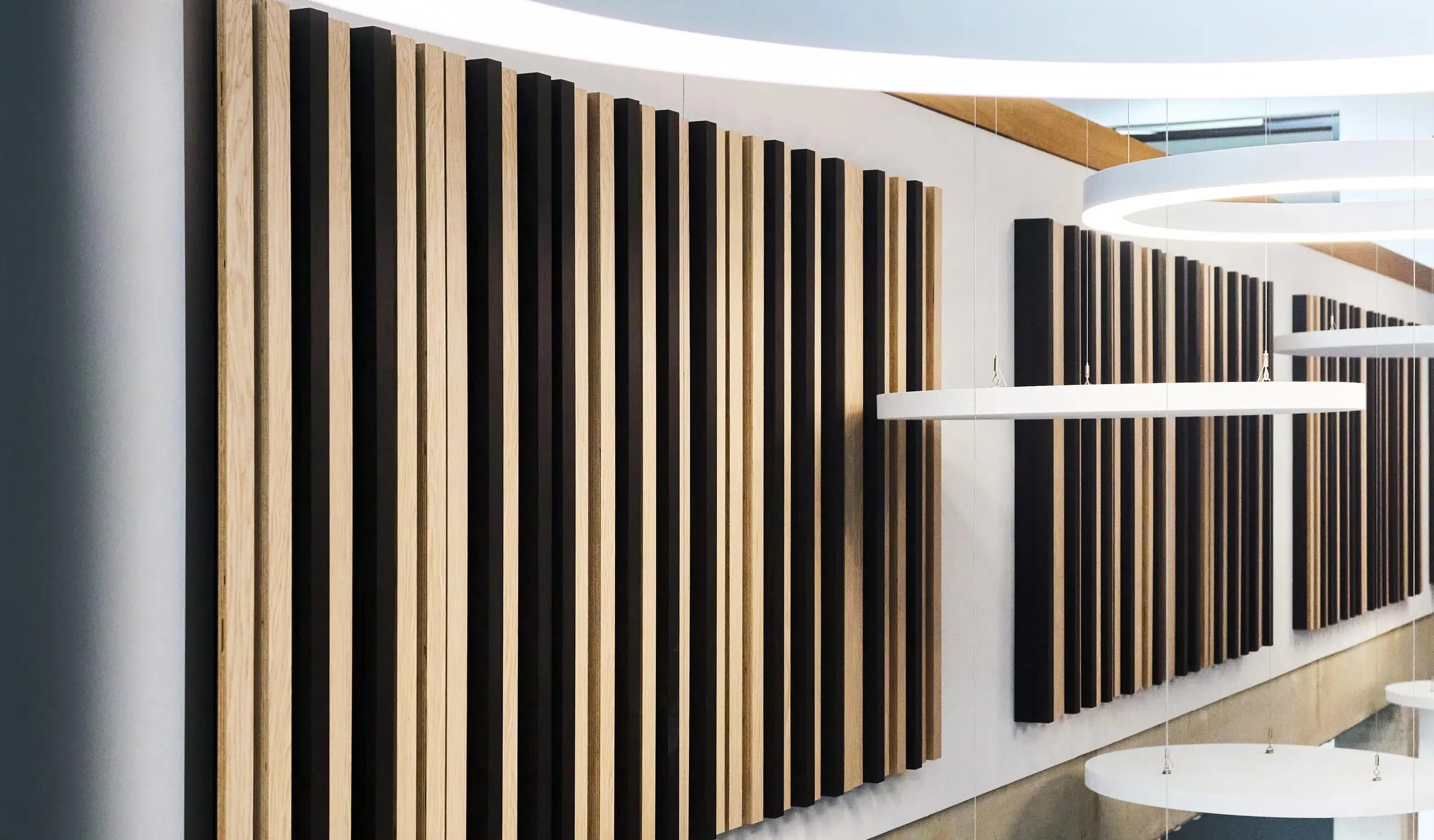

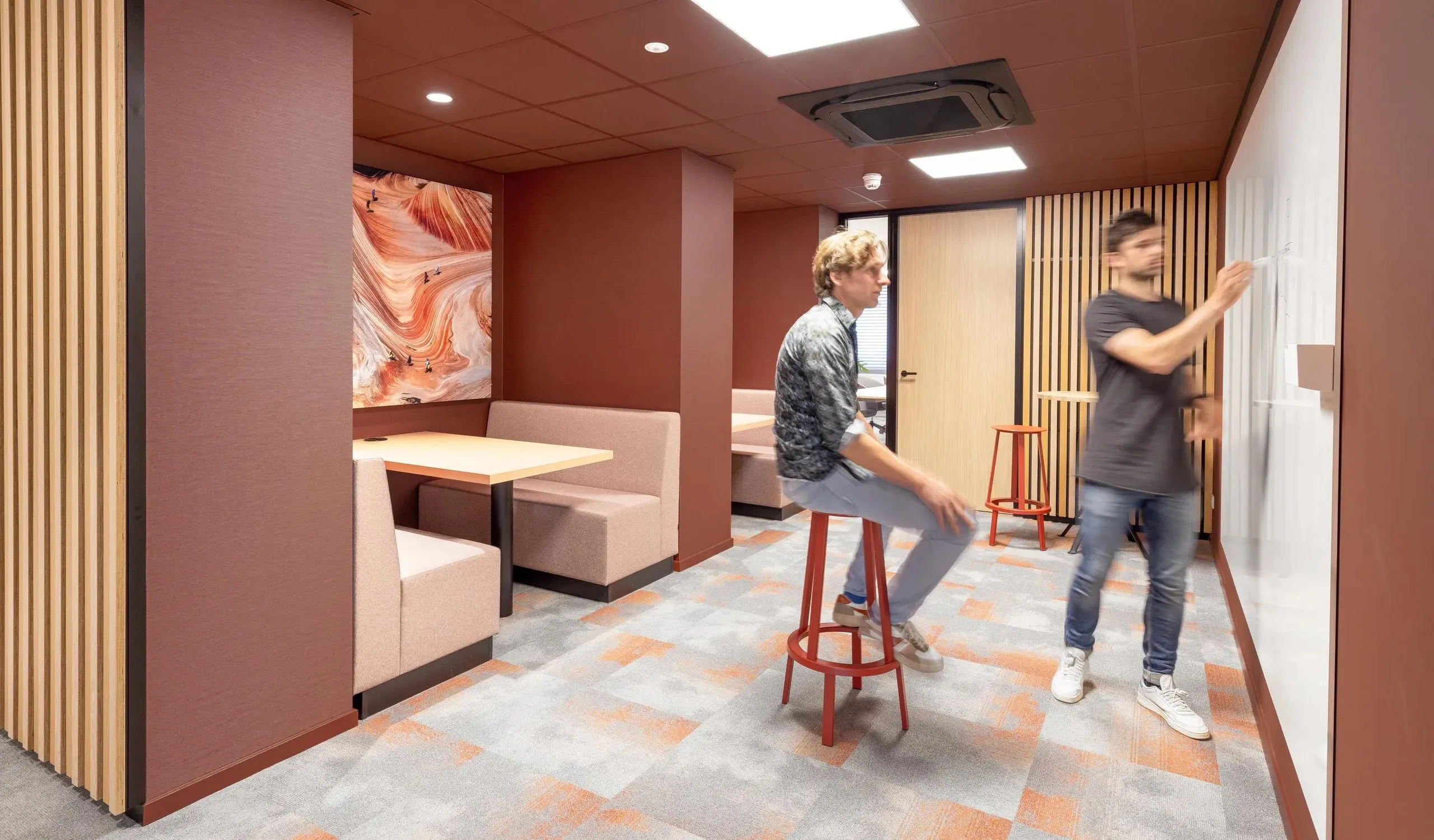

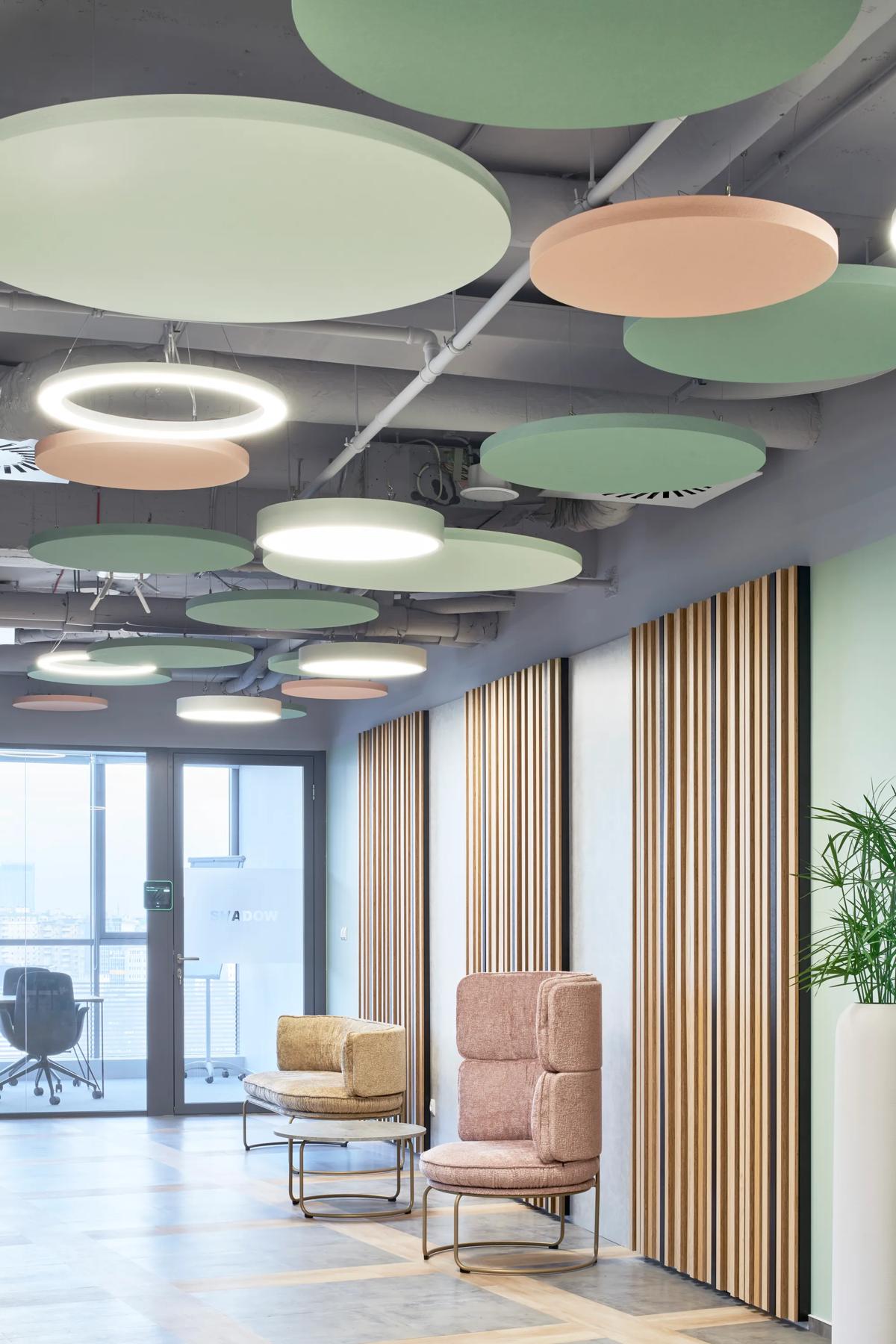

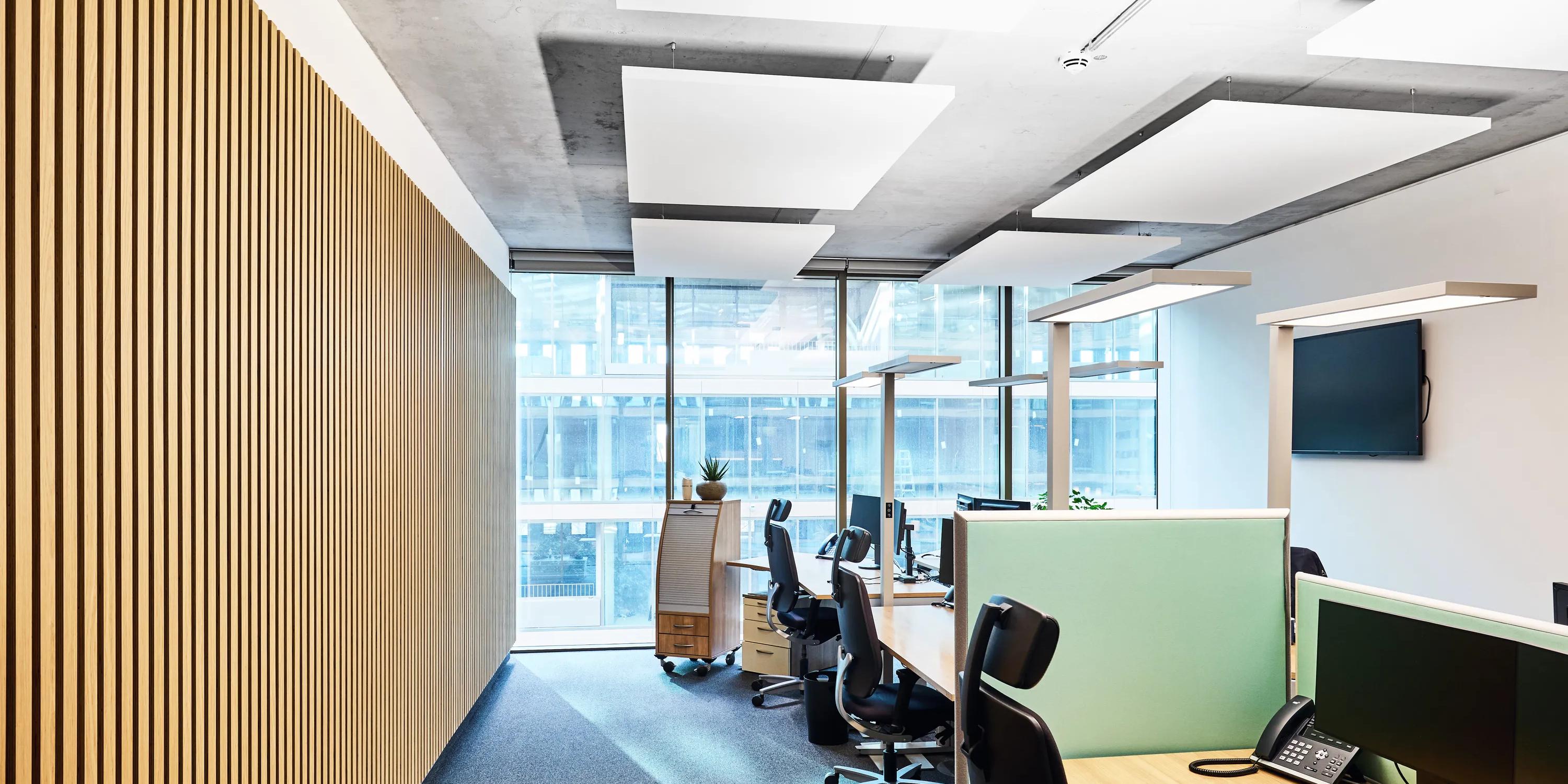

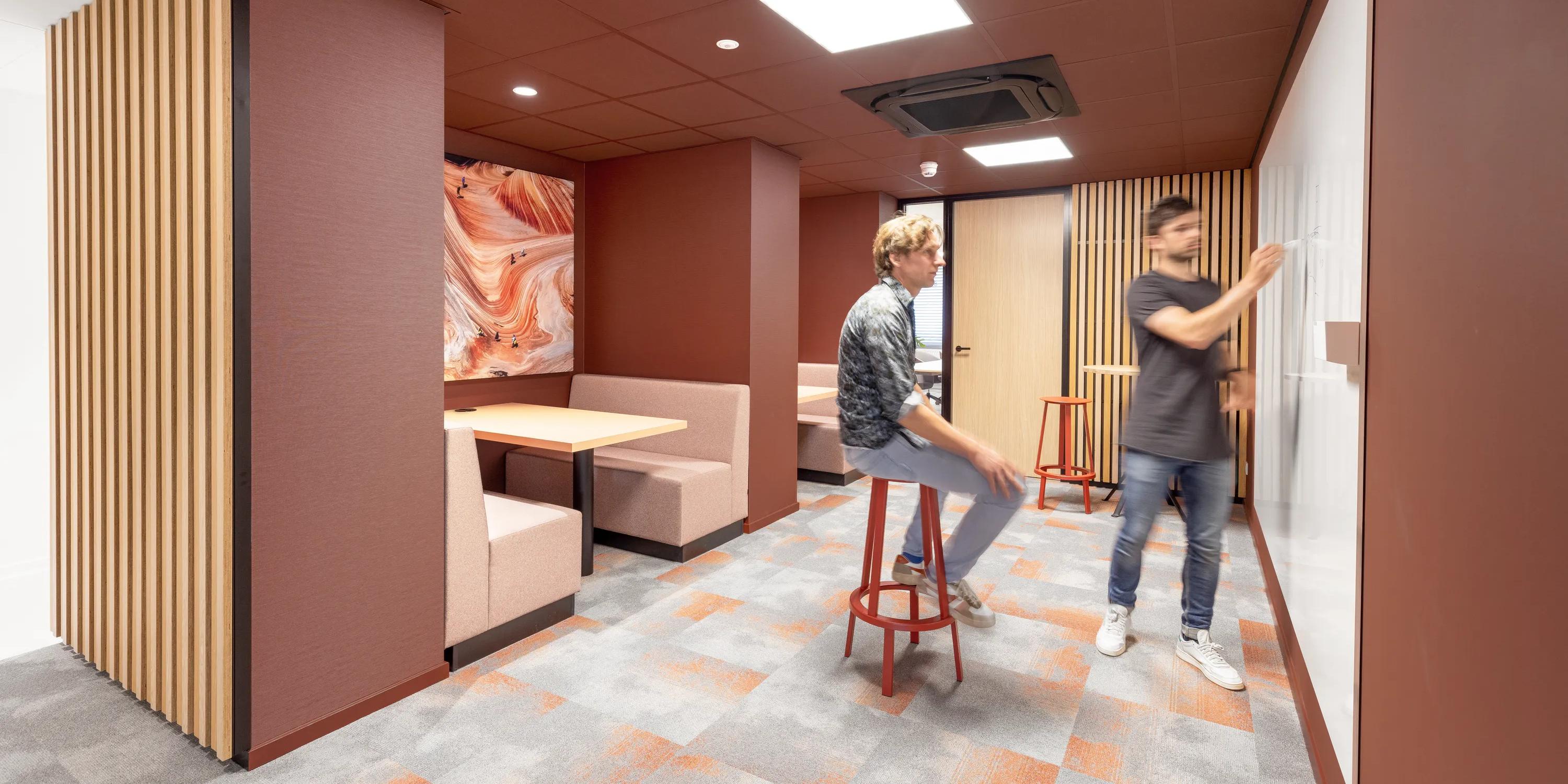

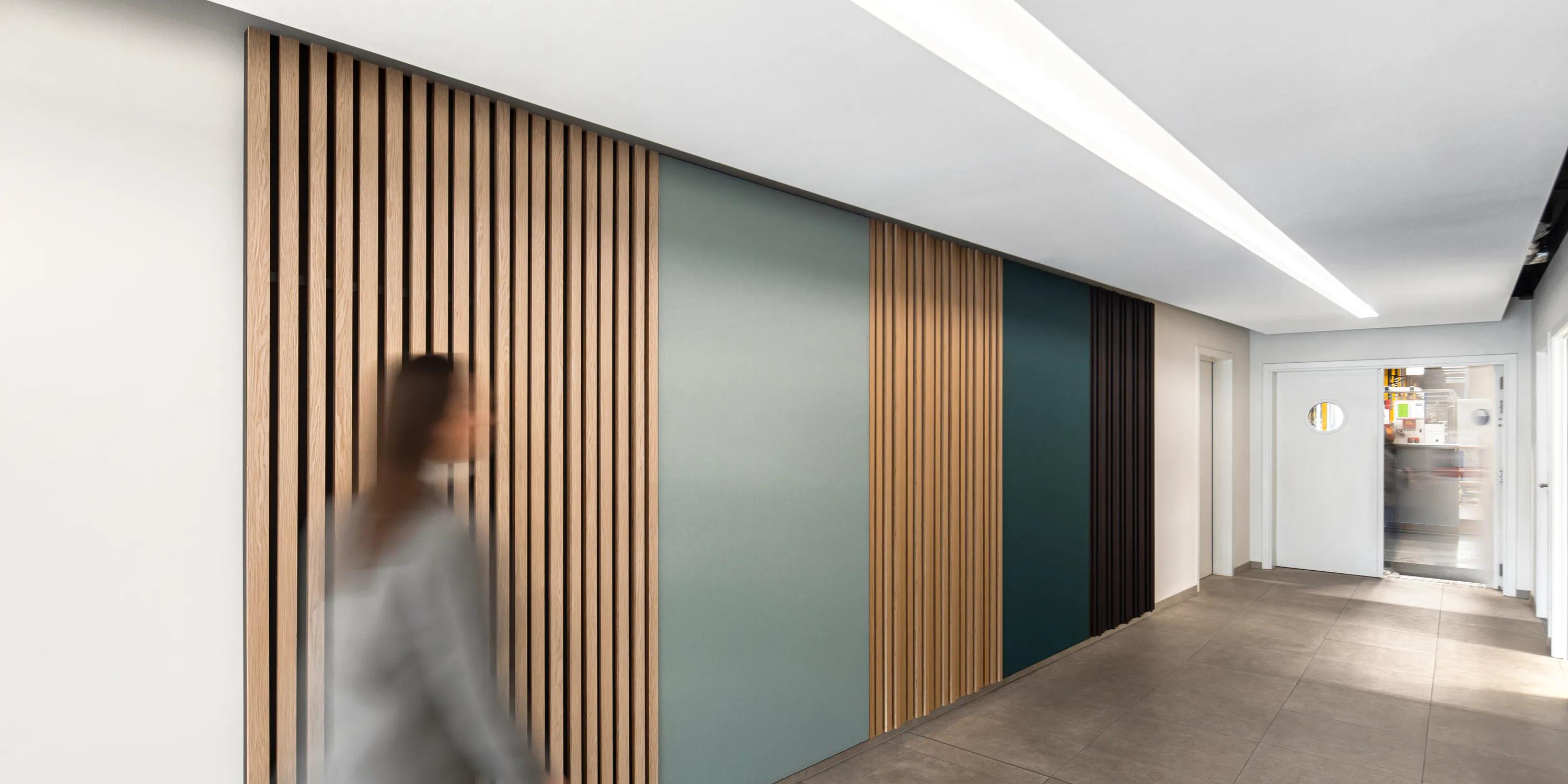

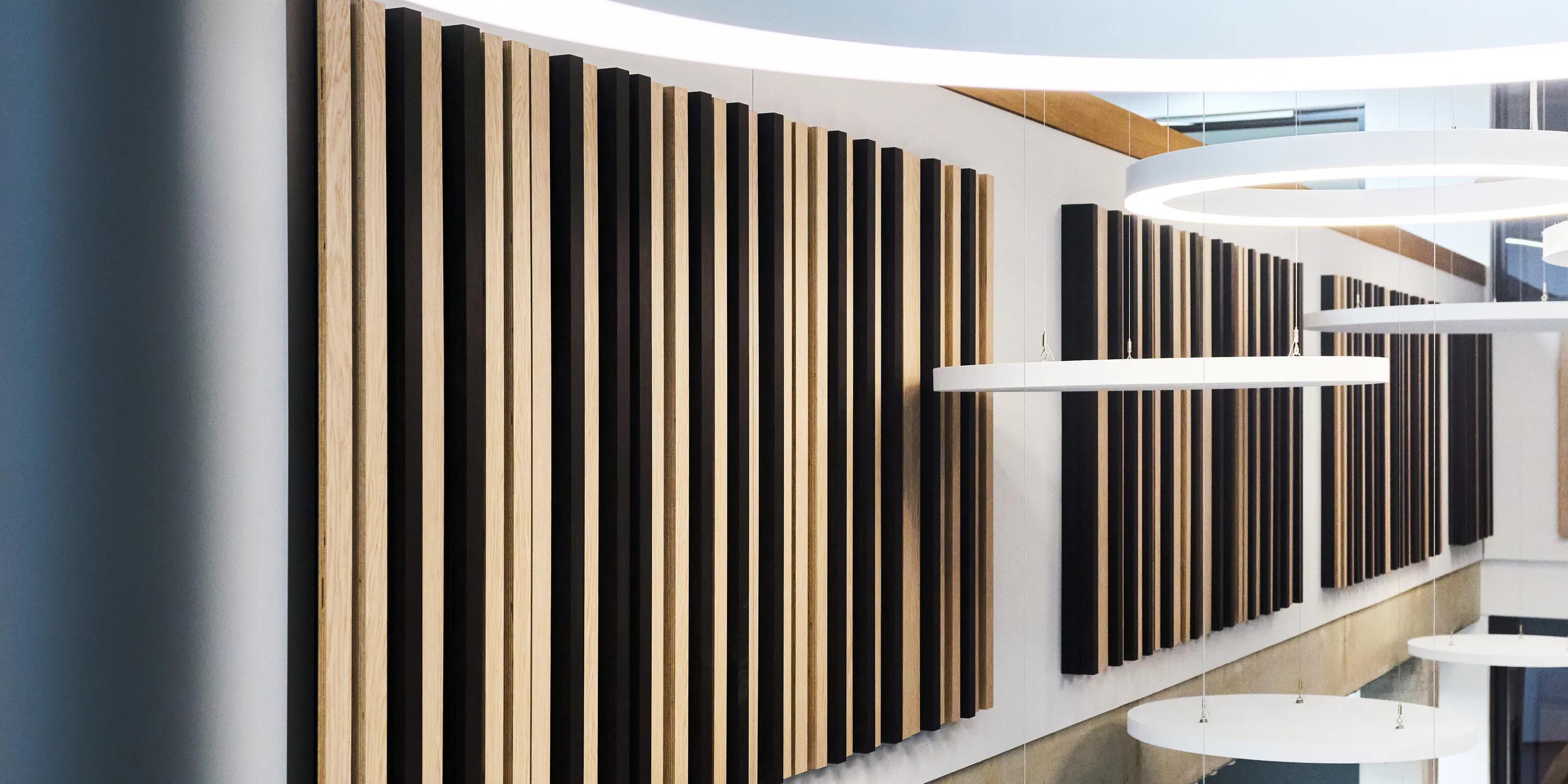

Case studies featuring Rockfon® Lamella

1/5
Back

Sound absorption details

Practical Sound Absorption Coefficient (αp)
Edge Thickness Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz Sound absorption class αw NRC
AEX 40mm - 0.20 0.70 1.00 1.00 1.00 0.70 A 0.90
AEX 40mm - 0.20 0.70 1.00 1.00 0.90 0.80 A 0.90
AEX 40mm - 0.20 0.70 1.00 1.00 0.80 0.70 B 0.85

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve
Back
Sound curve
Back
Sound curve

Other performances

Compare
Reaction To Fire Reaction To Fire A1, B-s2, d0 for Rockfon Lamella with 39x21 mm slats*
C-s2, d2 for Rockfon Lamella with 34x30 mm or 44x12 mm slats*
For mix and match, please contact Rockfon
*Complete system tested
Reaction to fire is classified in accordance with EN 13501-1.
Humidity And Sag Resistance Humidity And Sag Resistance The wood based slats are suitable for dry indoor use only.
Cleaning Cleaning Vacuum
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Environment Environment Fully recyclable stone wool
Indoor Environment Indoor Environment A selection of Rockfon tiles have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Back
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Back
Back
Back

Full range

Edge Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
AEX 600 x 600 40 6.40 0

Sound absorption details

αw 0.90
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 8
Area Per Pack m2
Back

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 8
Area Per Pack m2
Back

Downloads

documents





pdf
Rockfon® Lamella | Datasheet
Rockfon® Lamella | Datasheet

pdf
DoP-RFN-0125-043-1 - Rockfon® Lamella
DoP-RFN-0125-043-1 - Rockfon® Lamella

pdf
