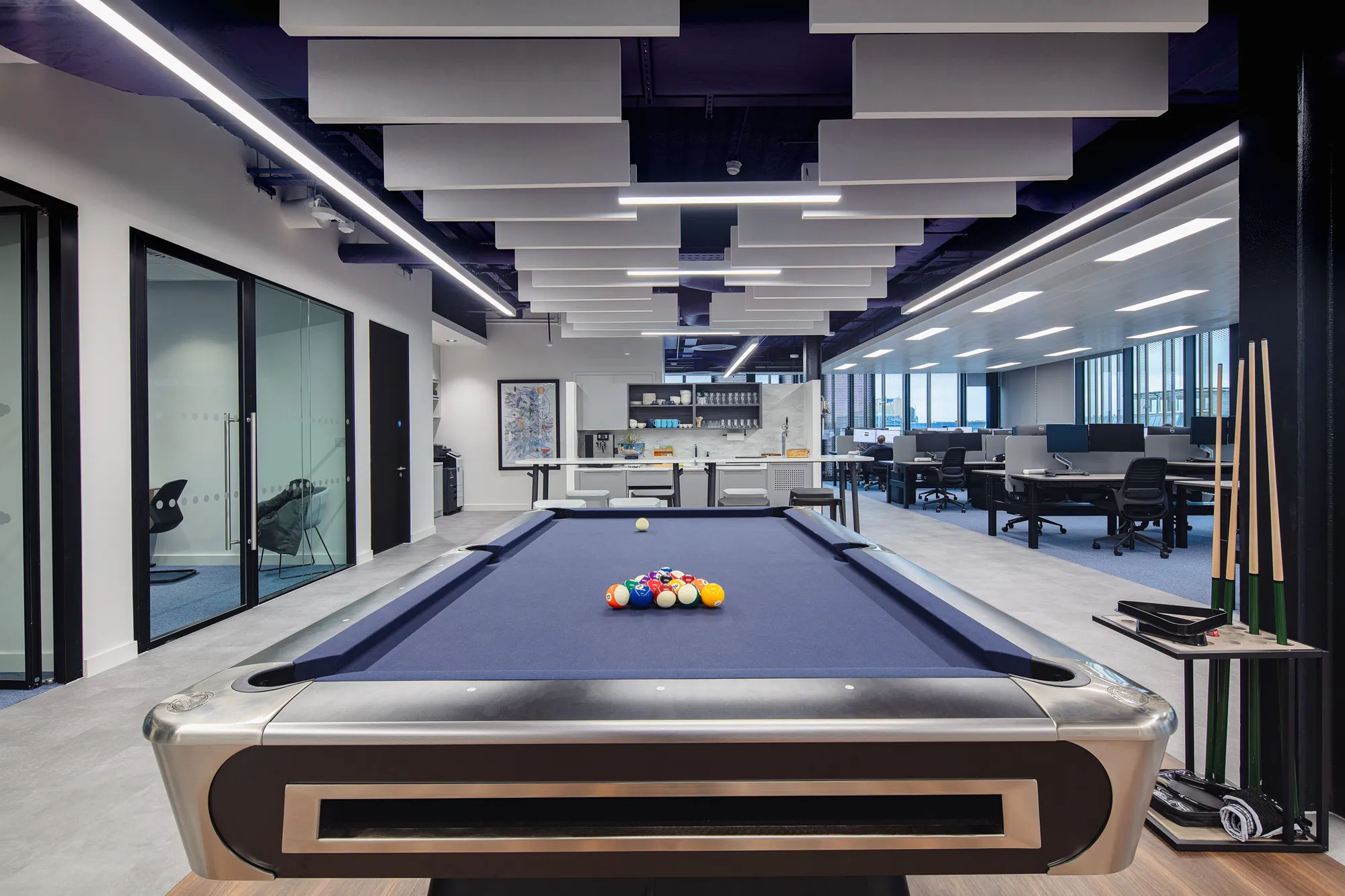

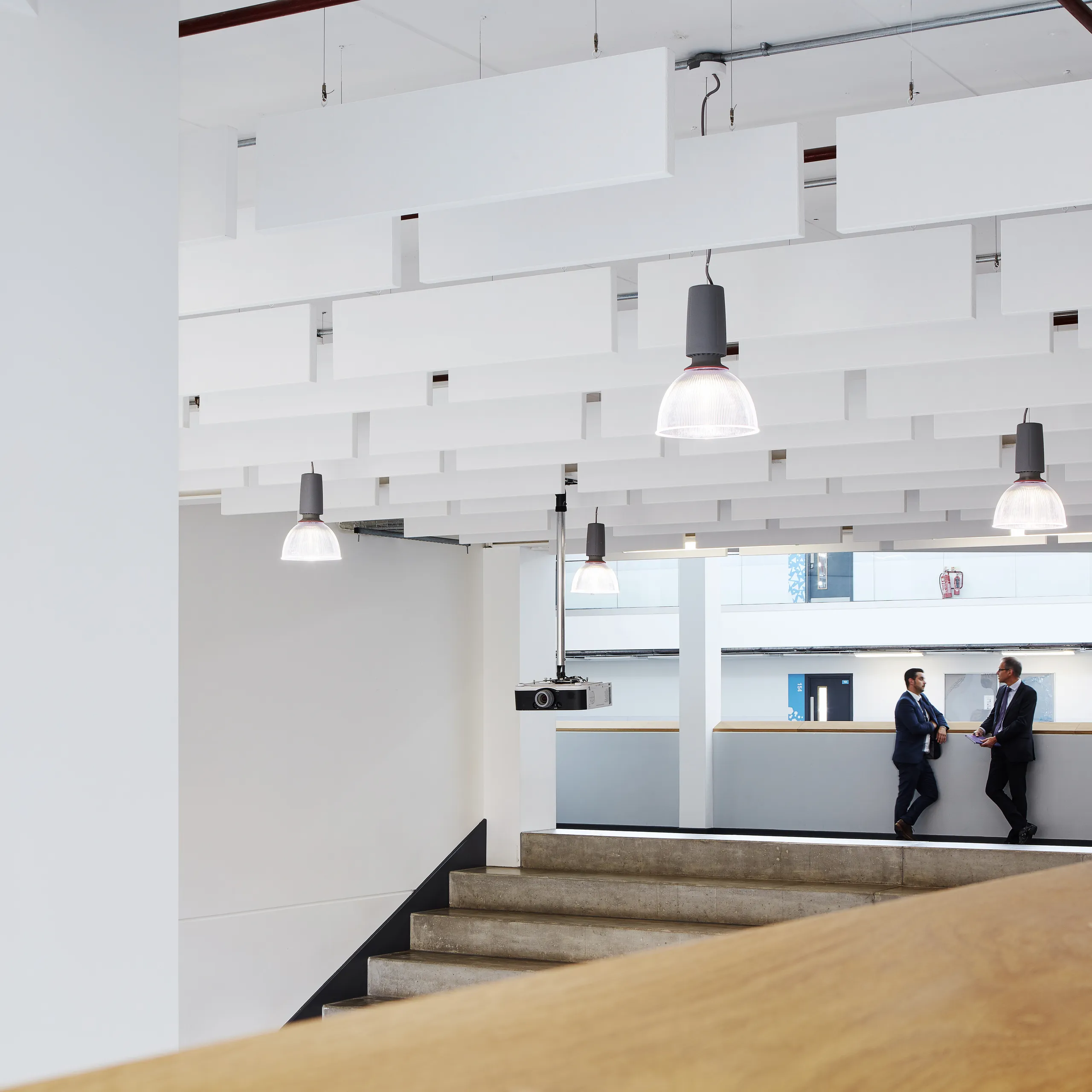

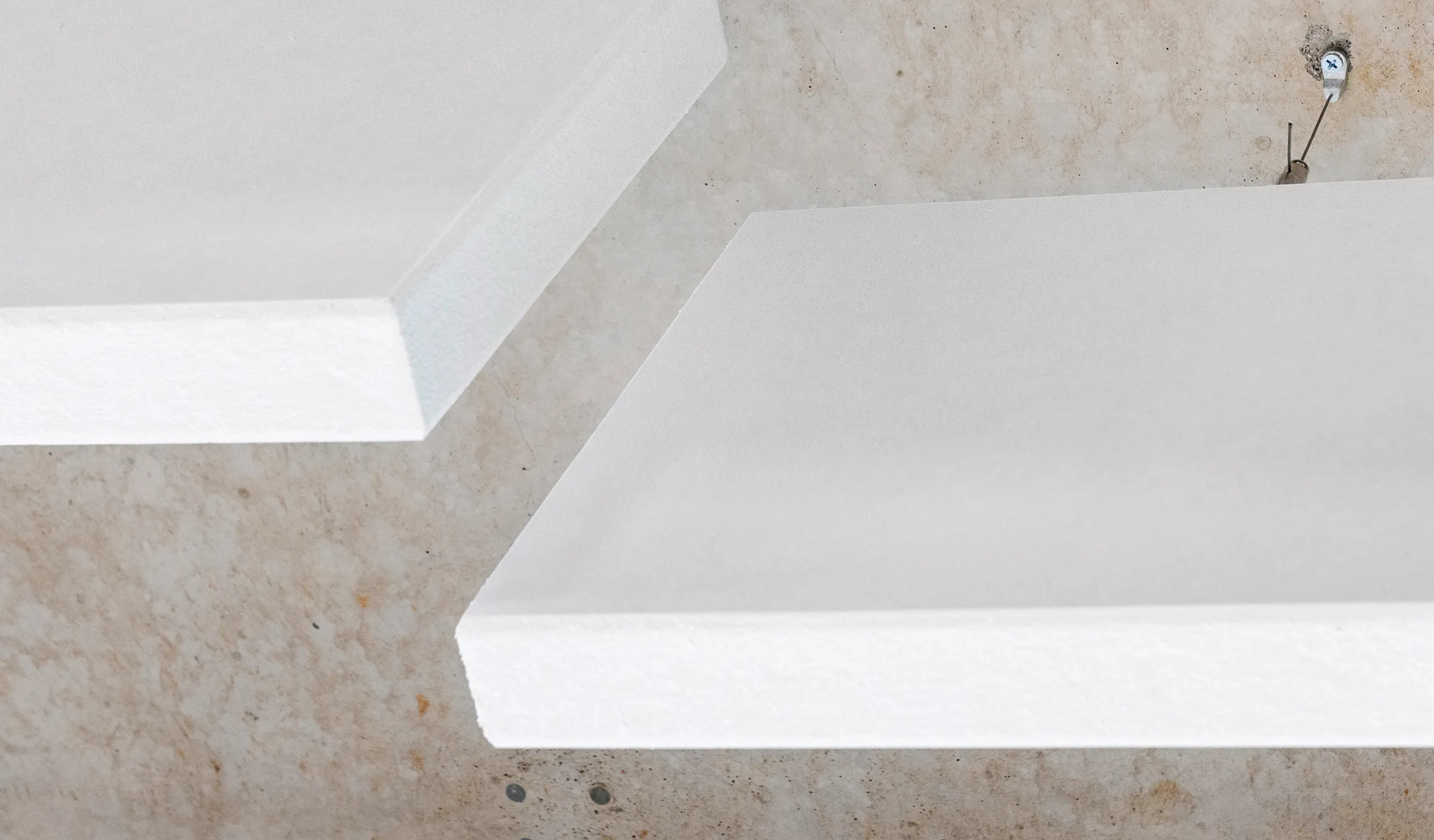

Rockfon Contour®

Aesthetically superior, frameless acoustic baffles
Back

Color

White

ColorWhite
Color GroupWhites
NCSNCS S 0500-N
Light reflection79

Case studies featuring Rockfon Contour®

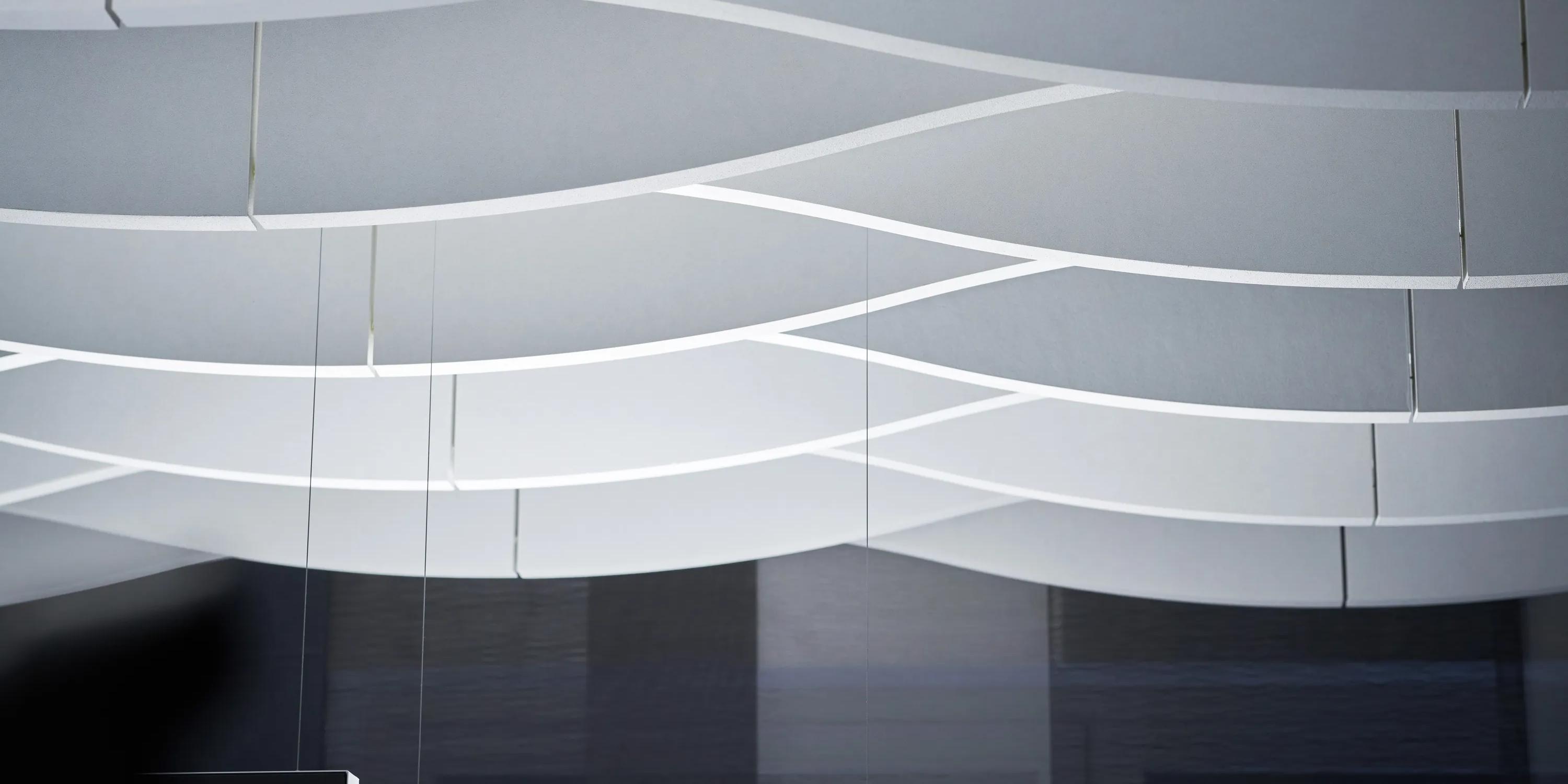

Cellular Office in Wegscheider office solution GmbH in Heßdorf-Hannberg Germany with Rockfon Contour AEX-Edge

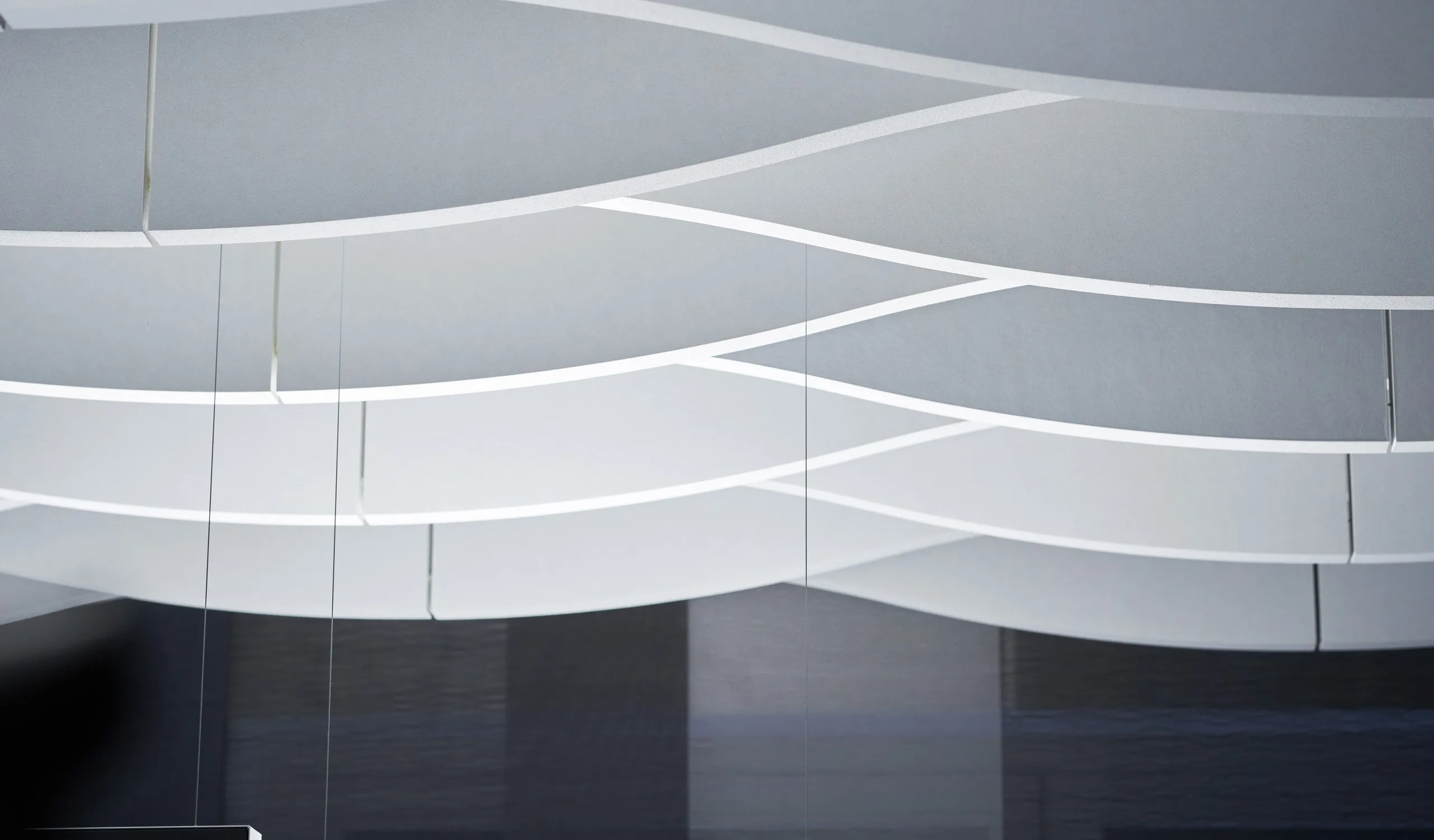

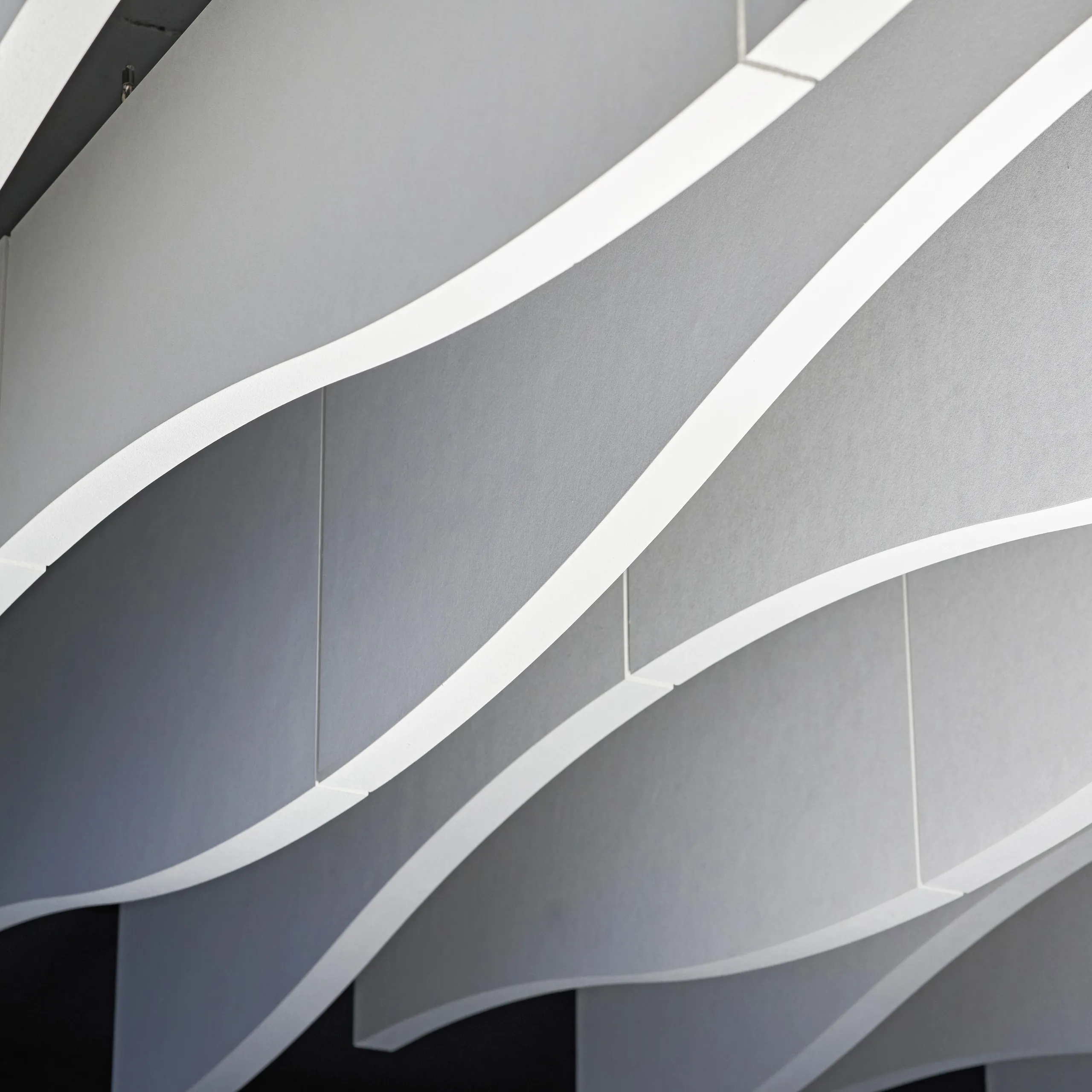

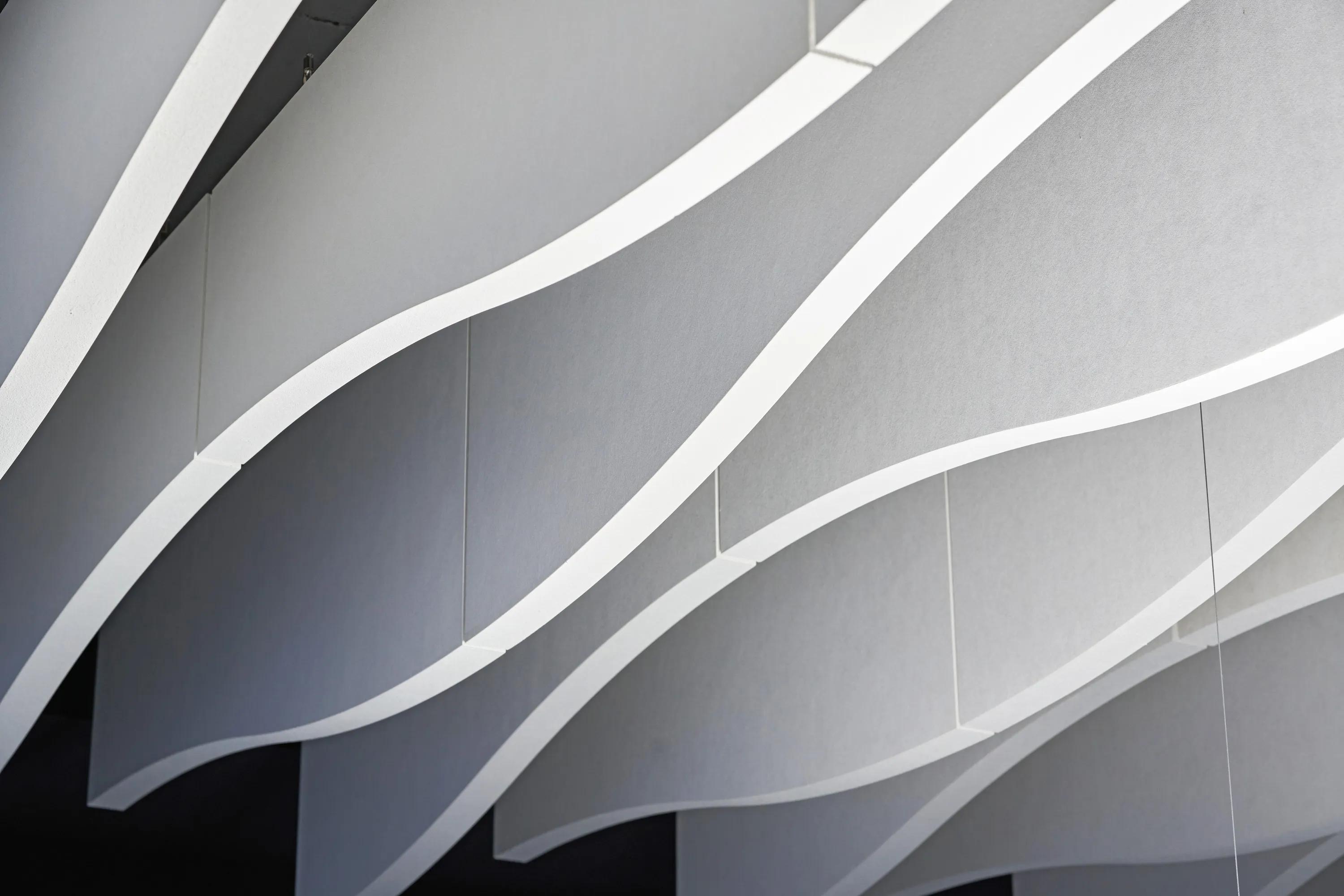

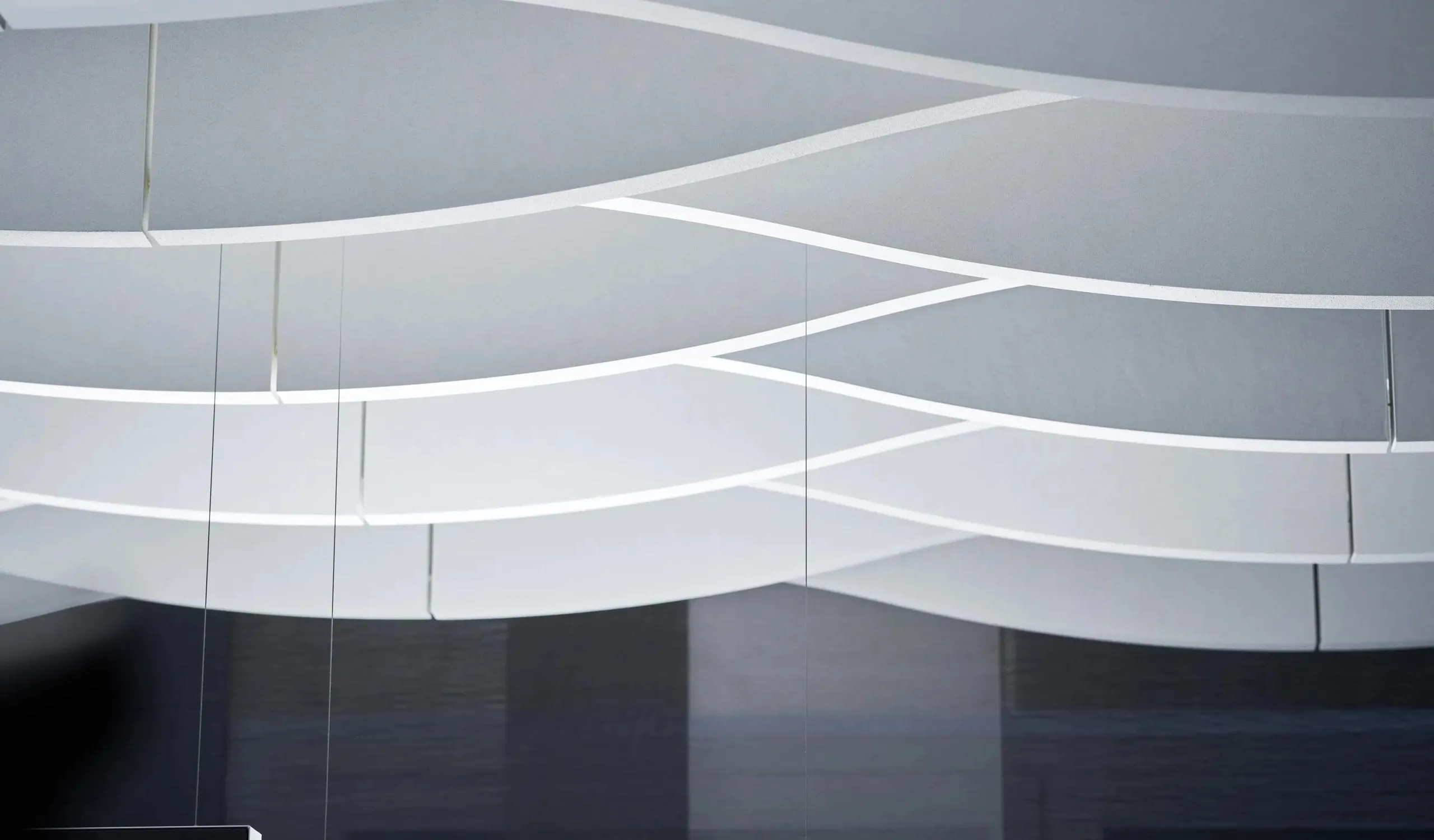

Project: Wegscheider Contour Wave
Edge & dimension: AEX

See full project
Cellular Office in Wegscheider office solution GmbH in Heßdorf-Hannberg Germany with Rockfon Contour and Canva Akustik-Raumtrenner  AEX-Edge

Project: Wegscheider Contour Wave

See full project
Cellular Office in Wegscheider office solution GmbH in Heßdorf-Hannberg Germany with Rockfon Contour AEX-Edge

Project: Wegscheider Contour Wave
Edge & dimension: AEX

See full project
NL, Case study DaCapo College, Sittard, Povse en Timmermans Architecten en Ingeneurs, Education, Rockfon Contour, AC-edge, 1200x600x50, White, Light Industry

Project: DaCapo College
Edge & dimension: Ac, 1200 x 600

See full project
NL, Case study DaCapo College, Sittard, Povse en Timmermans Architecten en Ingeneurs, Education, Rockfon Contour, AC-edge, 1200x600x50, White, Light Industry

Project: DaCapo College
Edge & dimension: Ac, 1200 x 600

See full project
UK, Littleport Academy, Atkins, School, Rockfon Blanka dB40, A edge, 600x600, white, Chicago Metallic T24, Rockfon Color-all wall panel, Rockfon Contour Baffle, 1200x300, white, breeze

Project: Littleport Academy
Edge & dimension: Ac, 1200 x 300

See full project
UK, Littleport Academy, Atkins, School, Rockfon Blanka dB40, A edge, 600x600, white, Chicago Metallic T24, Rockfon Color-all wall panel, Rockfon Contour Baffle, 1200x300, white, breeze

Project: Littleport Academy
Edge & dimension: Ac, 1200 x 300

See full project

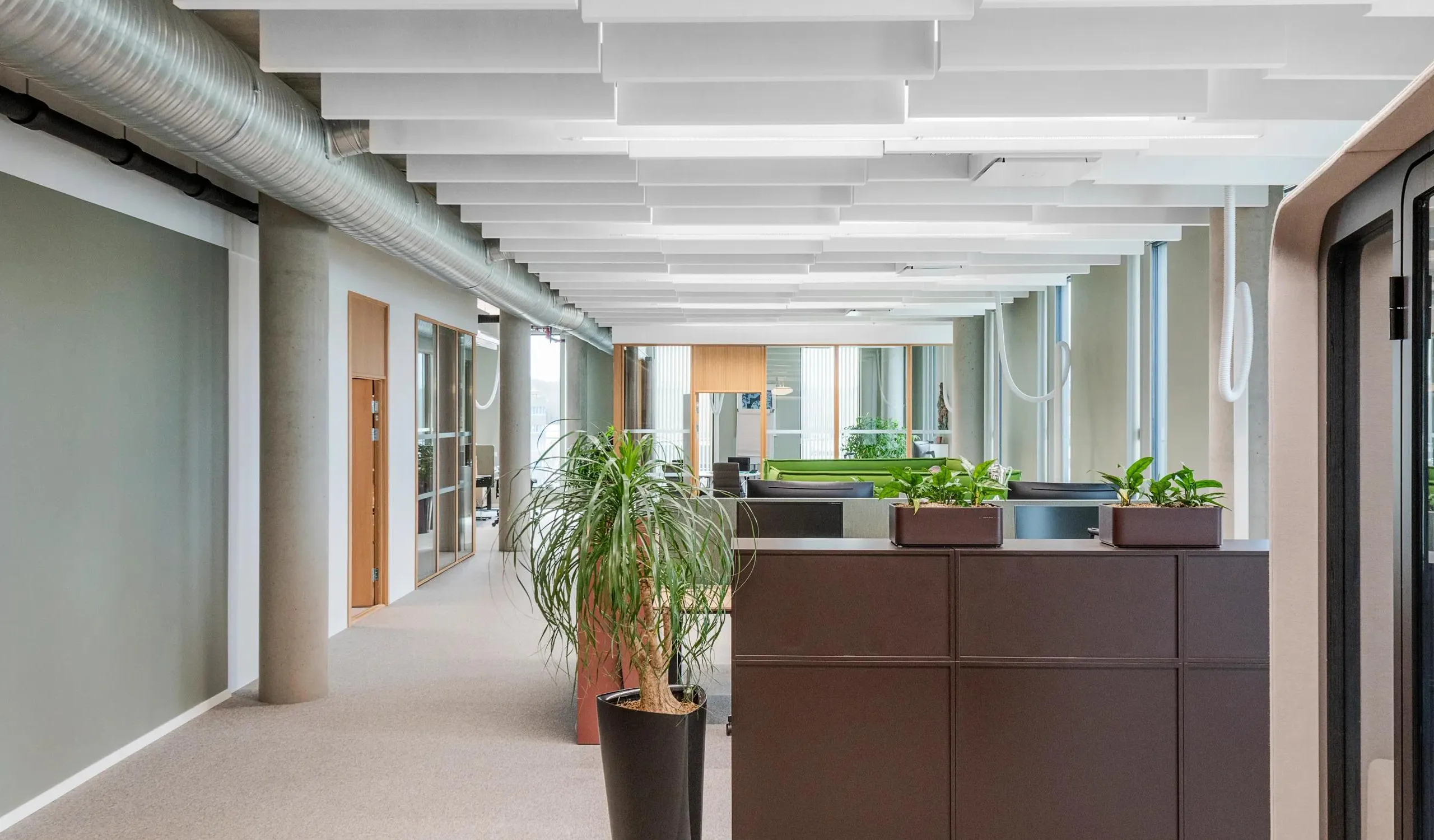

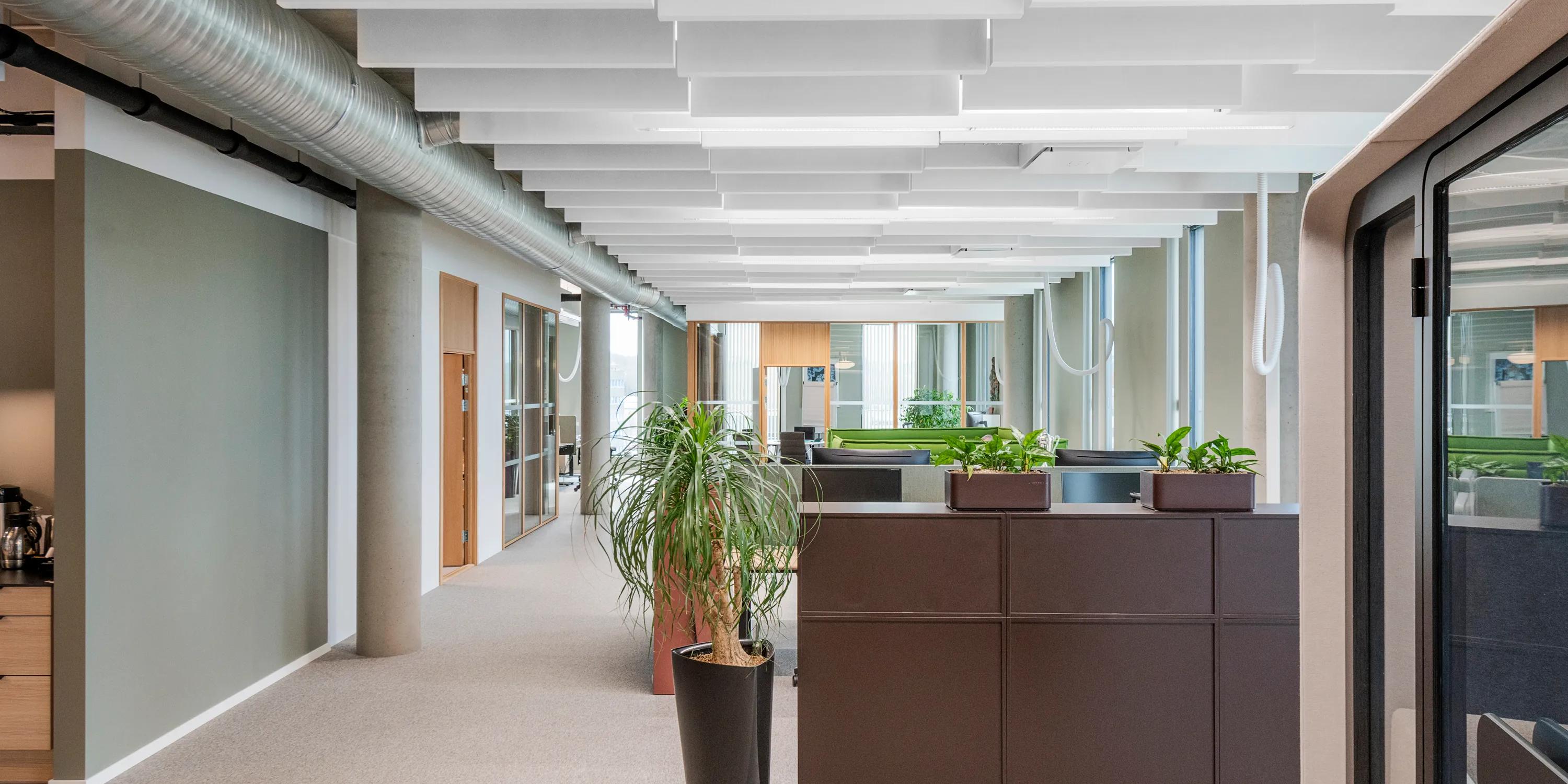

NO, Lysgården, Trondheim, HUS Arkitekter, Office, Rockfon Multiflex Baffle, Rockfon Mono Acoustic, 30x1200, White

Project: Lysgården, Norway
Edge & dimension: 1200 x 300

See full project
NO, Lysgården, Trondheim, HUS Arkitekter, Office, Rockfon Multiflex Baffle, Rockfon Mono Acoustic, 30x1200, White

Project: Lysgården, Norway
Edge & dimension: 1200 x 300

See full project
KLM lounge at Schiphol airport, Rockfon Color-all Charcoal, Rockfon Contour, leisure

Project: Schiphol Airport, Air France & KLM lounge
Edge & dimension: 1200 x 300

See full project
KLM lounge at Schiphol airport, Rockfon Color-all Charcoal, Rockfon Contour, leisure

Project: Schiphol Airport, Air France & KLM lounge
Edge & dimension: 1200 x 300

See full project
KLM lounge at Schiphol airport, Rockfon Color-all Charcoal, Rockfon Contour, leisure

Project: Schiphol Airport, Air France & KLM lounge
Edge & dimension: 1200 x 300

See full project

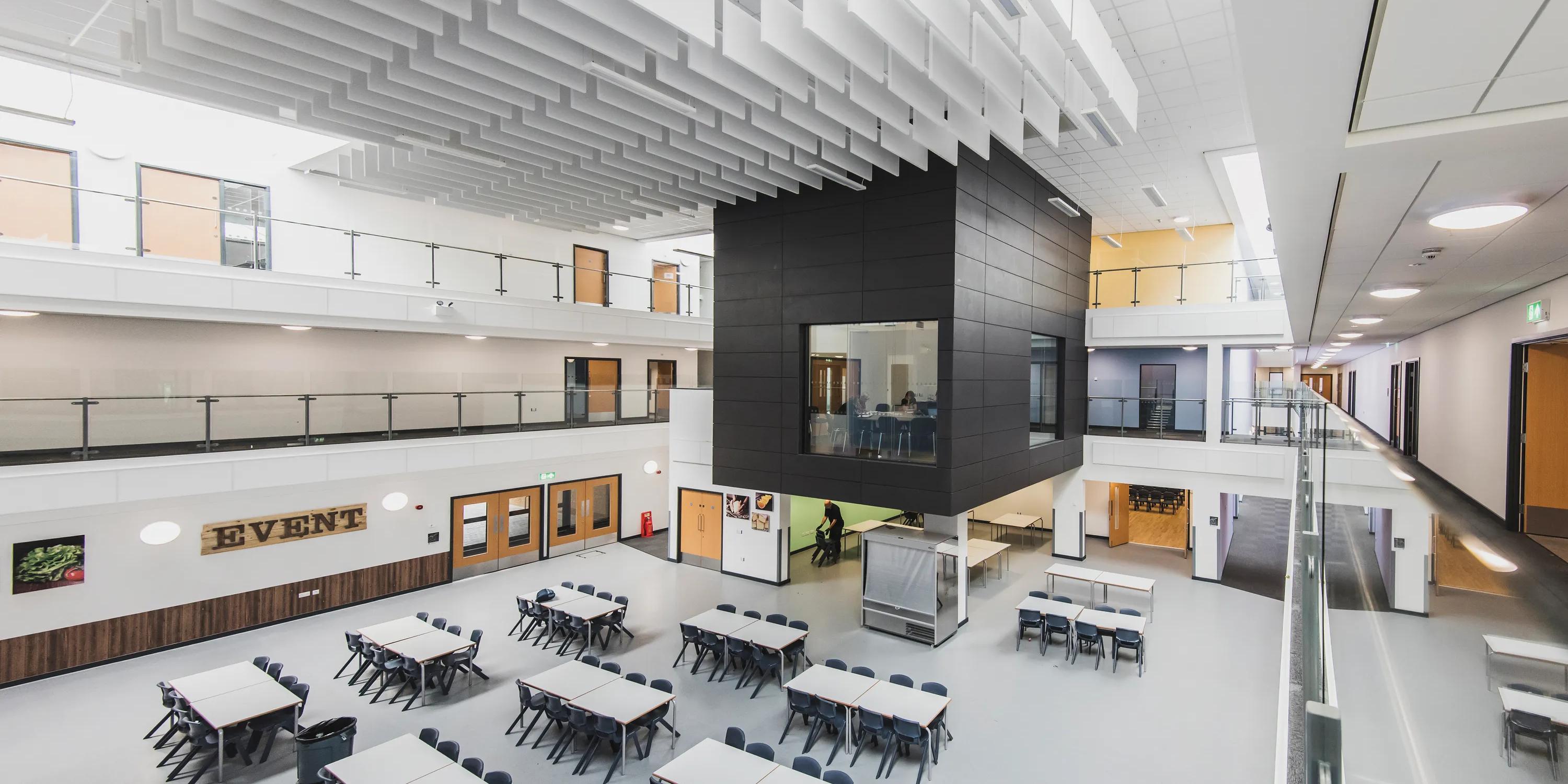

Phoenix Academy, UK, Telford, 2,000m2, Seymour Harris, Kier Construction, Phoenix Academy, Global Contract Interiors Ltd., Simon Jones, White, Rockfon Contour, Suspended, Baffles

Project: Phoenix Academy
Edge & dimension: Ac, 1200 x 300

See full project
Phoenix Academy, UK, Telford, 2,000m2, Seymour Harris, Kier Construction, Phoenix Academy, Global Contract Interiors Ltd., Simon Jones, White, Rockfon Contour, Suspended, Baffles

Project: Phoenix Academy
Edge & dimension: Ac, 1200 x 300

See full project
Phoenix Academy, UK, Telford, 2,000m2, Seymour Harris, Kier Construction, Phoenix Academy, Global Contract Interiors Ltd., Simon Jones, White, Alaska, Suspended raft islands

Project: Phoenix Academy
Edge & dimension: 1800 x 600

See full project
Heartlands Academy, Rockfon Color-all Plaster Concrete Charcoal Chili wall absorbers, Rockfon Contour, Sonar B, Scholar, Hygienic, education

Project: Heartlands Academy
Edge & dimension: B, 1200 x 300

See full project
Heartlands Academy, Rockfon Color-all Plaster Concrete Charcoal Chili wall absorbers, Rockfon Contour, Sonar B, Scholar, Hygienic, education

Project: Heartlands Academy
Edge & dimension: B, 1200 x 300

See full project
Heartlands Academy, Rockfon Color-all Plaster Concrete Charcoal Chili wall absorbers, Rockfon Contour, Sonar B, Scholar, Hygienic, education

Project: Heartlands Academy
Edge & dimension: B, 1200 x 300

See full project

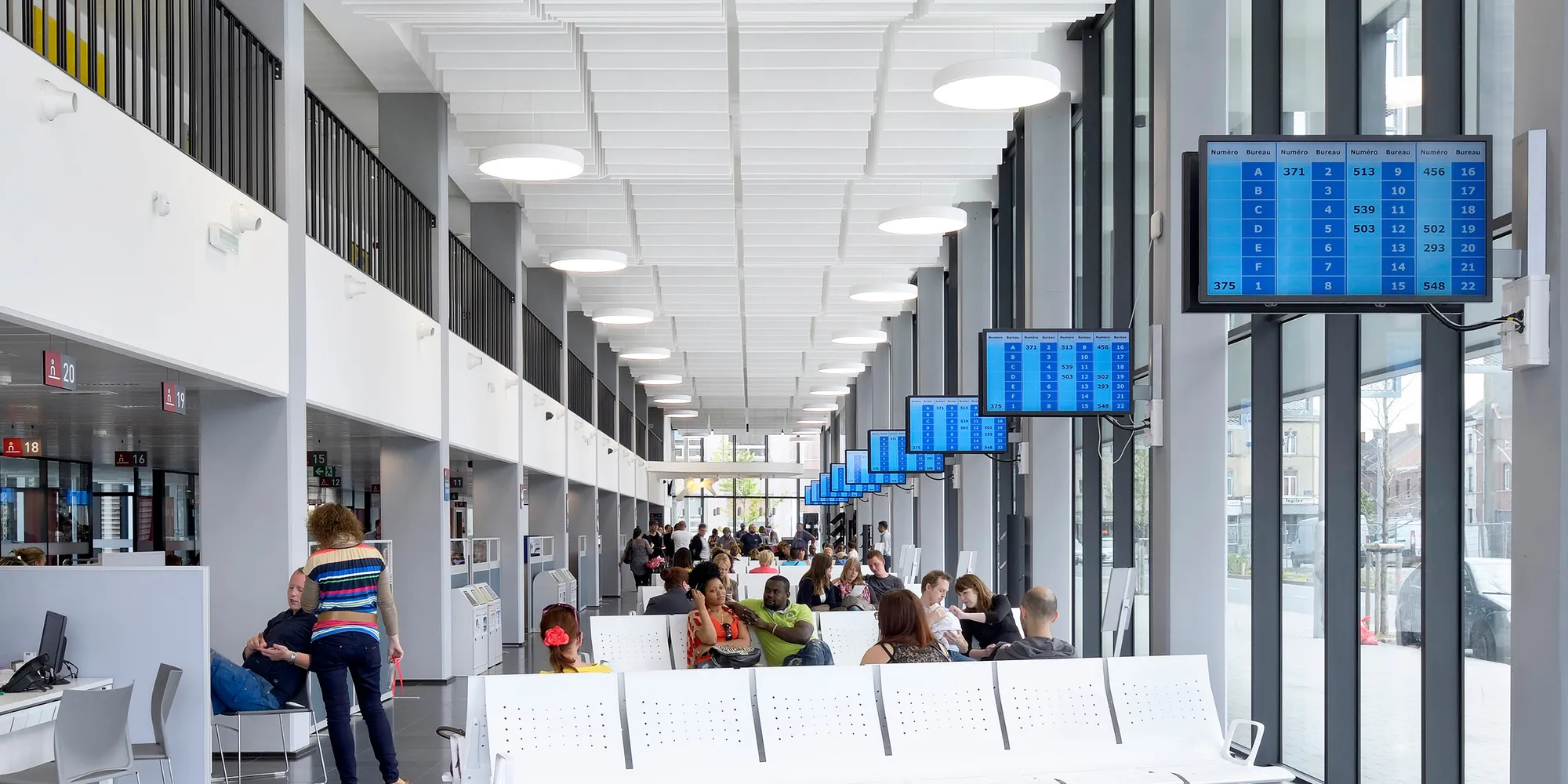

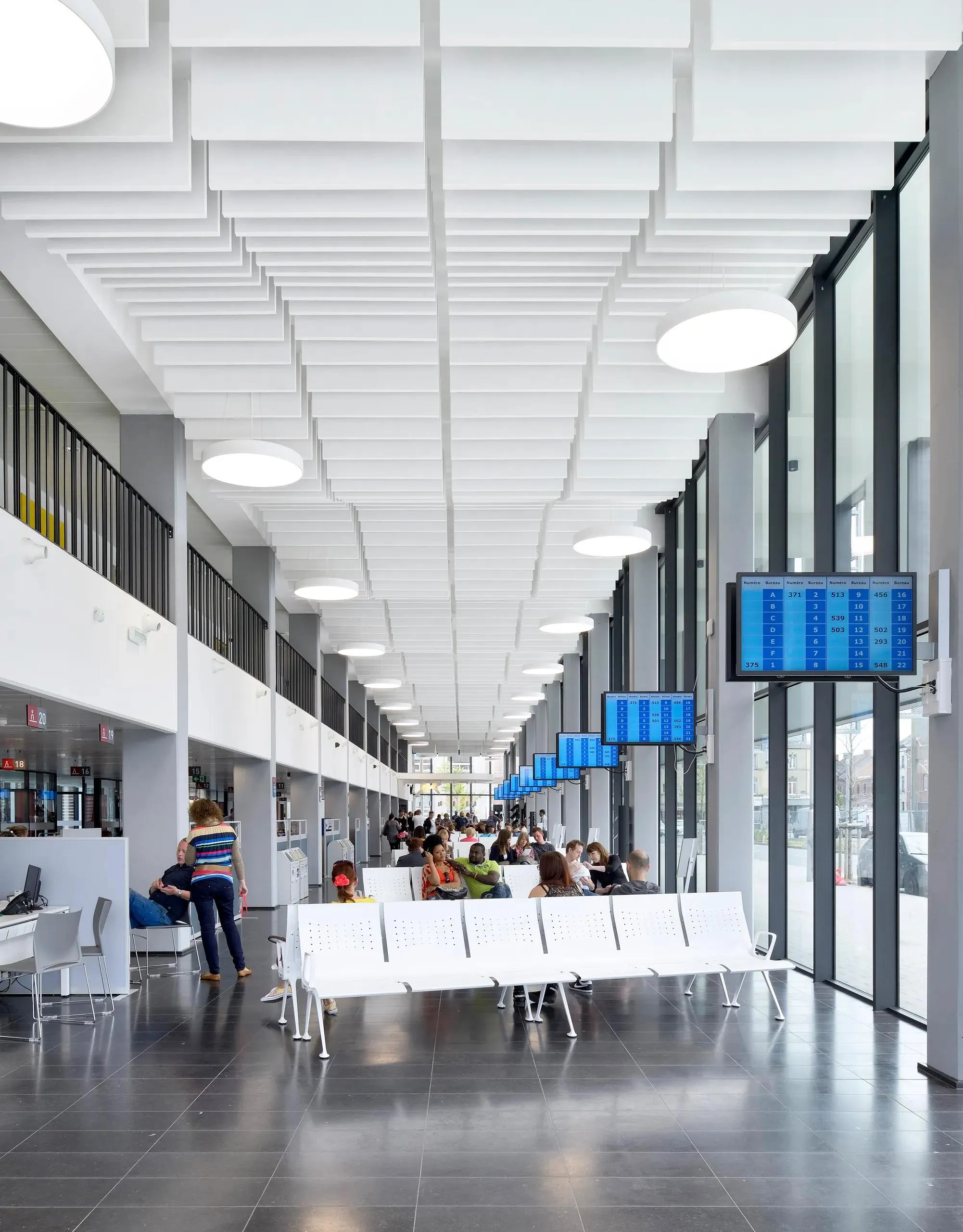

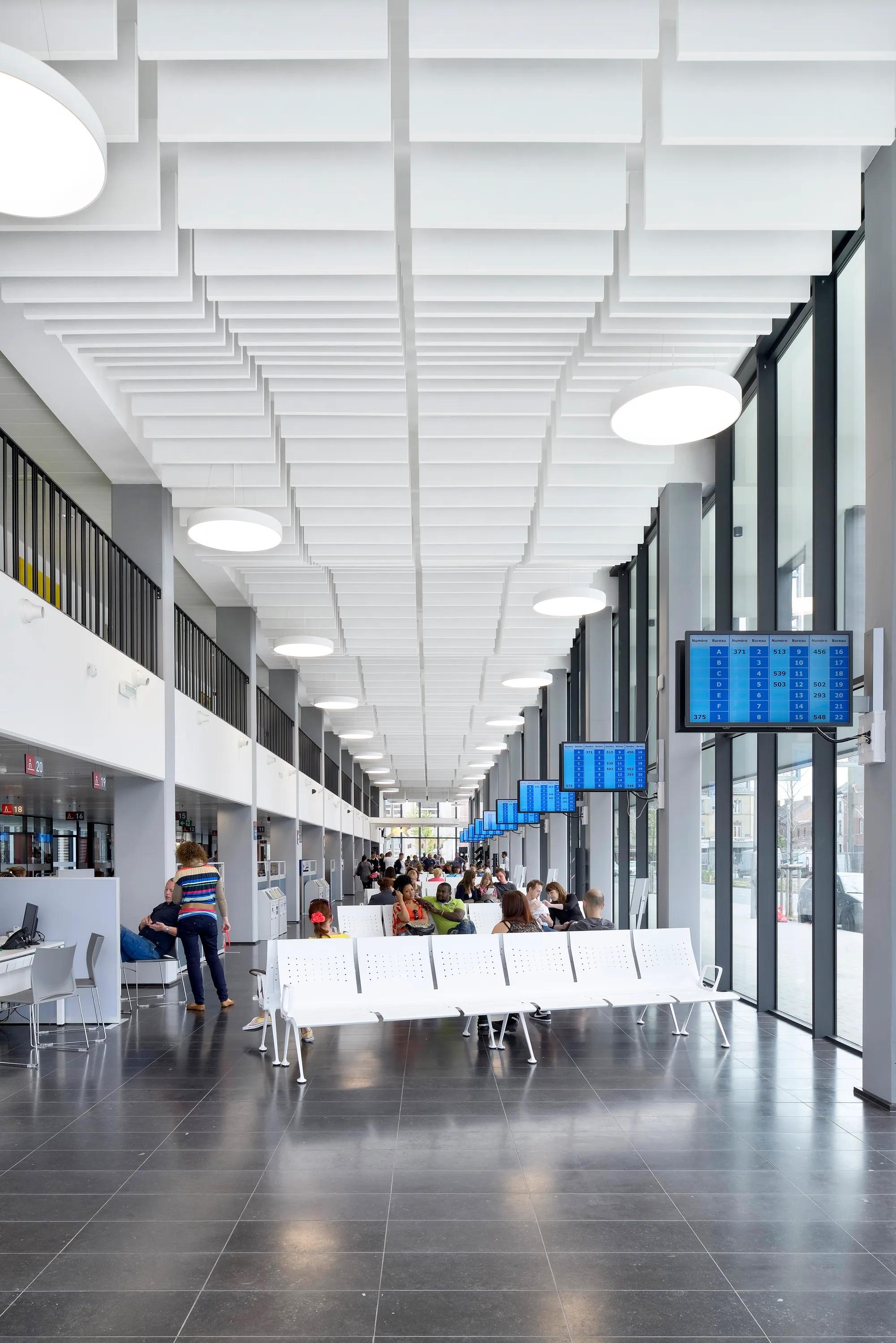

Station2station, Amersfoort, the Netherlands, Abrahams Crielaers

Project: Station2station
Edge & dimension: Ac, 1200 x 300

See full project
Station2station, Amersfoort, the Netherlands, Abrahams Crielaers

Project: Station2station
Edge & dimension: Ac, 1200 x 300

See full project
Station2station, Amersfoort, the Netherlands, Abrahams Crielaers

Project: Station2station
Edge & dimension: Ac, 1200 x 300

See full project
Back

Sound absorption details

Aeq, Equivalent Sound Absorption Area per item (m2 Sabin)
Edge Dimensions Distance Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz
A xx50mm - - 0.12 0.29 0.42 0.50 0.49 0.46
A 1200x300x50mm 2222mm 3333mm 0.18 0.34 0.44 0.57 0.56 0.51
A xx50mm - - 0.24 0.32 0.52 0.66 0.62 0.63
A xx50mm - - 0.25 0.34 0.63 0.76 0.72 0.71
A 1200x600x50mm - - 0.26 0.36 0.71 0.80 0.76 0.73
A 1800x300x50mm - - 0.27 0.51 0.66 0.86 0.84 0.77
A 1800x600x50mm - - 0.39 0.54 1.07 1.20 1.14 1.09

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve

Other performances

Compare
Reaction To Fire Reaction To Fire A1 (EN 13501-1)
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion 79%
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH. There will always be some dust/dirt on the panels after some time, and with regular exposure to high humidity this could lead to fungi growth. Please avoid condensation on the panel
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Cleaning Cleaning Vacuum
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Environment Environment Fully recyclable stone wool
Indoor Environment Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Back
Back
Back

Full range

Edge Shape Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
A Wave x 50 0.00 0 Rockfon® System Contour Baffle™
Rockfon® System Contour Baffle™
Rockfon® System Contour Baffle™

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle
Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle
Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Rectangle 1200 x 300 50 0.00 0 Rockfon® System Contour Baffle™

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Rectangle 1200 x 600 50 0.00 0 Rockfon® System Contour Baffle™

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Rectangle 1800 x 300 50 0.00 0 Rockfon® System Contour Baffle™

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Rectangle 1800 x 600 50 0.00 0 Rockfon® System Contour Baffle™

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2

Contact us for special sizes, lead times and minimum quantities.

Back

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle
Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle
Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Frameless baffle system Rockfon® System Contour Baffle™ Vertical free hanging acoustic baffle

Sound absorption details

Sound curve
Sound curve

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back
