Rockfon CleanSpace® Essential

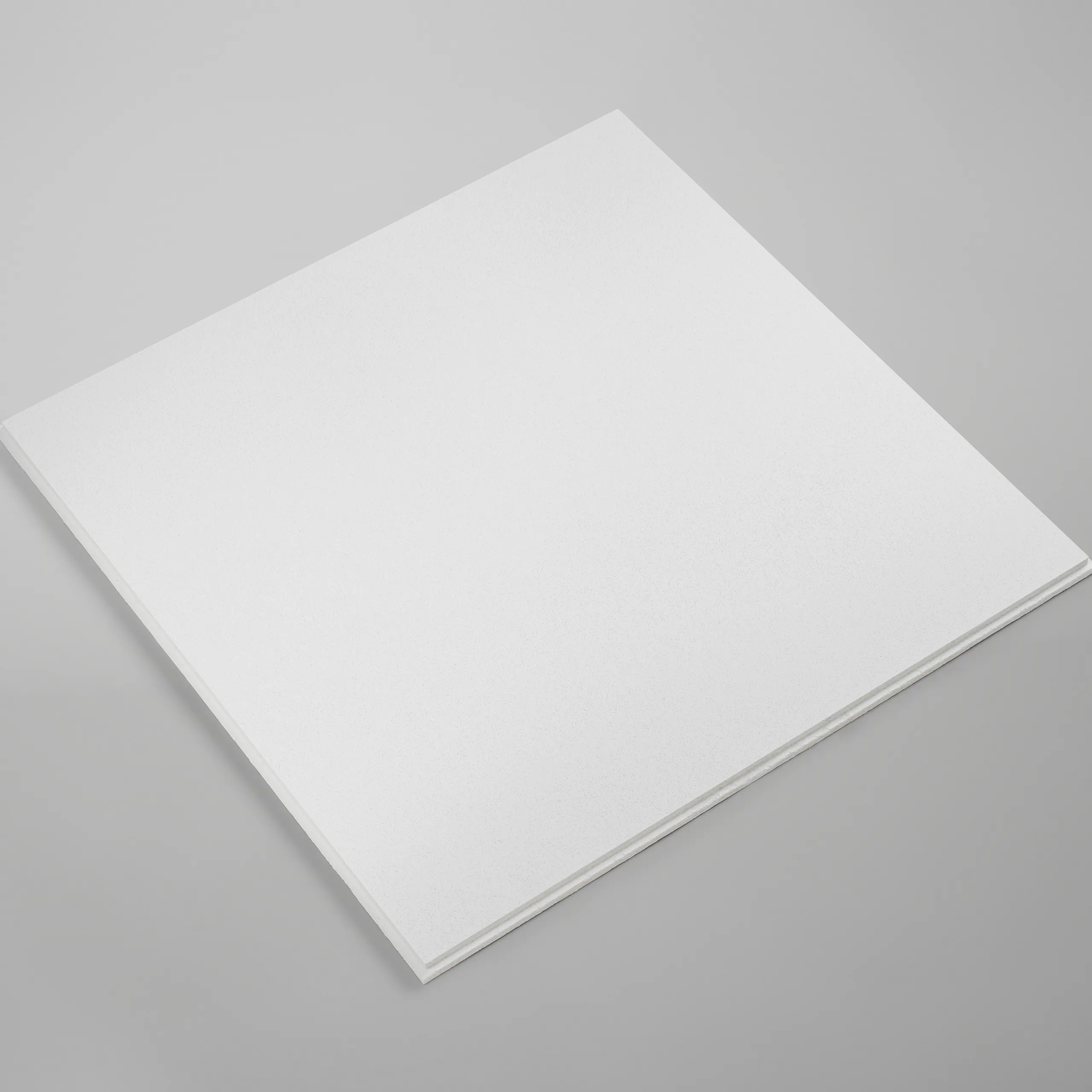

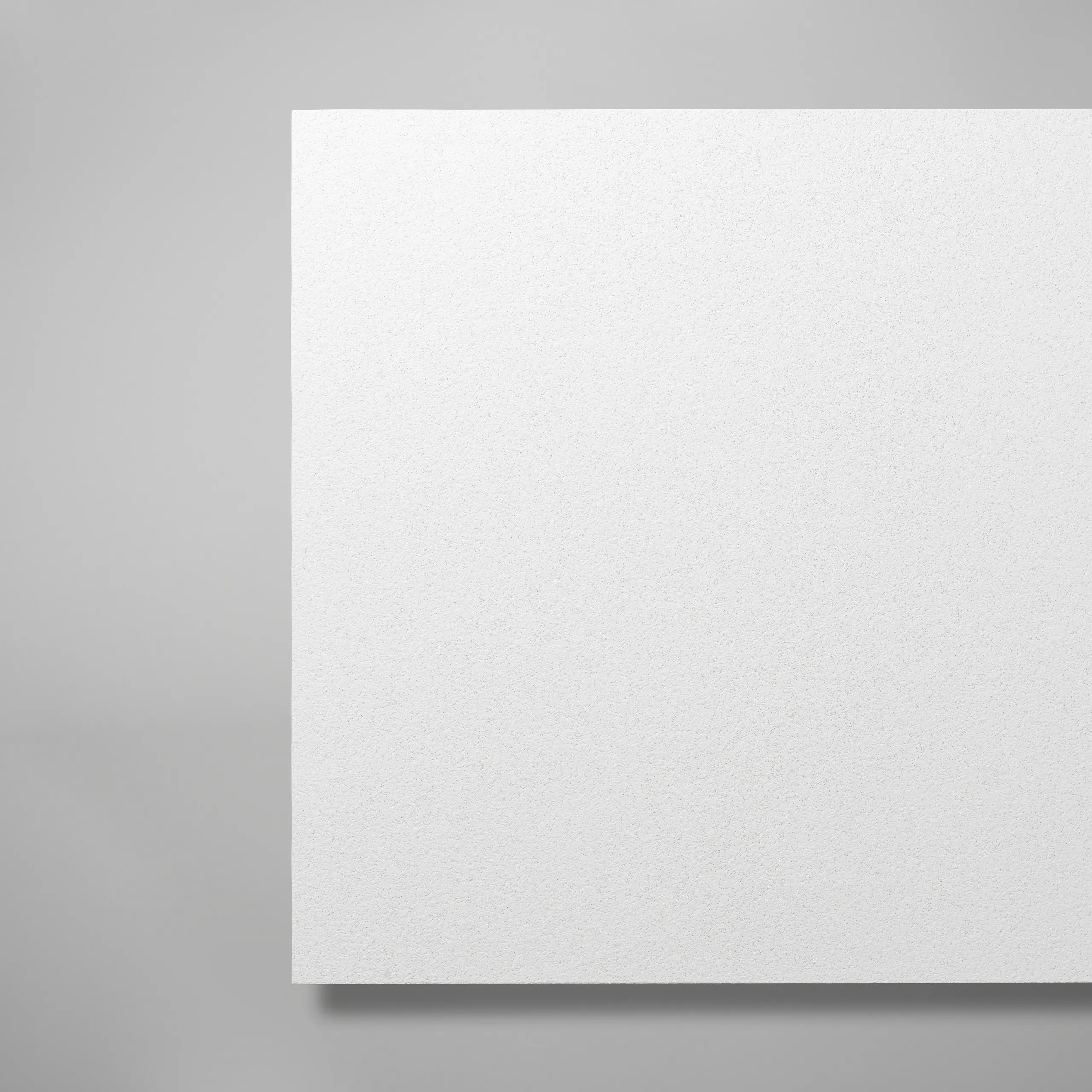

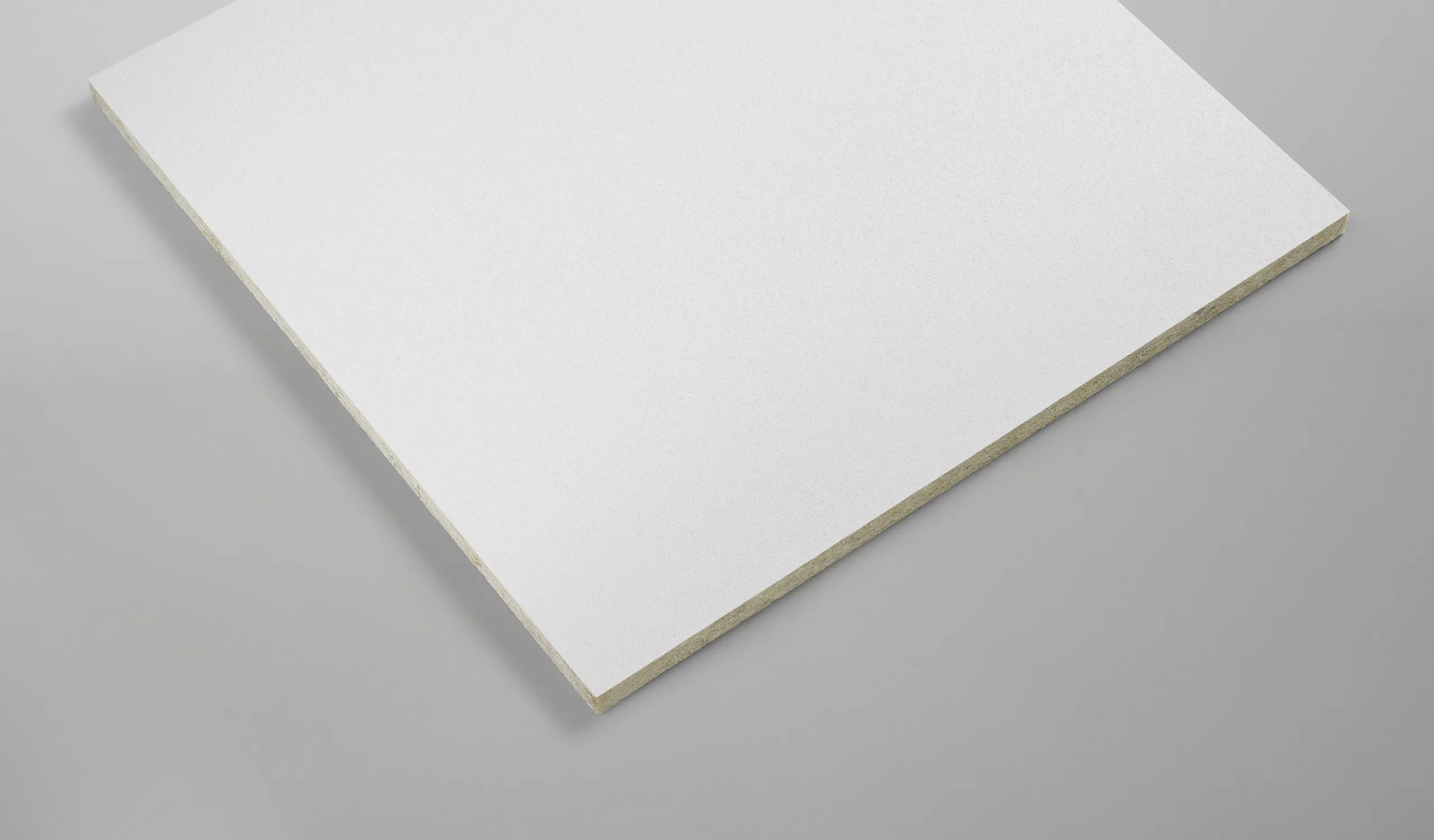

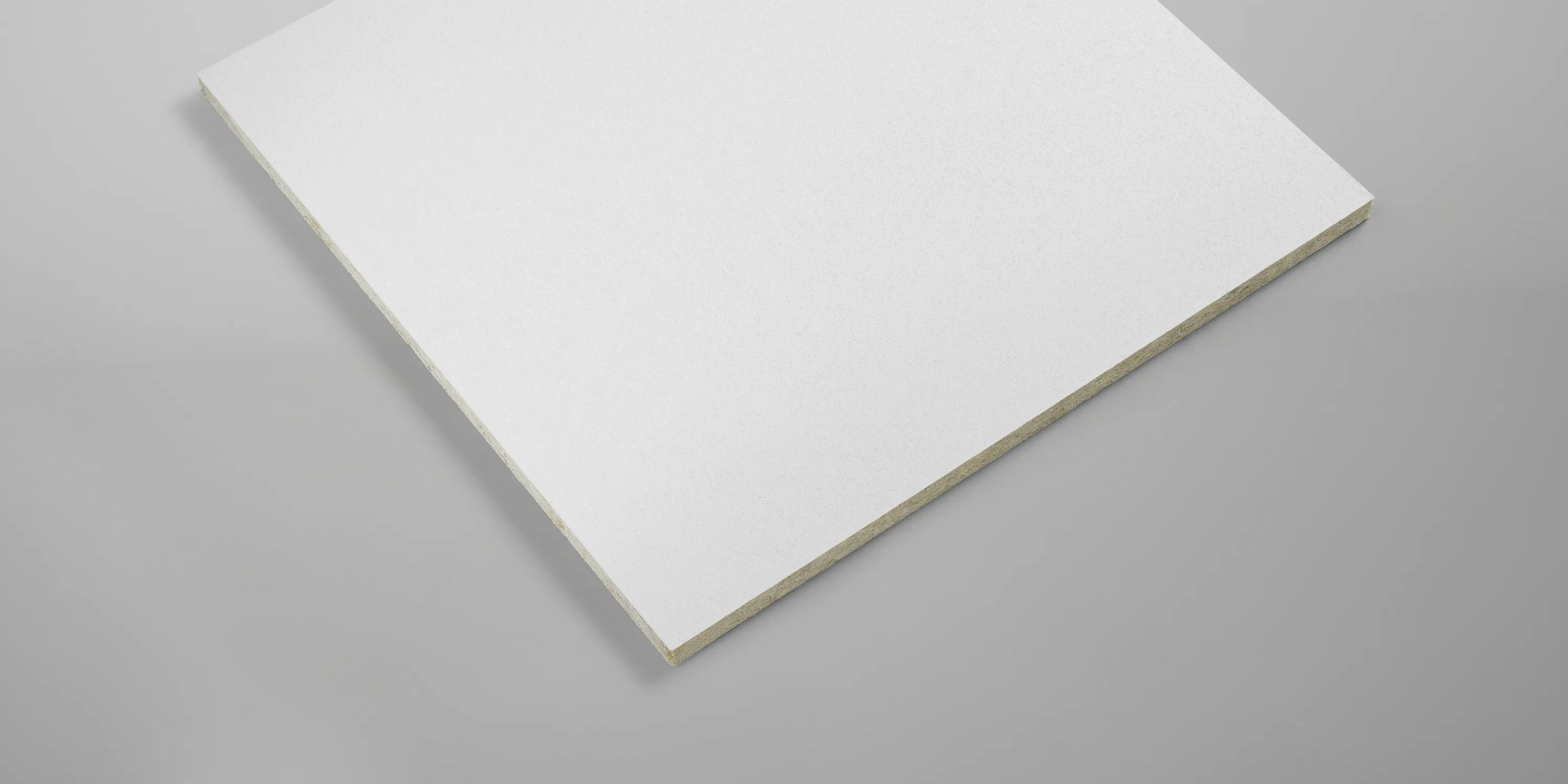

Rockfon CleanSpace Essential has a white, gently cleanable, micro-textured surface
Back

Color

White

ColorWhite
Color GroupWhites
Light reflection85

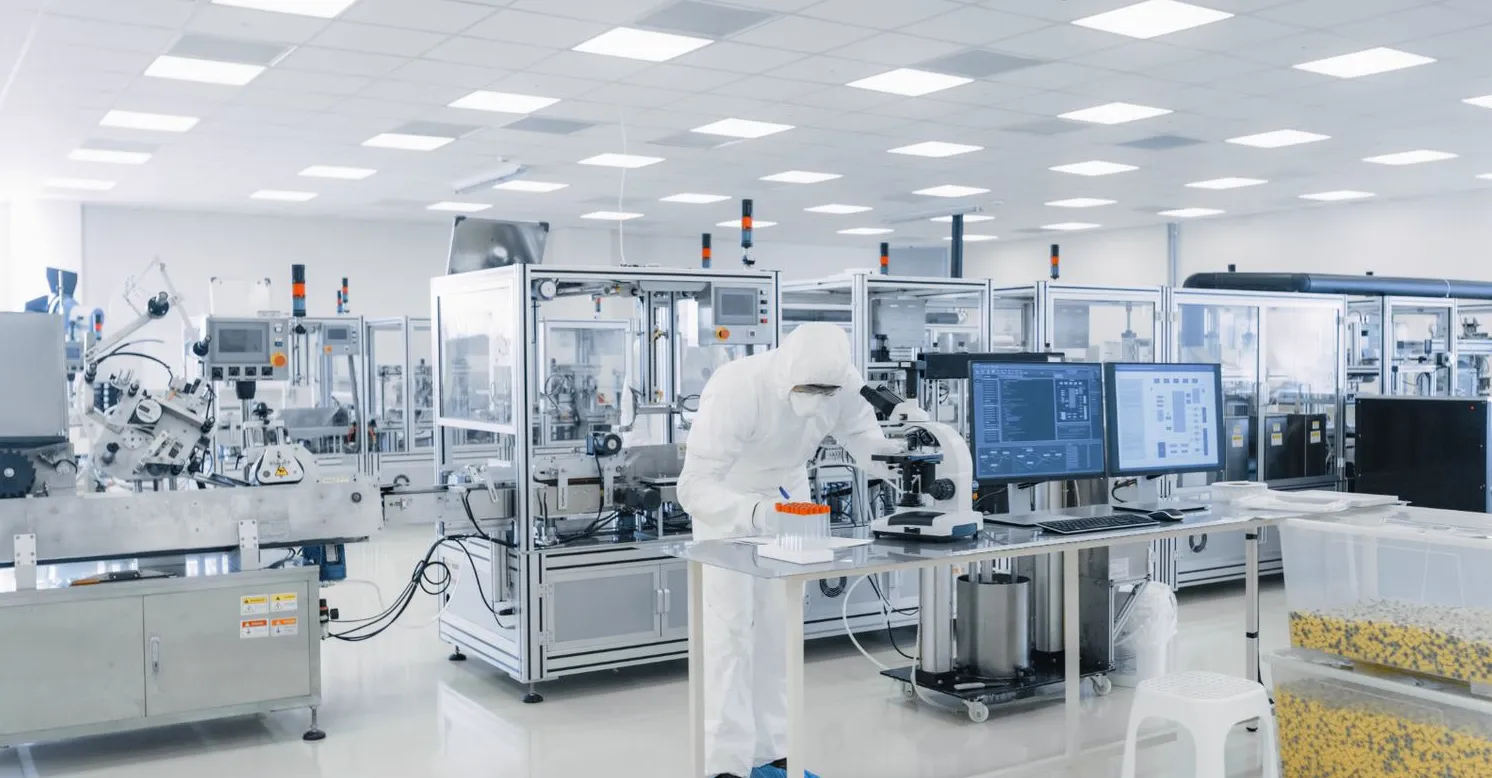

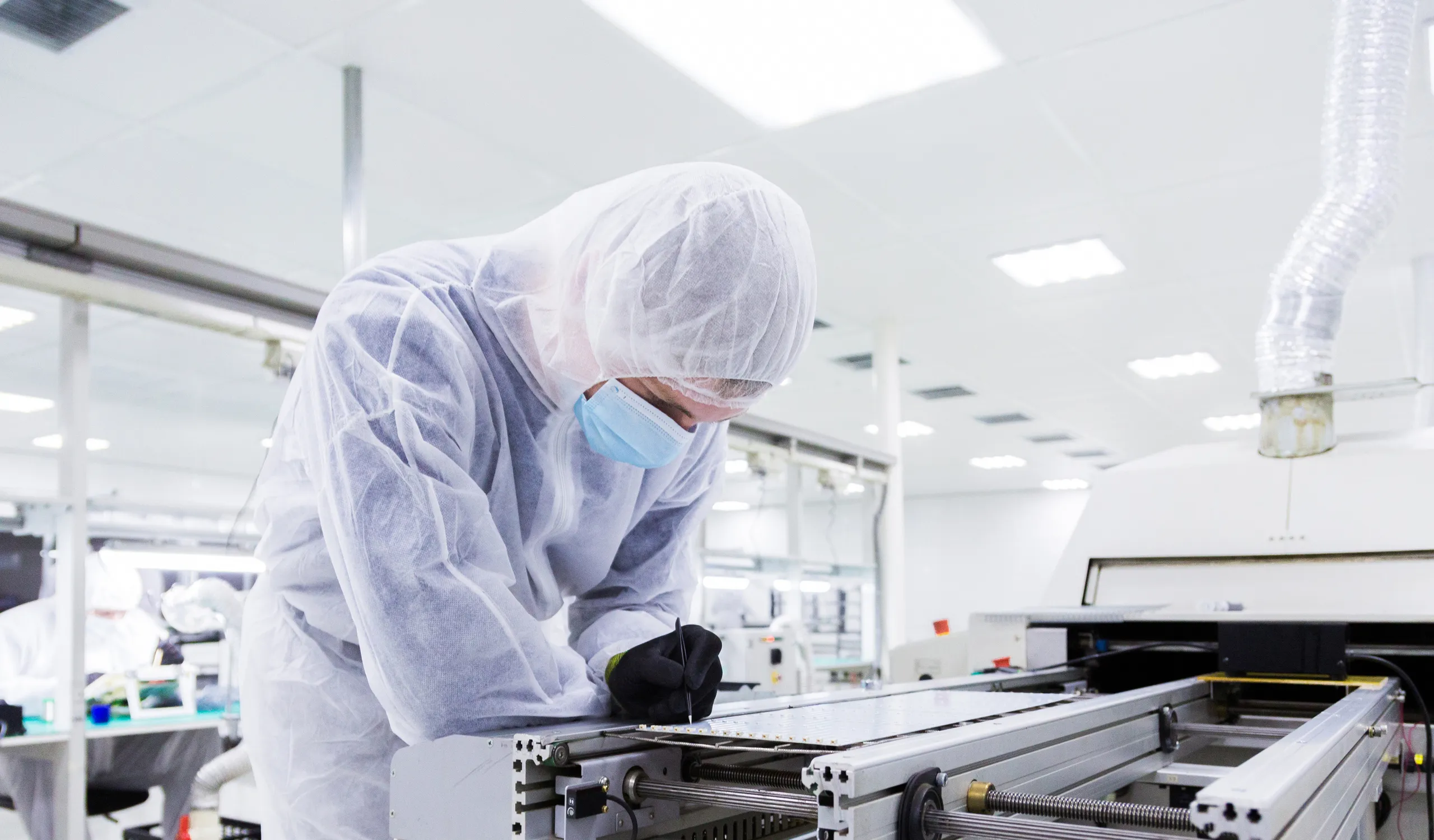

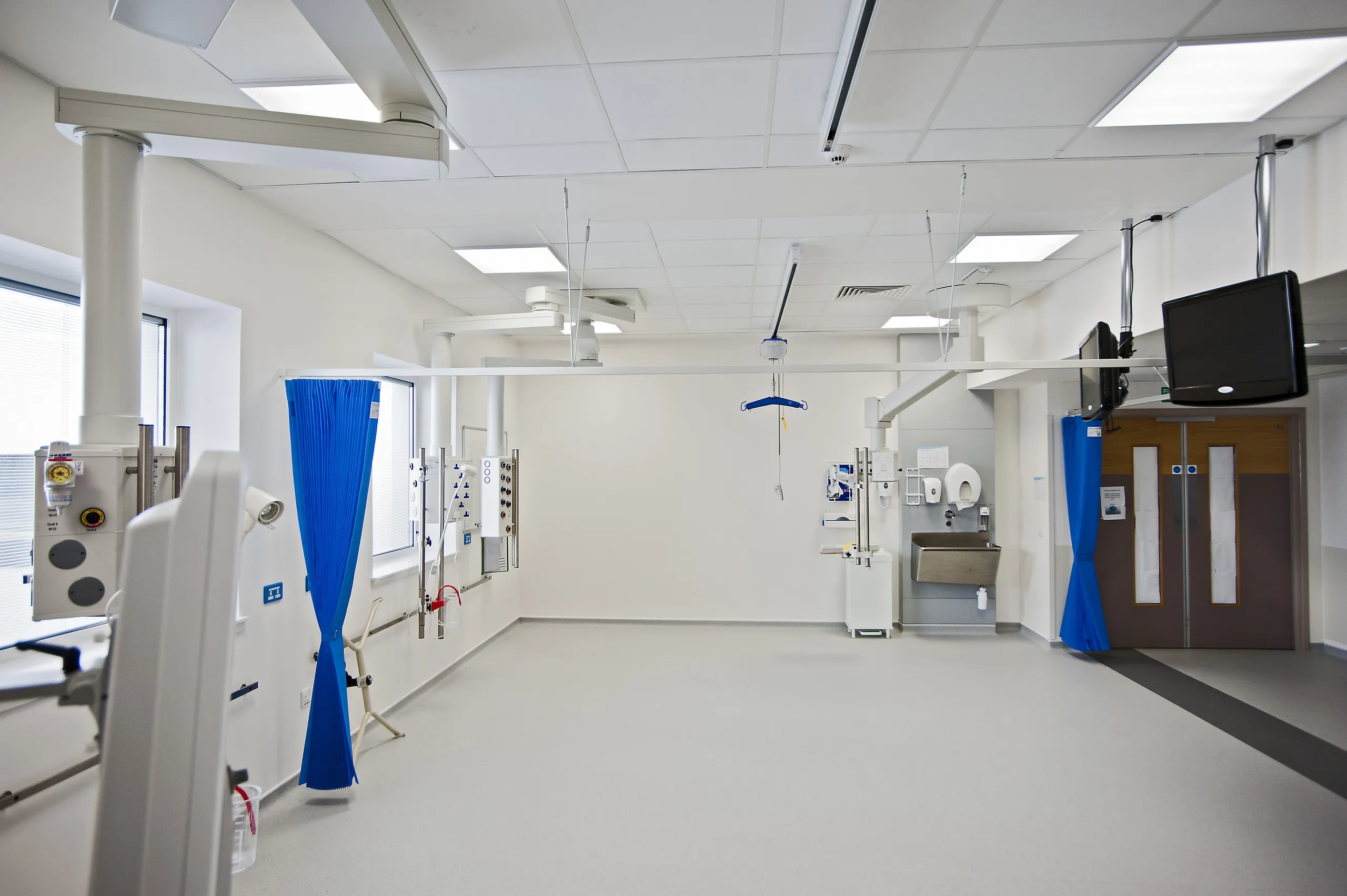

Case studies featuring Rockfon CleanSpace® Essential

1/3
Back

Sound absorption details

Practical Sound Absorption Coefficient (αp)
Edge Thickness Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz Sound absorption class αw NRC
A24, A15 12mm 100mm 0.25 0.55 1.00 1.00 0.95 0.95 B 0.85 0.90
A24, A15 20mm 200mm 0.50 0.90 0.95 0.90 0.95 0.90 A 0.95 0.95
A24 25mm 200mm 0.60 0.95 1.00 0.95 1.00 1.00 A 1.00 1.00

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve
Back
Sound curve
Back
Sound curve

Other performances

Compare
Reaction To Fire Reaction To Fire A1
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion 85%
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH.
No visible deflection in high humidity.
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Cleaning Cleaning Vacuum, Damp cloth, Chemical resistance: Tested according to ISO 2812-3:2019 and classified in accordance with EN 12720. Rating on a scale from 1 to 5, where 5 is the best. We obtained 5 for the following detergents and disinfectants (quarterly disinfection): - Active chlorine 2.6% - Hydrogen peroxide 5% - Ethanol 70%, Use only soft equipment directly on the tile surface: cloth or sponge. Avoid scraping or stiff brush rubbing.
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Clean Room Classification Clean Room Classification 4
Clean room classification is measured in accordance with ISO 14644-1.

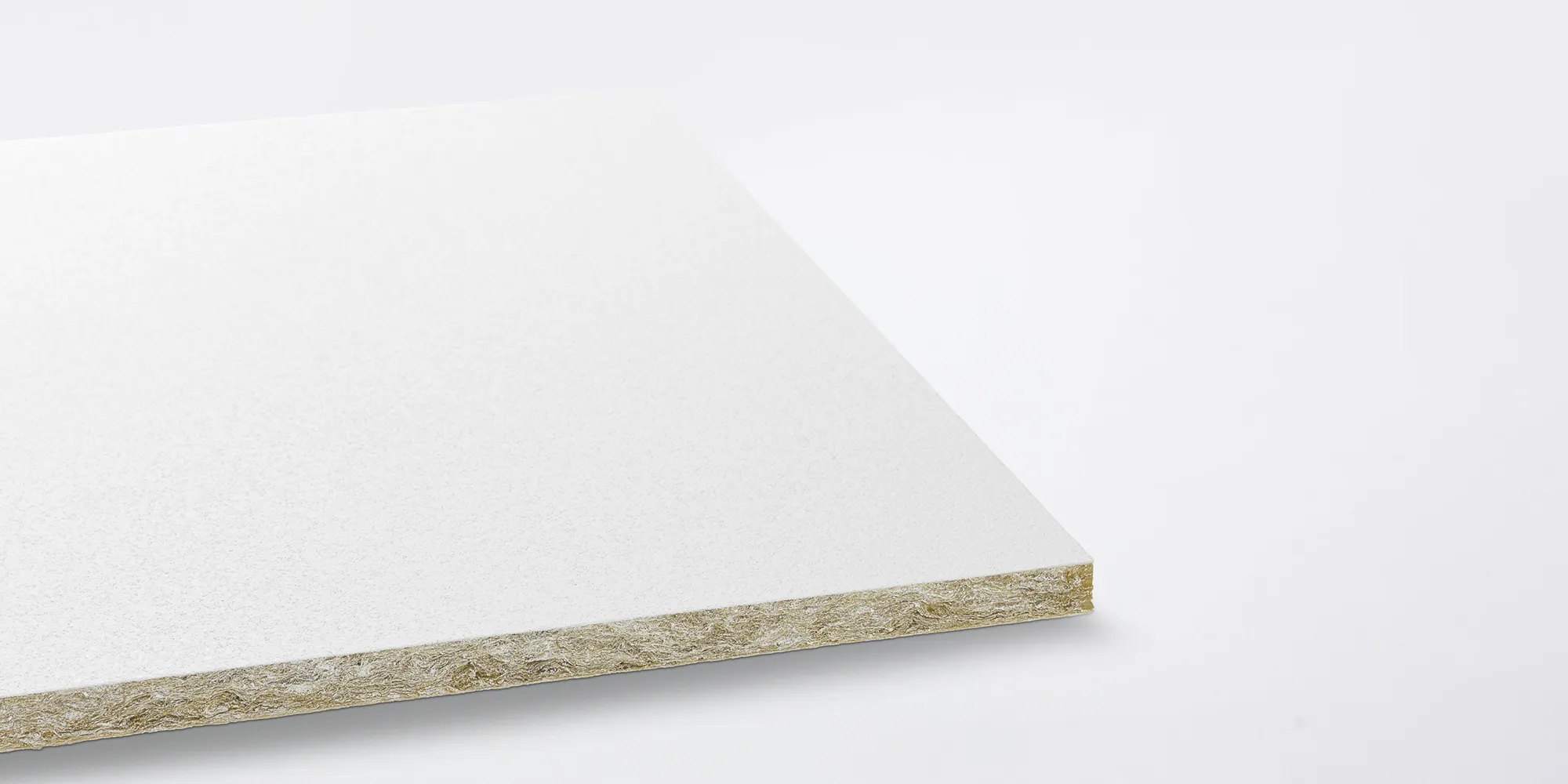

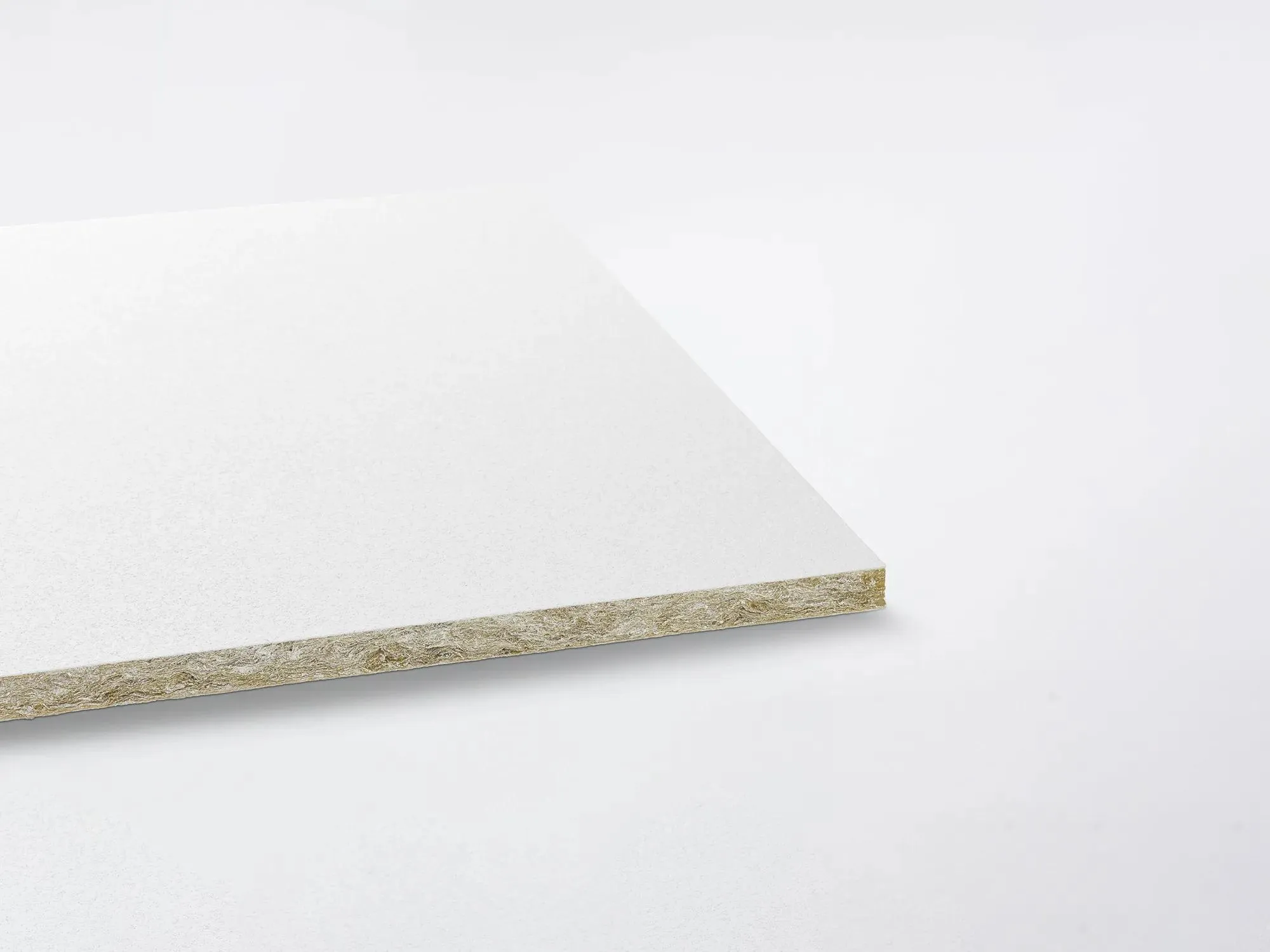

Environment Environment Fully recyclable stone wool
Indoor Environment Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Back
Clean room classification is measured in accordance with ISO 14644-1.
Back
Back
Back

Full range

Edge Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
A15 1200 x 600 12 1.60 0 Rockfon® System T15 A

Recommended installation system

Visible grid ceiling system Rockfon® System T15 A Ceiling system with a 15 mm wide visible grid with A-edge tiles

Sound absorption details

αw 0.85
NRC 0.90
Sound absorption class B

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A15 1200 x 600 20 2.10 0 Rockfon® System T15 A

Recommended installation system

Visible grid ceiling system Rockfon® System T15 A Ceiling system with a 15 mm wide visible grid with A-edge tiles

Sound absorption details

αw 0.95
NRC 0.95
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A15 600 x 600 12 1.60 0 Rockfon® System T15 A

Recommended installation system

Visible grid ceiling system Rockfon® System T15 A Ceiling system with a 15 mm wide visible grid with A-edge tiles

Sound absorption details

αw 0.85
NRC 0.90
Sound absorption class B

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A15 600 x 600 20 2.10 0 Rockfon® System T15 A

Recommended installation system

Visible grid ceiling system Rockfon® System T15 A Ceiling system with a 15 mm wide visible grid with A-edge tiles

Sound absorption details

αw 0.95
NRC 0.95
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A24 1200 x 600 12 1.60 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 0.85
NRC 0.90
Sound absorption class B

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A24 1200 x 600 20 2.10 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 0.95
NRC 0.95
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A24 1200 x 600 25 2.50 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 1.00
NRC 1.00
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A24 600 x 600 12 1.60 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 0.85
NRC 0.90
Sound absorption class B

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A24 600 x 600 20 2.10 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 0.95
NRC 0.95
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A24 600 x 600 25 2.50 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 1.00
NRC 1.00
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Visible grid ceiling system Rockfon® System T15 A Ceiling system with a 15 mm wide visible grid with A-edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Visible grid ceiling system Rockfon® System T15 A Ceiling system with a 15 mm wide visible grid with A-edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Visible grid ceiling system Rockfon® System T15 A Ceiling system with a 15 mm wide visible grid with A-edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Visible grid ceiling system Rockfon® System T15 A Ceiling system with a 15 mm wide visible grid with A-edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
