Corrosion resistant (D)

Range of accessories with extra corrosion resistant finishing in compliance with class D
Download Datasheet
Download Datasheet
Back
Compatible with the extra corrosion resistant Chicago Metallic grids
Extra galvanised raw material with double side painting or similar protection
Used in project requirements with class C or D exposure conditions
Back

Performances

Corrosion Resistance Corrosion Resistance D
Reaction To Fire Reaction To Fire A2-s1,d0 (nonius)
Environment Environment Fully Recyclable
Back
Back
Back
Back

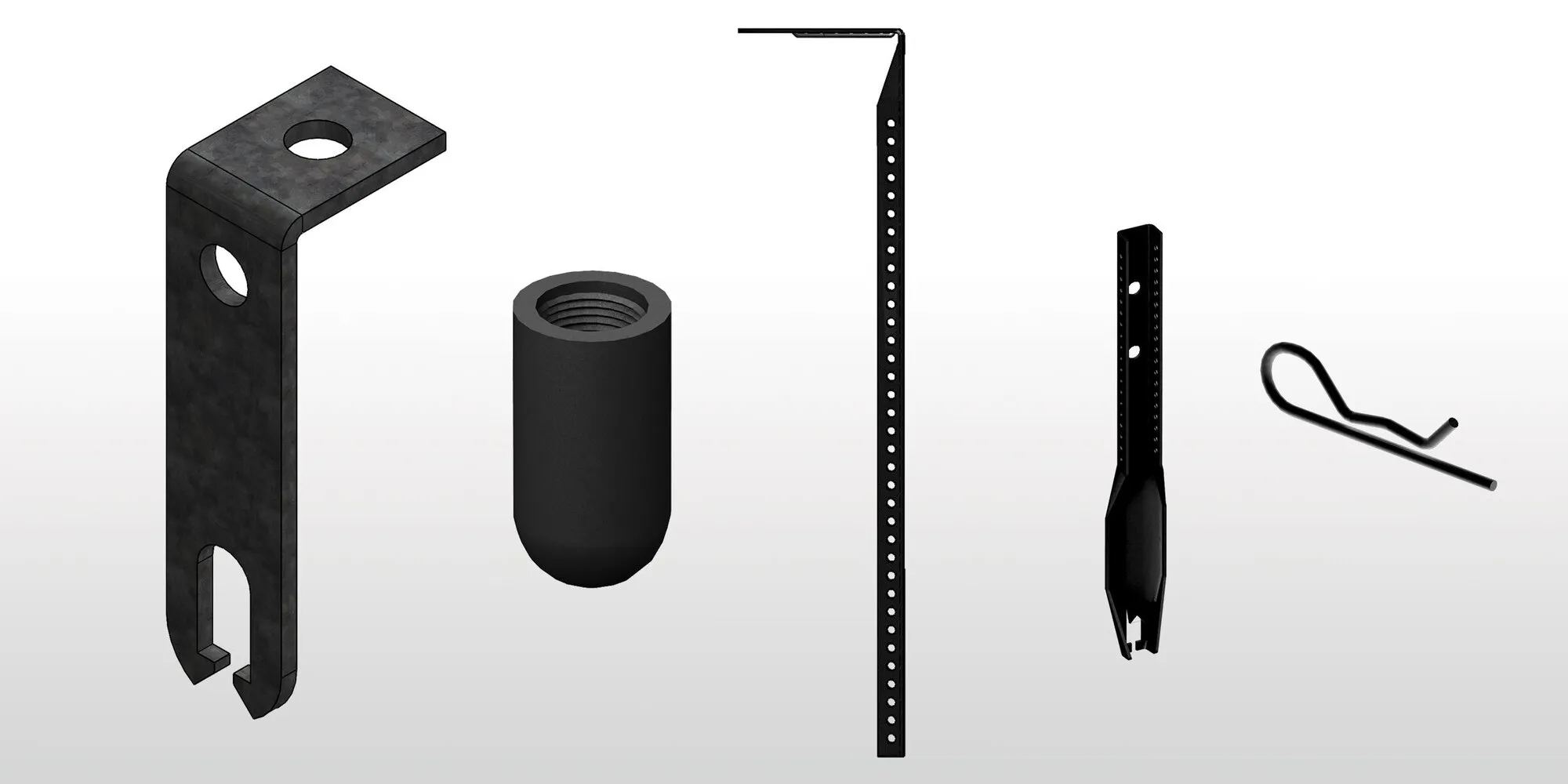

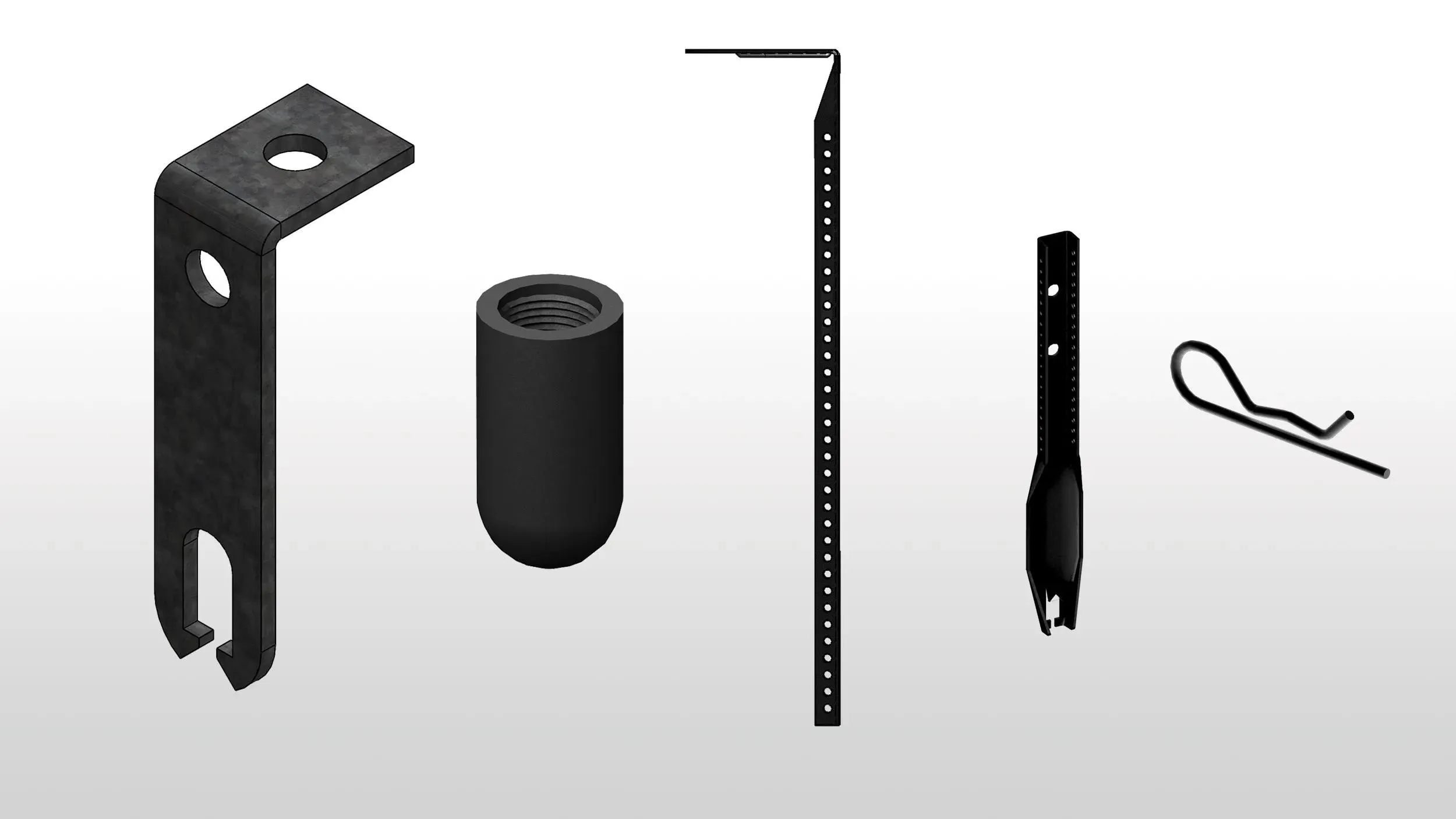

Profiles and Accessories

Accessories

Component Length Height Product number Packaging
Corrosion resistant (D)
D10012.tif Threaded rod M6 / ECR class D / L=1000 mm 1000 TR D M6 See Packaging Dimensions
D10014.tif Nut M6 / ECR class D NUT D M6 See Packaging Dimensions

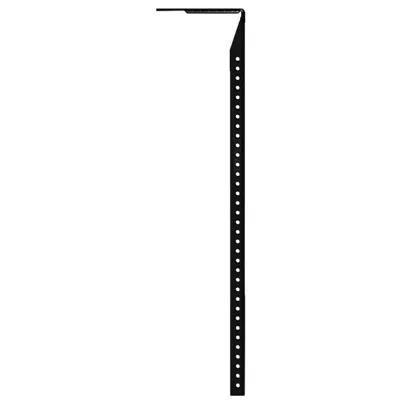

D10200B.tif Upper part nonius hanger / bent / ECR class D 85 NH D 85 See Packaging Dimensions
D10230.tif Lower part nonius hanger for T24x38 mm profiles / ECR class D 190 NH D T See Packaging Dimensions
D10416.tif Protective cap M6 / ECR class D CAP D M6 See Packaging Dimensions
--D11.tif Special hanger bent / ECR class D 57.5 FH B D See Packaging Dimensions
NH D CLIP.tif Intersection clip for nonius / ECR class D NH D CLIP See Packaging Dimensions
D10200B.tif Upper part nonius hanger / bent / ECR class D 135 NH D 135 See Packaging Dimensions
D10200B.tif Upper part nonius hanger / bent / ECR class D 235 NH D 235 See Packaging Dimensions
D10200B.tif Upper part nonius hanger / bent / ECR class D 940 NH D 940 See Packaging Dimensions
D10200B.tif Upper part nonius hanger / bent / ECR class D 1040 NH D 1040 See Packaging Dimensions
D10200B.tif Upper part nonius hanger / bent / ECR class D 640 NH D 640 See Packaging Dimensions
D10200B.tif Upper part nonius hanger / bent / ECR class D 740 NH D 740 See Packaging Dimensions
D10200B.tif Upper part nonius hanger / bent / ECR class D 840 NH D 840 See Packaging Dimensions
D10200B.tif Upper part nonius hanger / bent / ECR class D 540 NH D 540 See Packaging Dimensions
D10200B.tif Upper part nonius hanger / bent / ECR class D 440 NH D 440 See Packaging Dimensions
D10200B.tif Upper part nonius hanger / bent / ECR class D 340 NH D 340 See Packaging Dimensions
D10013.tif Spacer sleeve M6 / ECR class D SS D M6 See Packaging Dimensions
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
Corrosion resistant (D) | Datasheet
Corrosion resistant (D) | Datasheet

pdf
DoP-RFN-ACCNONIUSECRD-B02 - Lower part nonius hanger for T24x38 mm profiles / ECR class D
DoP-RFN-ACCNONIUSECRD-B02 - Lower part nonius hanger for T24x38 mm profiles / ECR class D

pdf
DoP-RFN-ACCSUSPFIXECRD-A02 - Special hanger bent / ECR class D
DoP-RFN-ACCSUSPFIXECRD-A02 - Special hanger bent / ECR class D

pdf
DoP-RFN-ACCNONIUSECRD-A02 - Upper part nonius hanger / bent / ECR class D
DoP-RFN-ACCNONIUSECRD-A02 - Upper part nonius hanger / bent / ECR class D

pdf
DoP-RFN-THREADEDWIREECRD-A02 - Spacer sleeve M6 / ECR class D
DoP-RFN-THREADEDWIREECRD-A02 - Spacer sleeve M6 / ECR class D

pdf
Back

We provide customers with a complete acoustic ceiling system offering, combining sound absorbing ceiling tiles and wall panels with suspension grid systems and accessories.
