Chicago Metallic W-profiles

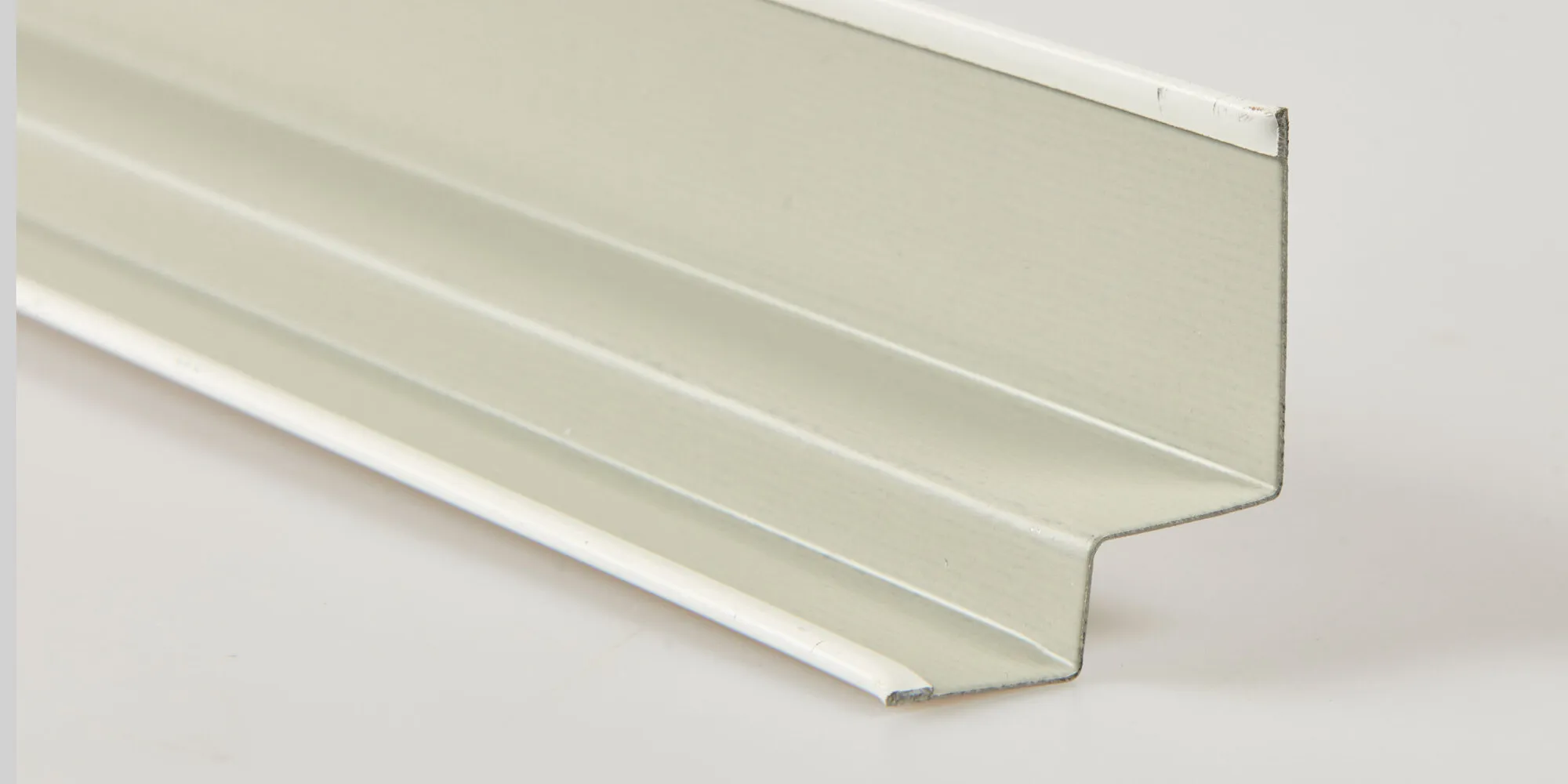

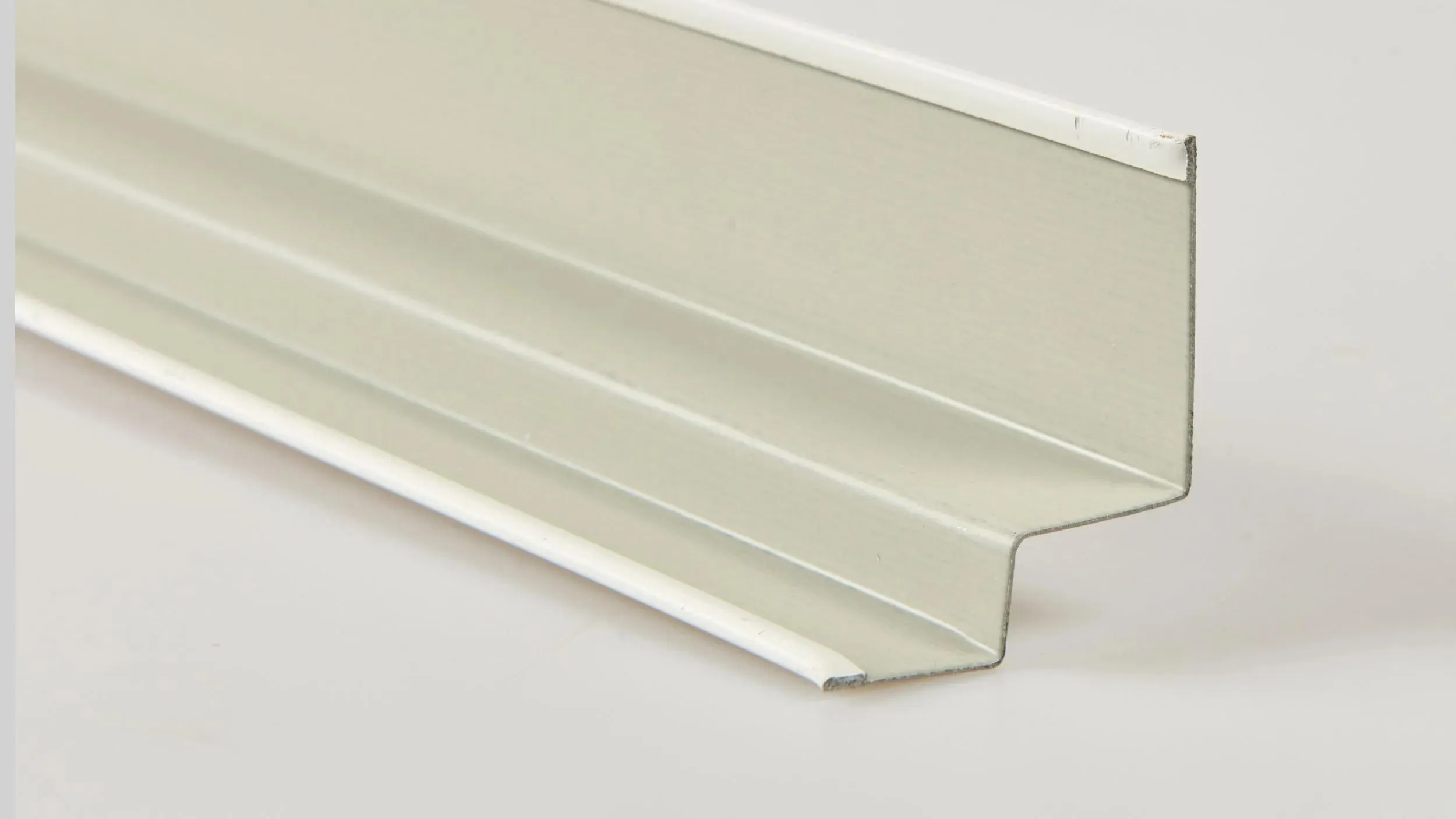

A range of W profiles (shadow moulding wall angles) for various applications
Back
Back

Performances

Corrosion Resistance Corrosion Resistance B (steel) + C (aluminium)
Reaction To Fire Reaction To Fire A1 / A2-s1,d0 (Color-all)
Environment Environment Fully Recyclable
Back
Back
Back
Back

Profiles and Accessories

Wall angle options

Component Length Height Width Product number Colours Packaging
W Profiles
1469.tif W-profile 20x20x20x20 mm 3050 20 20 W20 Multiple colours See Packaging Dimensions
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x15x10x15 mm 3050 15 10 W10x15 Multiple colours See Packaging Dimensions
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x12x8x15 mm 3050 15 7.8 W8x12 Multiple colours See Packaging Dimensions
1465--001.tif W-profile 20x20x20x30 mm 3050 20 20 W20x20x20x30 White 001 See Packaging Dimensions

Accessories

Component Product number Colours Packaging
Accessories for wall angles

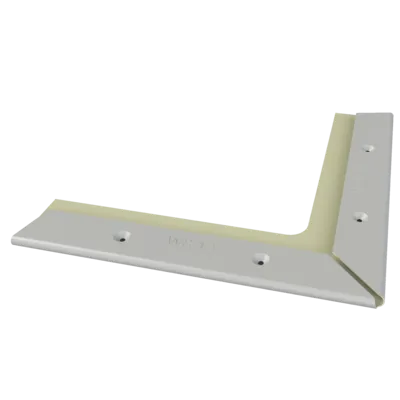

CC 15 OUT_2.tif Outside flat corner for W-profile flange 15 mm CC 15 OUT Multiple colours See Packaging Dimensions

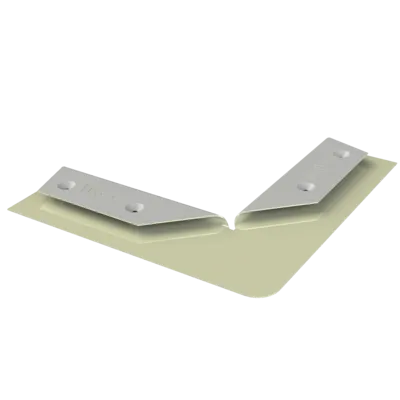

CC 15 IN_2.tif Inside flat corner for W-profile flange 15 mm CC 15 IN Multiple colours See Packaging Dimensions
