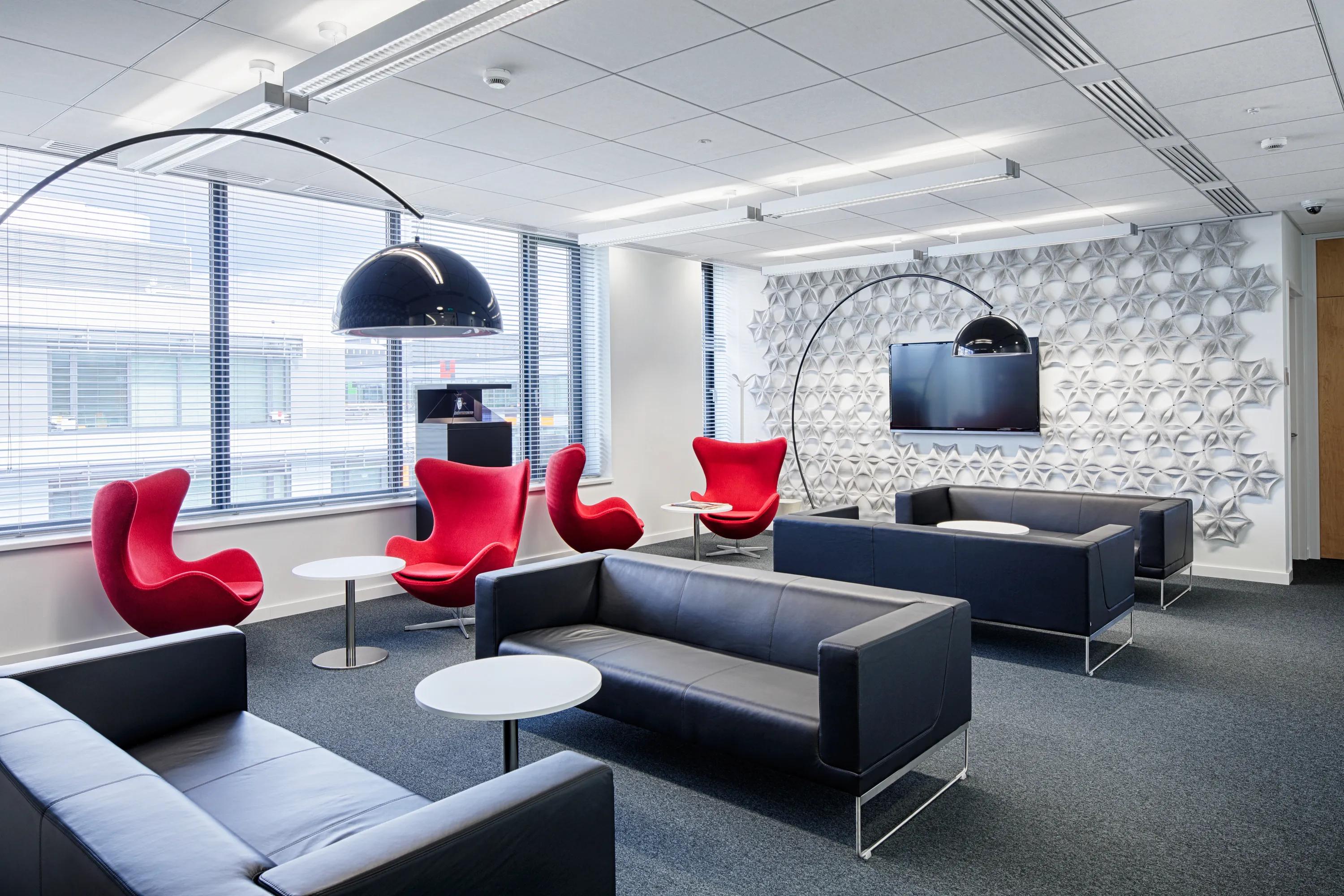

Chicago Metallic Ultraline 3500

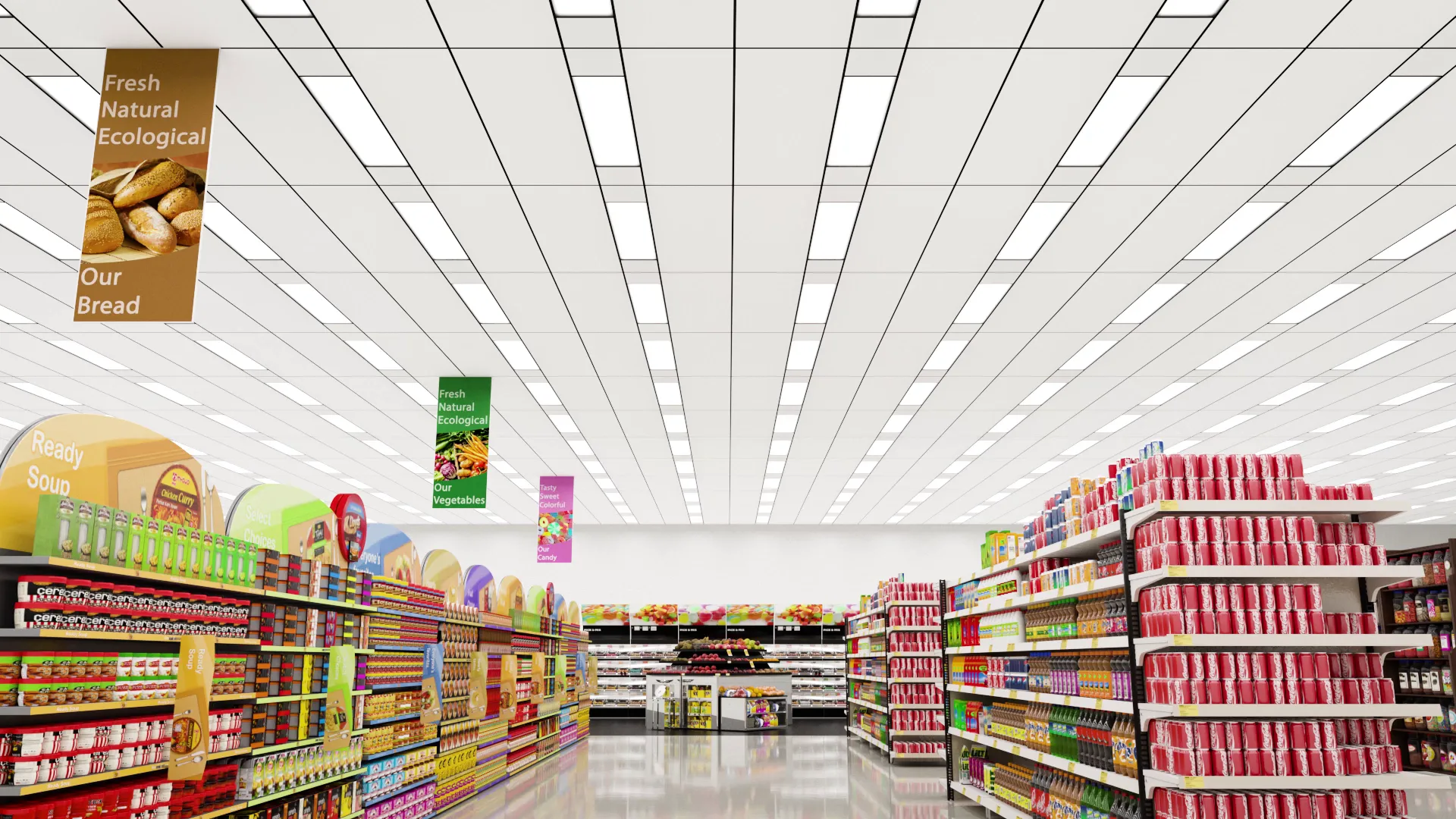

Creates a narrow recess in the grid for an aesthetic, "designer" ceiling
Download Datasheet
Download Datasheet
Back

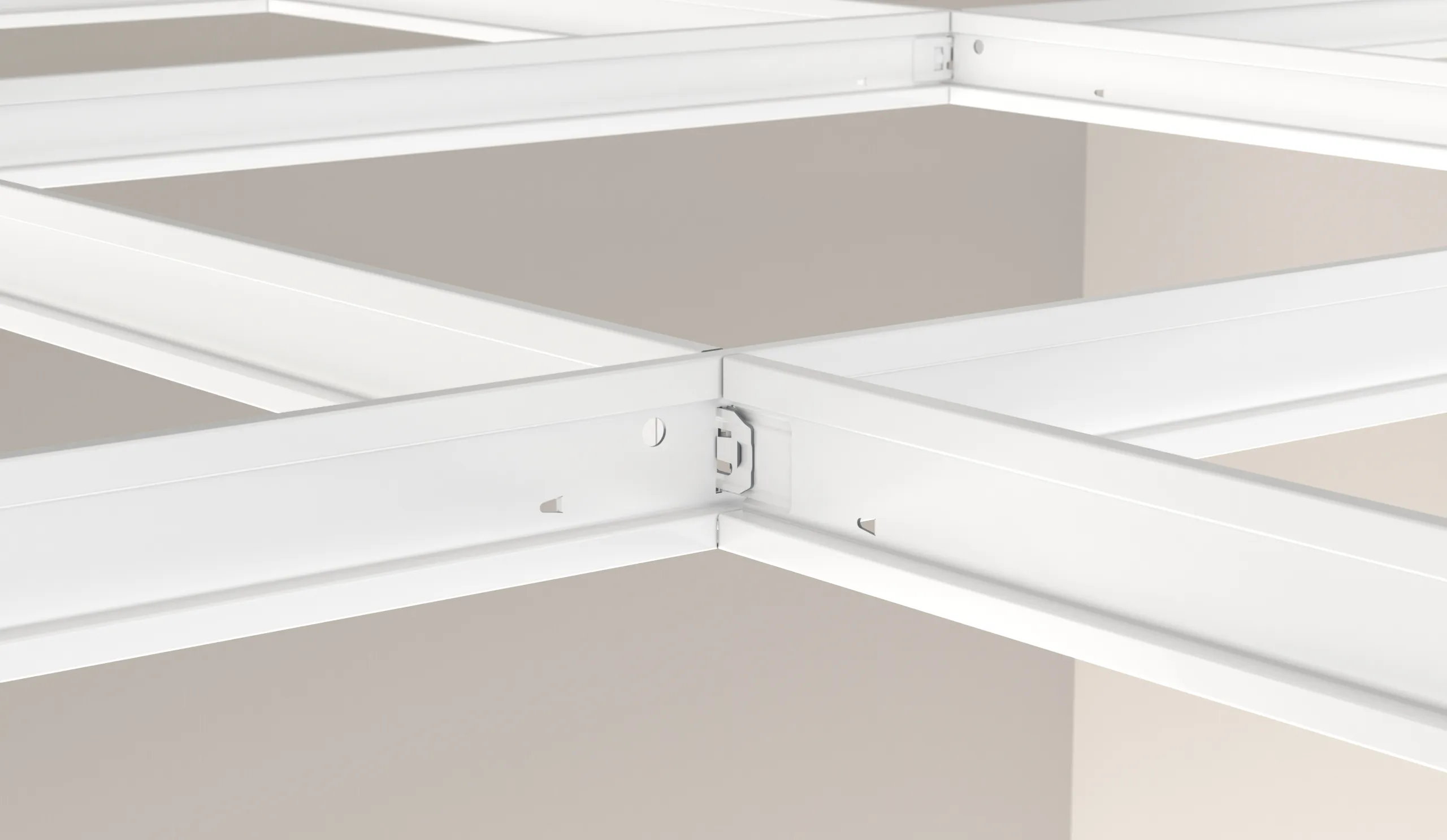

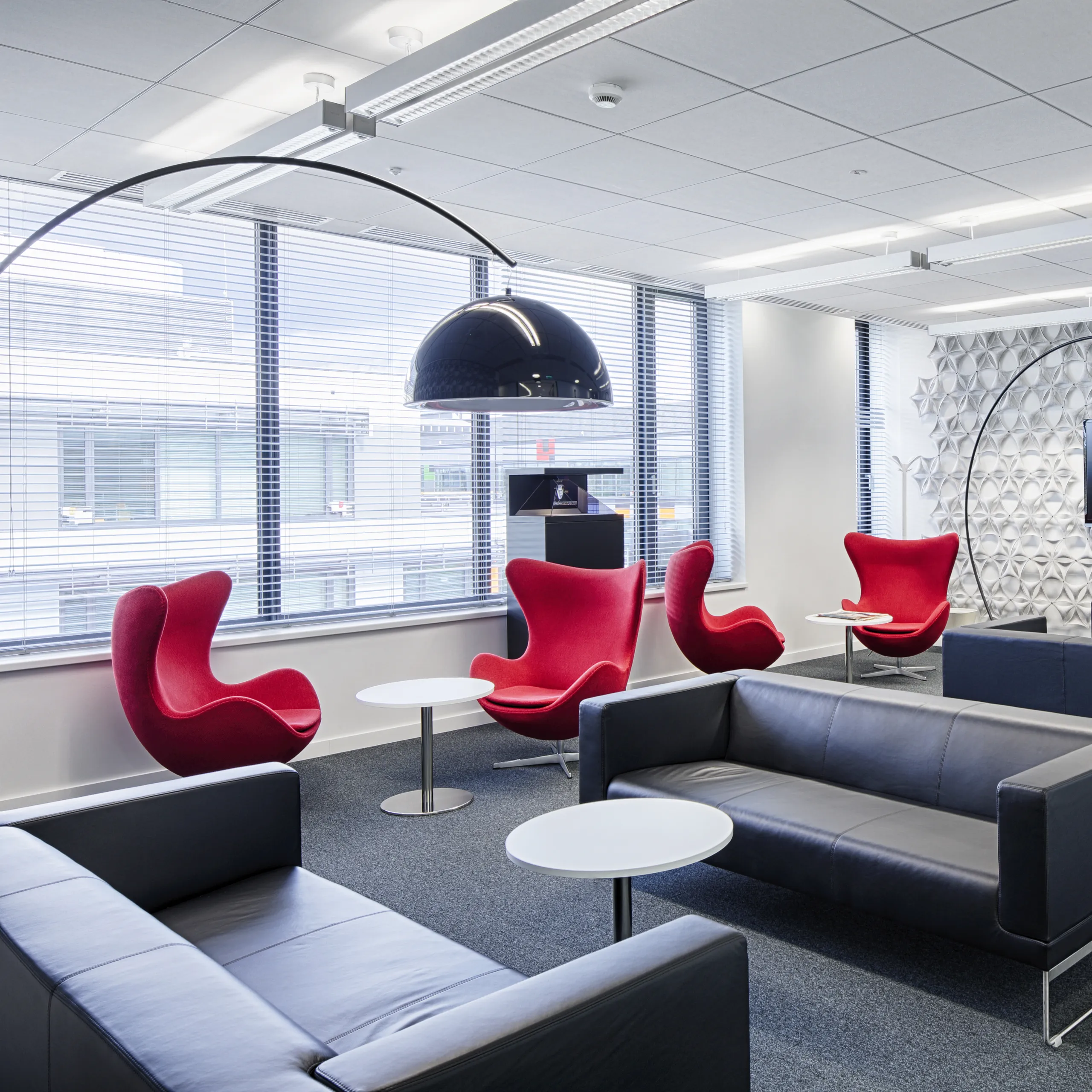

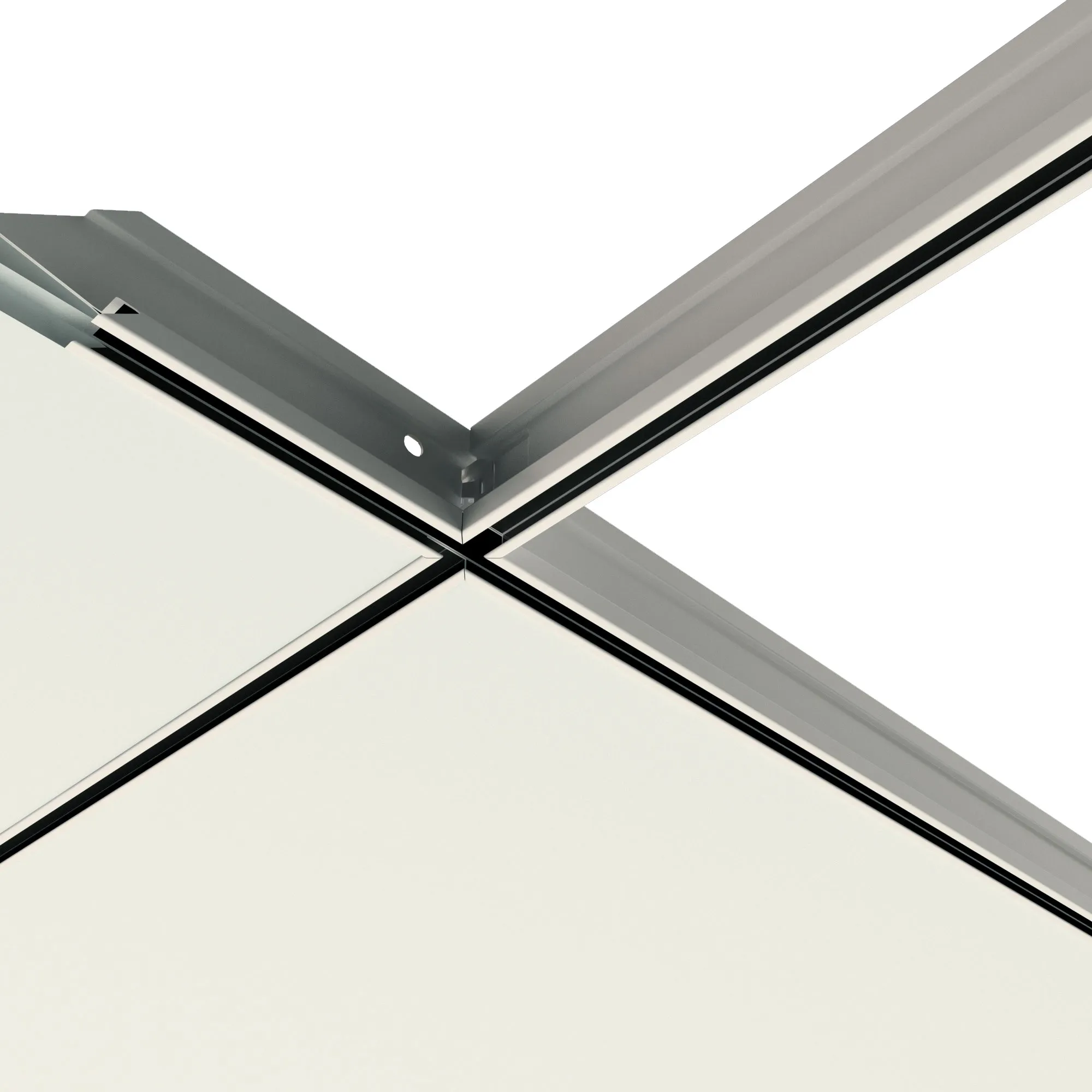

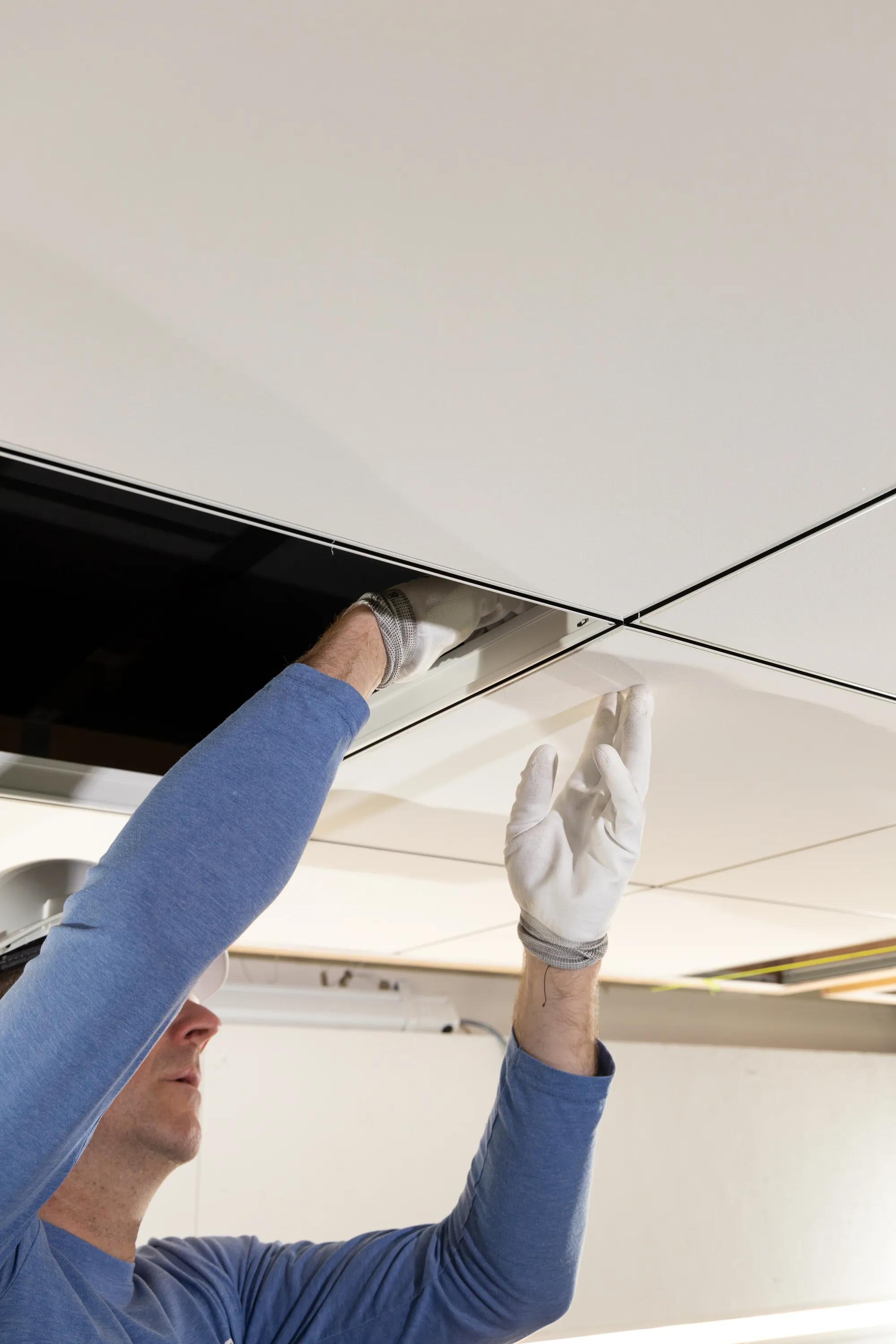

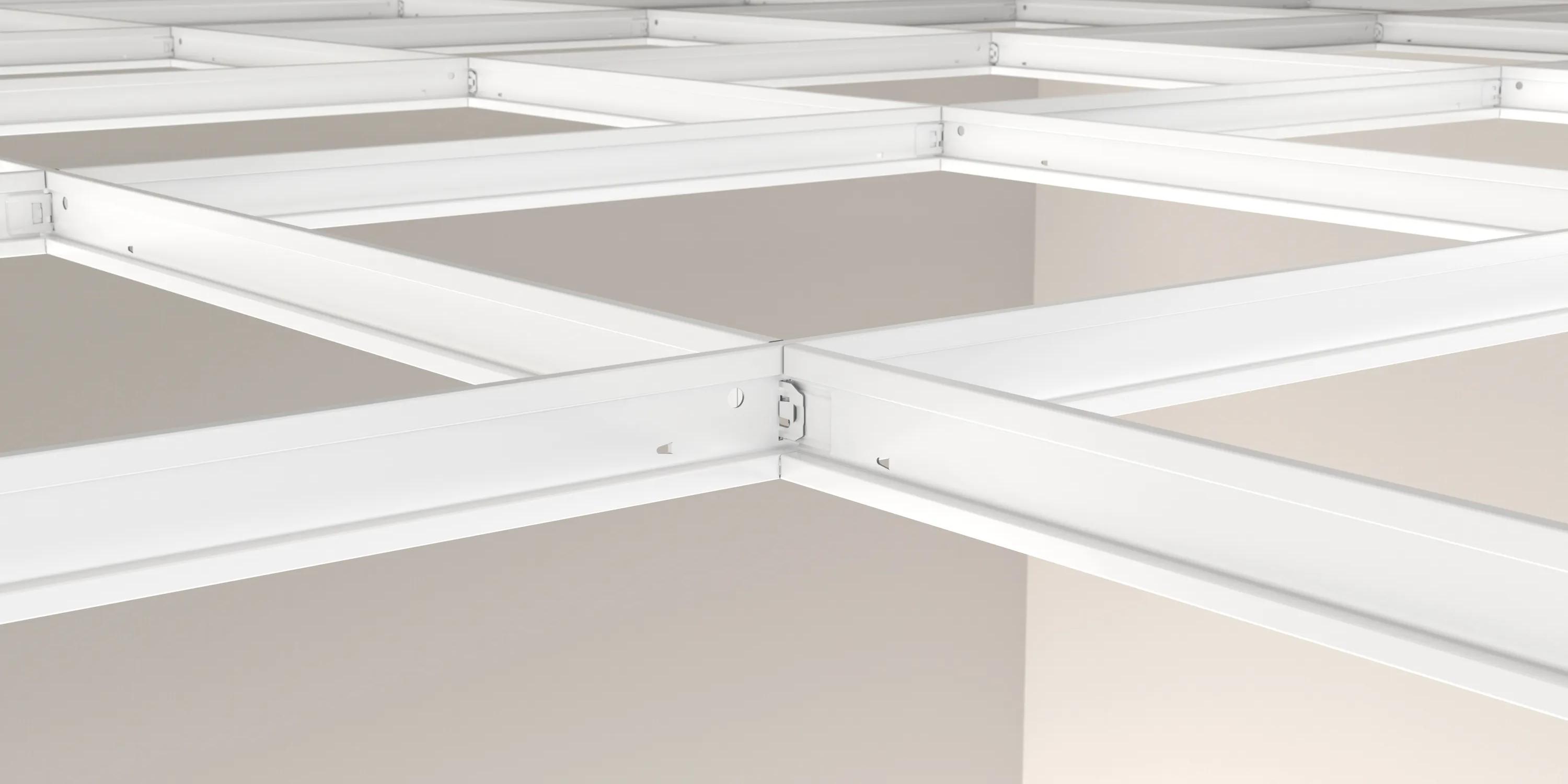

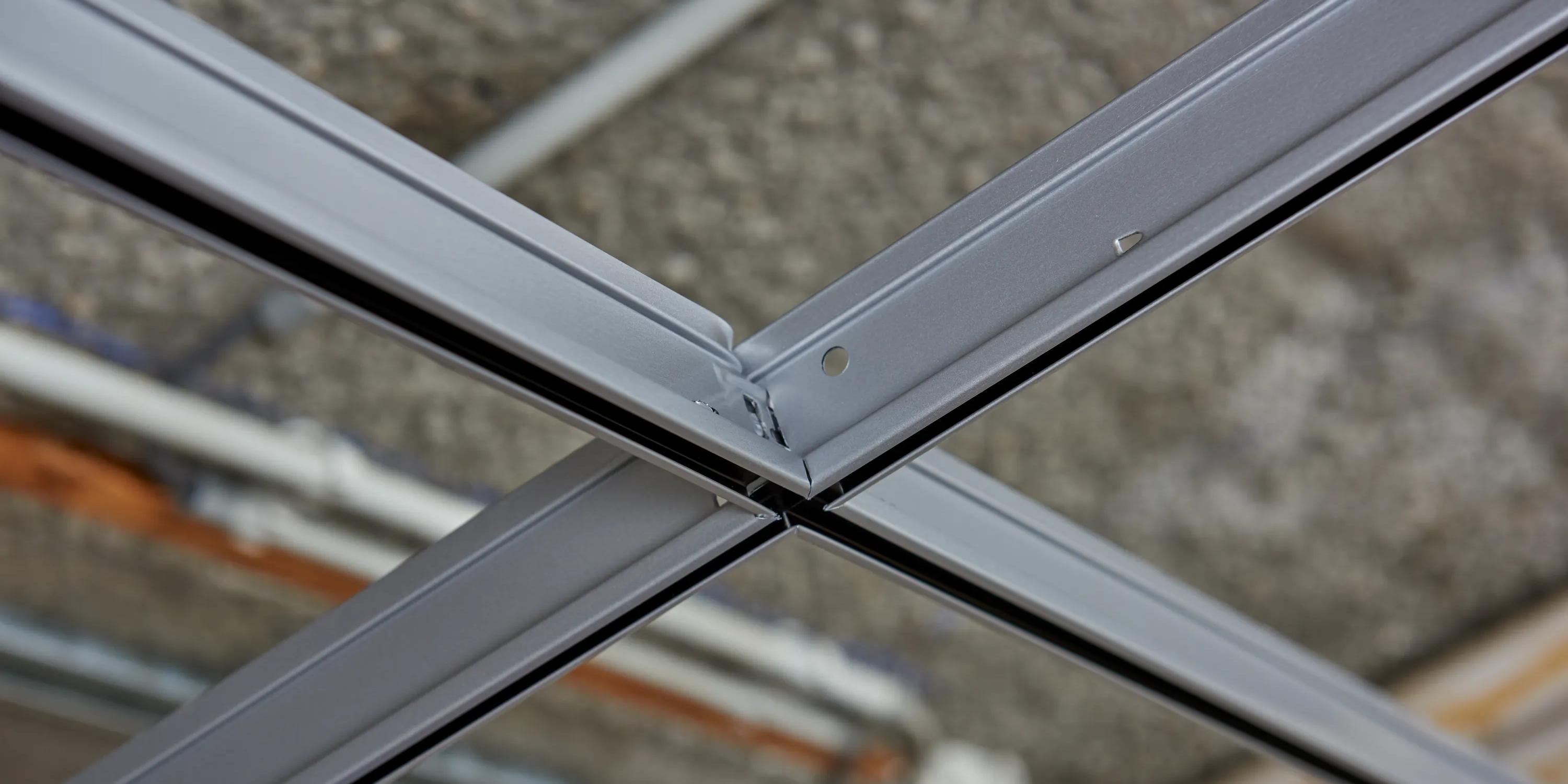

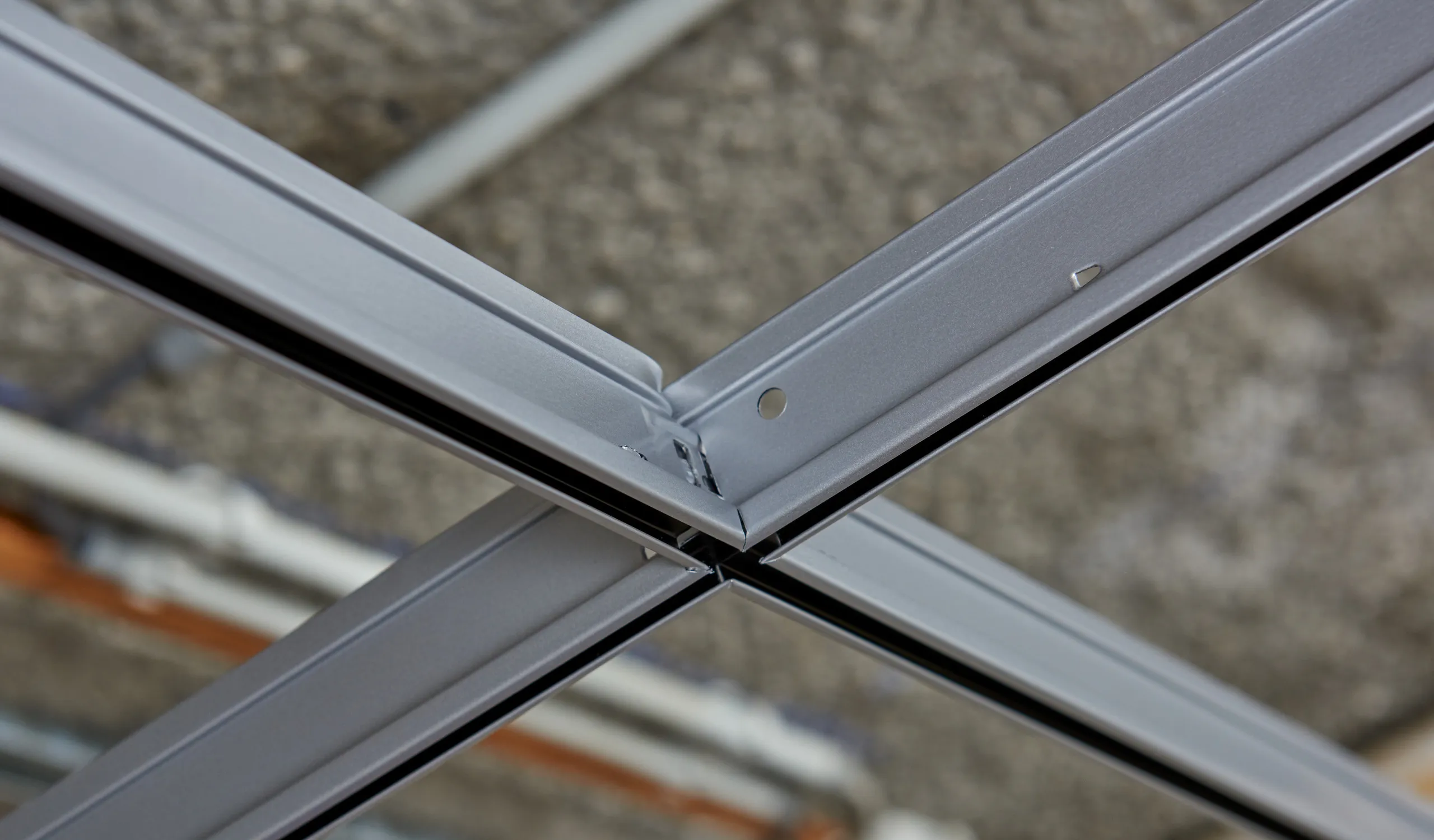

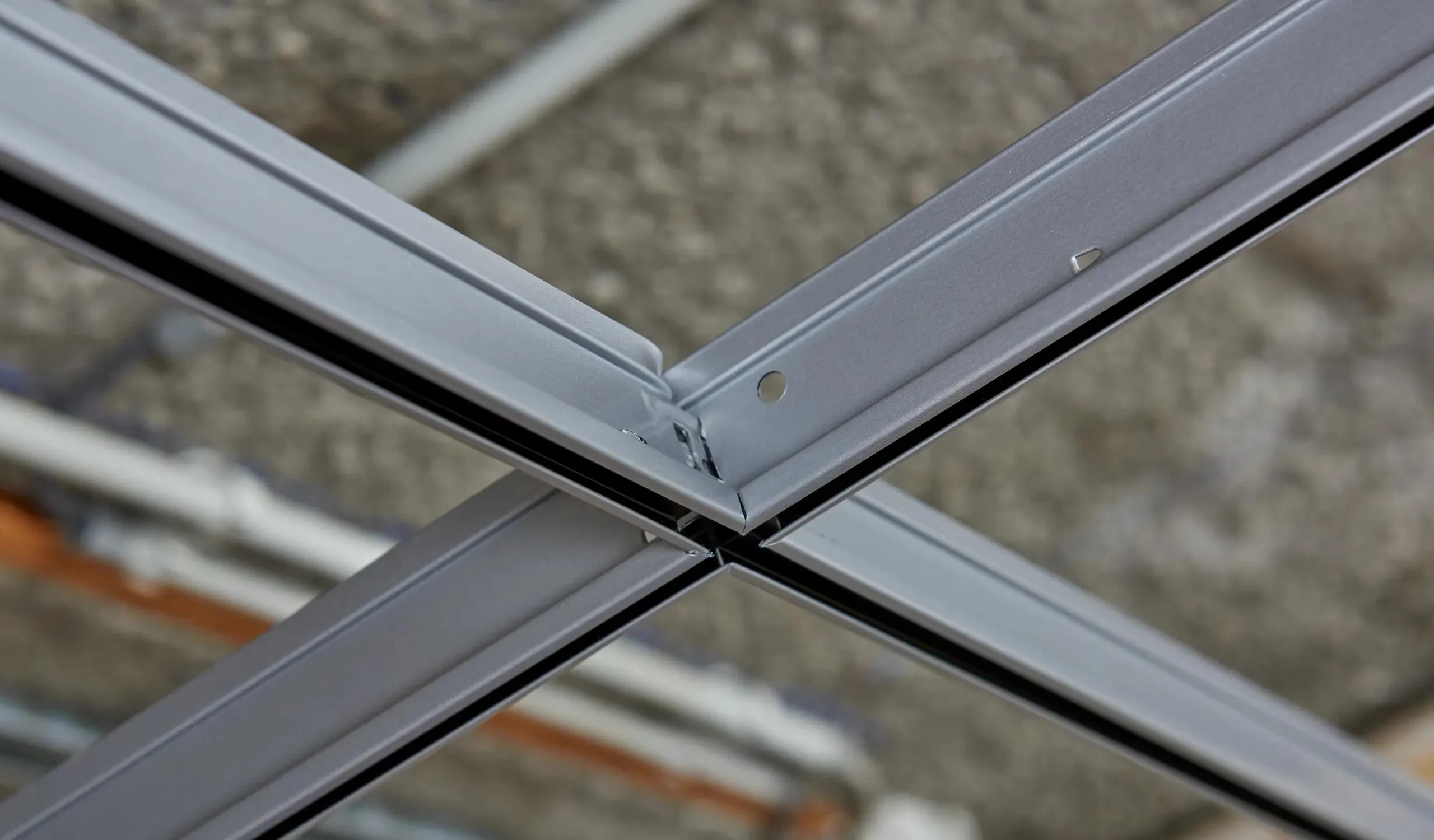

The narrow recess and crisply mitred intersections result in flawless continuous lines and an aesthetically pleasing smooth and level appearance
Available in Standard White 001 or black 08 on both sides of the grid
Also available in combinations of grey/black or white/black for a colour contrast

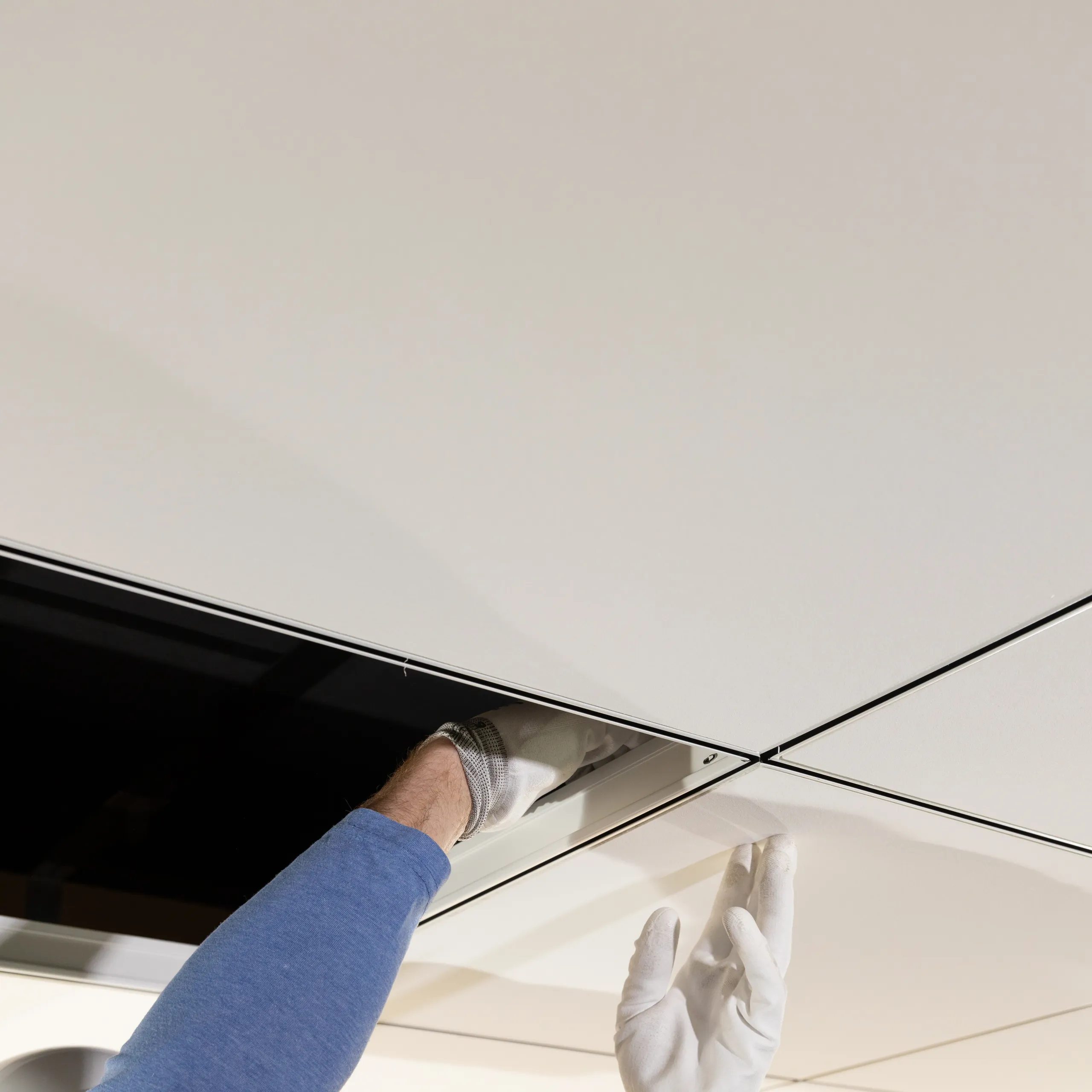

Functional recess allows for the easy integration of partitions, track lighting and signage
CMC_3500

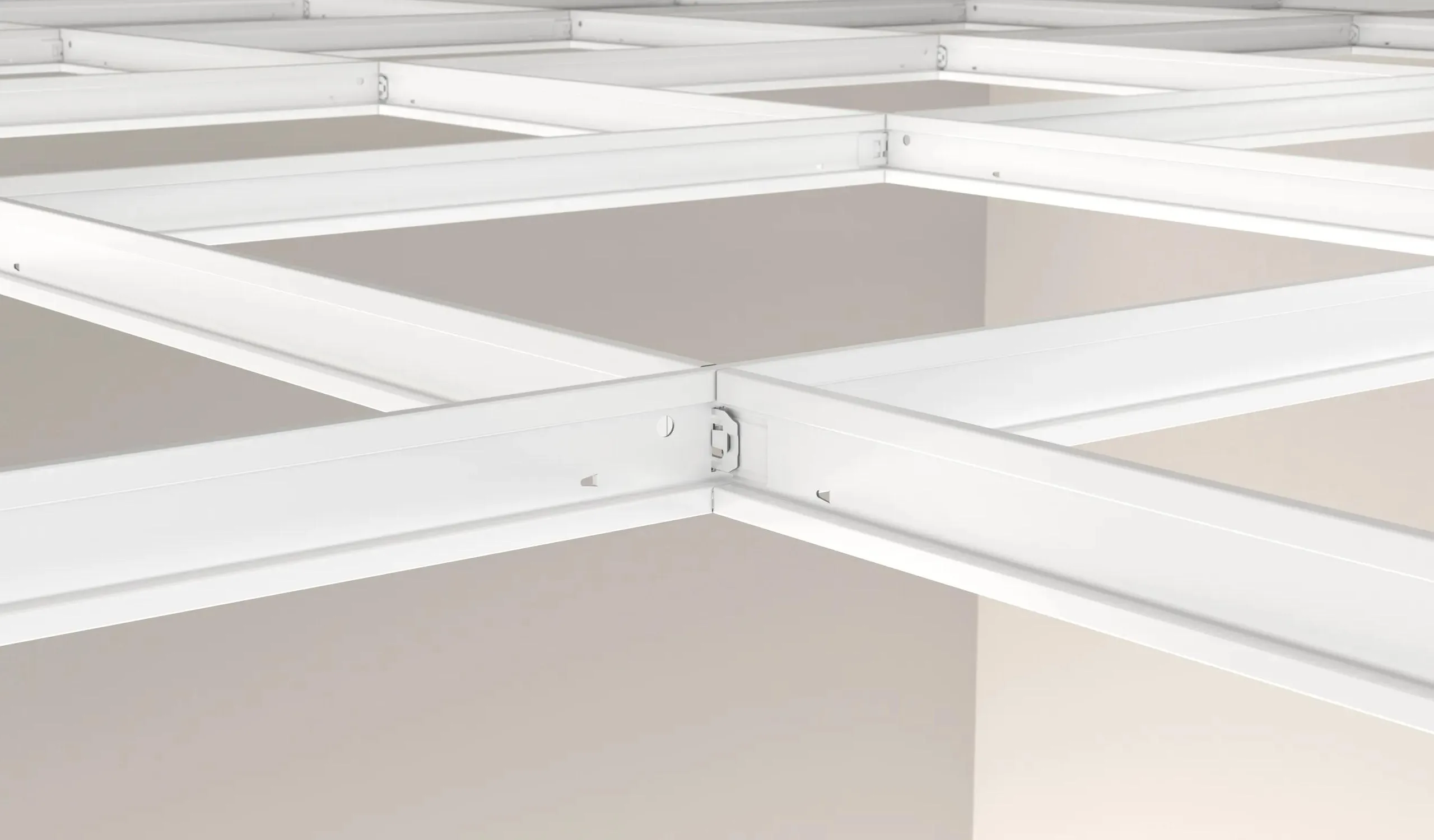

Coupling

Back

Performances

Load Bearing Load Bearing
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 9.8 16.3
1200 1200 x 600 10.7 17.6
Corrosion Resistance Corrosion Resistance C
Reaction To Fire Reaction To Fire A1
Environment Environment Fully Recyclable
Back
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 9.8 16.3
1200 1200 x 600 10.7 17.6
Back
Back
Back
Back

Profiles and Accessories

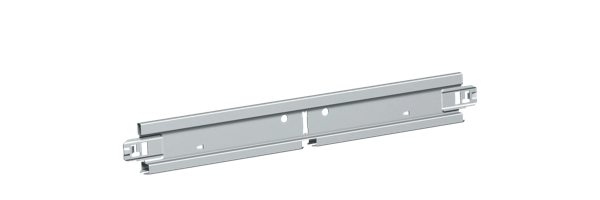

Main runner

Component Length Height Width Product number Colours Packaging
Main runner
3500.tif Ultraline main runner white 3600 41 14.3 UL MR Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 6 Distance between slots: 300 / 600 / 4 x 600 / 300

Cross tee

Component Length Height Width Product number Colours Packaging
Cross tee
3514.tif Ultraline cross tee - with 1 slot white 1200 41 14.3 UL CT Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 600 / / / 600
3512.tif Ultraline cross tee white 600 41 14.3 UL CT Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 600 / /
3524.tif Ultraline cross tee - without slots 1200 41 14.3 UL CT Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1200 / /

Wall angle options

Component Length Height Width Product number Colours Packaging
L Profiles
-1420.tif L-wall angle 24x24 mm colour 3050 24 24 L24x24 Multiple colours See Packaging Dimensions
-1420.tif L-wall angle 24x24 mm white 3050 24 24 L24x24 White 001 See Packaging Dimensions

Accessories

Component Product number Packaging
Ultraline®
D7609.tif Plastic sign hanger for Ultraline UL PSH See Packaging Dimensions

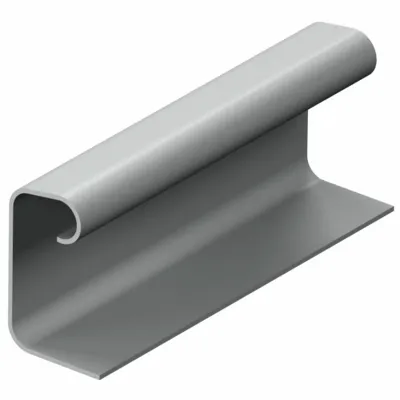

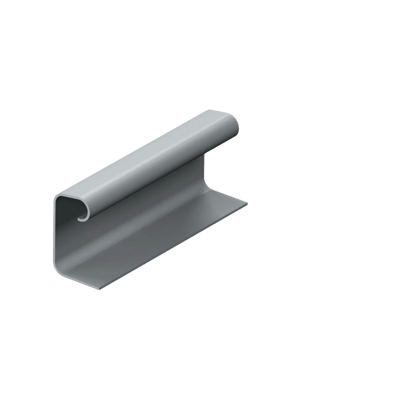

3599.tif End cap for Ultraline slots UL CAP See Packaging Dimensions

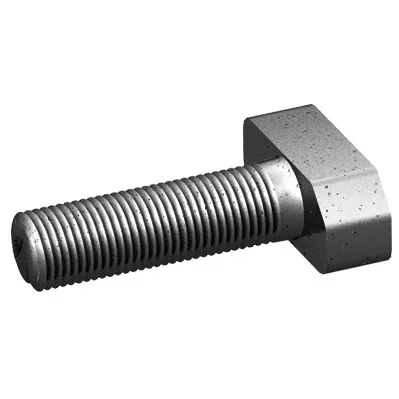

7608.tif Bolt M6x25 for Ultraline UL BOLT M6 See Packaging Dimensions

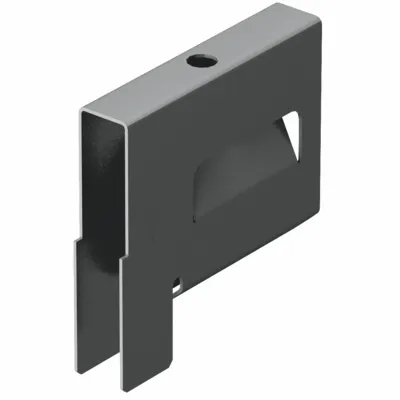

D3592.tif Wall connector for Ultraline + J32x15x8 UL WC See Packaging Dimensions
Quick hangers
QH009009.tif Assembled quick hanger with 2 hooks QH HH 200 See Packaging Dimensions
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 6 Distance between slots: 300 / 600 / 4 x 600 / 300
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 600 / / / 600
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 600 / /
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1200 / /
Back
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
DoP-RFN-ACCVA-C03 - End cap for Ultraline slots
DoP-RFN-ACCVA-C03 - End cap for Ultraline slots

pdf
DoP-RFN-PTLR-A03 - L-wall angle 24x24 mm white
DoP-RFN-PTLR-A03 - L-wall angle 24x24 mm white

pdf
Chicago Metallic Ultraline 3500 | Datasheet
Chicago Metallic Ultraline 3500 | Datasheet

pdf
DoP-RFN-ACCQHRP-A02 - Assembled quick hanger with 2 hooks
DoP-RFN-ACCQHRP-A02 - Assembled quick hanger with 2 hooks

pdf
DoP-RFN-ACCVAECRD-A02 - Wall connector for Ultraline + J32x15x8
DoP-RFN-ACCVAECRD-A02 - Wall connector for Ultraline + J32x15x8

pdf
DoP-RFN-UL4115MD-A02 - Ultraline cross tee - with 1 slot white
DoP-RFN-UL4115MD-A02 - Ultraline cross tee - with 1 slot white

pdf
DoP-RFN-ACCTHREADEDWIRE-B02 - Bolt M6x25 for Ultraline
DoP-RFN-ACCTHREADEDWIRE-B02 - Bolt M6x25 for Ultraline

pdf
DoP-RFN-ACCSUSPFIXECRD-B02 - Plastic sign hanger for Ultraline
DoP-RFN-ACCSUSPFIXECRD-B02 - Plastic sign hanger for Ultraline

pdf
Environmental Product Declaration (EPD) - Konstrukcje
Environmental Product Declaration (EPD) - Konstrukcje
