Chicago Metallic T15 Click 2790

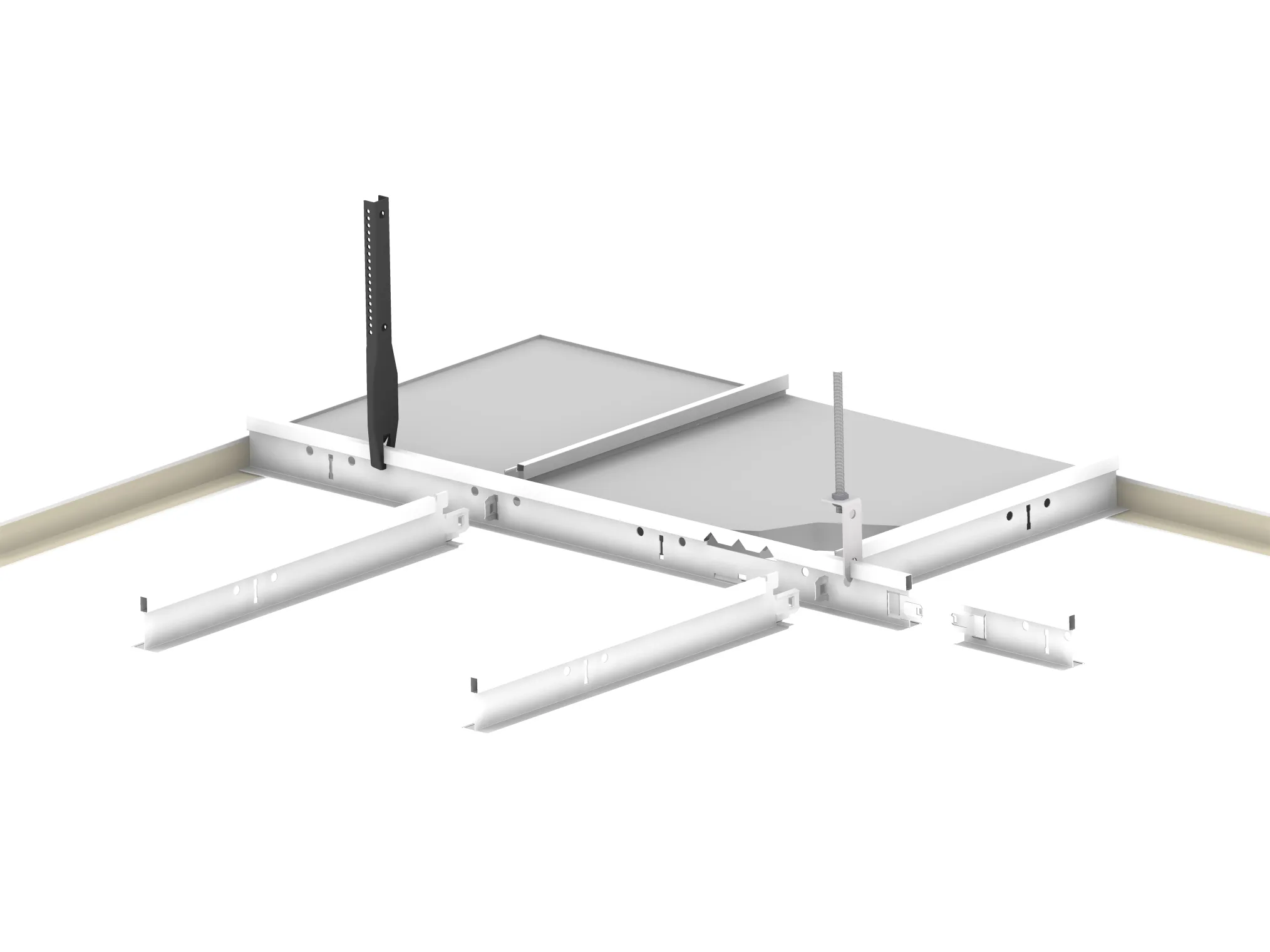

A demountable 15mm easy-click ceiling grid with a universal main runner and joggled-end cross tees.
Download Datasheet
Download Datasheet
Back

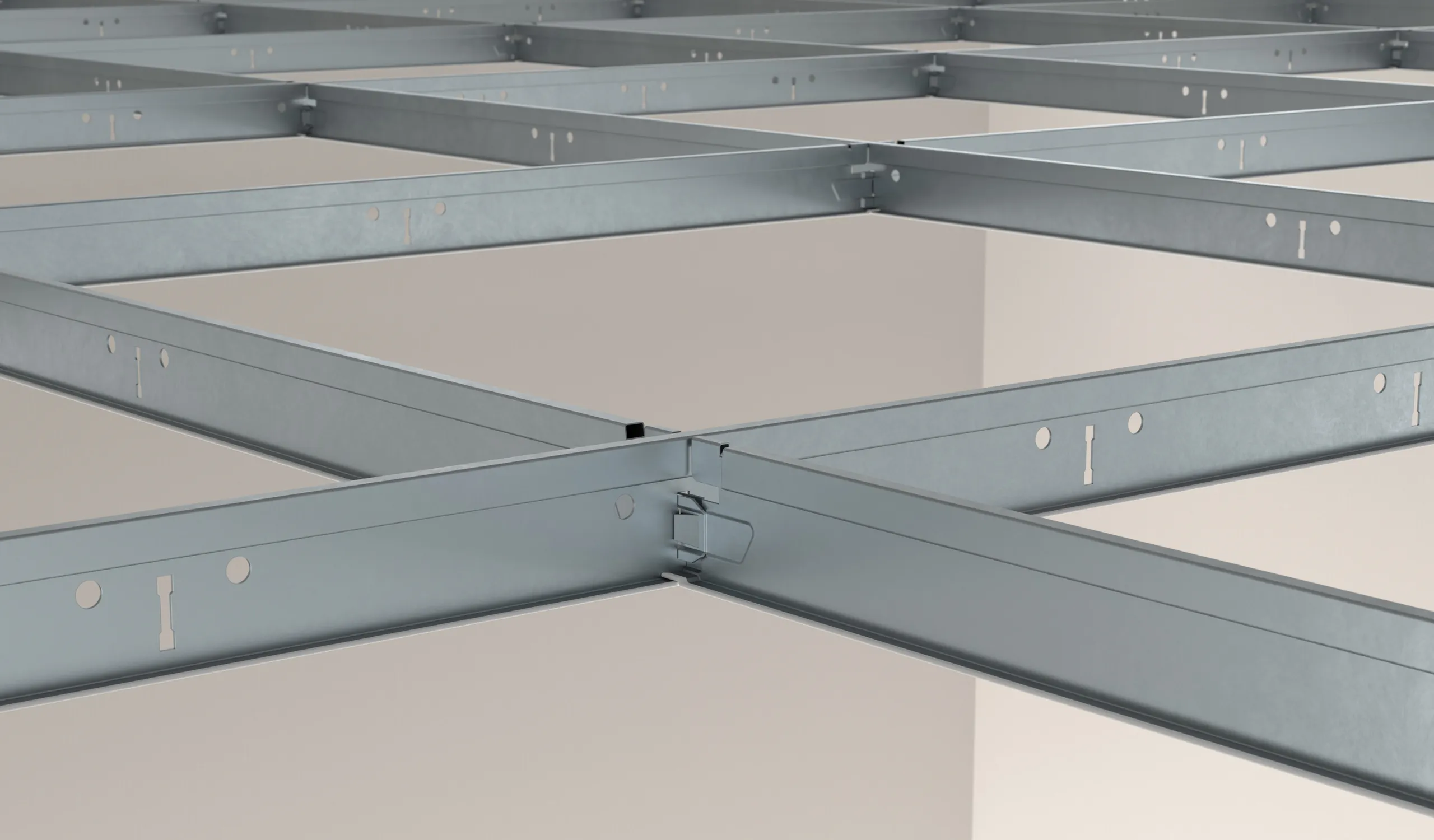

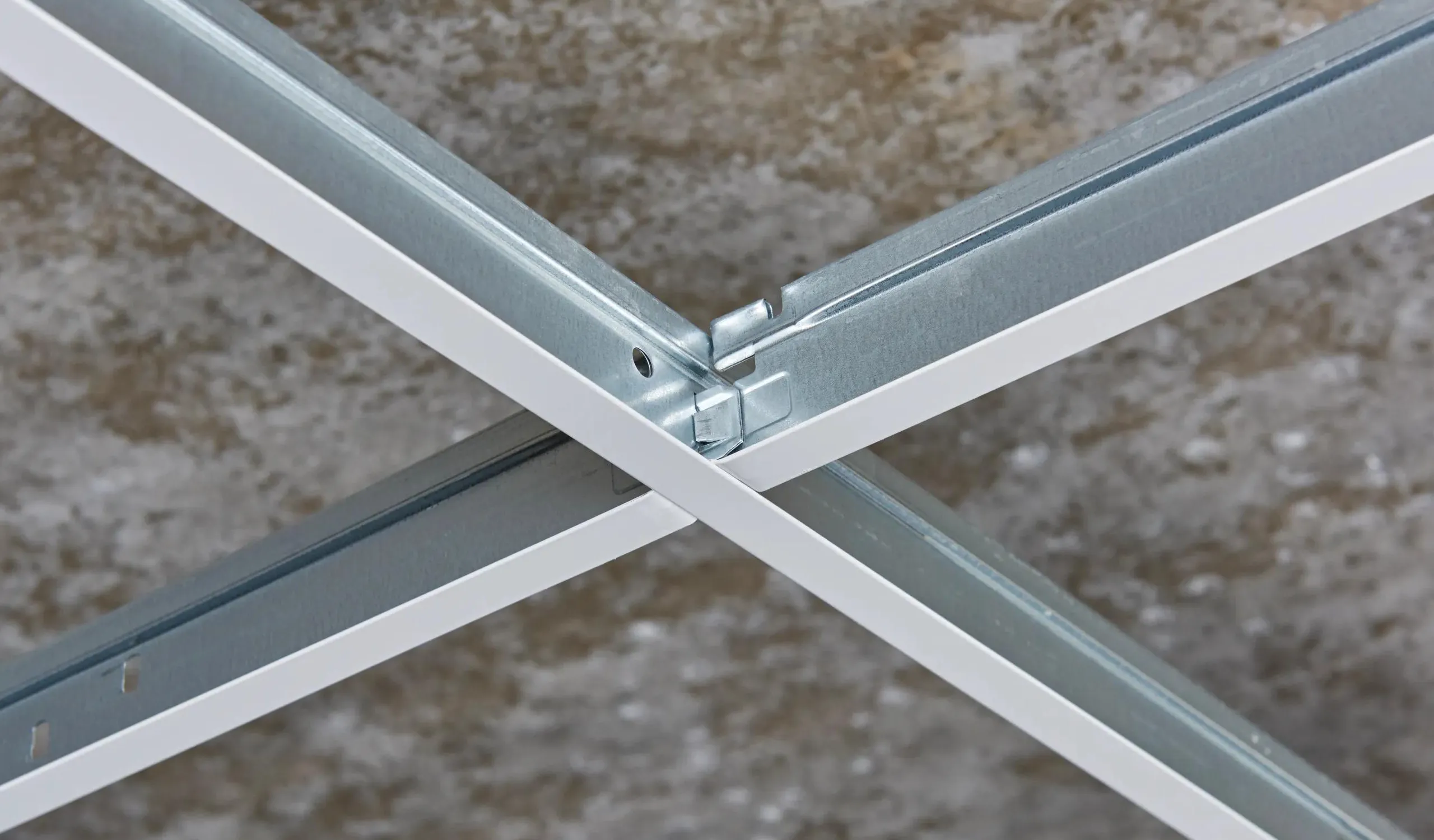

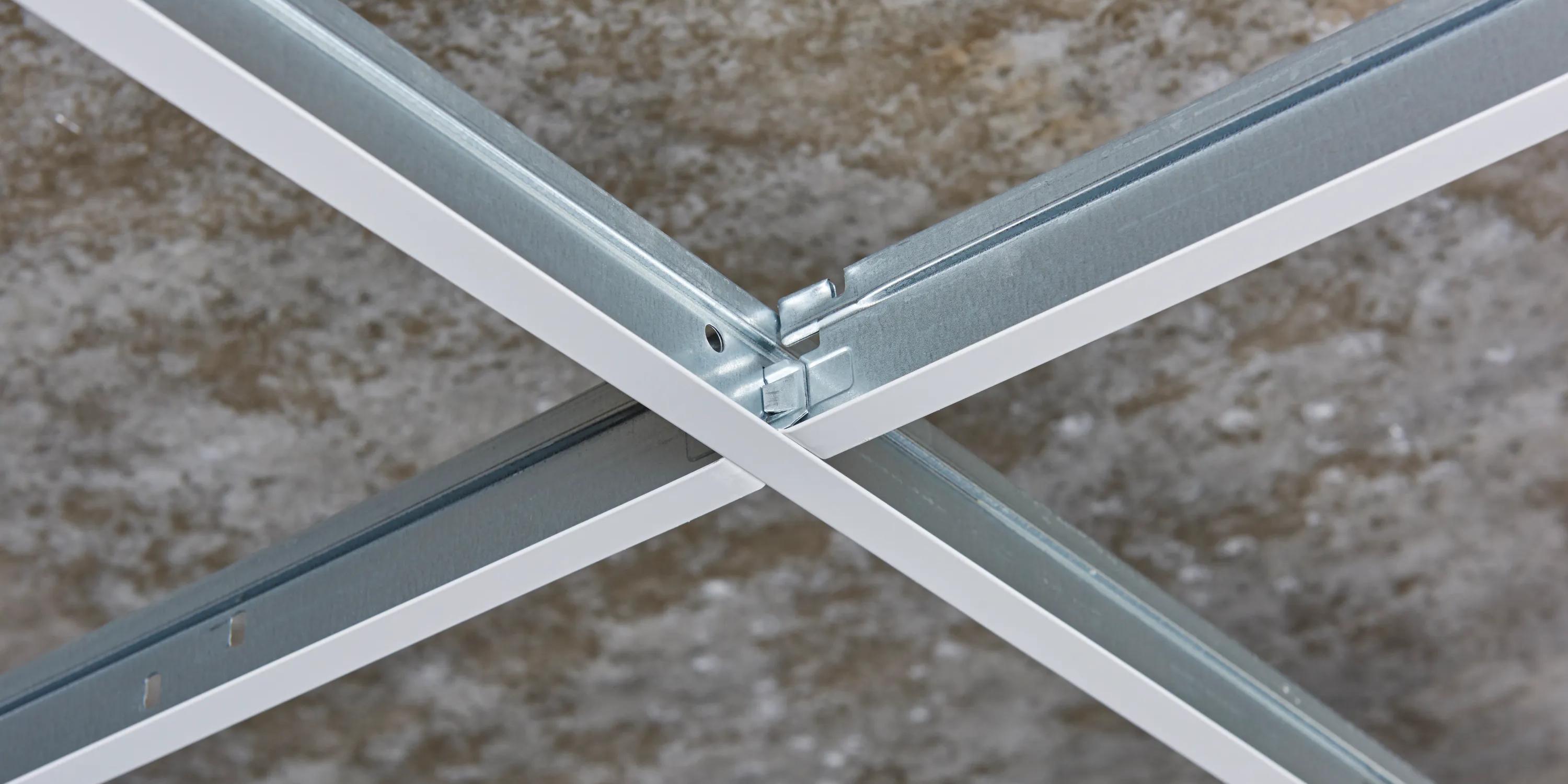

15mm grid with universal main runner and joggled end cross tees with an audible 'click' for fast and accurate installations38mm high components for better load bearing and compatibility with accessories

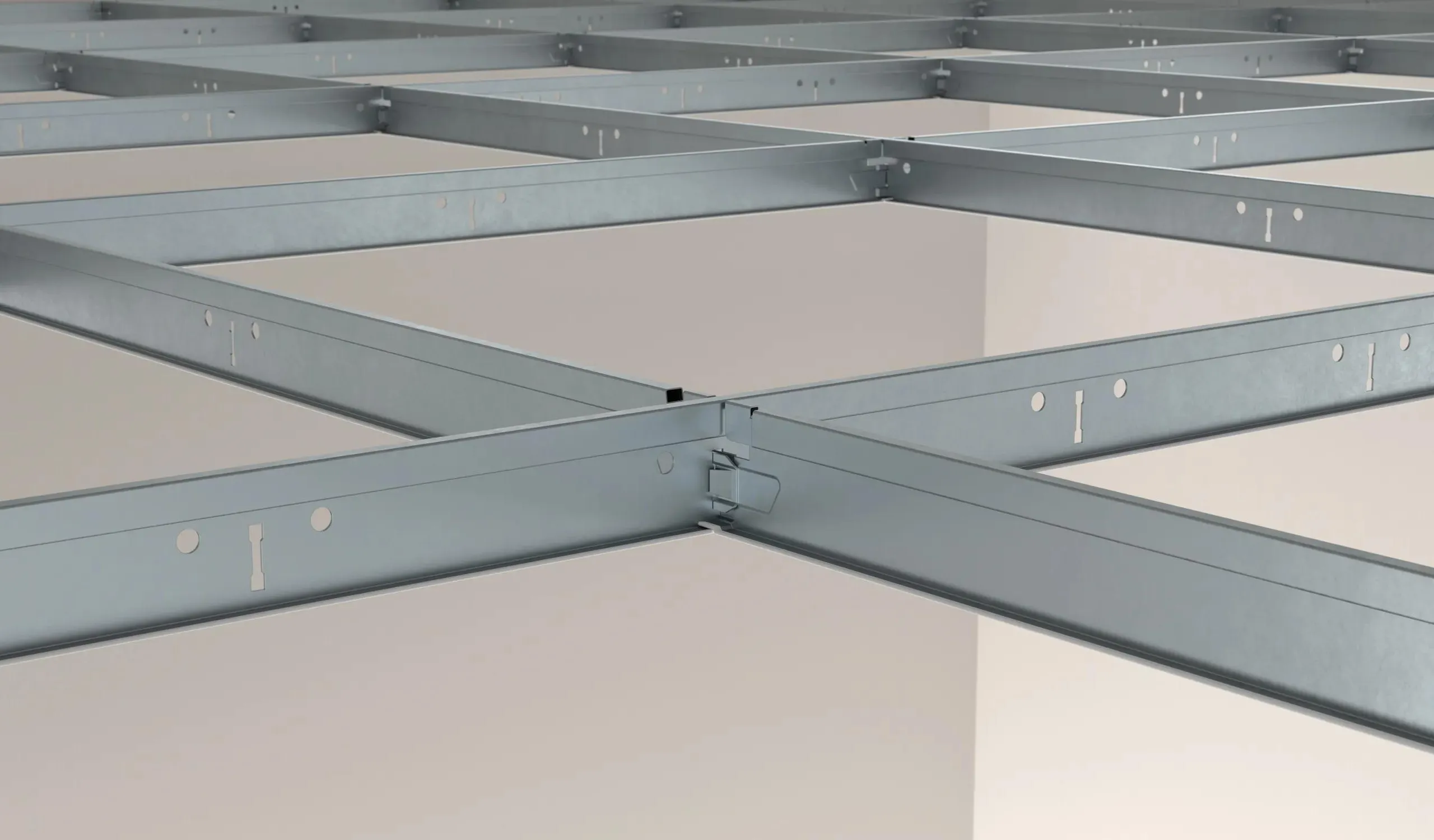

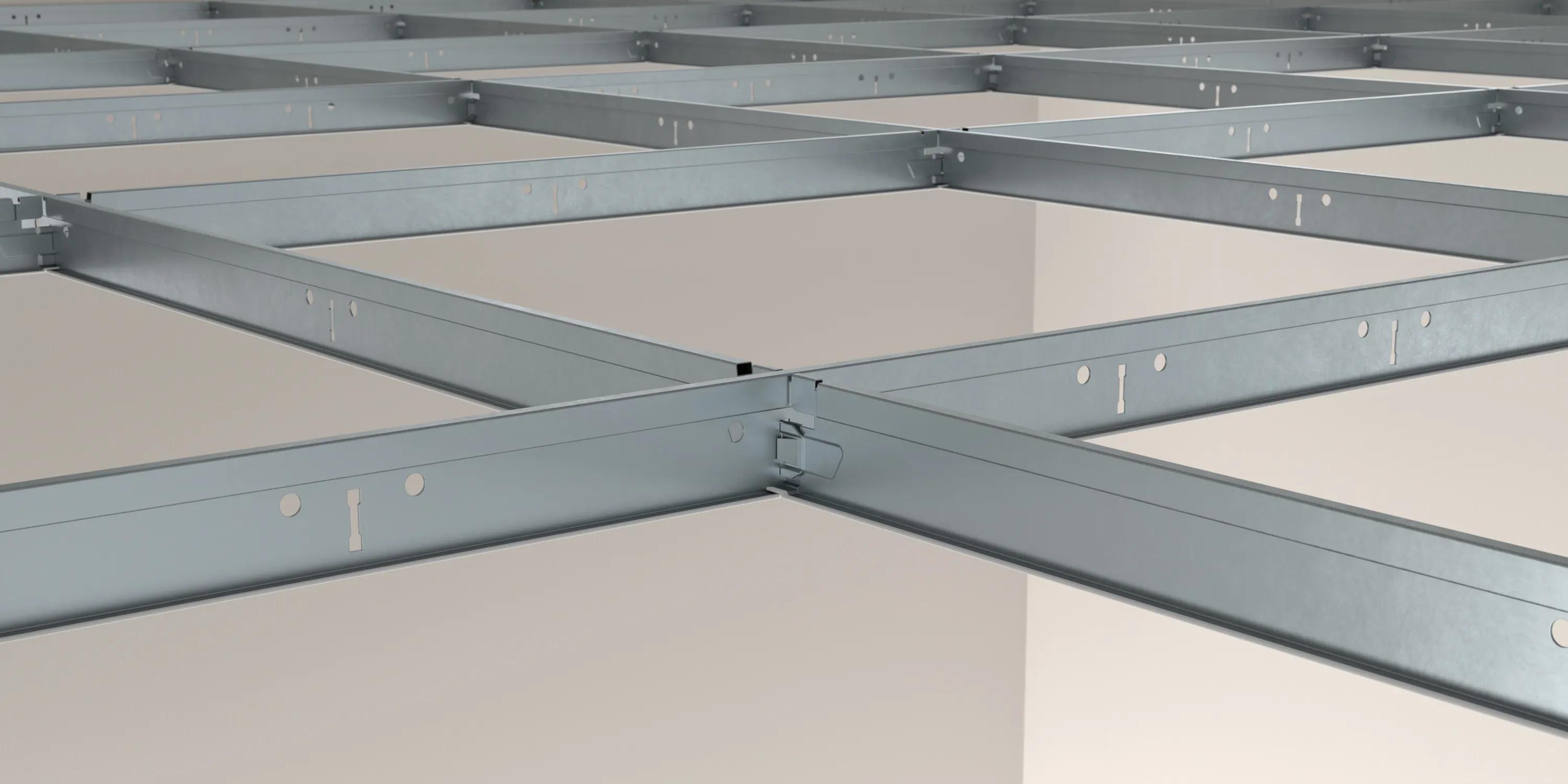

A strong and stable grid which can be easily demounted time and again
Used for creating more discreet grid lines in the ceiling finish

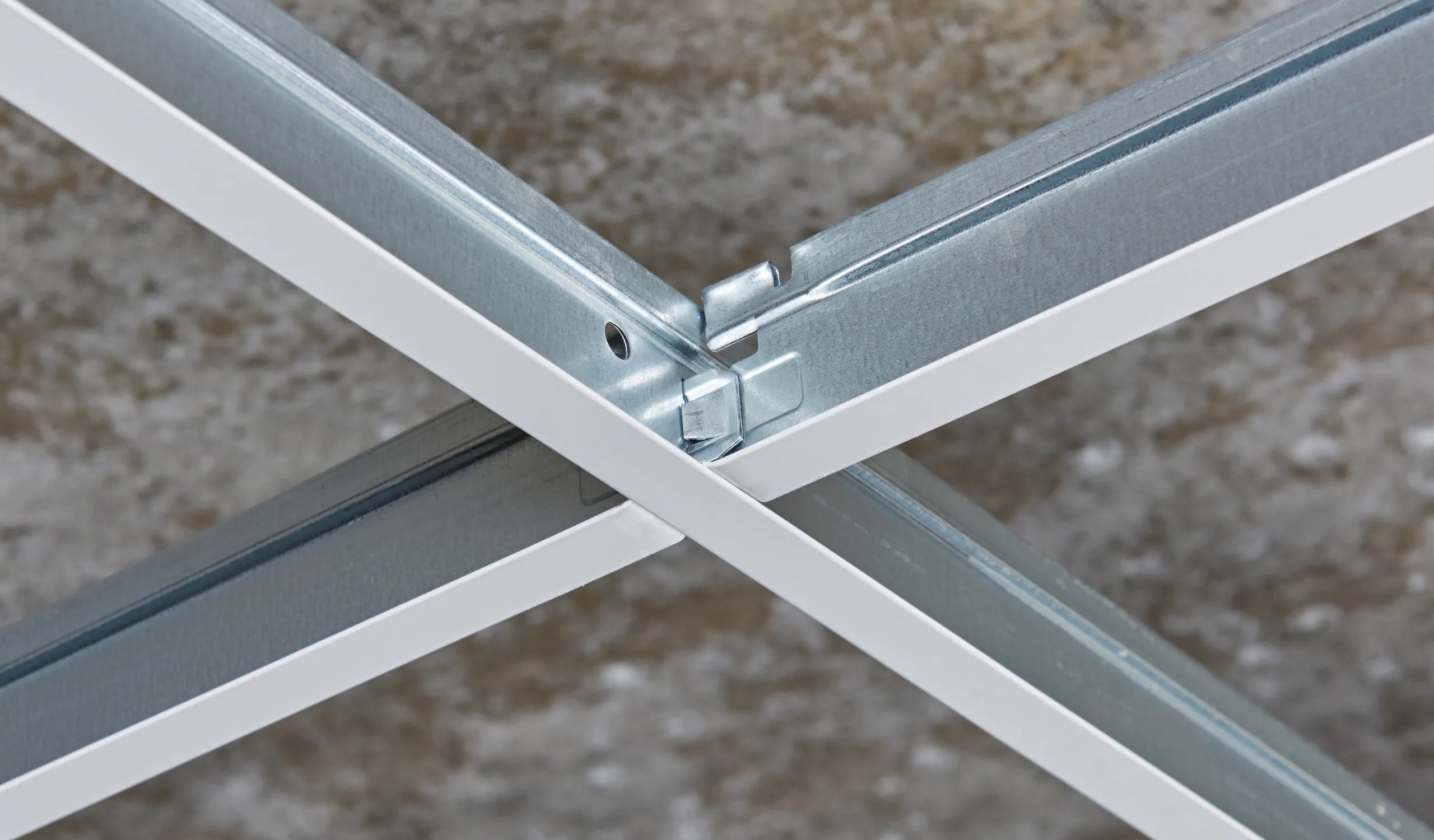

CMC - Click2-DE

Coupling

Back

Performances

Load Bearing Load Bearing
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 8.1 13.5
1200 1200 x 600 8.9 14.6
Corrosion Resistance Corrosion Resistance B
Reaction To Fire Reaction To Fire A1 / A2-s1,d0 (Color-all)
Environment Environment Fully Recyclable
Back
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 8.1 13.5
1200 1200 x 600 8.9 14.6
Back
Back
Back
Back

Profiles and Accessories

Main runner

Component Length Height Width Product number Colours Packaging
Main runner
-2700.tif Main runner T15 Click / Hook 3600 38 15 T15 MR CL&HK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50

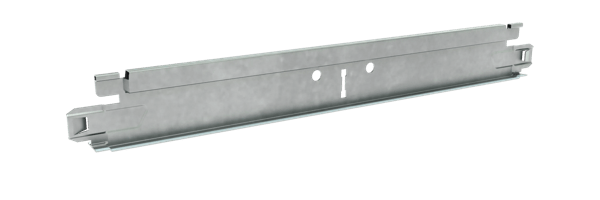

Cross tee

Component Length Height Width Product number Colours Packaging
Cross tee
-2792.tif Cross tee T15 Click 600 38 15 T15 CT CLICK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300

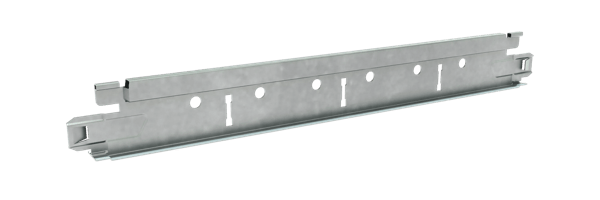

-2794.tif Cross tee T15 Click 1200 38 15 T15 CT CLICK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 300 / 300 / 300 / 300

Wall angle options

Component Length Height Width Product number Colours Packaging
W Profiles
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x15x10x15 mm 3050 15 10 W10x15 Multiple colours See Packaging Dimensions
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x12x8x15 mm 3050 15 7.8 W8x12 Multiple colours See Packaging Dimensions
L Profiles
1439.tif L-wall angle 24x19 mm colour 3050 24 19 L19x24 Multiple colours See Packaging Dimensions

Accessories

Component Length Height Product number Packaging
Hold down clips & wall springs
HDC 1.tif Plastic hold down clip for tile thickness 15-20 mm (A edge), 15-30 mm (E edge), 20-25 mm (X, M, Z edge), 20-30 mm (D edge) HDC 1 See Packaging Dimensions
Quick hangers
QH009009.tif Assembled quick hanger with 2 hooks QH HH 320 See Packaging Dimensions
Threaded rods
10012.tif Threaded rod M6 / L=1000 mm 1000 TR M6 See Packaging Dimensions
10013.tif Spacer sleeve M6 SS M6 See Packaging Dimensions
10014.tif Nut M6 NUT M6 See Packaging Dimensions
10023.tif Universal fixation clip / L=90 mm 90 FC M6 See Packaging Dimensions
Suspension clips
11.tif Special hanger (bent) for Chicago Metallic™ T-profiles 57.5 FH B See Packaging Dimensions
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 300 / 300 / 300 / 300
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
