Chicago Metallic 50 mm Longspan 6000

A 50mm-wide, 100mm-high I-shaped grid for heavyweight tiles, long spans, and visible applications – compatible with 38mm and 75mm T cross tees.
Download Datasheet
Download Datasheet
Back

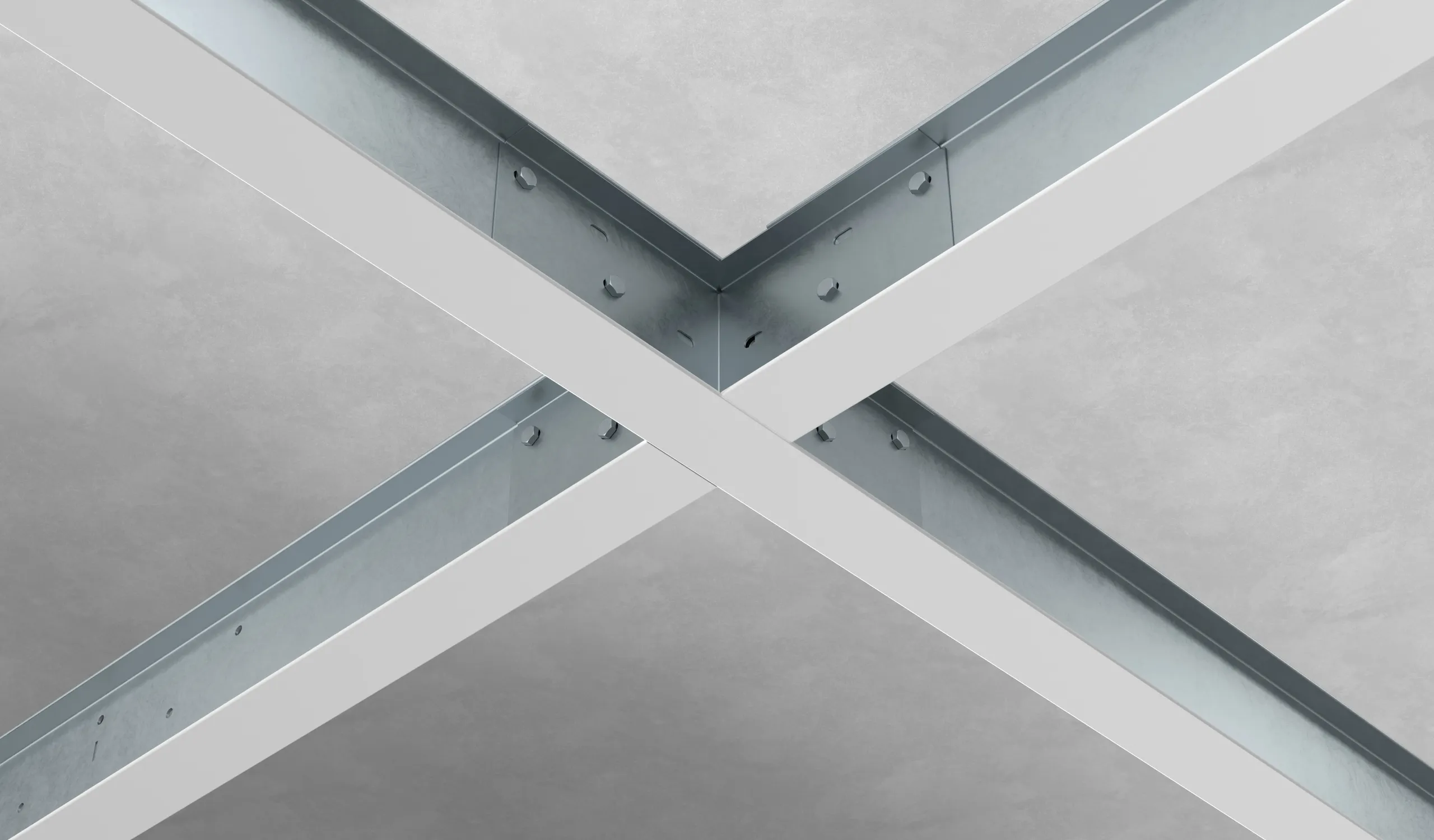

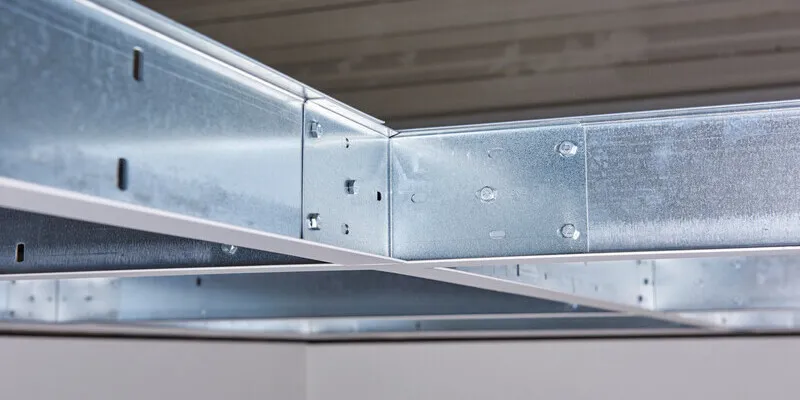

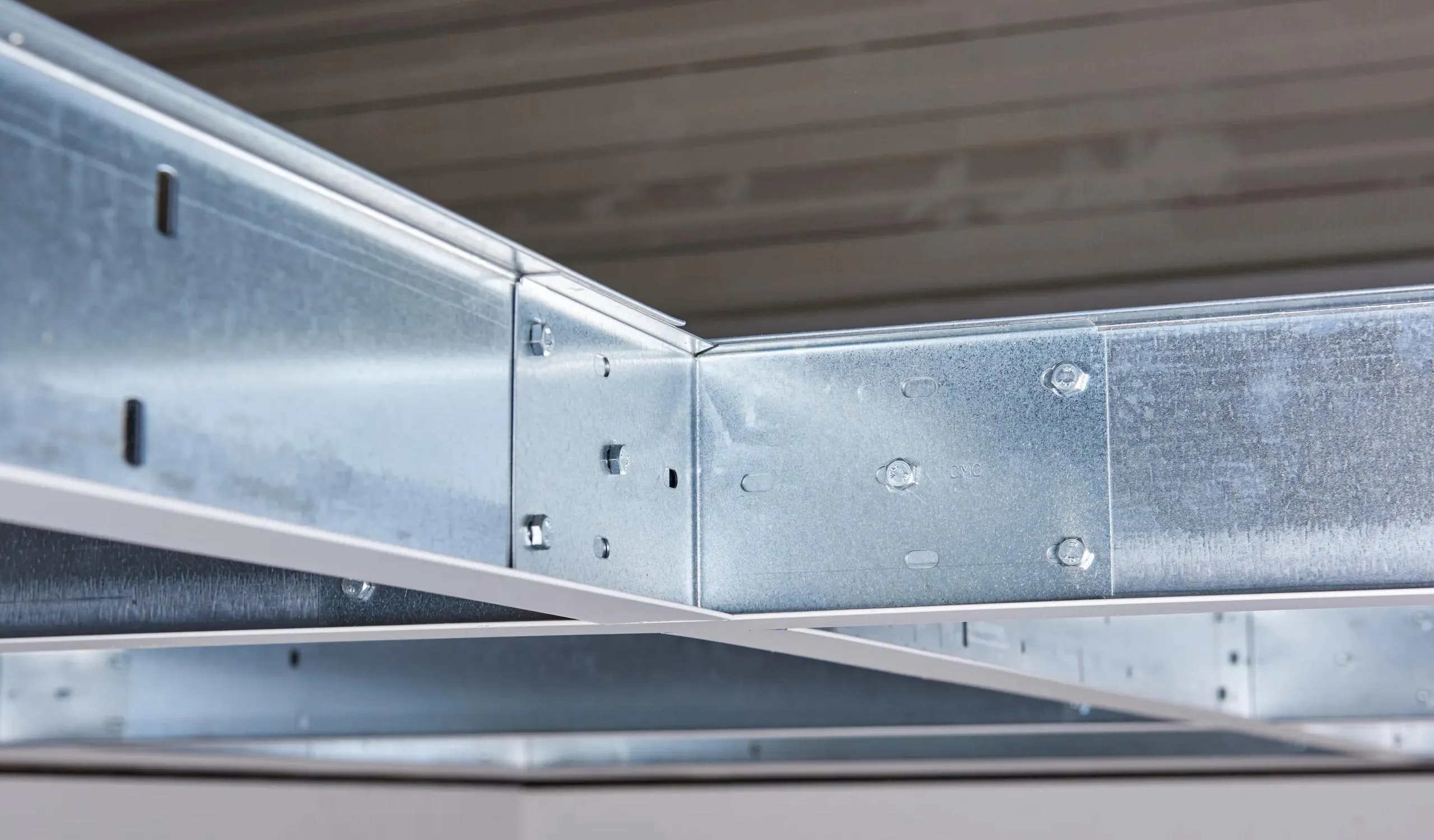

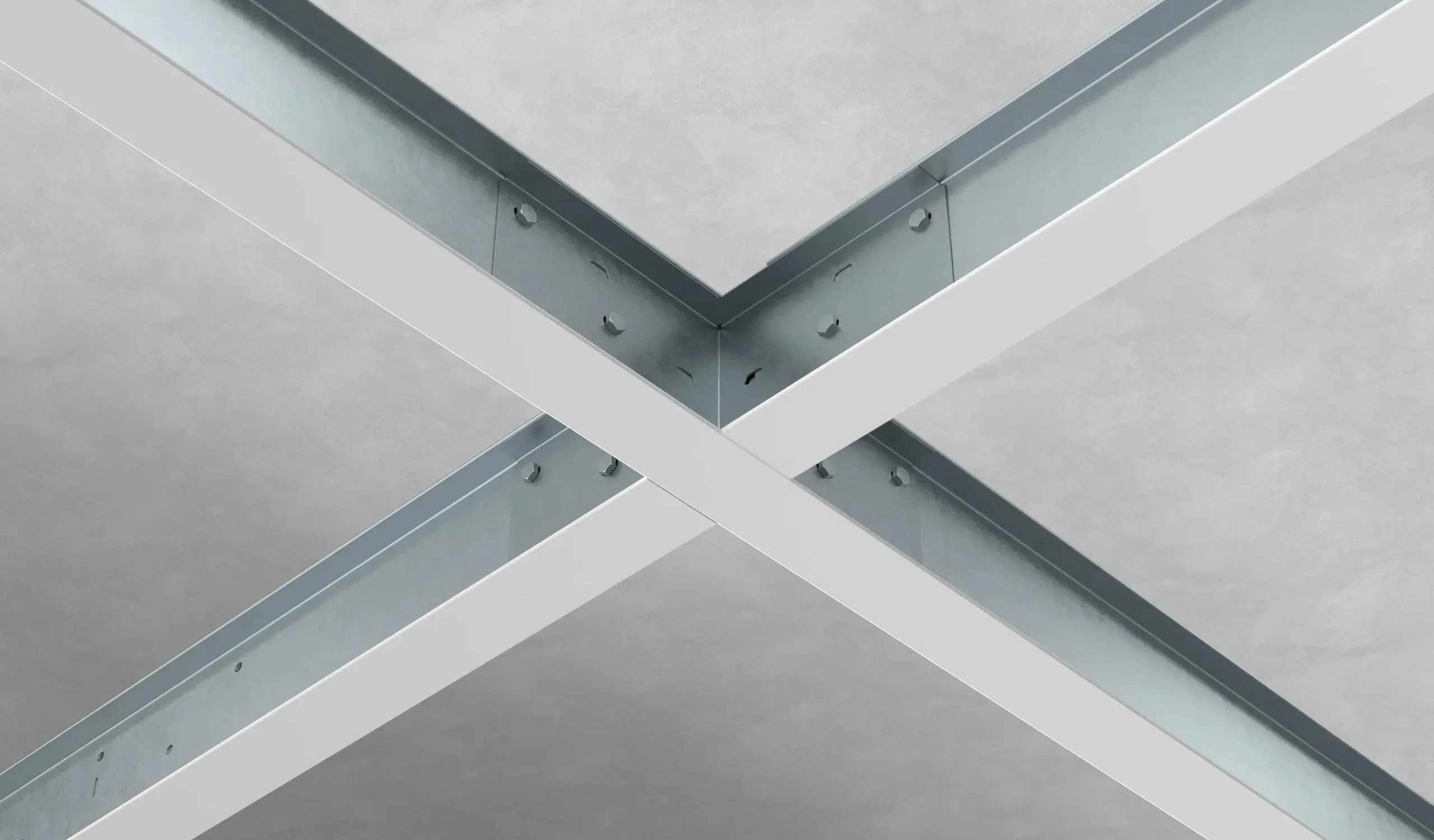

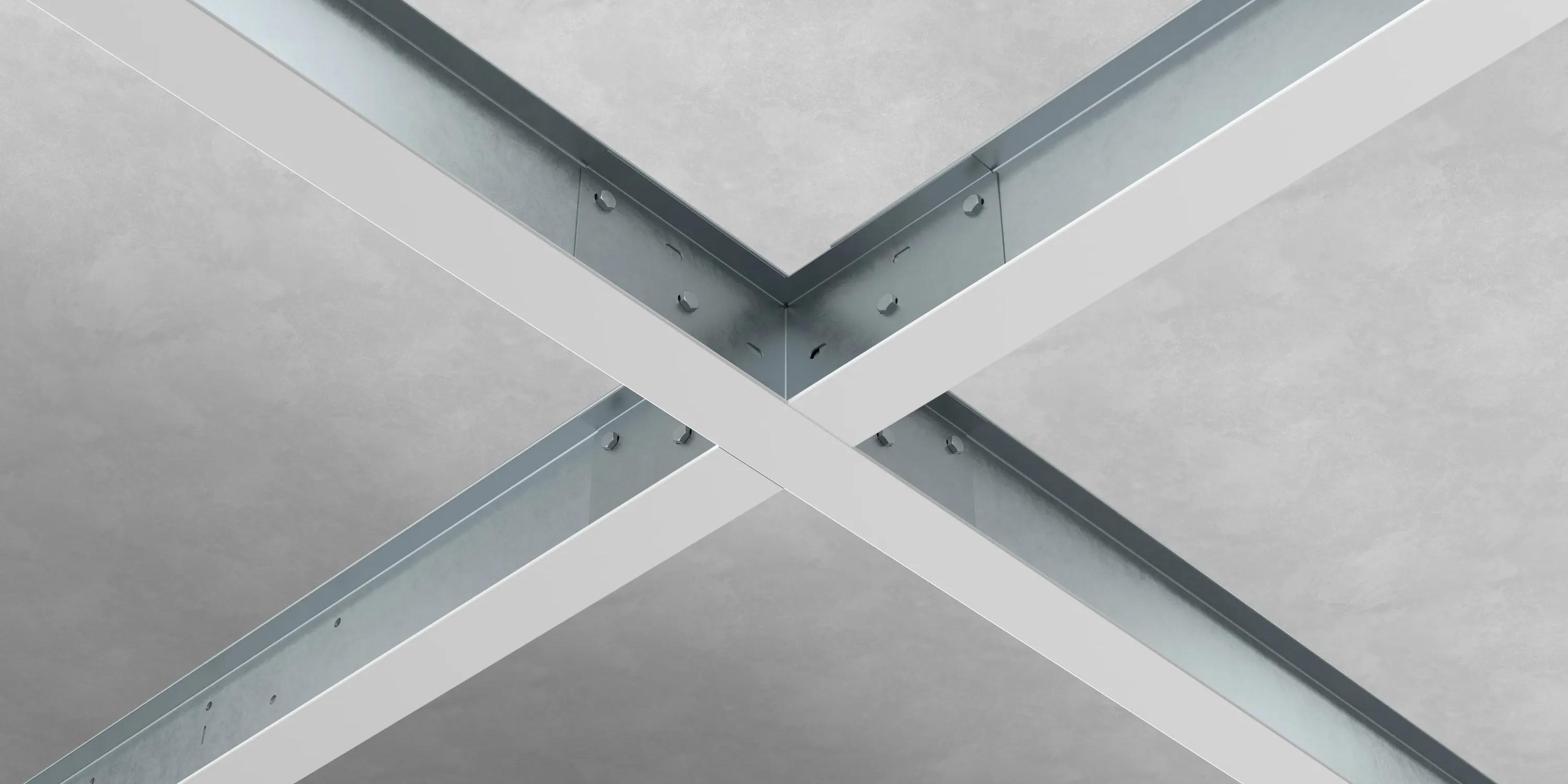

50 mm wide and 100 mm high I-shaped system for visible applicationsSuitable for very long span and heavy panels

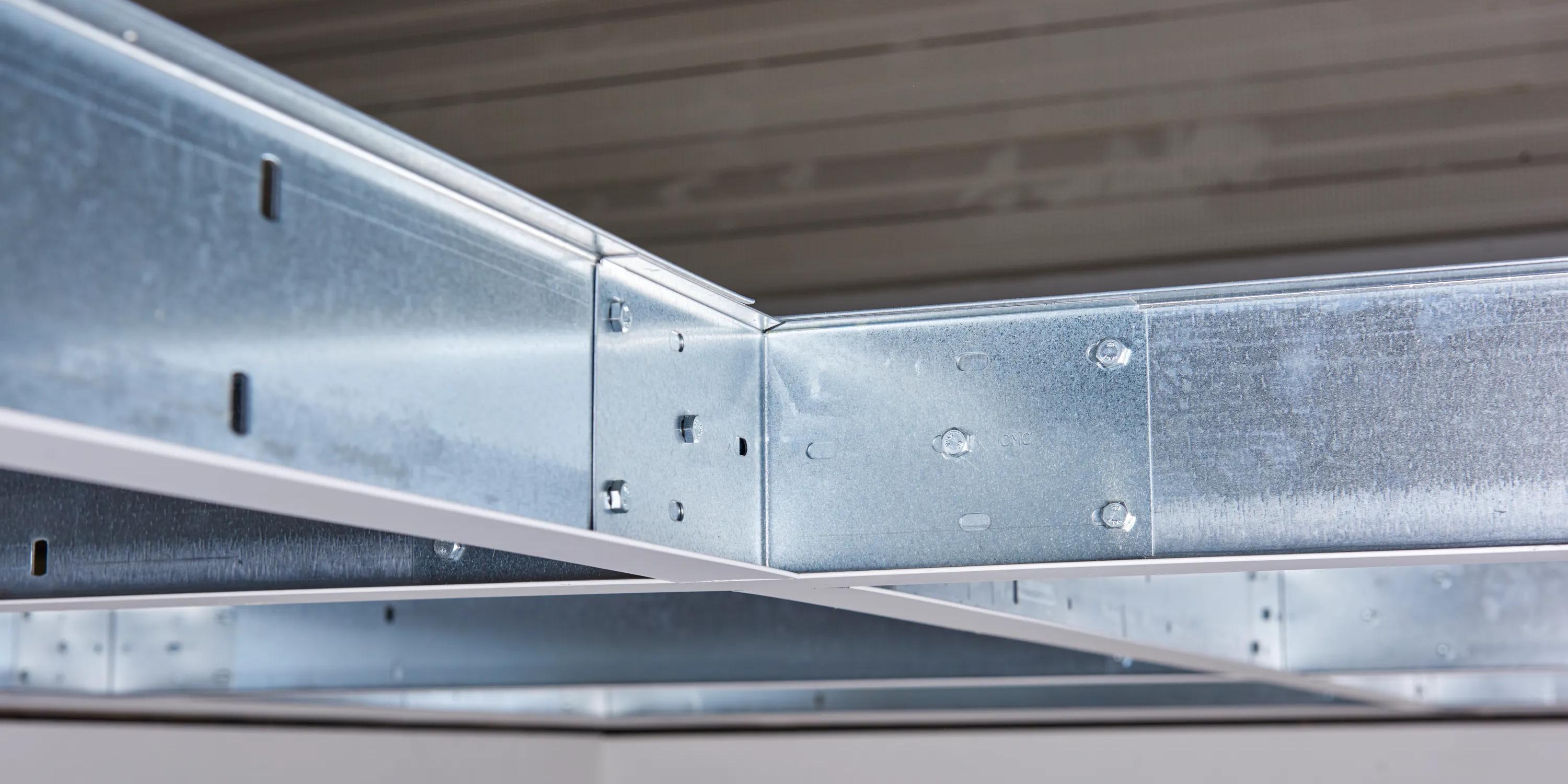

The slotting allows for compatibility with 38 mm and 75 mm high T cross tees
The system includes engineered accessories for a fast and stable construction
6000 Coupling-DE

Coupling

Back

Performances

Load Bearing Load Bearing
 C - max. span (mm) - max. deflection L/300
Axe/axe distance max. distance between hangers in mm
kg/m² of ceiling
5 6 7 8 9 10 12 14 16 20 30 40
600 6000 6000 6000 6000 6000 6000 6000 6000 6000 5850 5100 4600
700 6000 6000 6000 6000 6000 6000 6000 6000 5950 5550 4850 4400
800 6000 6000 6000 6000 6000 6000 6000 5950 5700 5300 4600 4200
900 6000 6000 6000 6000 6000 6000 6000 5750 5500 5100 4450 4050
1000 6000 6000 6000 6000 6000 6000 5850 5550 5300 4900 4300 3900
1100 6000 6000 6000 6000 6000 6000 5650 5350 5100 4750 4150 3750
1200 6000 6000 6000 6000 6000 5850 5500 5200 5000 4600 4050 3650
1300 6000 6000 6000 6000 5900 5650 5350 5050 4850 4500 3900 3550
1400 6000 6000 6000 5950 5750 5550 5200 4950 4750 4400 3850 3500
1500 6000 6000 6000 5850 5600 5400 5100 4850 4600 4300 3750 3400
2000 6000 5850 5550 5300 5100 4900 4600 4400 4200 3900 3400 3100
 C - max. span (mm) - max. deflection L/500
Axe/axe distance max. distance between hangers in mm
kg/m² of ceiling
5 6 7 8 9 10 12 14 16 20 30 40
600 6000 6000 6000 6000 6000 6000 5850 5550 5300 4900 4300 3900
700 6000 6000 6000 6000 6000 5900 5550 5250 5000 4650 4050 3700
800 6000 6000 6000 6000 5850 5600 5300 5000 4800 4450 3900 3550
900 6000 6000 6000 5850 5600 5400 5100 4850 4600 4300 3750 3400
1000 6000 6000 5900 5600 5400 5200 4900 4650 4450 4150 3600 3300
1100 6000 6000 5700 5450 5250 5050 4750 4500 4300 4000 3500 3200
1200 6000 5850 5550 5300 5100 4900 4600 4400 4200 3900 3400 3100
1300 6000 5650 5400 5150 4950 4800 4500 4250 4100 3800 3300 3000
1400 5900 5550 5250 5000 4850 4650 4400 4150 4000 3700 3250 2950
1500 5750 5400 5150 4900 4700 4550 4300 4050 3900 3600 3150 2850
2000 5200 4900 4650 4450 4300 4150 3900 3700 3550 3300 2850 2600
Corrosion Resistance Corrosion Resistance B
Reaction To Fire Reaction To Fire A1
Environment Environment Fully Recyclable
Back
 C - max. span (mm) - max. deflection L/300
Axe/axe distance max. distance between hangers in mm
kg/m² of ceiling
5 6 7 8 9 10 12 14 16 20 30 40
600 6000 6000 6000 6000 6000 6000 6000 6000 6000 5850 5100 4600
700 6000 6000 6000 6000 6000 6000 6000 6000 5950 5550 4850 4400
800 6000 6000 6000 6000 6000 6000 6000 5950 5700 5300 4600 4200
900 6000 6000 6000 6000 6000 6000 6000 5750 5500 5100 4450 4050
1000 6000 6000 6000 6000 6000 6000 5850 5550 5300 4900 4300 3900
1100 6000 6000 6000 6000 6000 6000 5650 5350 5100 4750 4150 3750
1200 6000 6000 6000 6000 6000 5850 5500 5200 5000 4600 4050 3650
1300 6000 6000 6000 6000 5900 5650 5350 5050 4850 4500 3900 3550
1400 6000 6000 6000 5950 5750 5550 5200 4950 4750 4400 3850 3500
1500 6000 6000 6000 5850 5600 5400 5100 4850 4600 4300 3750 3400
2000 6000 5850 5550 5300 5100 4900 4600 4400 4200 3900 3400 3100
 C - max. span (mm) - max. deflection L/500
Axe/axe distance max. distance between hangers in mm
kg/m² of ceiling
5 6 7 8 9 10 12 14 16 20 30 40
600 6000 6000 6000 6000 6000 6000 5850 5550 5300 4900 4300 3900
700 6000 6000 6000 6000 6000 5900 5550 5250 5000 4650 4050 3700
800 6000 6000 6000 6000 5850 5600 5300 5000 4800 4450 3900 3550
900 6000 6000 6000 5850 5600 5400 5100 4850 4600 4300 3750 3400
1000 6000 6000 5900 5600 5400 5200 4900 4650 4450 4150 3600 3300
1100 6000 6000 5700 5450 5250 5050 4750 4500 4300 4000 3500 3200
1200 6000 5850 5550 5300 5100 4900 4600 4400 4200 3900 3400 3100
1300 6000 5650 5400 5150 4950 4800 4500 4250 4100 3800 3300 3000
1400 5900 5550 5250 5000 4850 4650 4400 4150 4000 3700 3250 2950
1500 5750 5400 5150 4900 4700 4550 4300 4050 3900 3600 3150 2850
2000 5200 4900 4650 4450 4300 4150 3900 3700 3550 3300 2850 2600
Back
Back
Back
Back

Profiles and Accessories

Main runner

Component Length Height Width Product number Colours Packaging
Main runner
6100.tif I-runner 50 mm - with 10 slots 6000 100 50 I50x100 Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 10 Distance between slots: 300 / 600 / 8 x 600 / 300
2800.tif Main runner T24 Click / Hook 3600 38 24 T24 MR CL&HK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50
6106.tif I-runner 50 mm - without slots 6000 100 50 I50x100 Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 6000 / /
6100.tif I-runner 50 mm - with 6 slots 6000 100 50 I50x100 Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 6 Distance between slots: 500 / 1000 / 4 x 1000 / 500

Accessories

Component Length Height Width Product number Packaging
Accessories for long span
6015.tif Fixation clip for primary I-runner 100 mm with T35 60 25 I50x100 FC T See Packaging Dimensions
182665.tif Holding clamp for primary I-runner 100 mm + threaded rod M10 94 42 I50X100 HC M10 See Packaging Dimensions

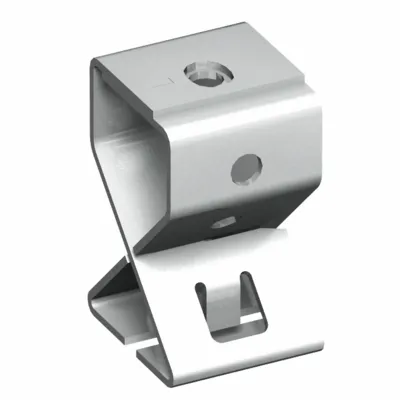

6018.tif Holding clamp for primary I-runner 100 mm + threaded rod M8 70.25 42 I50X100 HC M8 See Packaging Dimensions

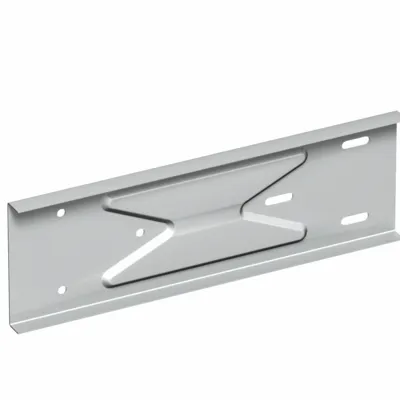

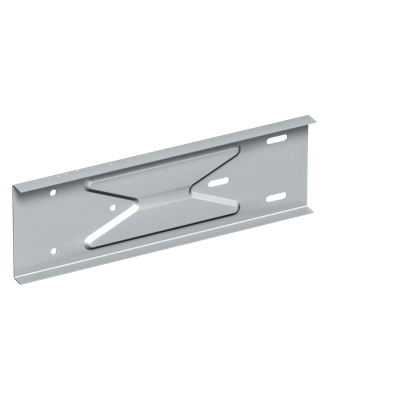

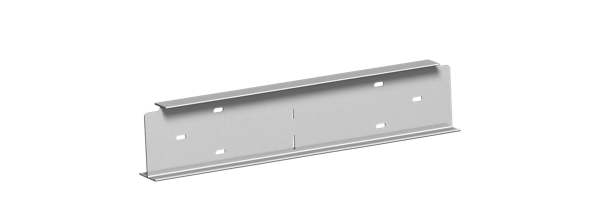

6011.tif Length coupling for primary I-runner 100 mm 300 I50x100 LC See Packaging Dimensions

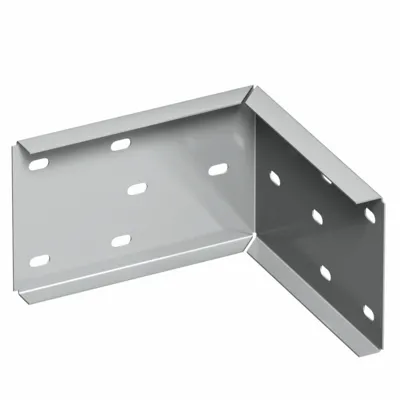

6013.tif Cross coupling for primary I-runner 100 mm 150 150 I50x100 CC See Packaging Dimensions
Suspension clips
90_version2.tif Suspension clip for primary I-runner 55, 70, 85, 100 and 120 mm FC I T/EYE See Packaging Dimensions
5137.tif Clip for I55, I70, I85, I100, I120 with furring channel 45 mm FC I EYE See Packaging Dimensions
Double Layer Clips
120.tif Wire clip for Z and 38 mm T-profiles DLW Z&T See Packaging Dimensions
Threaded rods
10042M8.tif Threaded rod M8 - right / L=1000 mm 1000 TR M8 R See Packaging Dimensions
10043.tif Spacer sleeve M8x20 SS M8 See Packaging Dimensions
10046.tif Turnbuckle M8 TB M8 See Packaging Dimensions
10040M8L.tif Threaded rod M8 - left / L=200 mm 200 TR M8 L See Packaging Dimensions
10044M8.tif Nut M8 - right NUT M8 R See Packaging Dimensions
10045.tif Spring washer M8 'Grower' WASH M8 See Packaging Dimensions
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 10 Distance between slots: 300 / 600 / 8 x 600 / 300
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 6000 / /
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 6 Distance between slots: 500 / 1000 / 4 x 1000 / 500
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
DoP-RFN-T2438MD-A03 - Main runner T24 Click / Hook
DoP-RFN-T2438MD-A03 - Main runner T24 Click / Hook

pdf
Chicago Metallic 50 mm Longspan 6000 | Datasheet
Chicago Metallic 50 mm Longspan 6000 | Datasheet

pdf
DoP-RFN-ACCSUSPFIX-I02 - Holding clamp for primary I-runner 100 mm + threaded rod M10
DoP-RFN-ACCSUSPFIX-I02 - Holding clamp for primary I-runner 100 mm + threaded rod M10

pdf
DoP-RFN-ACCSUSPFIX-J02 - Holding clamp for primary I-runner 100 mm + threaded rod M8
DoP-RFN-ACCSUSPFIX-J02 - Holding clamp for primary I-runner 100 mm + threaded rod M8

pdf
DoP-RFN-ACCDLCCLIP-B02 - Wire clip for Z and 38 mm T-profiles
DoP-RFN-ACCDLCCLIP-B02 - Wire clip for Z and 38 mm T-profiles

pdf
DoP-RFN-ACCSUSPFIX-H02 - Clip for I55, I70, I85, I100, I120 with furring channel 45 mm
DoP-RFN-ACCSUSPFIX-H02 - Clip for I55, I70, I85, I100, I120 with furring channel 45 mm

pdf
DoP-RFN-ACCPP-A02 - Length coupling for primary I-runner 100 mm
DoP-RFN-ACCPP-A02 - Length coupling for primary I-runner 100 mm

pdf
DoP-RFN-ACCPP-BO2 - Fixation clip for primary I-runner 100 mm with T35
DoP-RFN-ACCPP-BO2 - Fixation clip for primary I-runner 100 mm with T35

pdf
DoP-RFN-ACCSUSPFIX-A02 - Suspension clip for primary I-runner 55, 70, 85, 100 and 120 mm
DoP-RFN-ACCSUSPFIX-A02 - Suspension clip for primary I-runner 55, 70, 85, 100 and 120 mm

pdf
DoP-RFN-T50100MJ-A02 - I-runner 50 mm - with 10 slots
DoP-RFN-T50100MJ-A02 - I-runner 50 mm - with 10 slots

pdf
DoP-RFN-ACCTHREADEDWIRE-A03 - Turnbuckle M8
DoP-RFN-ACCTHREADEDWIRE-A03 - Turnbuckle M8

pdf
