21 Inspiring Acoustic Ceiling Design Ideas

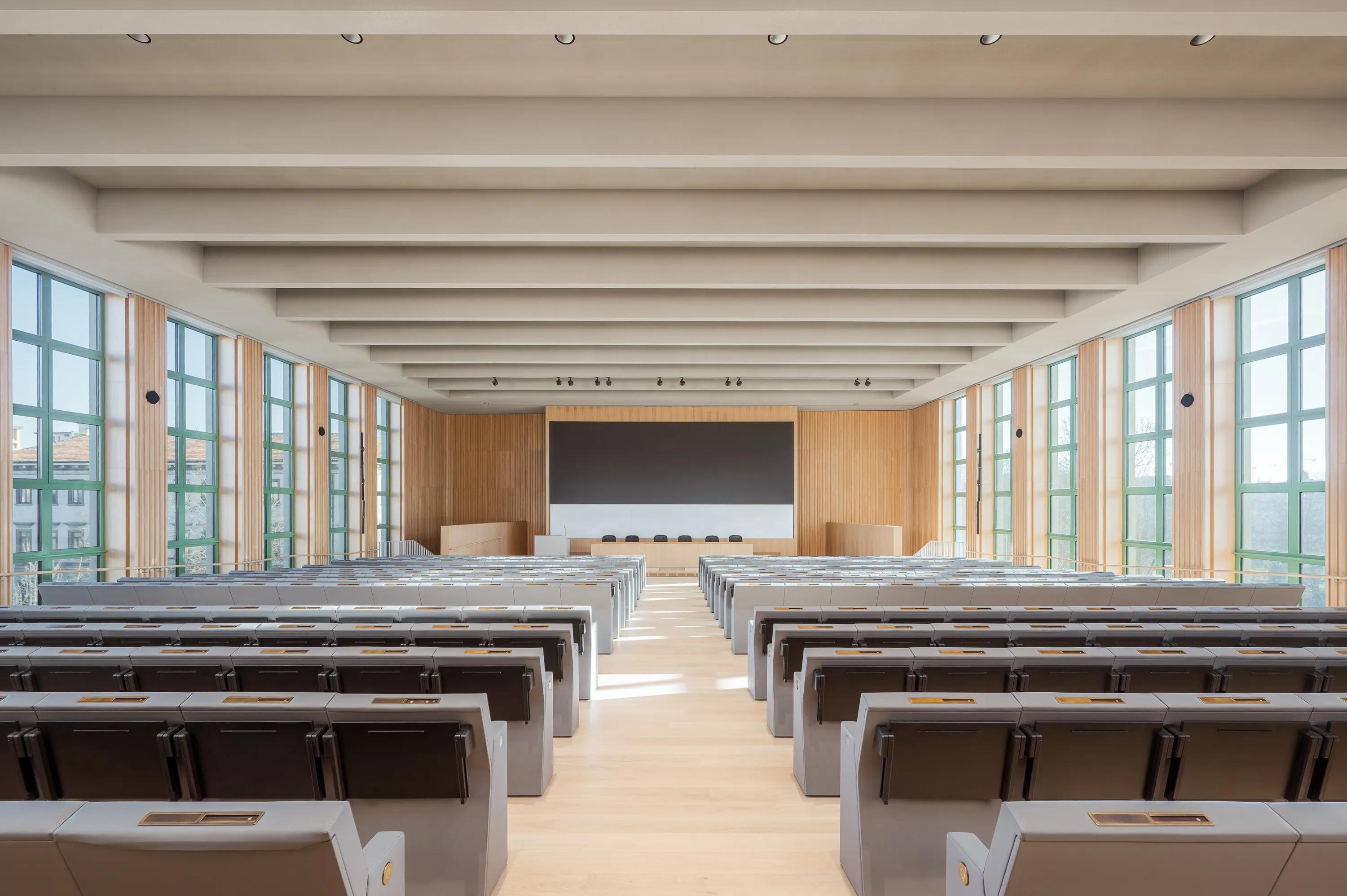

Faux Beam Ceiling

A faux beam ceiling is a ceiling shaped to resemble beams without the presence of actual structural elements. Depth and relief are formed directly into the ceiling surface. Acoustic faux beam ceilings are created by modelling changes in level within seamless solutions such as Rockfon Mono Acoustic, avoiding integrated beams and allowing the entire plane to contribute to sound absorption, such as this lecture hall at Bocconi University in Milan, Italy.

Undulating Acoustic Ceiling

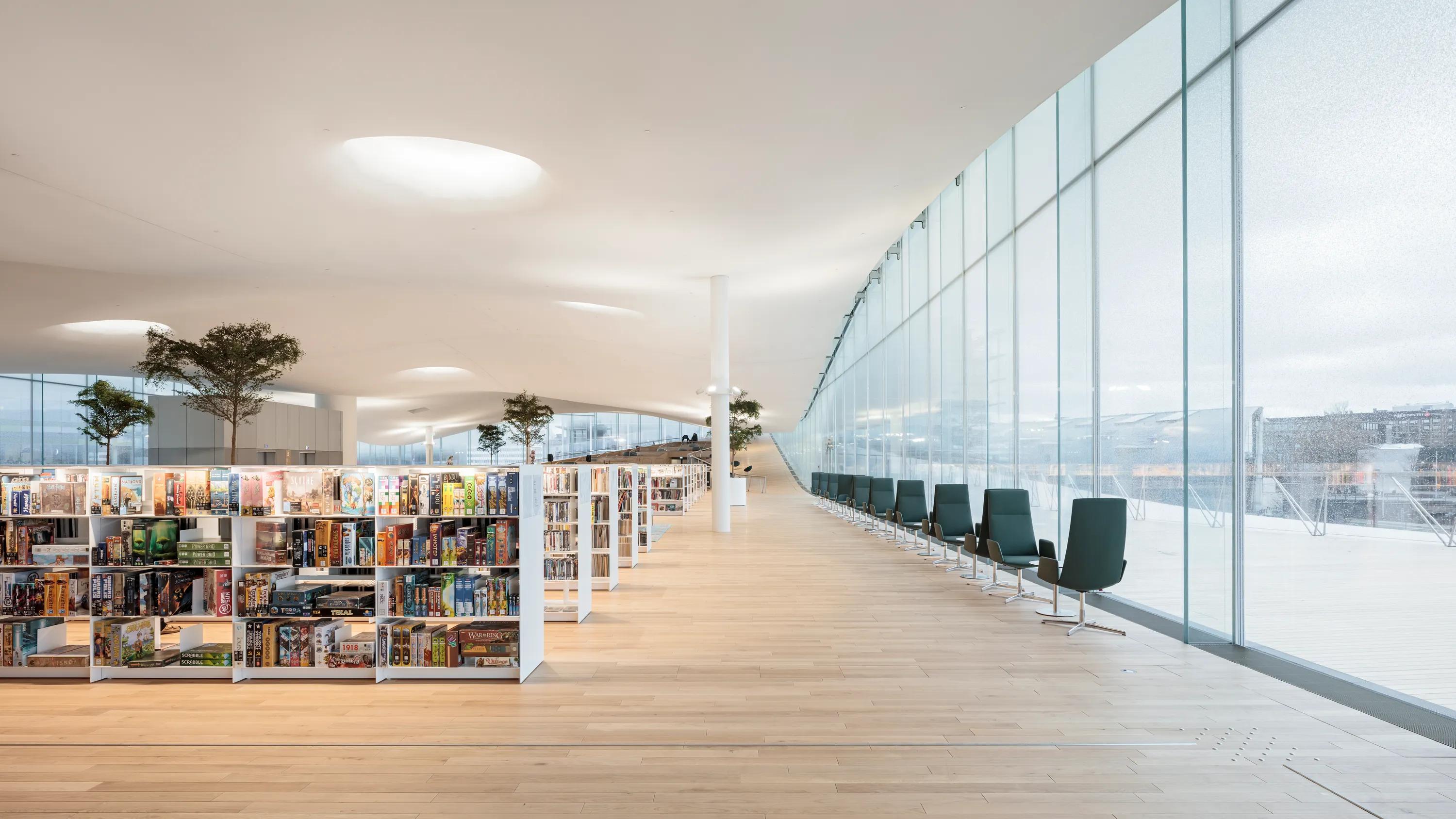

An undulating ceiling uses soft, wave-like forms to create a cloud-like surface that appears to float. The gentle rises and falls introduce movement and changing shadows, giving the ceiling a light, atmospheric presence rather than a rigid plane. This type of acoustic ceiling design is created by shaping a continuous acoustic surface such as Rockfon Mono Acoustic into smooth curves, such as this example at Oodi Helsinki Central Library in Finland.

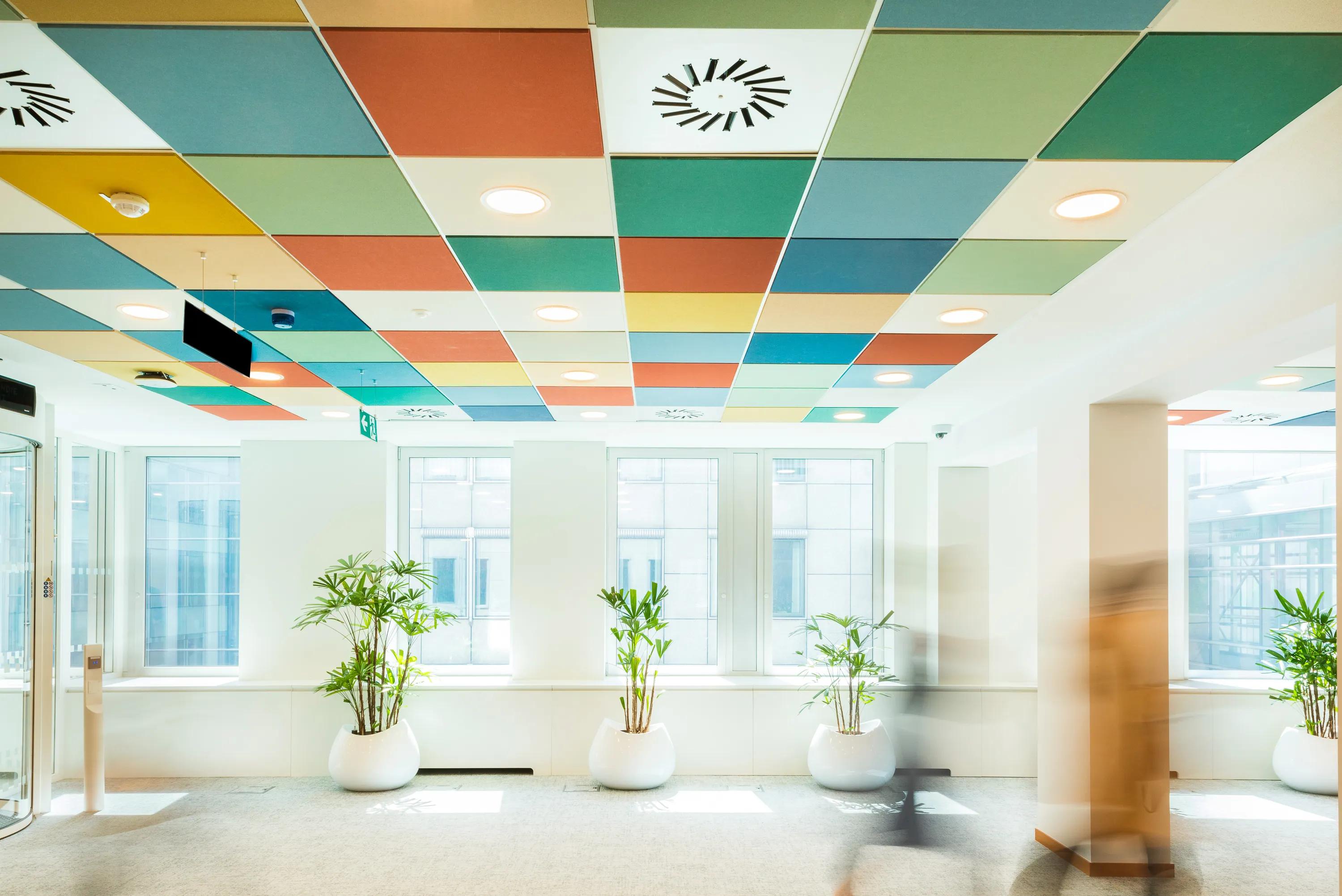

Checkered Tile Ceiling

A checkered tile ceiling features two or more acoustic ceiling tile colours arranged in a deliberate pattern for visual interest. Depending on the palette and layout, the ceiling can feel subtle or expressive. It is created by installing acoustic ceiling tiles in alternating colours within a standard suspended grid, often using the coloured acoustic ceiling tiles Rockfon Color-all.

See also: 11 Checkered Ceiling Design Ideas

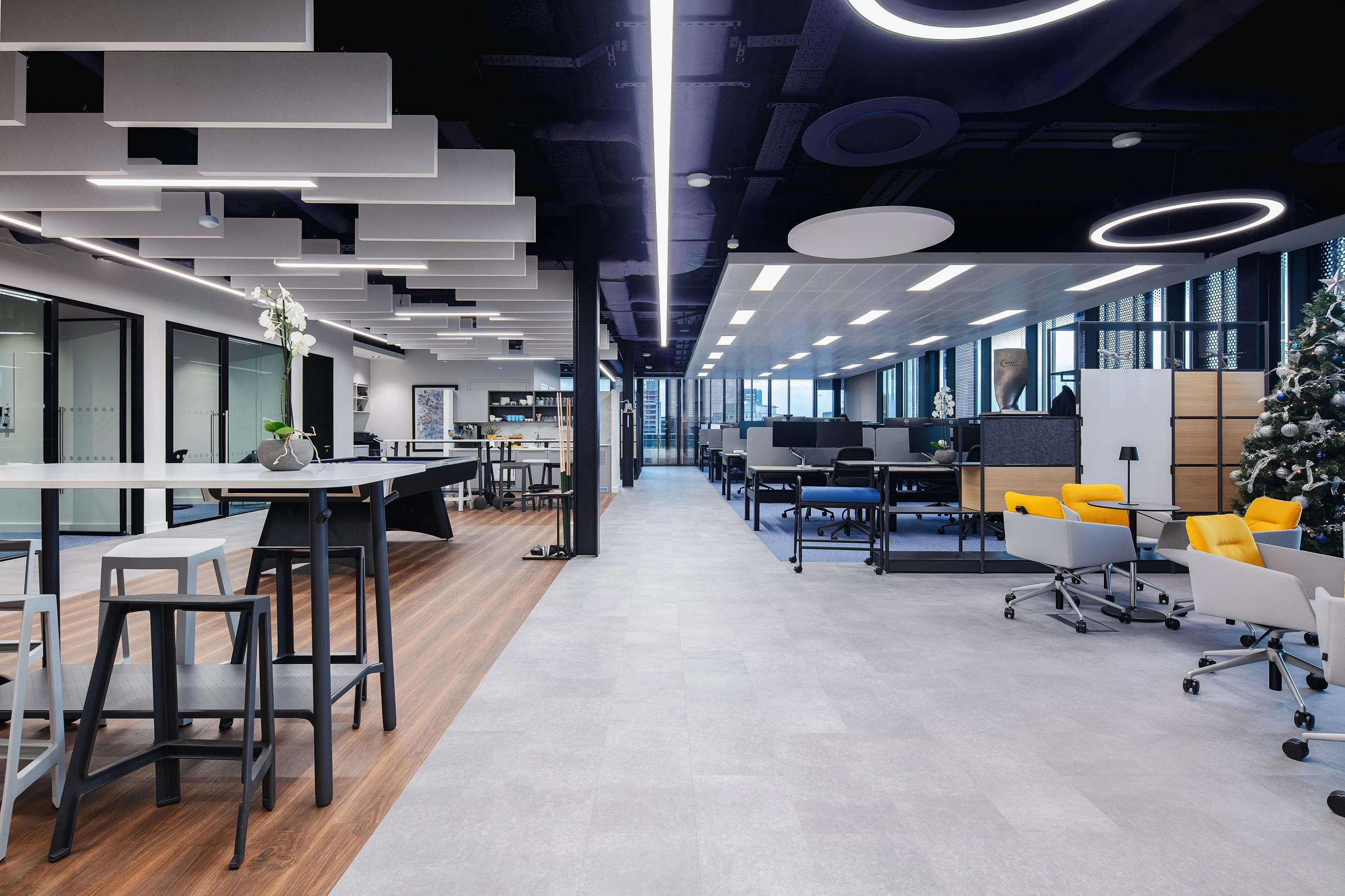

Mixed Suspended Solutions

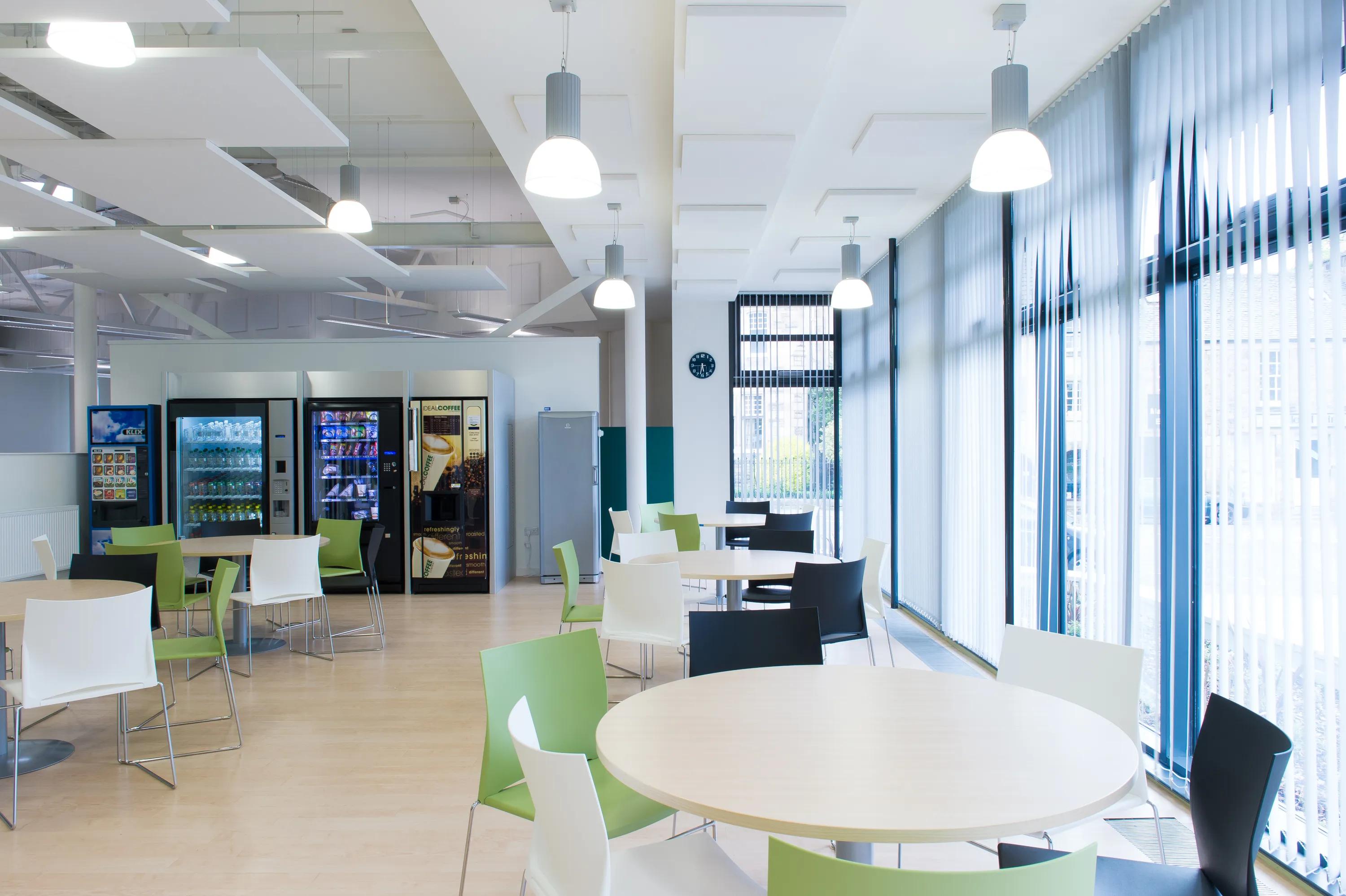

A mixed ceiling uses multiple ceiling solutions within a single space to create variation and hierarchy, such as acoustic tiles, rafts, baffles, and floating panels that are combined for variety and rhythm. In such a way, the different ceiling elements respond to different stylistic and structural needs while delivering targeted acoustic comfort, as seen here at the ACS Offices in Dublin, Ireland.

Contrast Grid Ceiling

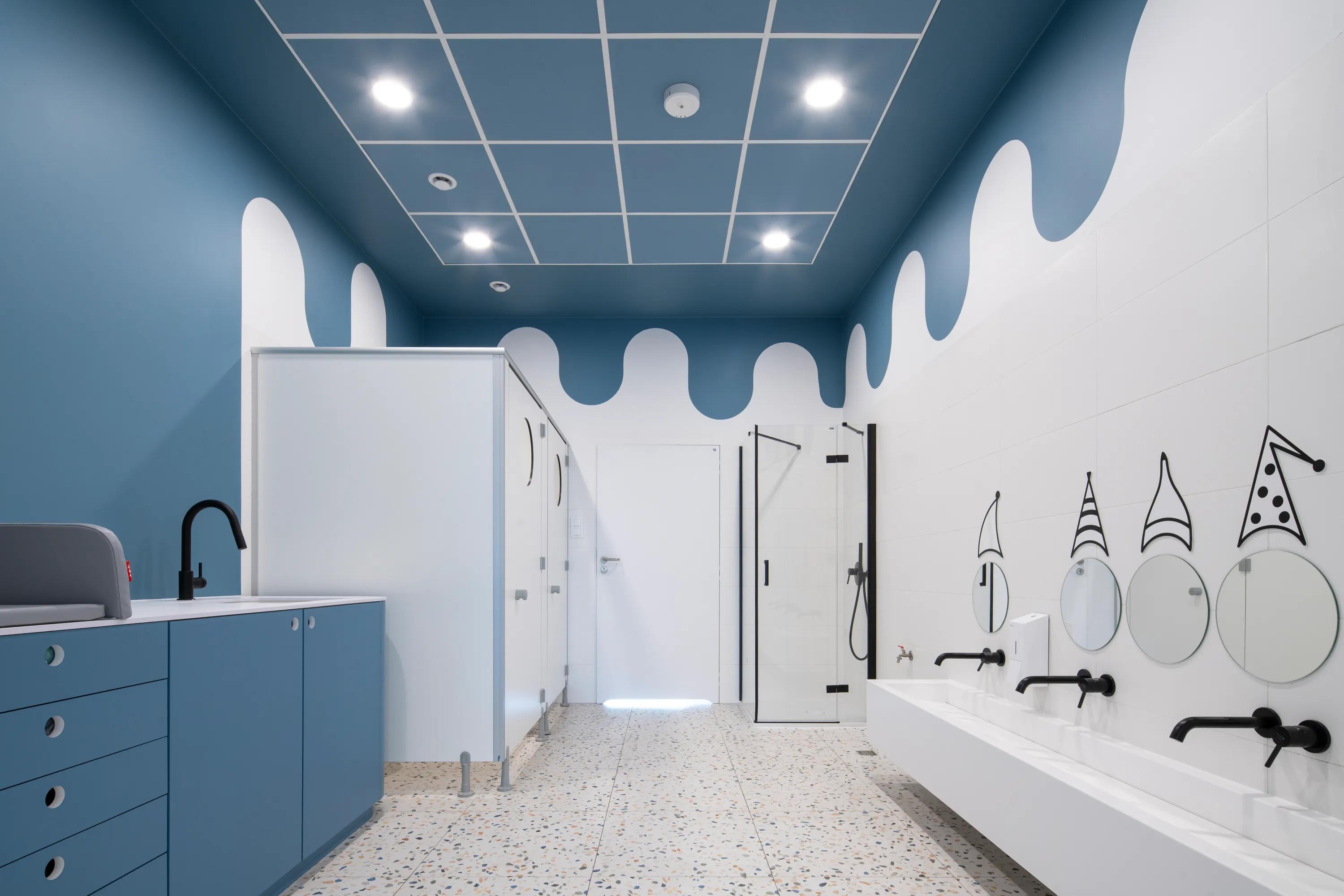

A contrast grid ceiling highlights the ceiling grid by using a different colour from the tiles. This introduces a graphic look and adds definition to the ceiling plane. It is installed using standard suspended ceiling systems, pairing coloured grids with neutral tiles (or vice versa). The ceiling remains modular while contributing a gridded-look to interior expression.

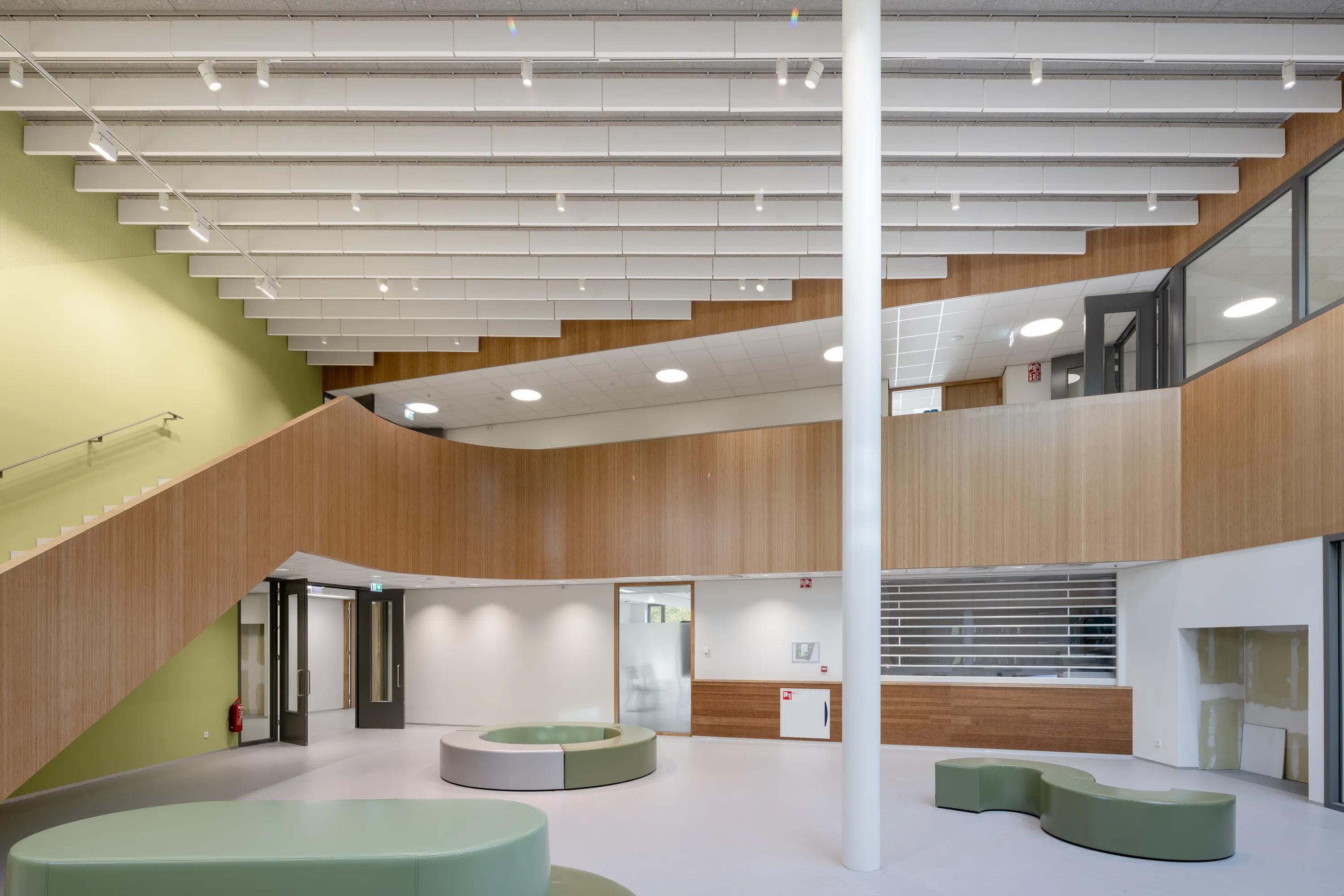

Baffle Ceiling

A baffle ceiling consists of vertically suspended acoustic solutions designed to absorb sound while keeping the soffit visually open, such as this example with Rockfon Contour at Gemini College in the Netherlands. Acoustic ceiling baffles are installed using wires, brackets, or grids and are available in various sizes, colours, and shapes. They can be arranged in rows or staggered layouts and are often coordinated with lighting to create layered ceiling compositions.

See also: An Overview of Rockfon Ceiling Baffles

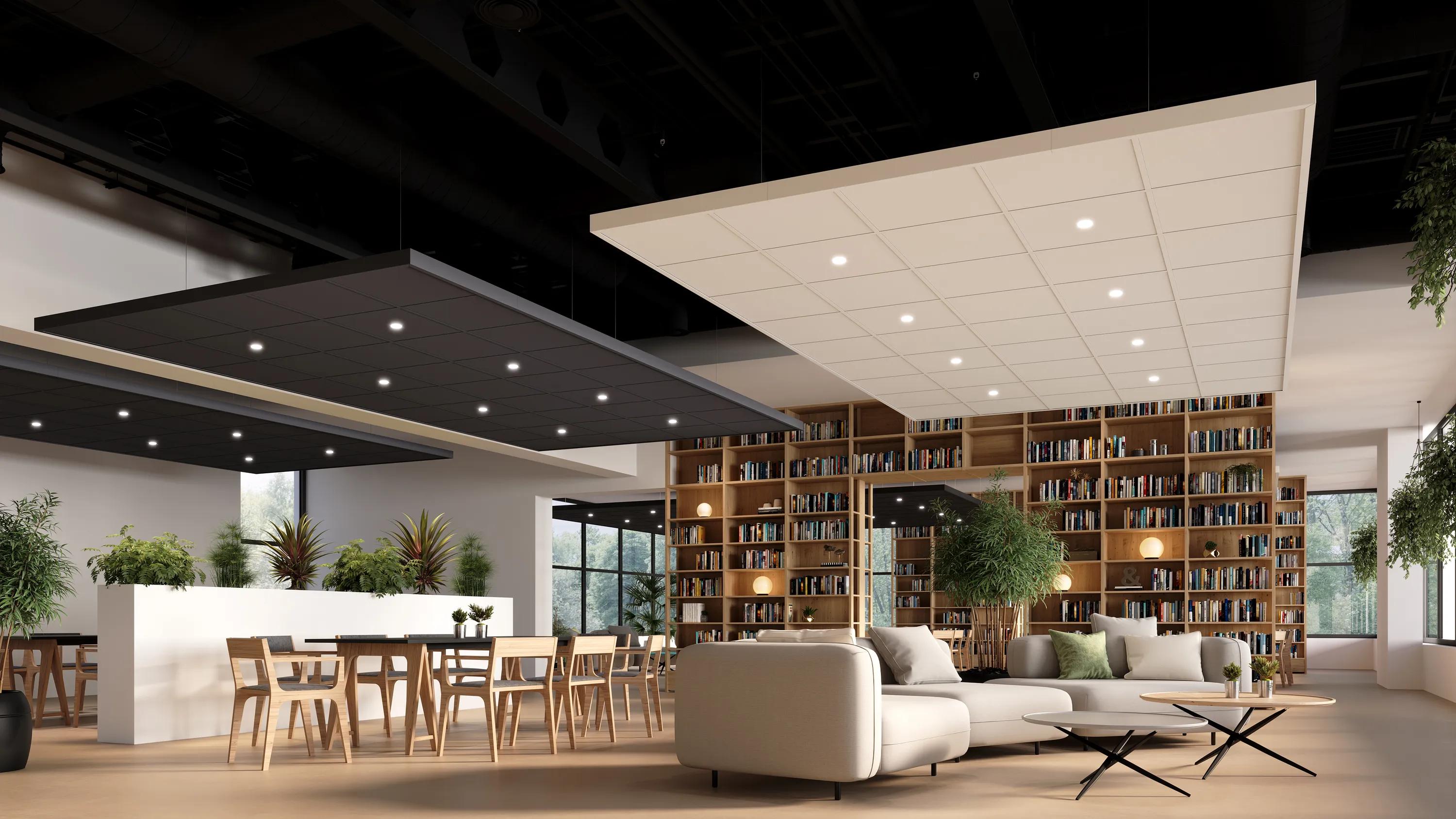

Floating Raft Ceiling

A floating raft ceiling often uses a suspended ceiling frame hung below the soffit, creating the impression that it's floating. Raft ceilings can be created using modular tiles within suspended frames such as Rockfon OneFrame, or by simply using floating ceiling panels such as Rockfon Eclipse in large dimensions.

See also: 18 Examples of Floating Raft Ceilings

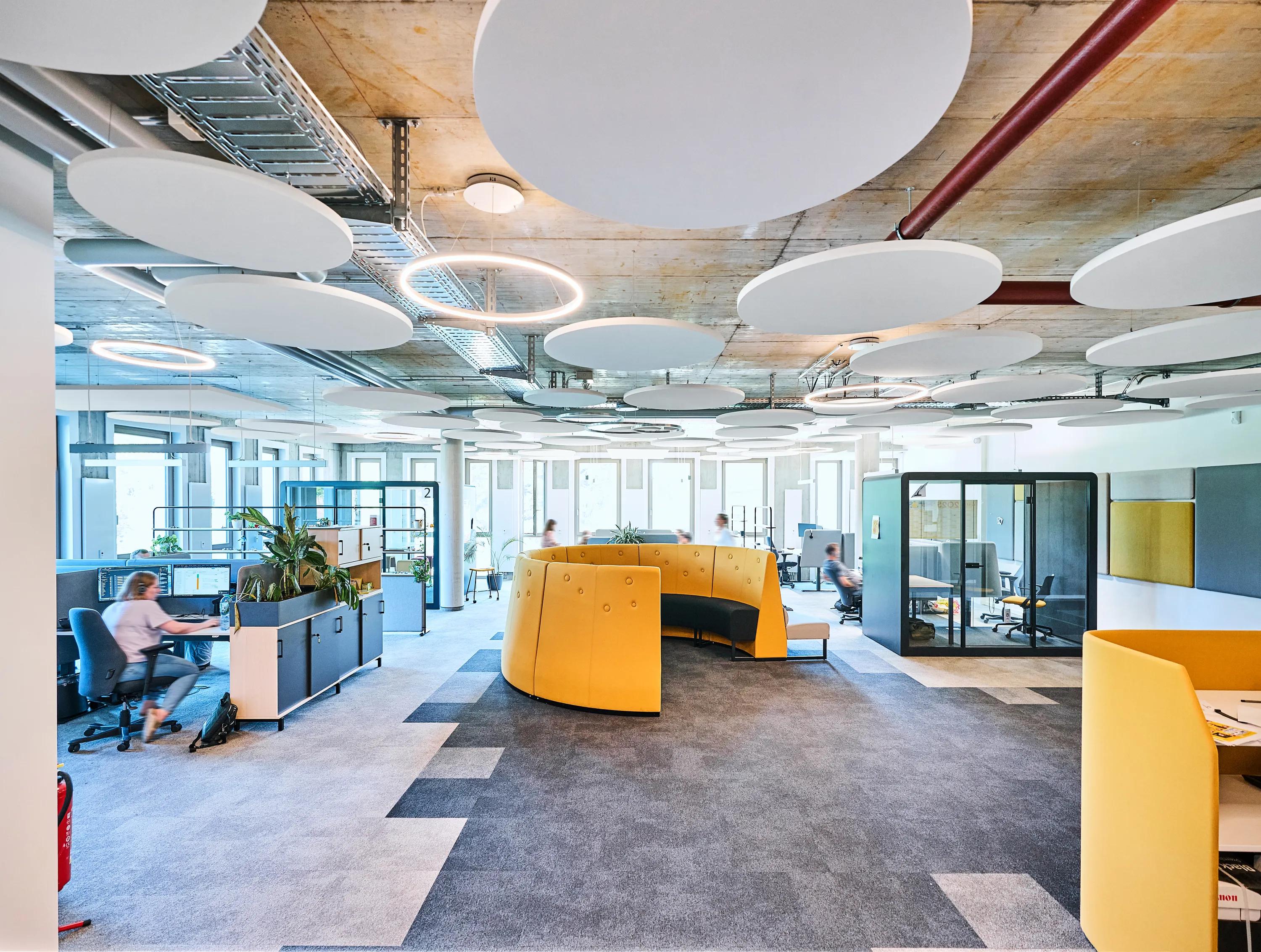

Floating Ceiling Panels

Ideal for spaces with exposed soffits, floating island ceilings use individual acoustic panels such as Rockfon Eclipse that can be installed at varying sizes, shapes, colours, and heights. The panels are spaced apart to create a cloud-like ceiling composition and are suspended from the soffit – or an existing suspended ceiling – using cables. The panels can also be used to anchor lighting.

See also: An Overview of Rockfon Floating Ceiling Panels

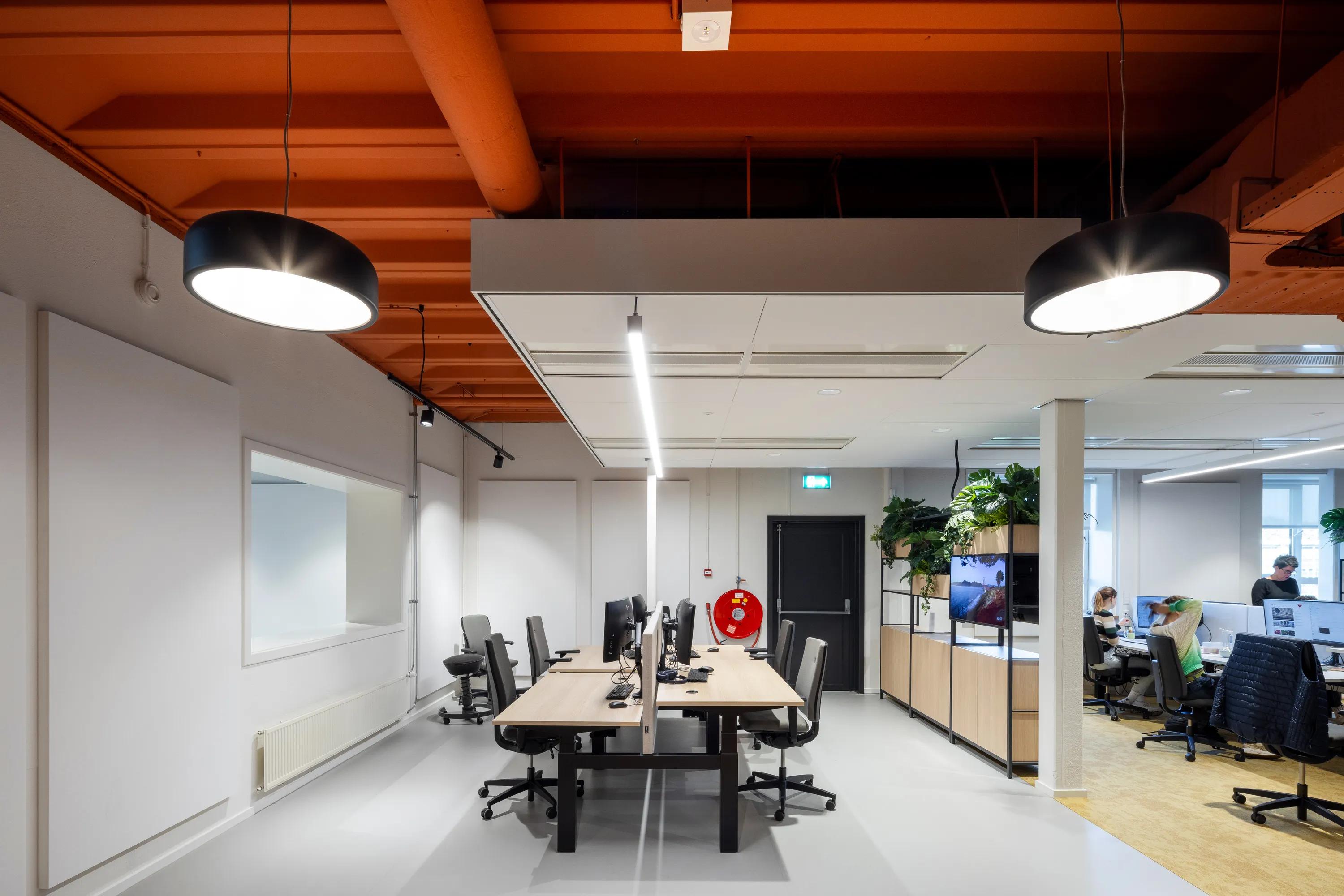

Hybrid Plenum Ceiling

A hybrid plenum ceiling combines suspended acoustic ceiling with exposed services in the same space. Some zones receive acoustic treatment while others remain open, allowing structure and services to stay visible – often contributing to an industrial look, as seen here at the Omroep Brabant Headquarters in the Netherlands designed by TenBrasWestinga. Instead of a wall-to-wall design, this ceiling type is created by selectively installing suspended ceiling sections where sound control is needed, supporting zoning without enclosing the plenum.

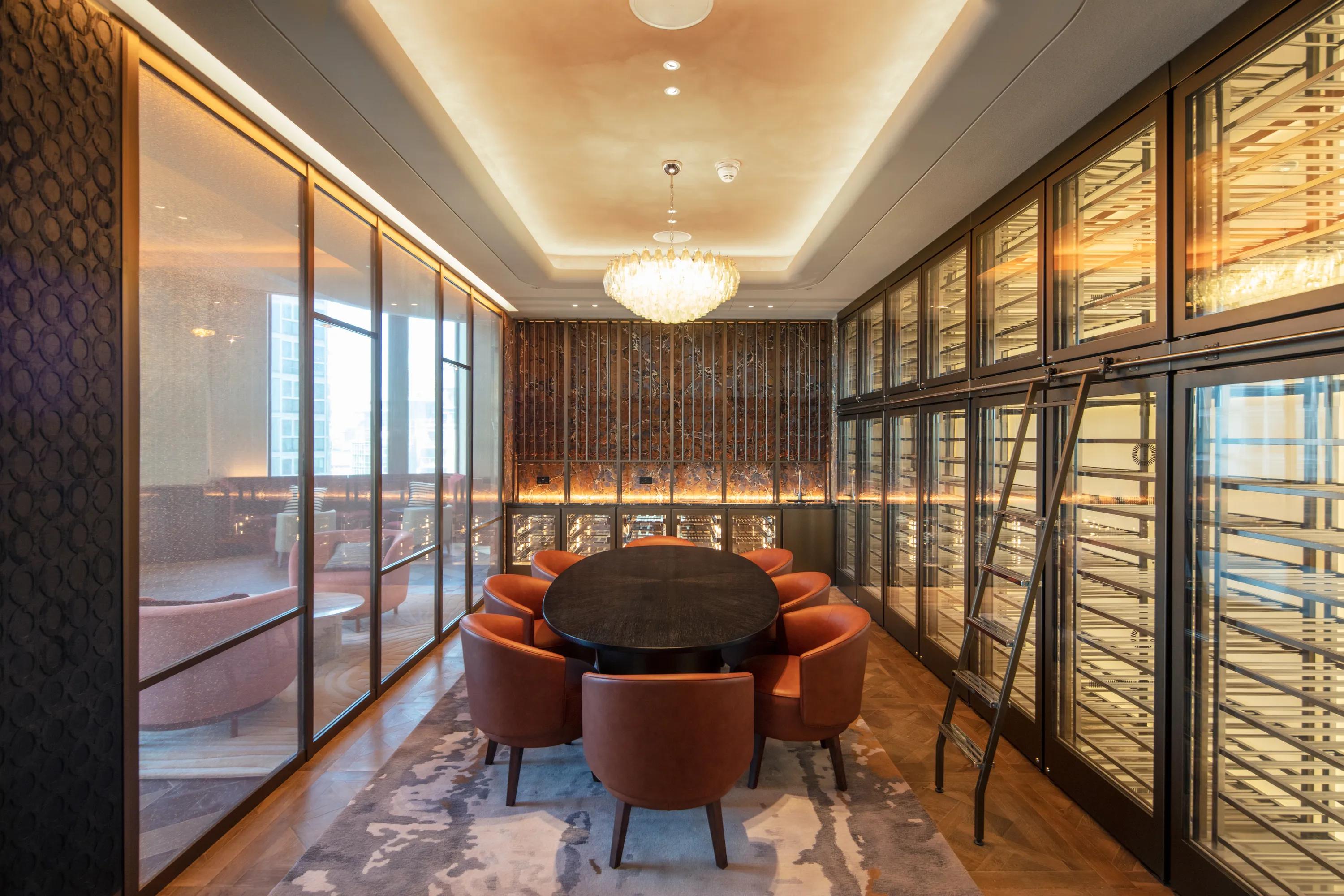

Tray Ceiling

A tray ceiling is a design with a recessed or raised central area, creating a stepped profile for depth, much like an inverted tray. The recessed edges are frequently used to integrate concealed LED lighting that further emphasise the geometry, making it a popular pick for residential ceiling design. In acoustic applications, tray ceilings are often formed as a continuous, seamless surface using systems such as Rockfon Mono Acoustic as per this example at the Park Hyatt London.

Coffered Ceiling

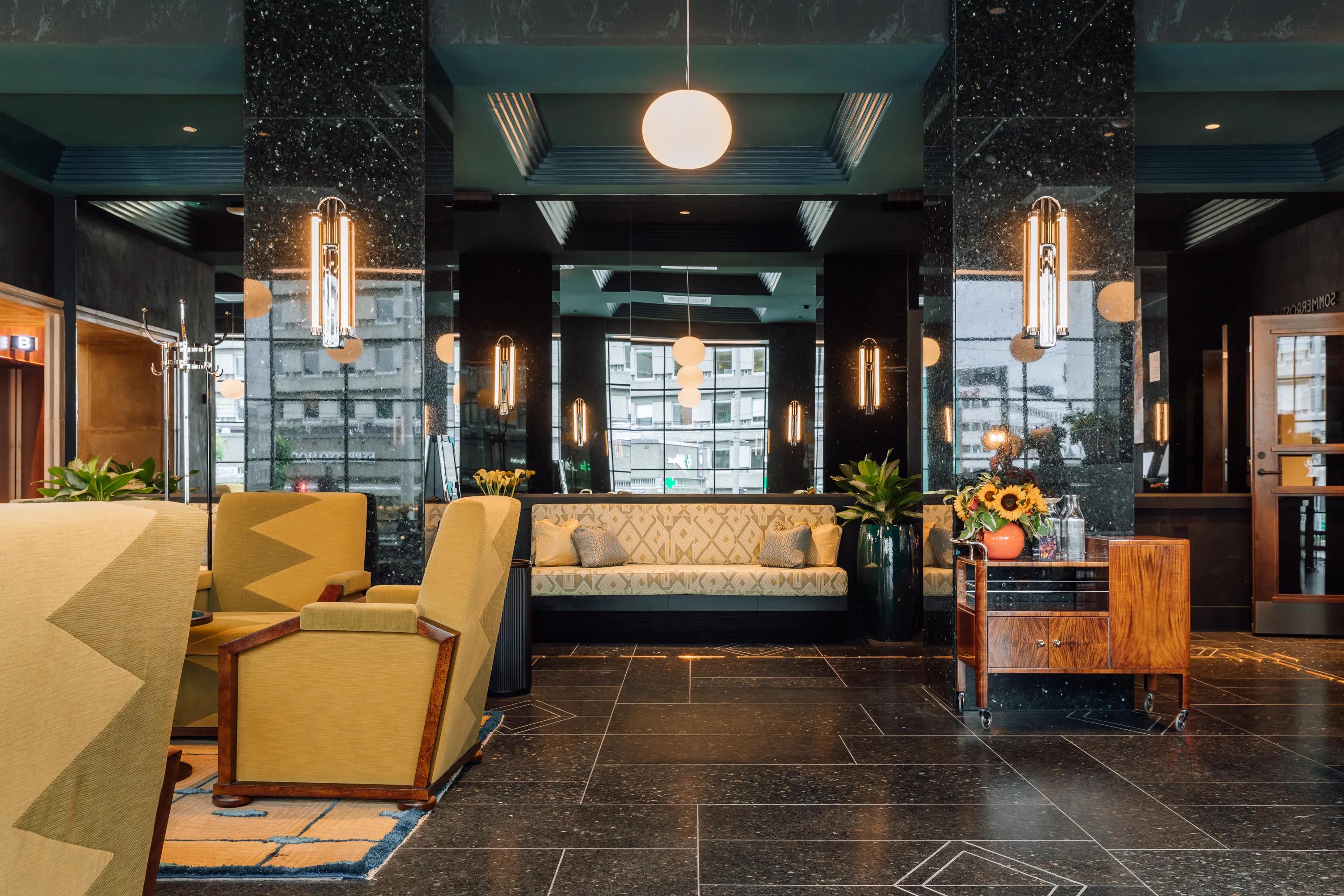

Also sometimes referred to as a tray ceiling, a coffered ceiling uses recessed panels or "coffers" to introduce depth and structure across the ceiling plane. Coffered acoustic ceilings can be formed using seamless acoustic systems such as Rockfon Mono Acoustic, allowing the ceiling to act as both an architectural feature and a sound-absorbing surface – as seen here at the Sommerro Hotel reception in Oslo, Norway, designed by GrecoDeco.

Origami Ceiling

An origami ceiling uses folded geometry to create angular, faceted, geometric surfaces across a ceiling plane. Origami ceilings are created by shaping seamless acoustic solutions such as Rockfon Mono Acoustic into folded or inverted forms, allowing complex geometry and sound absorption to work together, such as this example at Llaut Palace Hotel's restaurant in Spain designed by Seta Arquitectos.

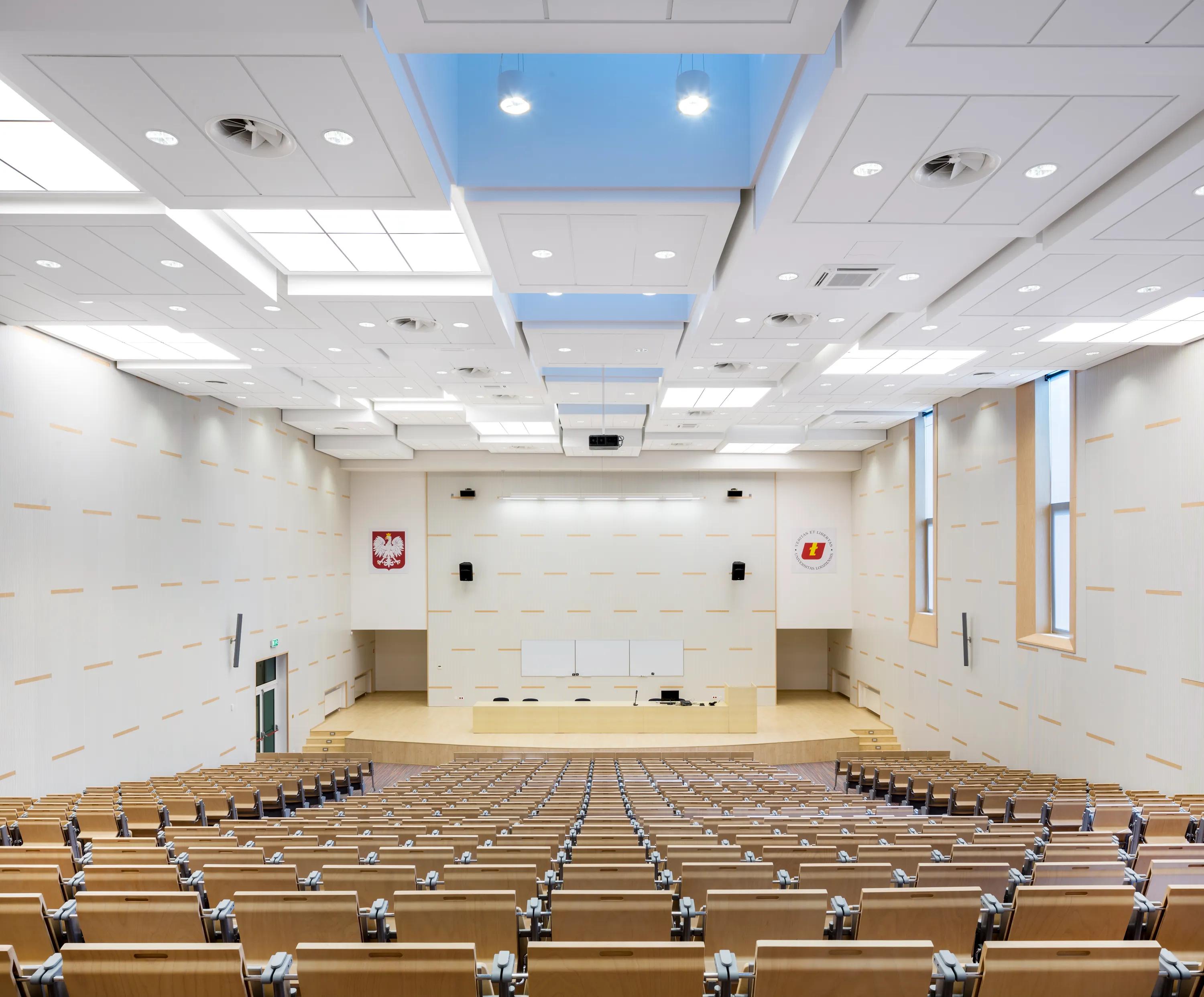

Multilevel Cube Ceiling

A suspended multi-level cube ceiling is formed from boxed ceiling elements set at different heights, creating a strong three-dimensional effect. The repeated geometry and crisp edges give the ceiling a futuristic, almost digital character, often associated with modular LEGO or sci-fi interiors. The shadow gaps between the levels enhance depth and reinforce the illusion of floating forms. Lighting can be integrated within the boxes, strengthening the sense of precision.

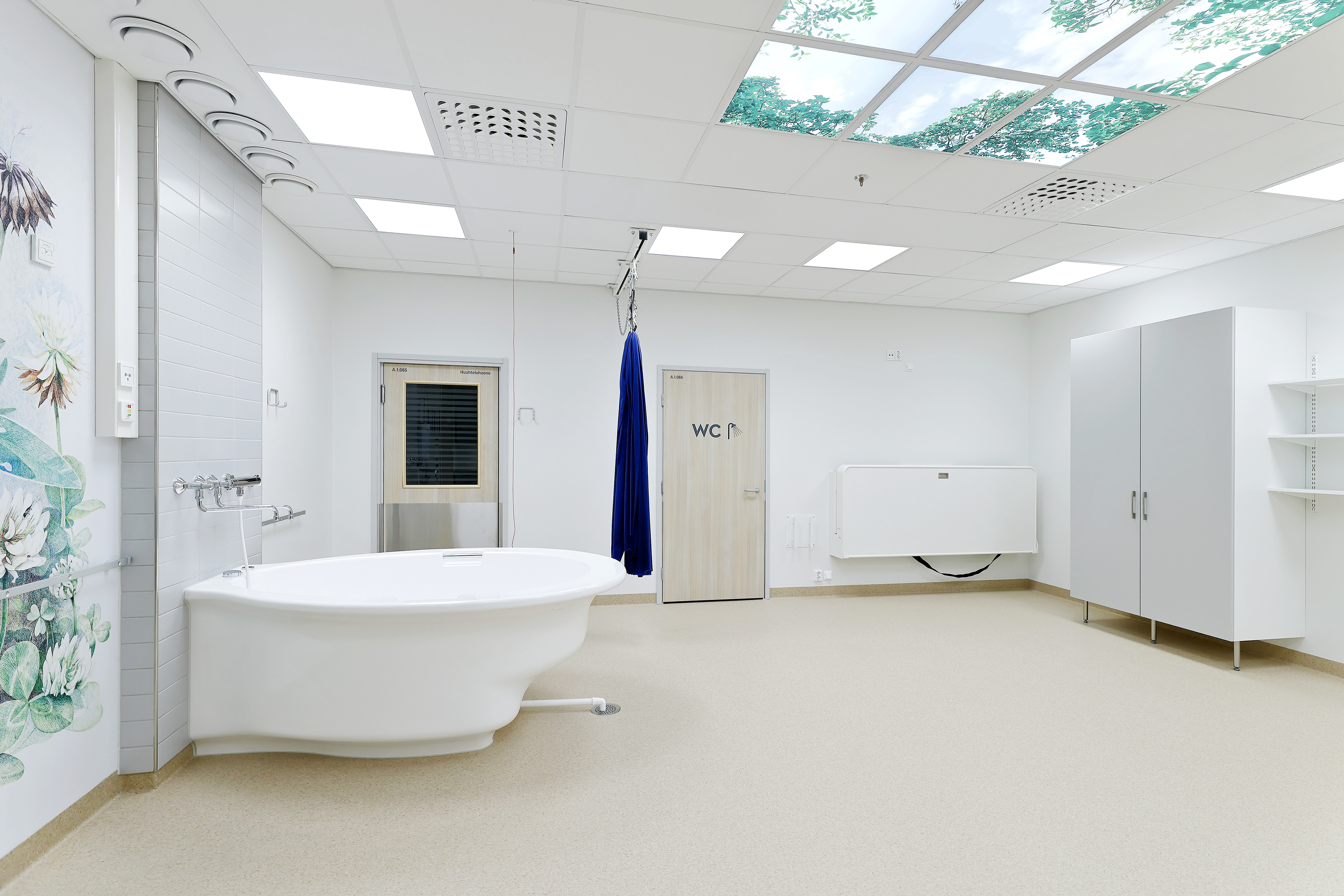

Skyscape Ceiling

A skyscape ceiling is a suspended ceiling where a few acoustic tiles in a standard ceiling grid system are replaced with third-party lighting panels displaying sky imagery or similar visuals, introducing an unexpected biophilic focal point, as seen here between the Rockfon white acoustic ceiling tiles at a hospital in Lahti, Finland.

Direct-Fixed Ceiling Panels

Instead of having them float, ceiling panels that are fixed directly to the soffit create the appearance of ceiling islands without visible suspension. The panels sit close to the soffit, maintaining visual lightness while reducing overall ceiling depth. This approach is created by fixing acoustic panels directly onto an even soffit surface, sometimes with a secondary framework to correct irregularities. Solutions such as Rockfon Eclipse can be installed this way, using dedicated direct-fix solutions to ensure consistent spacing and acoustic performance.

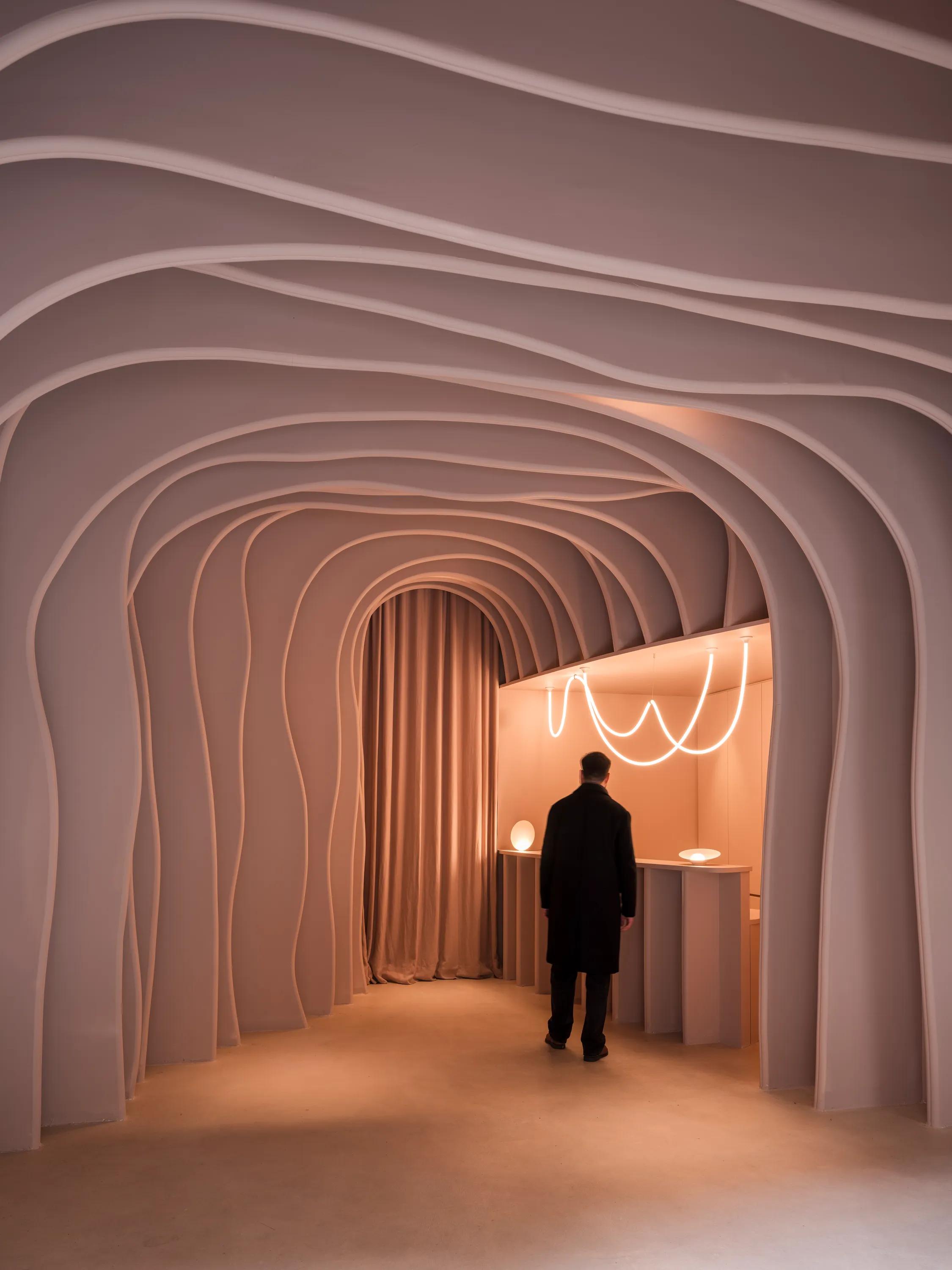

Ceiling-to-Wall Sculptural Ceiling

A ceiling-to-wall (or wall-to-ceiling!) sculptural design is a continuous surface that flows seamlessly from the ceiling into the walls, removing the boundary between horizontal and vertical planes. The design creates an enveloping spatial effect where form and sound absorption are integrated into a single architectural gesture. This type of acoustic ceiling can be created by shaping Rockfon Mono Acoustic into smooth curves, such as this example at Orac Experience Centre in Barcelona, allowing both the walls and ceilings to contribute to sound absorption without the need for any acoustic wall panels.

View the complete case study

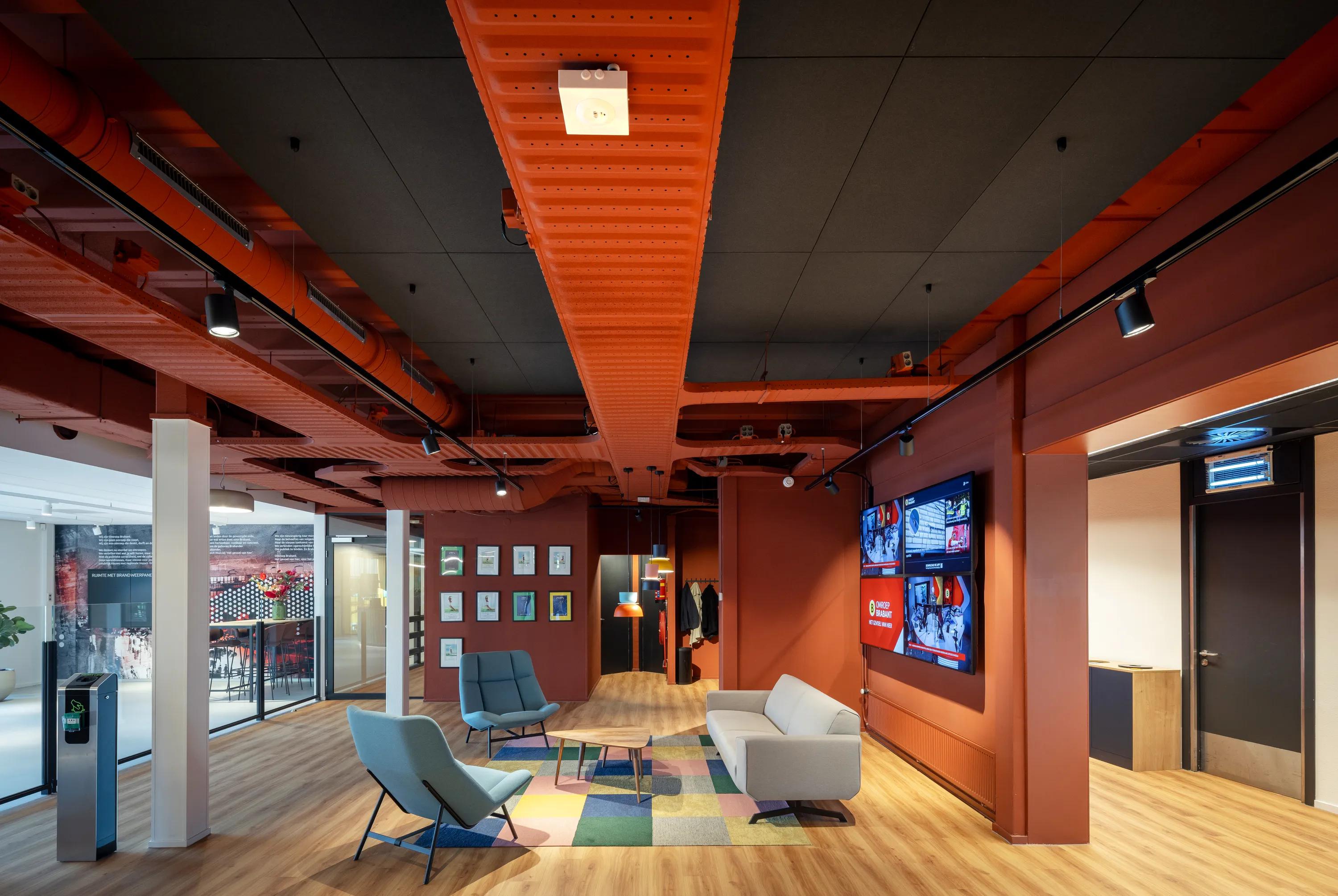

Adhesive Ceiling

An adhesive ceiling is an acoustic ceiling design with the surface bonded directly to the soffit, making it particularly suitable for spaces with limited ceiling height. By eliminating suspension depth, maximum room height is preserved. Adhesive ceilings can be created using modular tiles designed for bonding – such as this example at an office in the Netherlands – or seamless acoustic solutions such as Rockfon Mono Acoustic, depending on whether a monolithic appearance is preferred.

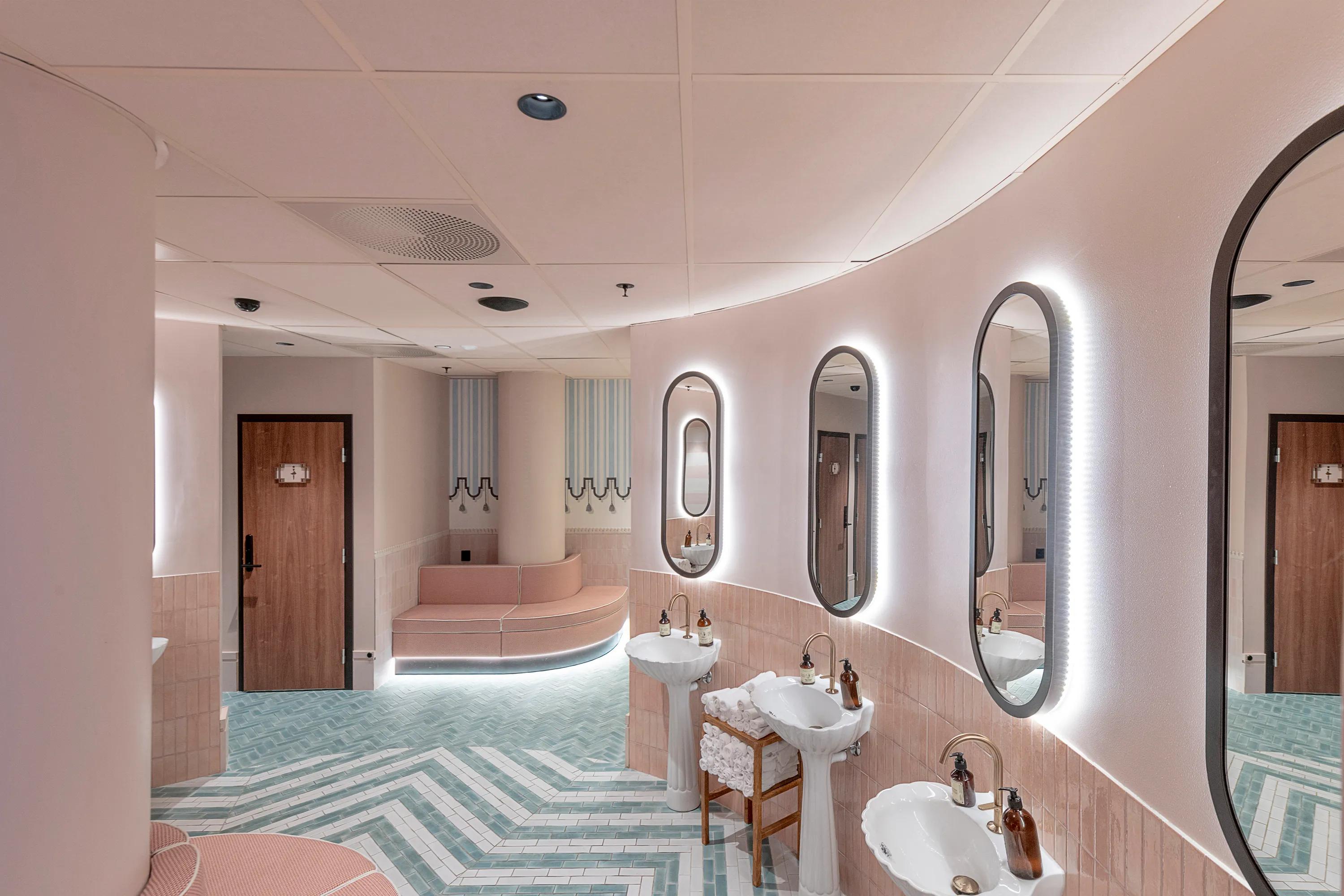

Colour-Matched Grid Ceiling

A colour-matched grid ceiling is a suspended ceiling where the grid finish closely matches the ceiling tiles in both colour and gloss. An example is this image with Rockfon Color-all at a hotel in Norway. This creates a visually continuous ceiling while retaining a modular system. It is often installed using exposed or semi-concealed grid layouts with coordinated tiles and grid finishes. Colour-matched grids are often paired with tiles such as Rockfon Color-all ceiling tiles when seamless solutions are not suitable for any reason but uniformity is still desired.

Faceted Acoustic Ceiling Islands

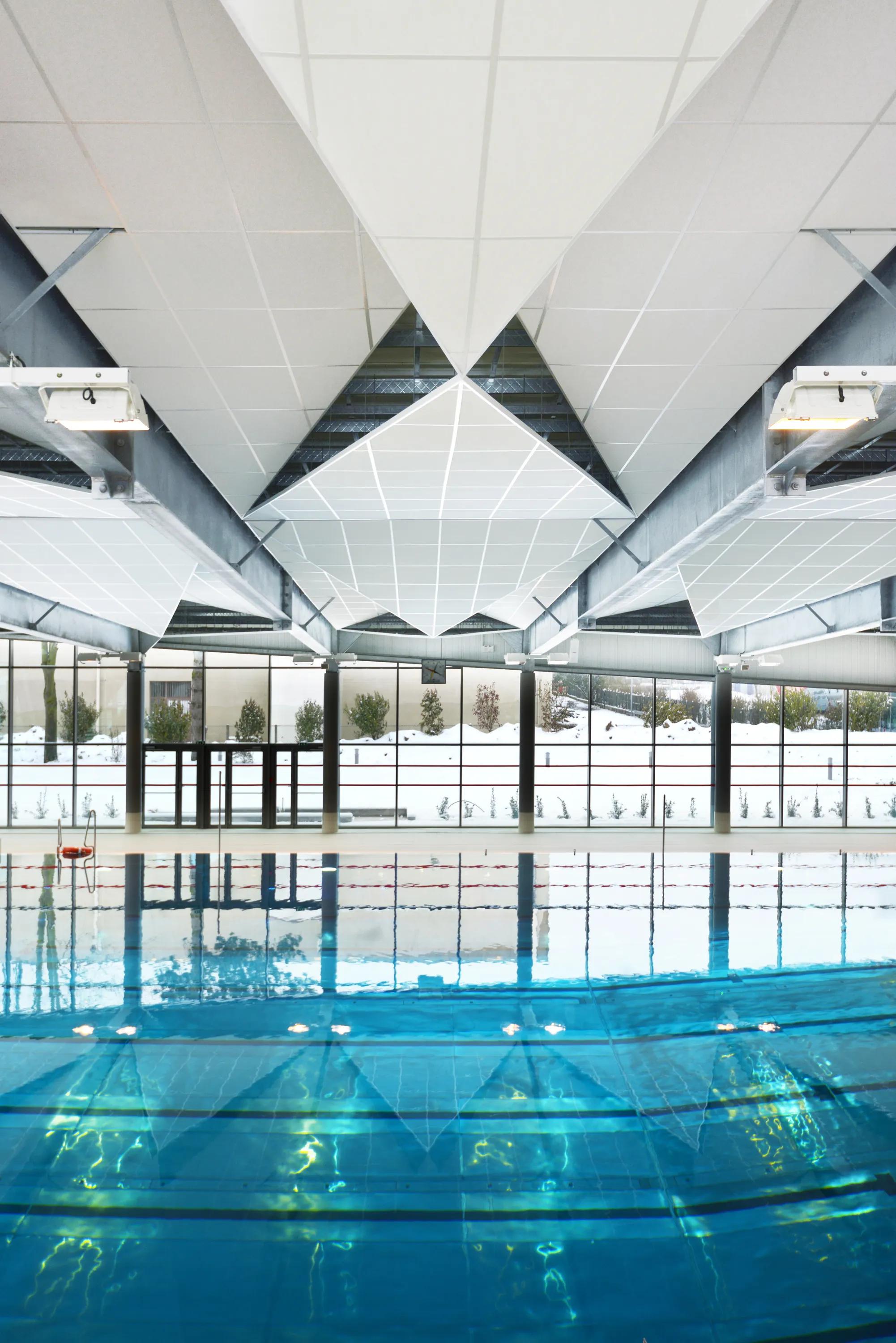

Faceted acoustic ceiling islands use angled, planar surfaces cut and installed to create untraditional geometry within a suspended ceiling grid, relying on the flexibility of standard acoustic ceiling tiles to shape a completely bespoke architectural ceiling expression. The tiles are cut to match the flow of the faceted forms, and installed within defined, and often layered, grid zones – with the grid acting as a discreet frame that shapes each island. The approach is seen at this swimming pool facility designed by Jean-Michel Ruols featuring Rockfon acoustic tiles.

See also: 13 Swimming Pool Ceiling Ideas

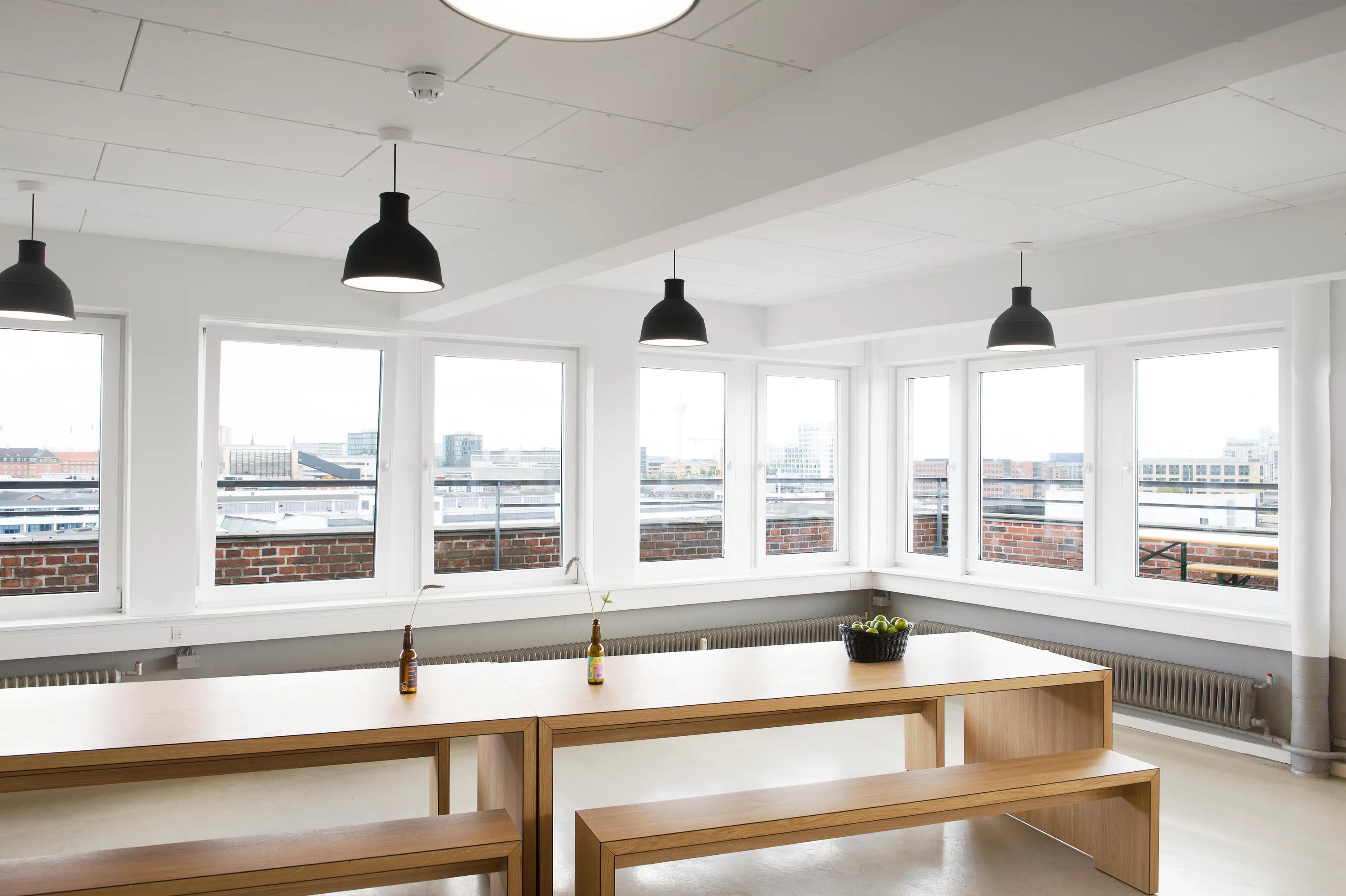

Staggered Tile Ceiling

A staggered tile ceiling shifts the alignment of ceiling tiles to break away from strict grid repetition. This creates movement and rhythm across the ceiling plane. The effect is achieved through layout alone, using standard acoustic tiles installed in offset patterns such as brick, basket weave, or stepped arrangements. It allows visual variation while keeping the ceiling system modular.

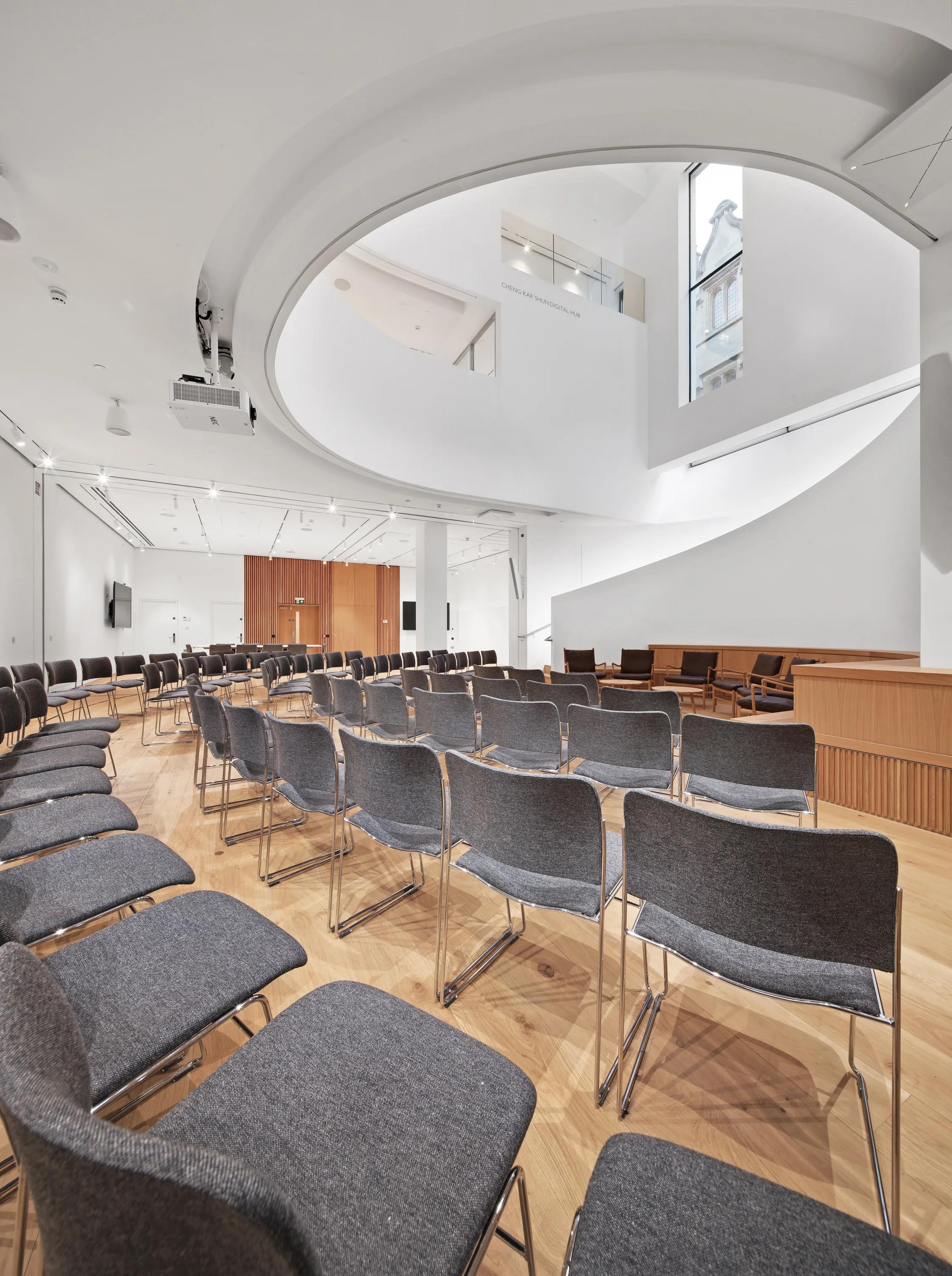

Seamless Ceiling

Much like the examples featured above, seamless ceilings have an acoustic surface that forms a single, uninterrupted plane across the soffit. It is used to create calm interiors with minimal visual interruption. Seamless ceilings are typically spray-applied or rendered onto a substrate fixed to the soffit or mounted into a concealed grid. Solutions such as Rockfon Mono Acoustic allow services and access hatches to be integrated discreetly while maintaining Class A sound absorption.
