High sound absorption (Class A) and the highest fire safety (Class A1)
Basic range of dimensions and edges
Basic range of dimensions and edges
Order items
Checkout
Added
| Color | White |
|---|---|
| Color Group | Whites |
| NCS | NCS S 0500-N |
| Light reflection | 72 |
Edge
Classroom

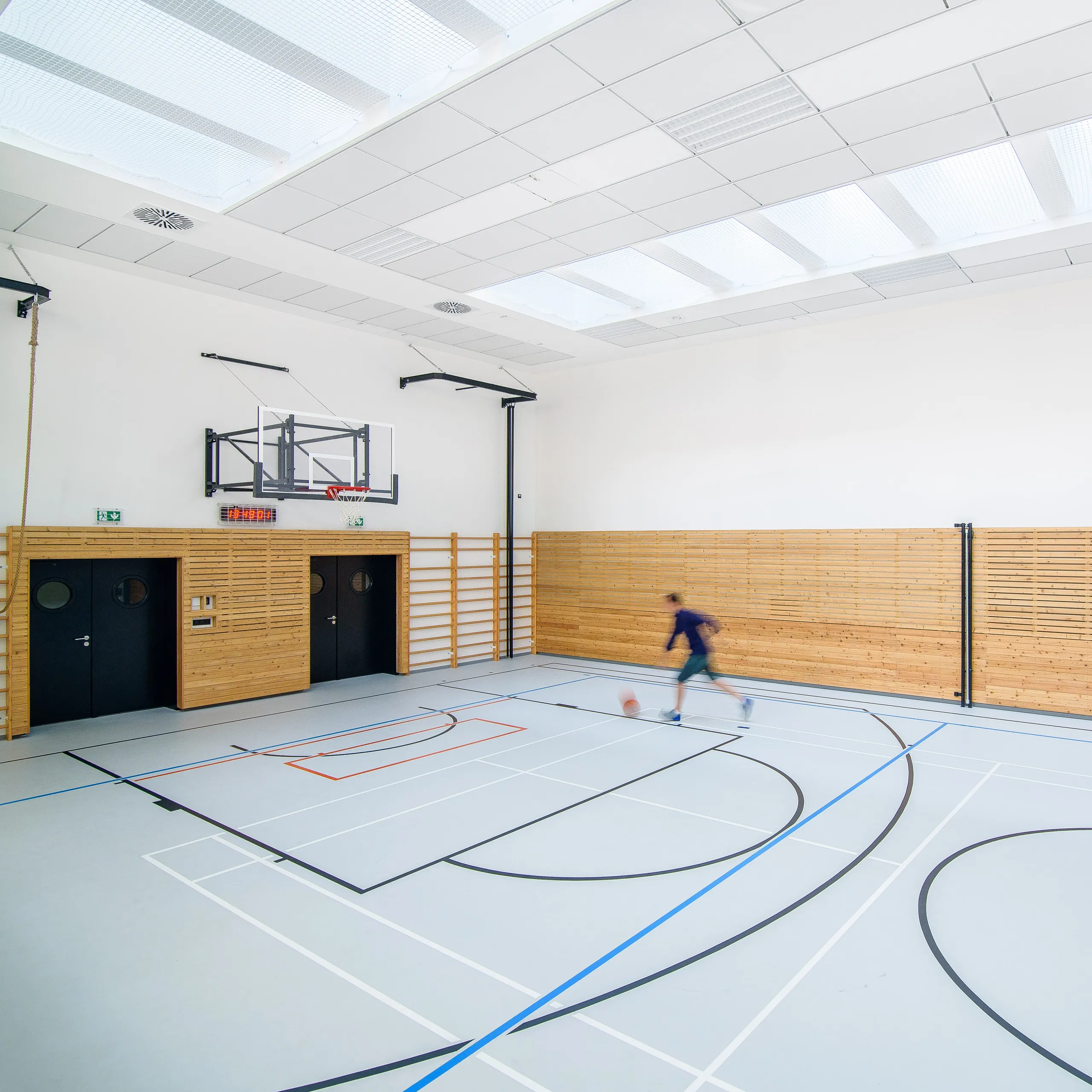

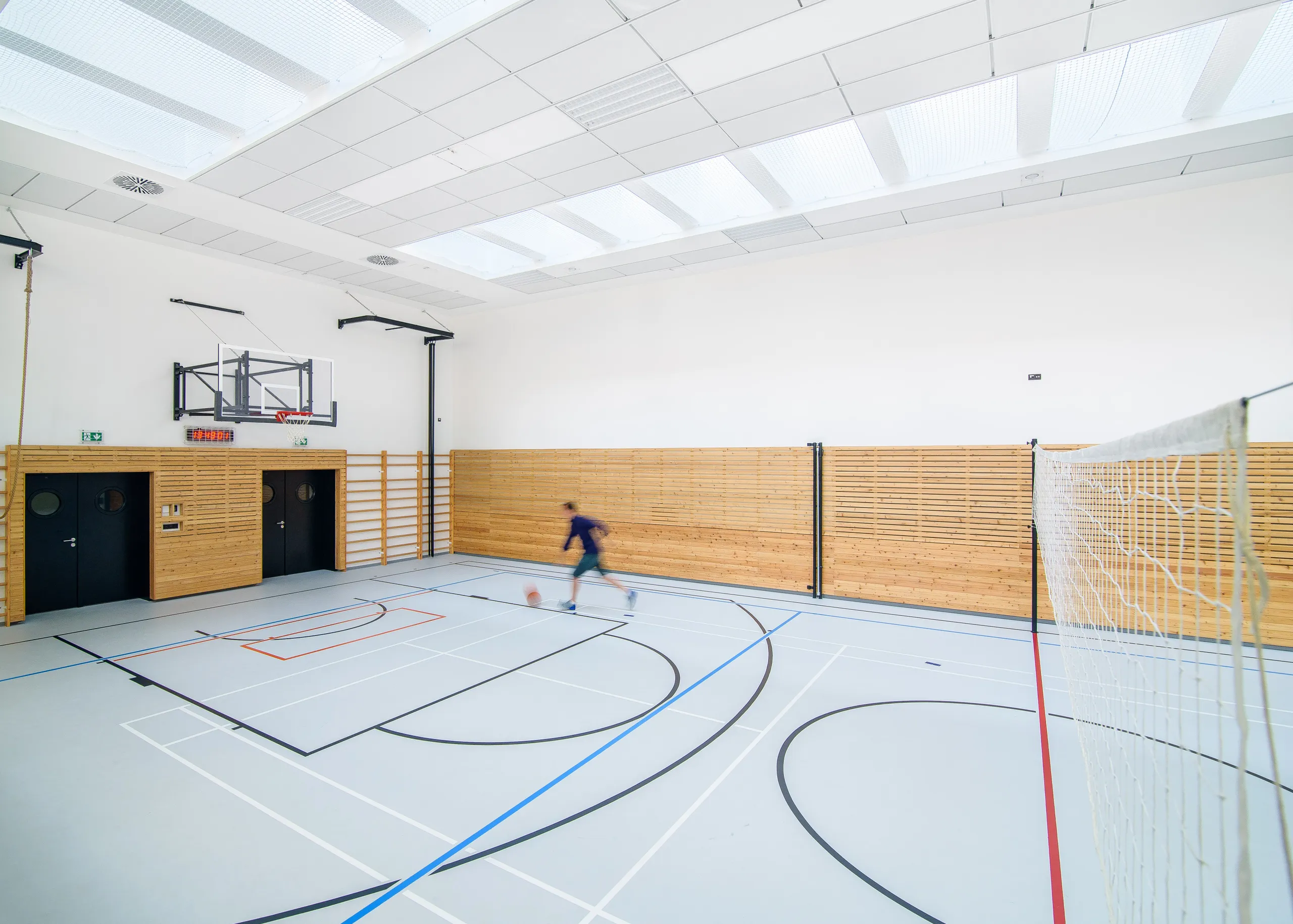

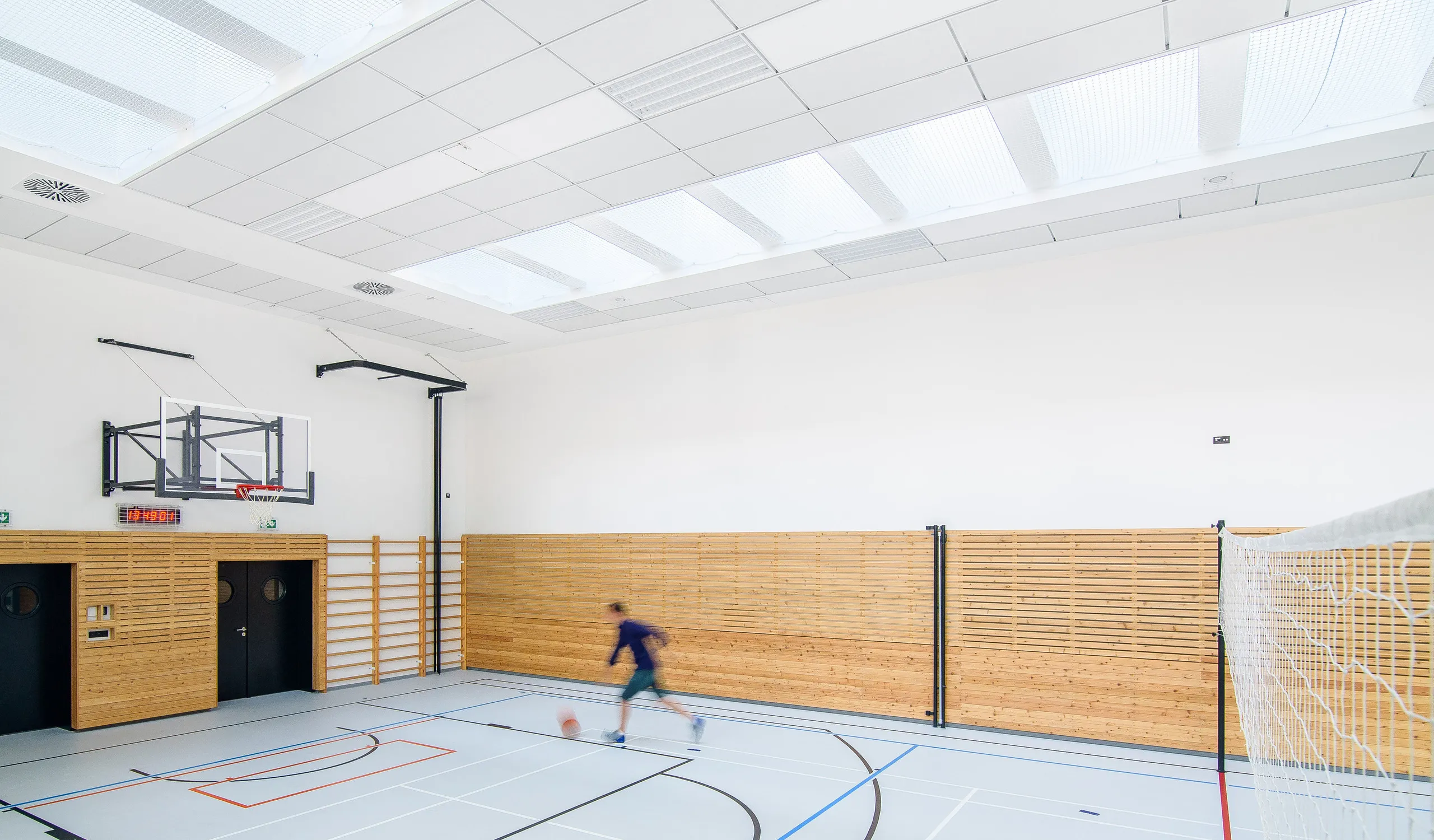

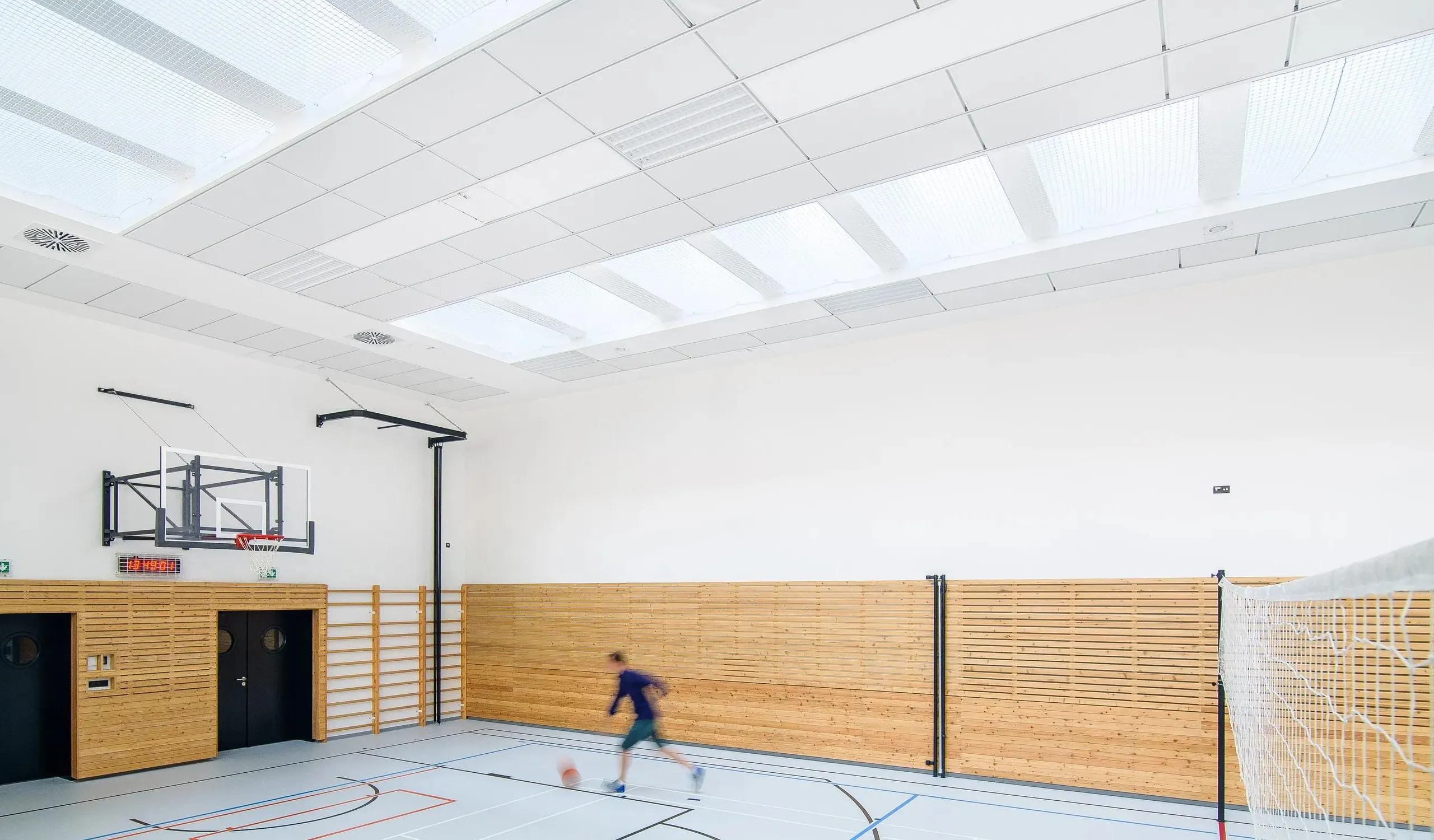

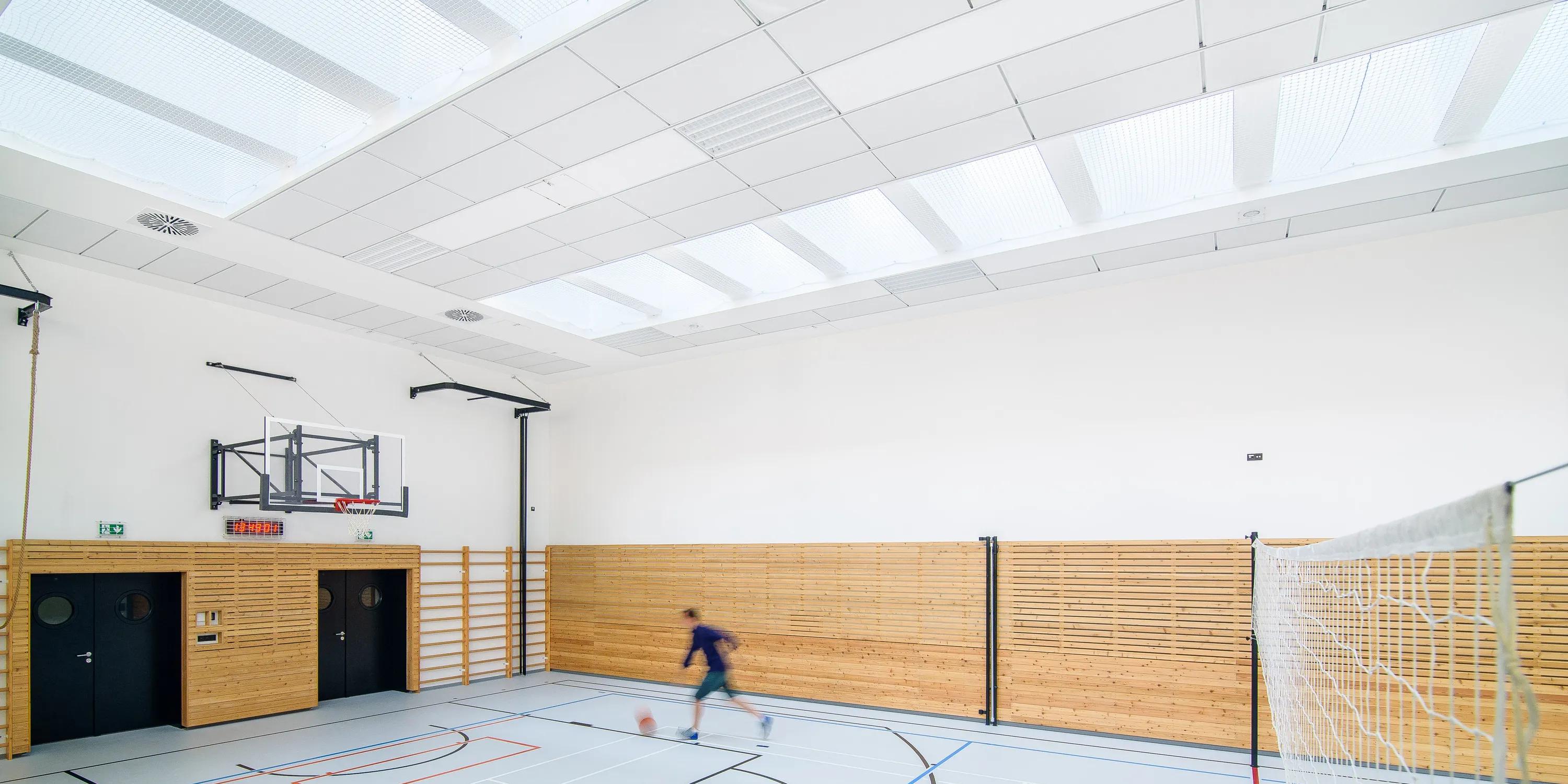

Gymnasium
Corridor
Fitness Centre / Locker Room
Recreational Centre / Sports Hall
Stadium
| Practical Sound Absorption Coefficient (αp) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Edge | Thickness | Suspension height | 125Hz | 250Hz | 500Hz | 1000Hz | 2000Hz | 4000Hz | Sound absorption class | αw | NRC |
| A24, AEX | 40mm | 225mm | 0.50 | 0.95 | 1.00 | 1.00 | 1.00 | 1.00 | A | 1.00 | 1.05 |
Sound absorption is measured in accordance with ISO 354.
Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.
|
Reaction To Fire | A1 (EN 13501-1) | |
|---|---|---|---|
|
Reaction to fire is classified in accordance with EN 13501-1.
|
|||
|
Light reflection and light diffusion | 72% | |
|
Light reflection expressed in % is measured in accordance with ISO 7724-2.
|
|||
|
Humidity And Sag Resistance | Up to 100% RH. No visible deflection in high humidity. |
|
|
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
|
|||
|
Cleaning | Vacuum | |
|
|
|||
|
Hygiene | Stone wool provides no sustenance to microorganisms | |
|
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
|
|||
|
Environment | Fully recyclable stone wool | |
|
|
|||
|
Indoor Environment | A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products | |
|
|
|||
|
Impact Resistance | 40 mm: Class 1A (Rockfon System OlympiaPlus A Impact 1A) 40 mm: Class 2A (Rockfon System T24 A Impact 2A/3A) For direct mounting and depending on the degree of impact you can choose between two systems: 40mm: Class 1A (Rockfon System HAT A with 1,0 mm thick HAT profile). For light impact applications you can use HAT profiles with a steel thickness of 0,7 mm providing no impact class. Tested in accordance with EN13964-Annex D. Impact resistance classifications confirm the system´s capability to withstand incidental or occasional impact. The woven surface of Rockfon Samson provides enhanced resistance to perforation, tested in accordance with NF P 08-301., EN 13964 annex D |
|
|
|
|||
|
Thermal Insulation | Thermal conductivity: λD = 37 mW/mK |
|
|
The thermal conductivity of products with a thickness ≥ 30mm is measured in accordance with EN 12667 and expressed in mW/mK. Thermal resistance is expressed in m²K/W.
|
|||
| Edge | Dimensions (mm) | Thickness (mm) | Weight (Kg/m2) | Min. suspension height (mm) | Recommended installation system | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A24 |  |
1200 x 1200 | 40 | 4.10 | 0 | ||||||||||||||||
Sound absorption details
Tile details
Packaging
|
|||||||||||||||||||||
| A24 | |
1200 x 600 | 40 | 4.10 | 0 | ||||||||||||||||
Sound absorption details
Tile details
Packaging
|
|||||||||||||||||||||
| A24 | |
1800 x 600 | 40 | 4.10 | 0 | ||||||||||||||||
Sound absorption details
Tile details
Packaging
|
|||||||||||||||||||||
| A24 | |
2400 x 600 | 40 | 4.10 | 0 | ||||||||||||||||
Sound absorption details
Tile details
Packaging
|
|||||||||||||||||||||
| A24 | |
600 x 600 | 40 | 4.10 | 0 | ||||||||||||||||
Sound absorption details
Tile details
Packaging
|
|||||||||||||||||||||
| AEX |  |
1166 x 1166 | 40 | 4.10 | 0 | ||||||||||||||||
Sound absorption details
Tile details
Packaging
|
|||||||||||||||||||||
