Chicago Metallic T24 Click 2890

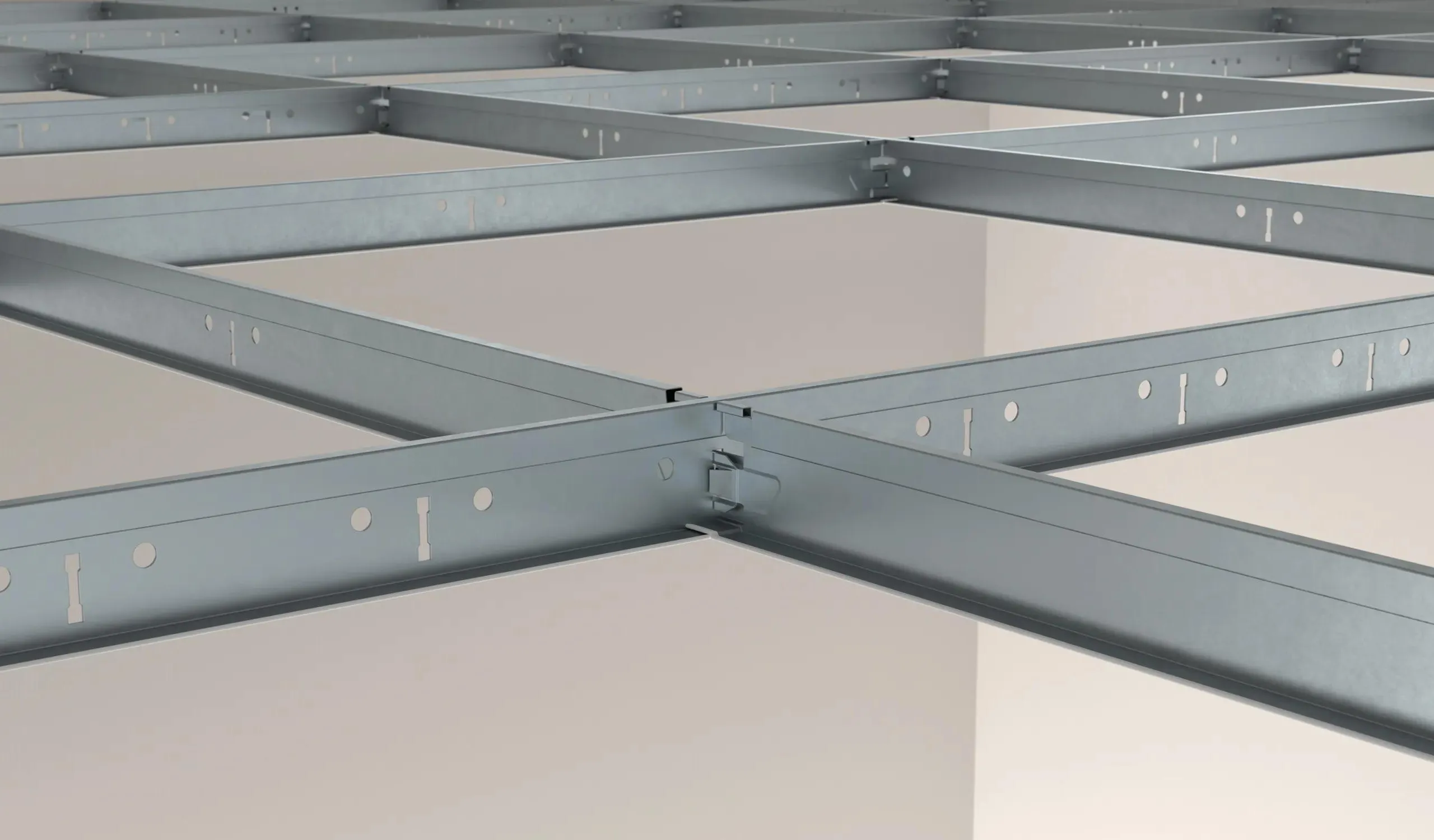

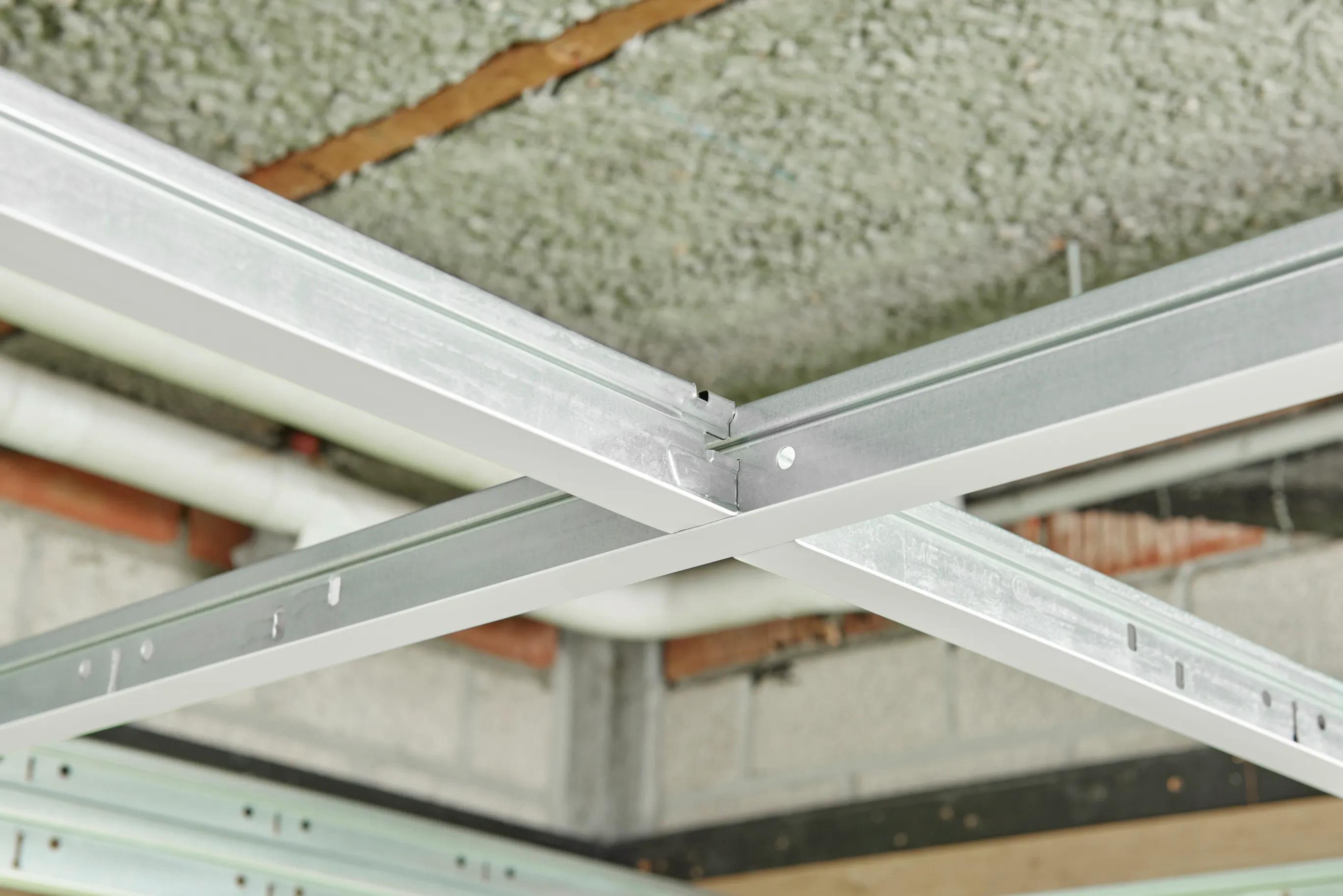

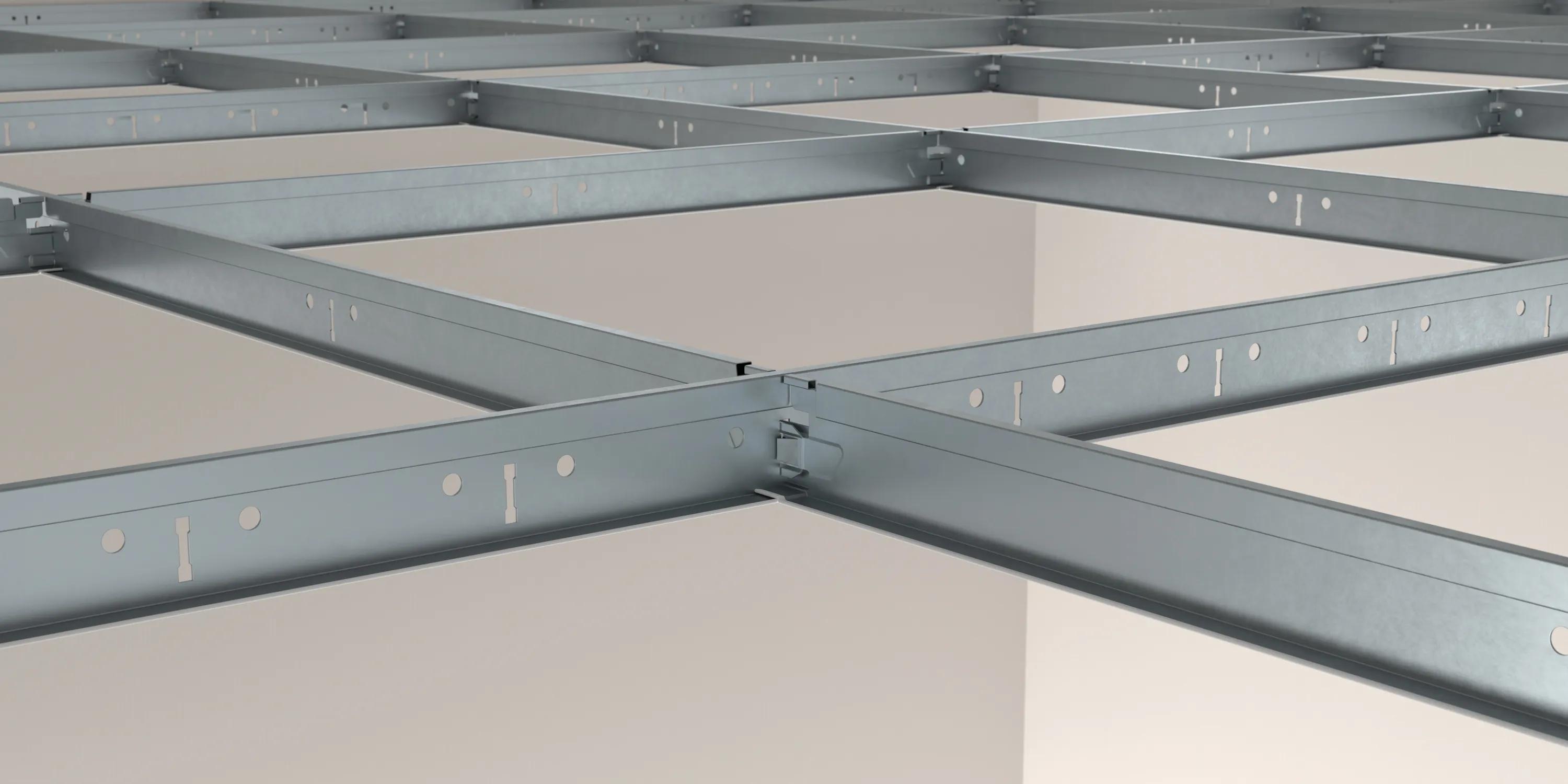

A highly versatile demountable 24mm easy-click ceiling grid with a universal main runner and joggled-end cross tees, available in a range of colours.
Download Datasheet
Download Datasheet
Back
24mm grid with universal main runner and joggled end cross tees38mm high components for better load bearing and compatibility with accessories
Used to create concealed, semi-concealed and exposed ceiling solutions
An audible 'click' for fast and accurate installations
CMC - Click2-DE

Coupling

Back

Performances

Load Bearing Load Bearing
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 9.9 16.5
1200 1200 x 600 10.9 17.9
1200 1800 x 600 3.3 5.7
Corrosion Resistance Corrosion Resistance B
Reaction To Fire Reaction To Fire A1 / A2-s1,d0 (Color-all)
Environment Environment Fully Recyclable
Back
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 9.9 16.5
1200 1200 x 600 10.9 17.9
1200 1800 x 600 3.3 5.7
Back
Back
Back
Back

Profiles and Accessories

Main runner

Component Length Height Width Product number Colours Packaging
Main runner

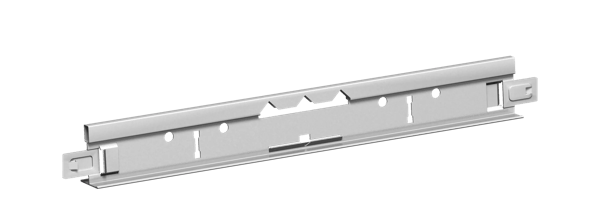

2800.tif Main runner T24 Click / Hook 3600 38 24 T24 MR CL&HK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50

Cross tee

Component Length Height Width Product number Colours Packaging
Cross tee

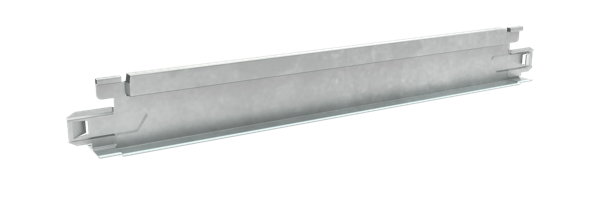

-289130001-CZ.tif Cross tee T24 Click 300 38 24 T24 CT CLICK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 300 / /
2895.tif Cross tee T24 Click 1500 38 24 T24 CT CLICK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1500 / /
-2891-2893.tif Cross tee T24 Click 900 38 24 T24 CT CLICK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 900 / /

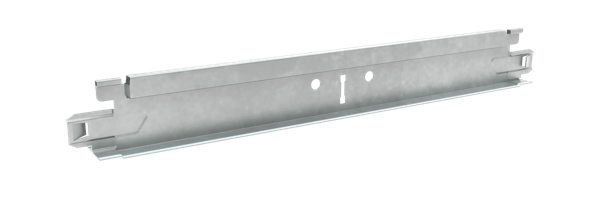

-2892.tif Cross tee T24 Click 600 38 24 T24 CT CLICK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300

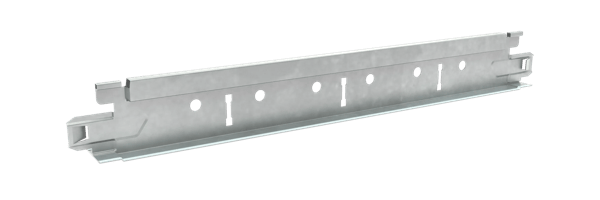

2896.tif Cross tee T24 Click 1800 38 24 T24 CT CLICK See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 5 Distance between slots: 300 / 300 / 3 x 300 / 300
-2894.tif Cross tee T24 Click 1200 38 24 T24 CT CLICK See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 300 / 300 / 300 / 300

Wall angle options

Component Length Height Width Product number Colours Packaging
W Profiles
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x15x10x15 mm 3050 15 10 W10x15 Multiple colours See Packaging Dimensions
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x12x8x15 mm 3050 15 7.8 W8x12 Multiple colours See Packaging Dimensions
L Profiles
1439.tif L-wall angle 24x19 mm colour 3050 24 19 L19x24 Multiple colours See Packaging Dimensions

Accessories

Component Length Height Product number Packaging
Hold down clips & wall springs

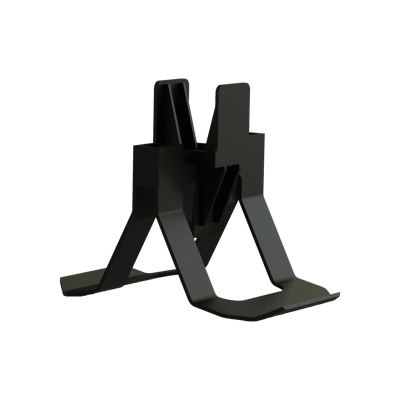

HDC 1.tif Plastic hold down clip for tile thickness 15-20 mm (A edge), 15-30 mm (E edge), 20-25 mm (X, M, Z edge), 20-30 mm (D edge) HDC 1 See Packaging Dimensions
Quick hangers

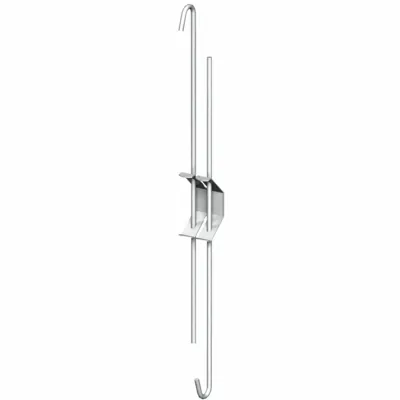

QH009009.tif Assembled quick hanger with 2 hooks QH HH 320 See Packaging Dimensions
Threaded rods

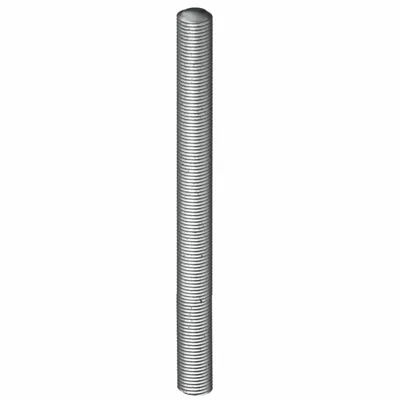

10012.tif Threaded rod M6 / L=1000 mm 1000 TR M6 See Packaging Dimensions
10013.tif Spacer sleeve M6 SS M6 See Packaging Dimensions
10014.tif Nut M6 NUT M6 See Packaging Dimensions
10023.tif Universal fixation clip / L=90 mm 90 FC M6 See Packaging Dimensions
Suspension clips
11.tif Special hanger (bent) for Chicago Metallic™ T-profiles 57.5 FH B See Packaging Dimensions
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 300 / /
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1500 / /
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 900 / /
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 5 Distance between slots: 300 / 300 / 3 x 300 / 300
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 300 / 300 / 300 / 300
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
DoP-RFN-ACCTHREADEDWIRE-B03 - Spacer sleeve M6
DoP-RFN-ACCTHREADEDWIRE-B03 - Spacer sleeve M6

pdf
DoP-RFN-ACCVA-H01 - Universal fixation clip / L=90 mm
DoP-RFN-ACCVA-H01 - Universal fixation clip / L=90 mm

pdf
DoP-RFN-ACCHDCECRD-A03 - Plastic hold down clip for tile thickness 15-20 mm (A edge), 15-30 mm (E edge), 20-25 mm (X, M, Z edge), 20-30 mm (D edge)
DoP-RFN-ACCHDCECRD-A03 - Plastic hold down clip for tile thickness 15-20 mm (A edge), 15-30 mm (E edge), 20-25 mm (X, M, Z edge), 20-30 mm (D edge)

pdf
DoP-RFN-T2438MD-A03 - Main runner T24 Click / Hook
DoP-RFN-T2438MD-A03 - Main runner T24 Click / Hook

pdf
DoP-RFN-PTLR-A03 - L-wall angle 24x19 mm colour
DoP-RFN-PTLR-A03 - L-wall angle 24x19 mm colour

pdf
DoP-RFN-T2438MC-A03 - Cross tee T24 Click
DoP-RFN-T2438MC-A03 - Cross tee T24 Click

pdf
Chicago Metallic T24 Click 2890 | Datasheet
Chicago Metallic T24 Click 2890 | Datasheet

pdf
DoP-RFN-ACCQHRP-A02 - Assembled quick hanger with 2 hooks
DoP-RFN-ACCQHRP-A02 - Assembled quick hanger with 2 hooks

pdf
DoP-RFN-PTW-A02 - W-profile 15x15x10x15 mm
DoP-RFN-PTW-A02 - W-profile 15x15x10x15 mm

pdf
DoP-RFN-ACCSUSPFIX-D02 - Special hanger (bent) for Chicago Metallic™ T-profiles
DoP-RFN-ACCSUSPFIX-D02 - Special hanger (bent) for Chicago Metallic™ T-profiles

pdf
Environmental Product Declaration (EPD) - Konstrukcje
Environmental Product Declaration (EPD) - Konstrukcje

pdf
Back

We provide customers with a complete acoustic ceiling system offering, combining sound absorbing ceiling tiles and wall panels with suspension grid systems and accessories.
