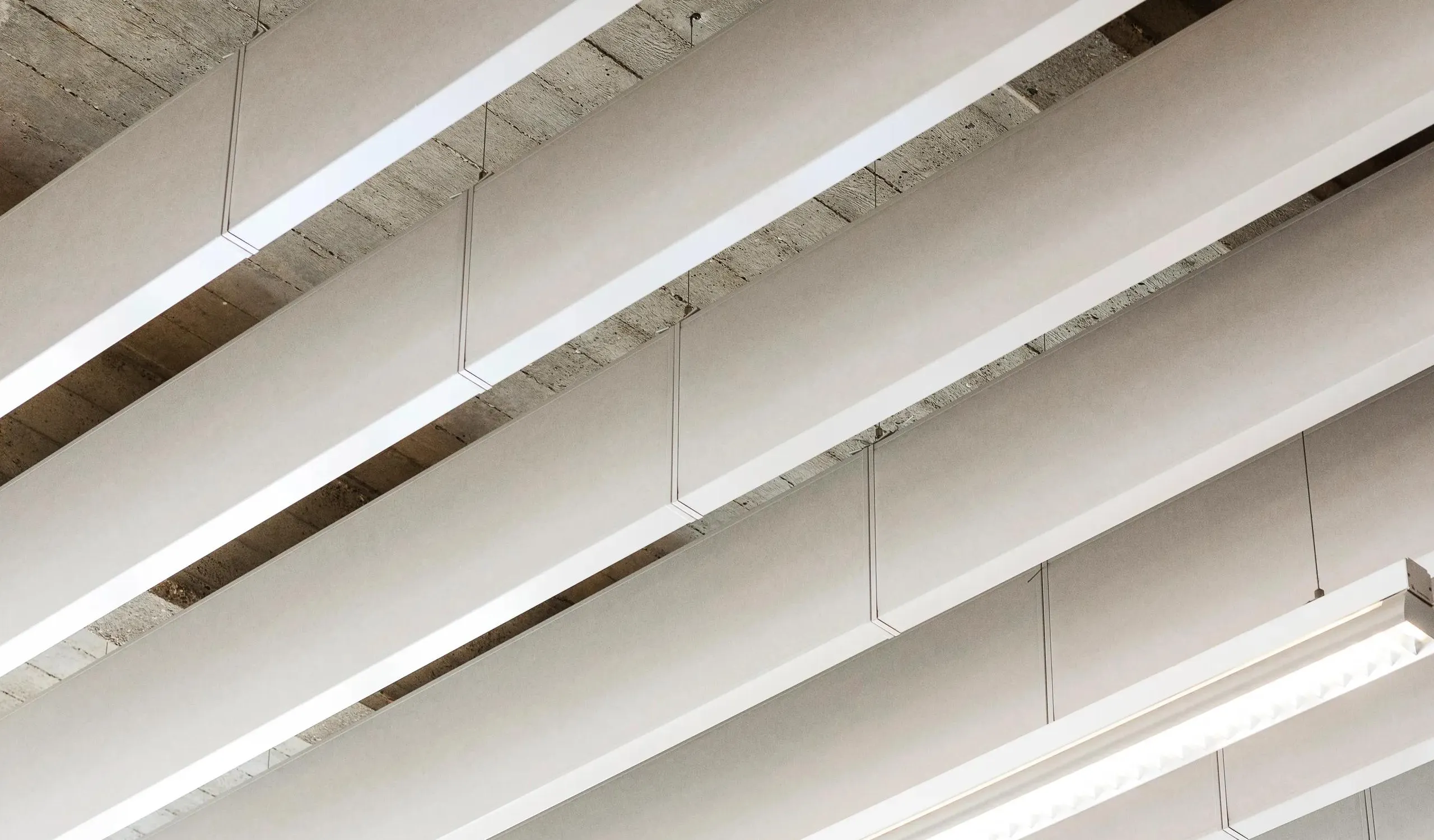

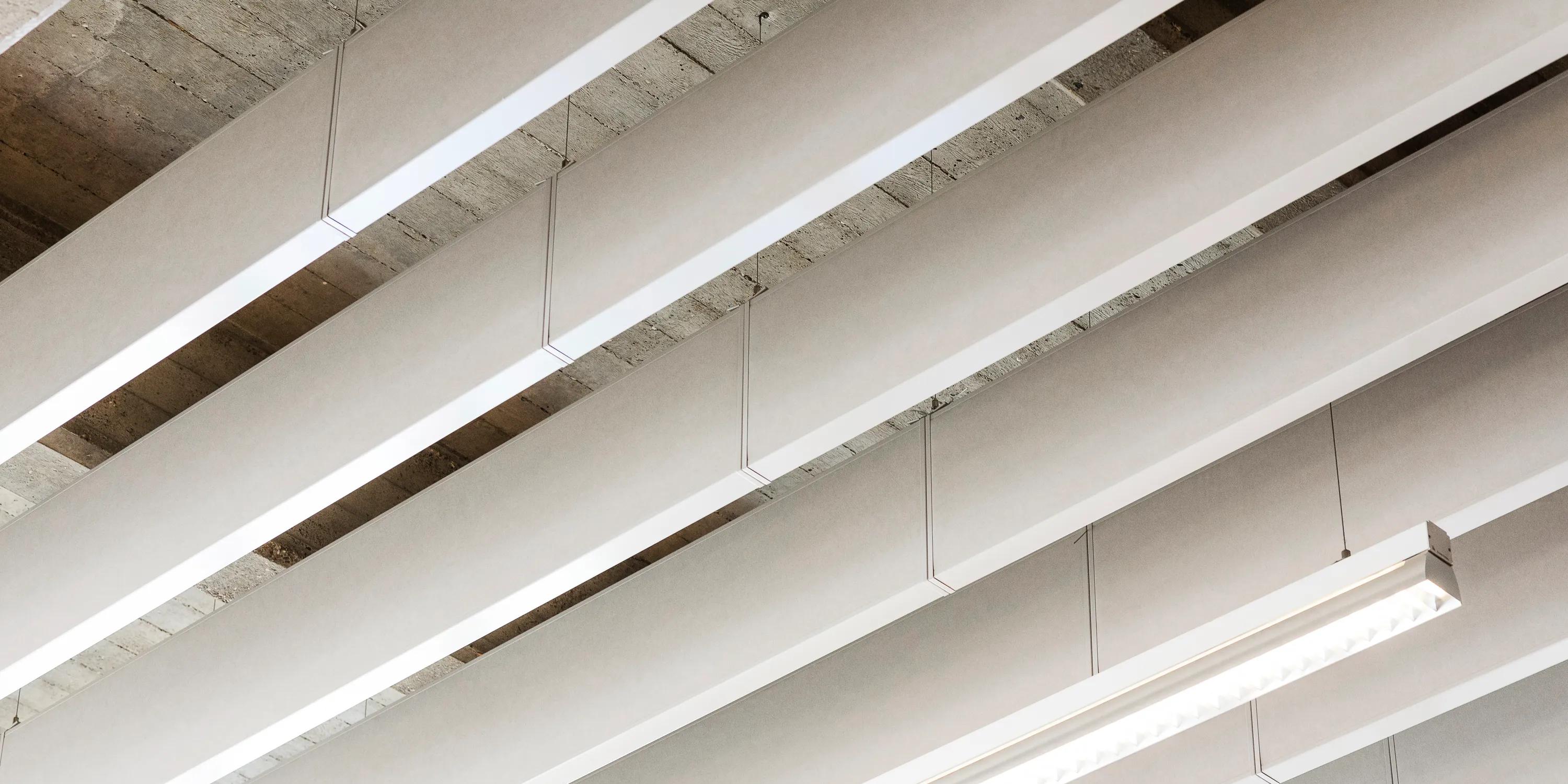

Rockfon® Universal Baffle

Creative and innovative acoustic solutions, available Universal White and in 33, subtle to bold, long-lasting colours that will inspire and compliment any open plenum design
Order Sample
Download Datasheet
Download Datasheet
Back
Ideal for thermal mass areas or where frequent or unhindered access to services is required

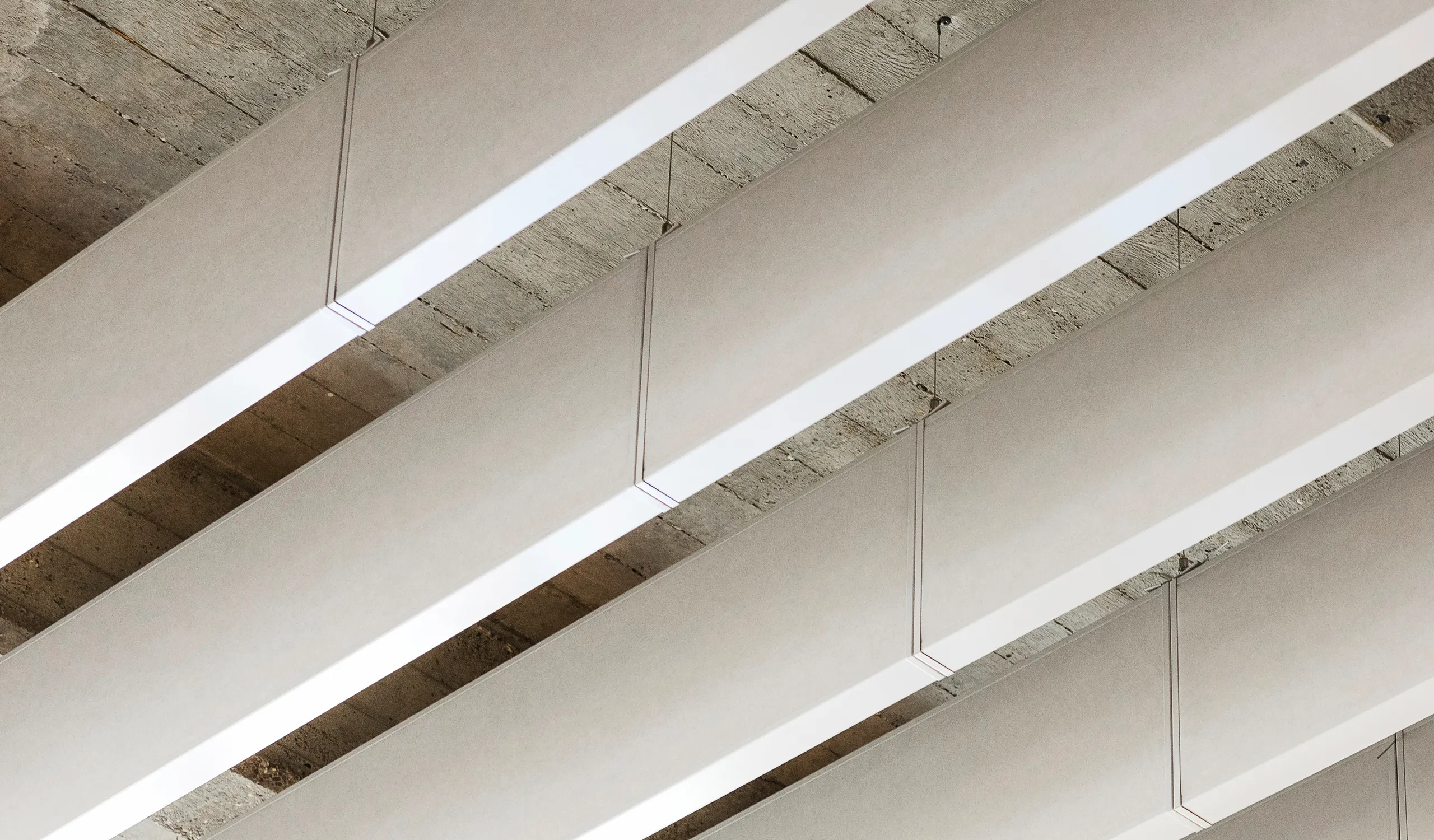

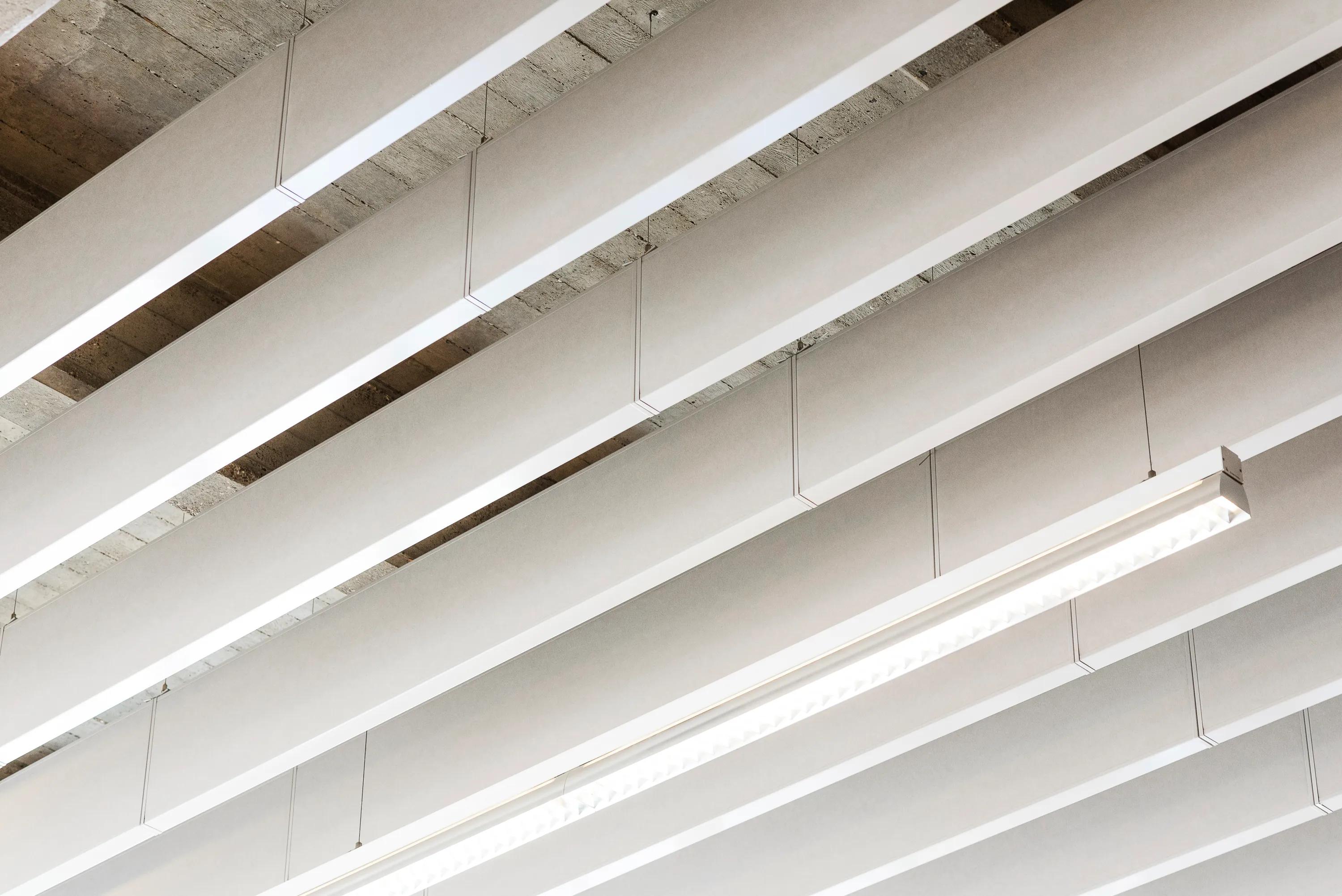

Comes with a robust frame that protects the panel edges from damages
Available with multiple suspension design possibilities
Panel: Smooth white fleece or pre-painted coloured, matt surface
Frame: White or Color-all powder coated hot galvanised steel with the multi-functional clip that offers several mounting methods.

Color

Color Group

All
All
Whites
Greys & Blacks
Yellows
Browns & Beige
Blues
Reds & Pinks
Greens

White

ColorWhite
Color GroupWhites
NCSNCS S 0500-N

Order Sample

Quantity:
1

Edge

Select an edge
Select an edge
4F
White

Stone wool tile

White

NCS S 0500-N

More Info

Order Sample

Quantity:
1

Edge

Select an edge
Select an edge
4F
White
01
Stone
02
Plaster
03
Gravel
05
Zinc
06
Concrete
08
Anthracite
09
Charcoal
10
Moon
12
Mint
13
Sandalwood
17
Mastic
18
Iron
20
Stucco
21
Chalk
22
Linen
23
Hemp
24
Cork
25
Earth
26
Clay
28
Ebony
30
Sand
31
Sage
32
Eucalyptus
34
Seaweed
42
Fresh
47
Azure
48
Storm
49
Space
51
Mustard
71
Scarlet
74
Petal
75
Seashell
76
Coral

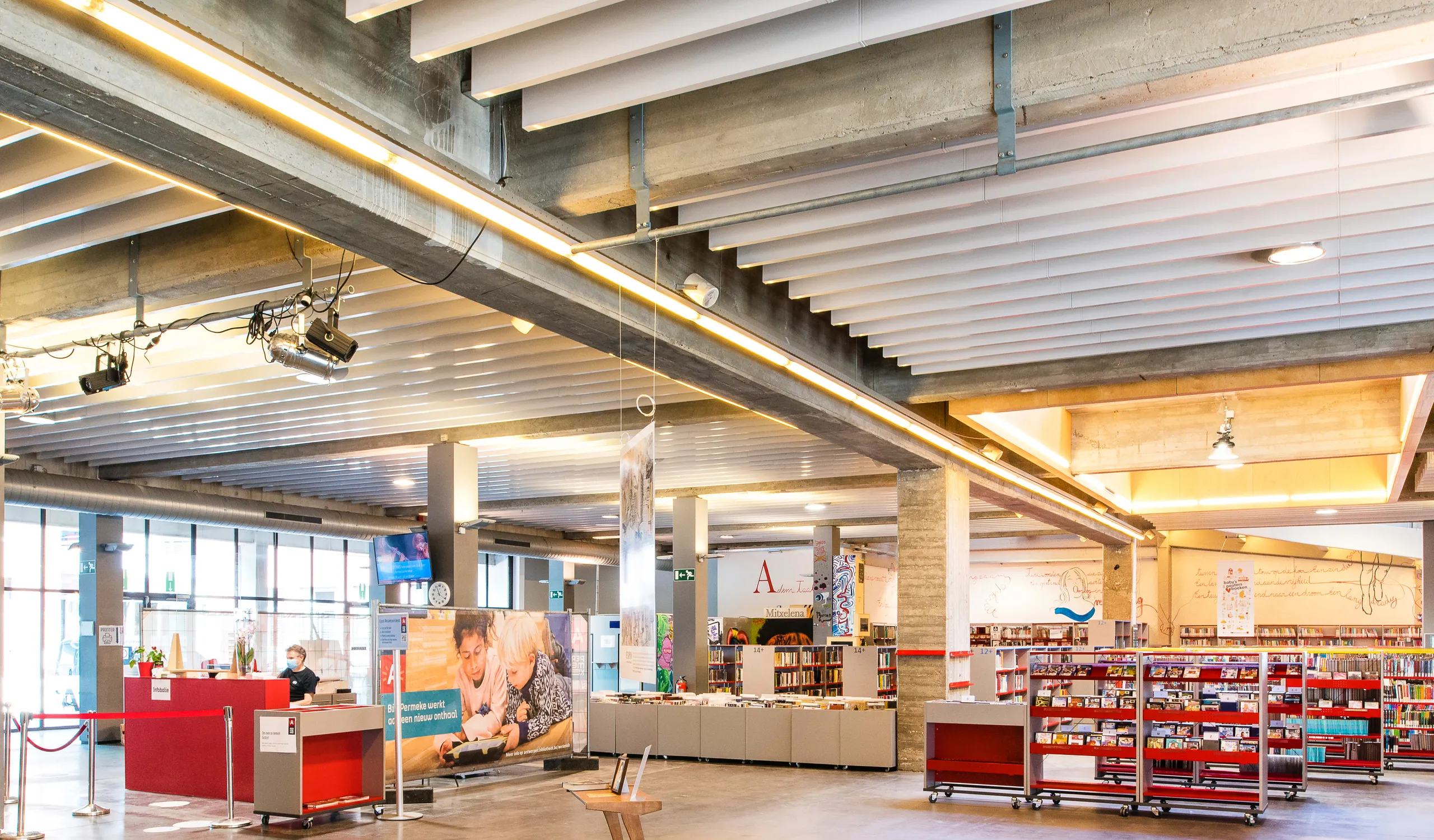

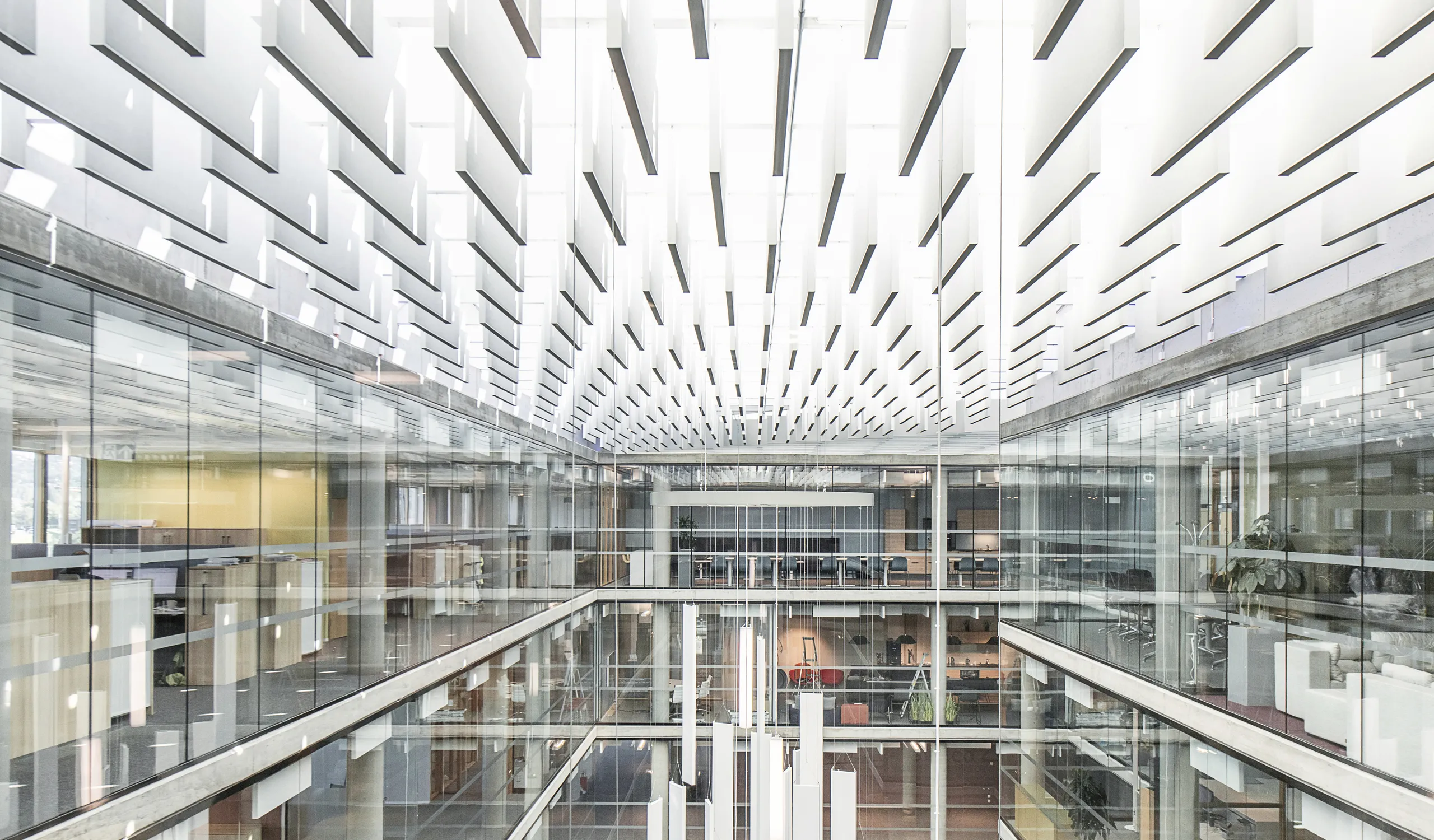

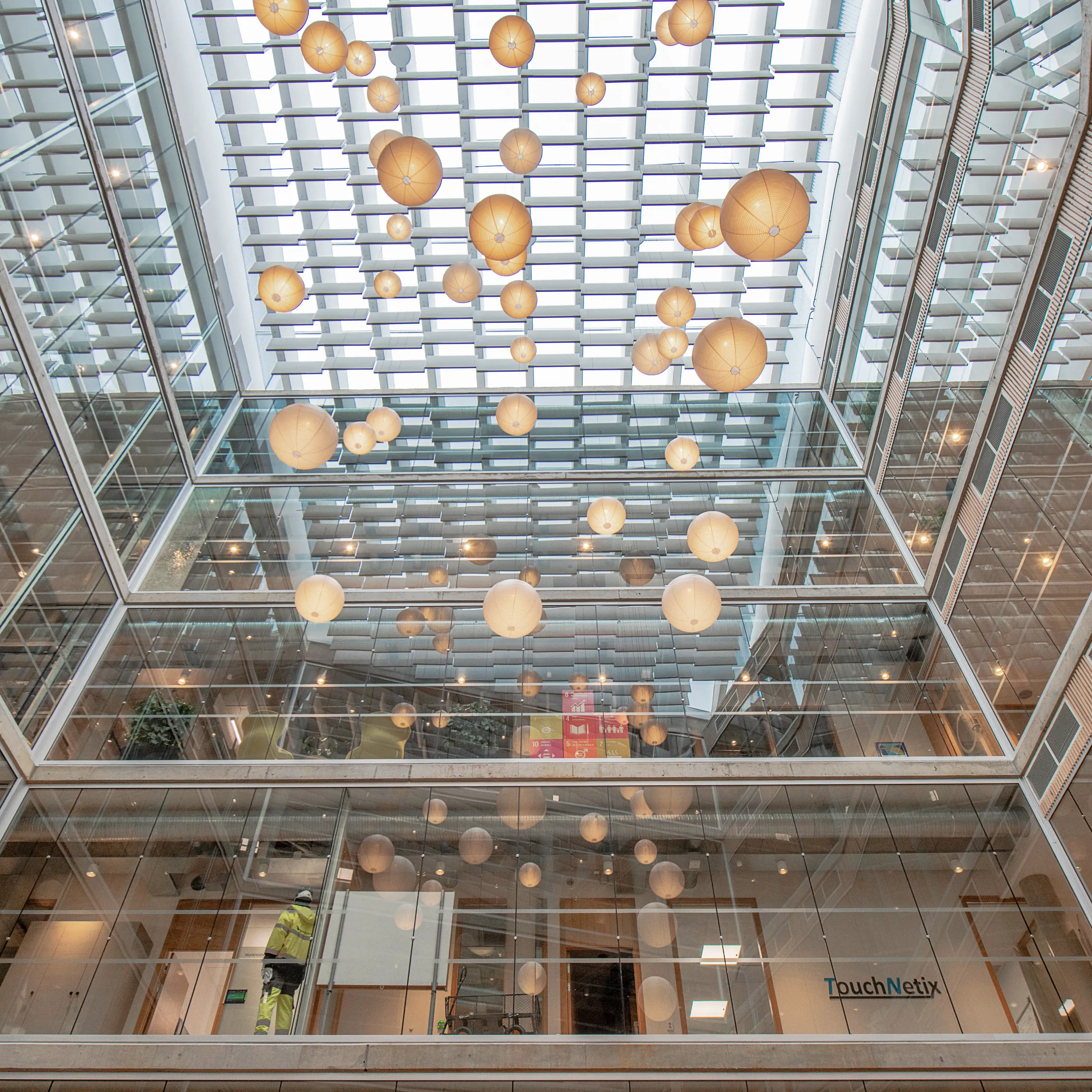

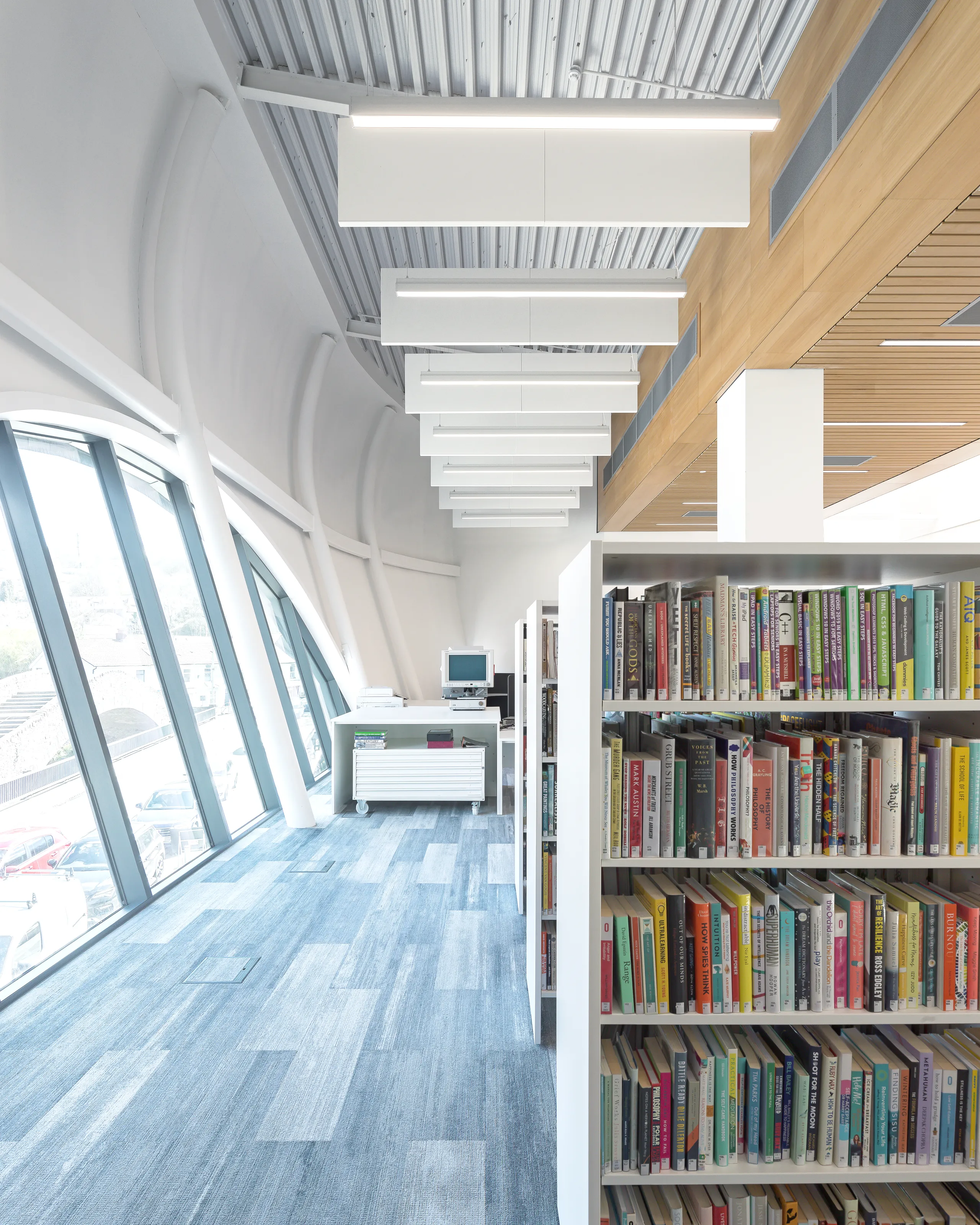

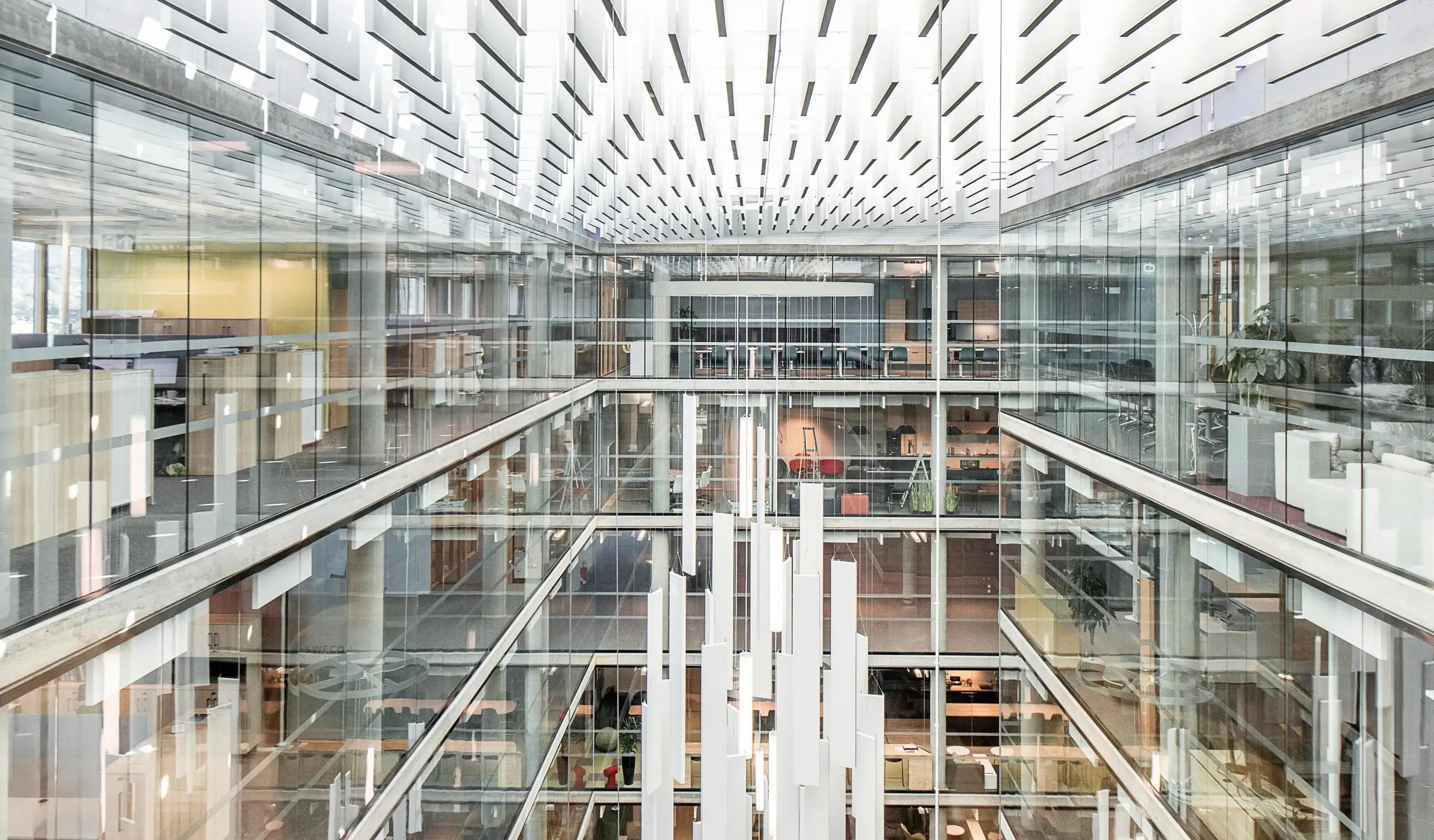

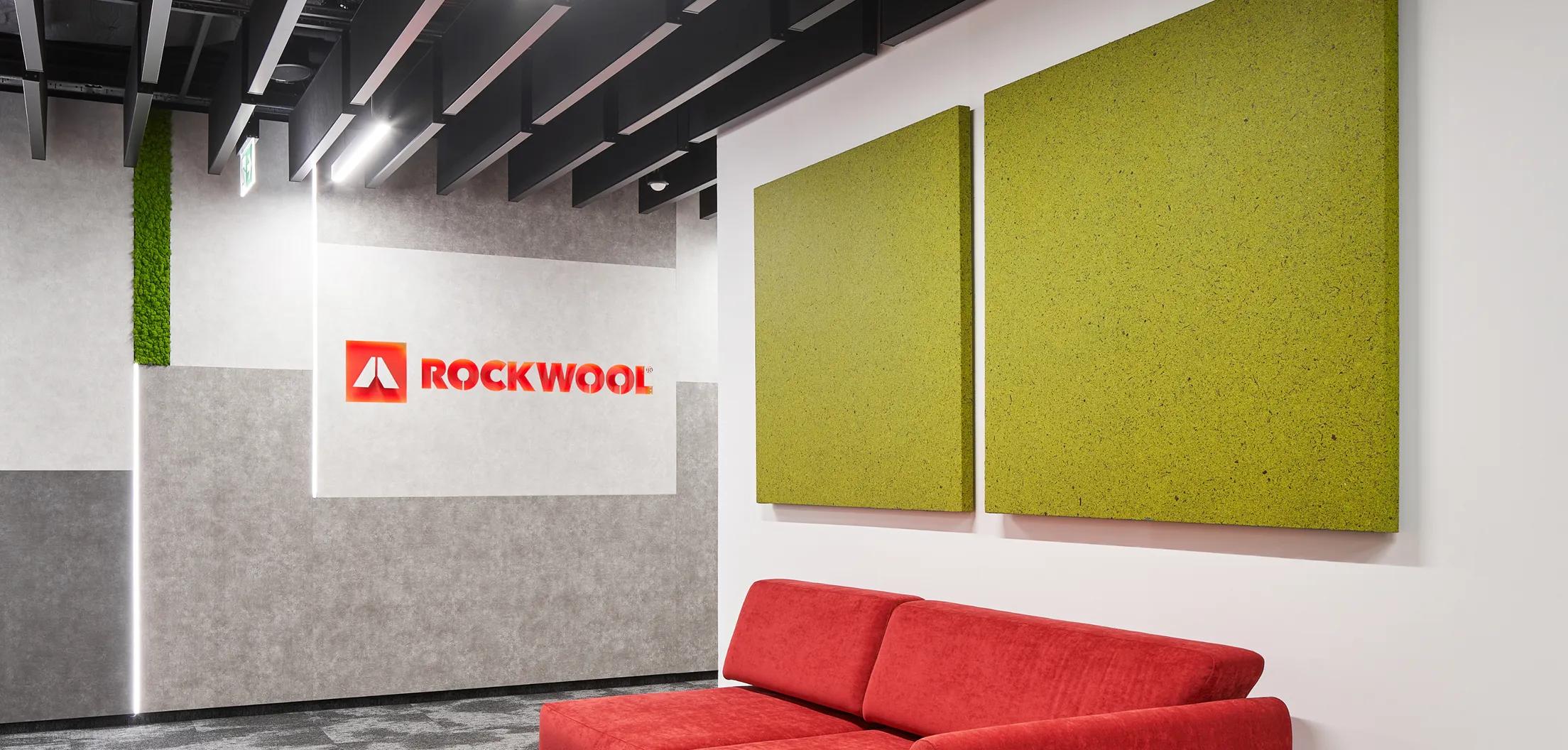

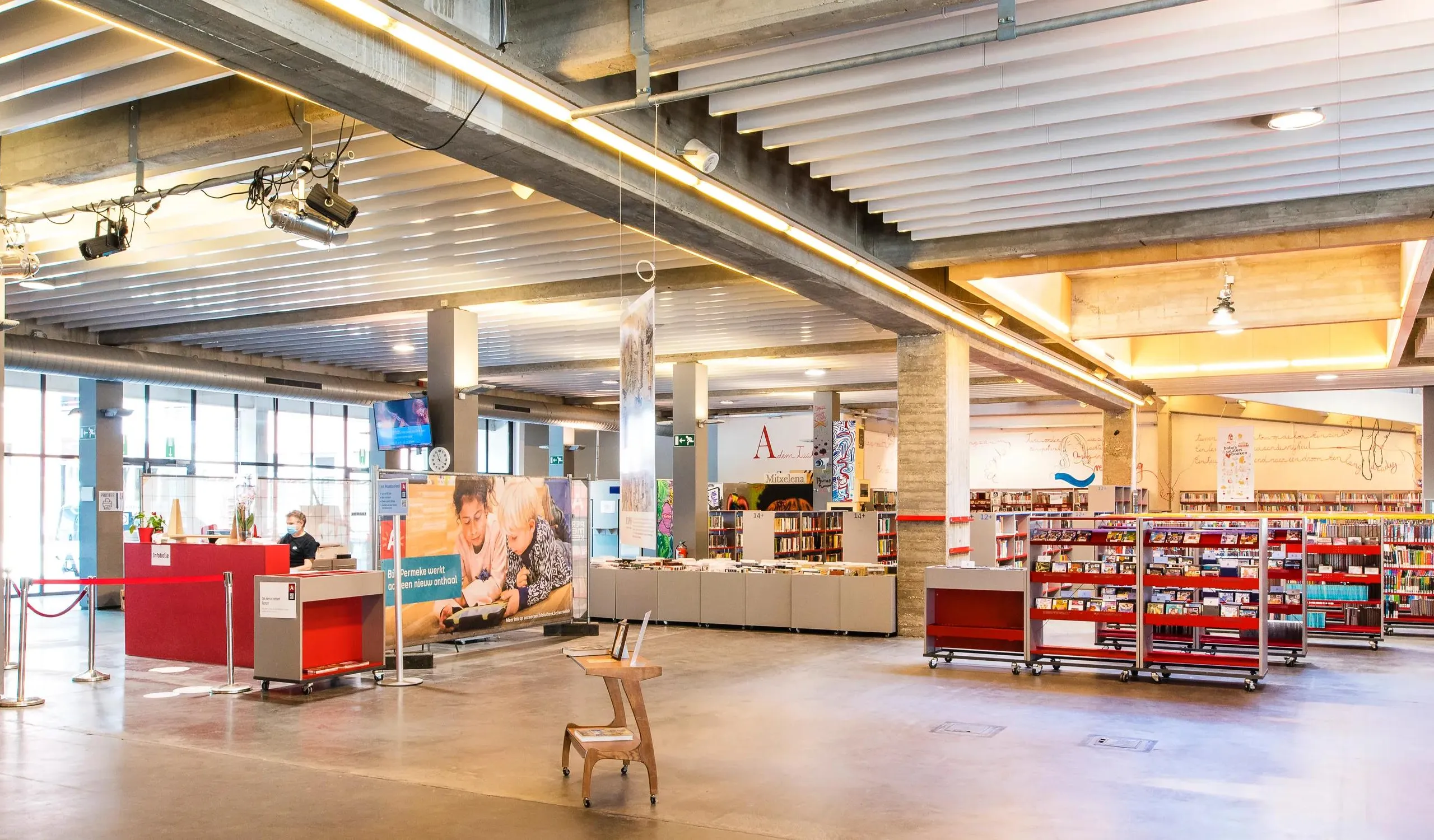

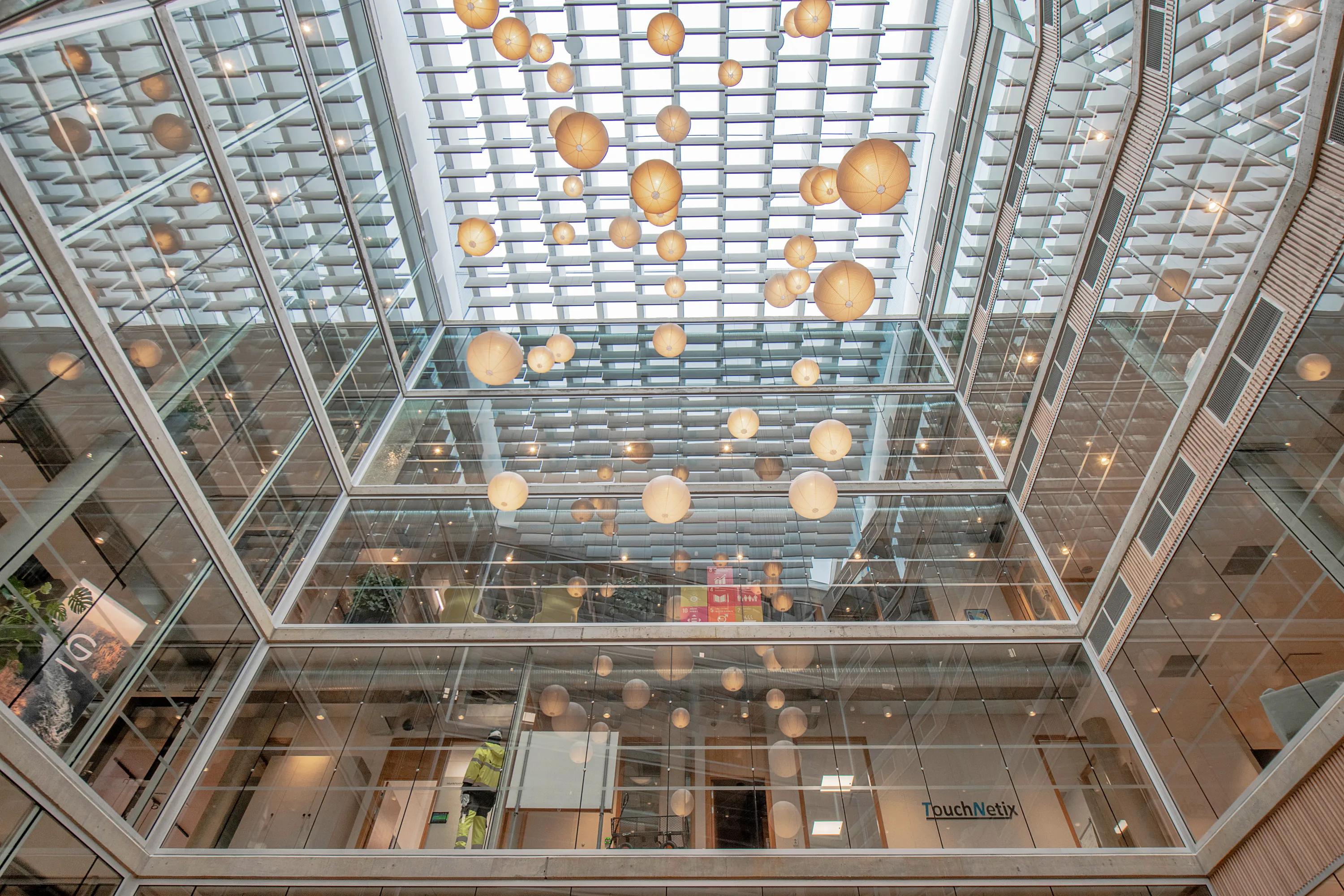

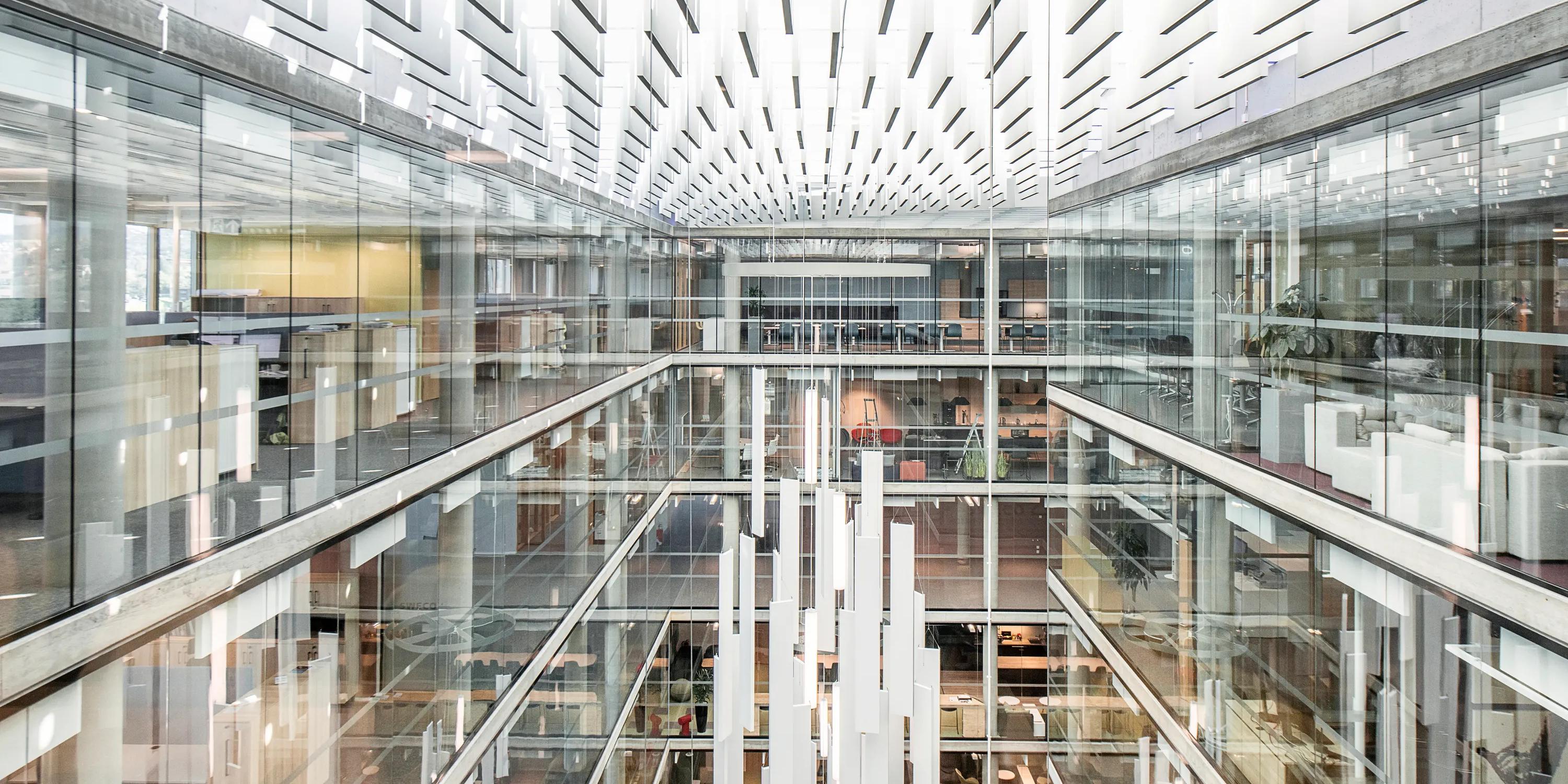

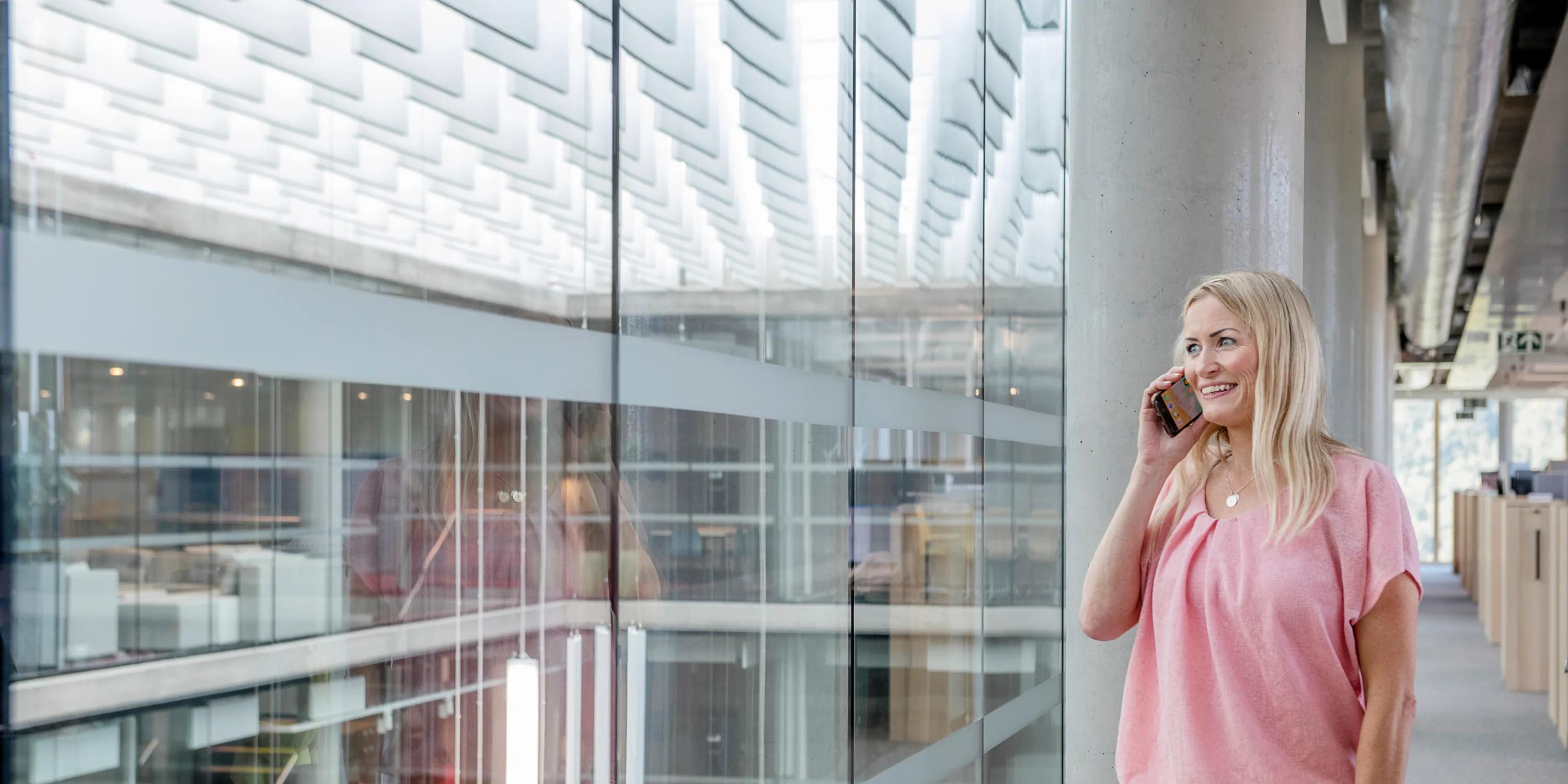

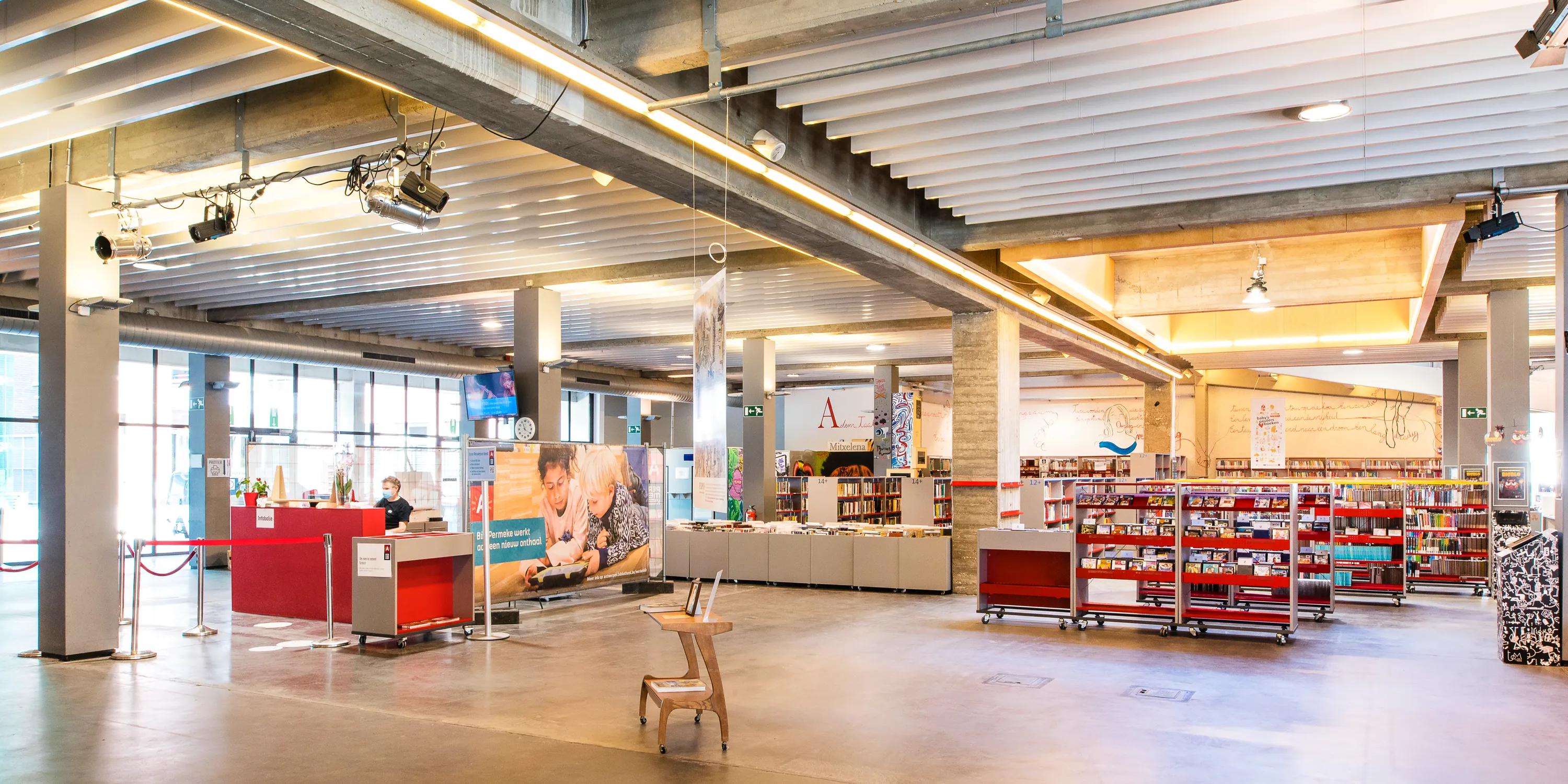

Case studies featuring Rockfon® Universal Baffle

1/15

Recommended application areas

Office

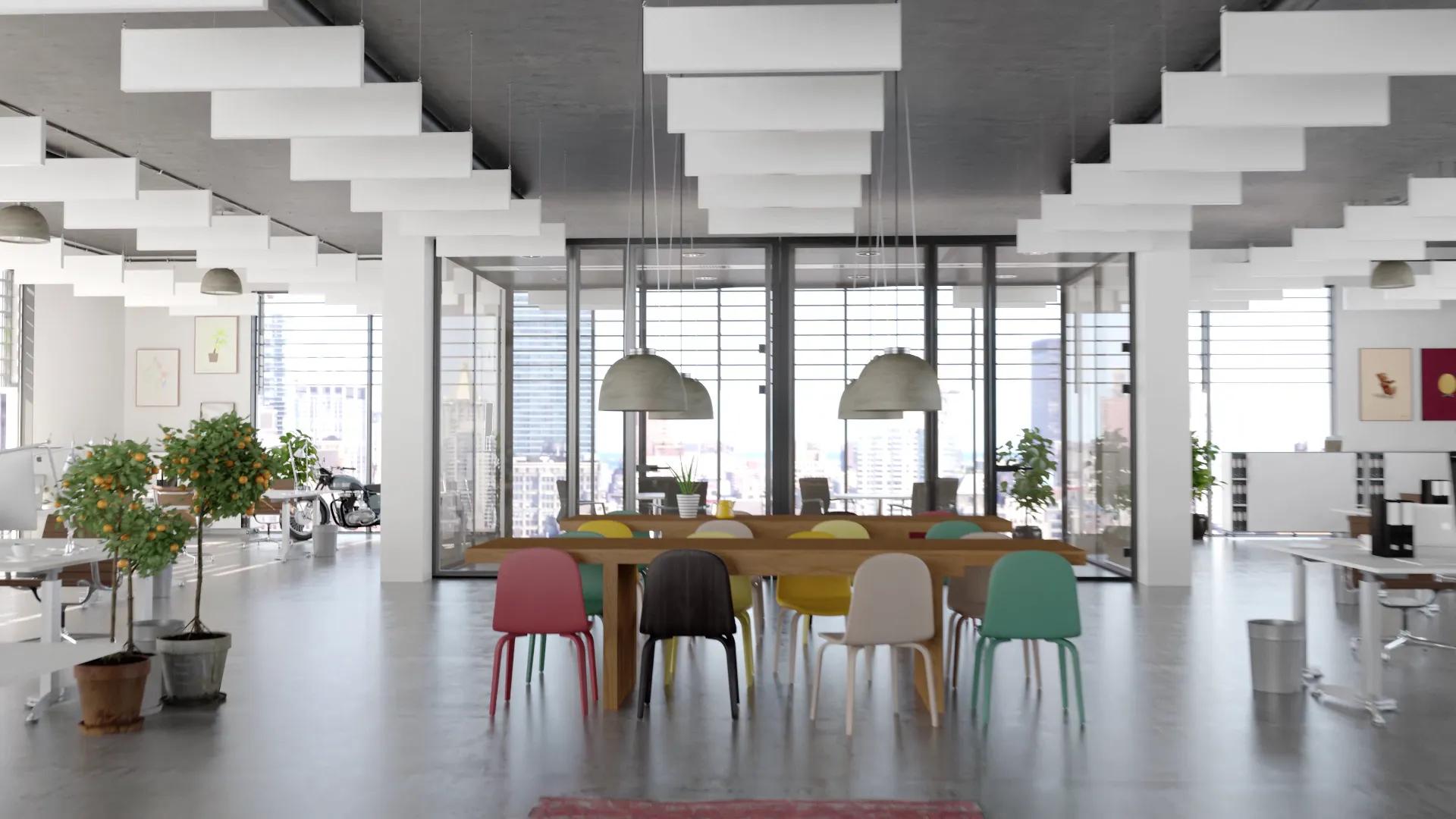

Open Plan Office
Reception
Canteen

Education

Auditorium
Library

Retail

Boutiques
Convention Centre
Department Store
Shopping Centre
Showroom

Leisure

Auditorium / Concert Hall
Museum
Restaurant / Pub / Nightclub

Back

Sound absorption details

Aeq, Equivalent Sound Absorption Area per item (m2 Sabin)
Edge Dimensions Distance Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz
4F 1800x600x50mm 600mm 300mm 0.13 0.26 0.53 0.60 0.54 0.51
4F 1800x600x50mm 600mm 300mm 0.11 0.16 0.34 0.46 0.44 0.39
4F 1800x600x50mm 600mm 40mm 0.18 0.25 0.33 0.48 0.45 0.44
4F 1800x600x50mm 600mm 40mm 0.19 0.29 0.53 0.61 0.55 0.54
4F 1800x300x50mm 300mm 300mm 0.08 0.11 0.22 0.28 0.27 0.25
4F 1800x300x50mm 300mm 40mm 0.12 0.16 0.21 0.31 0.28 0.26

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve

Other performances

Compare
Reaction To Fire Reaction To Fire A2-s1,d0
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion White (77%) Charcoal (4%) Color-all (Colour dependent)
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Corrosion resistance Corrosion resistance Class B (EN13964)
Cleaning Cleaning Vacuum
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Environment Environment Fully recyclable stone wool
Indoor Environment Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
Back
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Back
Back
Back

Full range

Edge Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
2F 1200 x 300 50 0.00 0 Rockfon® System Universal Baffle

Recommended installation system

Framed baffle system Rockfon® System Universal Baffle An ideal acoustic solution where a traditional suspended ceiling is not suitable

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
2F 1200 x 450 50 0.00 0 Rockfon® System Universal Baffle

Recommended installation system

Framed baffle system Rockfon® System Universal Baffle An ideal acoustic solution where a traditional suspended ceiling is not suitable

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
2F 1200 x 600 50 0.00 0 Rockfon® System Universal Baffle

Recommended installation system

Framed baffle system Rockfon® System Universal Baffle An ideal acoustic solution where a traditional suspended ceiling is not suitable

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
4F 1200 x 300 50 0.00 0 Rockfon® System Universal Baffle

Recommended installation system

Framed baffle system Rockfon® System Universal Baffle An ideal acoustic solution where a traditional suspended ceiling is not suitable

Sound absorption details

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
4F 1200 x 450 50 0.00 0 Rockfon® System Universal Baffle

Recommended installation system

Framed baffle system Rockfon® System Universal Baffle An ideal acoustic solution where a traditional suspended ceiling is not suitable

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
4F 1200 x 600 50 0.00 0 Rockfon® System Universal Baffle

Recommended installation system

Framed baffle system Rockfon® System Universal Baffle An ideal acoustic solution where a traditional suspended ceiling is not suitable

Sound absorption details

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
4F 1800 x 300 50 0.00 0 Rockfon® System Universal Baffle

Recommended installation system

Framed baffle system Rockfon® System Universal Baffle An ideal acoustic solution where a traditional suspended ceiling is not suitable

Sound absorption details

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
4F 1800 x 600 50 0.00 0 Rockfon® System Universal Baffle

Recommended installation system

Framed baffle system Rockfon® System Universal Baffle An ideal acoustic solution where a traditional suspended ceiling is not suitable

Sound absorption details

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2

Edge detail 2F = 2 Framed
Edge detail 4F = 4 Framed
Rockfon Universal Baffle, with 2 frames, is only available in white.
