| Color | White |
|---|---|
| Color Group | Whites |
| NCS | NCS S 0500-N |
| Light reflection | 85 |
Auditorium / Concert Hall
Museum
Restaurant / Pub / Nightclub
Stadium
Canteen
Reception
| Aeq, Equivalent Sound Absorption Area per item (m2 Sabin) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Edge | Dimensions | Distance | Suspension height | 125Hz | 250Hz | 500Hz | 1000Hz | 2000Hz | 4000Hz |
| 4F | 1200x600x50mm | 1200mm | 300mm | 0.17 | 0.35 | 0.80 | 0.88 | 0.81 | 0.74 |
| 4F | 1200x600x50mm | 300mm | 300mm | 0.12 | 0.26 | 0.51 | 0.59 | 0.55 | 0.49 |
| 4F | 1200x600x50mm | 600mm | 40mm | 0.19 | 0.28 | 0.55 | 0.59 | 0.55 | 0.52 |
| 4F | 1200x600x50mm | 1200mm | 40mm | 0.27 | 0.43 | 0.74 | 0.90 | 0.84 | 0.81 |
Sound absorption is measured in accordance with ISO 354.
Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.
| Reaction To Fire | A2-s1,d0 | |
|---|---|---|---|
|
Reaction to fire is classified in accordance with EN 13501-1.
| |||
| Light reflection and light diffusion | 85% | |
|
Light reflection expressed in % is measured in accordance with ISO 7724-2.
| |||
| Surface Durability | Enhanced durability and dirt resistance. | |
|
The surface of some ROCKFON products is specially treated to provide enhanced durability and dirt resistance.
| |||
| Corrosion resistance | Class D (EN13964) | |
|
| |||
| Cleaning | Vacuum, Damp cloth, Chemical resistance: resistant to diluted solutions of ammonia, chlorine and hydrogen peroxide, Steam cleaning (twice a year), Low pressure foam cleaning, High pressure cleaning: Max. 80 bar, min. 1 meter distance, water spread at a 30° angle | |
|
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
| |||
| Hygiene | Stone wool provides no sustenance to microorganisms | |
|
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
| |||
|
| Clean Room Classification | 2 | |
|
Clean room classification is measured in accordance with ISO 14644-1.
| |||
| Environment | Fully recyclable stone wool | |
|
| |||
| Indoor Environment | A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products | |
|
| |||
| Edge | Dimensions (mm) | Thickness (mm) | Weight (Kg/m2) | Min. suspension height (mm) | Recommended installation system | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4F |
| 1200 x 450 | 50 | 0.00 | 0 |

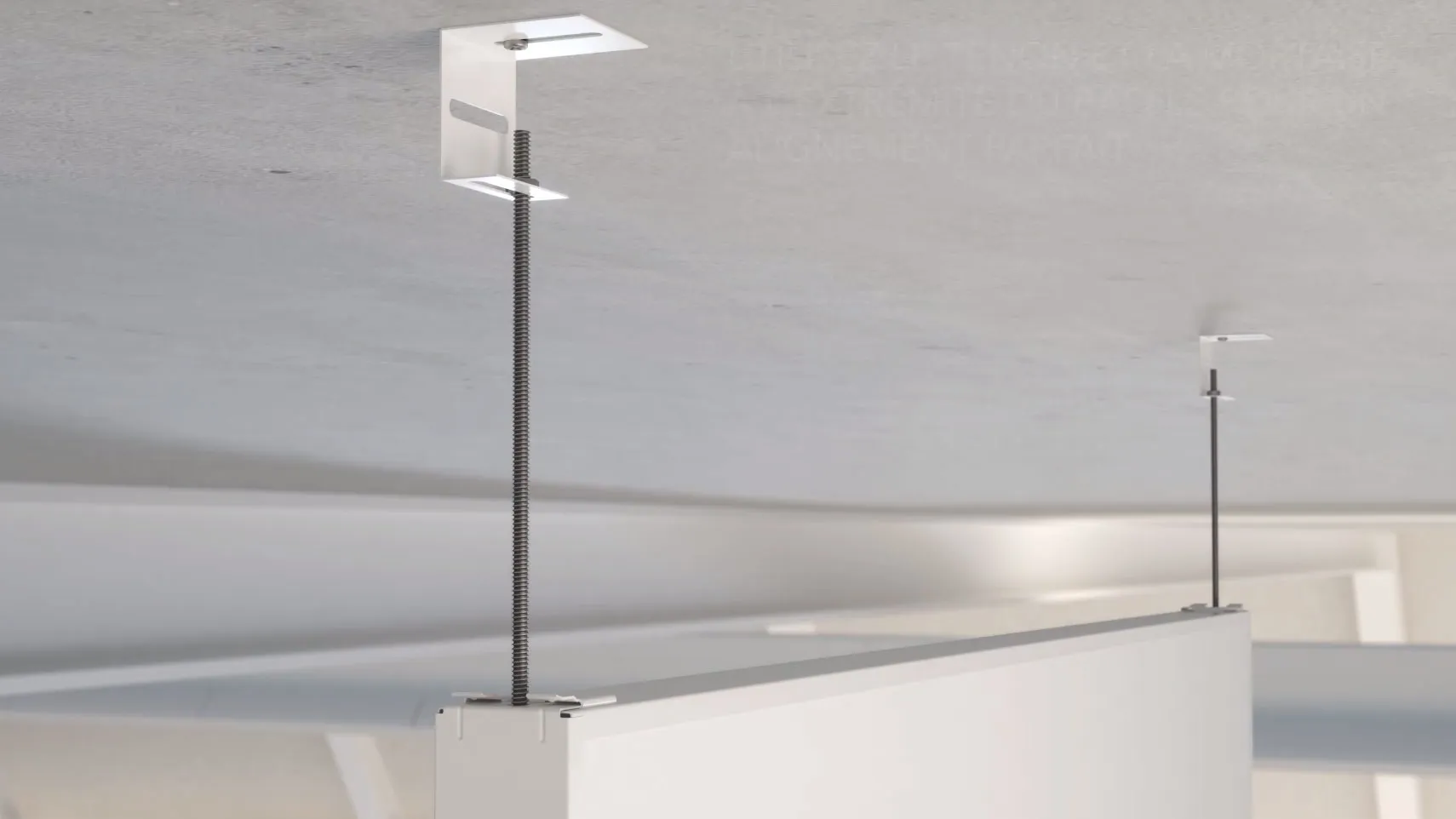

Rockfon® System Humitec Baffle
| |||||||||
Recommended installation system
Tile details
Packaging
| |||||||||||||||
| 4F |
| 1200 x 600 | 50 | 0.00 | 0 |
Rockfon® System Humitec Baffle
| |||||||||
Recommended installation system
Sound absorption detailsTile details
Packaging
| |||||||||||||||

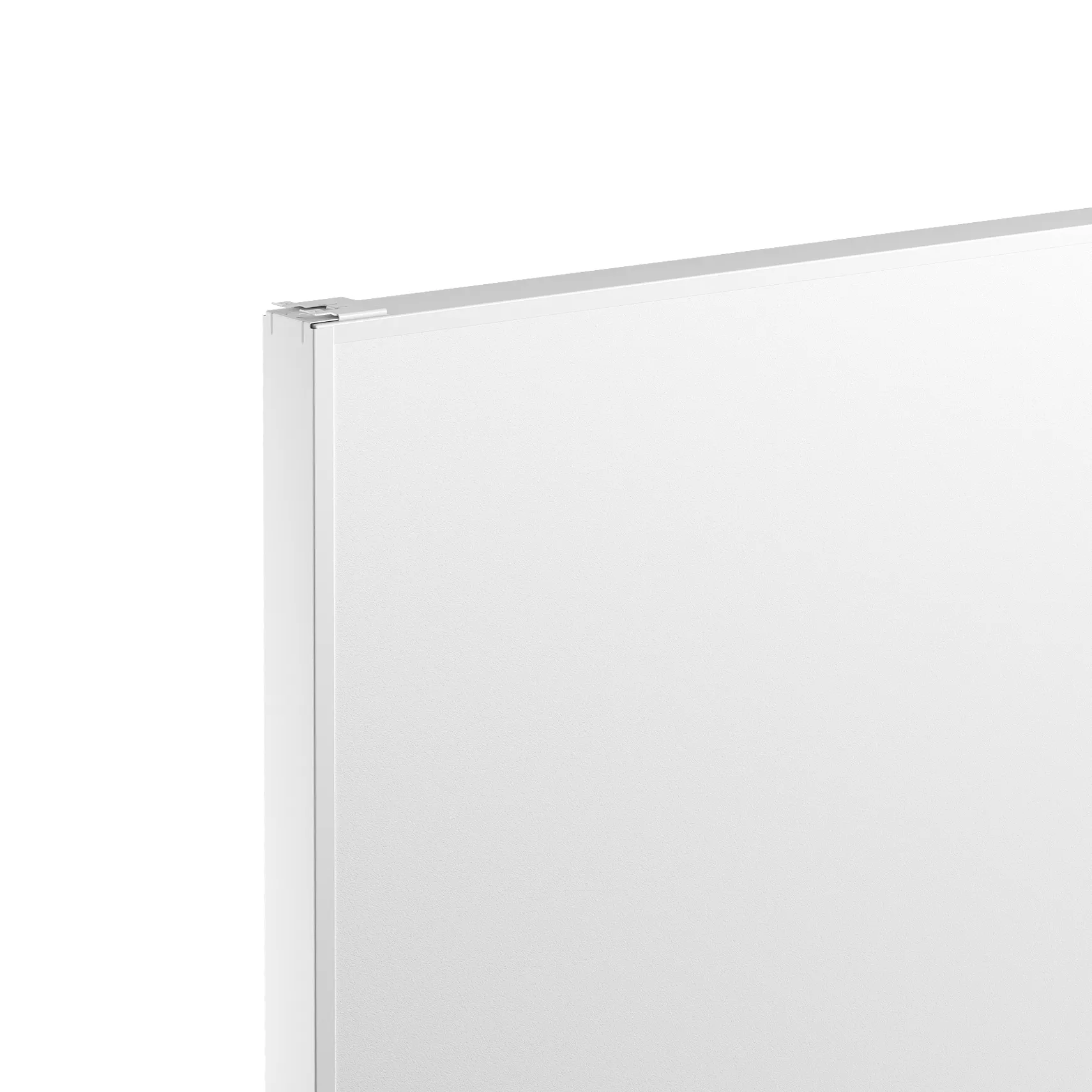

Edge detail 4F = 4 Framed
