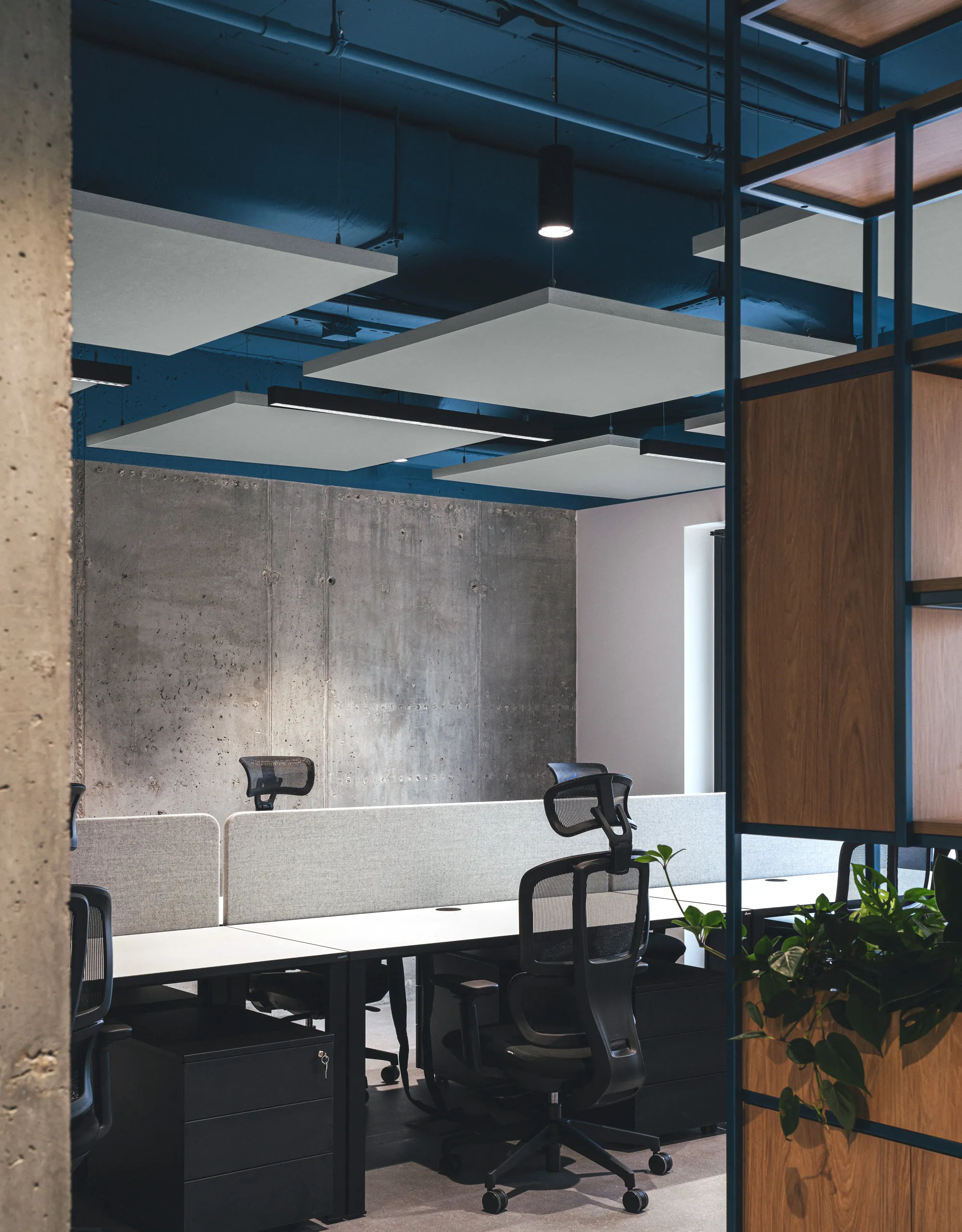

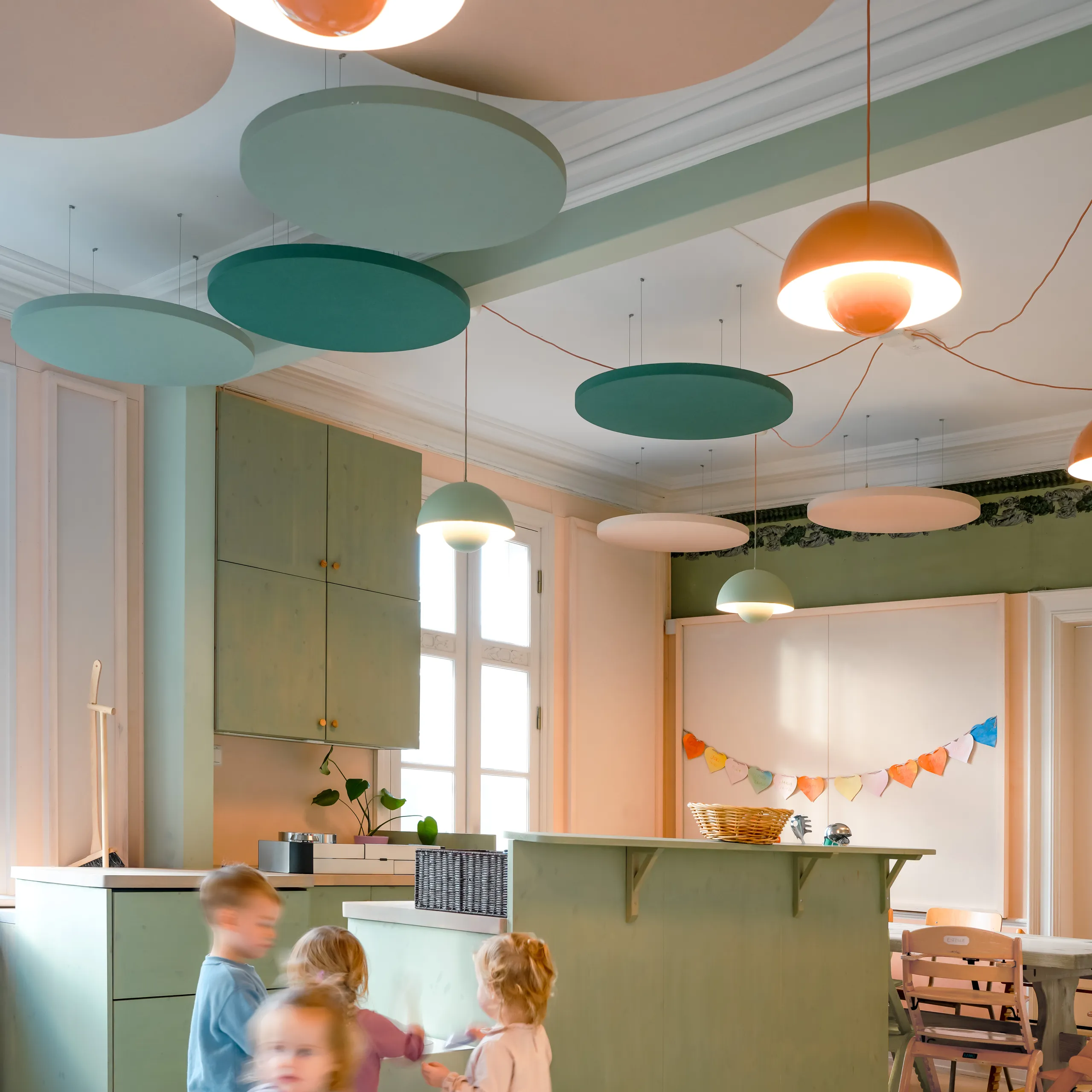

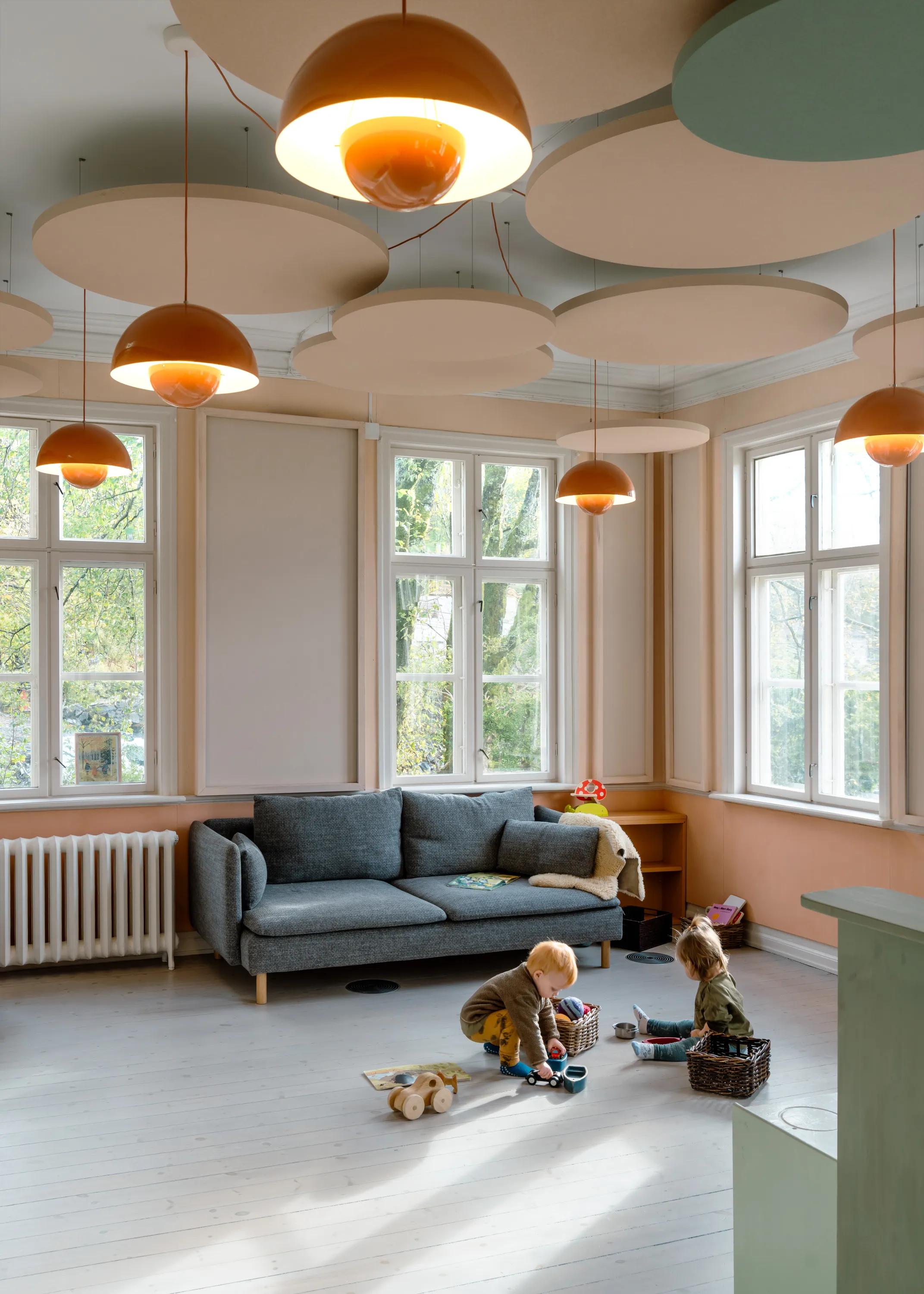

Rockfon® Eclipse Colour

Frameless floating acoustic ceiling panels with a smooth, matte surface in two shapes and a range of timeless colours to mix or match – installed suspended or fixed to the soffit.
Download Datasheet
Download Datasheet
Back
Innovative and aesthetically pleasing frameless acoustic island comes in a smooth coloured, matt surface
Rockfon Eclipse Colour is available in two formats (circle and square) and 11 exclusive colours from the Rockfon Color-All range to inspire and enhance your interior design scheme
Subtle yet playful colours made to mix and match either within the same room or in different areas of a building
Quick and easy to install, Rockfon Eclipse Colour can be used alone or where a traditional suspended ceiling cannot be installed
Perfect for thermal mass installations with rear surface providing excellent heat and light reflection
Stone wool island
Visible side: Smooth coloured, matt fleece
Rear side: white backing fleece
Painted edges

Color

Color Group

All
All
Greys & Blacks
Yellows
Greens
Blues
Reds & Pinks

Gravel

ColorGravel
Color Code03
Color GroupGreys & Blacks
NCSNCS S 3502-B
Light reflection34

Matching Colors

22
13
31
03
Gravel

Stone wool tile

Gravel

NCS S 3502-B

34 % Light reflection

More Info

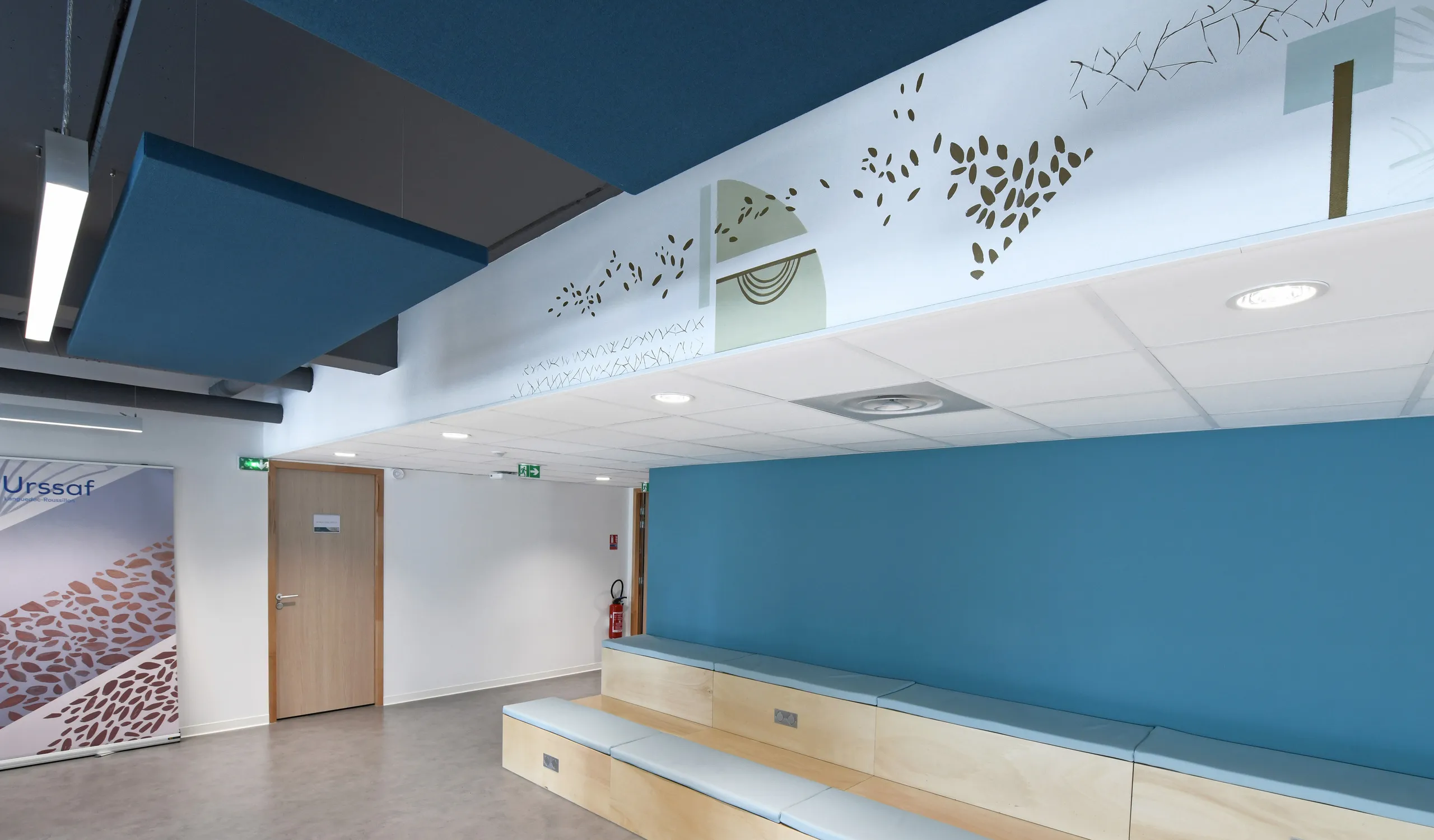

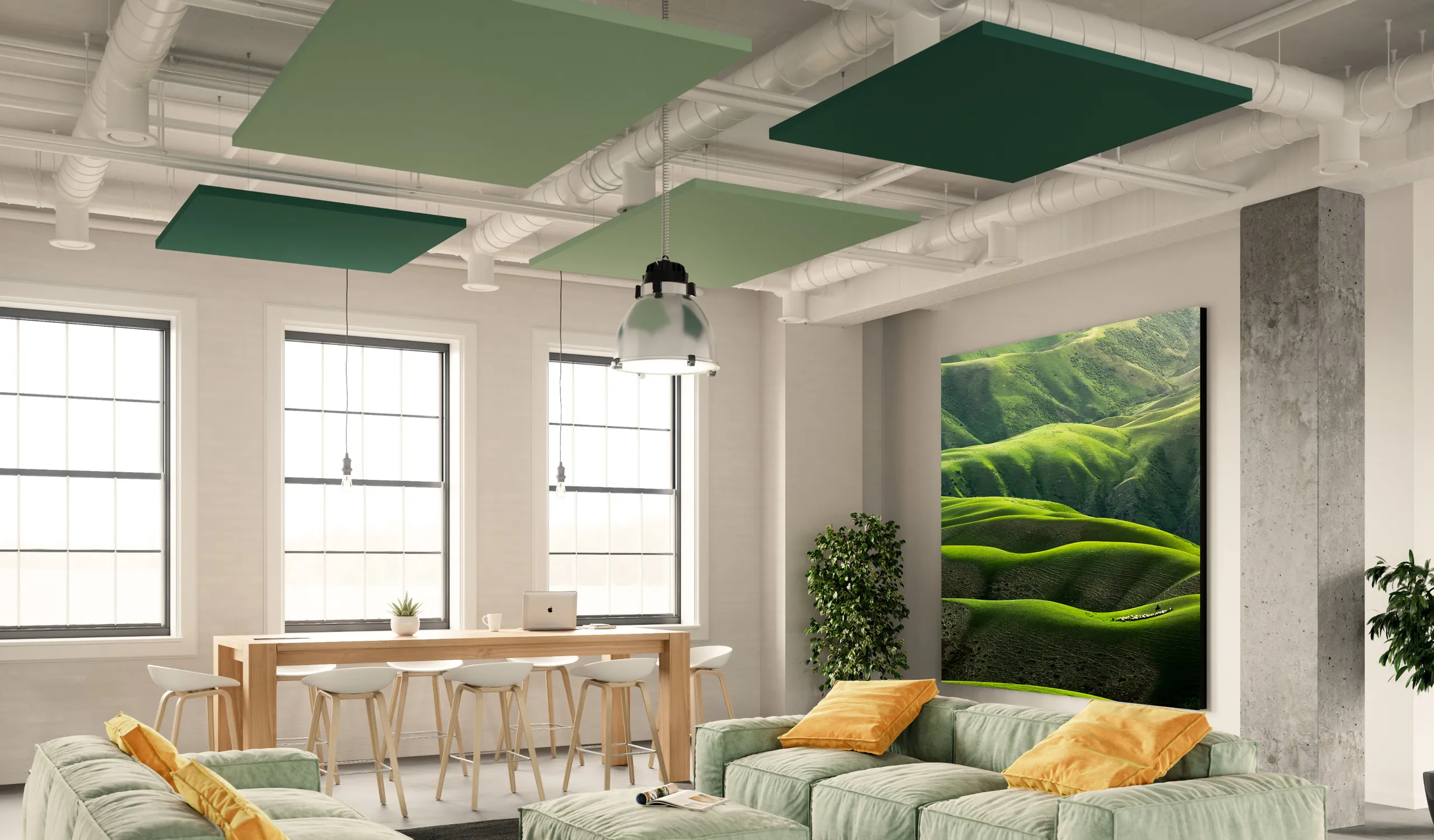

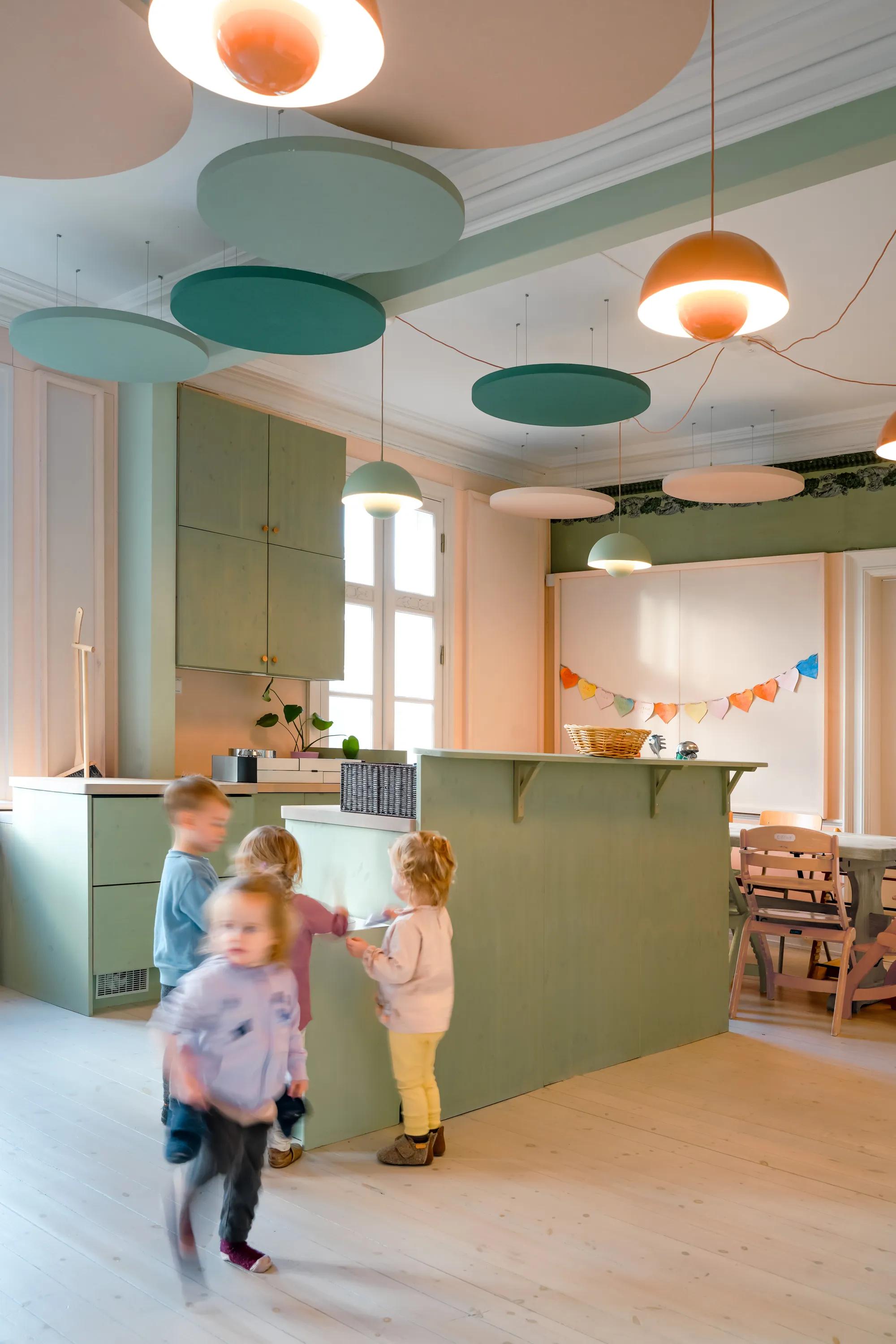

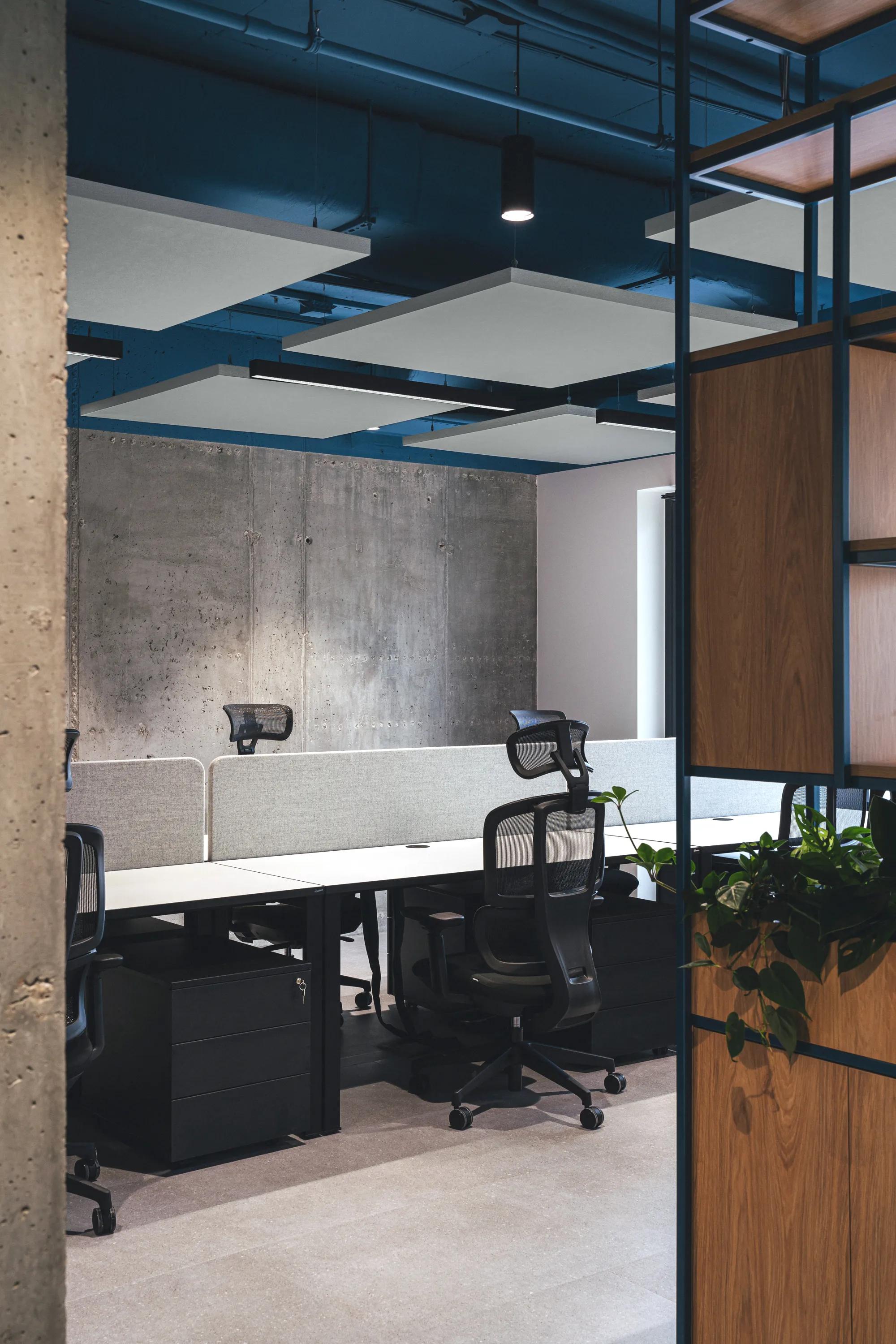

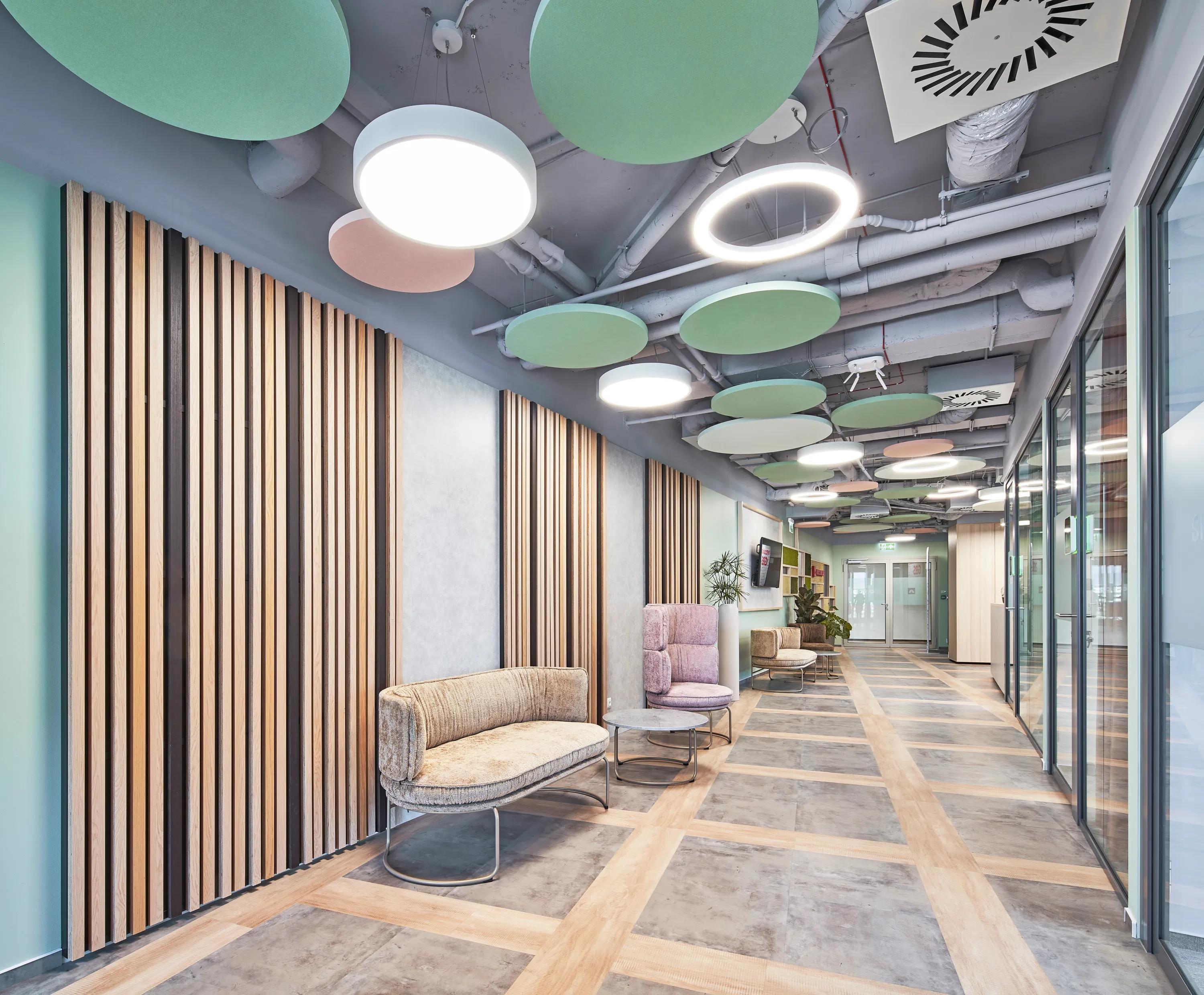

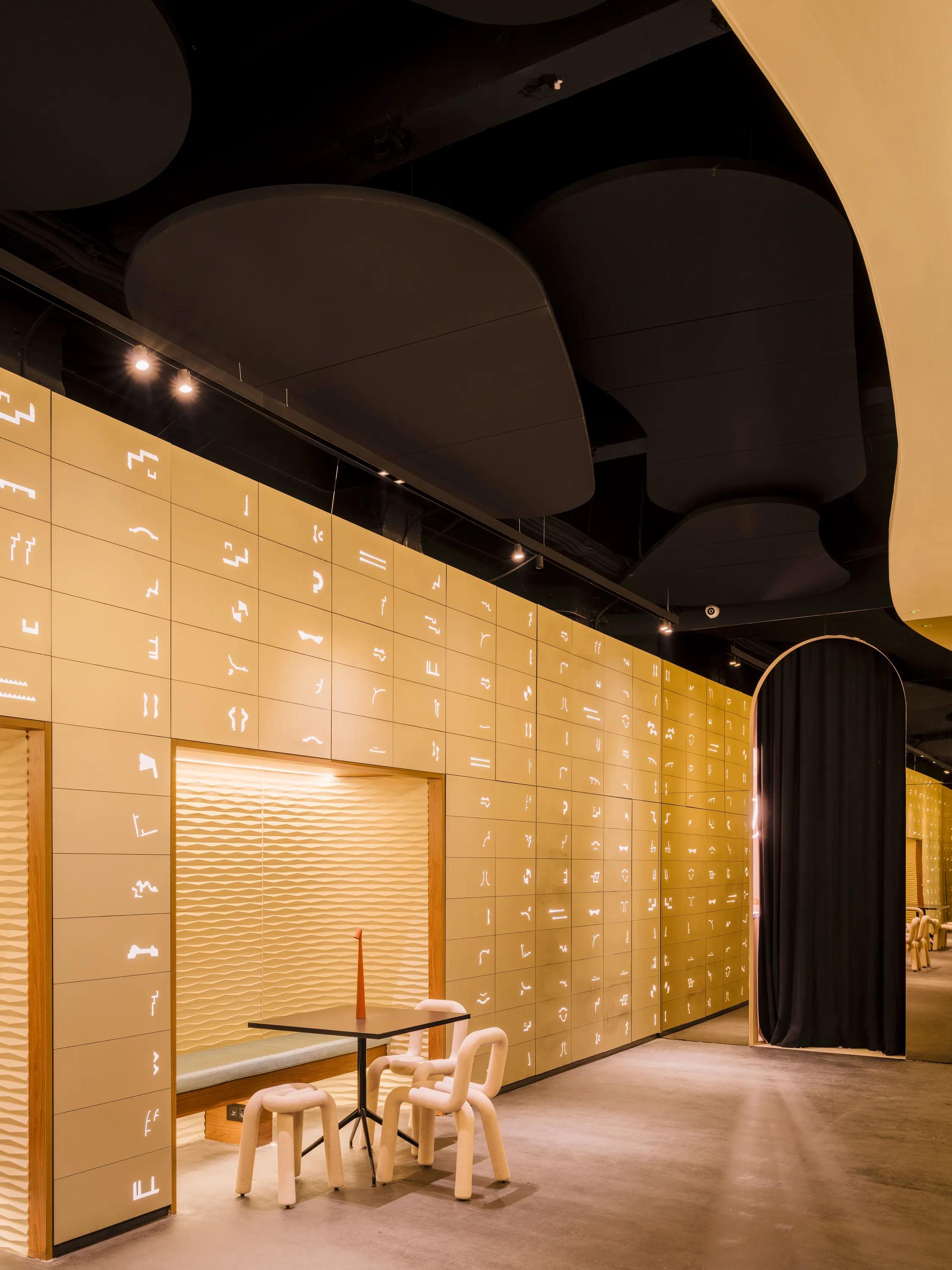

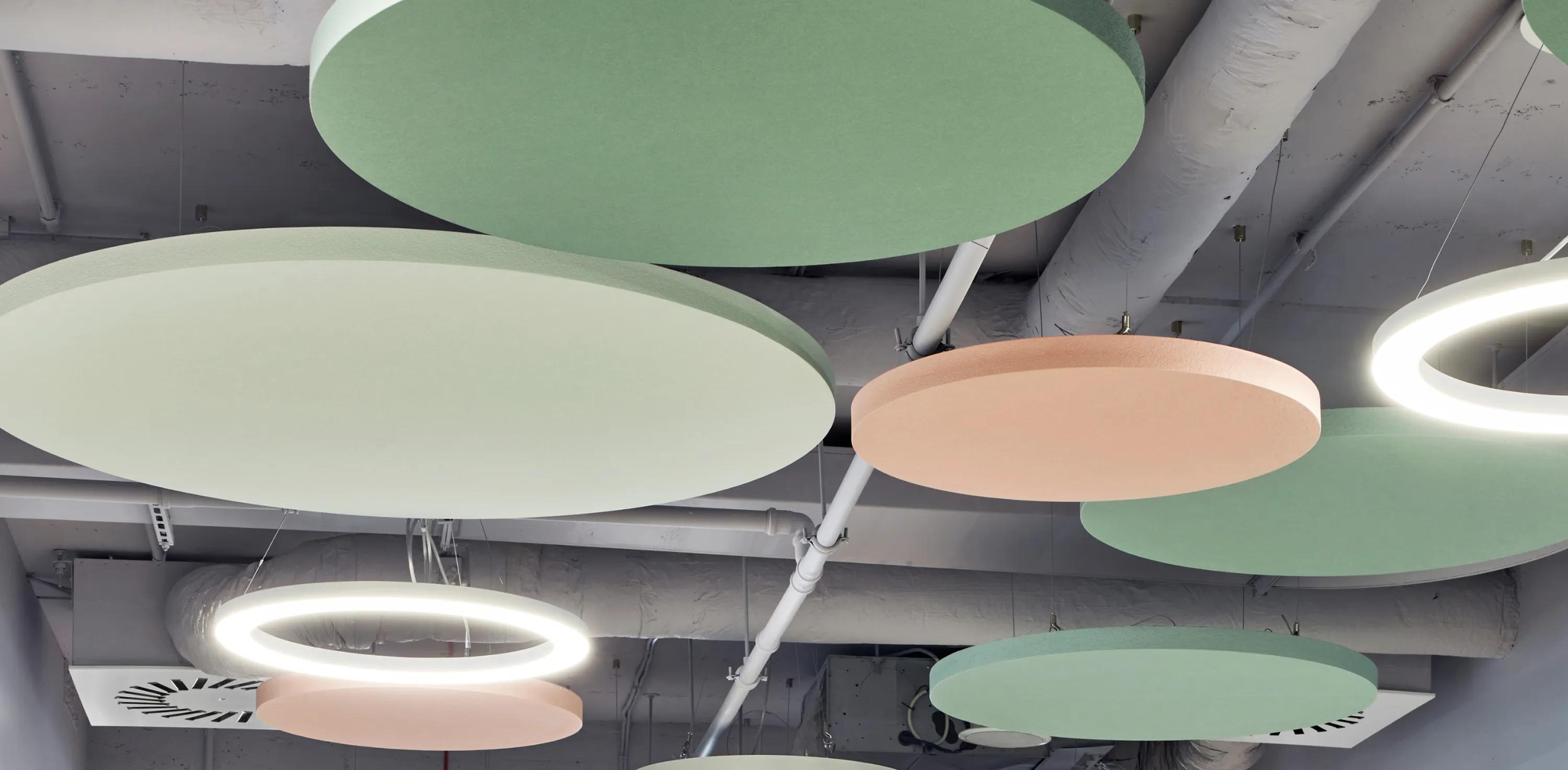

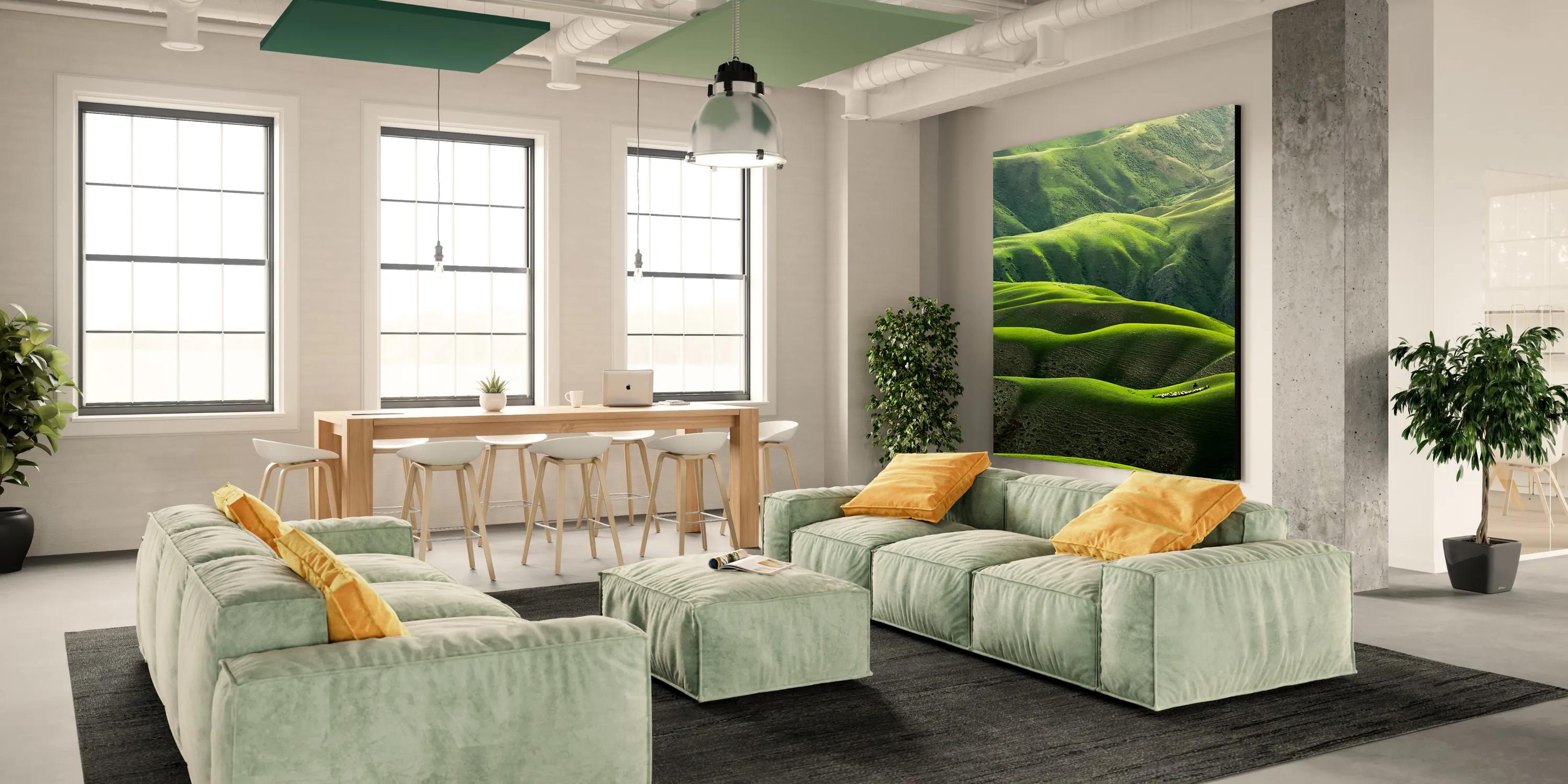

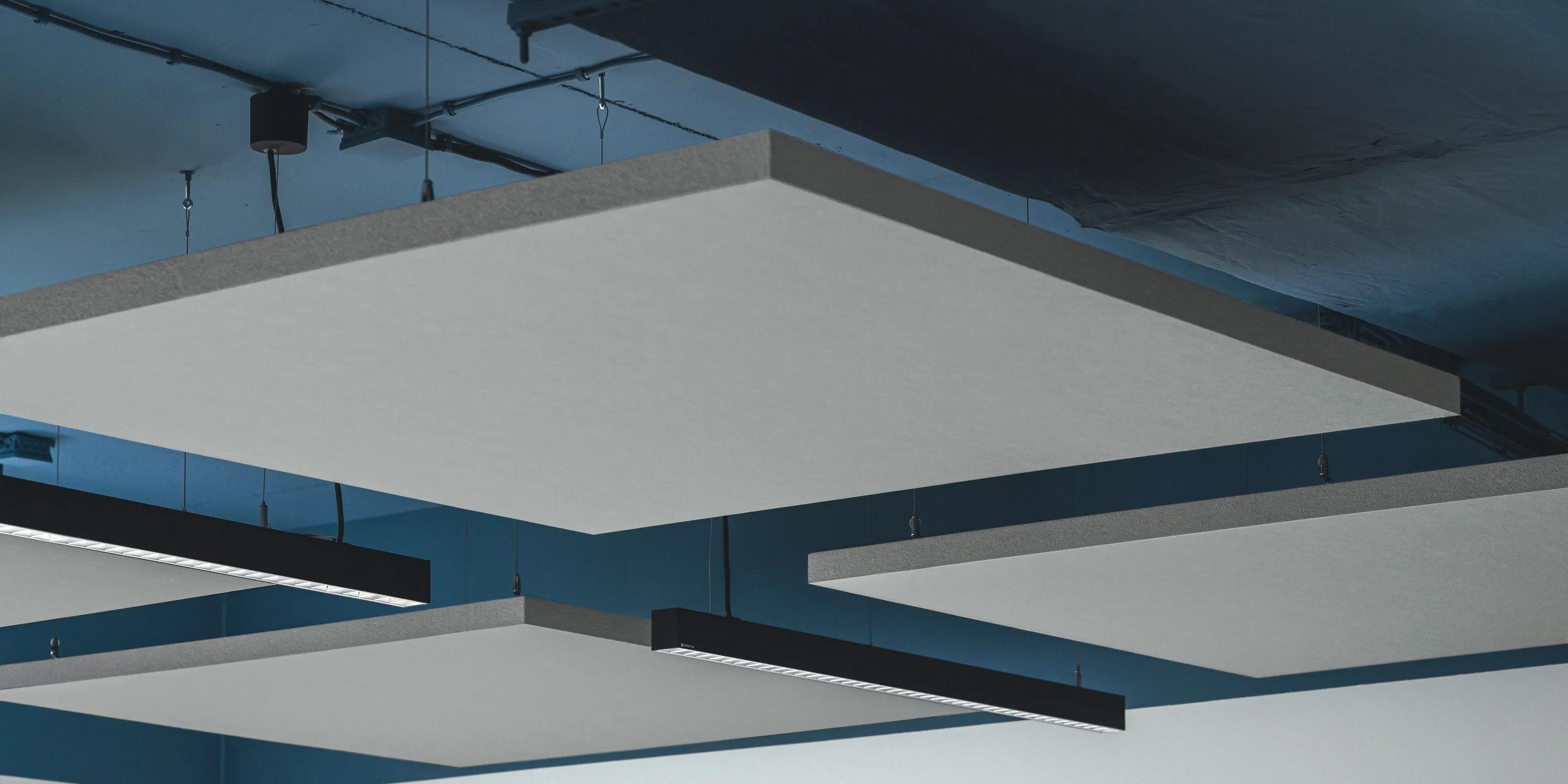

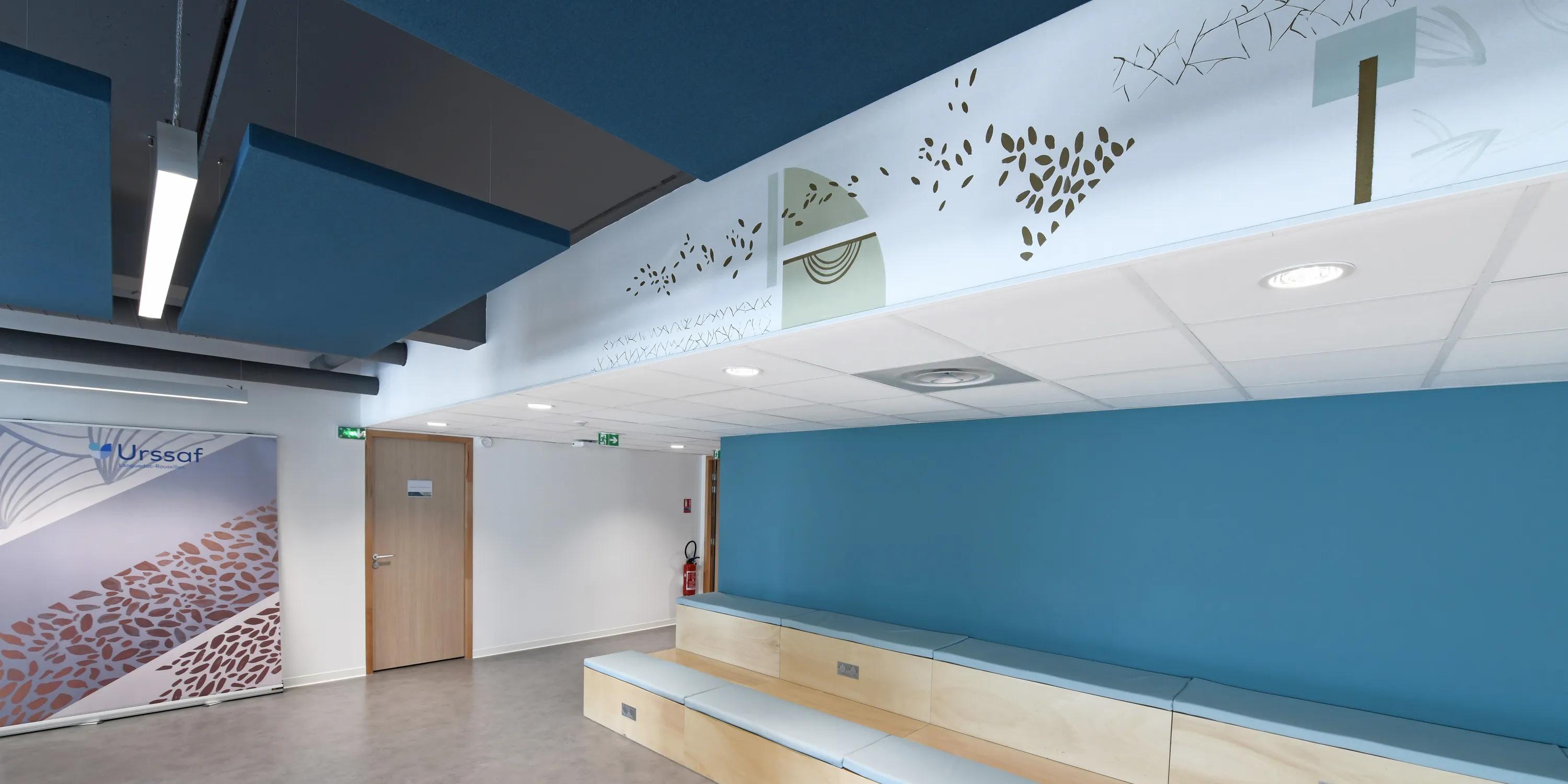

Case studies featuring Rockfon® Eclipse Colour

1/9

Recommended application areas

Office

Meeting Room
Open Plan Office
Reception
Canteen

Education

Auditorium
Library
Canteen

Retail

Boutiques
Convention Centre
Department Store
Shopping Centre
Showroom

Leisure

Auditorium / Concert Hall
Museum
Restaurant / Pub / Nightclub
Stadium
Hotel

Back

Sound absorption details

Aeq, Equivalent Sound Absorption Area per item (m2 Sabin)
Shape Length Distance Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz
Circle 1160mm 2000mm 500mm 0.60 1.00 1.70 2.20 2.20 2.20
Circle 1160mm 300mm 500mm 0.40 1.00 1.50 2.00 2.10 2.10
Circle 1160mm 2000mm 45mm 0.30 0.90 1.80 1.70 1.50 1.40
Square 1160mm 2000mm 500mm 0.60 1.10 2.00 2.60 2.80 2.70
Square 1160mm 300mm 500mm 0.50 1.10 1.90 2.40 2.50 2.50
Square 1160mm 2000mm 45mm 0.40 1.20 2.10 2.10 1.90 1.80

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve

Other performances

Compare
Reaction To Fire Reaction To Fire A2-s1,d0 (EN 13501-1)
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion Colour-dependent
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH.
No visible deflection in high humidity.
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Cleaning Cleaning Vacuum
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Environment Environment Fully recyclable stone wool
Indoor Environment Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Back
Back
Back

Full range

Edge Shape Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
A Circle 1160 x 1160 40 0.00 0 Rockfon® System Eclipse Island

Recommended installation system

Frameless island system Rockfon® System Eclipse Island I deal solution for rooms where a suspended ceiling is technically or aesthetically not suitable

Sound absorption details

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Square 1160 x 1160 40 0.00 0 Rockfon® System Eclipse Island

Recommended installation system

Frameless island system Rockfon® System Eclipse Island I deal solution for rooms where a suspended ceiling is technically or aesthetically not suitable

Sound absorption details

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Frameless island system Rockfon® System Eclipse Island I deal solution for rooms where a suspended ceiling is technically or aesthetically not suitable

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Frameless island system Rockfon® System Eclipse Island I deal solution for rooms where a suspended ceiling is technically or aesthetically not suitable

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Downloads

documents





pdf
Rockfon® Eclipse Colour | Datasheet
Rockfon® Eclipse Colour | Datasheet

pdf
Rockfon® System Eclipse Island | System description
Rockfon® System Eclipse Island | System description

pdf
pdf
Environmental Product Declaration (EPD)
Environmental Product Declaration (EPD)

pdf
DoP-RFN-0195-041-1 - Rockfon® Eclipse Colour
DoP-RFN-0195-041-1 - Rockfon® Eclipse Colour

pdf
DoP-RFN-0196-041-1 - Rockfon® Eclipse Colour
DoP-RFN-0196-041-1 - Rockfon® Eclipse Colour

pdf
