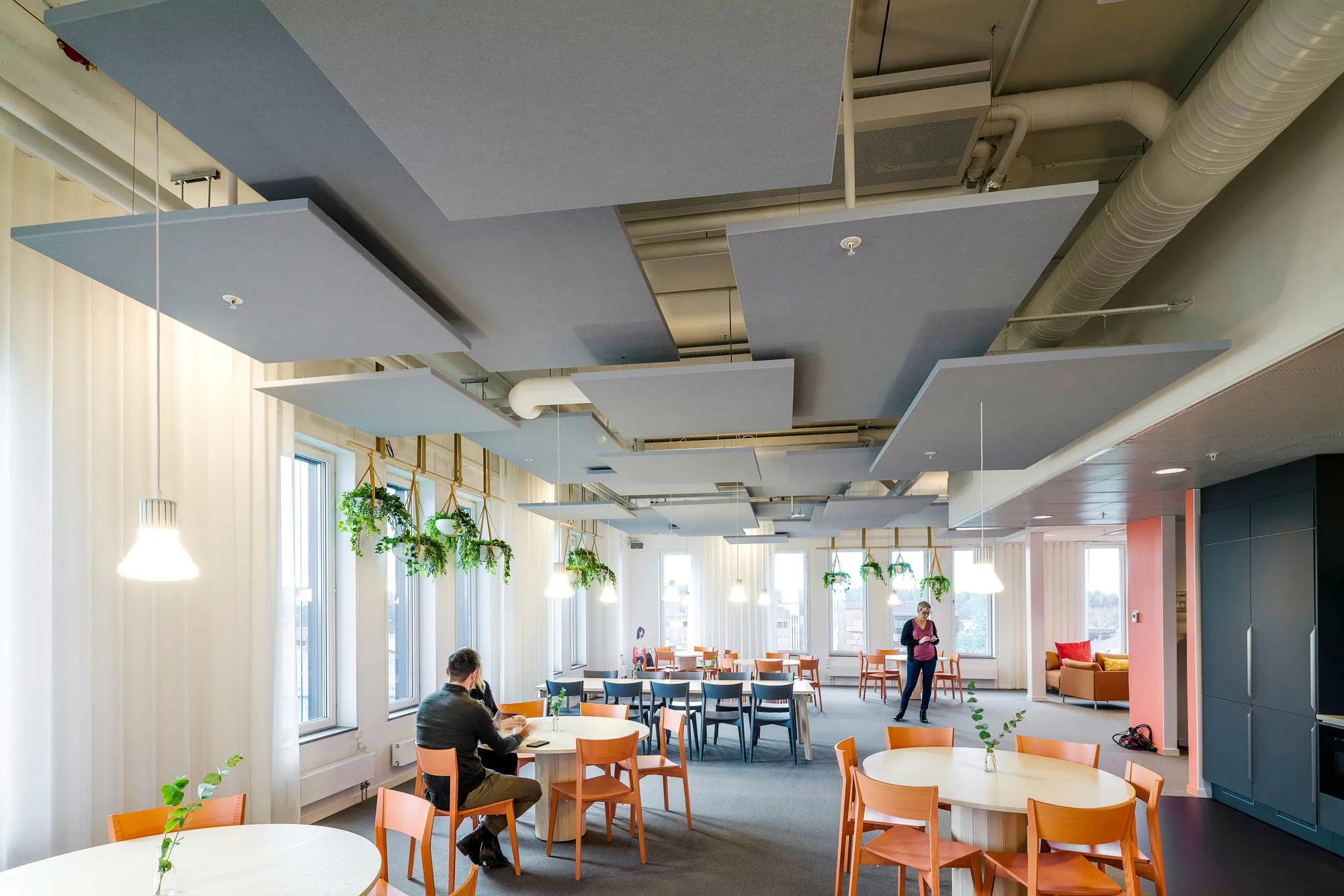

Rockfon® Eclipse Customised

Bespoke frameless floating ceiling panels with a smooth, matte surface in custom shapes, sizes, and NCS colours – installed suspended or fixed to the soffit.
Download Datasheet
Download Datasheet
Back
Innovative and aesthetically pleasing frameless acoustic island comes in a smooth, matt surface with an unlimited custom colour range using NCS

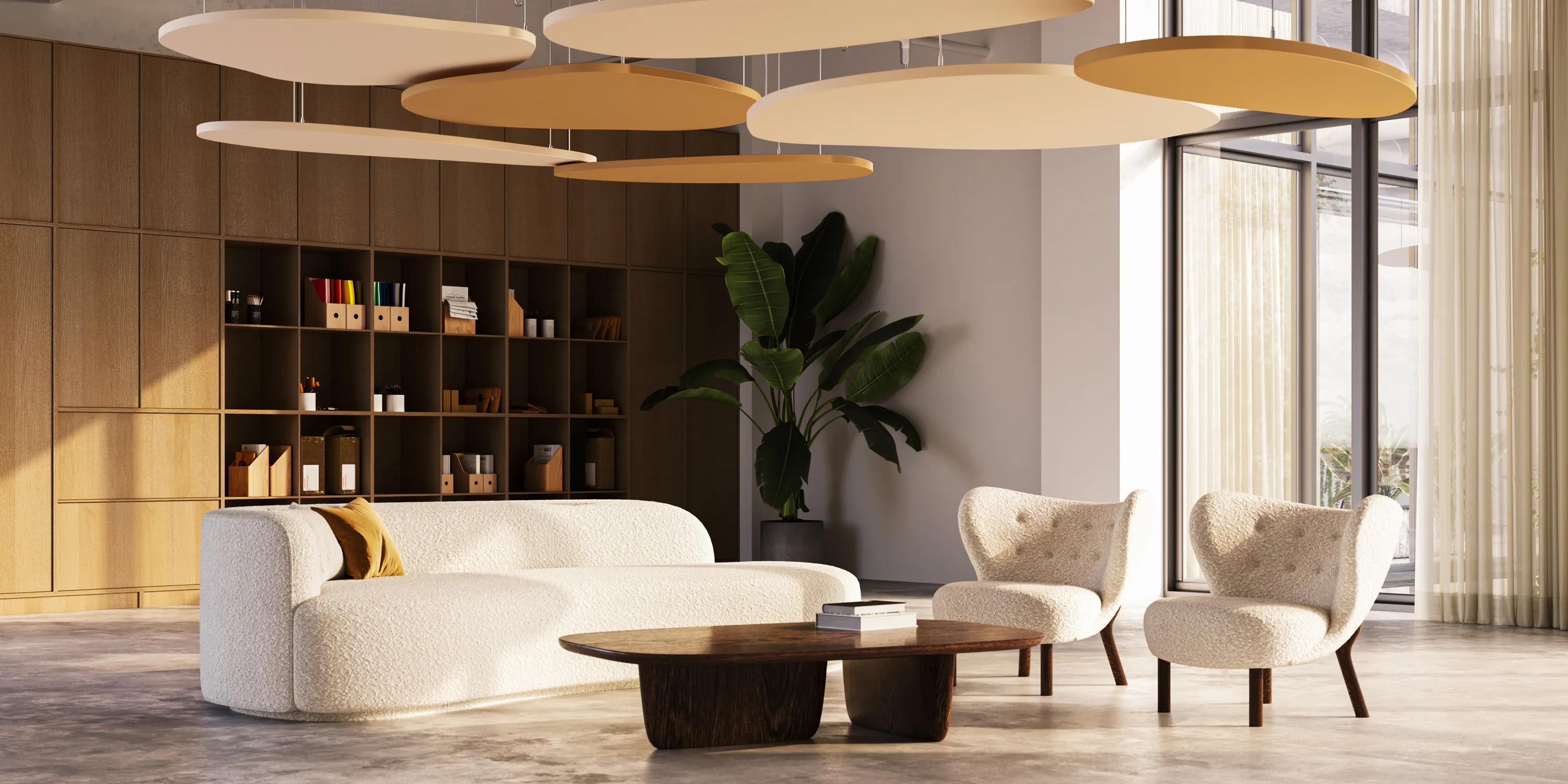

Rockfon Eclipse Customised is available in an unlimited variety of shapes, allowing for unique design freedom to inspire and enhance your interior design scheme
Quick and easy to install, Rockfon Eclipse Customised can be used alone or where a traditional suspended ceiling cannot be installed
Perfect for thermal mass installations with rear surface providing excellent heat and light reflection
Stone wool island
Visible side: smooth custom-coloured, matt fleece
Rear side: white backing fleece

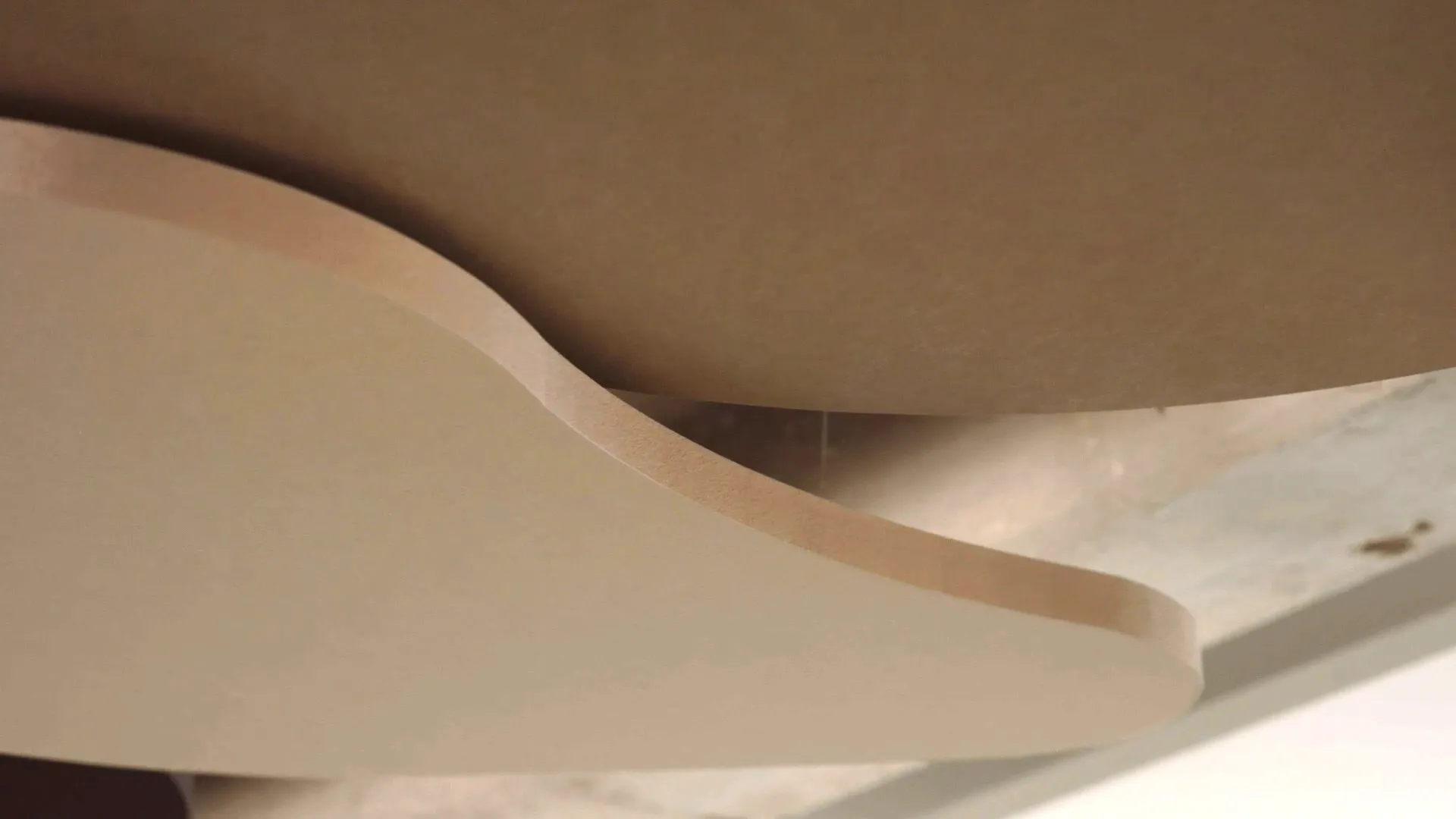

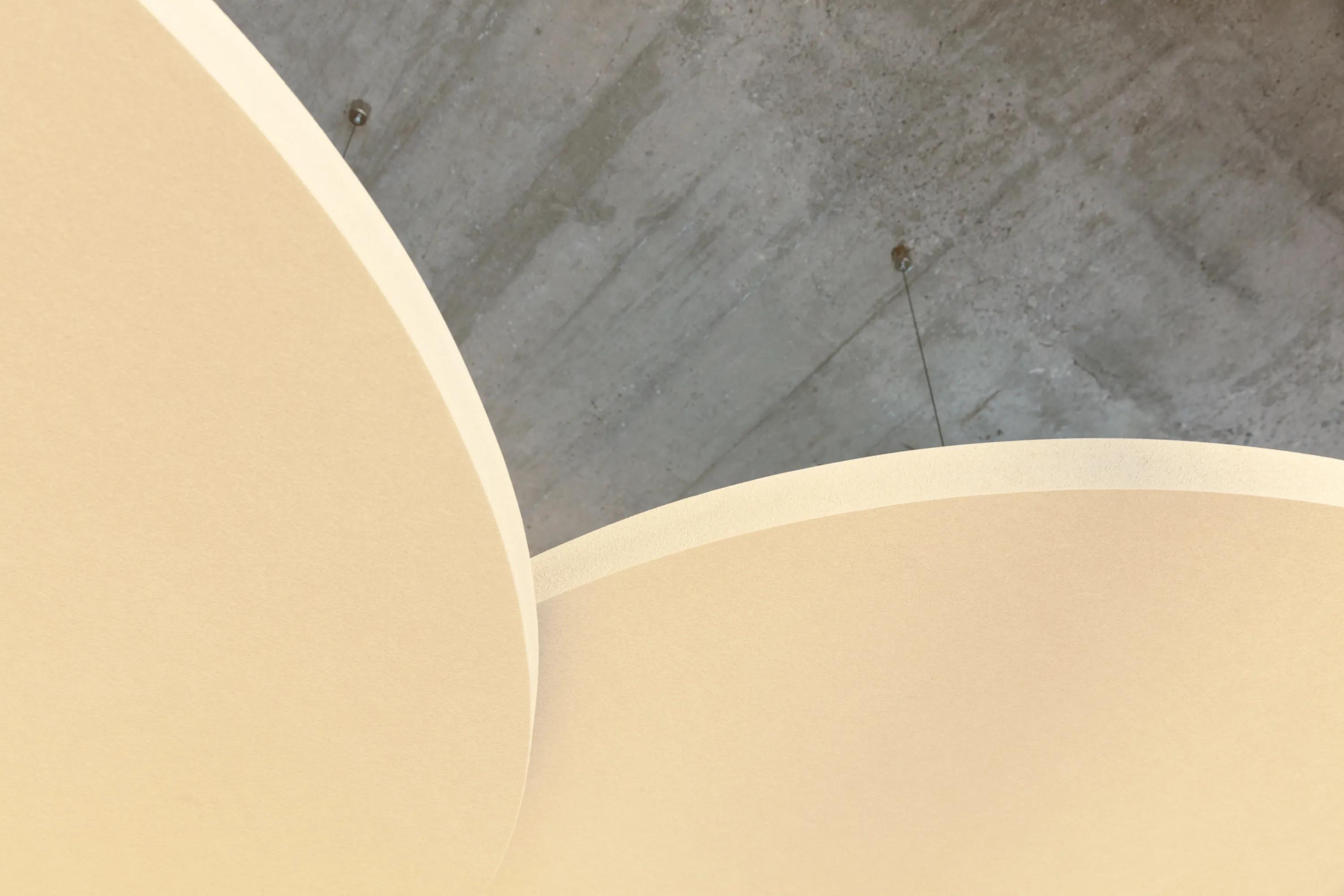

Painted edges

Color

Customised

ColorCustomised
Color GroupOthers

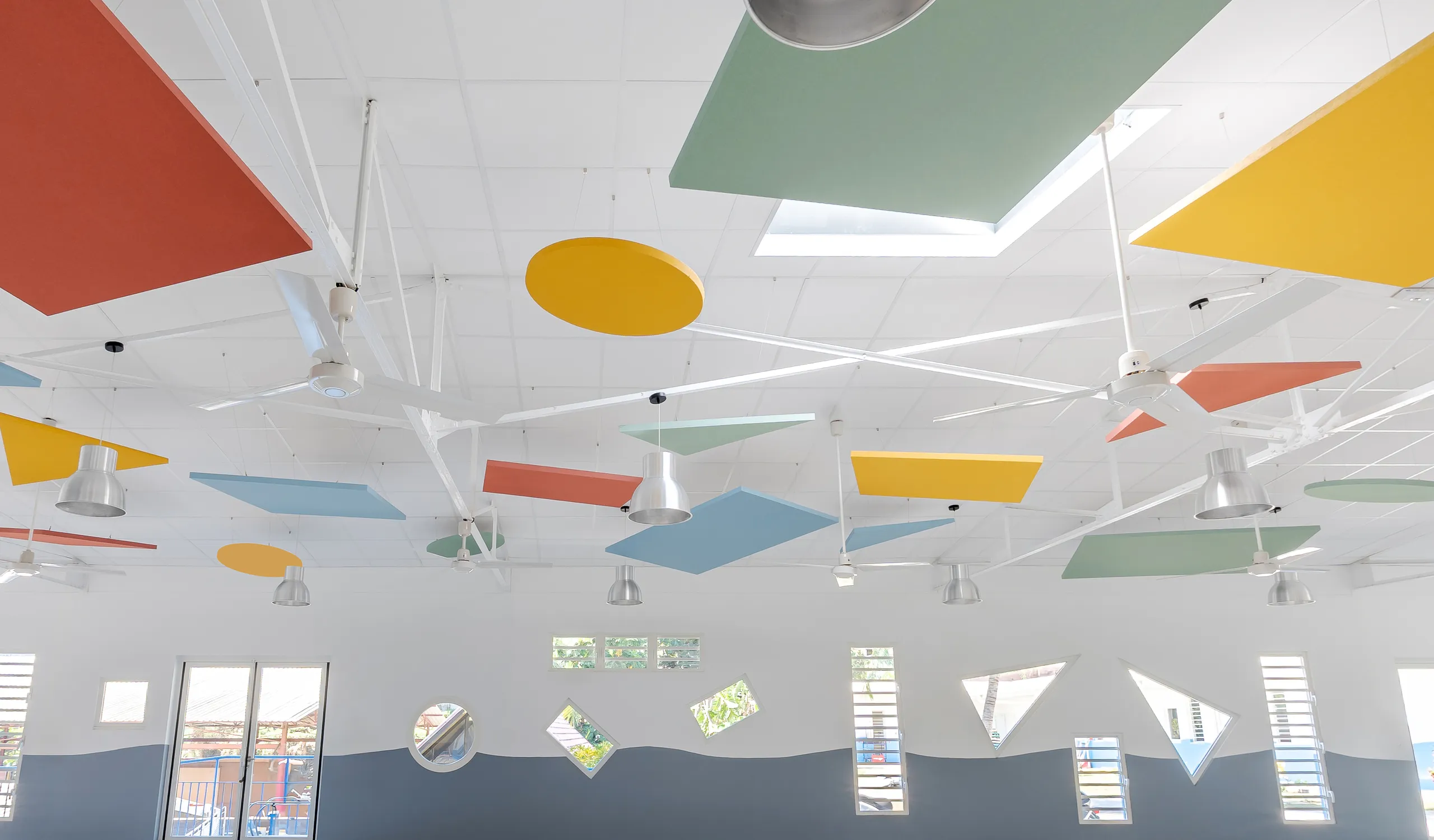

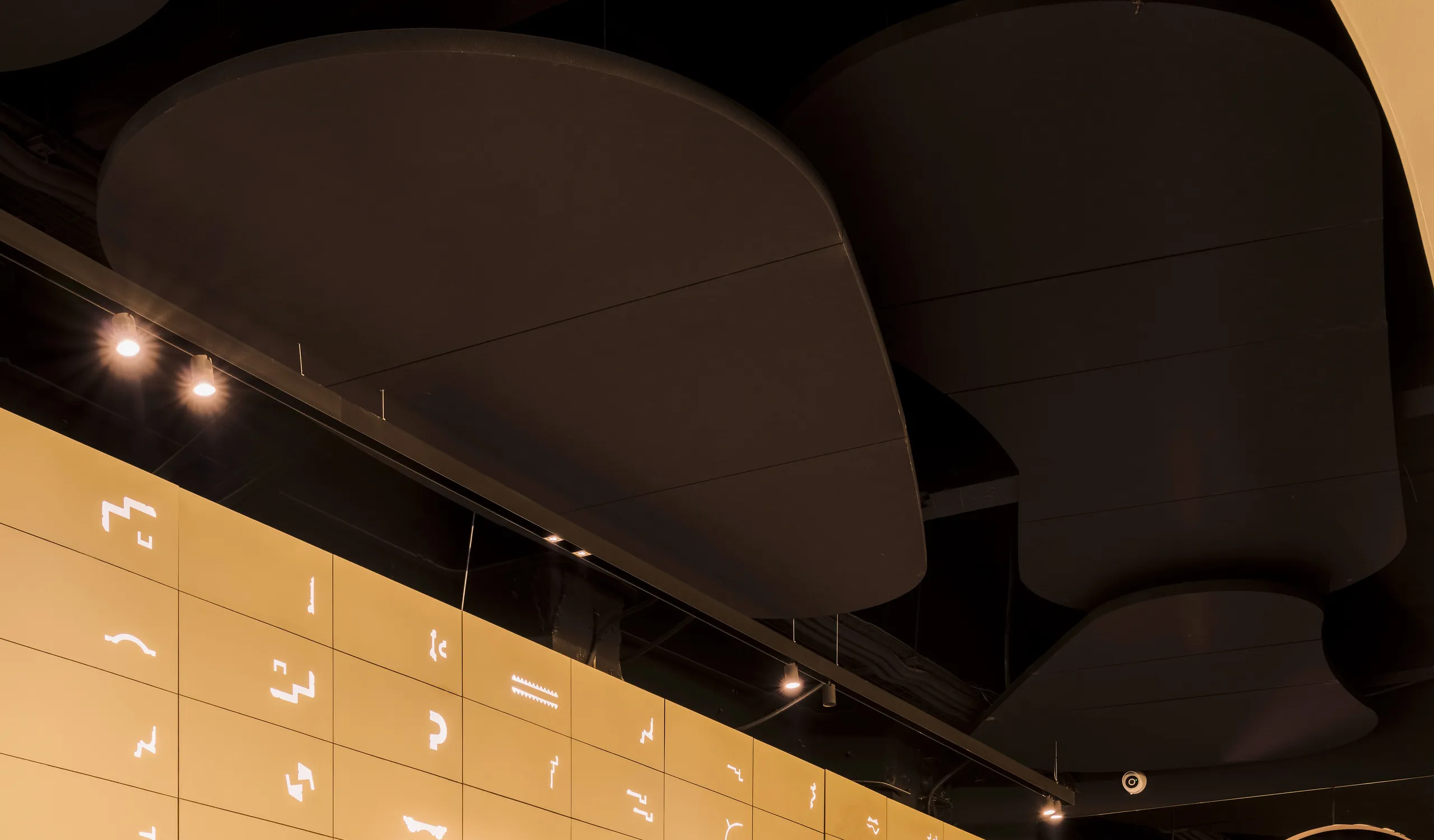

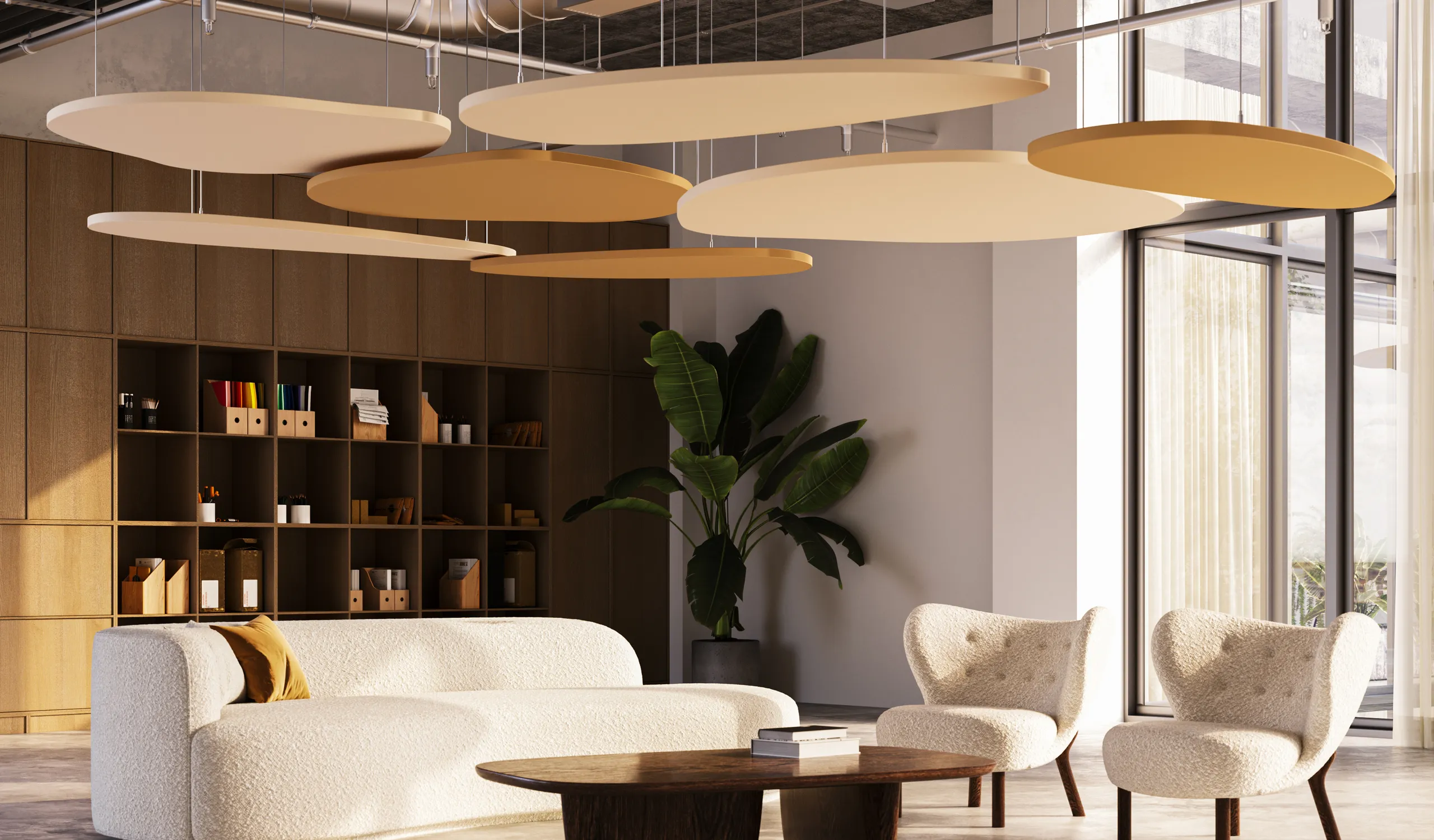

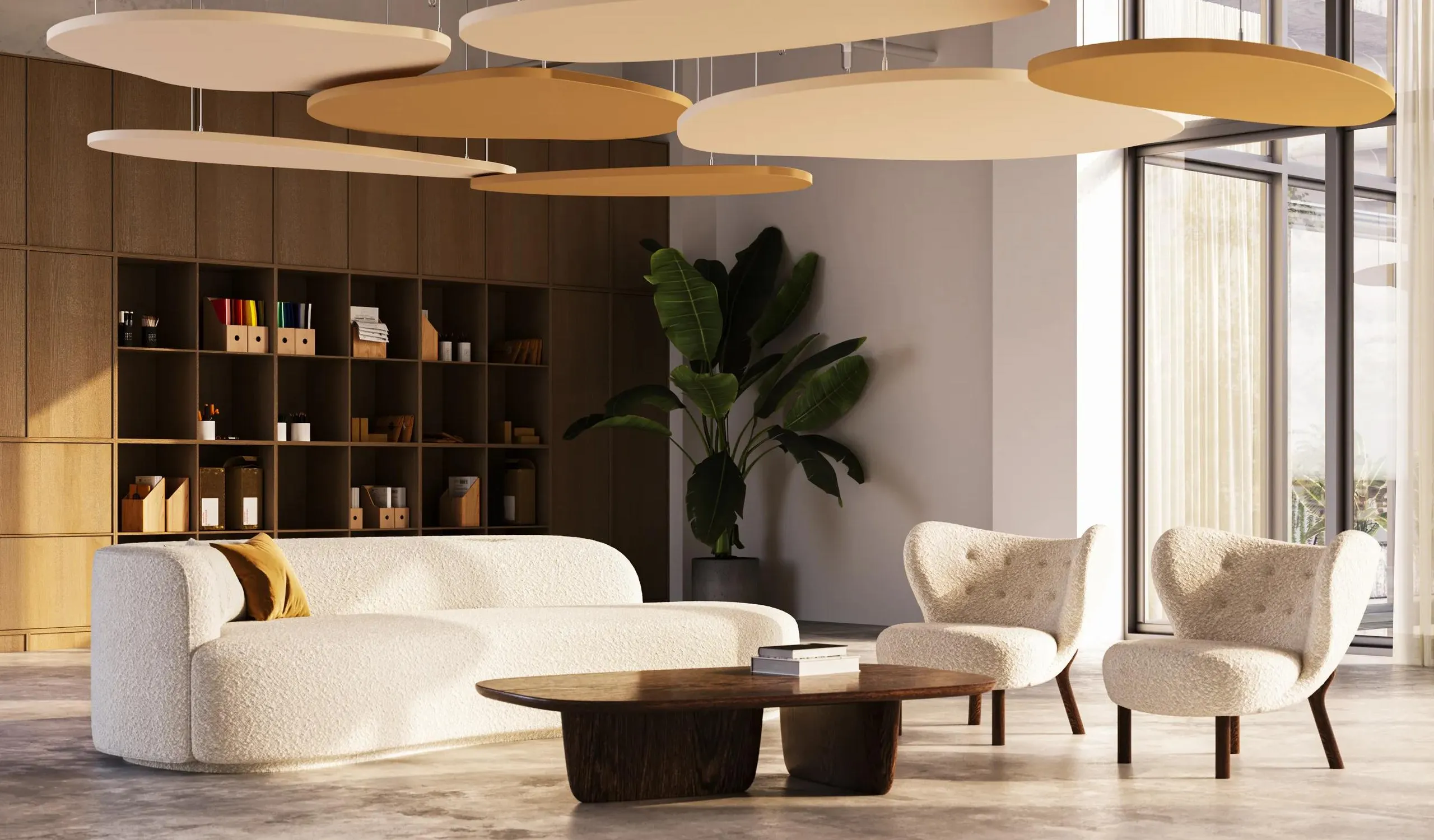

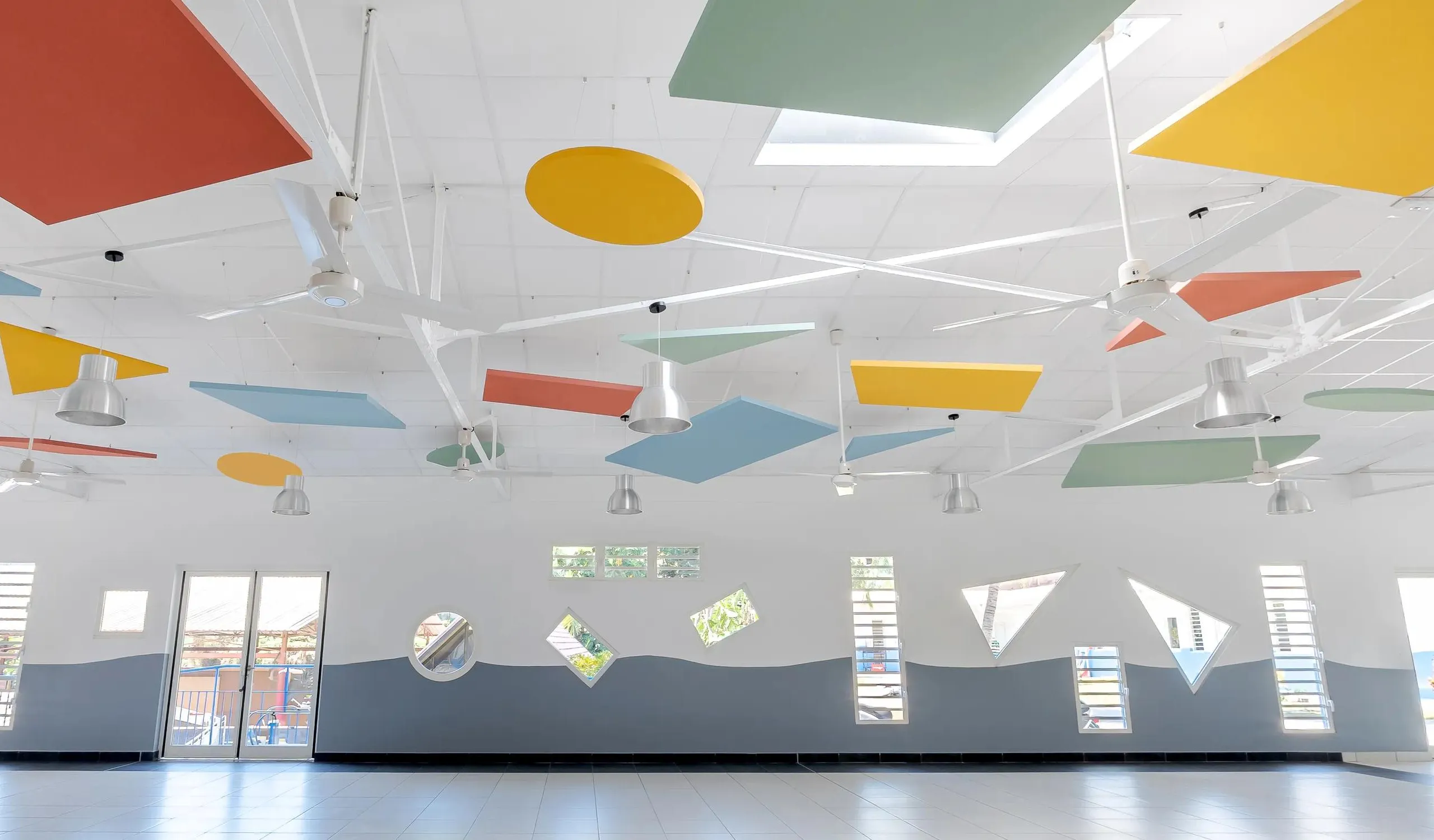

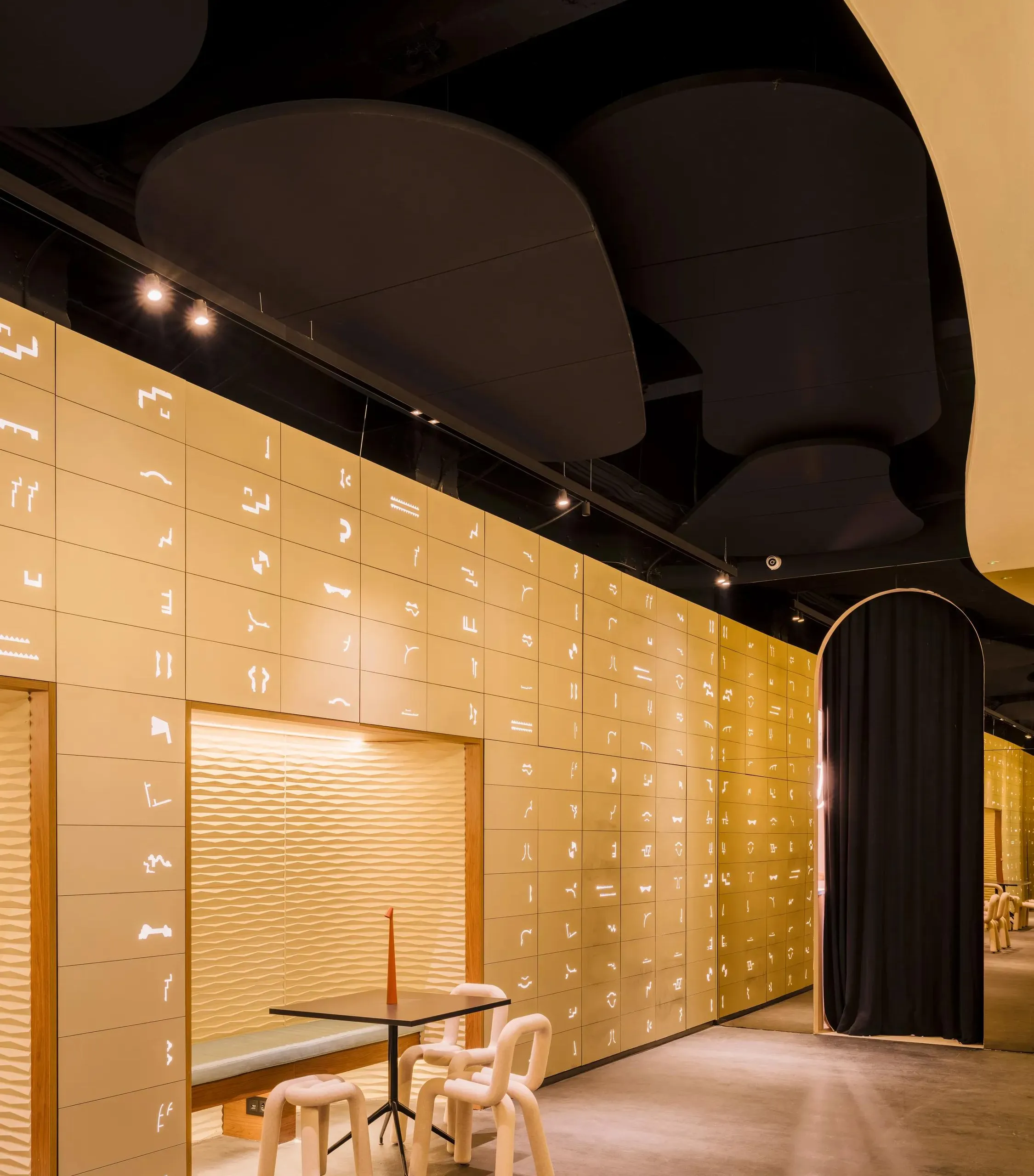

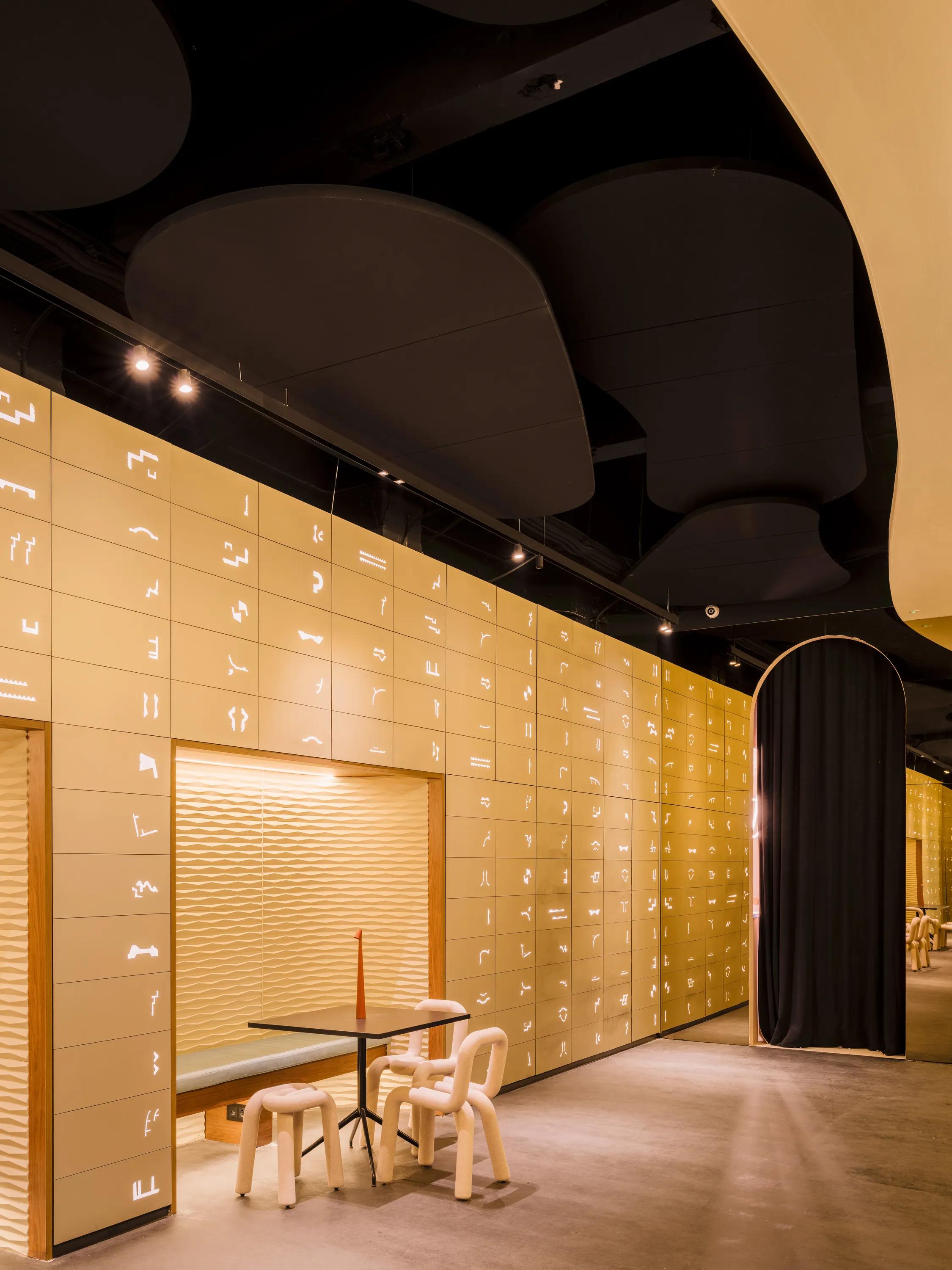

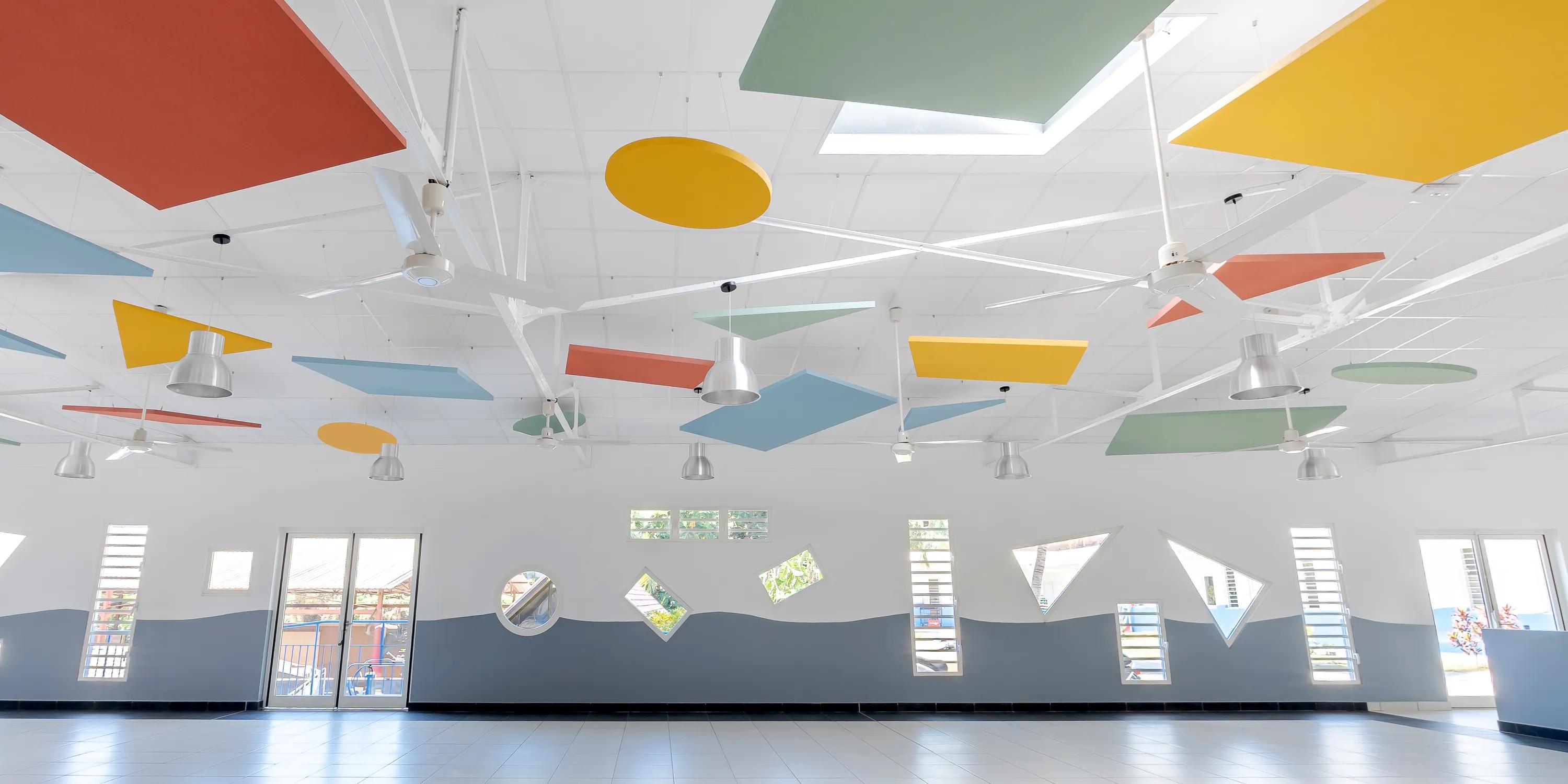

Case studies featuring Rockfon® Eclipse Customised

1/3

Recommended application areas

Office

Meeting Room
Open Plan Office
Reception
Canteen

Education

Auditorium
Library
Canteen

Retail

Boutiques
Convention Centre
Department Store
Shopping Centre
Showroom

Leisure

Auditorium / Concert Hall
Museum
Restaurant / Pub / Nightclub
Stadium
Hotel

Back

Sound absorption details

Aeq, Equivalent Sound Absorption Area per item (m2 Sabin)
Shape Length Distance Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz
Circle 1160mm 2000mm 500mm 0.40 0.80 1.50 1.90 2.00 2.00
Circle 1160mm 2000mm 13mm 0.30 0.90 1.40 1.50 1.40 1.30
Square 1160mm 2000mm 500mm 0.60 1.30 1.90 2.60 2.70 2.60
Square 1160mm 300mm 500mm 0.50 1.10 1.80 2.20 2.40 2.30
Square 1160mm 2000mm 13mm 0.30 0.90 1.80 2.00 1.80 1.60

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve
Back
Sound curve

Other performances

Compare
Reaction To Fire Reaction To Fire A2-s1,d0 (EN 13501-1)
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion Colour-dependent
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH.
No visible deflection in high humidity.
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Cleaning Cleaning Vacuum
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Environment Environment Fully recyclable stone wool
Indoor Environment Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment.
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Back
Back
Back

Full range

Edge Shape Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
A Free-form 0 x 0 40 0.00 0 Rockfon® System Eclipse Island

Recommended installation system

Frameless island system Rockfon® System Eclipse Island I deal solution for rooms where a suspended ceiling is technically or aesthetically not suitable

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Triangle 1160 x 1005 40 0.00 0 Rockfon® System Eclipse Island

Recommended installation system

Frameless island system Rockfon® System Eclipse Island I deal solution for rooms where a suspended ceiling is technically or aesthetically not suitable

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Hexagon 1160 x 1006 40 0.00 0 Rockfon® System Eclipse Island

Recommended installation system

Frameless island system Rockfon® System Eclipse Island I deal solution for rooms where a suspended ceiling is technically or aesthetically not suitable

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Circle 1160 x 1160 40 0.00 0 Rockfon® System Eclipse Island

Recommended installation system

Frameless island system Rockfon® System Eclipse Island I deal solution for rooms where a suspended ceiling is technically or aesthetically not suitable

Sound absorption details

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Square 1160 x 1160 40 0.00 0 Rockfon® System Eclipse Island

Recommended installation system

Frameless island system Rockfon® System Eclipse Island I deal solution for rooms where a suspended ceiling is technically or aesthetically not suitable

Sound absorption details

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Rectangle 1760 x 1160 40 0.00 0 Rockfon® System Eclipse Island

Recommended installation system

Frameless island system Rockfon® System Eclipse Island I deal solution for rooms where a suspended ceiling is technically or aesthetically not suitable

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A Circle 800 x 800 40 0.00 0 Rockfon® System Eclipse Island

Recommended installation system

Frameless island system Rockfon® System Eclipse Island I deal solution for rooms where a suspended ceiling is technically or aesthetically not suitable

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2

Free-form sizes bigger than 2400 length or 1200 width will be produced as two halves.
Contact us for special shapes, sizes, two-sided painted Eclipse Customised, lead times and minimum order quantities.
