Rockfon MediCare® Air

25mm-thick ISO Class 3 acoustic ceiling tiles with an airtight high-performance membrane for pressurised healthcare environments, compatible with multiple disinfection protocols.
Order Sample
Download Datasheet
Download Datasheet
Back

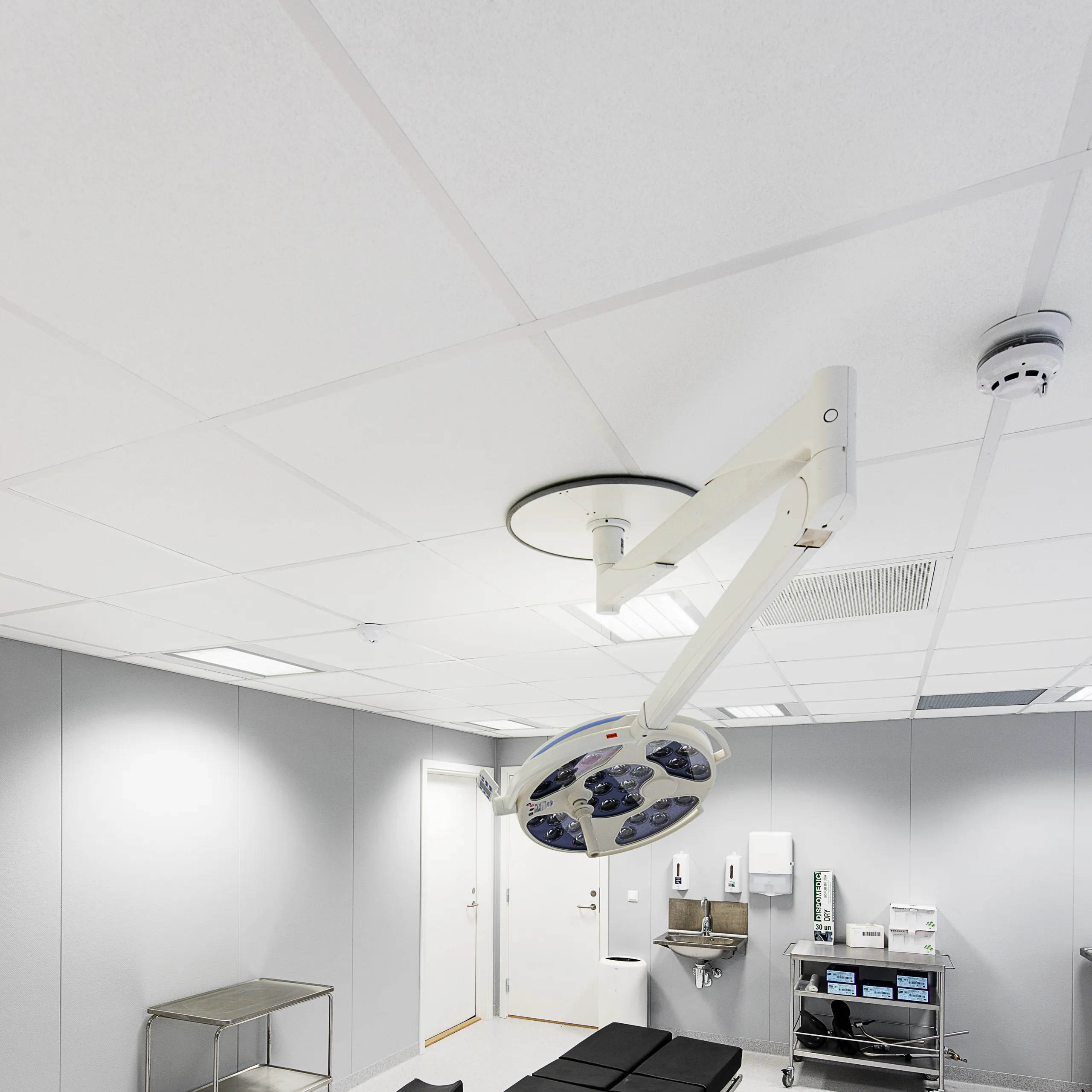

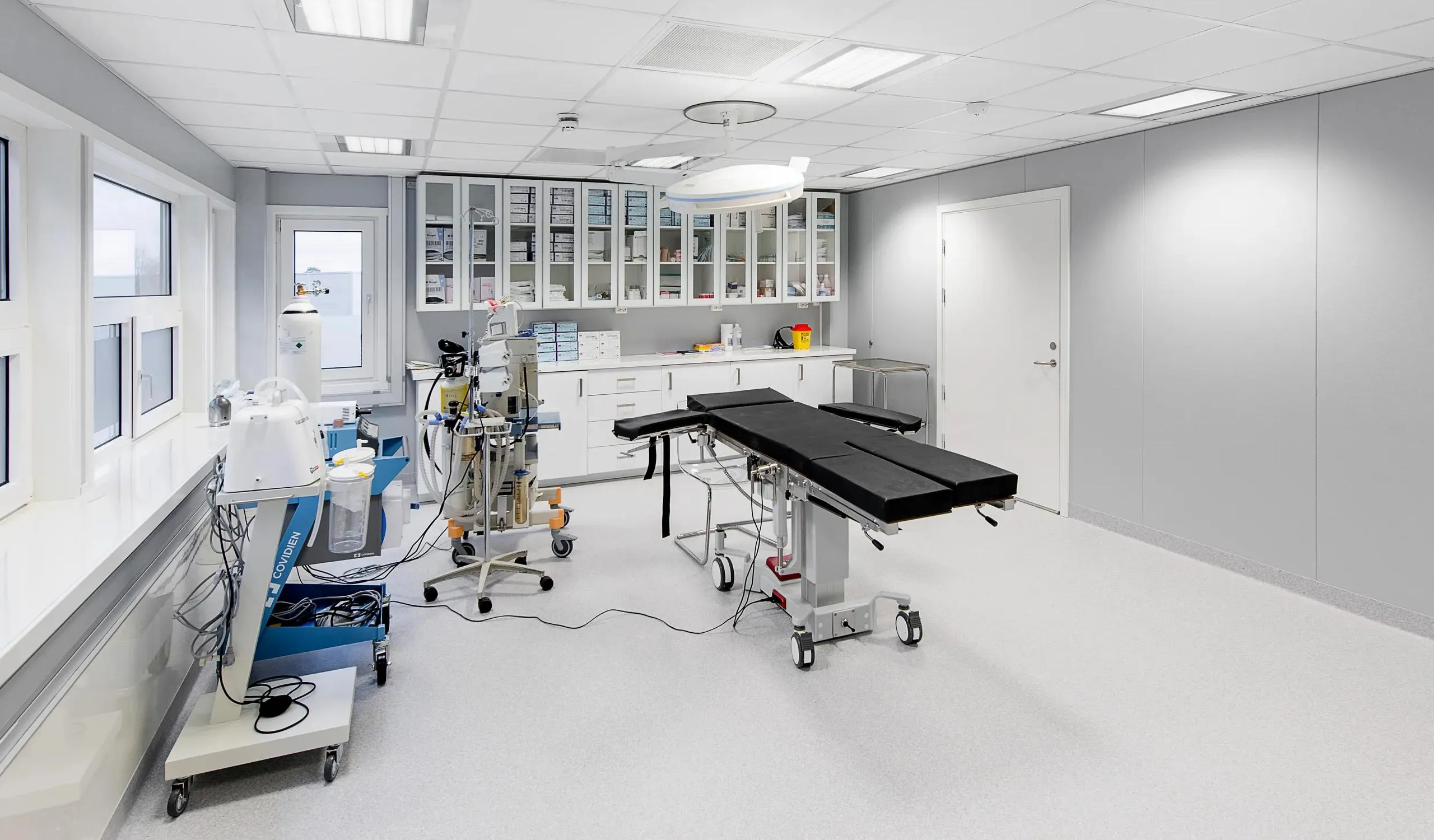

Specifically designed for use in pressurised healthcare environments where differential air pressure is required to prevent infection spreading eg. surgeries, recovery rooms, intensive care, etc.
Does not contribute to the growth of MRSA, low particle emission (ISO Class 3)
Can be cleaned with standard detergents and effectively disinfected by dry steam cleaning
Class B sound absorption and highest fire safety (Class A1)

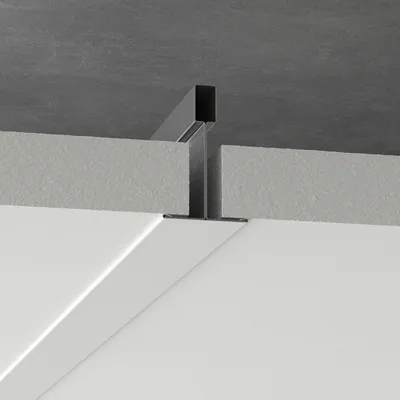

Basic A-edge tile available in standard dimensions

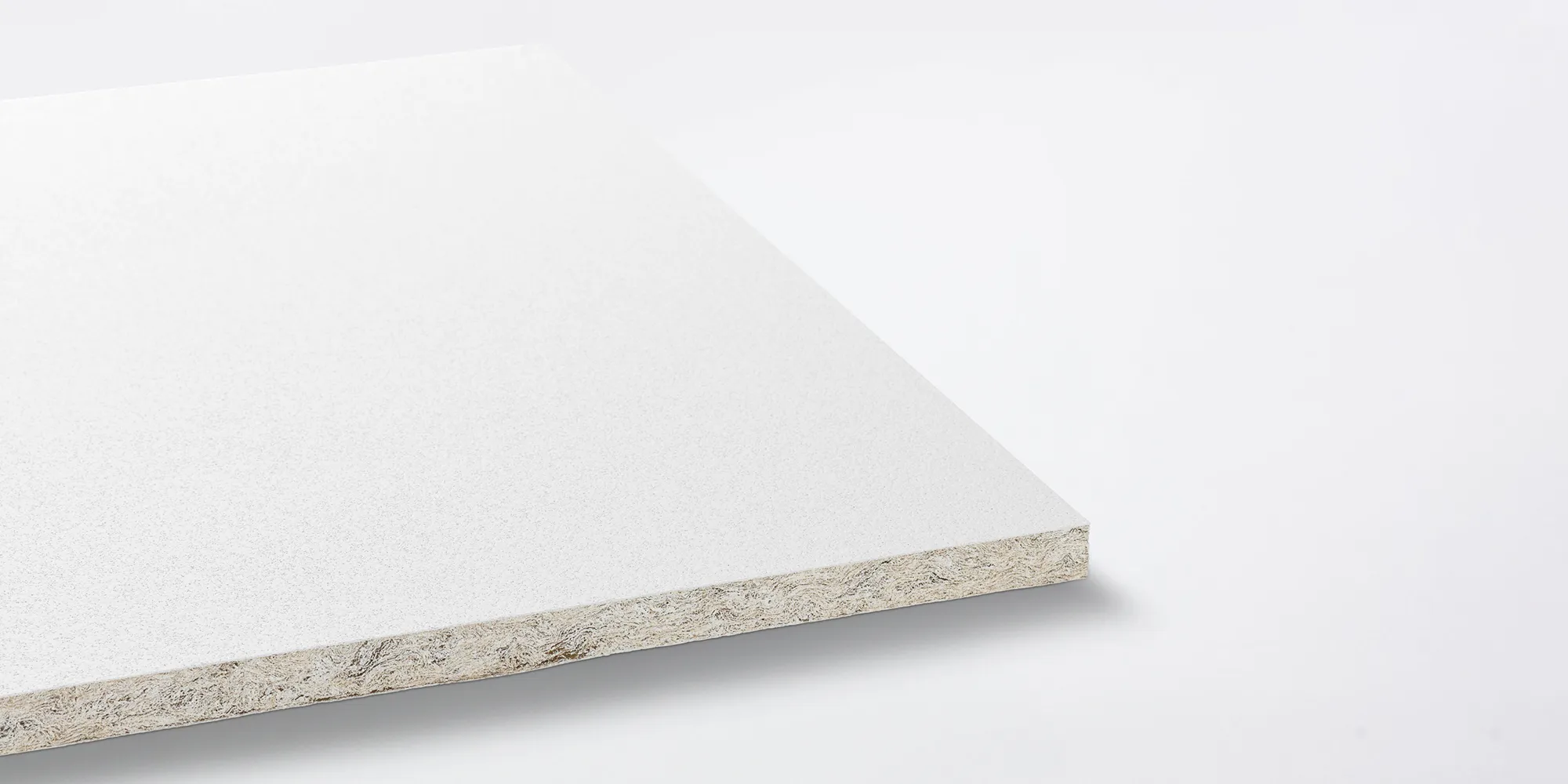

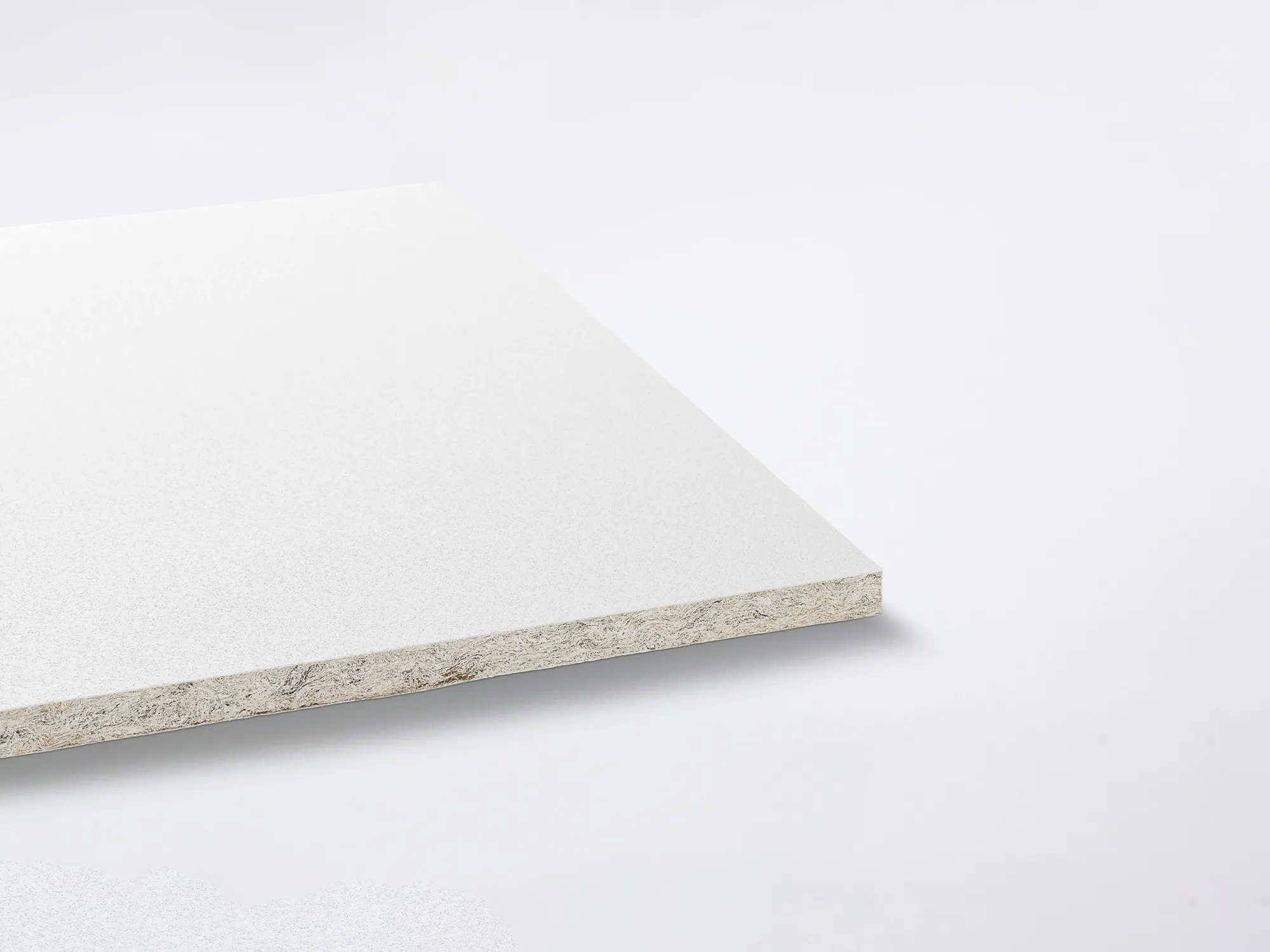

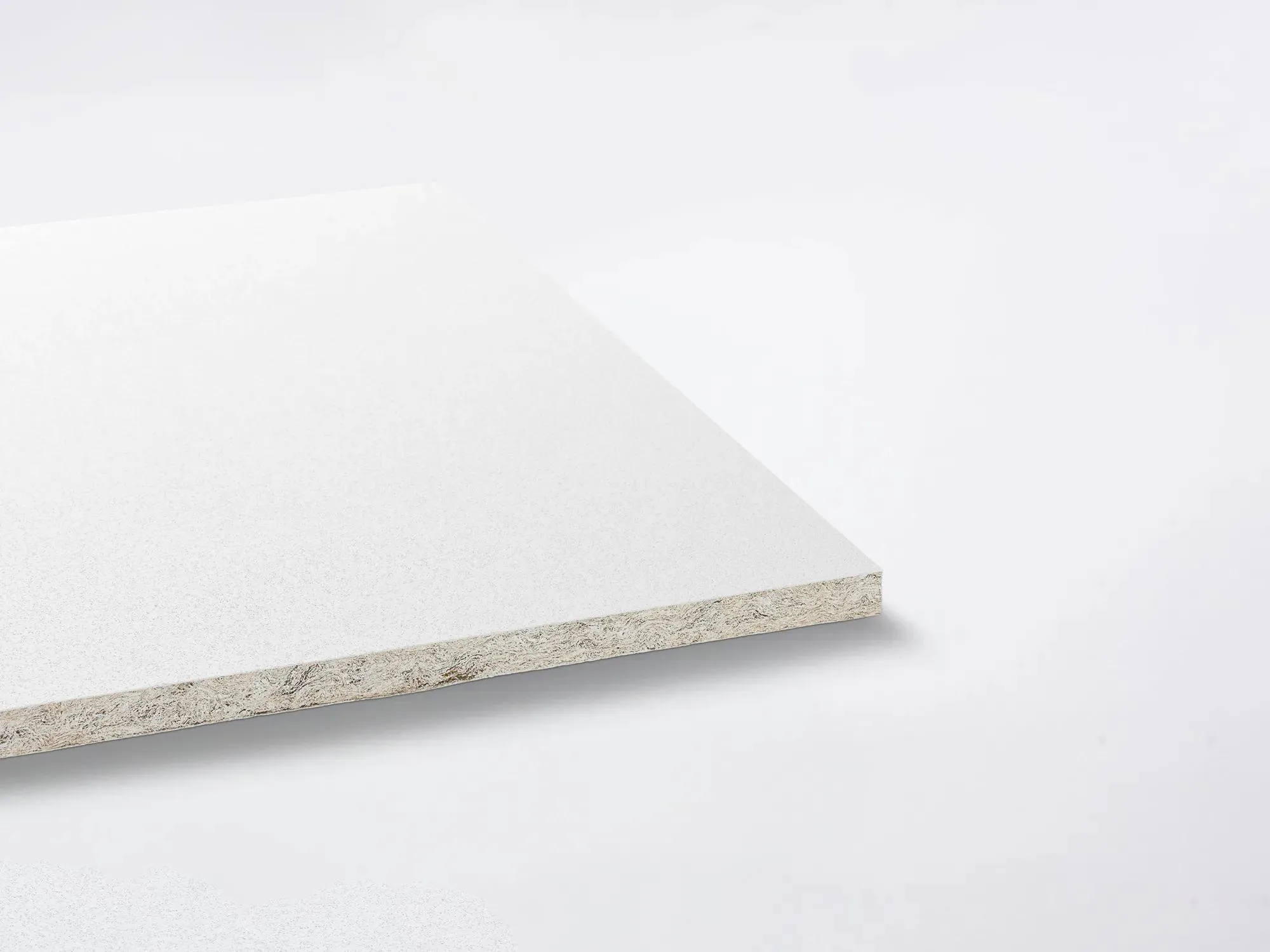

Stone wool tile
Visible side: micro-textured white painted, water repellent fleece
Rear side: airtight high performance membrane
Sealed edges

Color

White

ColorWhite
Color GroupWhites
NCSNCS S 0500-N
Light reflection85

Order Sample

Quantity:
1

Edge

Select an edge
Select an edge
A24

Recommended application areas

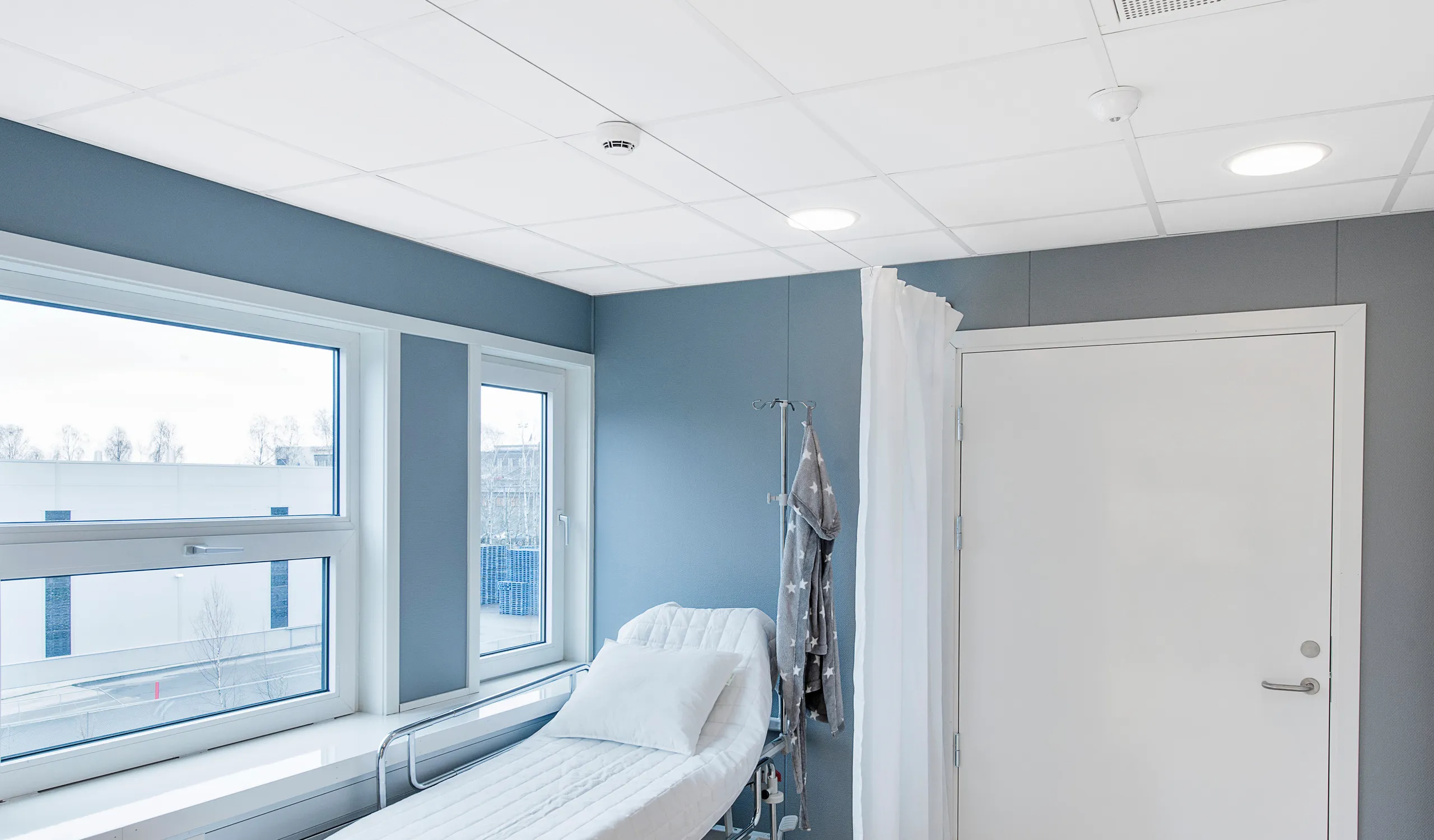

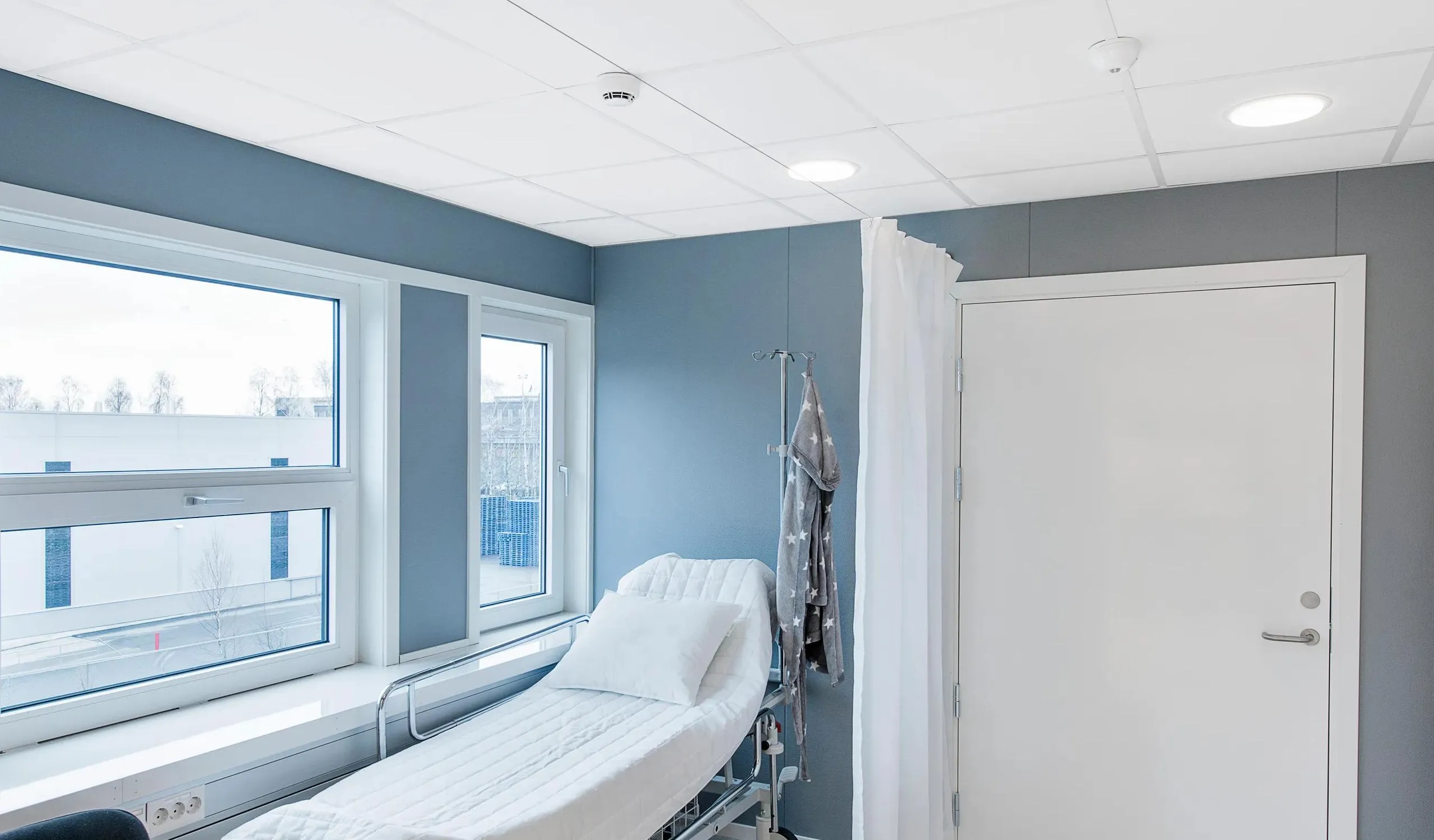

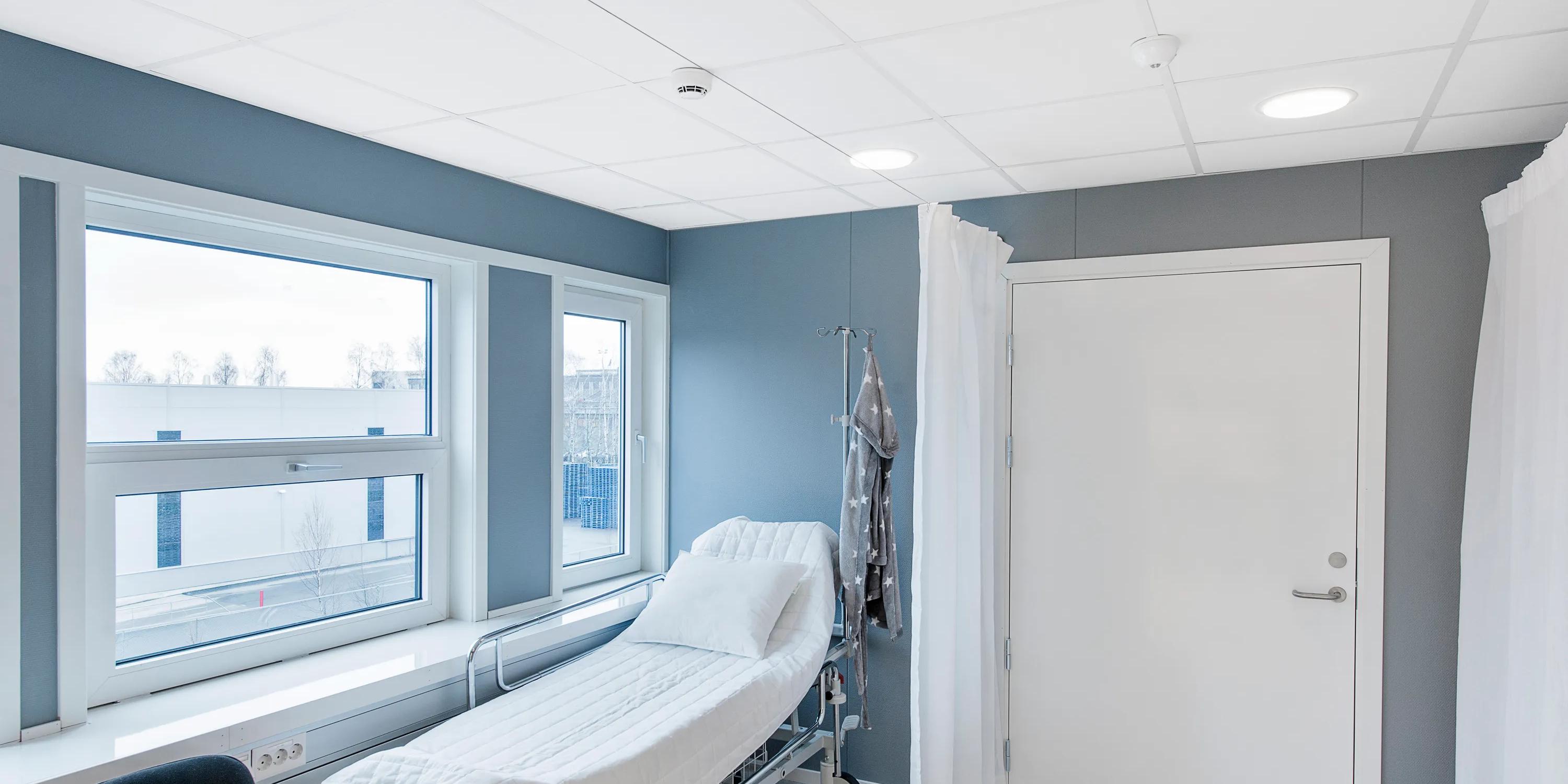

Healthcare

Laboratory

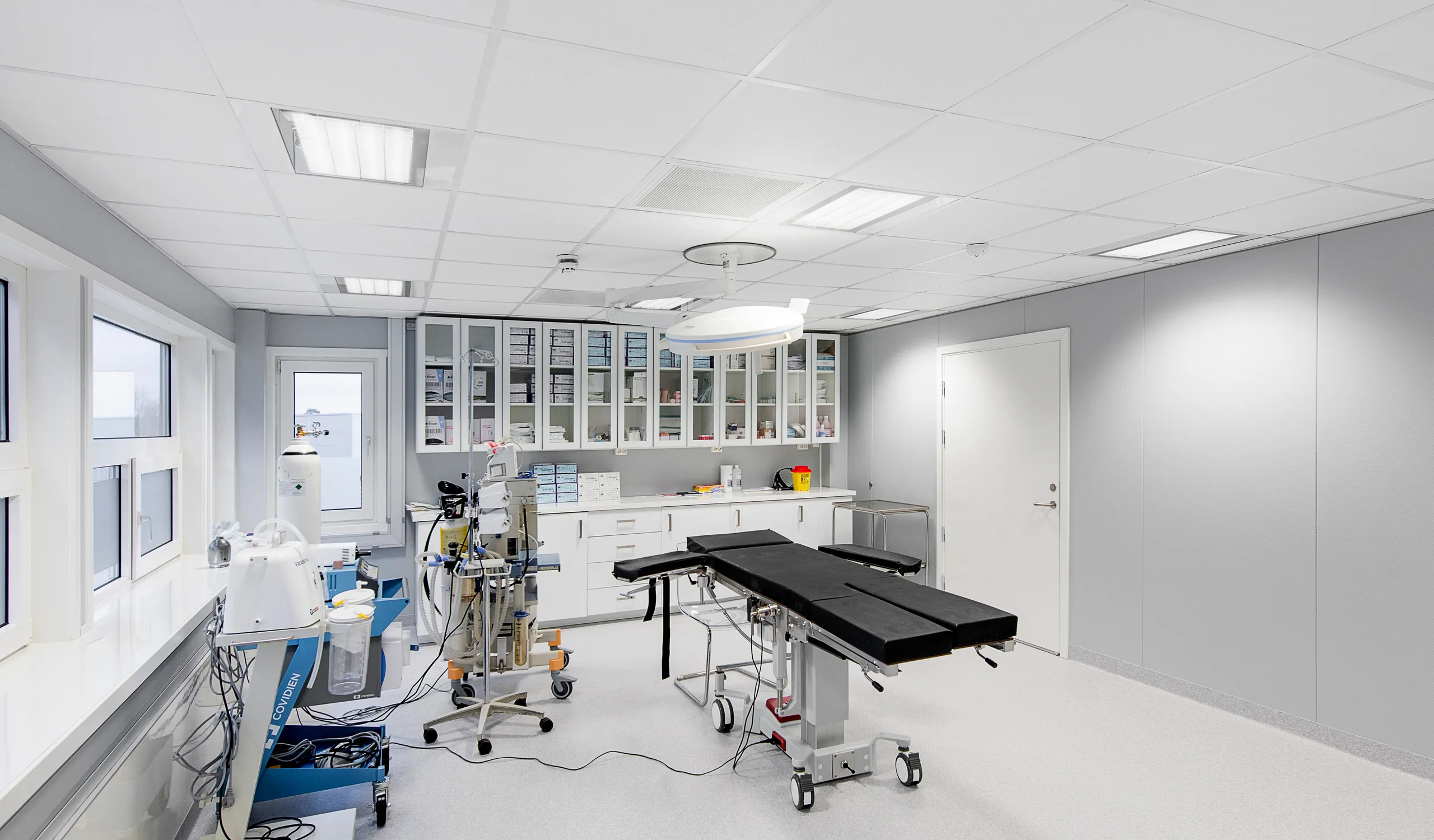

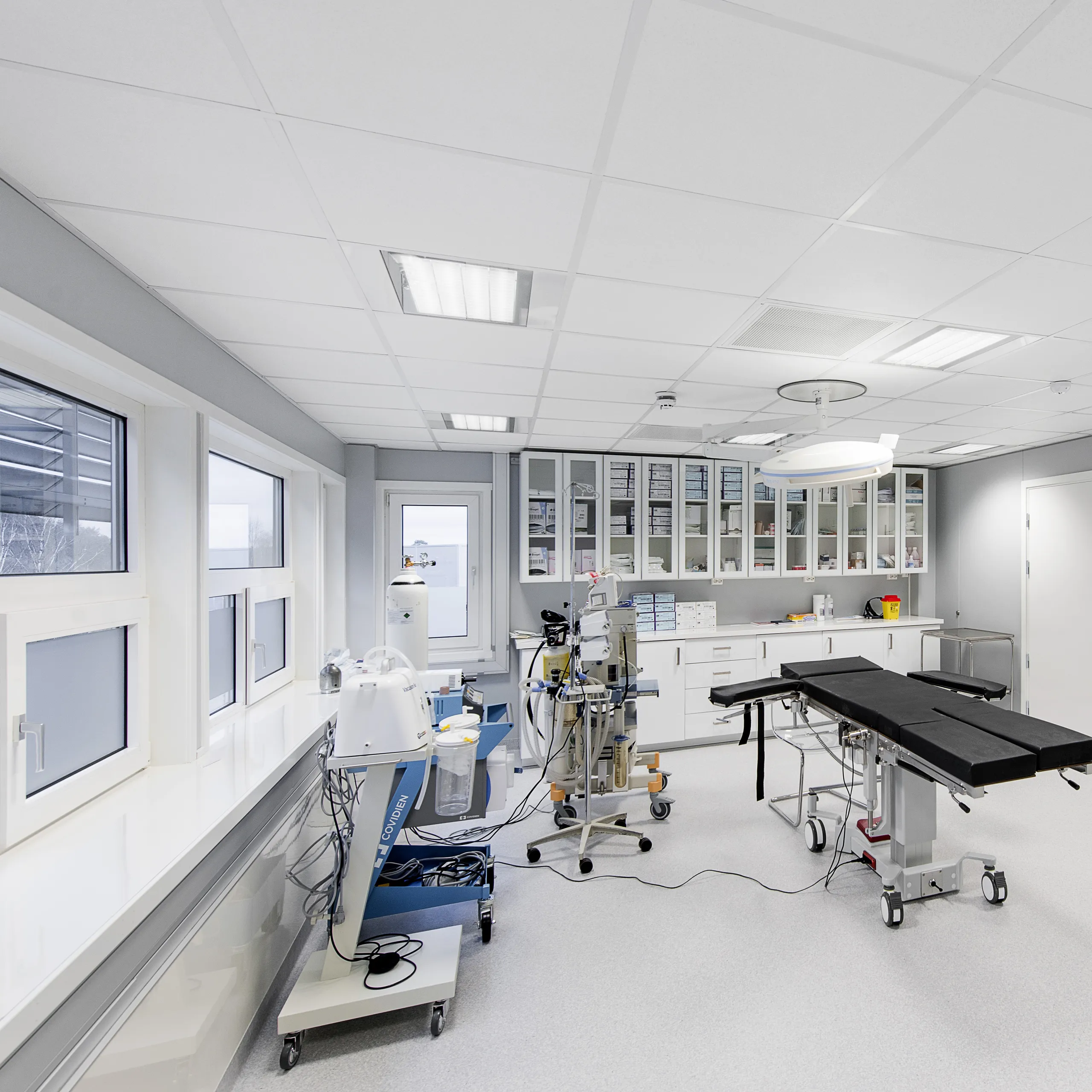

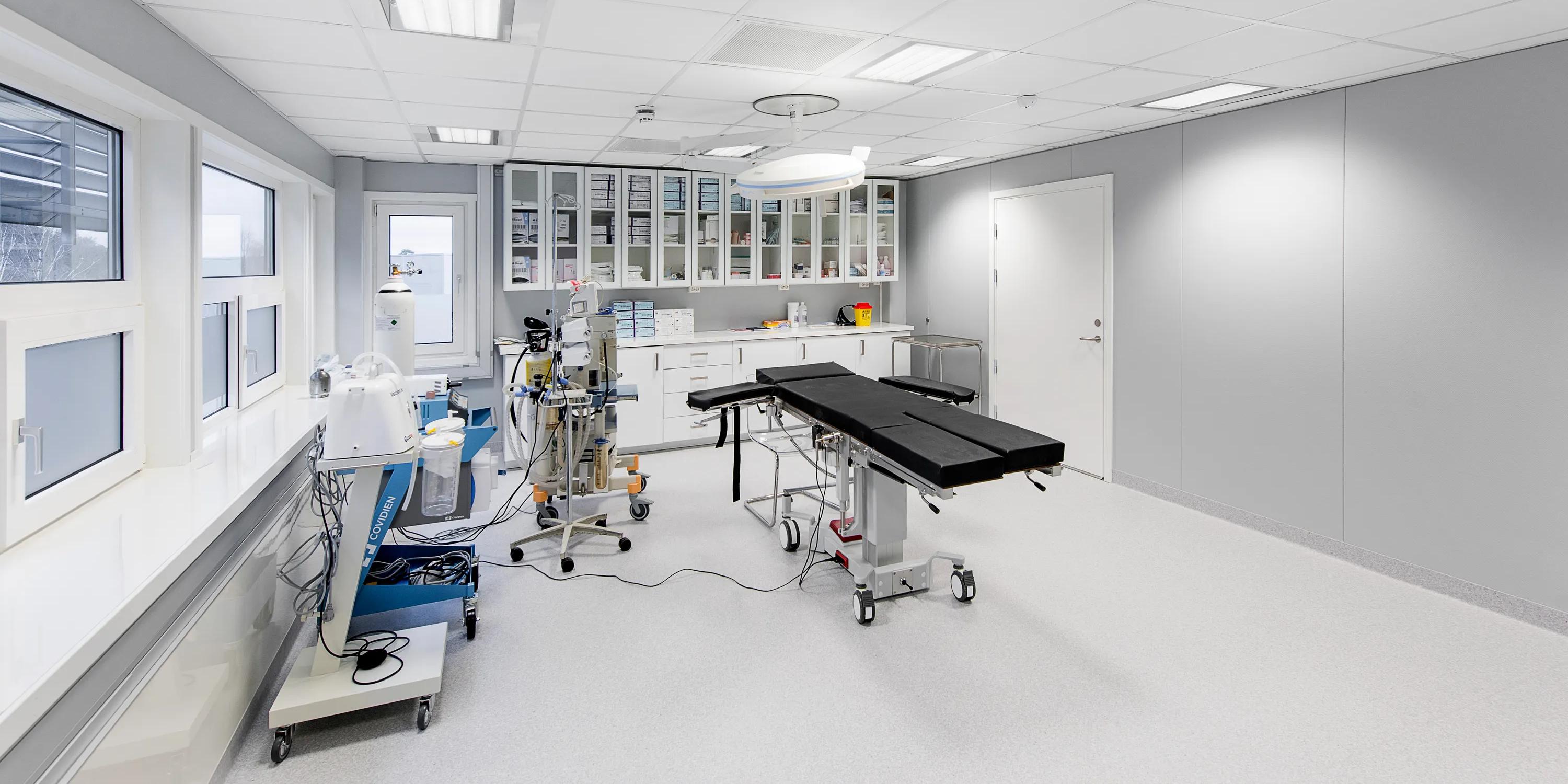

Operating Theatre

Back

Sound absorption details

Practical Sound Absorption Coefficient (αp)
Edge Thickness Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz Sound absorption class αw NRC
A24 25mm 200mm 0.55 0.50 0.80 1.00 1.00 1.00 B 0.80 0.85

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve

Other performances

Compare
Reaction To Fire Reaction To Fire A1 (EN 13501-1)
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion 85%
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH.
No visible deflection in high humidity.
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Surface Durability Surface Durability Enhanced durability and dirt resistance.
The surface of some ROCKFON products is specially treated to provide enhanced durability and dirt resistance.
Cleaning Cleaning Vacuum, Damp cloth, Steam cleaning (twice a year), Chemical resistance: resistant to diluted solutions of ammonia, chlorine, quaternary ammonium and hydrogen peroxide
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Microbiological class M1 fulfilling the requirements of Zone 4 (very high risk) defined by NF S 90-351:2013. Tested with:
- Methicillin Resistant Staphylococcus Aureus (MRSA)
- Candida Albicans
- Aspergillus Brasiliensis
The bactericidal and fungicidal effect of dry steam cleaning meets the requirements of NF EN 14561 (> 5 log10) and NF EN 14562 (> 4 log10), meaning the disinfection is very effective.
Clean Room Classification Clean Room Classification 3
Clean room classification is measured in accordance with ISO 14644-1.
Bacteriological Class M1, NF S 90-351:2013
Air Pressure Air Pressure Suitable in areas where differential pressure is required.
When used in combination with closed neoprene foam tape and:
-HDC 2 for the 25 mm tile; or
-HDC 7 for the 40 mm tile,
the air leakage rate of less than 0.5m³/h/ m²/Pa under a pressure range of 5 to 40 Pa is achieved.
The amount of hold down clips (HDC) depends on the tile dimensions and the room size/shape.
For more information please contact customer service.
Environment Environment Fully recyclable stone wool
Indoor Environment Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
The surface of some ROCKFON products is specially treated to provide enhanced durability and dirt resistance.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Microbiological class M1 fulfilling the requirements of Zone 4 (very high risk) defined by NF S 90-351:2013. Tested with:
- Methicillin Resistant Staphylococcus Aureus (MRSA)
- Candida Albicans
- Aspergillus Brasiliensis
The bactericidal and fungicidal effect of dry steam cleaning meets the requirements of NF EN 14561 (> 5 log10) and NF EN 14562 (> 4 log10), meaning the disinfection is very effective.
Back
Clean room classification is measured in accordance with ISO 14644-1.
Back
Back
Back
Back
Back

Full range

Edge Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
A24 1200 x 600 25 2.70 0 Rockfon® System MediCare T24 A, E (ECR)

Recommended installation system

Healthcare Rockfon® System MediCare T24 A, E (ECR) Elegant, unbroken ceiling expression

Sound absorption details

αw 0.80
NRC 0.85
Sound absorption class B

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 11
Area Per Pack 7.92 m2
A24 600 x 600 25 2.70 0 Rockfon® System MediCare T24 A, E (ECR)

Recommended installation system

Healthcare Rockfon® System MediCare T24 A, E (ECR) Elegant, unbroken ceiling expression

Sound absorption details

αw 0.80
NRC 0.85
Sound absorption class B

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack 22
Area Per Pack 7.92 m2
Back

Recommended installation system

Healthcare Rockfon® System MediCare T24 A, E (ECR) Elegant, unbroken ceiling expression

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 11
Area Per Pack 7.92 m2
Back

Recommended installation system

Healthcare Rockfon® System MediCare T24 A, E (ECR) Elegant, unbroken ceiling expression

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack 22
Area Per Pack 7.92 m2
