Rockfon Hub®
The customisable room-in-room acoustic zone complete with Rockfon Color-all® or Rockfon Blanka® tiles in a softly rounded, felt-covered floating ceiling island.
- Inspiring design
- Quality acoustics
- Setup guidance
Overview

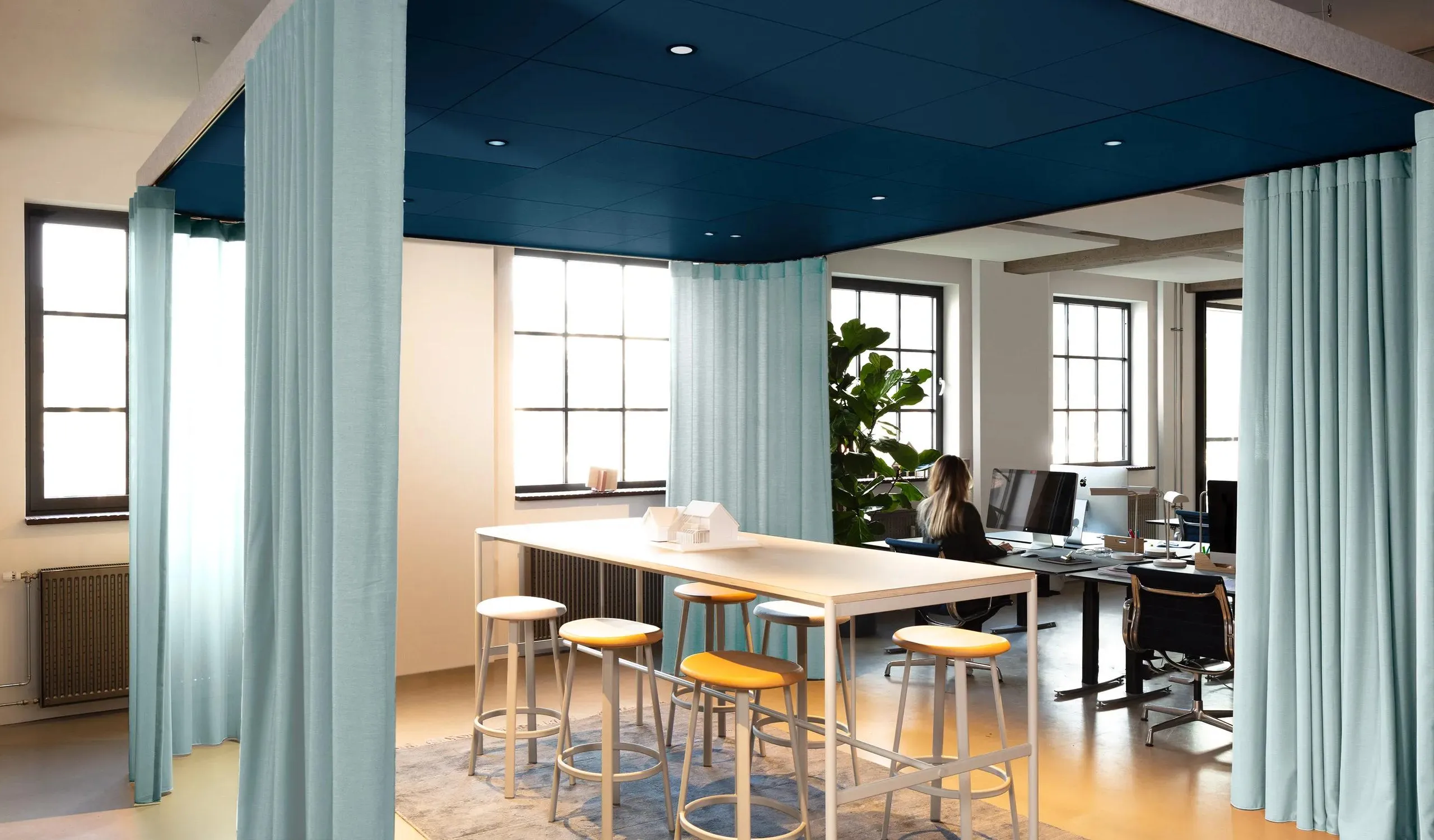

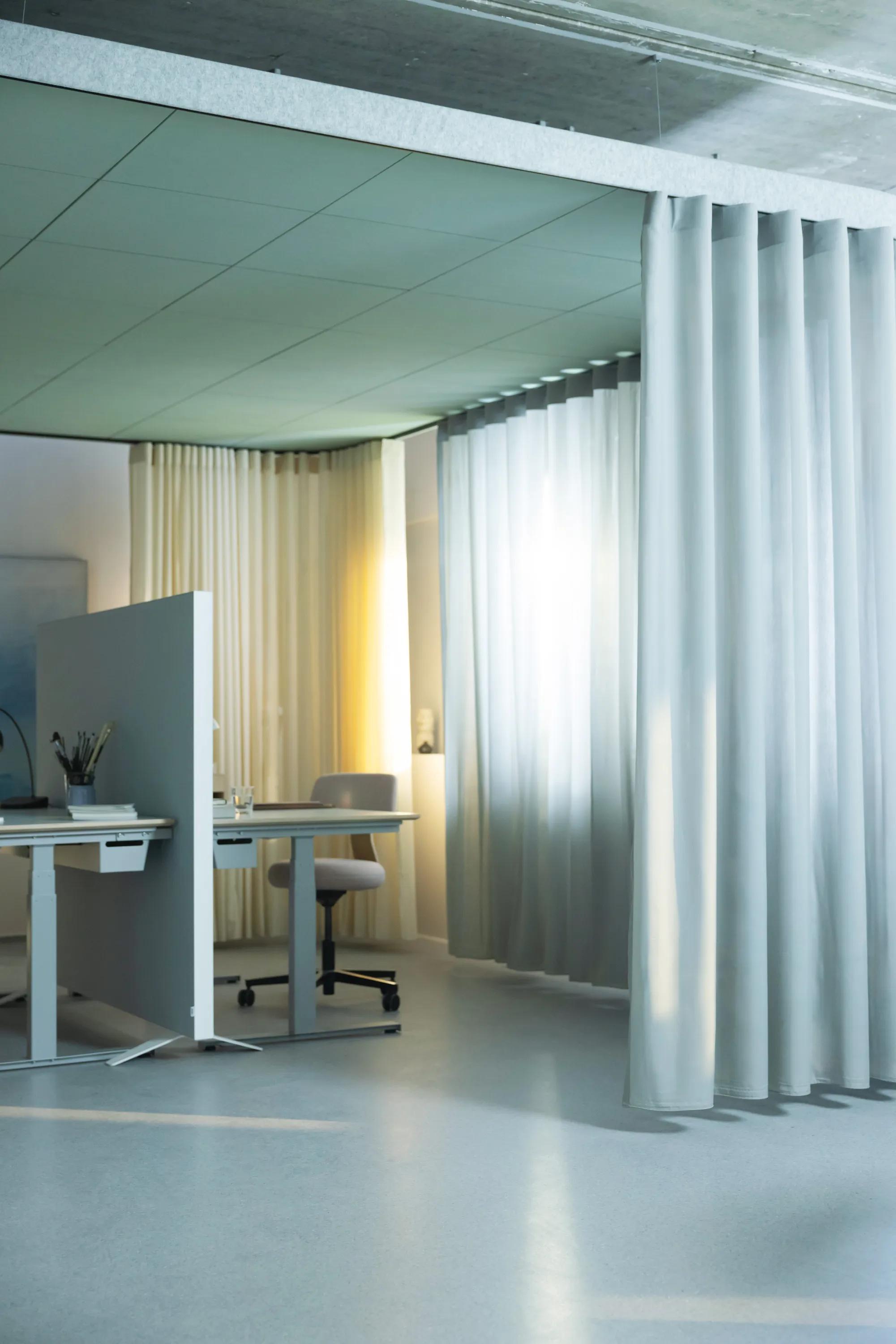

From open plan to open choice. Featuring a suspended ceiling island, Rockfon Hub is a multipurpose acoustic zone that can be simply curtained off when needed.
Experience the difference of Rockfon Hub®
:format(webp):focal(3155x2629:3156x2630)?v=1764059989875)

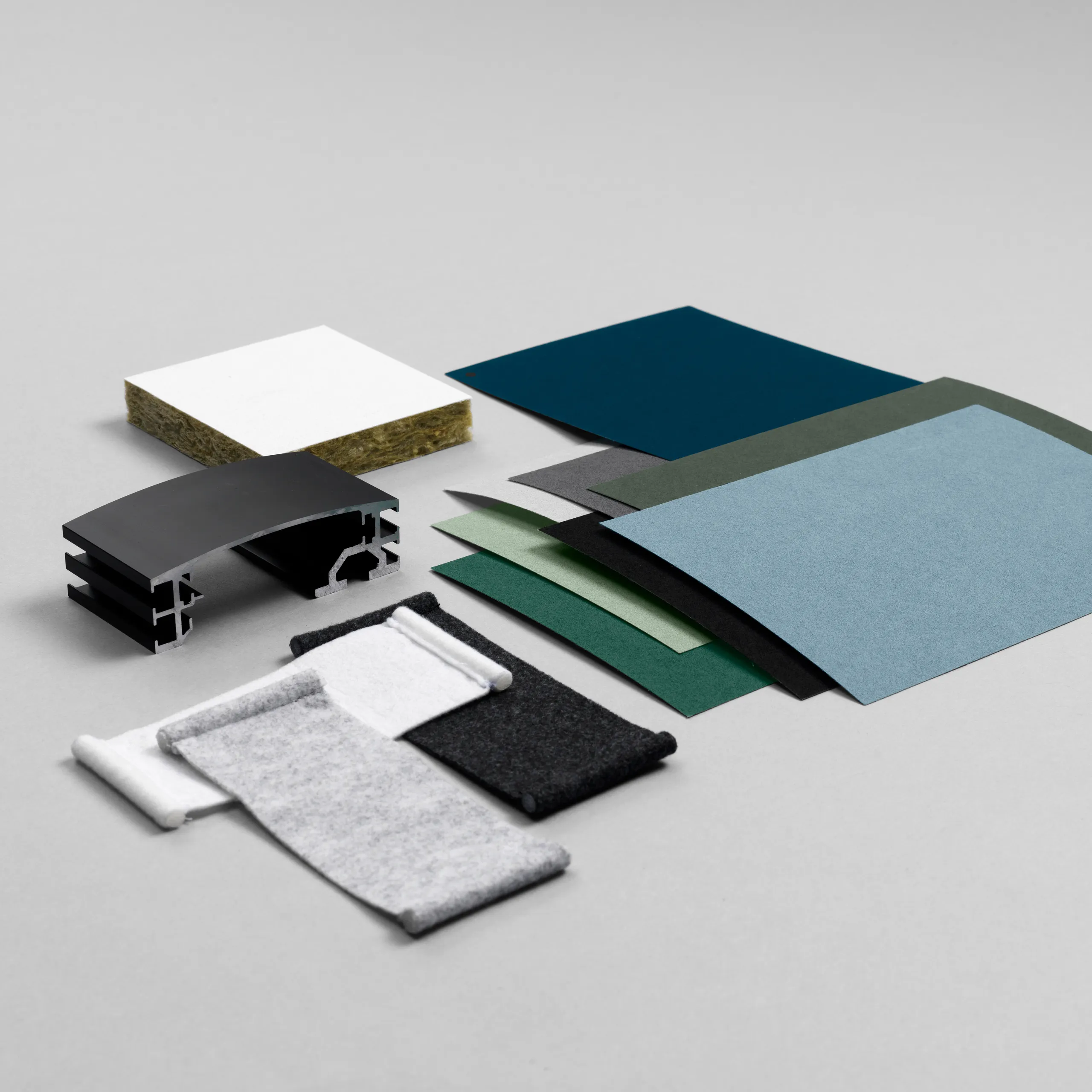

Shape any design.
Make Rockfon Hub your own by personalising its dimensions, ceiling tile colours, and optional frame felt cover. Complete its cosiness with mood lighting and curtains.
:format(webp):focal(2165x992:2166x993)?v=1764059987105)

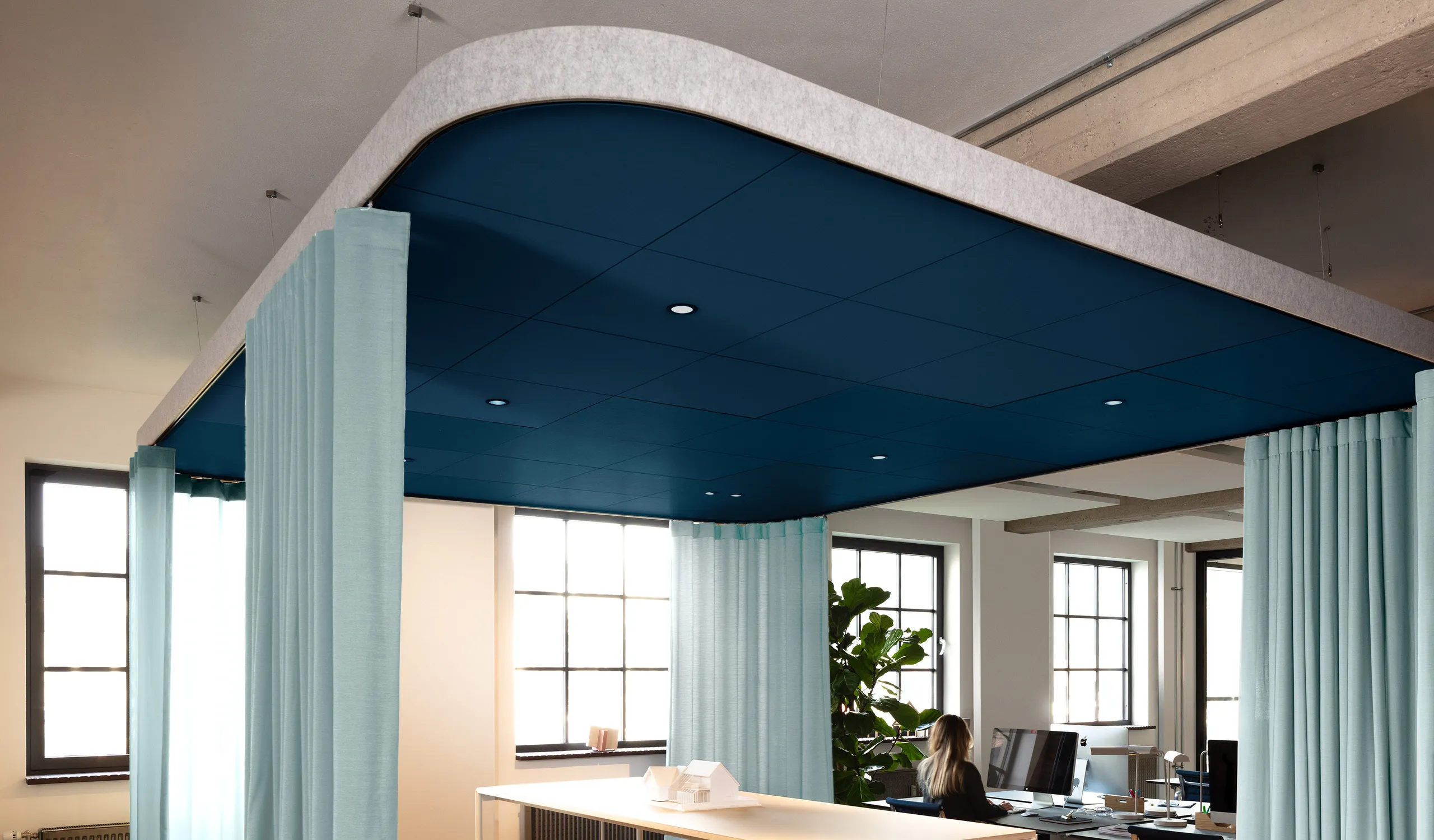

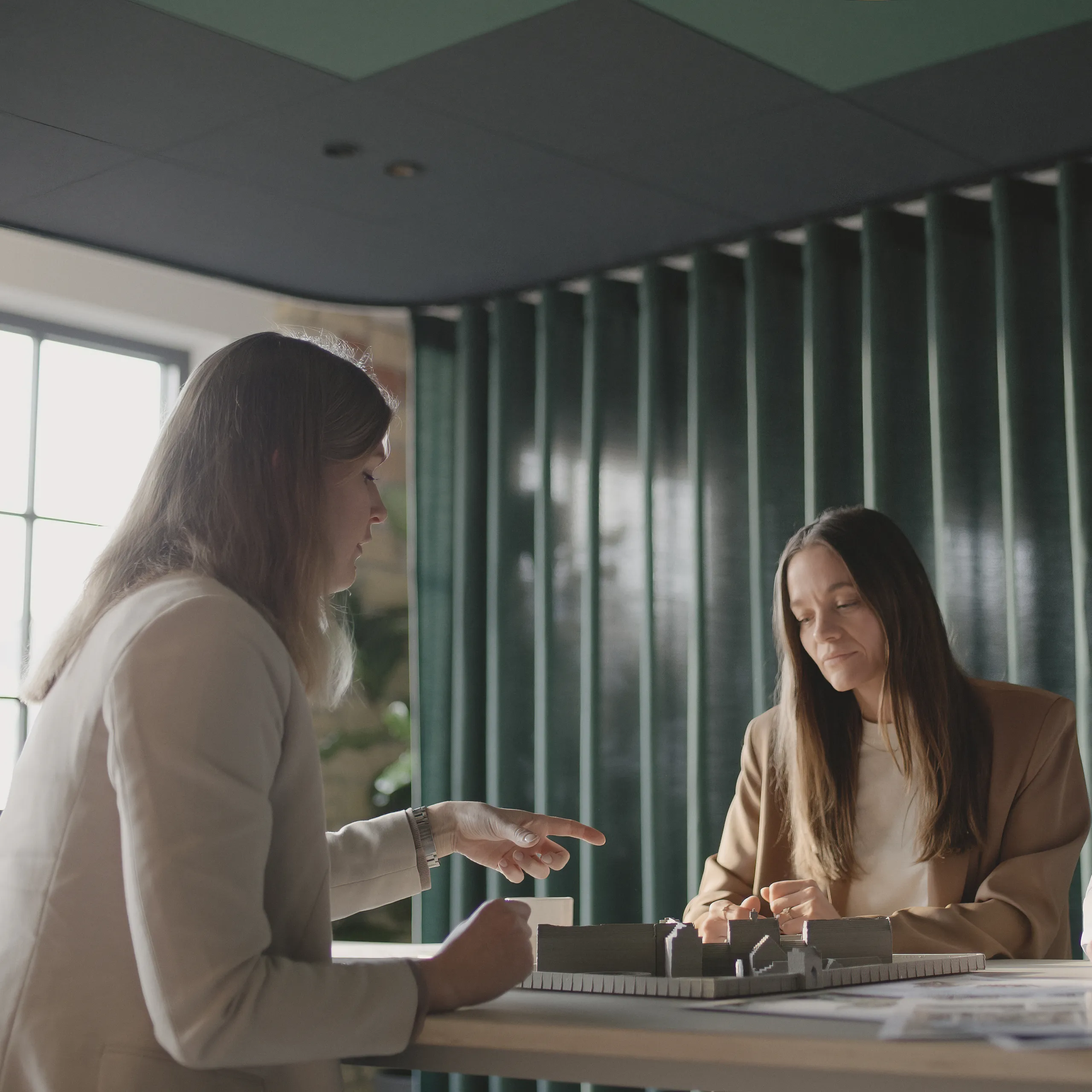

Optimised acoustics.
Choose from two acoustic ceiling tile solutions – Rockfon Blanka® or Rockfon Color-all® – both with the Class A sound absorption of a stone wool core.
:format(webp):focal(4045x3447:4046x3448)?v=1764059972993)

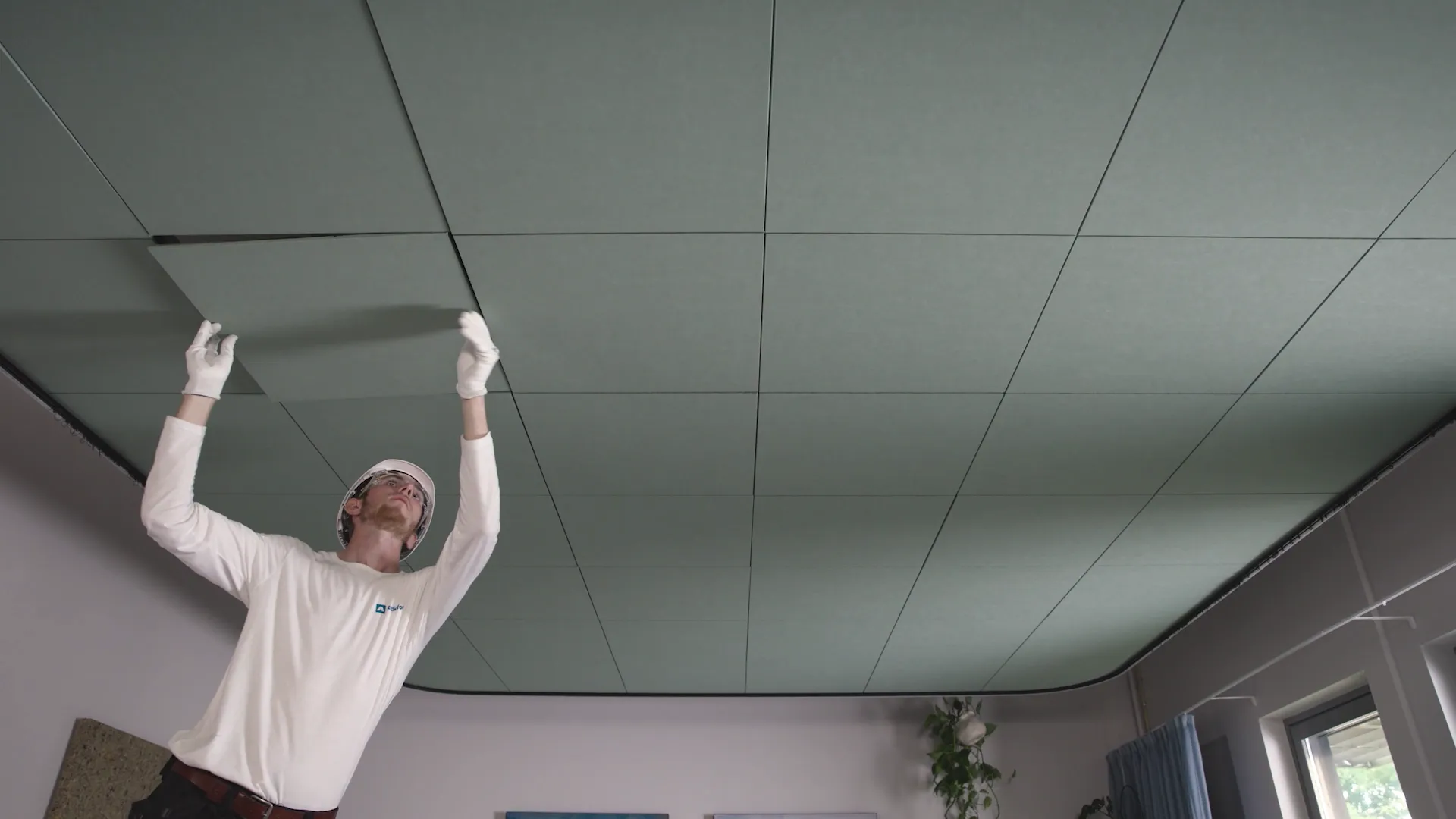

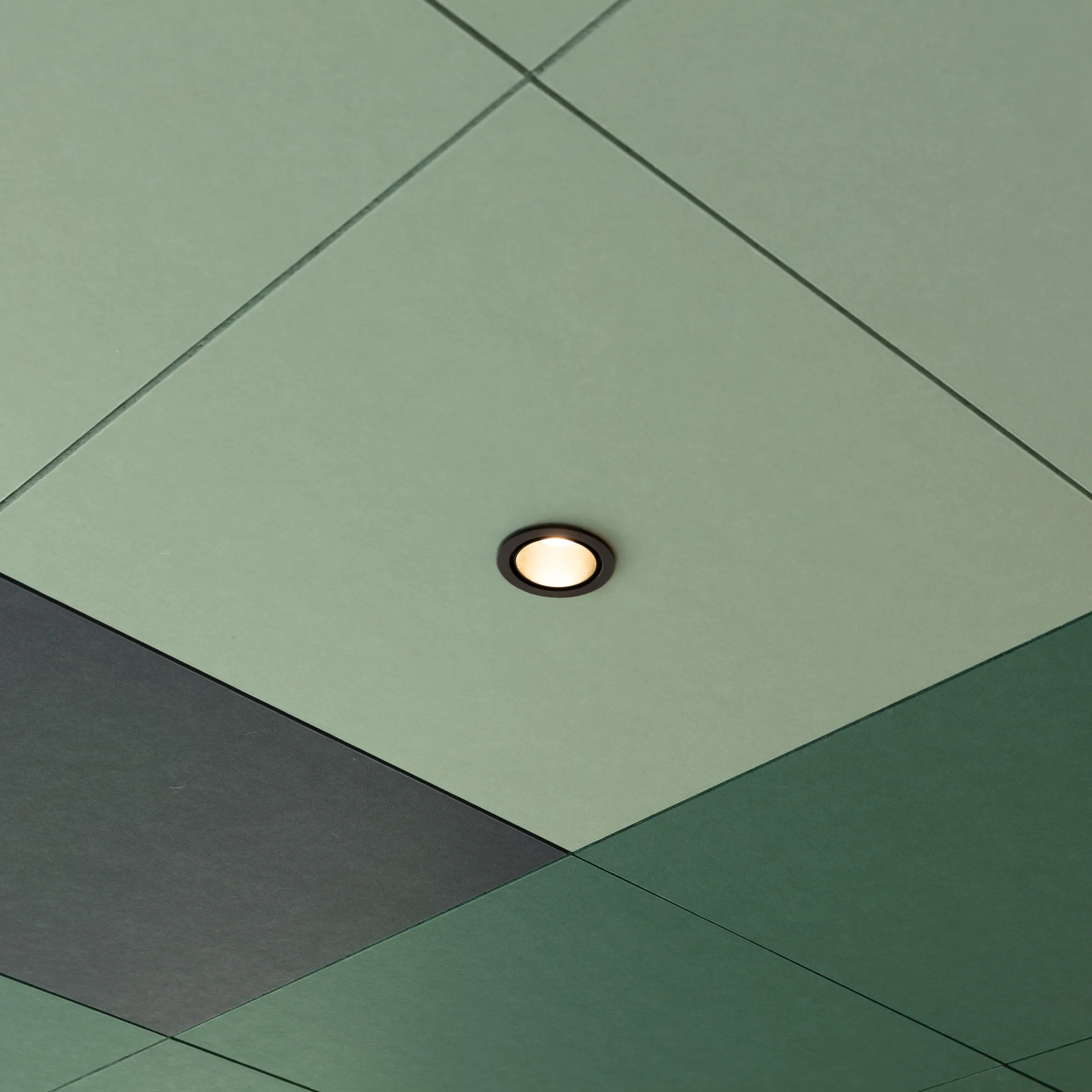

Convenient delivery.
Rockfon Hub is delivered as a plug-and-play kit with all ceiling components included for delivery and installation that is efficient from start to finish.
Specifications
For more details about Rockfon Hub® please download the product datasheet or contact us.
:format(webp))
BlackRAL 9011:format(webp))
WhiteRAL 9003
:format(webp))

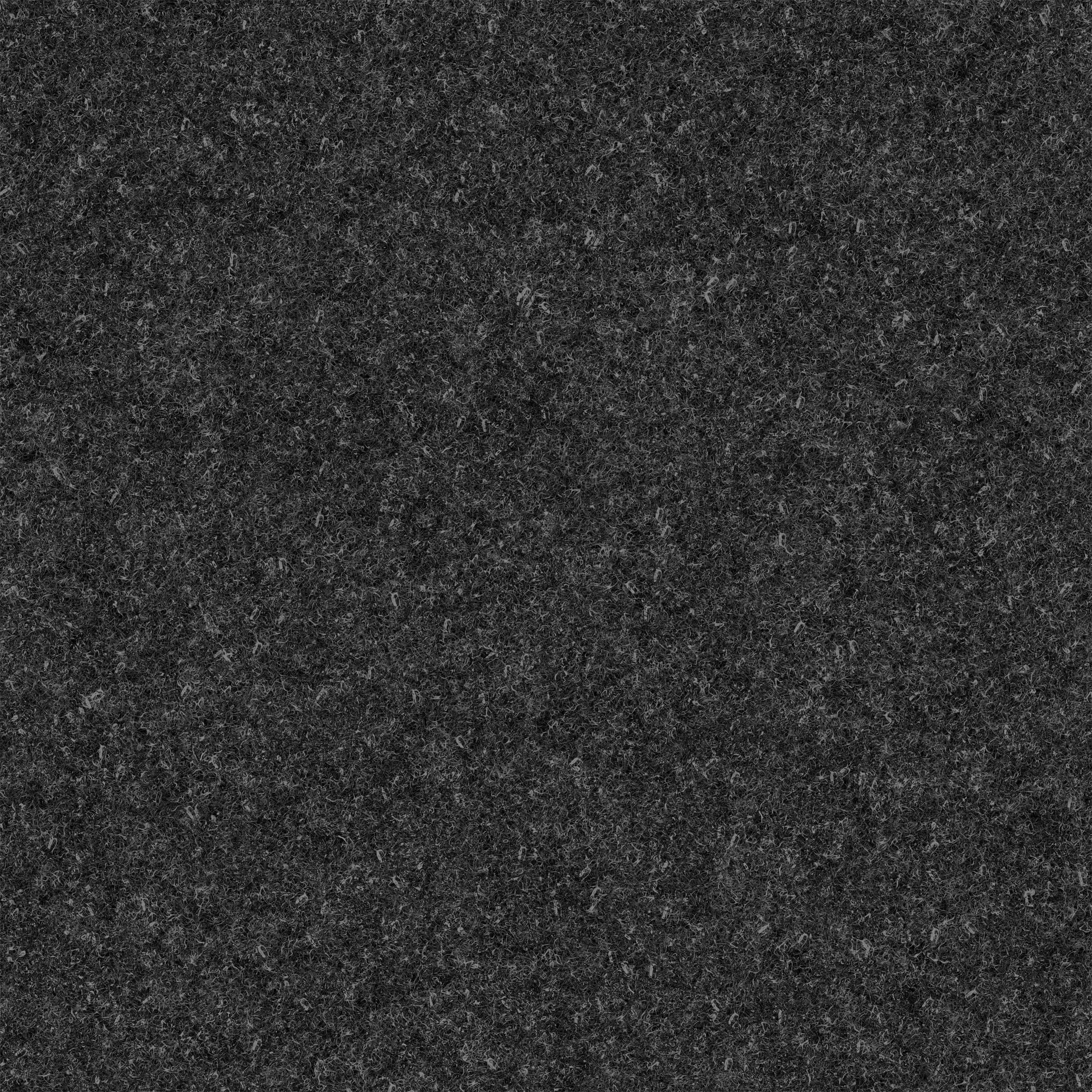

Felt cover dark grey:format(webp))
Felt cover light grey:format(webp))
Felt cover white
:format(webp))
FreshNCS S 2010-B10G:format(webp))
AzureNCS S 3020-B:format(webp))
StormNCS S 6020-R90B:format(webp))
SpaceNCS S 7020-B:format(webp))
SandalwoodNCS S 2010-Y60R:format(webp))
ChalkNCS S 2005-Y40R:format(webp))
LinenNCS S 4005-Y50R:format(webp))
HempNCS S 3005-Y20R:format(webp))
CorkNCS S 4010-Y30R:format(webp))
EarthNCS S 5010-Y50R:format(webp))
ClayNCS S 5005-G80Y:format(webp))
EbonyNCS S 8505-Y80R
3000x4800Small
3600x4200Medium
4800x4800Large
4800x7200Extra Large
(tiles and grid components)
Certifications
CE Mark
Indoor Climate label
Class M1
Sound absorption table
| Practical Sound Absorption Coefficient (αp) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TestedProductName | Edge | Thickness mm | Suspension height mm | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | Sound absorption class | αw | NRC | |
| Blanka | X | 22 | 200 | 0.55 | 0.85 | 0.95 | 0.90 | 1.00 | 1.00 | A | 0.95 | 0.95 | |
| Blanka | X | 22 | 1000 | 0.55 | 0.75 | 0.90 | 1.00 | 1.00 | 1.00 | A | 0.95 | 0.95 | |
| Rockfon Color-all | X | 22 | 200 | 0.45 | 0.85 | 0.90 | 0.90 | 1.00 | 1.00 | A | 0.95 | 0.95 | |
