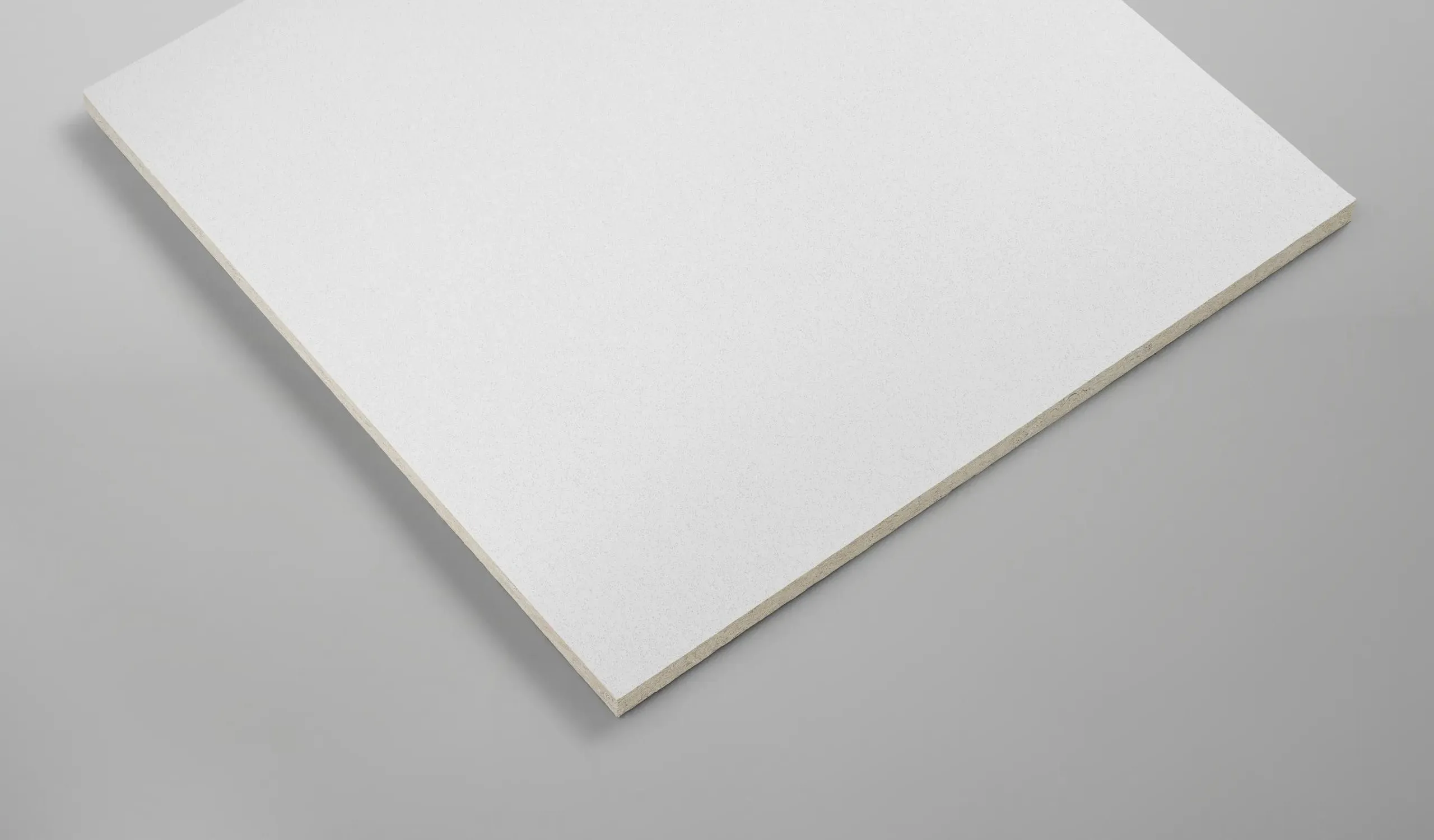

Rockfon CleanSpace® Pro

Rockfon CleanSpace Pro is a cleanable ceiling tile with good acoustic properties. Applicable in various practical and industrial room types with cleanability requirements. The product is long-lasting and withstands numerous cleaning and disinfection methods
Back

Color

White

ColorWhite
Color GroupWhites
Light reflection85

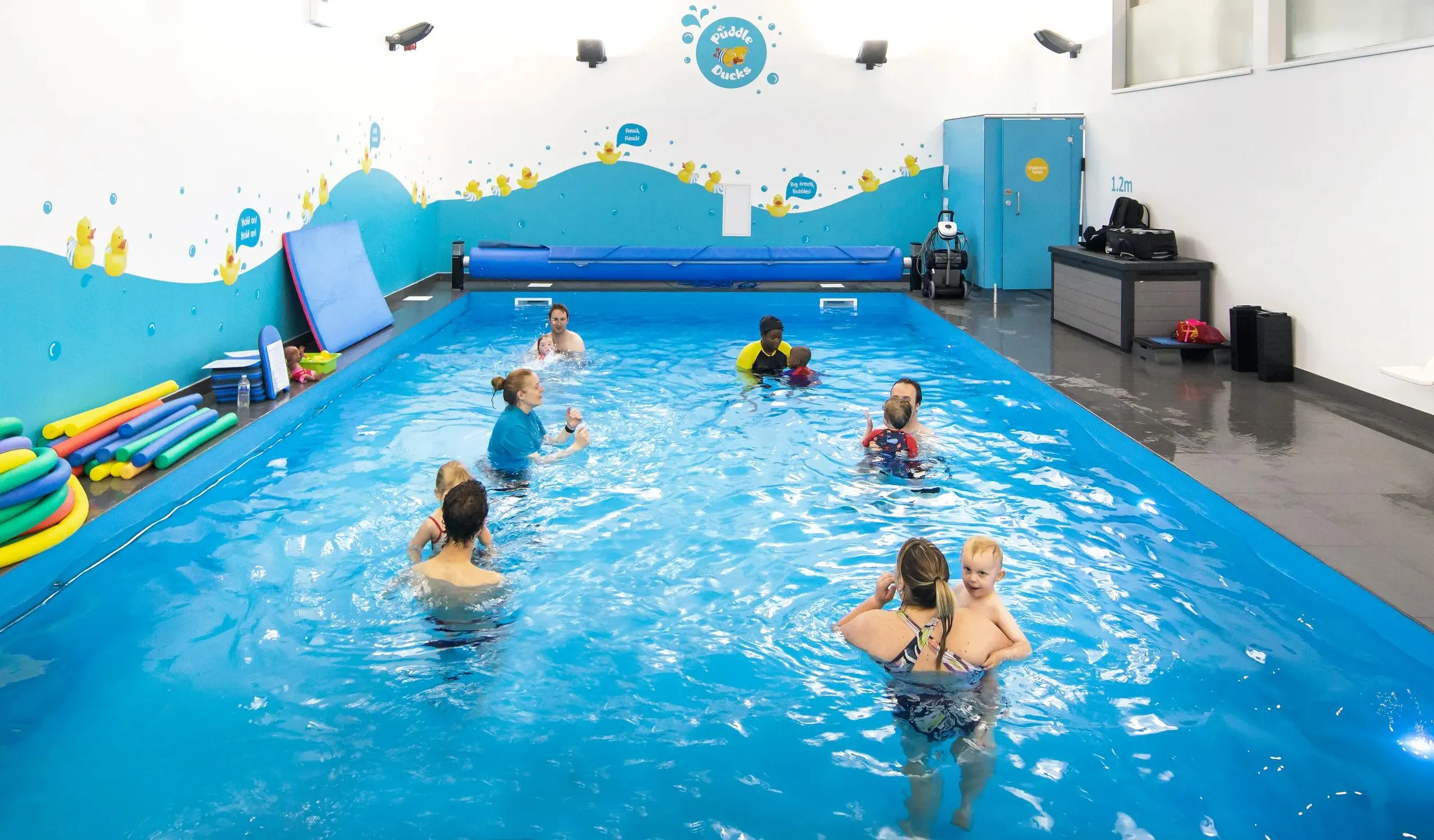

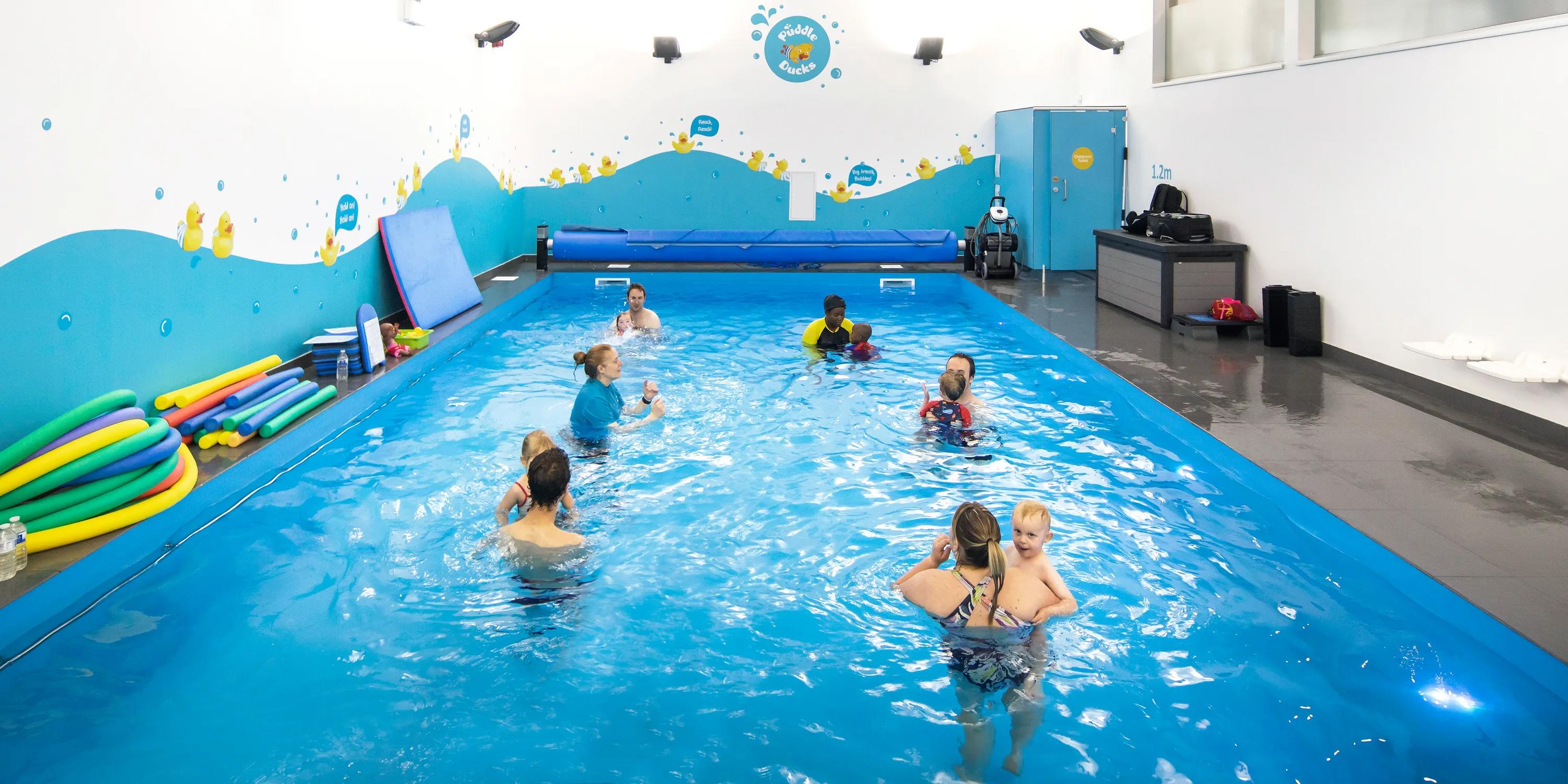

Case studies featuring Rockfon CleanSpace® Pro

1/8
Back

Sound absorption details

Practical Sound Absorption Coefficient (αp)
Edge Thickness Suspension height 125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz Sound absorption class αw NRC
A24, E24 20mm 200mm 0.40 0.90 1.00 0.95 1.00 1.00 A 1.00 0.95
A24 40mm 200mm 0.55 0.85 1.00 1.00 0.95 0.90 A 1.00 0.95

Sound absorption is measured in accordance with ISO 354.

Sound absorption data αp, αw and absorption class are calculated in accordance with ISO 11654. Sound absorption properties of islands and baffles are quantified by the equivalent sound absorption area Aeq expressed as m² per item.

Back
Sound curve
Back
Sound curve

Other performances

Compare
Reaction To Fire Reaction To Fire A1
Reaction to fire is classified in accordance with EN 13501-1.
Light reflection and light diffusion Light reflection and light diffusion 85%
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Humidity And Sag Resistance Humidity And Sag Resistance Up to 100% RH.
No visible deflection in high humidity.
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Surface Durability Surface Durability Enhanced durability and dirt resistance.
The surface of some ROCKFON products is specially treated to provide enhanced durability and dirt resistance.
Cleaning Cleaning Vacuum, Damp cloth, Steam cleaning (twice a year), Low pressure foam cleaning (twelve times a year), High pressure cleaning (monthly and only applicable for A-edge installation). Max. 80 bar, min. 1 meter distance, water spread at 30° angle, max. water flow 360 L/h. The tiles should be clipped into the grid., Chemical resistance: Tested according to ISO 2812-3:2019 and classified in accordance with EN 12720. Rating on a scale from 1 to 5, where 5 is the best. We obtained 5 for the following detergents and disinfectants (monthly disinfection): Active chlorine 2,6%, quaternary ammonium 0,25%, hydrogen peroxide 5%, Ethanol 70% and Isopropanol 70%
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Disinfection Disinfection - Resistant to using Hydrogen Peroxide Vapor disinfection with impact on aeration time
Hygiene Hygiene Stone wool provides no sustenance to microorganisms
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Microbiological class M1 fulfilling the requirements of Zone 4 (very high risk) defined by NF S 90-351:2013.
Tested with:
- Methicillin resistant staphylococcus aureus (MRSA)
- Candida albicans
- Aspergillus brasiliensis
- E. Coli
- Bacillus cereus

M1 (zone 4) for the 5 tested pathogens.

The particle elimination kinetics class is conform to CP(0,5)5 according to the norm NF S 90-351:2013.
Clean Room Classification Clean Room Classification 4
Clean room classification is measured in accordance with ISO 14644-1.
Bacteriological Class M1, NF S 90-351:2013
Environment Environment Fully recyclable stone wool
Indoor Environment Indoor Environment A selection of Rockfon products have been awarded the Finnish M1 emission classification for building materials and the Danish Indoor Climate Label for low emission products
Back
Reaction to fire is classified in accordance with EN 13501-1.
Back
Light reflection expressed in % is measured in accordance with ISO 7724-2.
Back
ROCKFON ceiling tiles are dimensionally stable even at humidity levels of up to 100% relative humidity and can be installed at all temperatures ranging from 0°C to 40°C. They can be installed during the very early stage of the build (when windows are not fully sealed). Their lightweight yet stable non-hygroscopic character minimises the final weight of the fully-installed ceiling. ROCKFON ceiling tiles are predominantly classified as Class 1/C/0N in accordance with EN 13964. Certain module sizes (width above 700mm) are Class 2/C/0N.
Back
The surface of some ROCKFON products is specially treated to provide enhanced durability and dirt resistance.
Back
Vacuum: The surface can be vacuum cleaned with a soft brush attachment. Damp cloth: The surface can be cleaned using a damp cloth or sponge with a slightly alkaline detergent (pH between 7 and 9) without alcohol, ammonia or chlorine. This may render the surface slightly shinier, so we recommend cleaning the entire surface evenly.
Back
Back
Stone wool provides no sustenance to the following microorganisms tested in accordance with JIS Z 2801:2000 and ASTM C 1338-96: – Escherichia coli – Staphylococcus aureus – Methicillin-resistant staphylococcus aureus (MRSA) – Stachybotrys chartarum – Penicillium brevicumpactum – Alternaria tenuissima – Aspergillus niger – Sporobolomyces roseum – Rhodotorula rubra
Microbiological class M1 fulfilling the requirements of Zone 4 (very high risk) defined by NF S 90-351:2013.
Tested with:
- Methicillin resistant staphylococcus aureus (MRSA)
- Candida albicans
- Aspergillus brasiliensis
- E. Coli
- Bacillus cereus

M1 (zone 4) for the 5 tested pathogens.

The particle elimination kinetics class is conform to CP(0,5)5 according to the norm NF S 90-351:2013.
Back
Clean room classification is measured in accordance with ISO 14644-1.
Back
Back
Back
Back

Full range

Edge Dimensions (mm) Thickness (mm) Weight (Kg/m2) Min. suspension height (mm) Recommended installation system
A24 1200 x 600 20 2.30 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 1.00
NRC 0.95
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A24 1200 x 600 40 3.30 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 1.00
NRC 0.95
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A24 600 x 600 20 2.30 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 1.00
NRC 0.95
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
A24 600 x 600 40 3.30 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 1.00
NRC 0.95
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
E24 1200 x 600 20 2.30 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 1.00
NRC 0.95
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
E24 600 x 600 20 2.30 0 Rockfon® System CleanSpace T24 A, E

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

αw 1.00
NRC 0.95
Sound absorption class A

Tile details

Minimum installation height 0 mm

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back

Recommended installation system

Hygiene Rockfon® System CleanSpace T24 A, E Ceiling system with a 24 mm wide visible grid with A edge tiles or recessed with E edge tiles

Sound absorption details

Tile details

Minimum installation height 0 mm
Easy access -

Packaging

Pieces Per Pack
Area Per Pack m2
Back
