Chicago Metallic T35 Hook 650

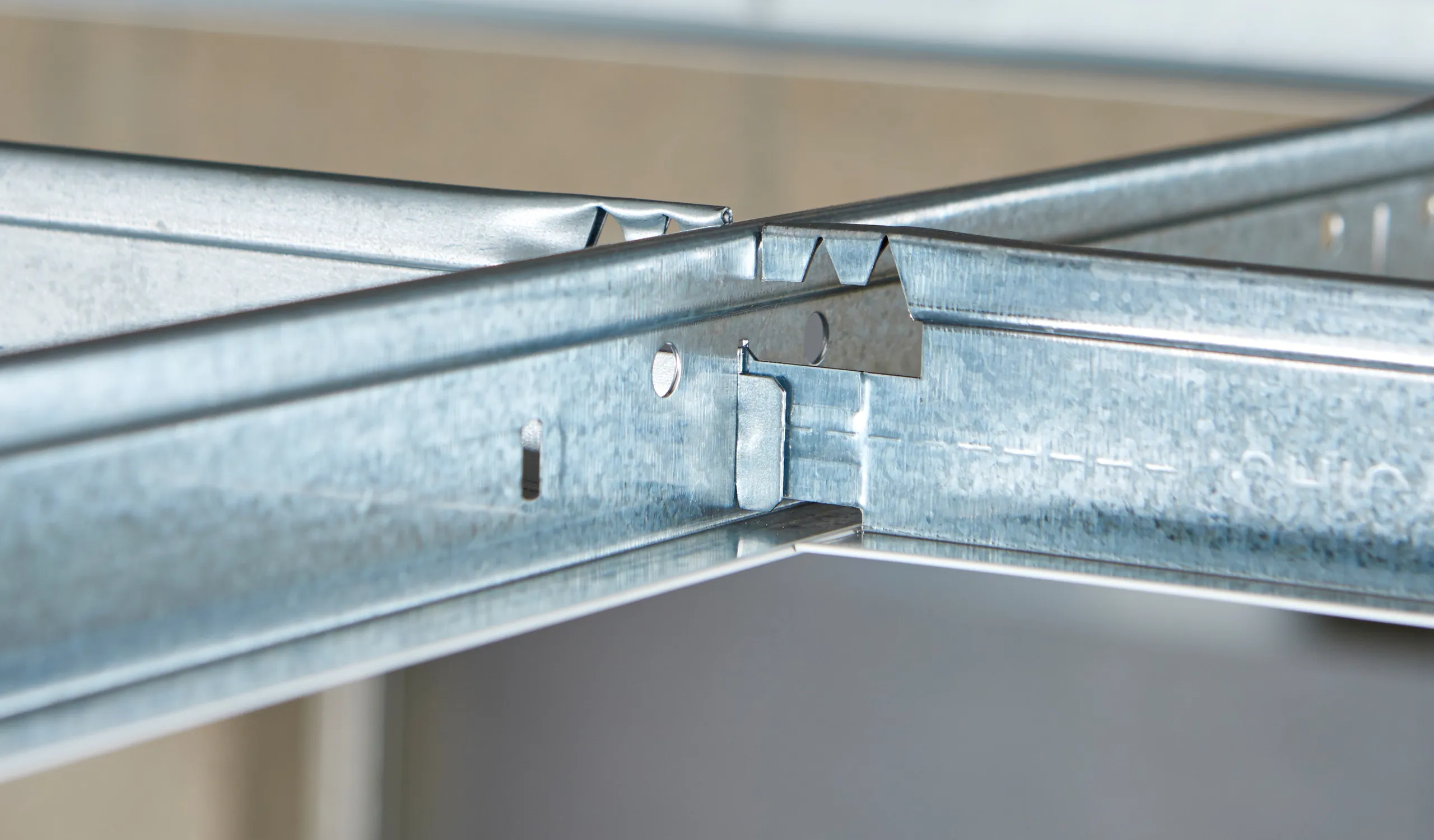

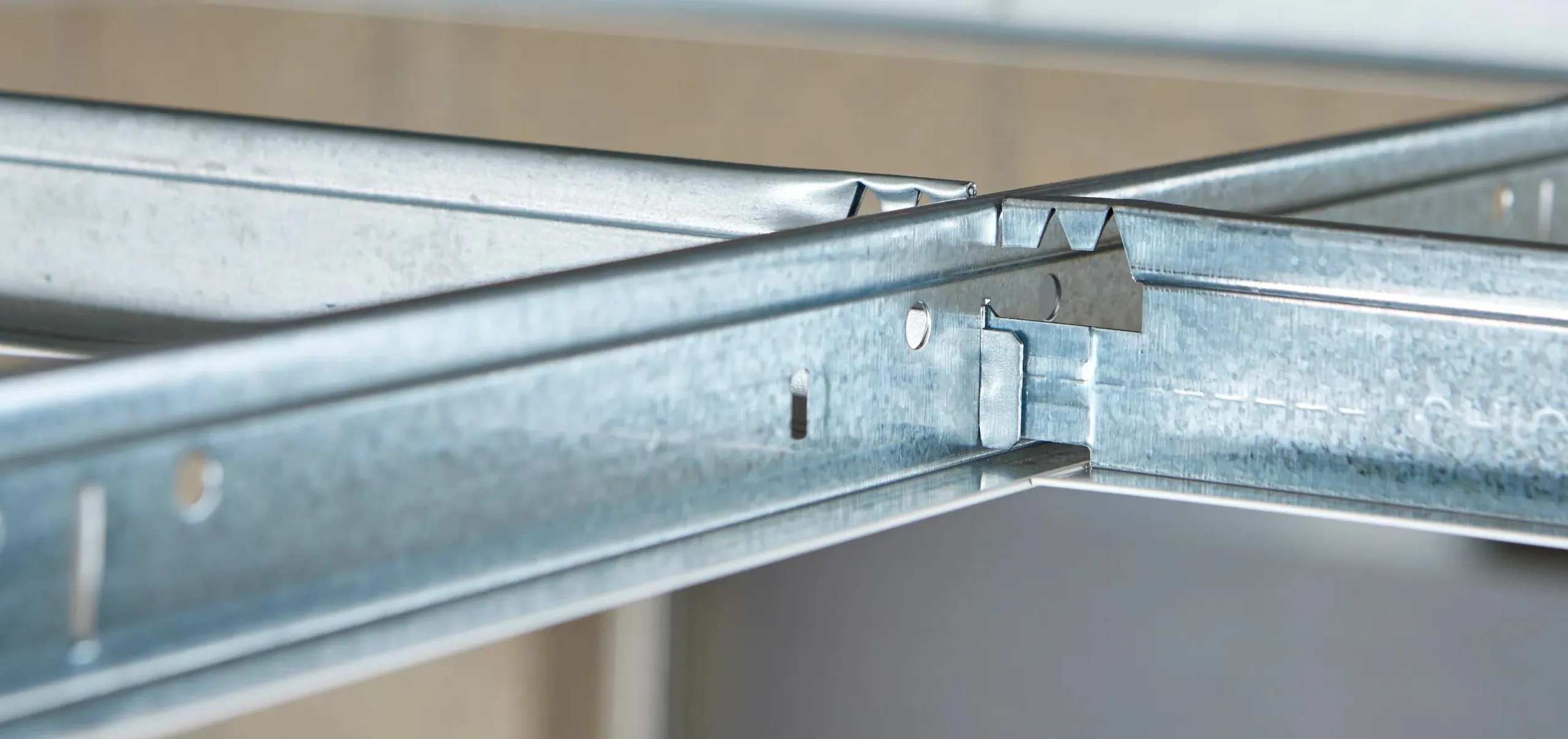

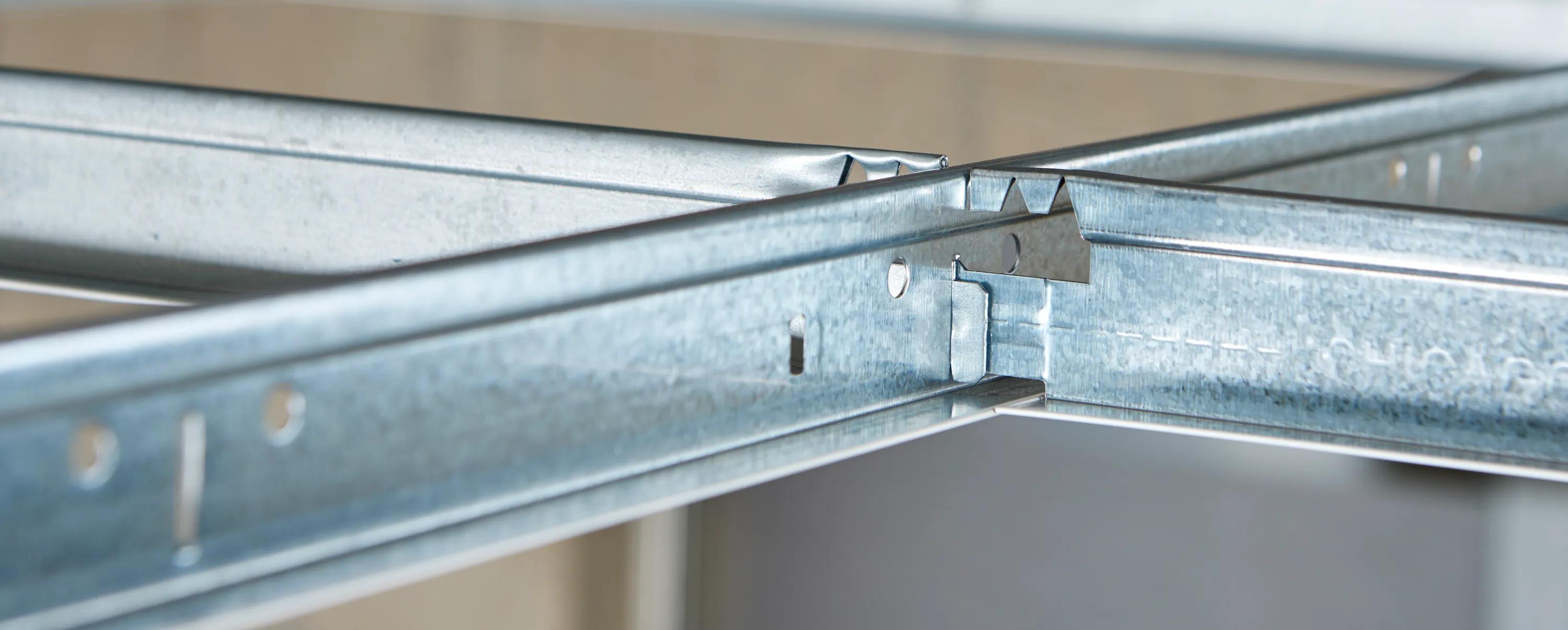

35 mm grid with a knuckle-joint main runner coupling and butt-cut cross tees
Download Datasheet
Download Datasheet
Back
Fully 38 mm high for better load bearing and compatibility with accessories
A strong and equal grid which can be easily demounted repeatedly
Fire resistant grid according to national and European requirements

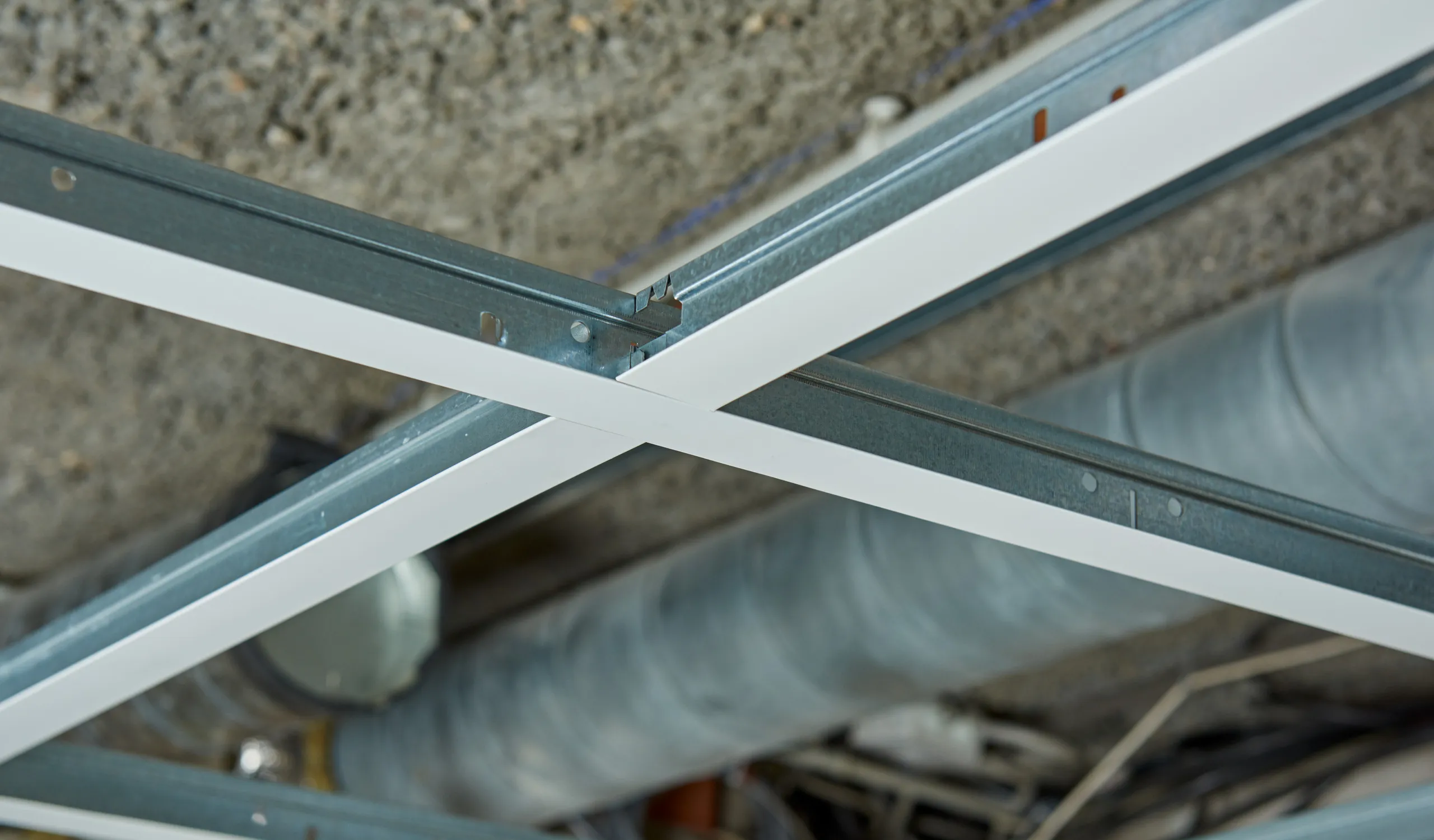

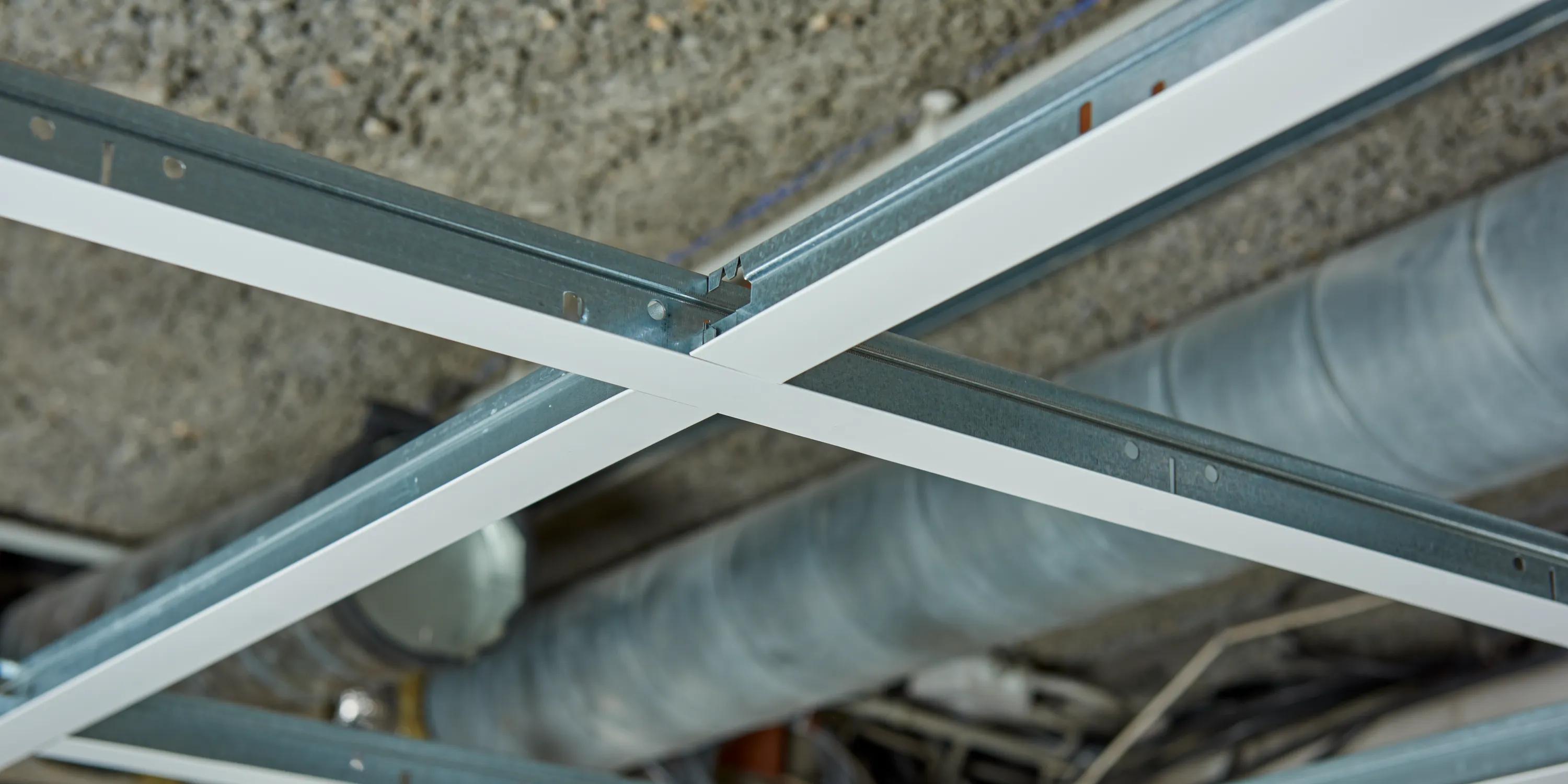

Used for creating industrial ceilings with large sized and heavy panels
System can be combined with 75 mm double height system
CMC_650-DE

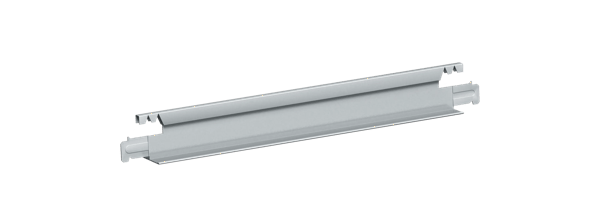

Coupling

Back

Performances

Load Bearing Load Bearing
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 11.8 19.9
1200 1200 x 600 13.0 21.5
1200 1500 x 1000 4.7 7.9
1500 1500 x 1000 3.2 5.6
Corrosion Resistance Corrosion Resistance B
Reaction To Fire Reaction To Fire A1 / A2-s1,d0 (Color-all)
Environment Environment Fully Recyclable
Back
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 11.8 19.9
1200 1200 x 600 13.0 21.5
1200 1500 x 1000 4.7 7.9
1500 1500 x 1000 3.2 5.6
Back
Back
Back
Back

Profiles and Accessories

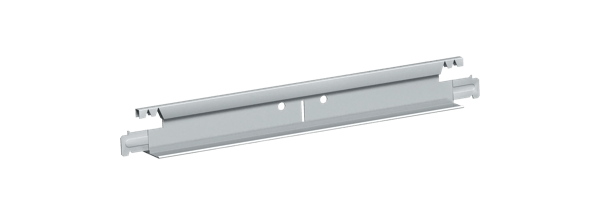

Main runner

Component Length Height Width Product number Colours Packaging
Main runner
650.tif Main runner T35 Hook 3200 38 35 T35 MR HOOK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 32 Distance between slots: 50 / 100 / 30 x 100 / 50
650.tif Main runner T35 Hook 3600 38 35 T35 MR HOOK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 18 Distance between slots: 100 / 200 / 16 x 200 / 100

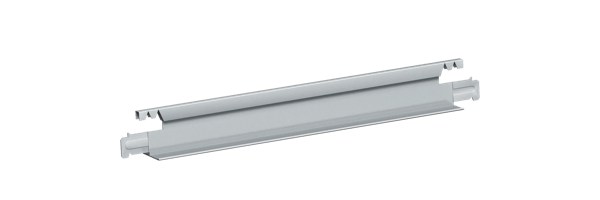

Cross tee

Component Length Height Width Product number Colours Packaging
Cross tee
652.tif Cross tee T35 Hook 600 38 35 T35 CT HOOK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300
654.tif Cross tee T35 Hook 1000 38 35 T35 CT HOOK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 500 / / / 500
654.tif Cross tee T35 Hook 1200 38 35 T35 CT HOOK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 600 / / / 600
658.tif Cross tee T35 Hook 1995 38 35 T35 CT HOOK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1995 / /
655.tif Cross tee T35 Hook 1500 38 35 T35 CT HOOK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1500 / /
655.tif Cross tee T35 Hook 1506.25 38 35 T35 CT HOOK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1506,25 / /

Wall angle options

Component Length Height Width Product number Colours Packaging
L Profiles
1470.tif L-wall angle 30x30 mm 3050 30 30 L30x30 White 001 See Packaging Dimensions

Accessories

Component Height Product number Packaging
Quick hangers
QH009009.tif Assembled quick hanger with 2 hooks QH HH 140 See Packaging Dimensions
Suspension clips

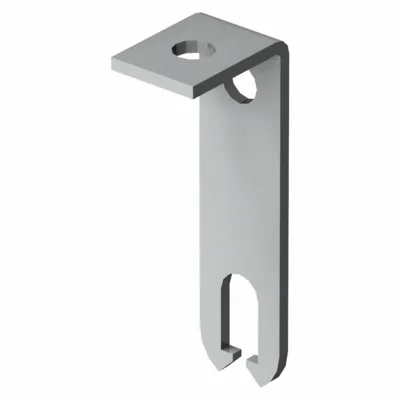

11.tif Special hanger (bent) for Chicago Metallic™ T-profiles 57.5 FH B See Packaging Dimensions
Hold down clips & wall springs

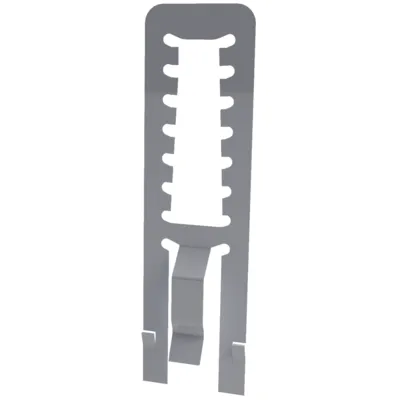

423.tif Steel hold down spring combinable with holddown clip HDC 6 P1 HDC 6 P2 See Packaging Dimensions
HDC6 P1 new.tif Steel hold down clip for tile thickness 45-110 mm (A edge) (to be combined with HDC 6 P2) HDC 6 P1 See Packaging Dimensions
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 32 Distance between slots: 50 / 100 / 30 x 100 / 50
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 18 Distance between slots: 100 / 200 / 16 x 200 / 100
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 500 / / / 500
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 600 / / / 600
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1995 / /
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1500 / /
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1506,25 / /
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
Chicago Metallic T35 Hook 650 | Datasheet
Chicago Metallic T35 Hook 650 | Datasheet

pdf
DoP-RFN-T3538MD-A02 - Cross tee T35 Hook
DoP-RFN-T3538MD-A02 - Cross tee T35 Hook

pdf
DoP-RFN-ACCQHRP-A02 - Assembled quick hanger with 2 hooks
DoP-RFN-ACCQHRP-A02 - Assembled quick hanger with 2 hooks

pdf
DoP-RFN-PTLSA-A02 - L-wall angle 30x30 mm
DoP-RFN-PTLSA-A02 - L-wall angle 30x30 mm

pdf
DoP-RFN-ACCSUSPFIX-D02 - Special hanger (bent) for Chicago Metallic™ T-profiles
DoP-RFN-ACCSUSPFIX-D02 - Special hanger (bent) for Chicago Metallic™ T-profiles

pdf
DoP-RFN-ACCHDC-A02 - Steel hold down clip for tile thickness 45-110 mm (A edge) (to be combined with HDC 6 P2)
DoP-RFN-ACCHDC-A02 - Steel hold down clip for tile thickness 45-110 mm (A edge) (to be combined with HDC 6 P2)

pdf
