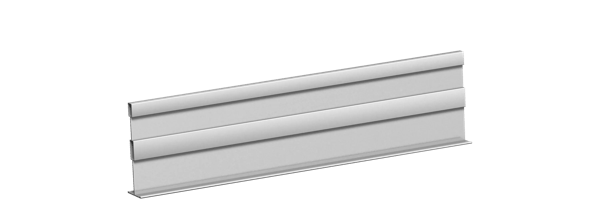

Chicago Metallic T24 Universal Longspan 8280

75 mm high T24 universal main runner
Download Datasheet
Download Datasheet
Back

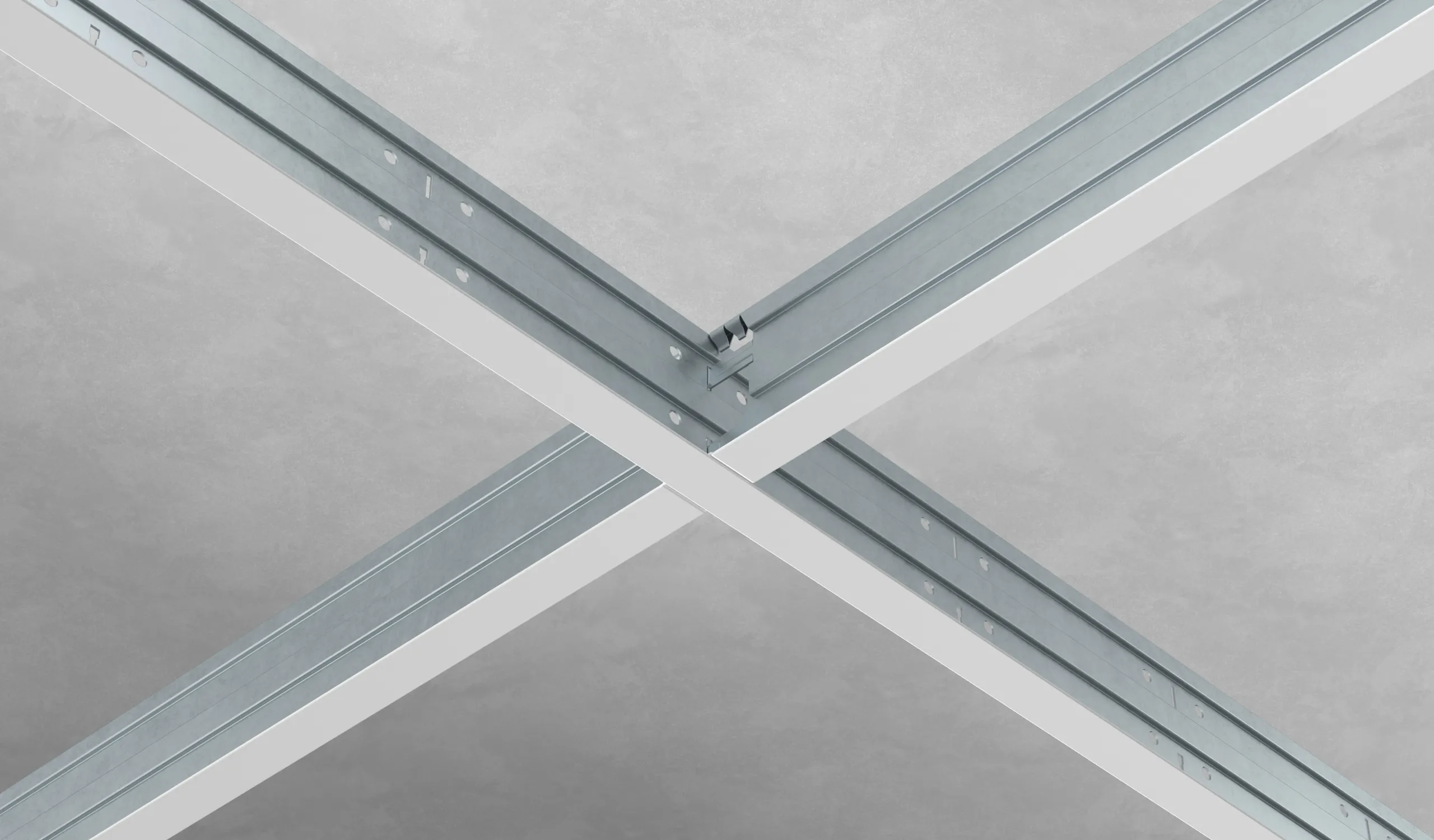

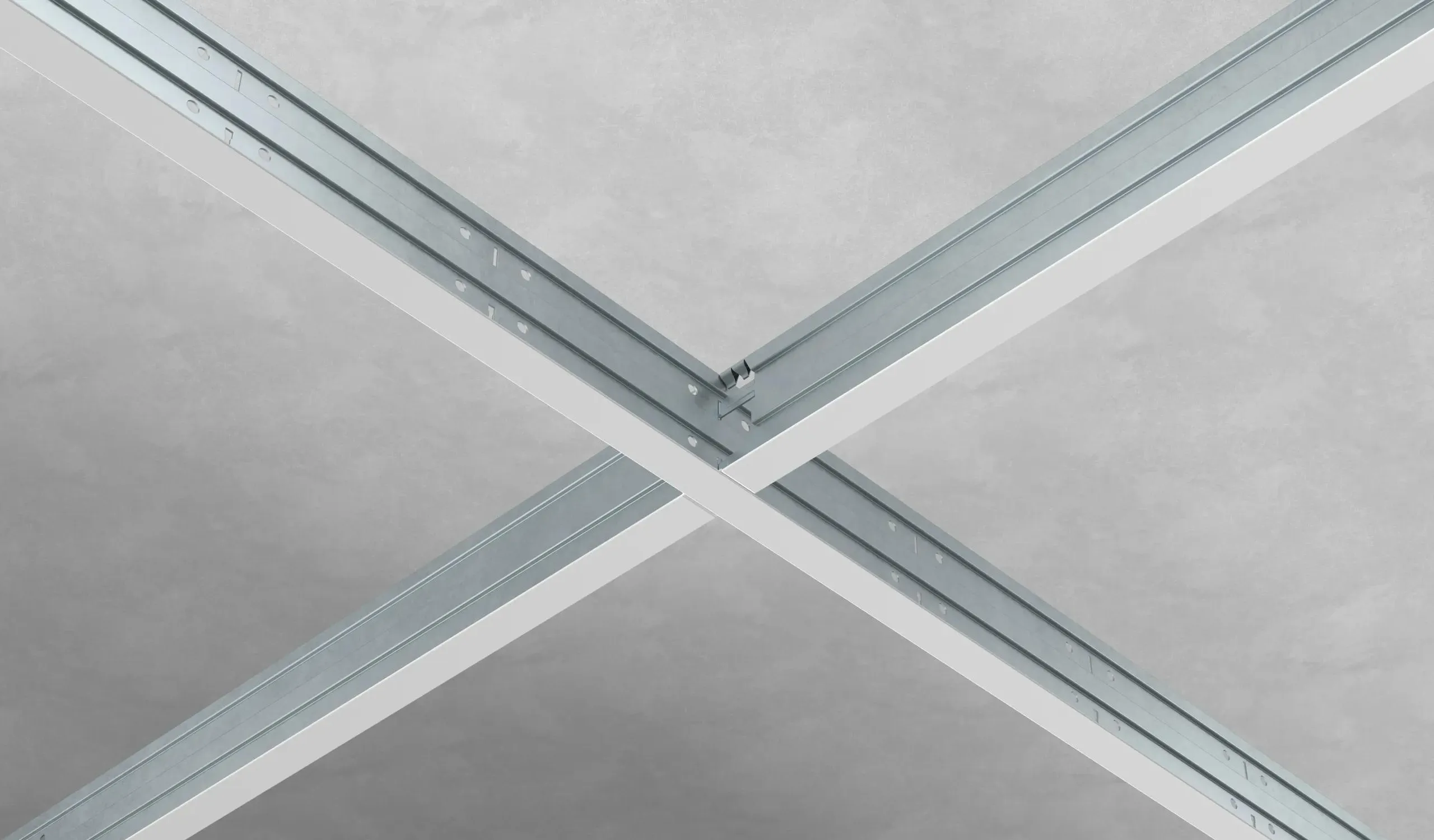

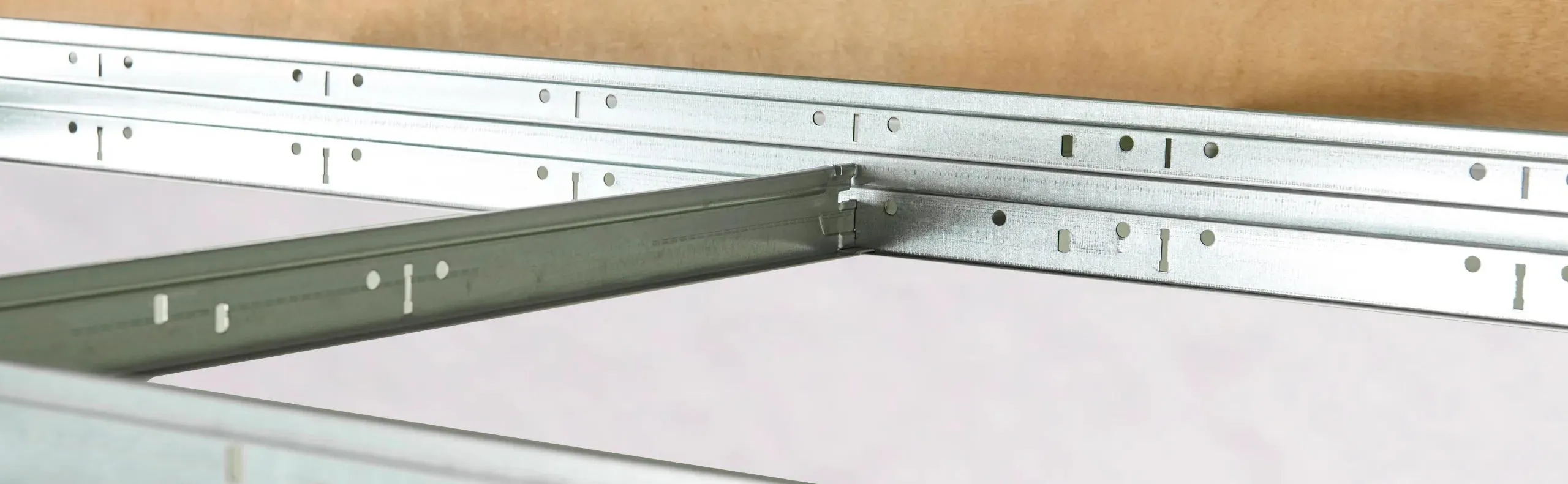

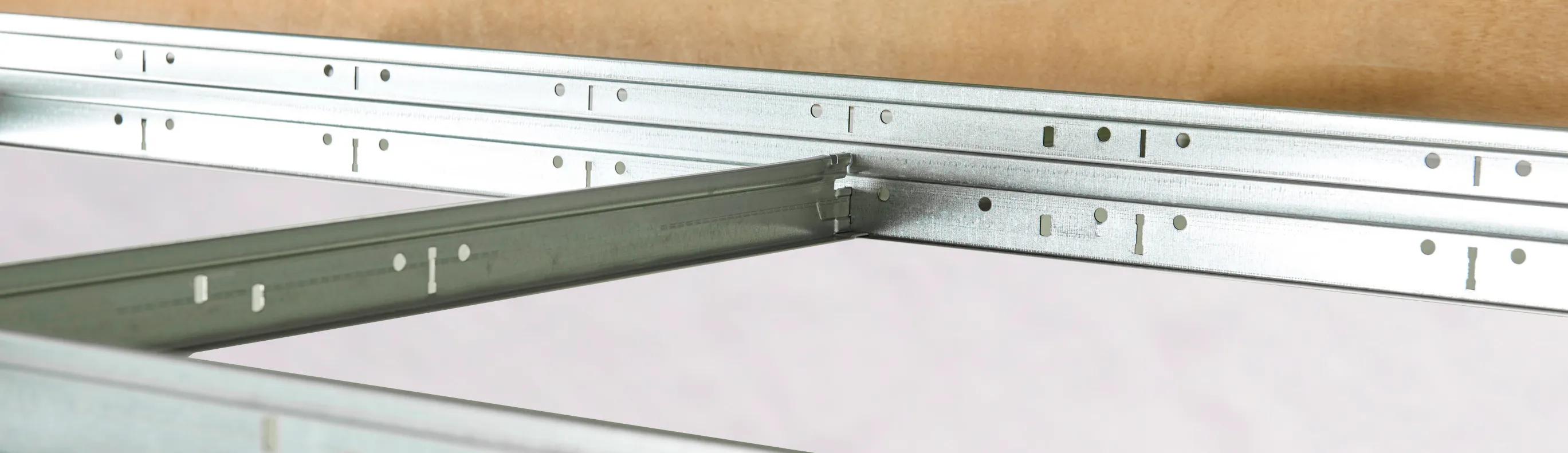

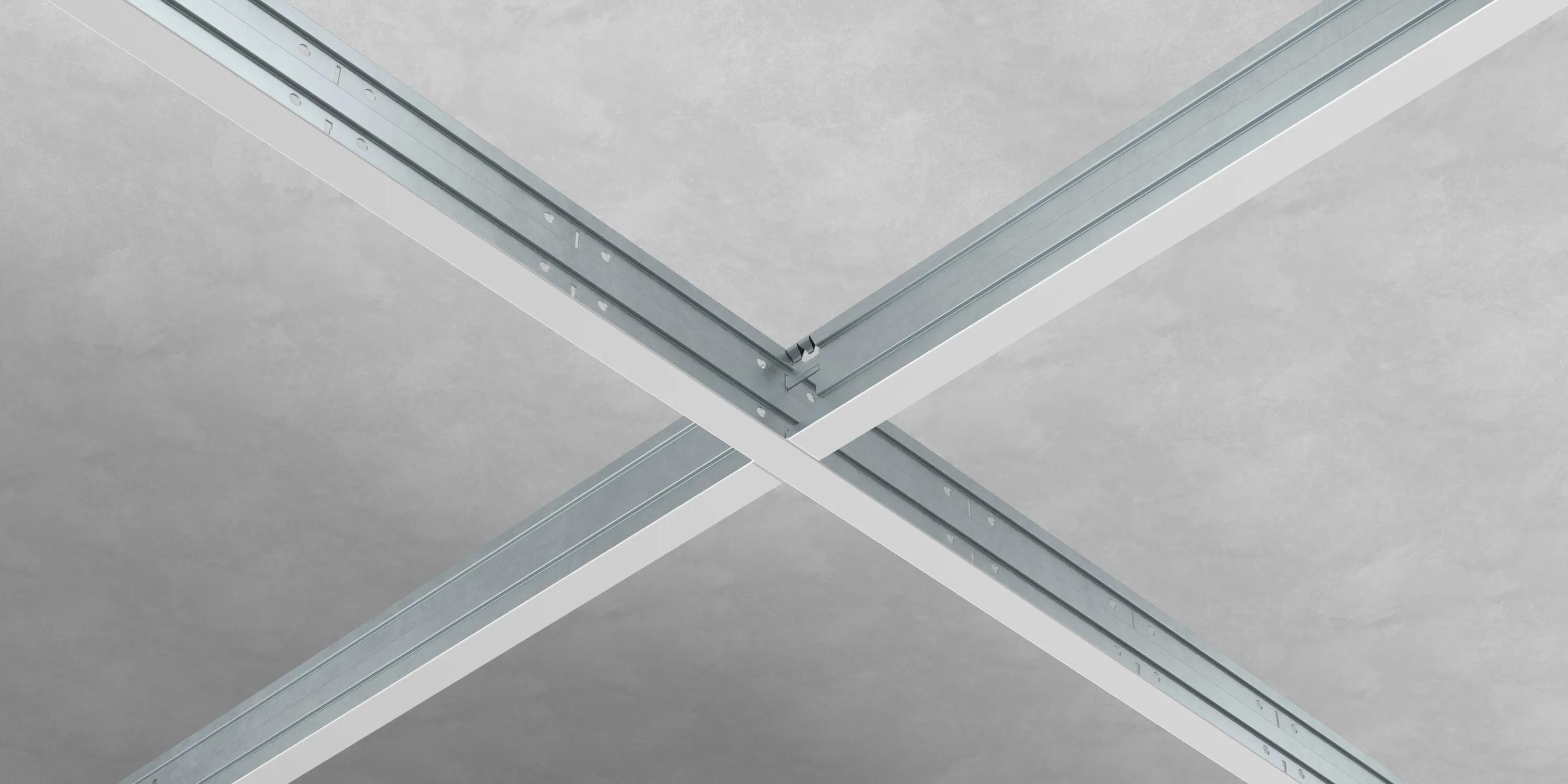

Compatible with the Chicago Metallic T24 mm 2850 and 2890 cross tees
Reduces number of suspension points, particularly usefull in corridors

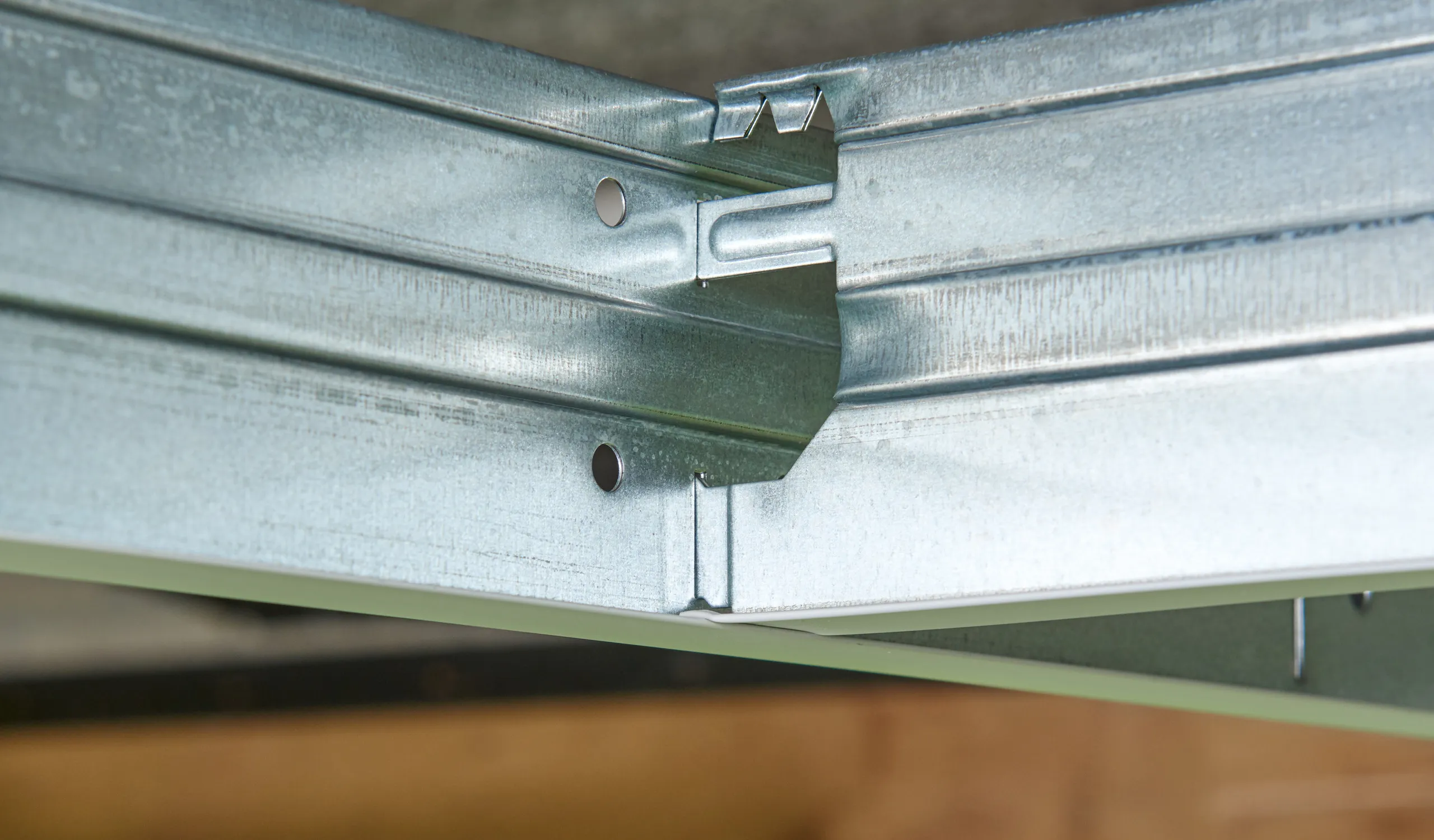

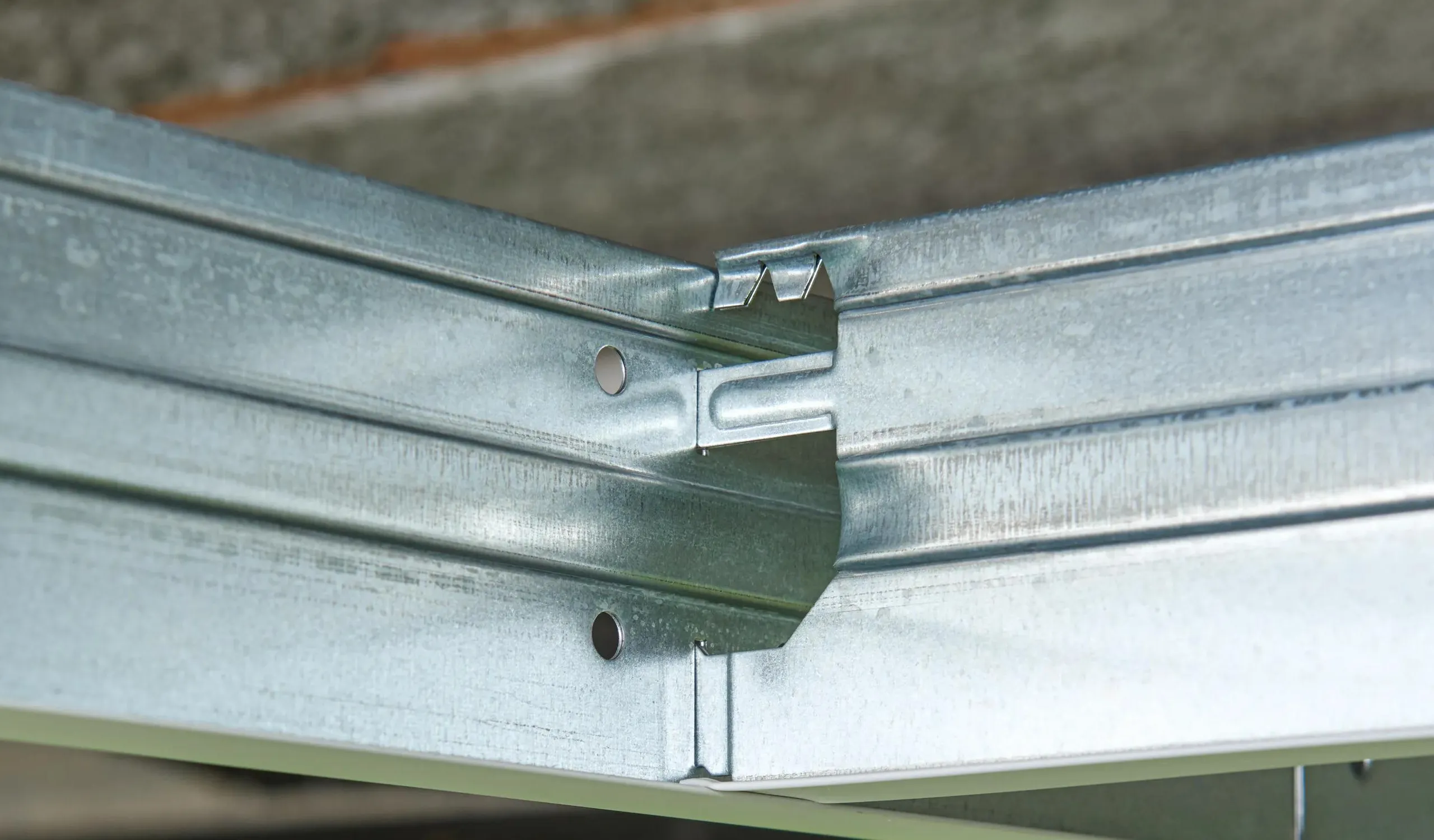

CMC - Click2-DE

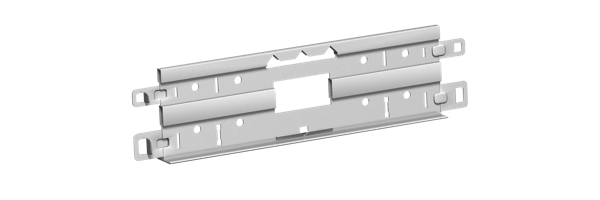

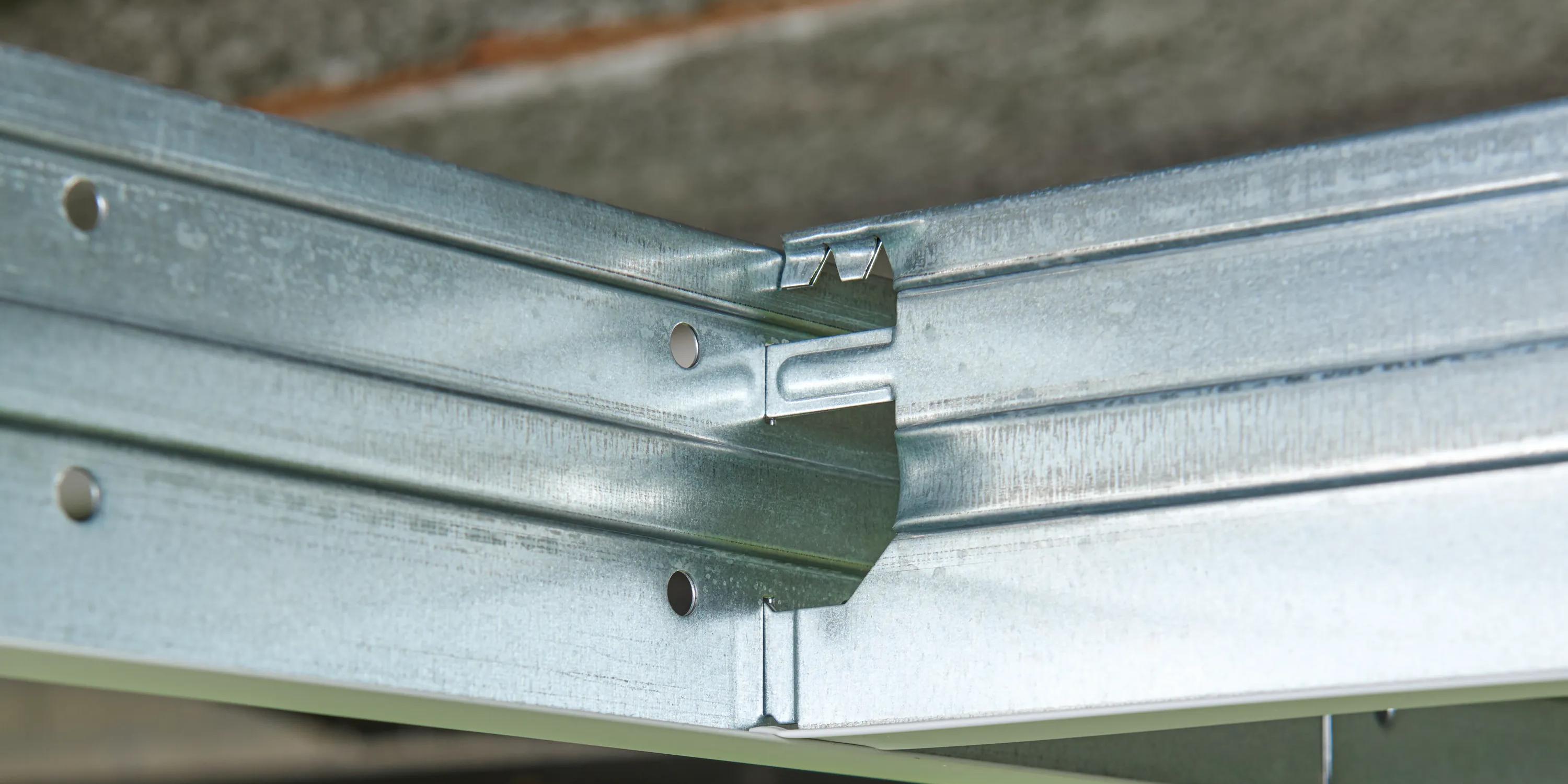

Coupling

Back

Performances

Load Bearing Load Bearing
 max. span (mm) - max. deflection L/500 (max. = 4 mm)
Distance between main runners Distance between cross tees Cross tee type max. distance between hangers in mm
kg/m² of ceiling
2.5 3 3.5 4 5 7 10 12 15
1200 600 T24 CT CLICK 1200 3470 3340 3230 3140 2970 2720 2420 2270 2050
Corrosion Resistance Corrosion Resistance B
Reaction To Fire Reaction To Fire A1
Environment Environment Fully Recyclable
Back
 max. span (mm) - max. deflection L/500 (max. = 4 mm)
Distance between main runners Distance between cross tees Cross tee type max. distance between hangers in mm
kg/m² of ceiling
2.5 3 3.5 4 5 7 10 12 15
1200 600 T24 CT CLICK 1200 3470 3340 3230 3140 2970 2720 2420 2270 2050
Back
Back
Back
Back

Profiles and Accessories

Main runner

Component Length Height Width Product number Colours Packaging
Main runner
8280.tif Main runner T24 x 75 mm 3600 75 24 T24x75 MR CL&HK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50
8870.tif Main runner T24 x 75 mm Straight-cut 2400 75 24 T24x75 SC CL&HK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 24 Distance between slots: 100 / 100 / 21 x 100 / 100
8870.tif Main runner T24 x 75 mm Straight-cut 3600 75 24 T24x75 SC CL&HK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 100 / 100 / 33 x 100 / 100
8280.tif Main runner T24 x 75 mm 4200 75 24 T24x75 MR CL&HK Multiple colours See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 42 Distance between slots: 50 / 100 / 40 x 100 / 50

Cross tee

Component Length Height Width Product number Packaging
Cross tee
2896.tif Cross tee T24 Click 1800 38 24 T24 CT CLICK See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 5 Distance between slots: 300 / 300 / 3 x 300 / 300
-2894.tif Cross tee T24 Click 1200 38 24 T24 CT CLICK See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 300 / 300 / 300 / 300

Wall angle options

Component Length Height Width Product number Colours Packaging
L Profiles
1439.tif L-wall angle 24x19 mm colour 3050 24 19 L19x24 Multiple colours See Packaging Dimensions
W Profiles
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x15x10x15 mm 3050 15 10 W10x15 Multiple colours See Packaging Dimensions
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x12x8x15 mm 3050 15 7.8 W8x12 Multiple colours See Packaging Dimensions

Accessories

Component Length Height Width Product number Packaging
Various applications
System T24X wall bracket 20190219 A1.jpg Wall & bridging bracket for T profiles WBB T See Packaging Dimensions

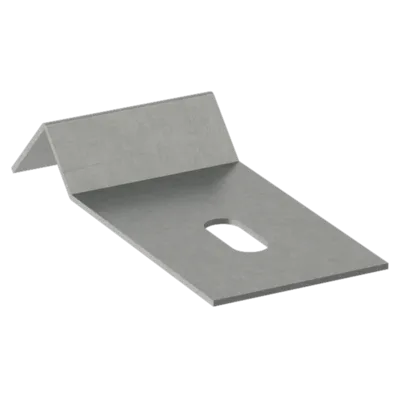

SMF clip.tif SMF clip 53.2 9.5 25 FC SMF See Packaging Dimensions
Accessories for long span

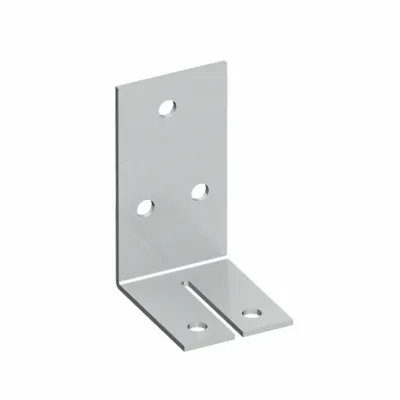

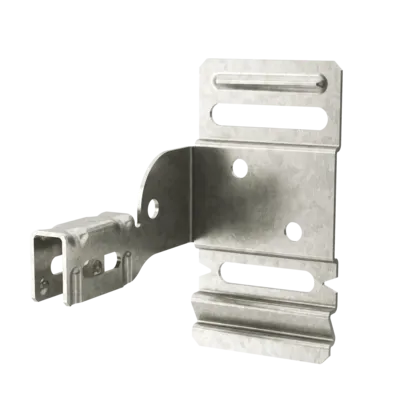

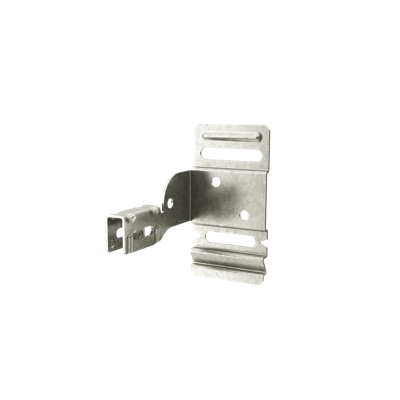

6021.tif Wall connector for primary I-runner 55, 70, 85, 100 and 120 mm 50 75 40 WC I See Packaging Dimensions
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 24 Distance between slots: 100 / 100 / 21 x 100 / 100
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 100 / 100 / 33 x 100 / 100
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 42 Distance between slots: 50 / 100 / 40 x 100 / 50
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 5 Distance between slots: 300 / 300 / 3 x 300 / 300
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 300 / 300 / 300 / 300
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
DoP-RFN-PTLR-A03 - L-wall angle 24x19 mm colour
DoP-RFN-PTLR-A03 - L-wall angle 24x19 mm colour

pdf
DoP-RFN-T2438MC-A03 - Cross tee T24 Click
DoP-RFN-T2438MC-A03 - Cross tee T24 Click

pdf
Chicago Metallic T24 Universal Longspan 8280 | Datasheet
Chicago Metallic T24 Universal Longspan 8280 | Datasheet

pdf
DoP-RFN-PTW-A02 - W-profile 15x15x10x15 mm
DoP-RFN-PTW-A02 - W-profile 15x15x10x15 mm

pdf
DoP-RFN-ACCHDC-A02 - SMF clip
DoP-RFN-ACCHDC-A02 - SMF clip

pdf
DoP-RFN-ACCVA-F01 - Wall & bridging bracket for T profiles
DoP-RFN-ACCVA-F01 - Wall & bridging bracket for T profiles

pdf
DoP-RFN-T2475ME-A02 - Main runner T24 x 75 mm Straight-cut
DoP-RFN-T2475ME-A02 - Main runner T24 x 75 mm Straight-cut

pdf
DoP-RFN-ACCPP-BO2 - Wall connector for primary I-runner 55, 70, 85, 100 and 120 mm
DoP-RFN-ACCPP-BO2 - Wall connector for primary I-runner 55, 70, 85, 100 and 120 mm

pdf
