Chicago Metallic T24 Click D2890 Gasket

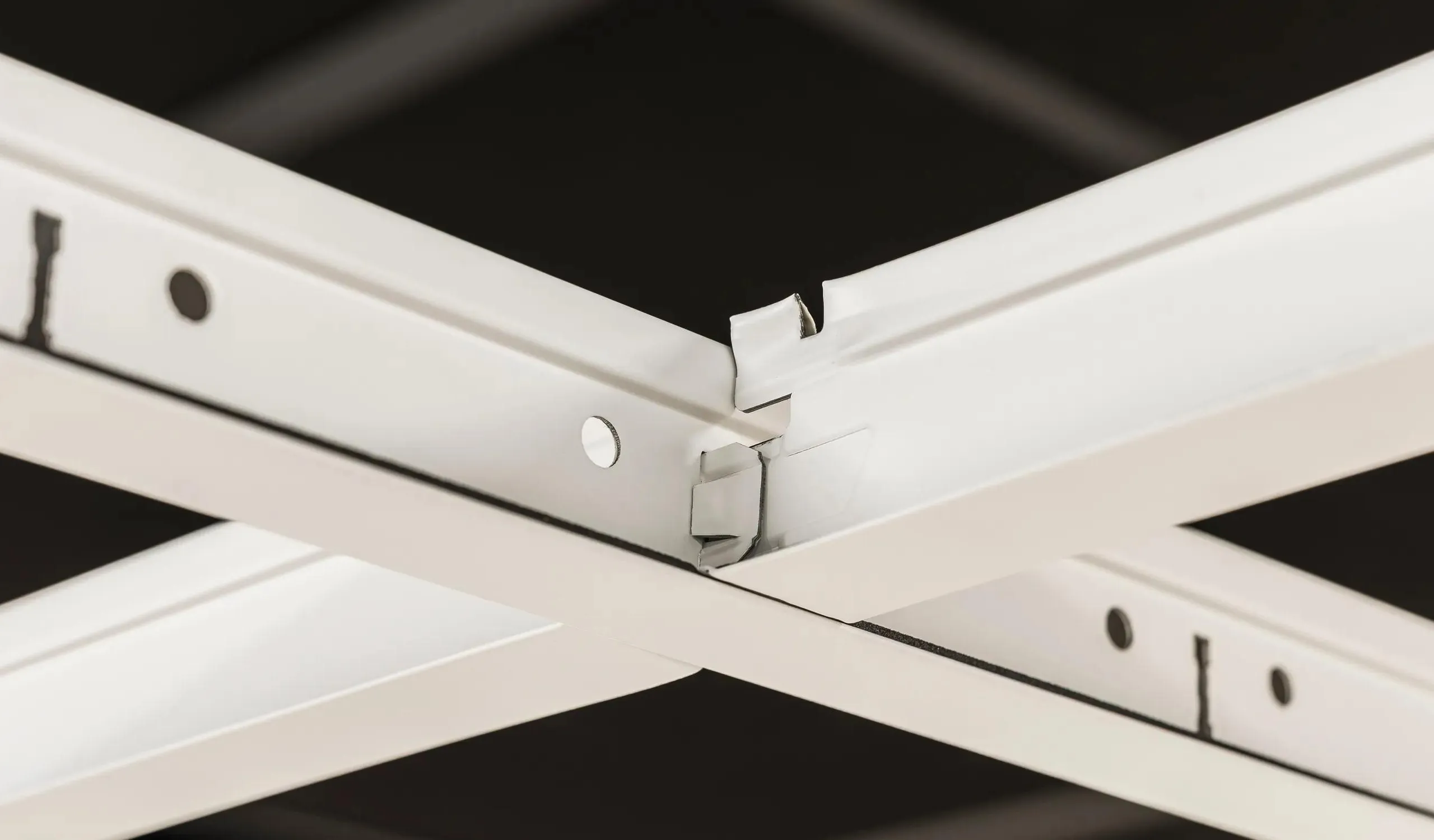

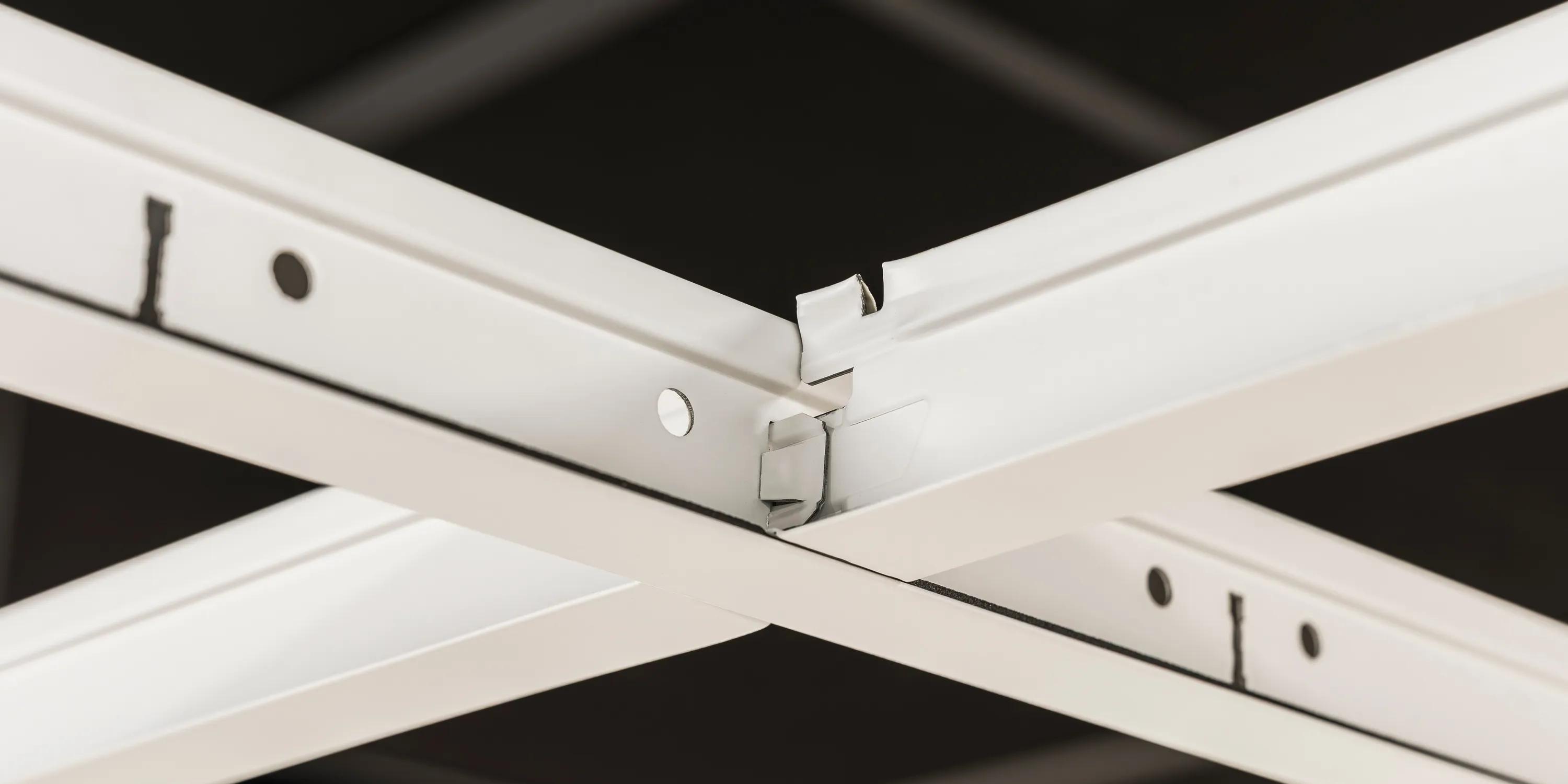

A 24mm easy-click grid with an integrated air sealing neoprene foam gasket, a universal main runner, joggled-end cross tees, and an ECR finish, in compliance with Class D corrosion resistance requirements.

Fast installation
End-to-end support
Made in Europe

Popular files

View all files

Overview

Airtight precision with corrosion protection. A grid designed to achieve reduced air leakage while streamlining installation in demanding environments.

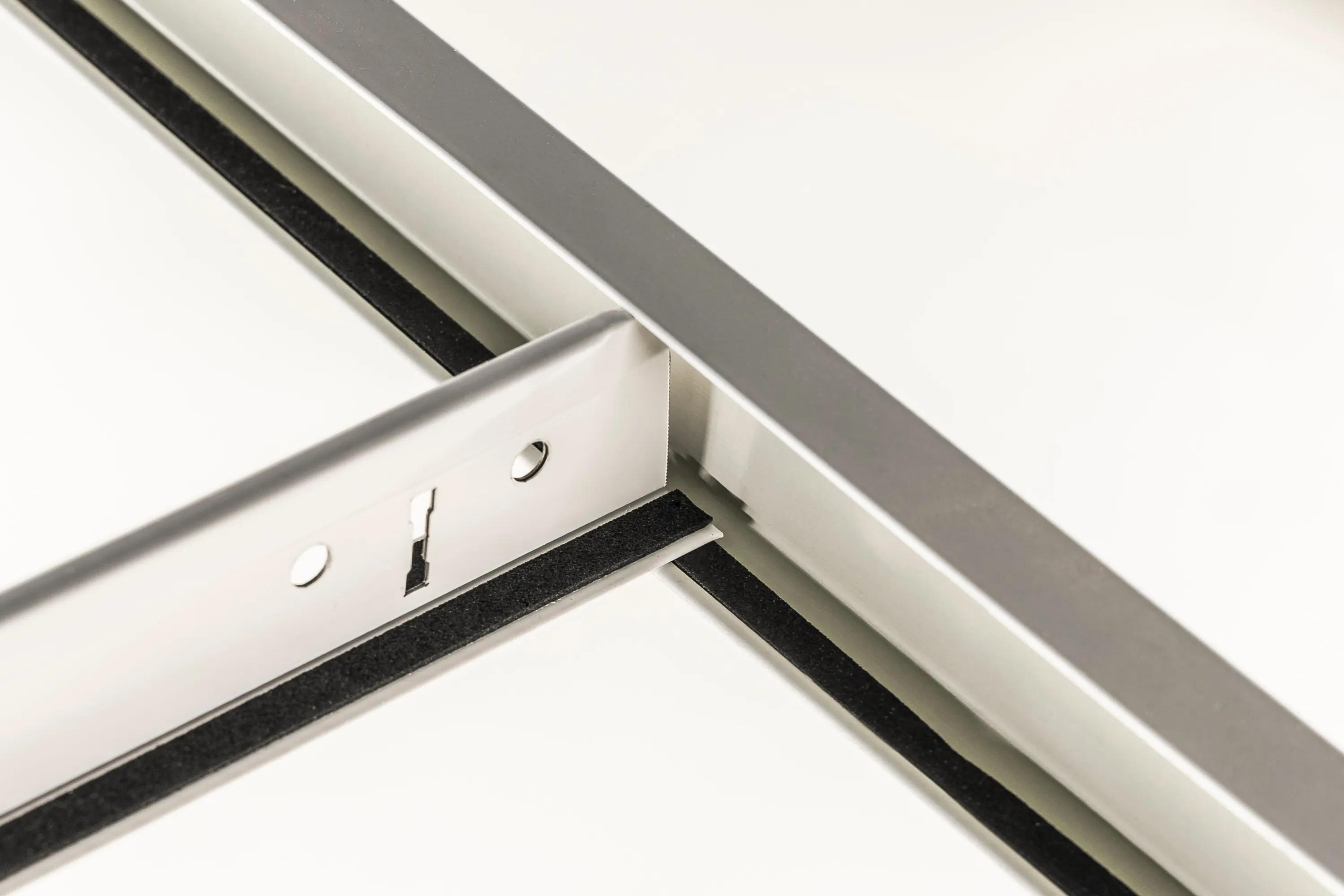

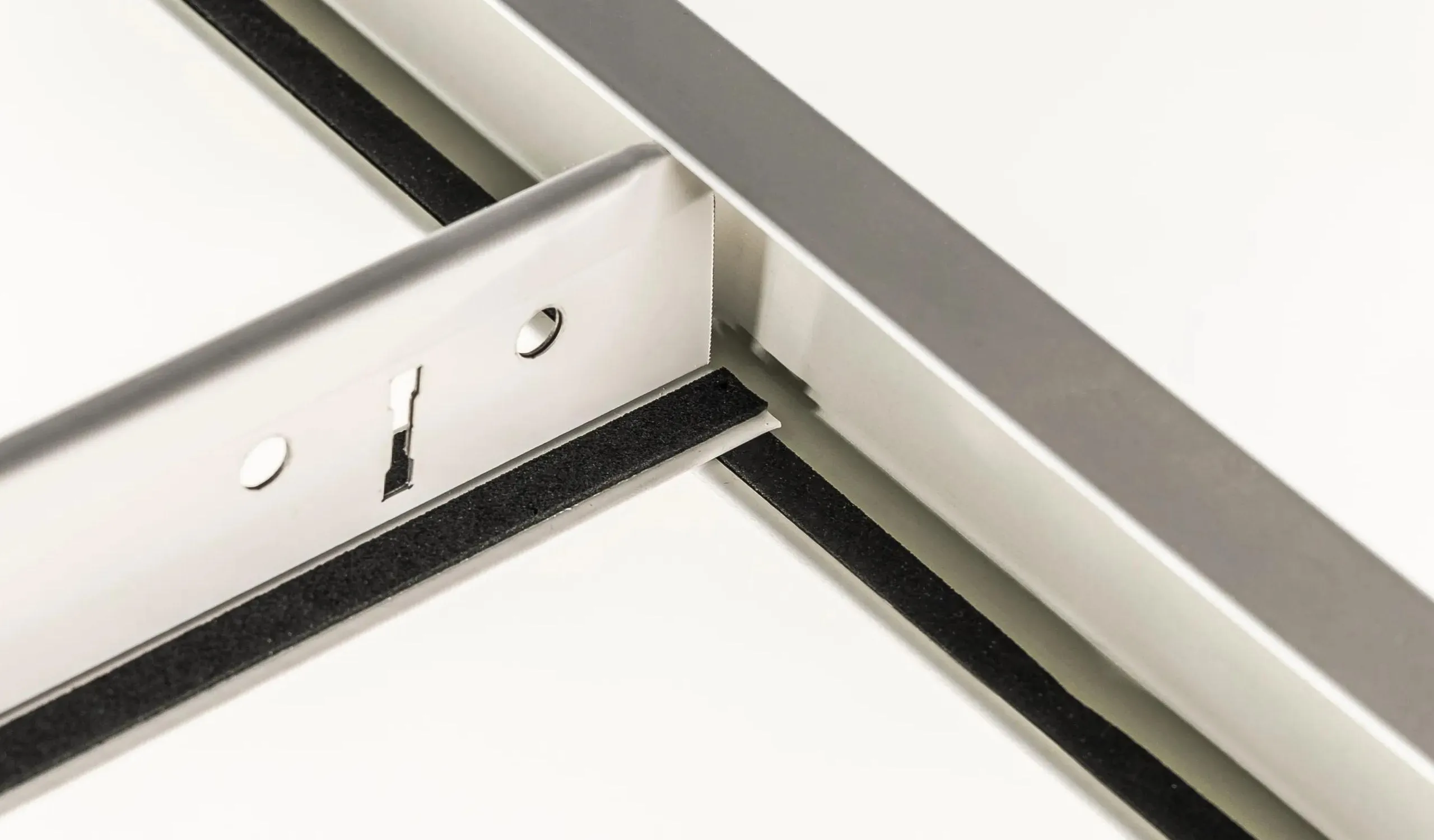

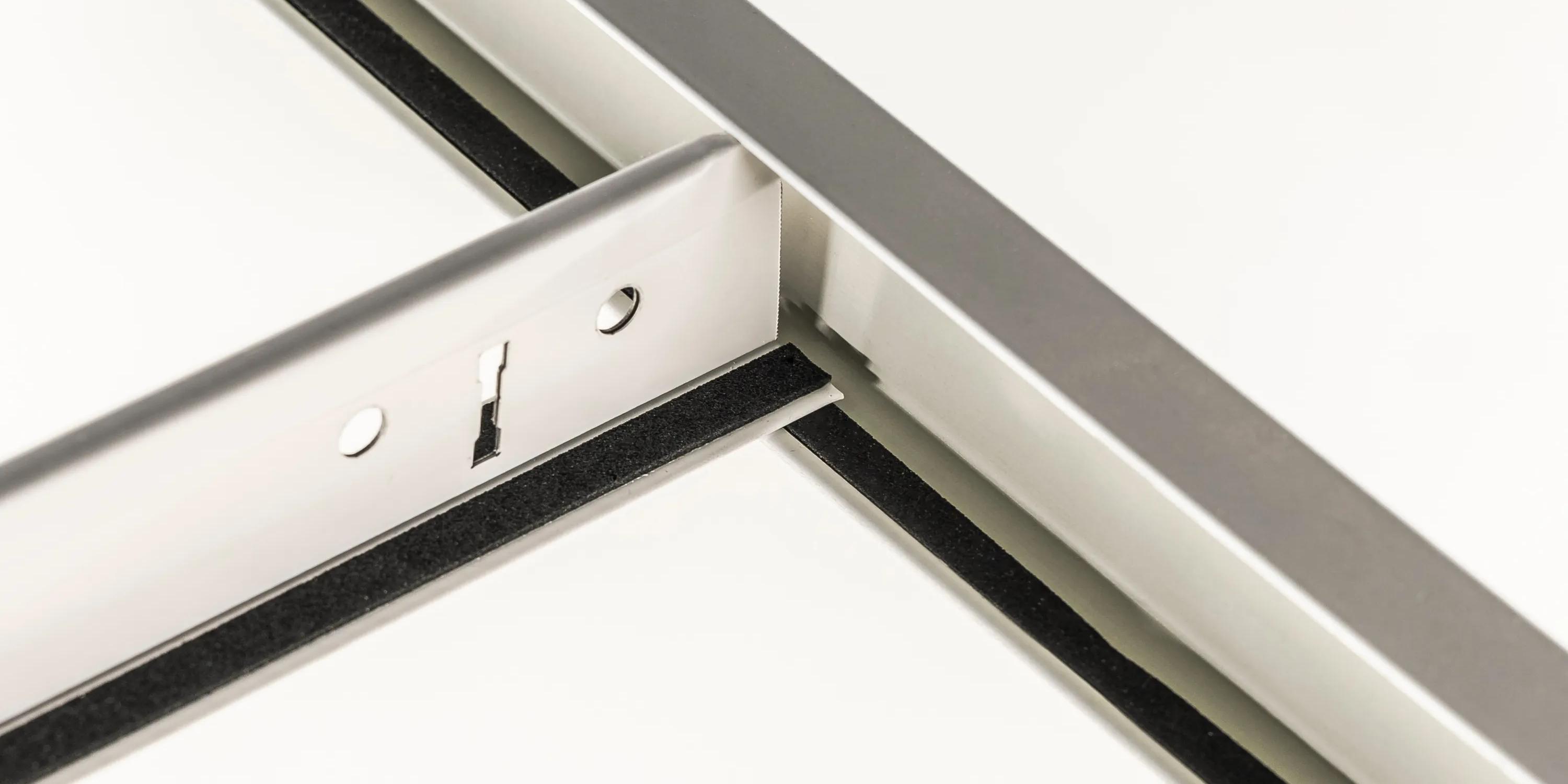

View of Chicago Metallic T24 Click D2890 Gasket, ECR Class D corrosion resistant ceiling grid with a pre-applied integrated air sealing foam gasket.

Sealed from the start.

Featuring a pre-applied neoprene foam gasket, the grid omits the need for its manual application while ensuring the same proven level of air leakage reduction.

For demanding spaces.

Meets stringent air pressure requirements when combined with select ISO cleanroom Rockfon MediCare and Rockfon CleanSpace ceiling tiles, suitable for food processing, healthcare, pharmaceutical, or data centre environments.

Discover compatible ceiling tiles

Ready for Class D.

The grid and its compatible accessories are extra-galvanised with an Enhanced Corrosion Resistant (ECR) finish ready in compliance with EN 13964 Class D.

Assortment (Chicago Metallic T24 Click D2890 Gasket)

Main runner

Visual	Component description	Length (mm)	Width (mm)	Height (mm)	Product group	Colour	Actions
	Main runner T24 Click ECR Class D with closed-cell foam gaskets	3600	24	38	T24 MR D GG CL&HK	White 001

Cross tee

Visual	Component description	Length (mm)	Width (mm)	Height (mm)	Product group	Colour	Actions
	Cross tee T24 Click ECR Class D with closed-cell foam gaskets	600	24	38	T24 CT D GG Click	White 001
	Cross tee T24 Click ECR Class D with closed-cell foam gaskets	1200	24	38	T24 CT D GG Click	White 001

Wall angle options

Visual	Component description	Length (mm)	Width (mm)	Height (mm)	Product group	Colour	Actions
	C-wall angle 20x40x20 mm ECR Class D with closed-cell foam gaskets	3050	40	20	C D GG 37	White 001
	L-wall angle 24x19mm ECR Class D with closed-cell foam gasket	3050	19	24	L D GG 19x24	White 001

Accessories (9)

Plastic hold down clip

HDC 1

For tile thickness 15-20mm (A)
15-30mm (E) and 20-25mm (X,M,Z)
Corrosion resistant
Suitable for impact resistant ceilings 3A
100pcs/ctn

Plastic hold down clip

HDC 2

For tile thickness 25-30mm (A)
and 40mm (E)
Corrosion resistant
Suitable for impact resistant ceilings 3A
150pcs/ctn

Plastic hold down clip

HDC 3

For tile thickness 40mm (A)
Corrosion resistant
Suitable for impact resistant ceilings 2A
100pcs/ctn

Specifications

For more details about Chicago Metallic T24 Click D2890 Gasket please download the product datasheet or contact us.

Reaction to fire

C-s2,d0

Corrosion resistance

Loadbearing capacity

Check load-bearing capacity

Environment

Fully Recyclable
