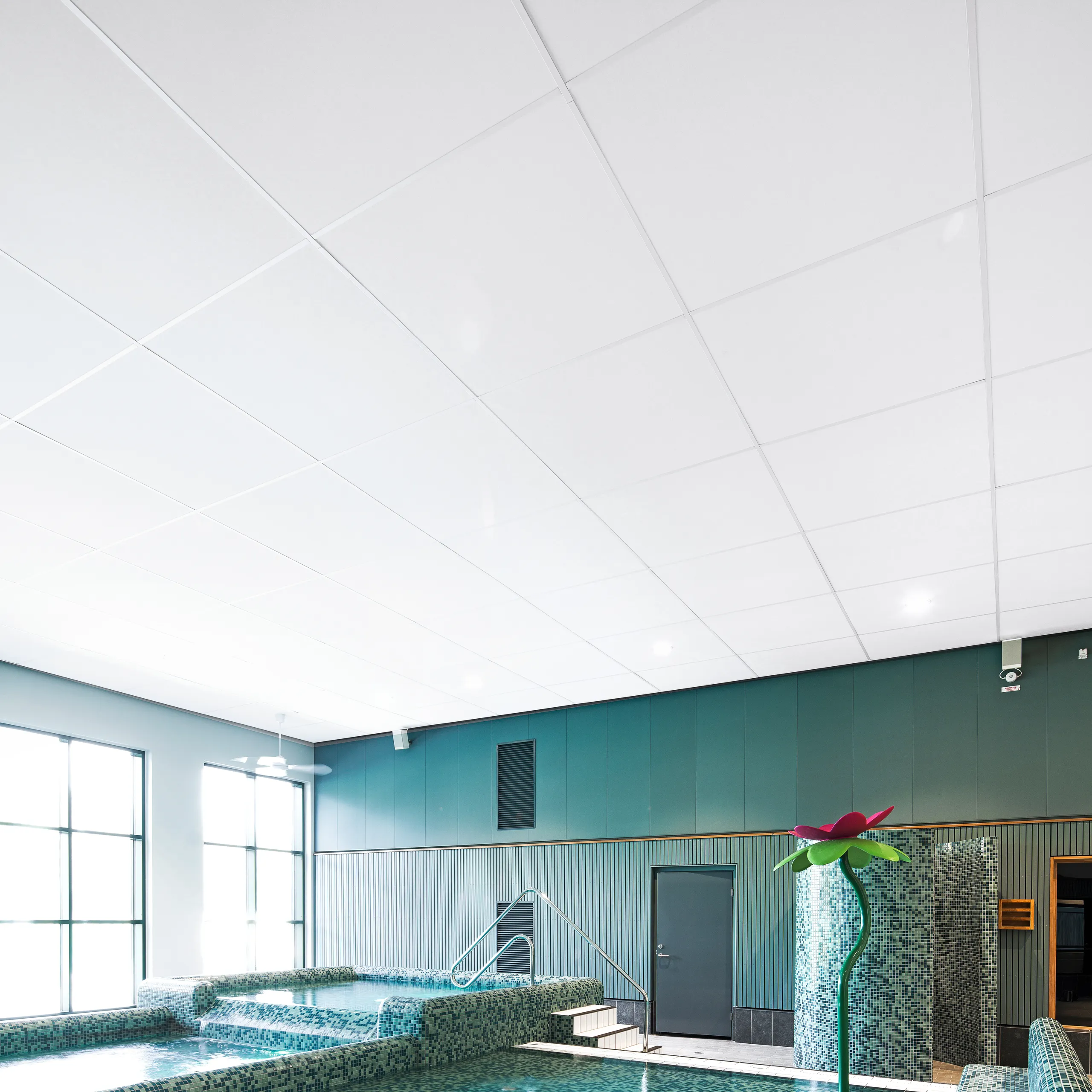

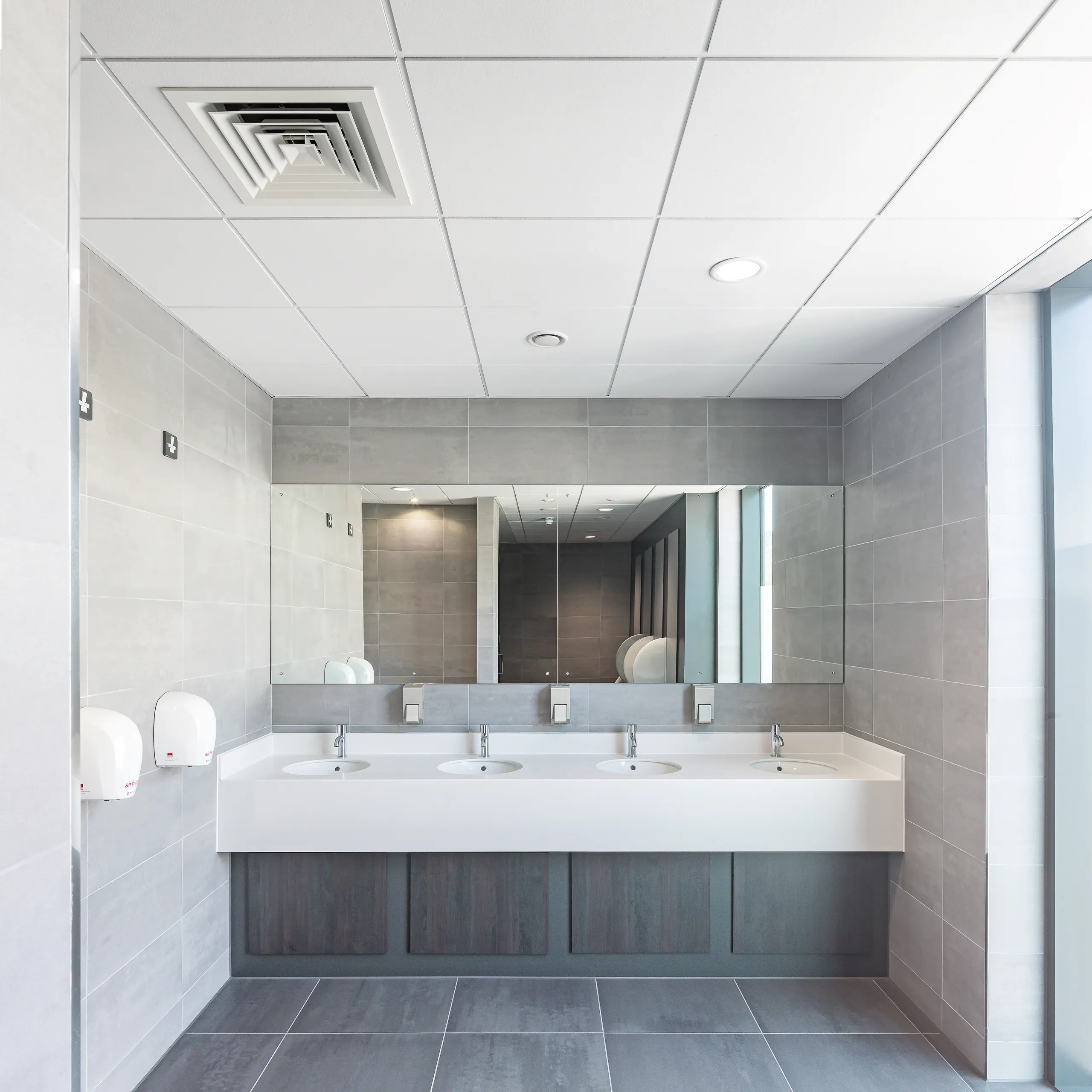

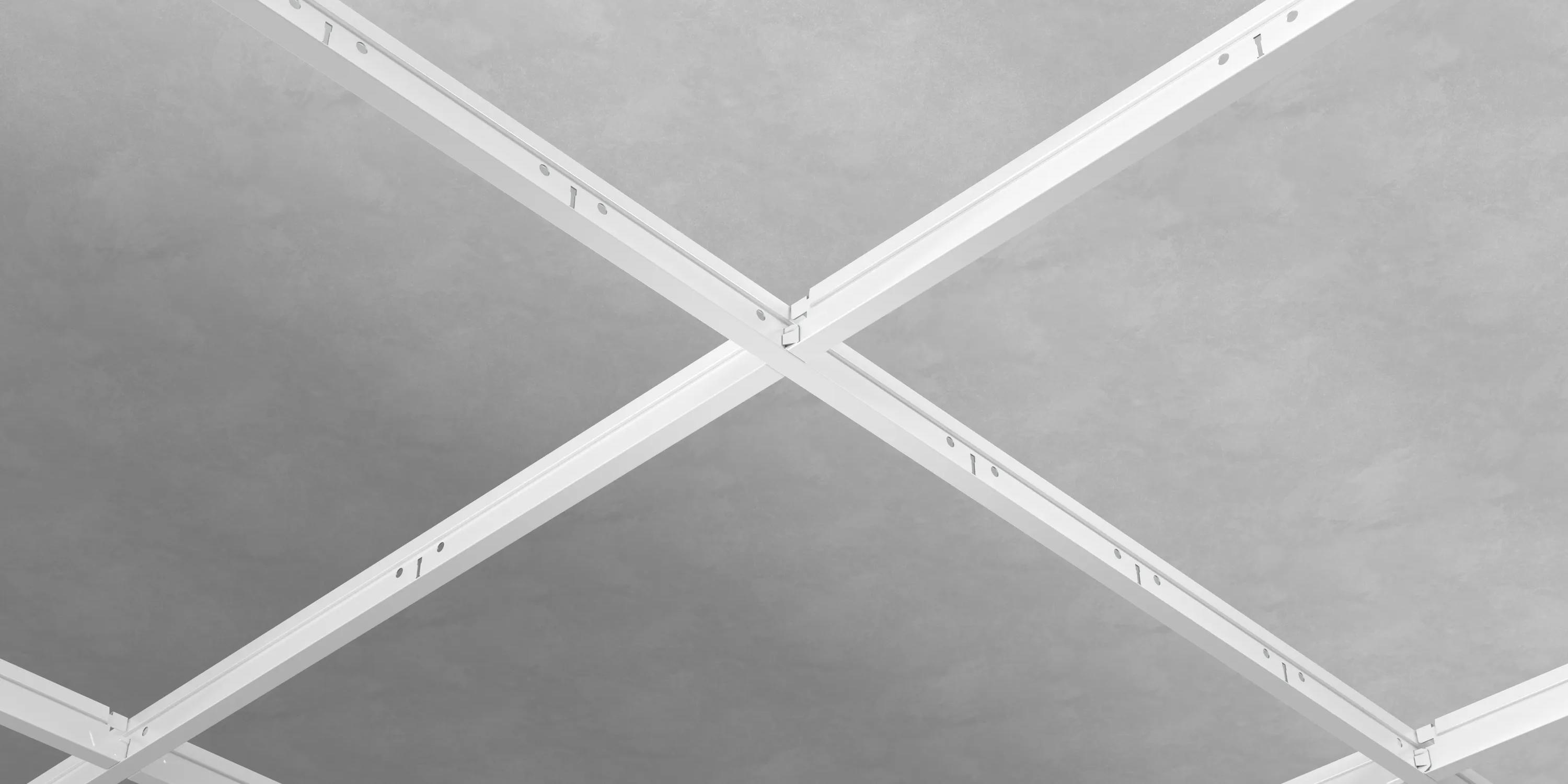

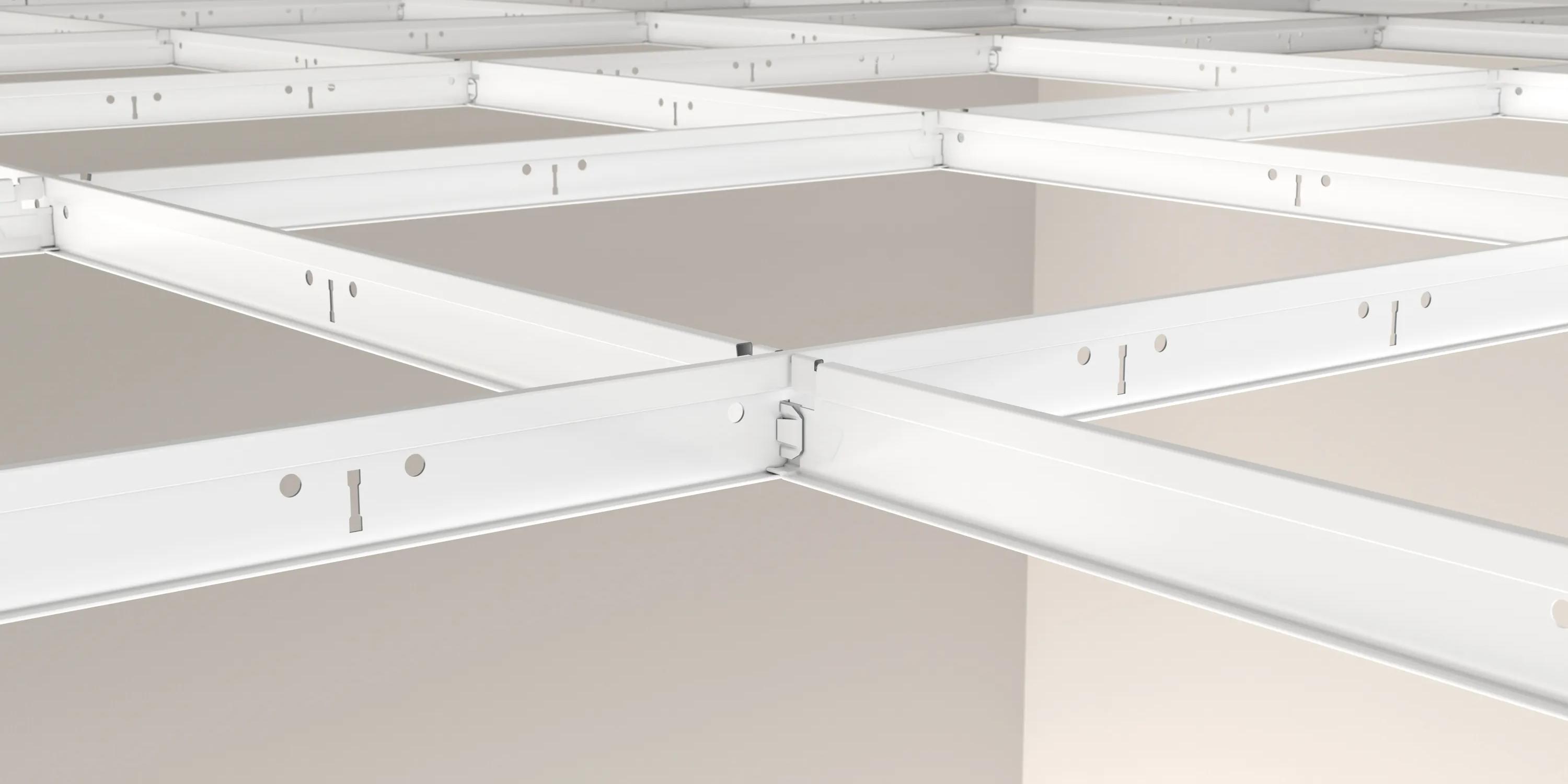

Chicago Metallic T15 Click C2790 ECR Class C

15mm grid with Enhanced Corrosion Resistant finish
Download Datasheet
Download Datasheet
Back
Galvanised raw material with double side painting in compliance with class C
The system includes accessories and wall angles with at least the same protection
CMC - Click2-DE

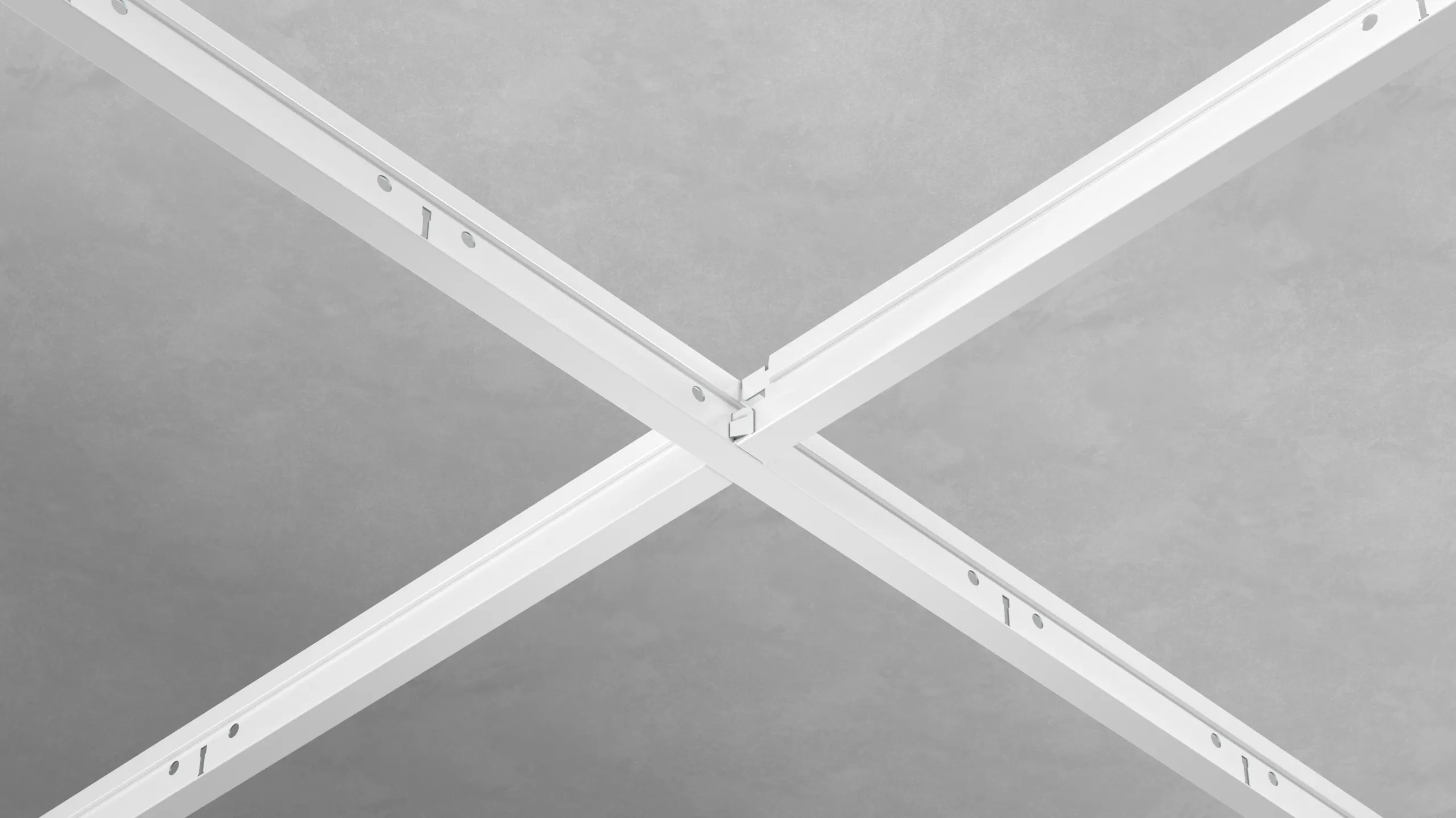

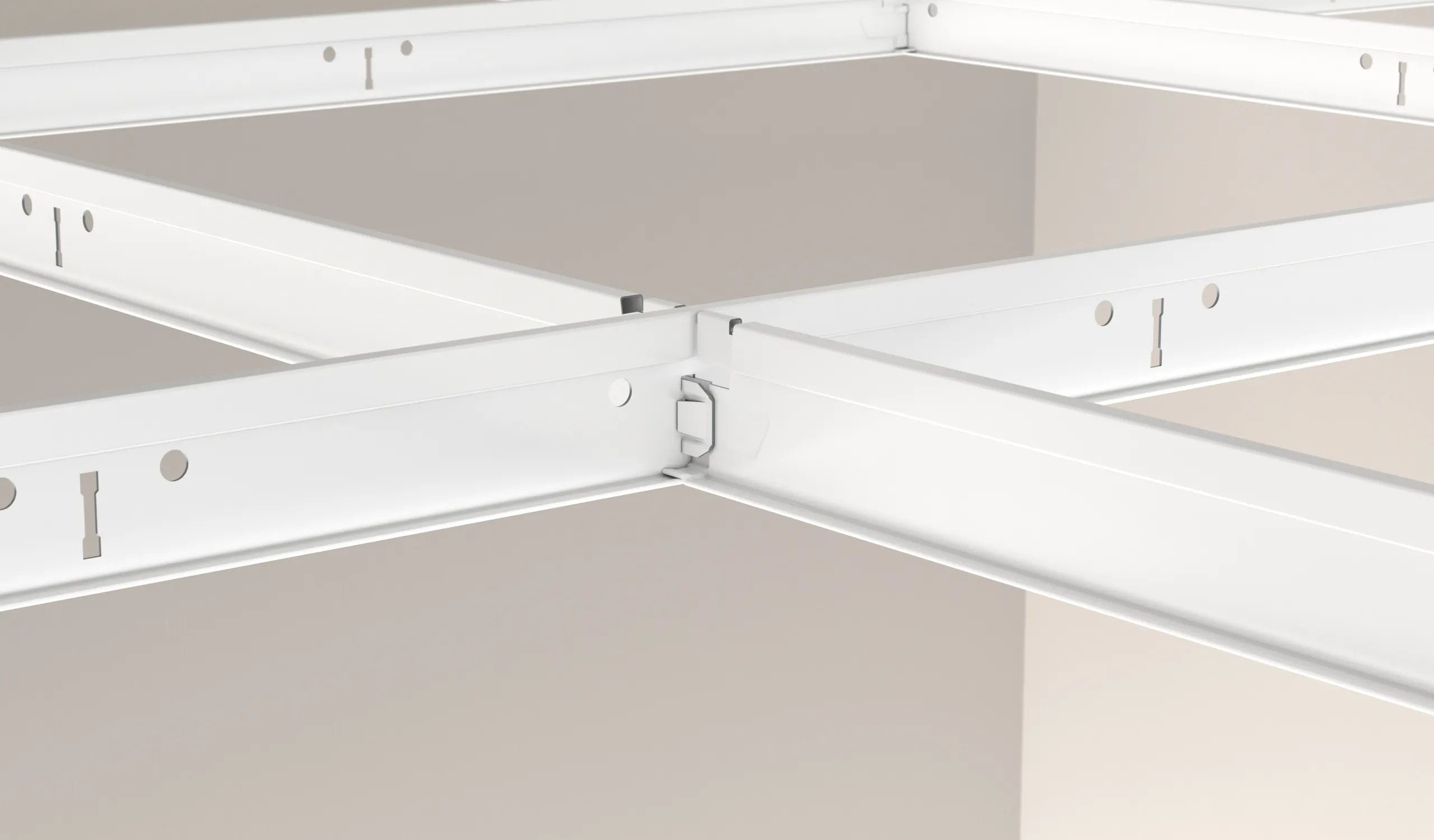

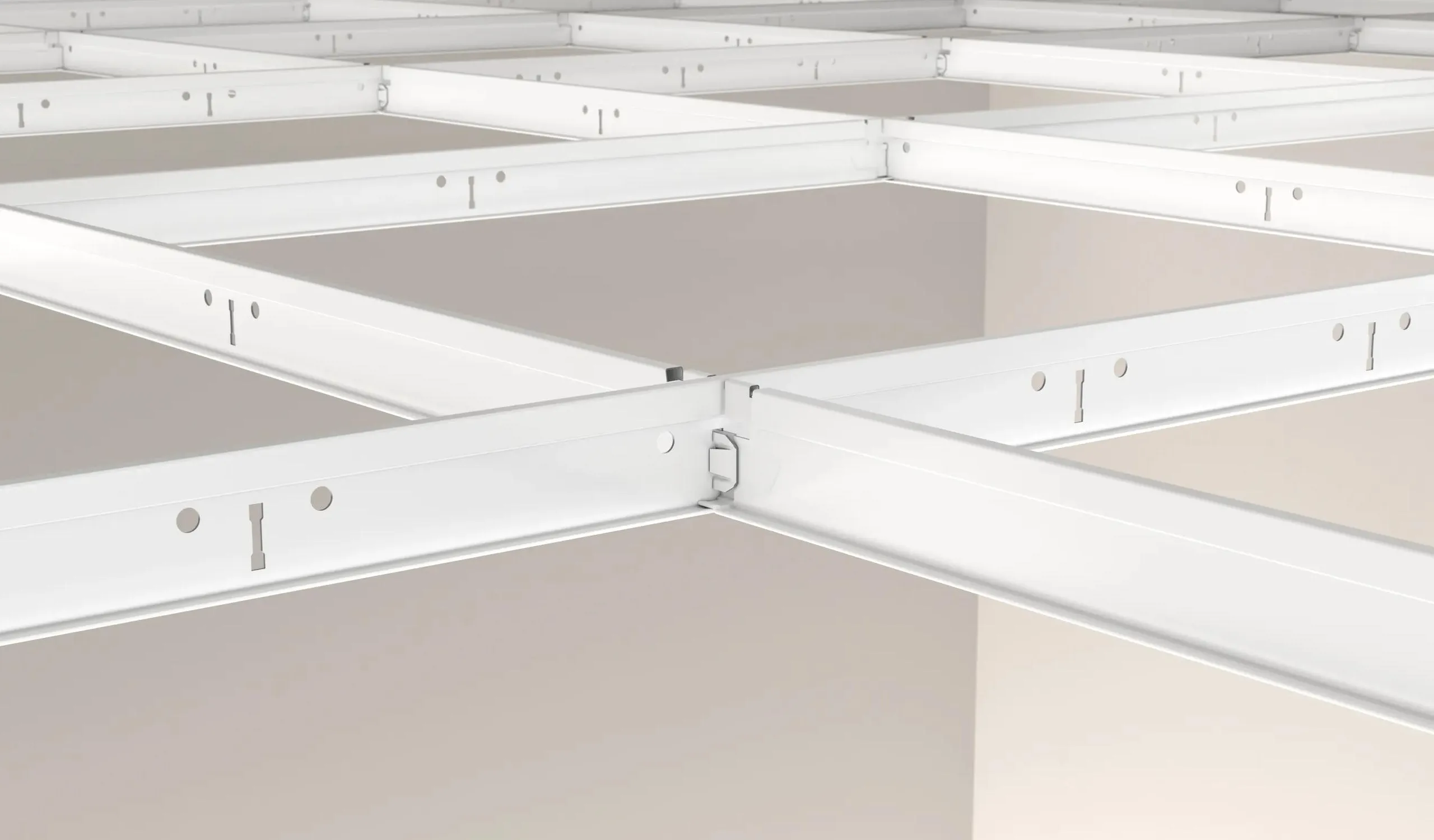

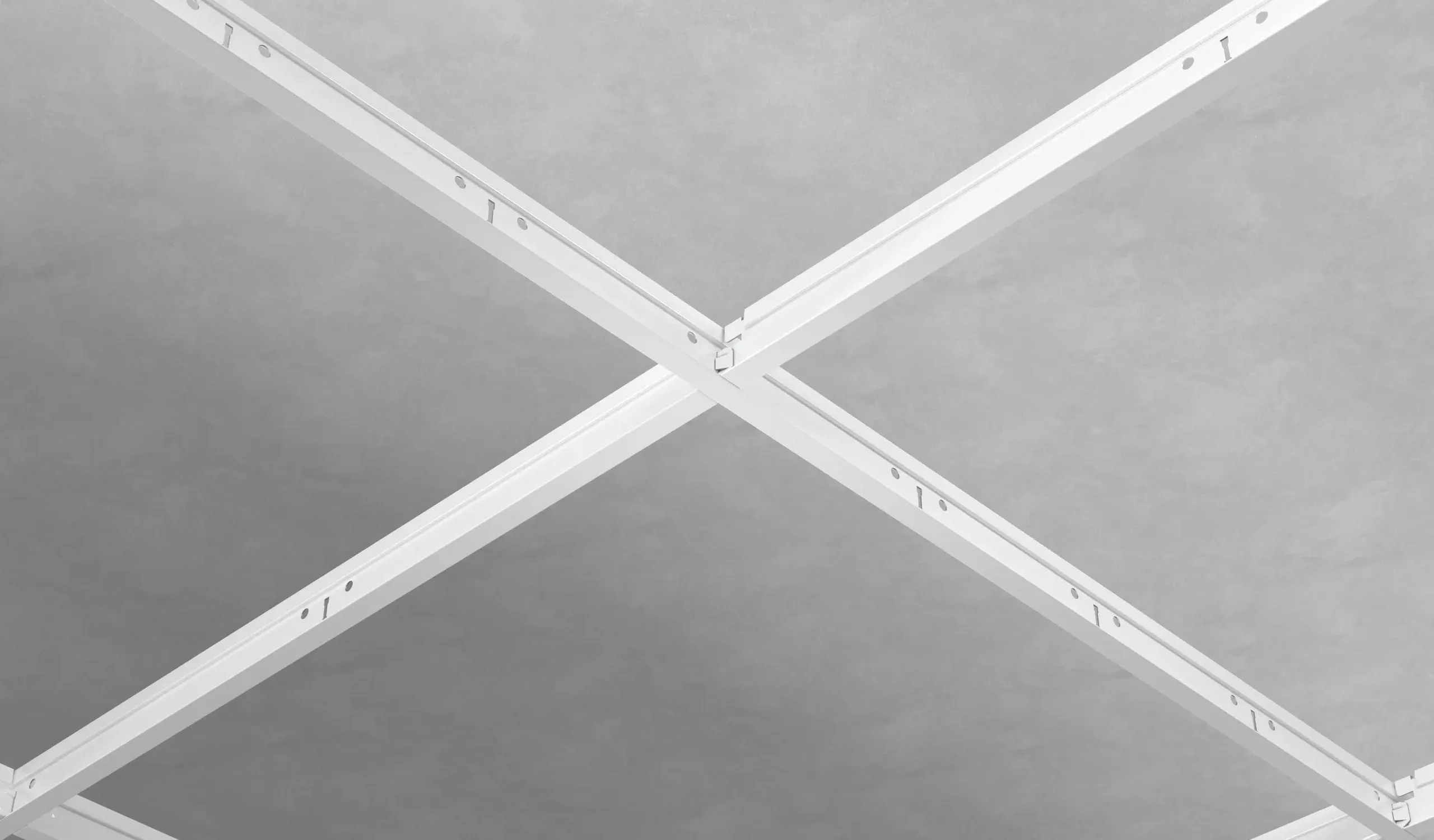

Coupling

Back

Performances

Load Bearing Load Bearing
 Max. load following EN 13964 (kg/m2)
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 8.1 13.5
1200 1200 x 600 8.9 14.7
Corrosion Resistance Corrosion Resistance C
Reaction To Fire Reaction To Fire A1
Environment Environment Fully Recyclable
Back
 Max. load following EN 13964 (kg/m2)
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 8.1 13.5
1200 1200 x 600 8.9 14.7
Back
Back
Back
Back

Profiles and Accessories

Main runner

Component Length Height Width Product number Colours Packaging
Main runner
-2800 CD.tif Main runner T15 Click ECR Class C 3600 38 15 T15 C MR CL&HK White 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50

Cross tee

Component Length Height Width Product number Colours Packaging
Cross tee
-2792CD.tif Cross tee T15 Click ECR Class C 600 38 15 T15 C CT CLICK White 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300
-2794 CD.tif Cross tee T15 Click ECR Class C 1200 38 15 T15 C CT CLICK White 001 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 300 / 300 / 300 / 300

Wall angle options

Component Length Height Width Product number Colours Packaging
L Profiles
D1420.tif L-wall angle 24x24 mm ECR Class C 3050 24 24 L24x24 C White 001 See Packaging Dimensions
D1439.tif L-wall angle 24x19 mm ECR Class C 3050 24 19 L19x24 C White 001 See Packaging Dimensions

Accessories

Component Length Height Product number Packaging
Corrosion resistant (D)
D10012.tif Threaded rod M6 / ECR class D / L=1000 mm 1000 TR D M6 See Packaging Dimensions
D10014.tif Nut M6 / ECR class D NUT D M6 See Packaging Dimensions
D10416.tif Protective cap M6 / ECR class D CAP D M6 See Packaging Dimensions
--D11.tif Special hanger bent / ECR class D 57.5 FH B D See Packaging Dimensions
D10013.tif Spacer sleeve M6 / ECR class D SS D M6 See Packaging Dimensions
Hold down clips & wall springs
HDC 1.tif Plastic hold down clip for tile thickness 15-20 mm (A edge), 15-30 mm (E edge), 20-25 mm (X, M, Z edge), 20-30 mm (D edge) HDC 1 See Packaging Dimensions
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 36 Distance between slots: 50 / 100 / 34 x 100 / 50
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 300 / / / 300
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 300 / 300 / 300 / 300
Back
Back
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
Chicago Metallic T15 Click C2790 ECR Class C | Datasheet
Chicago Metallic T15 Click C2790 ECR Class C | Datasheet

pdf
DoP-RFN-T1538MDECRC.A02 - Main runner T15 Click ECR Class C
DoP-RFN-T1538MDECRC.A02 - Main runner T15 Click ECR Class C

pdf
DoP-RFN-T1538MCECRC-A02 - Cross tee T15 Click ECR Class C
DoP-RFN-T1538MCECRC-A02 - Cross tee T15 Click ECR Class C

pdf
DoP-RFN-THREADEDWIREECRD-A02 - Spacer sleeve M6 / ECR class D
DoP-RFN-THREADEDWIREECRD-A02 - Spacer sleeve M6 / ECR class D

pdf
DoP-RFN-ACCSUSPFIXECRD-A02 - Special hanger bent / ECR class D
DoP-RFN-ACCSUSPFIXECRD-A02 - Special hanger bent / ECR class D

pdf
DoP-RFN-PTLECRC-A02 - L-wall angle 24x19 mm ECR Class C
DoP-RFN-PTLECRC-A02 - L-wall angle 24x19 mm ECR Class C

pdf
DoP-RFN-ACCHDCECRD-A02 - Plastic hold down clip for tile thickness 15-20 mm (A edge), 15-30 mm (E edge), 20-25 mm (X, M, Z edge), 20-30 mm (D edge)
DoP-RFN-ACCHDCECRD-A02 - Plastic hold down clip for tile thickness 15-20 mm (A edge), 15-30 mm (E edge), 20-25 mm (X, M, Z edge), 20-30 mm (D edge)
