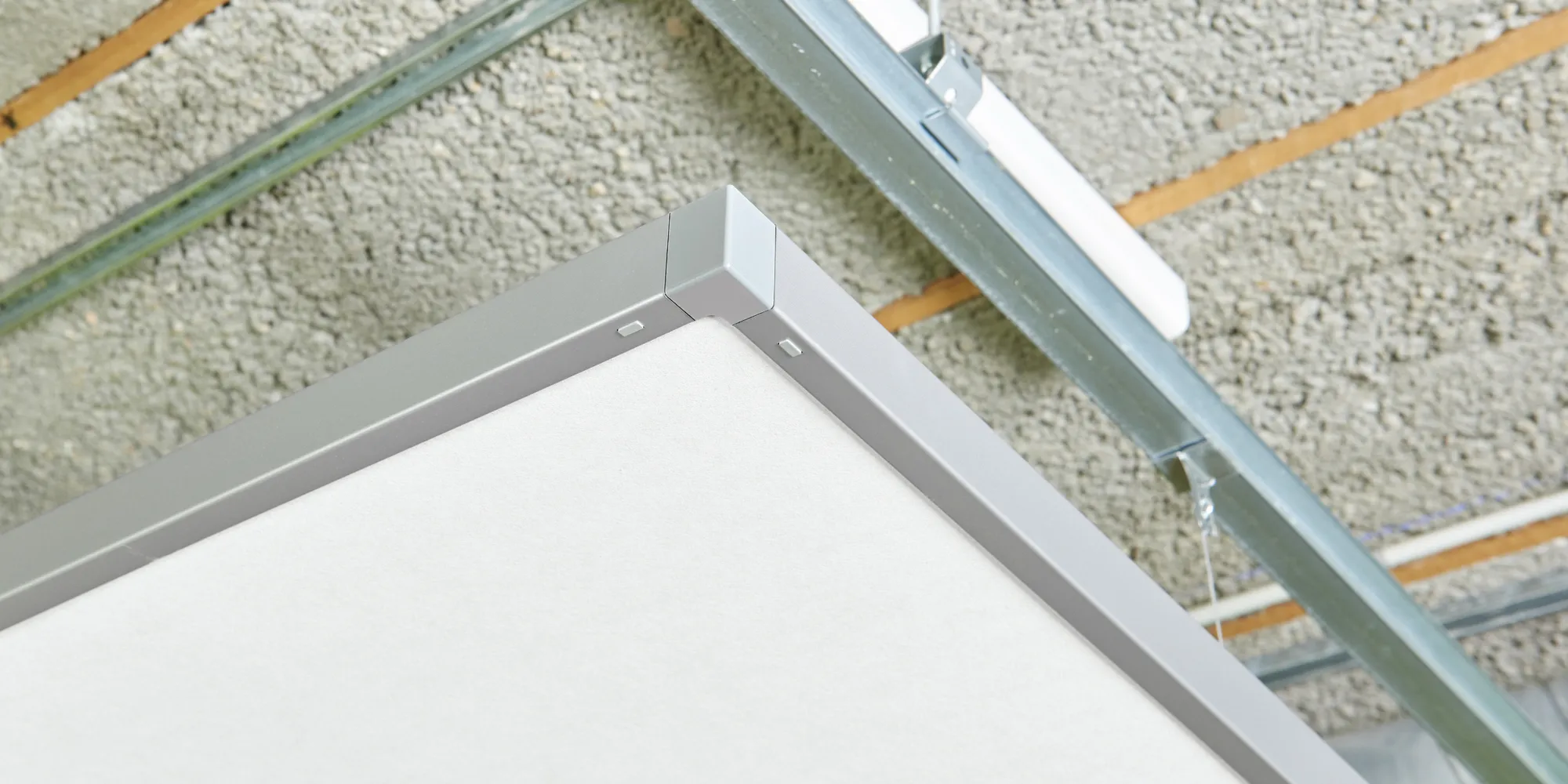

Chicago Metallic Screenline

C-shaped framing for square island shapes with unlimited sizes
Download Datasheet
Download Datasheet
Back

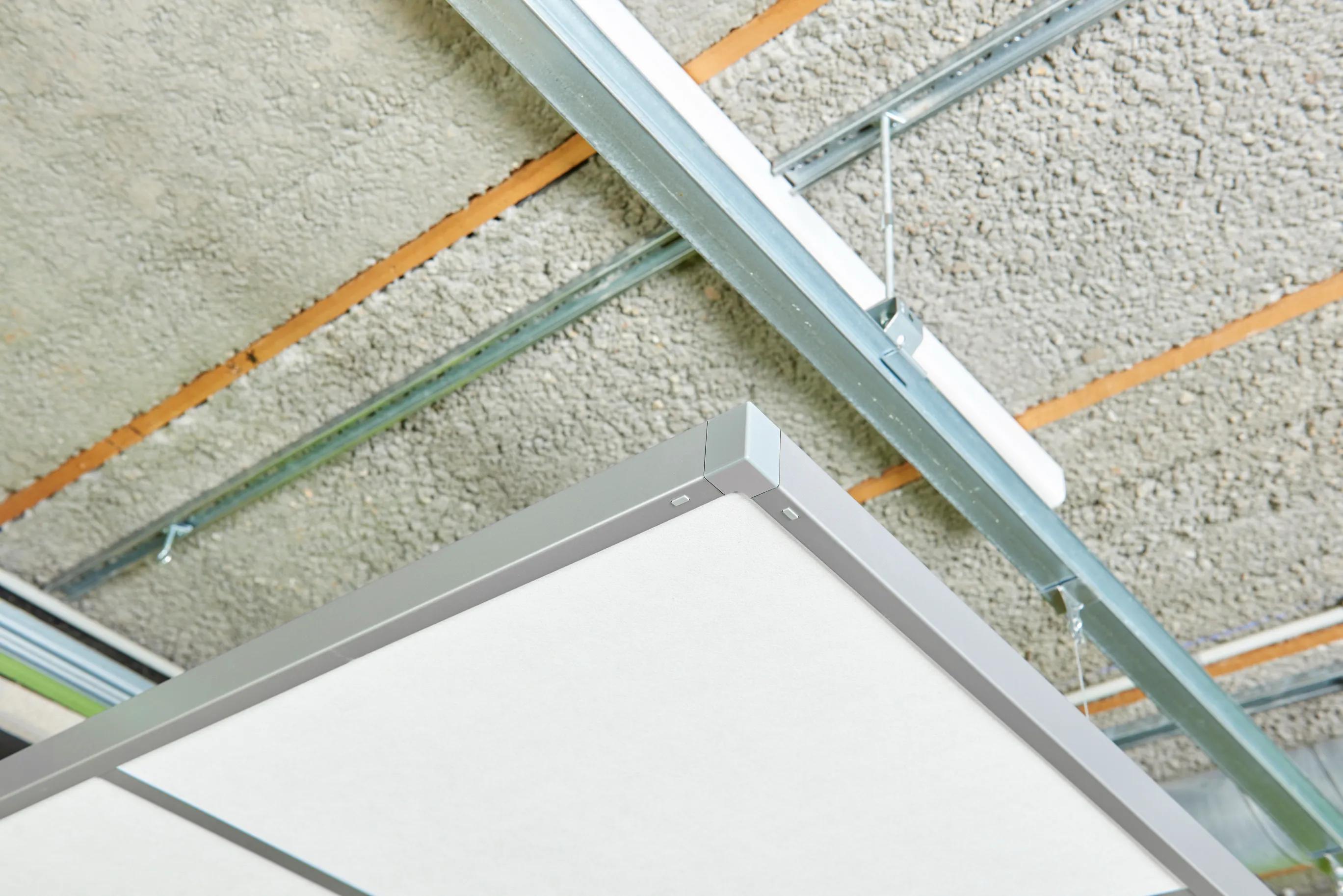

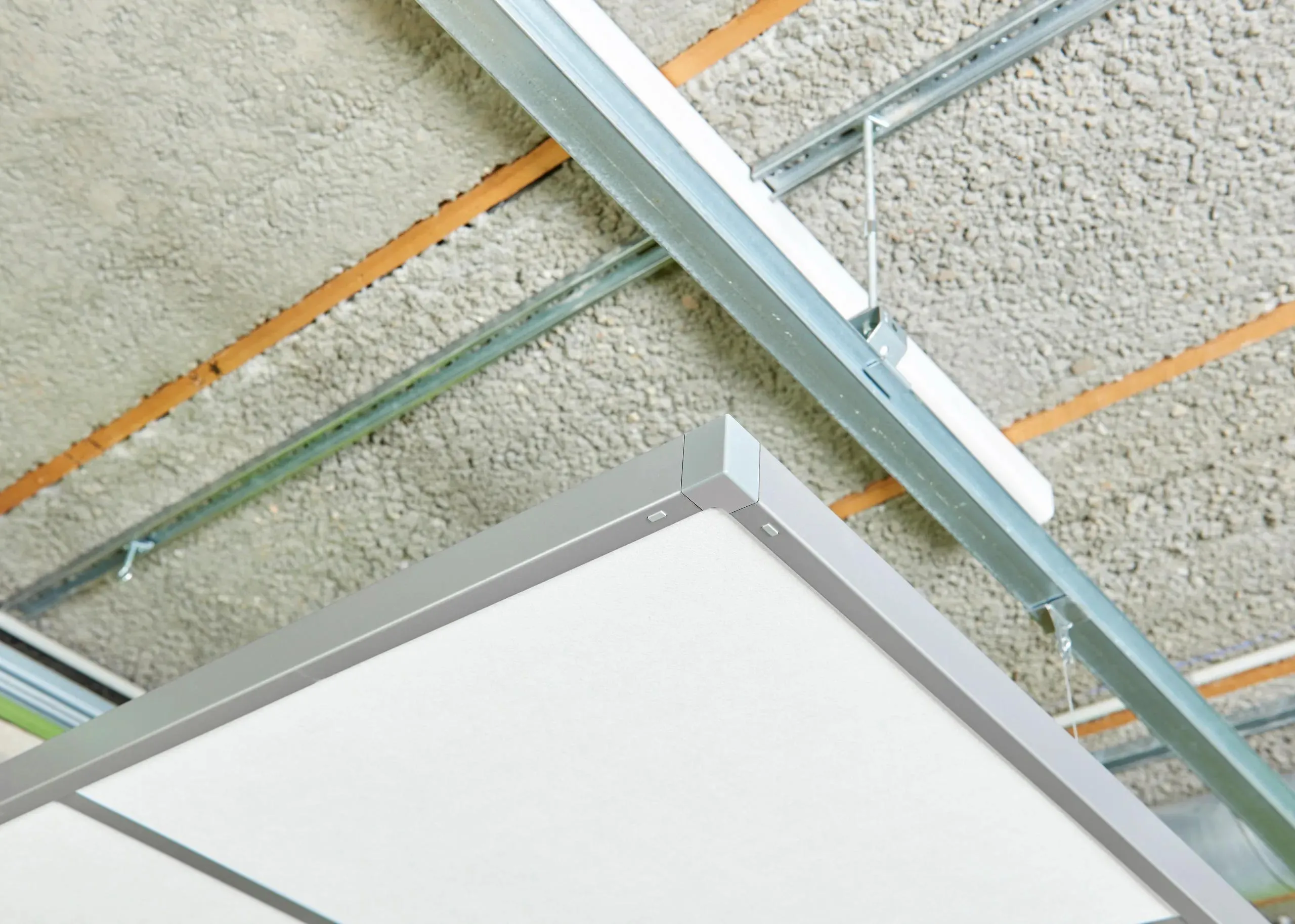

Island framing with or without interior grids
Perfect colour match with other Chicago Metallic grids
Availability of system designed accessories
Profiles deliverable with extra corrosion resistant finishing
Ergonomic handling and transportation
Back

Performances

Corrosion Resistance Corrosion Resistance B
Reaction To Fire Reaction To Fire A1
Environment Environment Fully Recyclable
Back
Back
Back
Back

Profiles and Accessories

Main runner

Component Length Height Width Product number Packaging
Screenline Profiles
SP[1].tif Screenline extension profile 20x43x20 mm 3600 43 20 SCR C40 LL See Packaging Dimensions

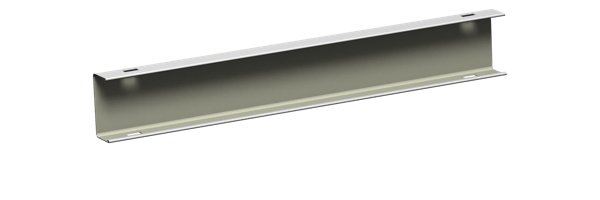

SD[1].tif Screenline profile 20x43x20 mm for 1 hook connection 2070 43 20 SCR C40 LC See Packaging Dimensions
SD[1].tif Screenline profile 20x43x20 mm for 1 hook connection 2670 43 20 SCR C40 LC See Packaging Dimensions
SD[1].tif Screenline profile 20x43x20 mm for 1 hook connection 2970 43 20 SCR C40 LC See Packaging Dimensions
SD[1].tif Screenline profile 20x43x20 mm for 1 hook connection 3570 43 20 SCR C40 LC See Packaging Dimensions
SD[1].tif Screenline profile 20x43x20 mm for 1 hook connection 3270 43 20 SCR C40 LC See Packaging Dimensions
SD[1].tif Screenline profile 20x43x20 mm for 1 hook connection 2370 43 20 SCR C40 LC See Packaging Dimensions
SE[1].tif Screenline profile 20x43x20 mm for 2 hook connections 240 43 20 SCR C40 CC See Packaging Dimensions
SE[1].tif Screenline profile 20x43x20 mm for 2 hook connections 540 43 20 SCR C40 CC See Packaging Dimensions
SE[1].tif Screenline profile 20x43x20 mm for 2 hook connections 1140 43 20 SCR C40 CC See Packaging Dimensions
SE[1].tif Screenline profile 20x43x20 mm for 2 hook connections 1740 43 20 SCR C40 CC See Packaging Dimensions
SE[1].tif Screenline profile 20x43x20 mm for 2 hook connections 1440 43 20 SCR C40 CC See Packaging Dimensions
SE[1].tif Screenline profile 20x43x20 mm for 2 hook connections 2940 43 20 SCR C40 CC See Packaging Dimensions
SE[1].tif Screenline profile 20x43x20 mm for 2 hook connections 3540 43 20 SCR C40 CC See Packaging Dimensions
SE[1].tif Screenline profile 20x43x20 mm for 2 hook connections 2340 43 20 SCR C40 CC See Packaging Dimensions
SE[1].tif Screenline profile 20x43x20 mm for 2 hook connections 2040 43 20 SCR C40 CC See Packaging Dimensions
Main runner

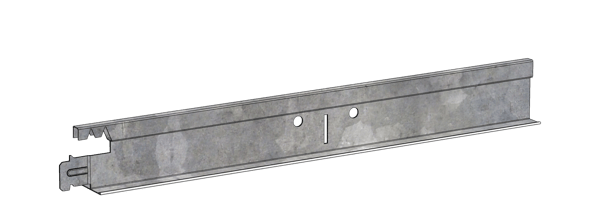

4870.tif Screenline T24-main runner 38 24 SCR T24 MR HOOK See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / / /

Cross tee

Component Length Height Width Product number Packaging
Cross tee

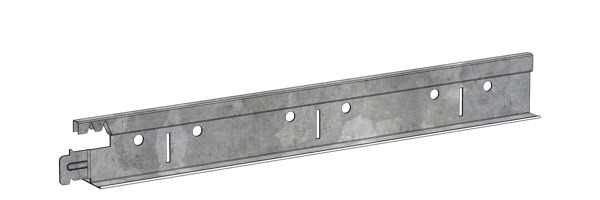

-4892.tif Screenline T24-cross tee 600 38 24 SCR T24 CT HOOK See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 1 Distance between slots: 288 / / / 298.5
-4894.tif Screenline T24-cross tee 1200 38 24 SCR T24 CT HOOK See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 3 Distance between slots: 288 / 300 / 300 / 298,5

Accessories

Component Product number Packaging
Trims and Transitions

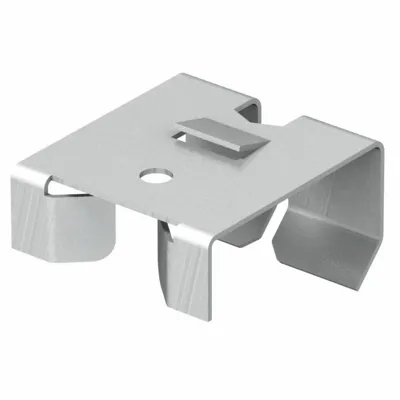

D4004.tif Fixation bracket Screenline SCR FC T See Packaging Dimensions
40CL.tif Screenline length coupling SCR LC 001 See Packaging Dimensions
40CO.tif Screenline outside corner SCR OC 001 See Packaging Dimensions
40IC.tif Screenline inside corner SCR IC 001 See Packaging Dimensions
4156-250.tif Screenline design hanger set DHS1 See Packaging Dimensions

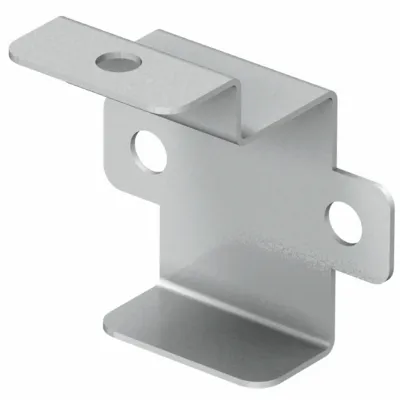

D4006.tif Screenline hanger clip SCR SUSP See Packaging Dimensions

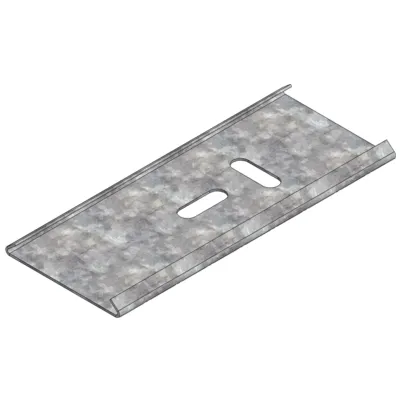

--109.TIF.tif Screenline Wall bracket SCR WB See Packaging Dimensions
Tools & Pincers
4940.tif Screenline pincer PINC SCR See Packaging Dimensions
