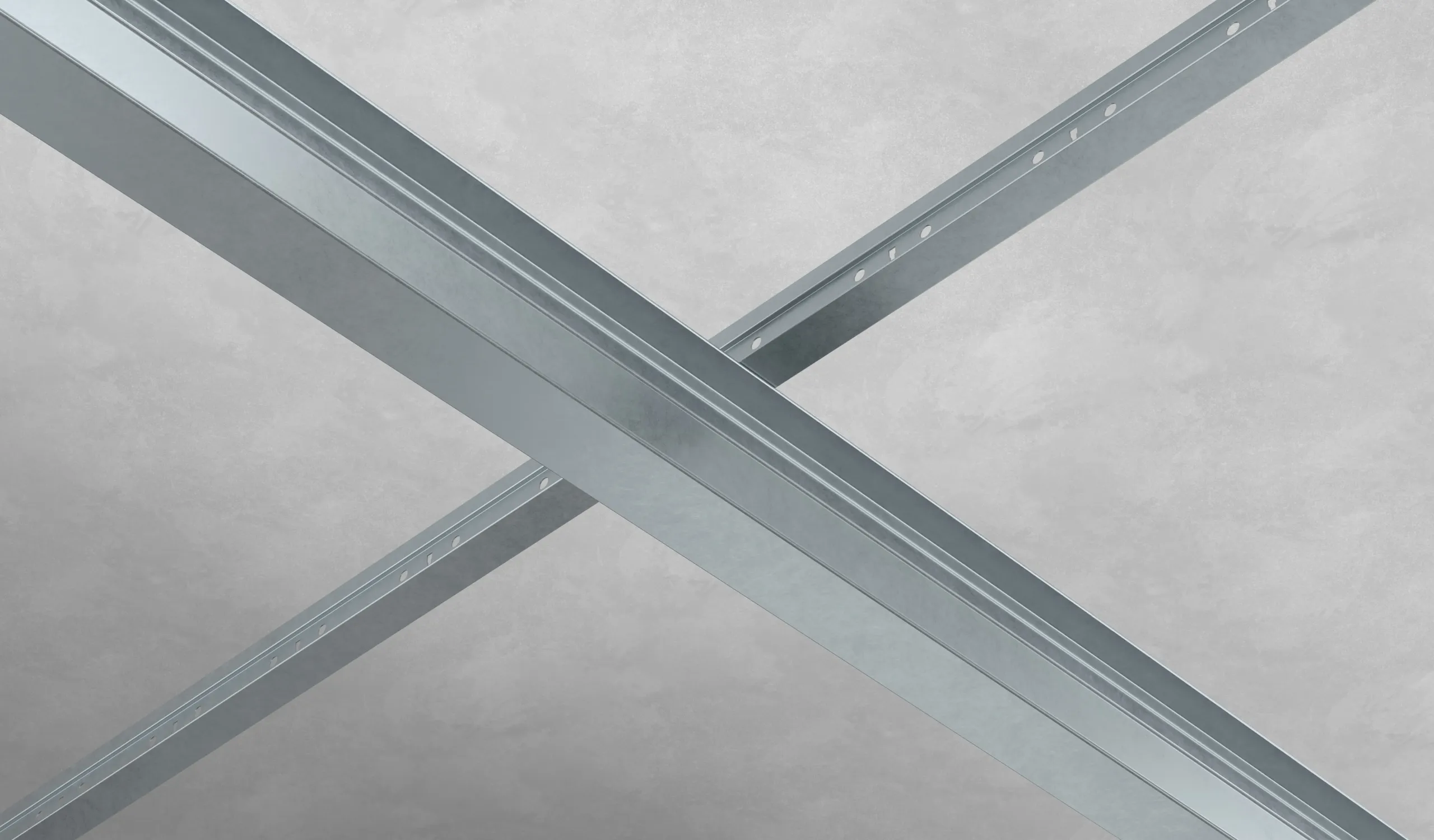

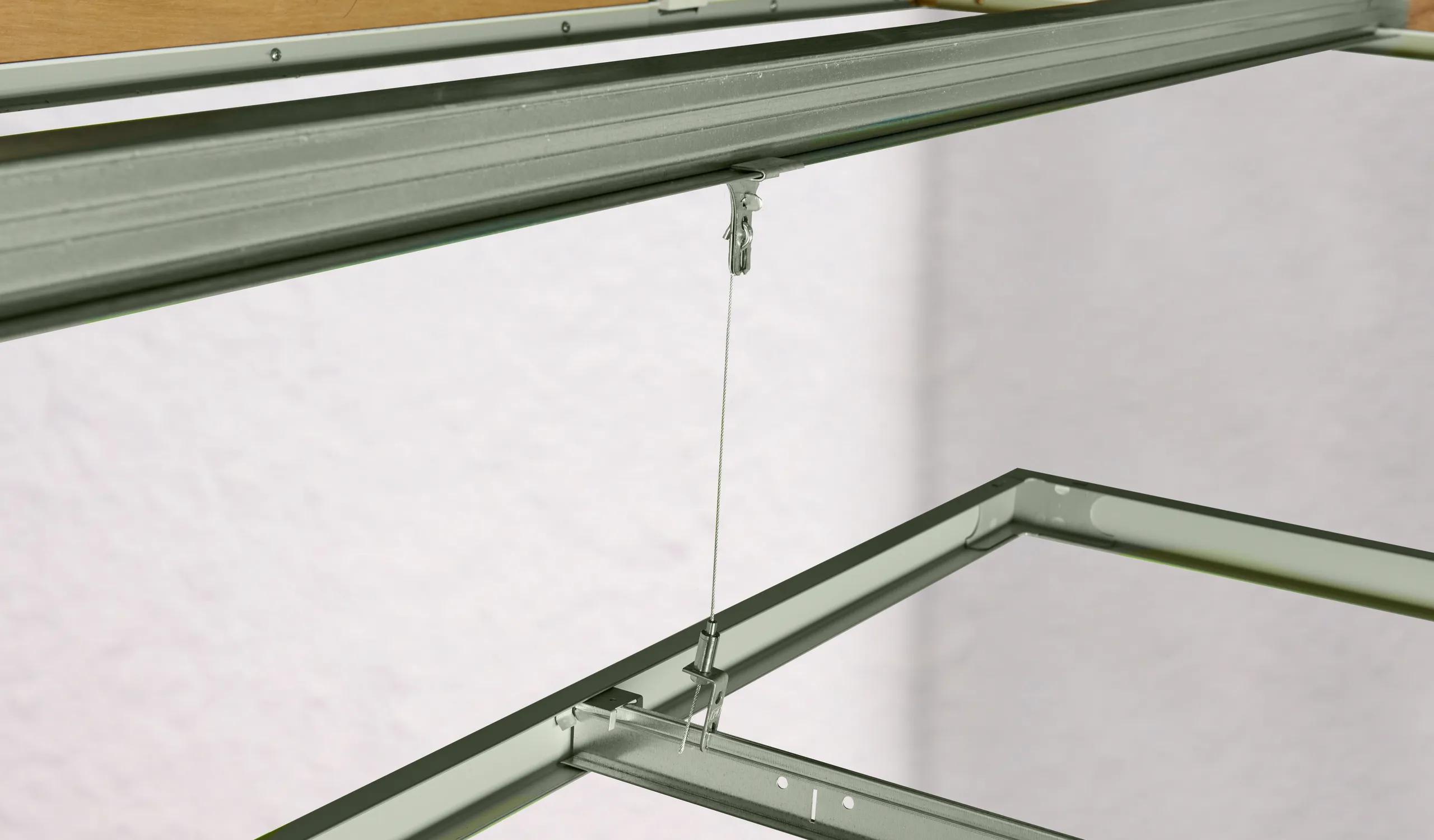

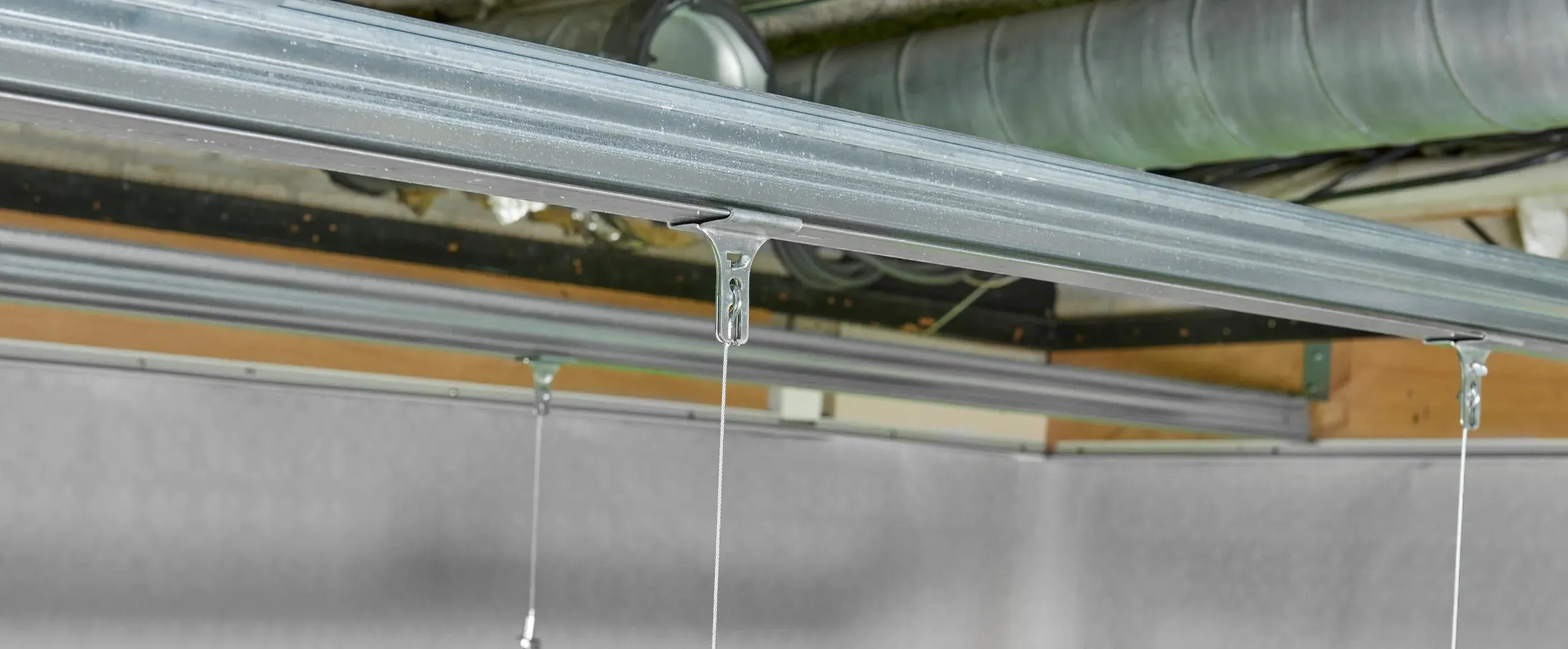

Chicago Metallic Primary Structure I-profiles

40mm wide I-profiles available in heights from 55mm to 120mm to meet long-span and load demands, ideal for primary support.

Product training
End-to-end support
Made in Europe

Popular files

View all files

Product details

45 colours

View all product details

Assortment (Chicago Metallic Primary Structure I-profiles)

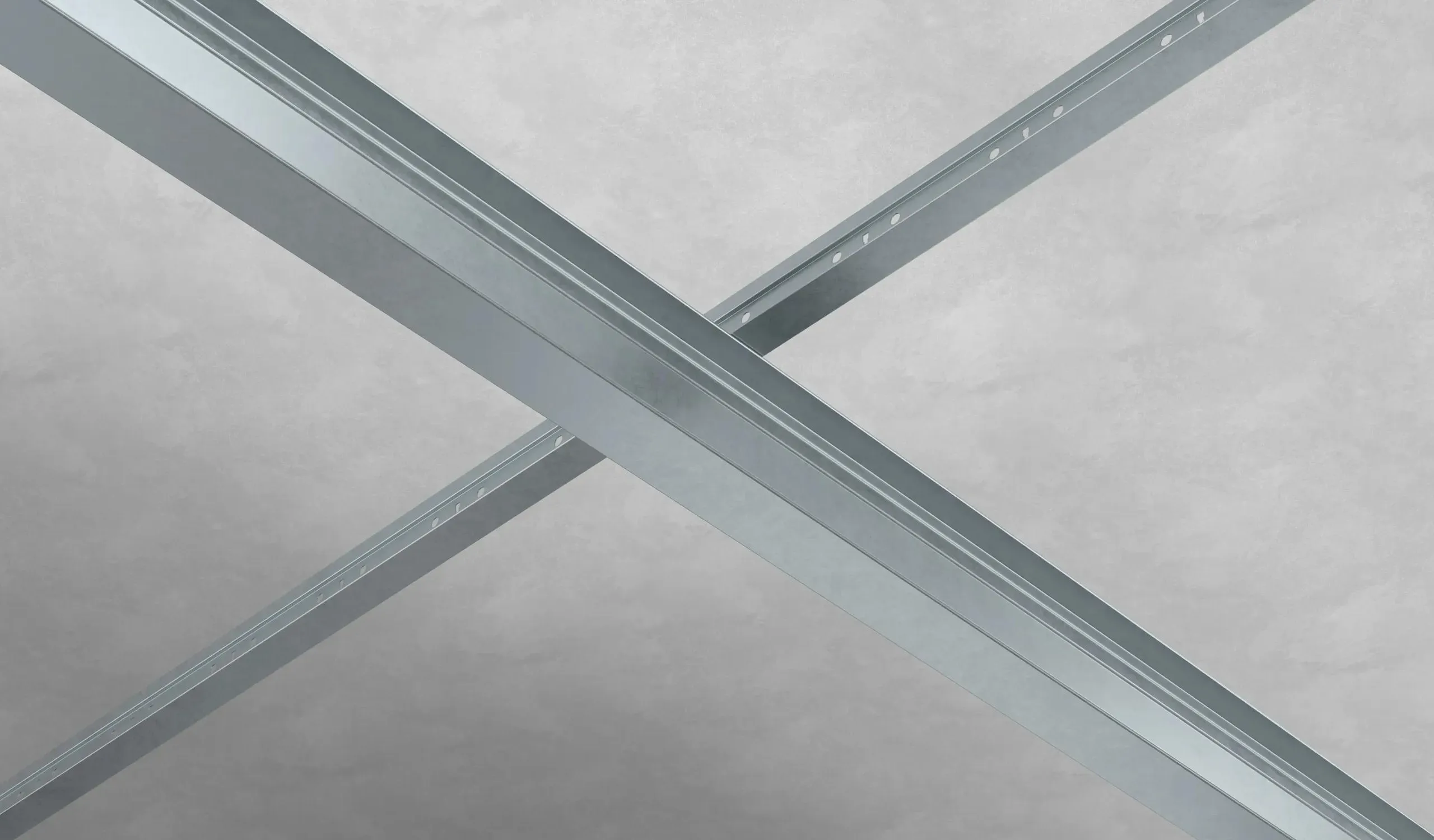

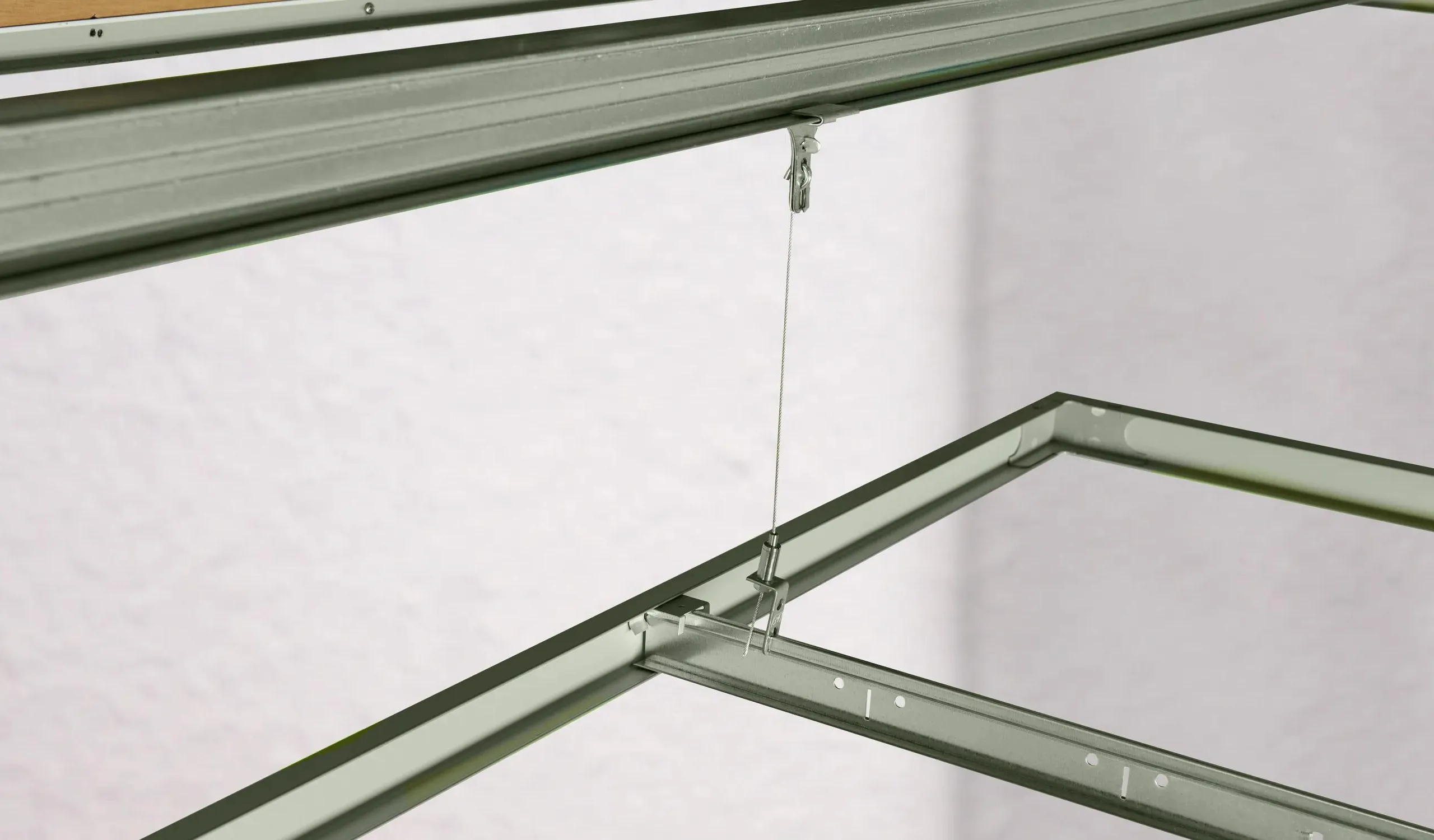

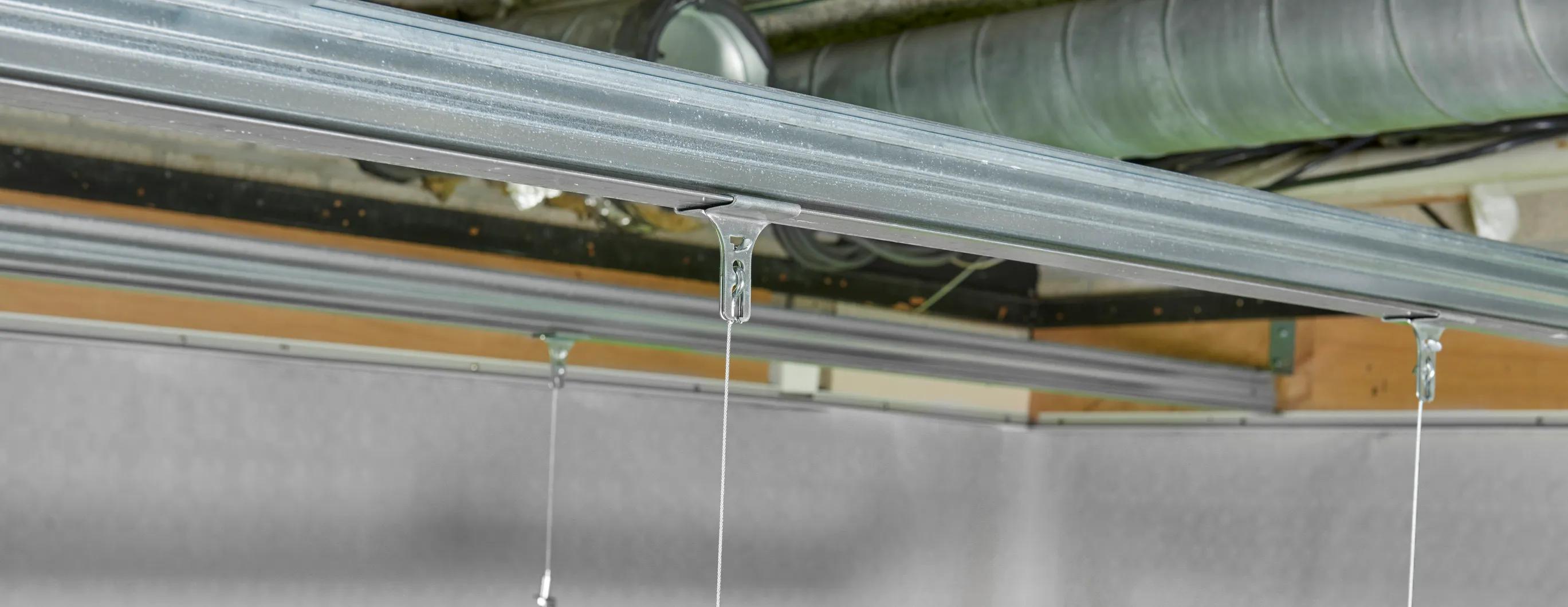

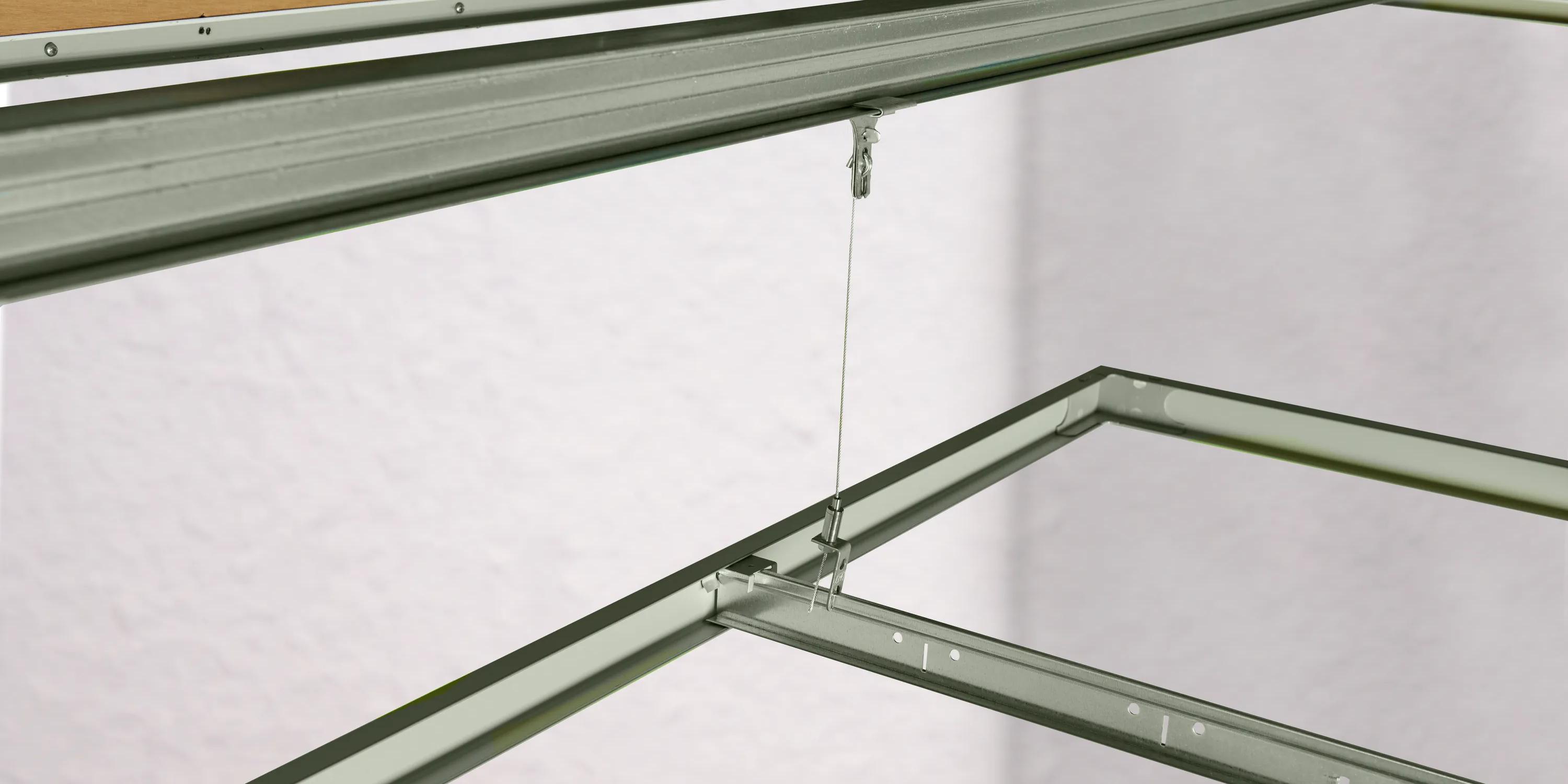

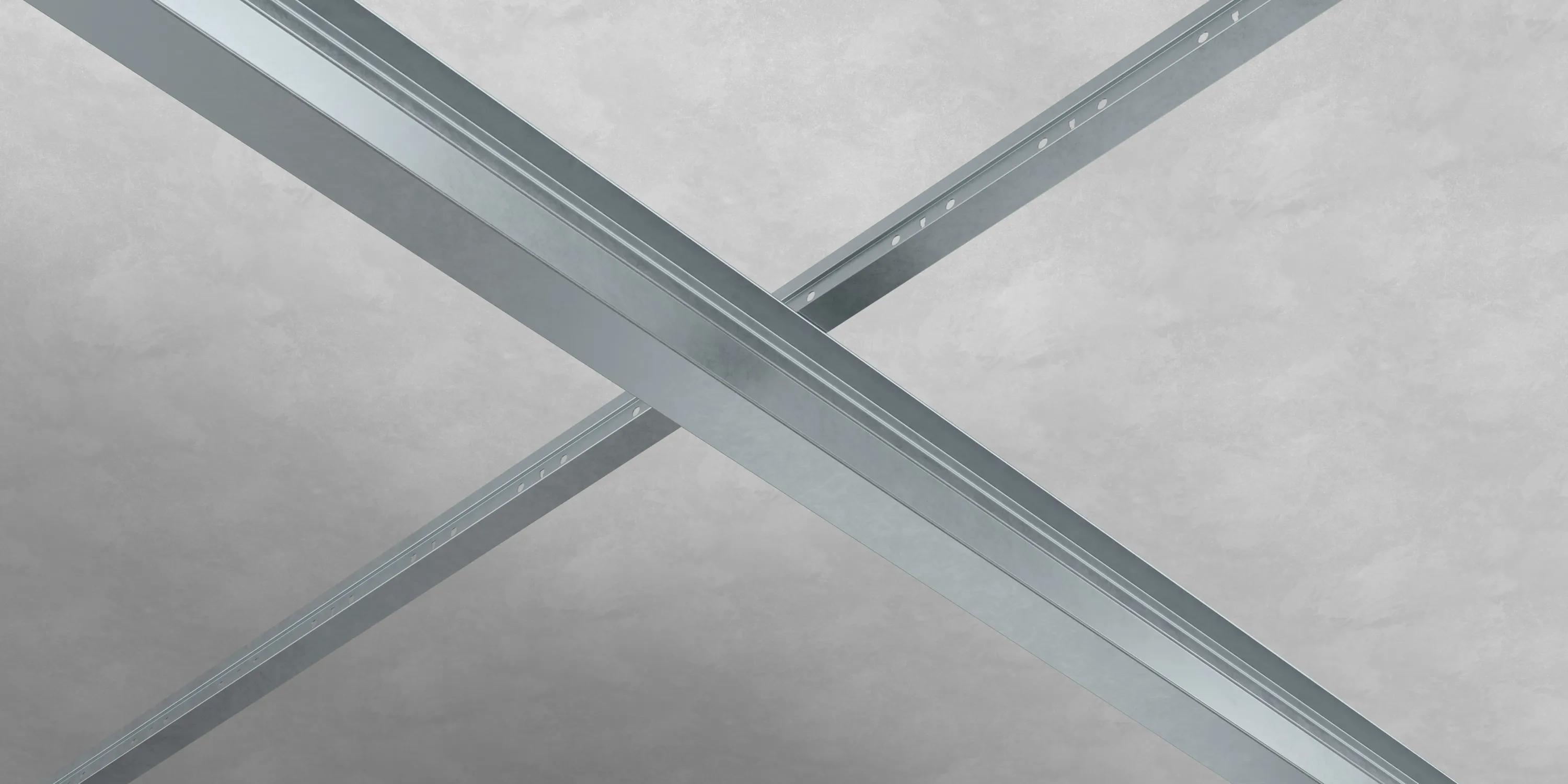

Main runner

Component description	Length (mm)	Width (mm)	Height (mm)	Product group	Colour

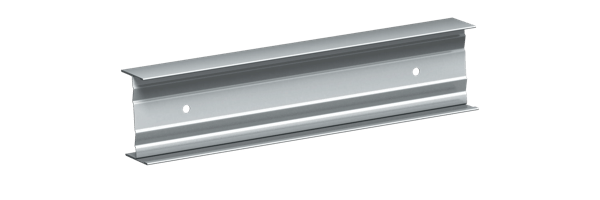

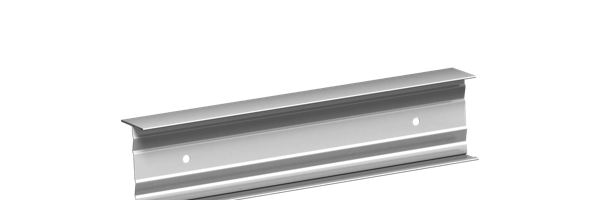

Primary I-runner 55 mm	5000	40	55	I40x55	Galva 00
Primary I-runner 55 mm	5000	40	55	I40x55 HD	Galva 00
Primary I-runner 70 mm	5000	40	70	I40x70	Galva 00
Primary I-runner 70 mm	5000	40	70	I40x70 HD	Galva 00
Primary I-runner 85 mm	5000	39	85	I40x85	Galva 00
Primary I-runner 85 mm	5000	40	85	I40x85 HD	Galva 00
Primary I-runner 120 mm	6500	40	120	I40x120	Galva 00
Main runner T24 Click / Hook	3600	24	38	T24 MR CL&HK	Fresh Azure Storm Space +40

Accessories (16)

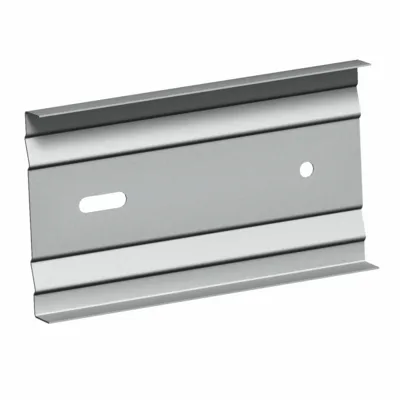

Length coupling for primary I-runner 55 mm

I40x55 LC

Durability: class B
50pcs/ctn

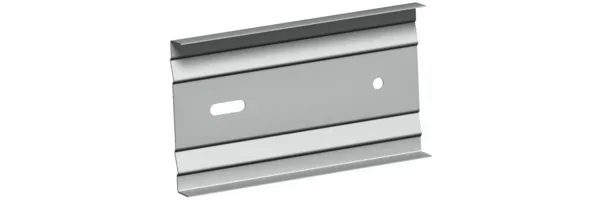

Length coupling for primary I-runner 70 mm

I40x70 LC

Durability: class B
50pcs/ctn

Length coupling for primary I-runner 85 mm

I40x85 LC

Durability: class B
50pcs/ctn

Specifications

For more details about Chicago Metallic Primary Structure I-profiles please download the product datasheet or contact us.

Reaction to fire

Corrosion resistance

Environment

Fully Recyclable

Max distance between suspension points (mm) in relation to a ceiling load (kg/m²)

Max. span (mm) - max. deflection = L/300
Axe/axe distance	3 kg/m²	4 kg/m²	5 kg/m²	6 kg/m²	7 kg/m²	8 kg/m²	9 kg/m²	10 kg/m²	12 kg/m²	14 kg/m²	16 kg/m²	20 kg/m²	30 kg/m²
600	5000	5000	5000	4700	4500	4300	4100	4000	3700	3500	3400	3100	2700
700	5000	5000	4700	4500	4200	4100	3900	3800	3500	3400	3200	3000	2500
800	5000	4900	4500	4300	4100	3900	3700	3600	3400	3200	3100	2800	2200
900	5000	4700	4400	4100	3900	3700	3600	3500	3200	3100	2900	2700	2000
1000	5000	4500	4200	4000	3800	3600	3500	3300	3100	3000	2800	2600	1800
1100	4800	4400	4100	3800	3600	3500	3300	3200	3000	2900	2800	2400	1700
1200	4700	4300	4000	3700	3500	3400	3200	3100	2900	2800	2700	2200	1500
1300	4600	4200	3900	3600	3400	3300	3200	3000	2900	2700	2500	2100	1400
1400	4500	4100	3800	3500	3400	3200	3100	3000	2800	2700	2400	1900	1300
1500	4400	4000	3700	3500	3300	3100	3000	2900	2700	2500	2200	1800	1200
2000	4000	3600	3300	3100	3000	2800	2700	2600	2200	1900	1700	1400	900
