Chicago Metallic Monolithic

T- and Omega-shaped easy-click grid for the installation of Rockfon® Mono Acoustic and a variety of boards.
Download Datasheet
Download Datasheet
Back

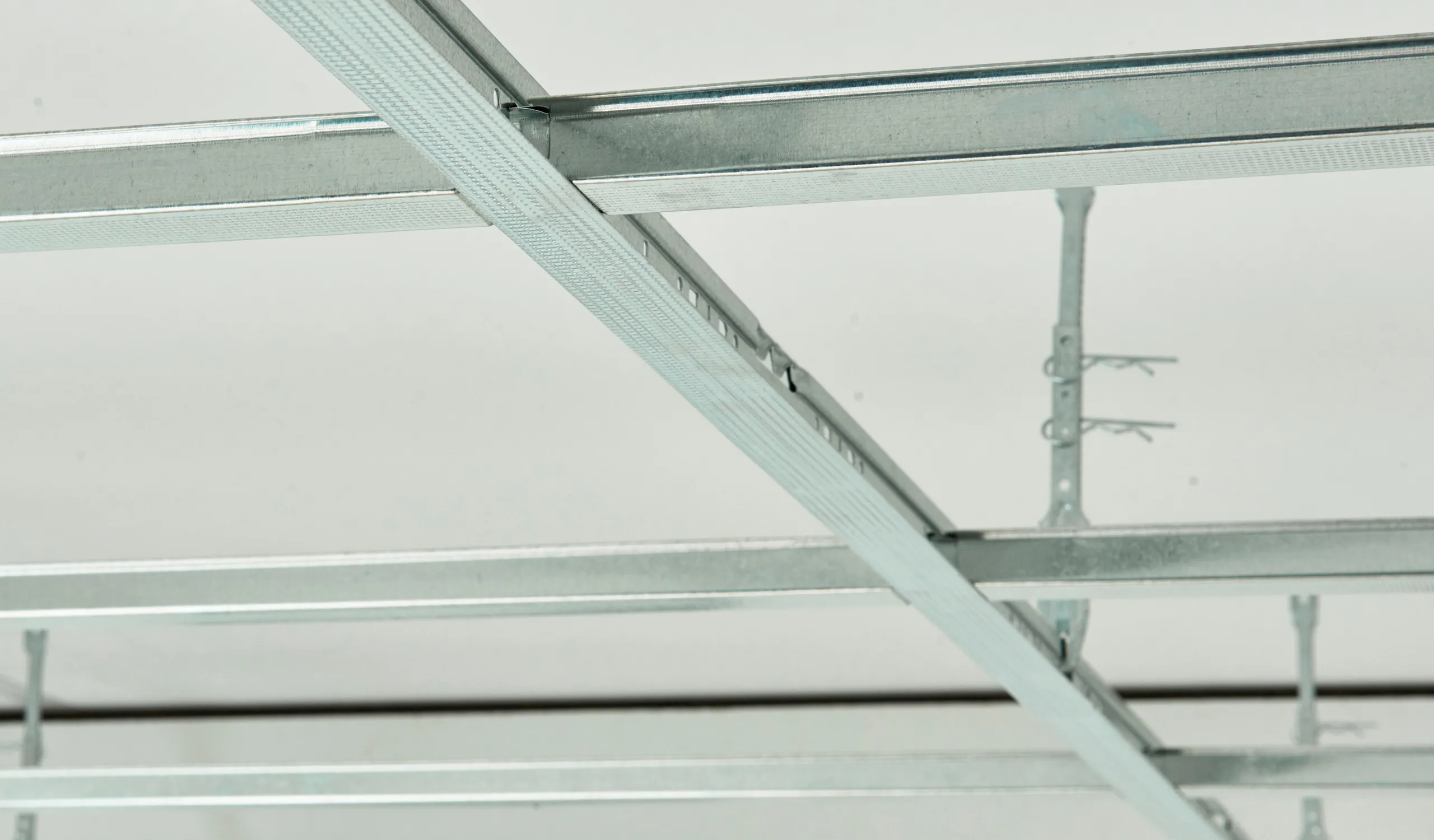

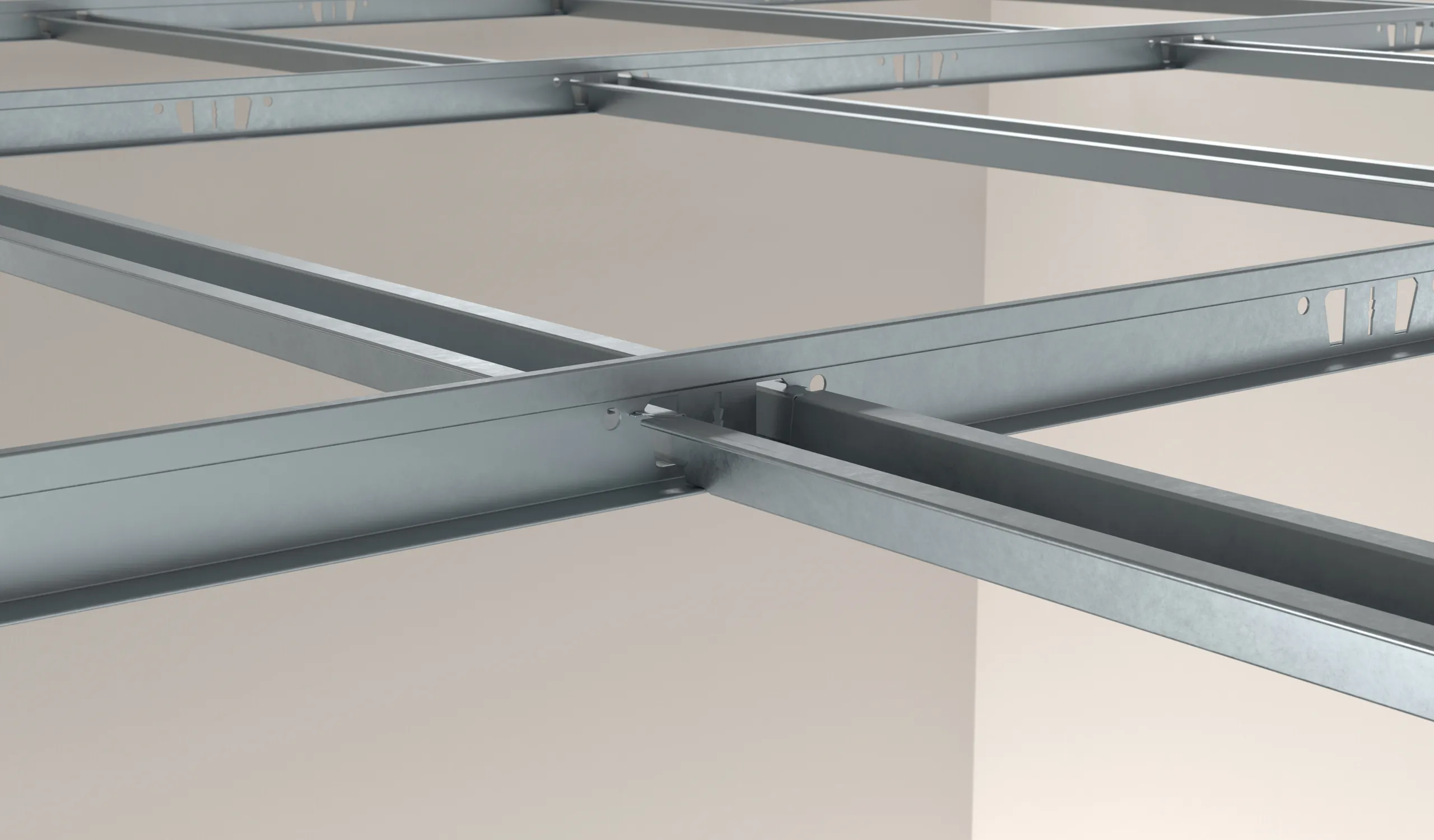

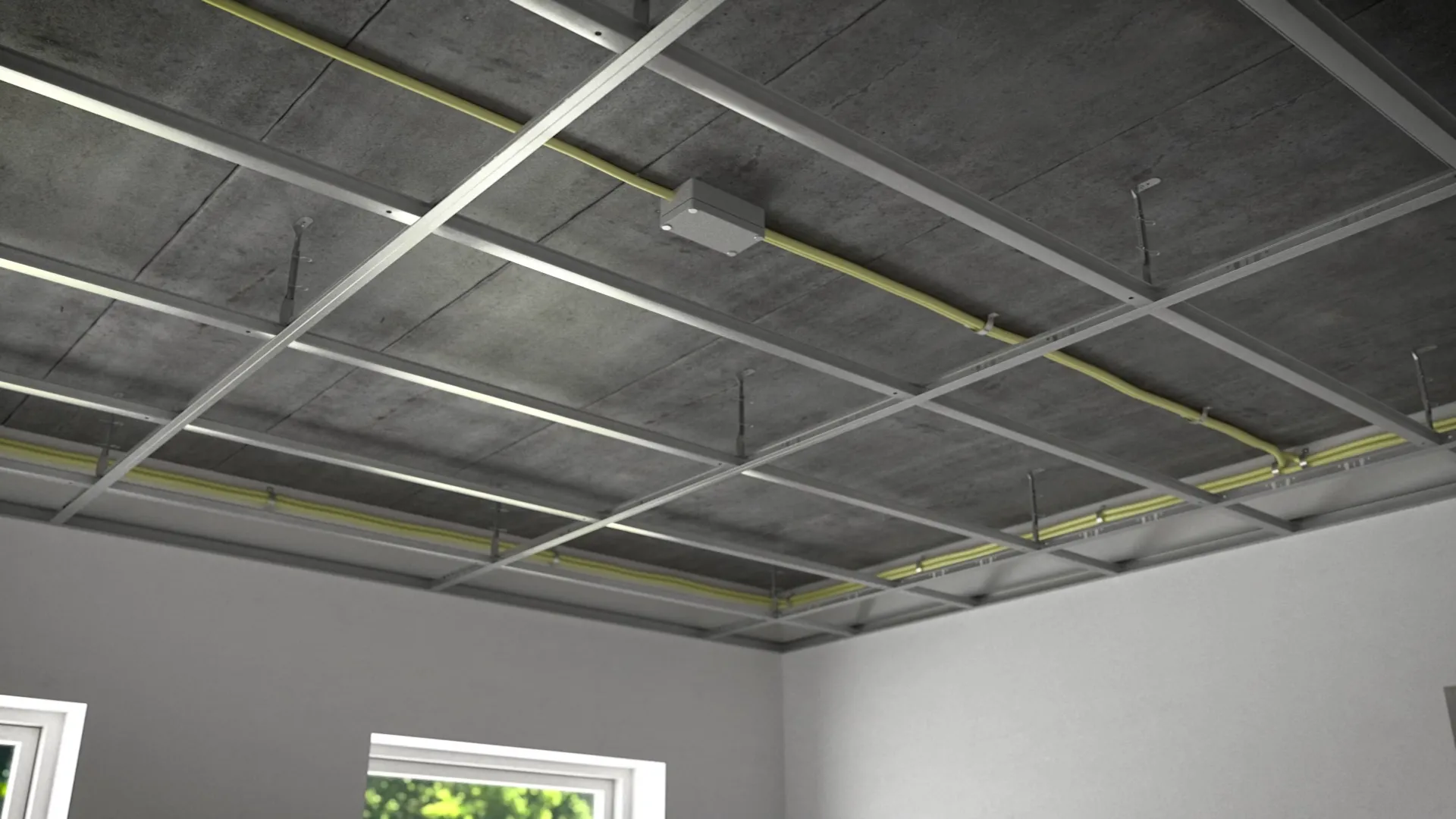

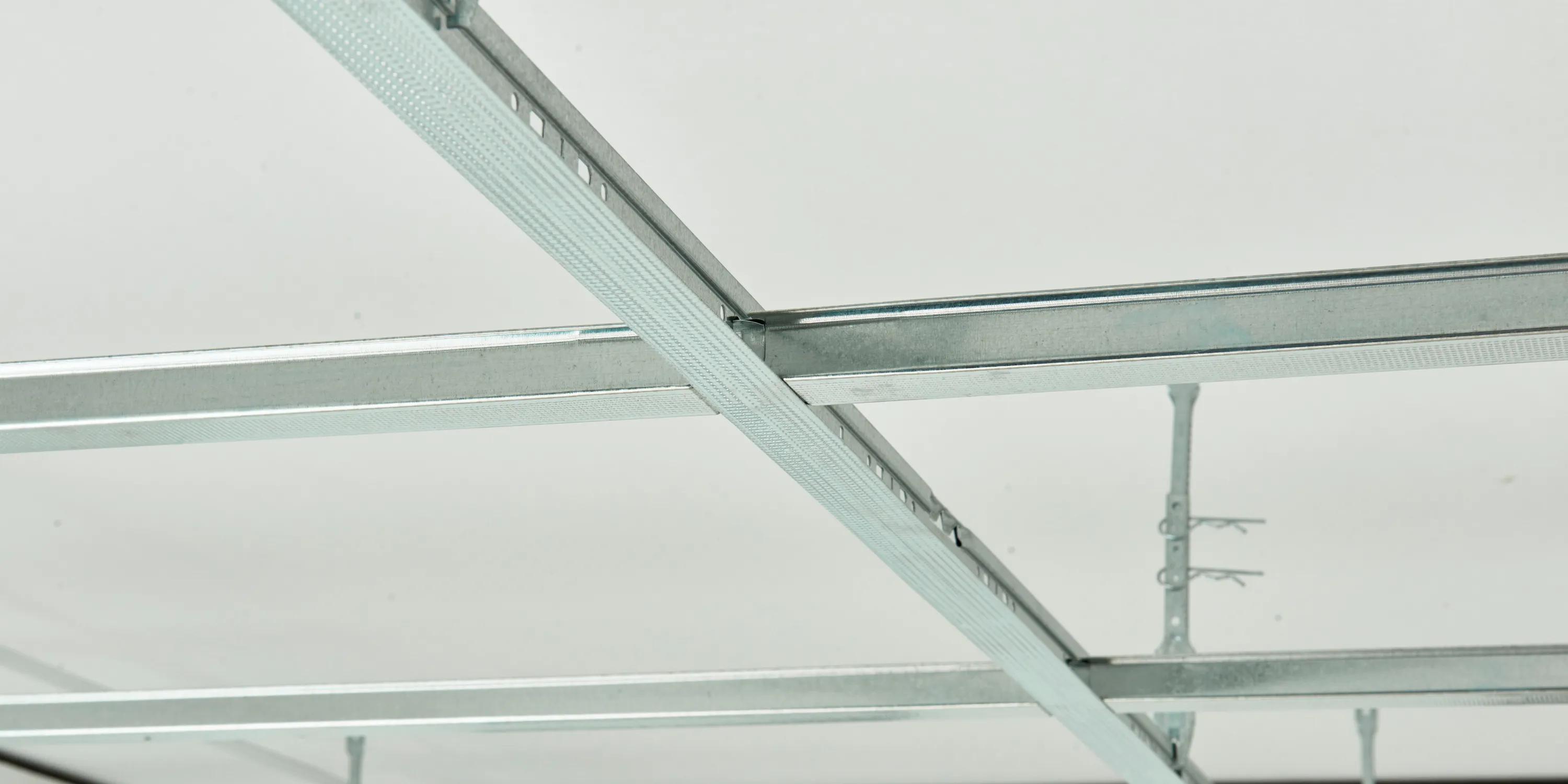

T and Omega shaped grid for the installation of Rockfon® Mono Acoustic and a variety of boardsQuick and easy click system reduces time and installation costs
Single layer system for reduced plenum heights
Simple grid without the need for accessories

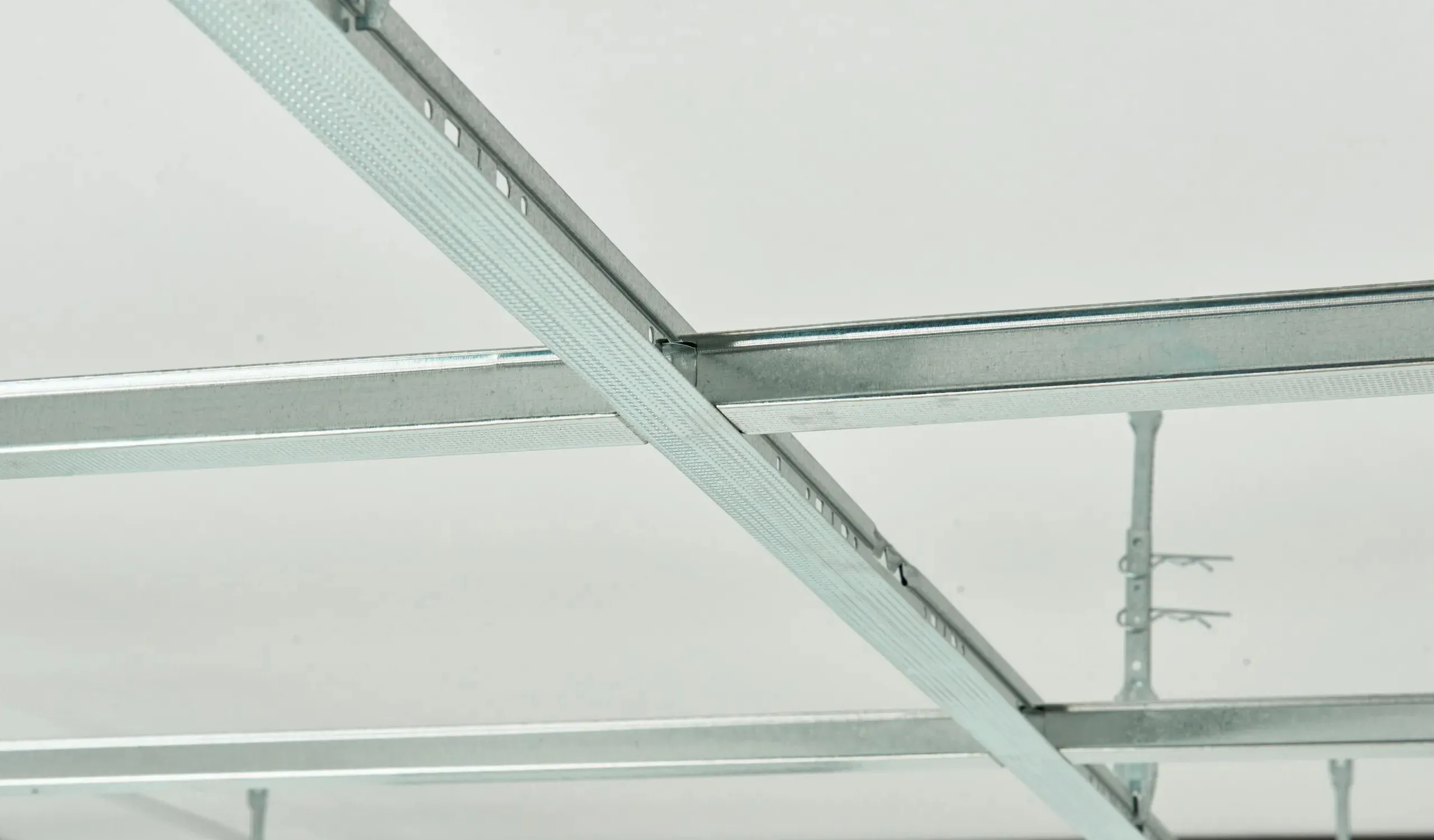

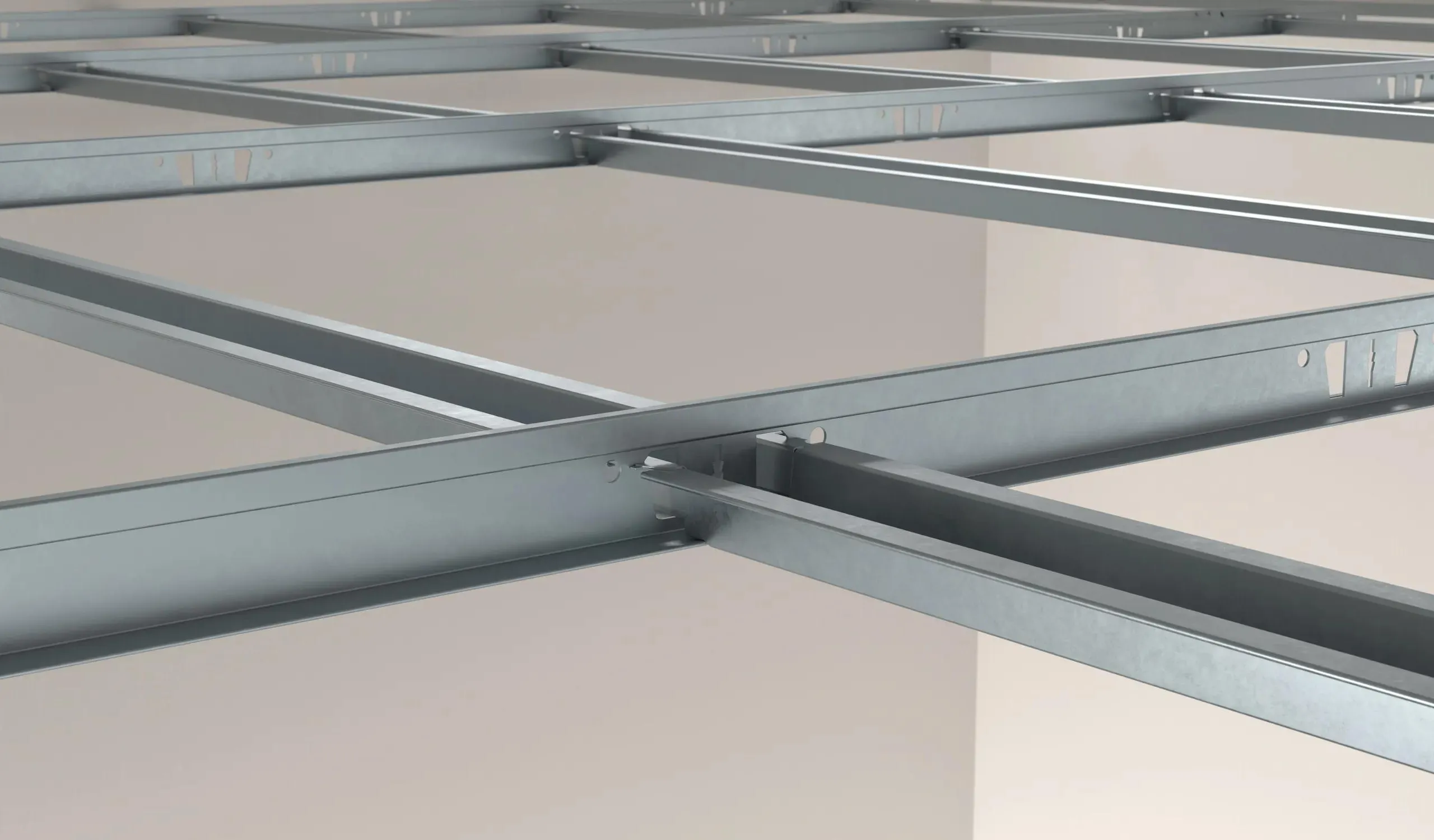

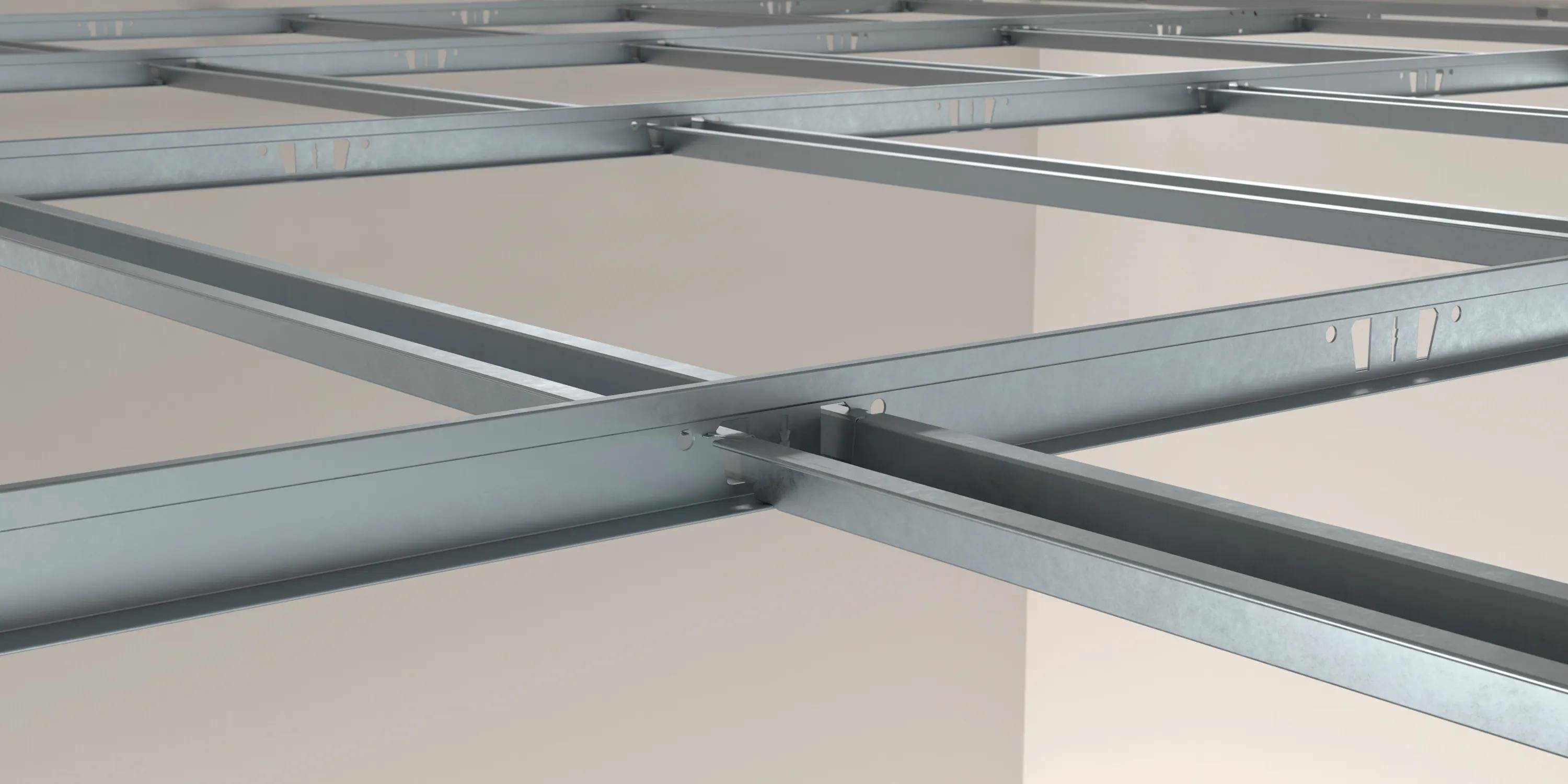

Omega_profile_Coupling_bis

Coupling

Back

Performances

Load Bearing Load Bearing
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
3.3 mm
1200 1200 x 600 12
1200 1200 x 400 13.9
Corrosion Resistance Corrosion Resistance B
Reaction To Fire Reaction To Fire A1
Environment Environment Fully Recyclable
Back
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
3.3 mm
1200 1200 x 600 12
1200 1200 x 400 13.9
Back
Back
Back
Back

Profiles and Accessories

Main runner

Component Length Height Width Product number Colours Packaging

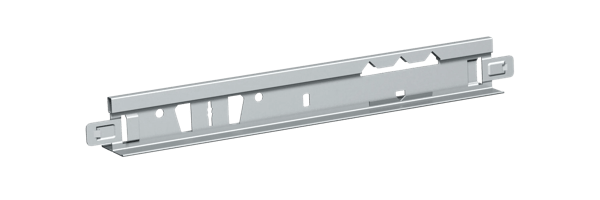

Main runner
Monolithic main runner.tif Monolithic main runner 3600 38 35 MONO T35 MR See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 18 Distance between slots: 100 / 200 / 16 x 200 / 100
Monolithic main runner.tif Monolithic main runner 3600 38 35 MONO T35 MR Galva 69 See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 16 Distance between slots: 112,50 / 225 / 14 x 225 / 112,50

Cross tee

Component Length Height Width Product number Packaging
Furring Channel
Monolithic furring channel.tif Monolithic furring channel 1200 22.23 66.68 MONO HAT35 CT See Packaging Dimensions

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1200 / /

Wall angle options

Component Length Height Width Product number Packaging
C Profiles
5110.tif C-wall angle 30x40.5x30 mm 3050 40.5 30 MONO C40 See Packaging Dimensions

Accessories

Component Height Product number Packaging
Nonius hangers

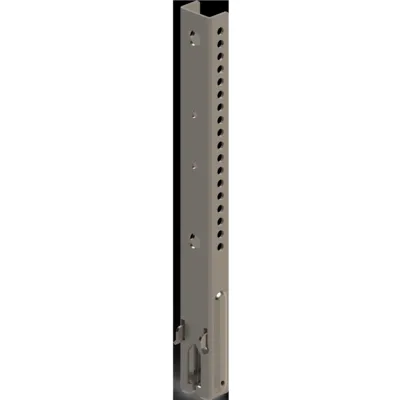

ACC SUSP NH LP T24x38.tif Lower part nonius hanger for T profiles NH T See Packaging Dimensions

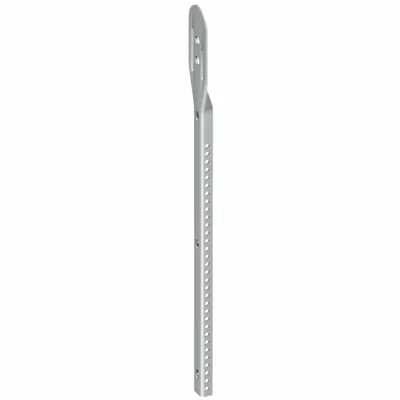

10200.tif Upper part nonius hanger 85 NH 90 See Packaging Dimensions

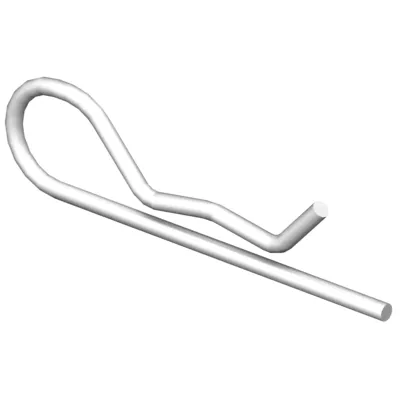

10228.tif Intersection clip for nonius (2 per hanger) NH CLIP See Packaging Dimensions
Suspension clips
ACC SUSP FIX CLIP & NAIL H=50 MM 100C.tif Suspension clip (curved) for Chicago Metallic T-profiles + securing nail 50 SH 50 See Packaging Dimensions
Hold down clips & wall springs
AX087.tif Steel perimeter hold down clip – height 40 mm - combinable with C37 wall angle HDC W2 See Packaging Dimensions
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 18 Distance between slots: 100 / 200 / 16 x 200 / 100
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 16 Distance between slots: 112,50 / 225 / 14 x 225 / 112,50
Back

Position of slots and suspension holes

Position of slots and suspension holes
Slots: 0 Distance between slots: / 1200 / /
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
DoP-RFN-ACCNONIUS-E02 - Lower part nonius hanger for T profiles
DoP-RFN-ACCNONIUS-E02 - Lower part nonius hanger for T profiles

pdf
DoP-RFN-ACCNONIUS-A02 - Intersection clip for nonius (2 per hanger)
DoP-RFN-ACCNONIUS-A02 - Intersection clip for nonius (2 per hanger)

pdf
Chicago Metallic Monolithic | Datasheet
Chicago Metallic Monolithic | Datasheet

pdf
DoP-RFN-ACCVA-D03 - Steel perimeter hold down clip – height 40 mm - combinable with C37 wall angle
DoP-RFN-ACCVA-D03 - Steel perimeter hold down clip – height 40 mm - combinable with C37 wall angle

pdf
DoP-RFN-ACCSUSPFIX-C02 - Suspension clip (curved) for Chicago Metallic T-profiles + securing nail
DoP-RFN-ACCSUSPFIX-C02 - Suspension clip (curved) for Chicago Metallic T-profiles + securing nail

pdf
DoP-RFN-PTUR-C02 - C-wall angle 30x40.5x30 mm
DoP-RFN-PTUR-C02 - C-wall angle 30x40.5x30 mm

pdf
DoP-RFN-MONO2266ME-A02 - Monolithic furring channel
DoP-RFN-MONO2266ME-A02 - Monolithic furring channel

pdf
DoP-RFN-MONO3835ME-A02 - Monolithic main runner
DoP-RFN-MONO3835ME-A02 - Monolithic main runner

pdf
Environmental Product Declaration (EPD) - Konstrukcje
Environmental Product Declaration (EPD) - Konstrukcje

pdf
