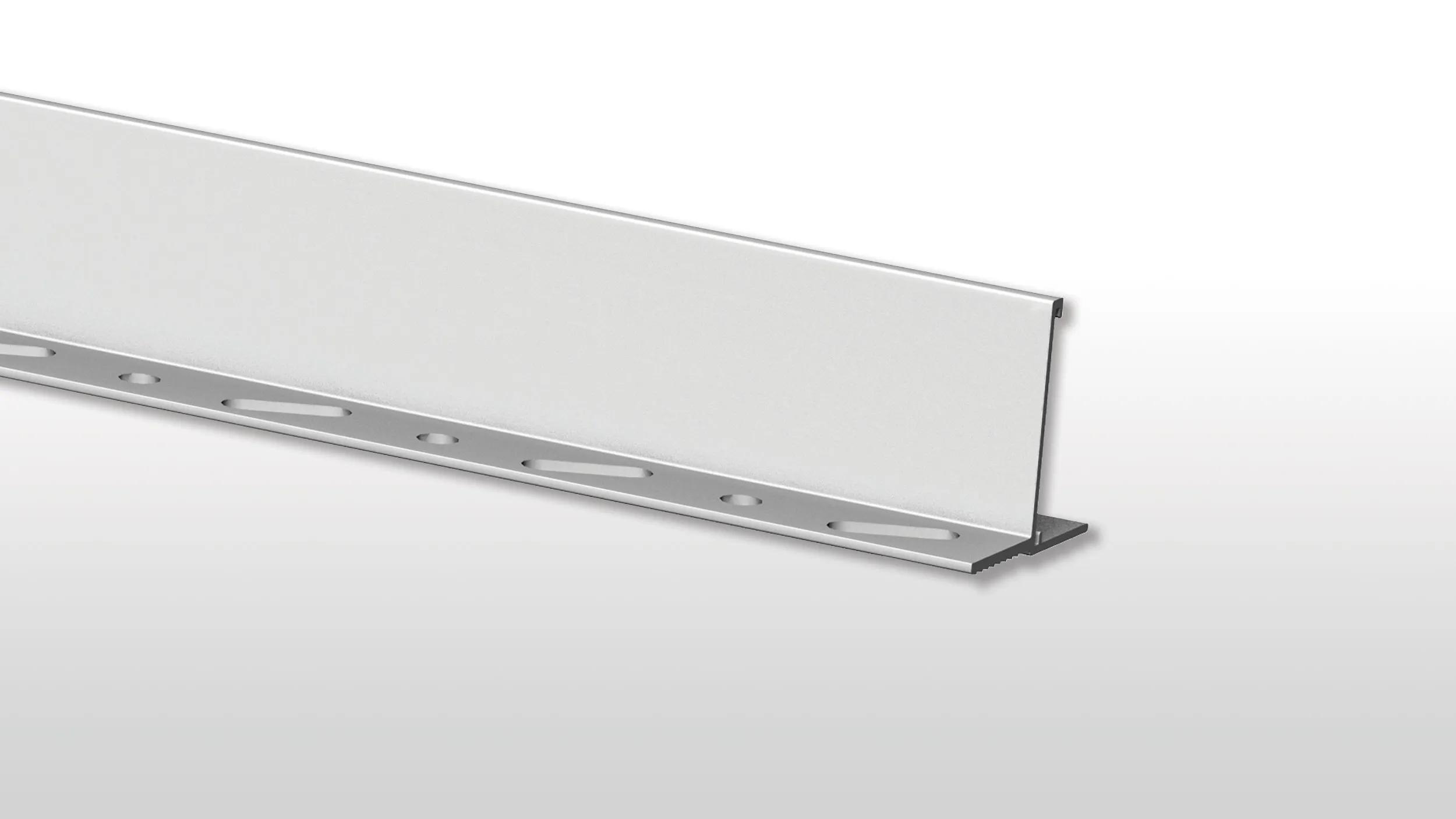

Chicago Metallic Alu Transitions

Range of alu transition profiles in various shapes and dimensions
Download Datasheet
Download Datasheet
Back
Used to create smooth transitions between monolithic / modular / plasterboard ceilings
Back

Performances

Corrosion Resistance Corrosion Resistance C
Reaction To Fire Reaction To Fire A2-s1,d0
Environment Environment Fully Recyclable
Back
Back
Back
Back

Profiles and Accessories

Wall angle options

Component Length Height Width Product number Colours Packaging

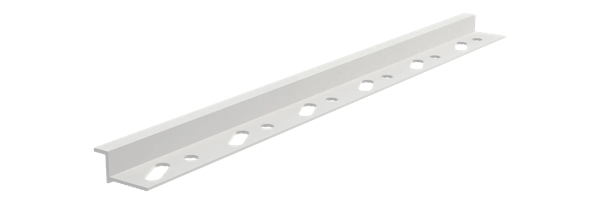

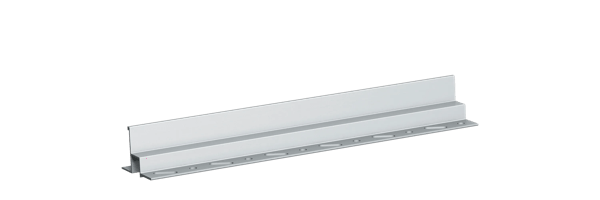

Transition Profiles
5120.tif C-shaped transition to a metal ceiling / 15 mm joint 3000 TP ALU 15C White 001 See Packaging Dimensions
5121.tif L-shaped transition to a lay-in tile / without joint 3000 TP ALU L0 White 001 See Packaging Dimensions
5122.tif L-shaped transition to a lay-in tile / 15 mm joint 3000 TP ALU 15L White 001 See Packaging Dimensions
5123.tif L-shaped transition to a tegular tile / without joint 3000 TP ALU L8 White 001 See Packaging Dimensions
5119.tif L-shaped transition for a Rockfon® X and M edge without joint 3000 53 36 TP ALU L15 White 001 See Packaging Dimensions
-5129.tif Cover profile 25 mm for gypsum panels 3000 TP ALU E25 White 901 See Packaging Dimensions
-5128.tif Transition profile from gypsum ceiling to gypsum ceiling/ with 12.5 mm joint 3000 TP ALU RW12,5 White 901 See Packaging Dimensions
-5127.tif Shadow line 25 mm for gypsum panels 3000 TP ALU R25 White 901 See Packaging Dimensions
-5126.tif Cover profile 6 mm for gypsum panels 3000 TP ALU R6 White 901 See Packaging Dimensions
-5125.tif Cover profile 12.5 mm for gypsum panels 3000 TP ALU E12,5 White 901 See Packaging Dimensions
5124.tif Shadow line 12.5 mm for gypsum panels 3000 TP ALU R12,5 White 901 See Packaging Dimensions

Accessories

Component Product number Packaging
Trims and Transitions

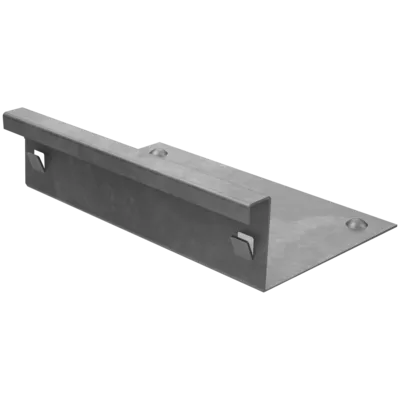

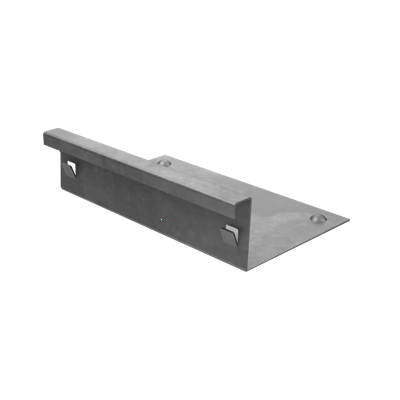

5005.tif Drywall clamping piece DCP See Packaging Dimensions
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
Chicago Metallic Alu Transitions | Datasheet
Chicago Metallic Alu Transitions | Datasheet

pdf
DoP-RFN-ACCVA-B03 - Drywall clamping piece
DoP-RFN-ACCVA-B03 - Drywall clamping piece

pdf
DoP-RFN-TPA-A03 - L-shaped transition to a tegular tile / without joint
DoP-RFN-TPA-A03 - L-shaped transition to a tegular tile / without joint

pdf
