Chicago Metallic Alu 740

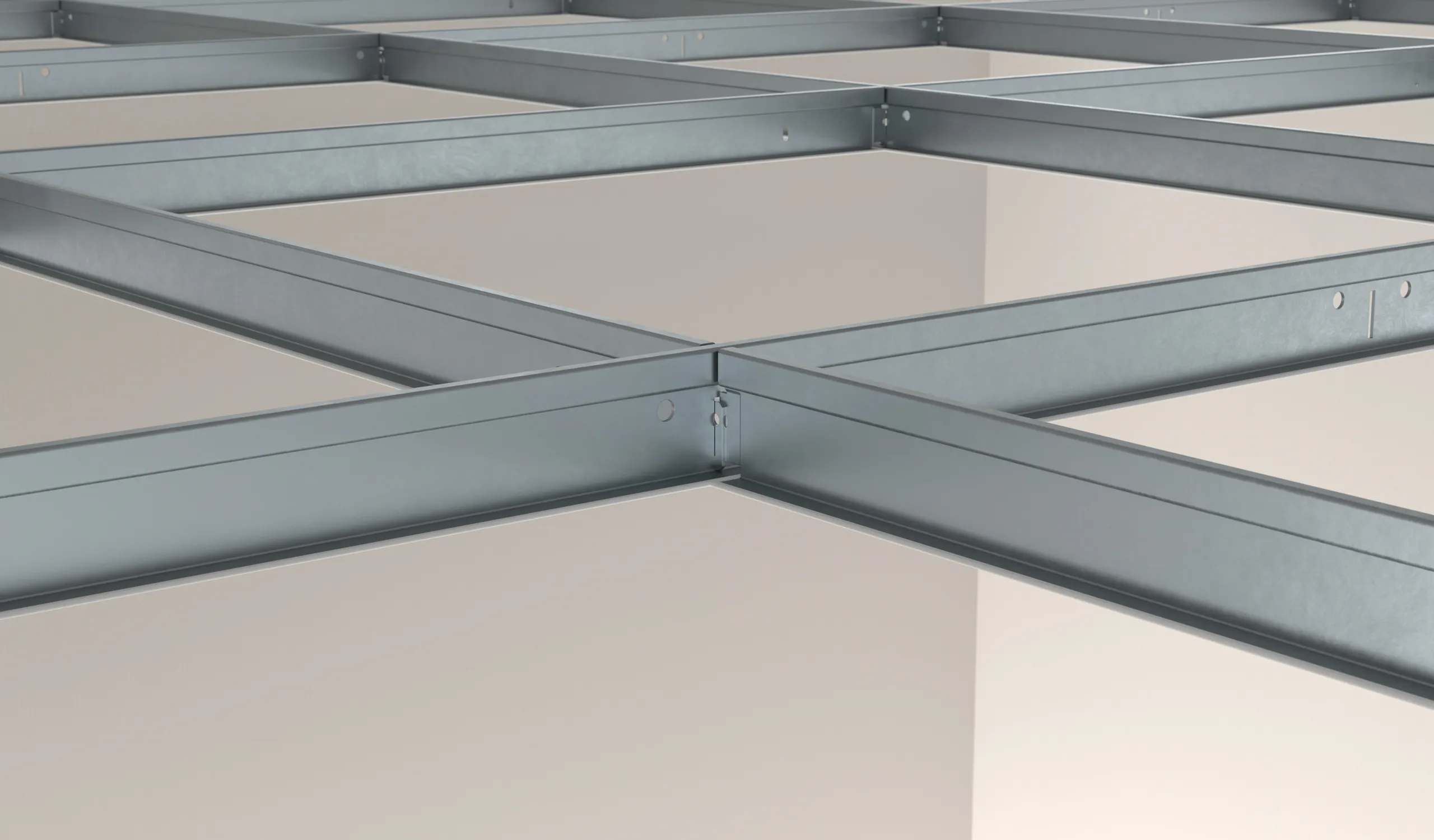

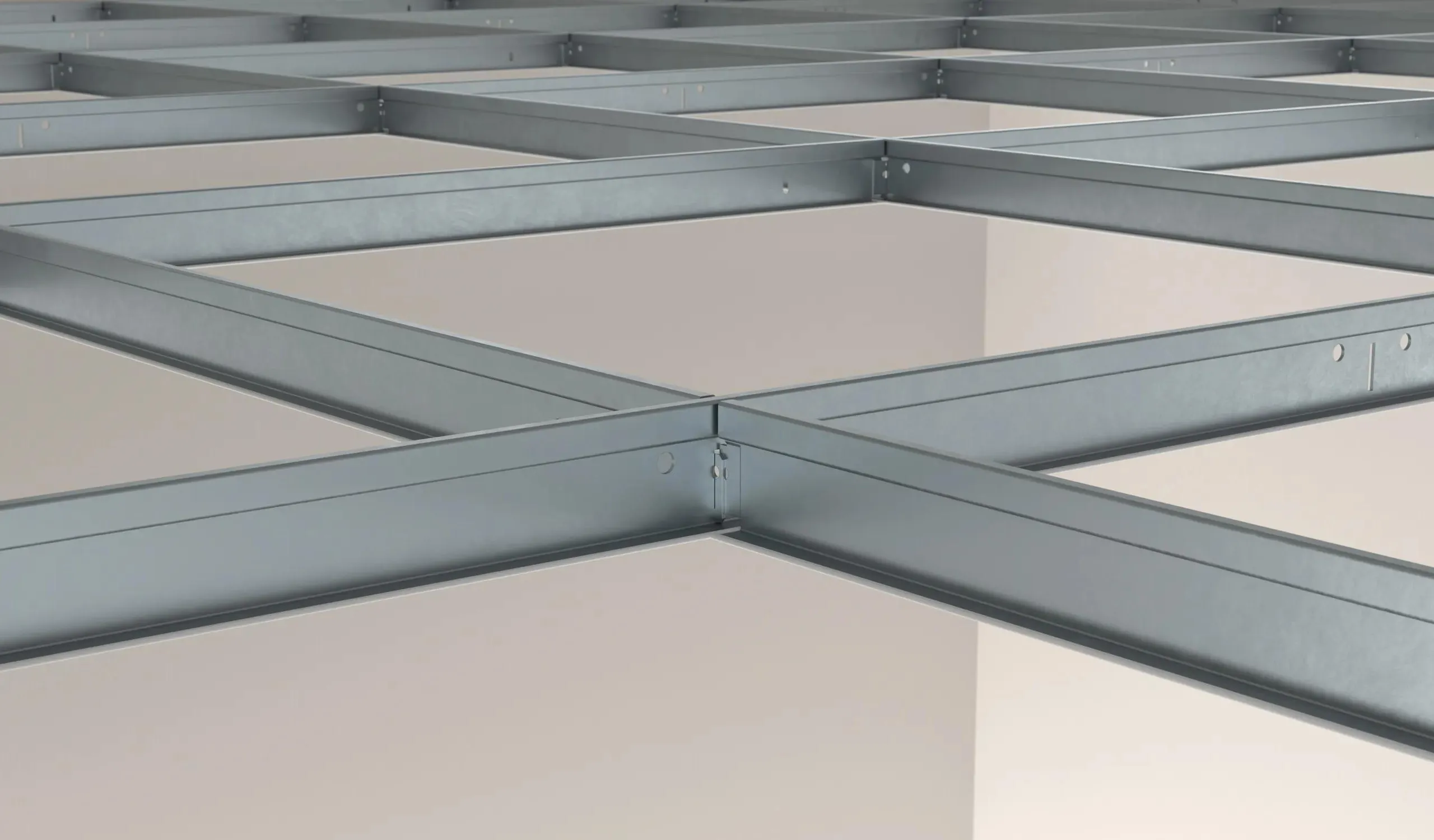

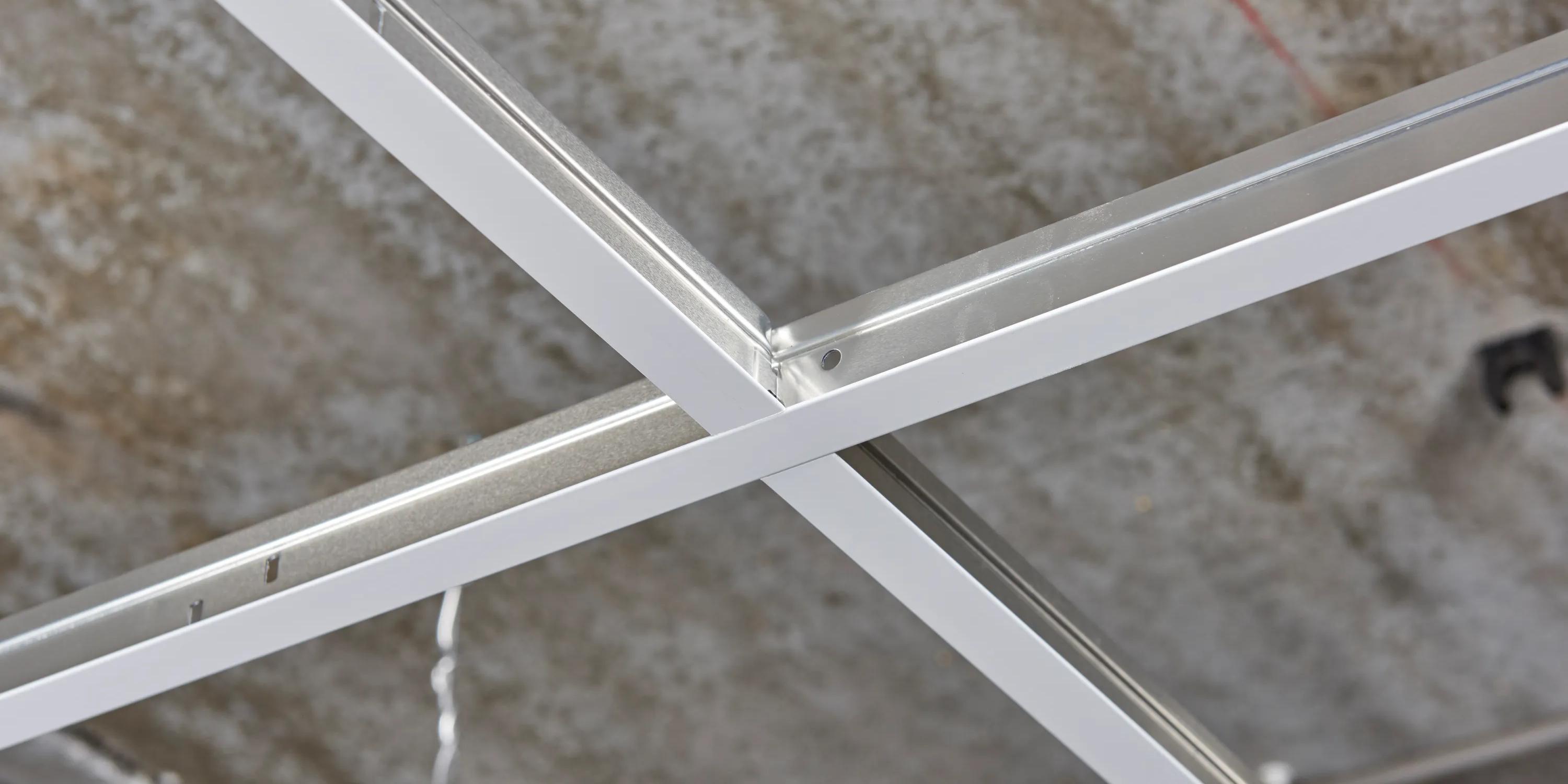

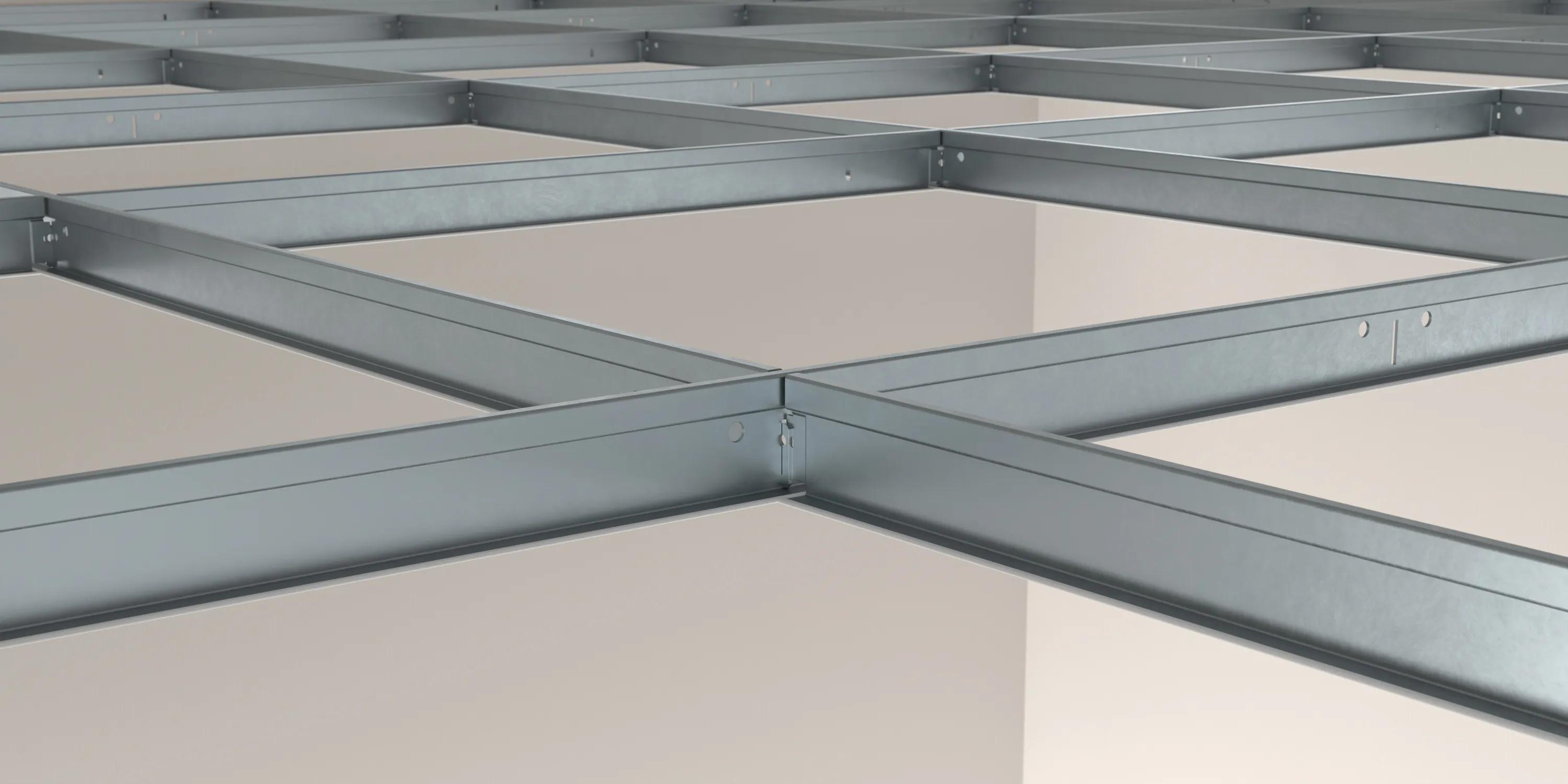

24mm aluminium grid with non-magnetic properties
Download Datasheet
Download Datasheet
Back
For use in computer rooms and hospitals with magnetic resonance imaging (MRI) scanners
The grid is supplied in a specific white colour 01
Back

Performances

Load Bearing
 Max. load following EN 13964 (kg/m2)
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 6.6 11.0
1200 1200 x 600 7.2 11.8
Corrosion Resistance C
Reaction To Fire A1
Environment Fully Recyclable
Back
 Max. load following EN 13964 (kg/m2)
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 600 x 600 6.6 11.0
1200 1200 x 600 7.2 11.8
Back
Back
Back
Back

Profiles and Accessories

Main runner

Component Length Height Width Product number Colours Packaging
Main runner
Main runner T24 Hook 3600 38 24 T24 ALU MR White 01 See Packaging Dimensions

Cross tee

Component Length Height Width Product number Colours Packaging
Cross tee
Cross tee T24 Hook 600 38 24 T24 ALU CT White 01 See Packaging Dimensions
Cross tee T24 Hook 1200 38 24 T24 ALU CT White 01 See Packaging Dimensions

Wall angle options

Component Length Height Width Product number Colours Packaging
L Profiles
L-wall angle 24x19 mm in aluminium 3050 24 19 L19x24 ALU CAP White 01 See Packaging Dimensions

Accessories

Component Length Product number Packaging
Hanger wires

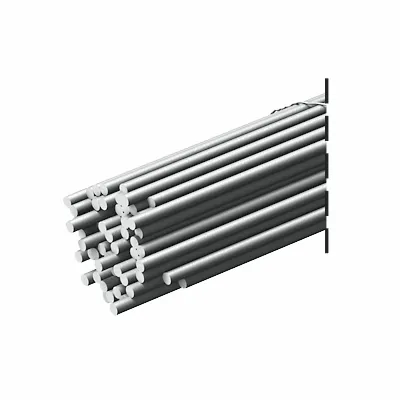

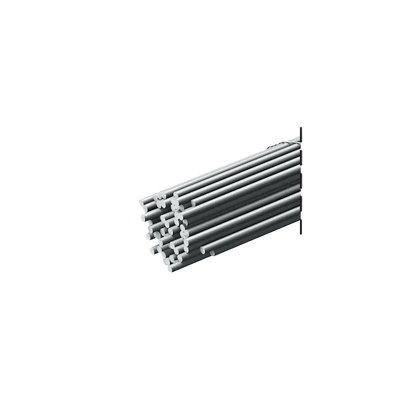

Alu hanger wire Ø 4 mm / L=1500 mm 1500 WH ALU See Packaging Dimensions
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
Chicago Metallic Alu 740 | Datasheet
Chicago Metallic Alu 740 | Datasheet

pdf
DoP-RFN-T2438MAF-A02 - Cross tee T24 Hook
DoP-RFN-T2438MAF-A02 - Cross tee T24 Hook

pdf
DoP-RFN-ACCALUWH-A02 - Alu hanger wire Ø 4 mm / L=1500 mm
DoP-RFN-ACCALUWH-A02 - Alu hanger wire Ø 4 mm / L=1500 mm

pdf
DoP-RFN-PTLECRC-A02 - L-wall angle 24x19 mm in aluminium
DoP-RFN-PTLECRC-A02 - L-wall angle 24x19 mm in aluminium

pdf
