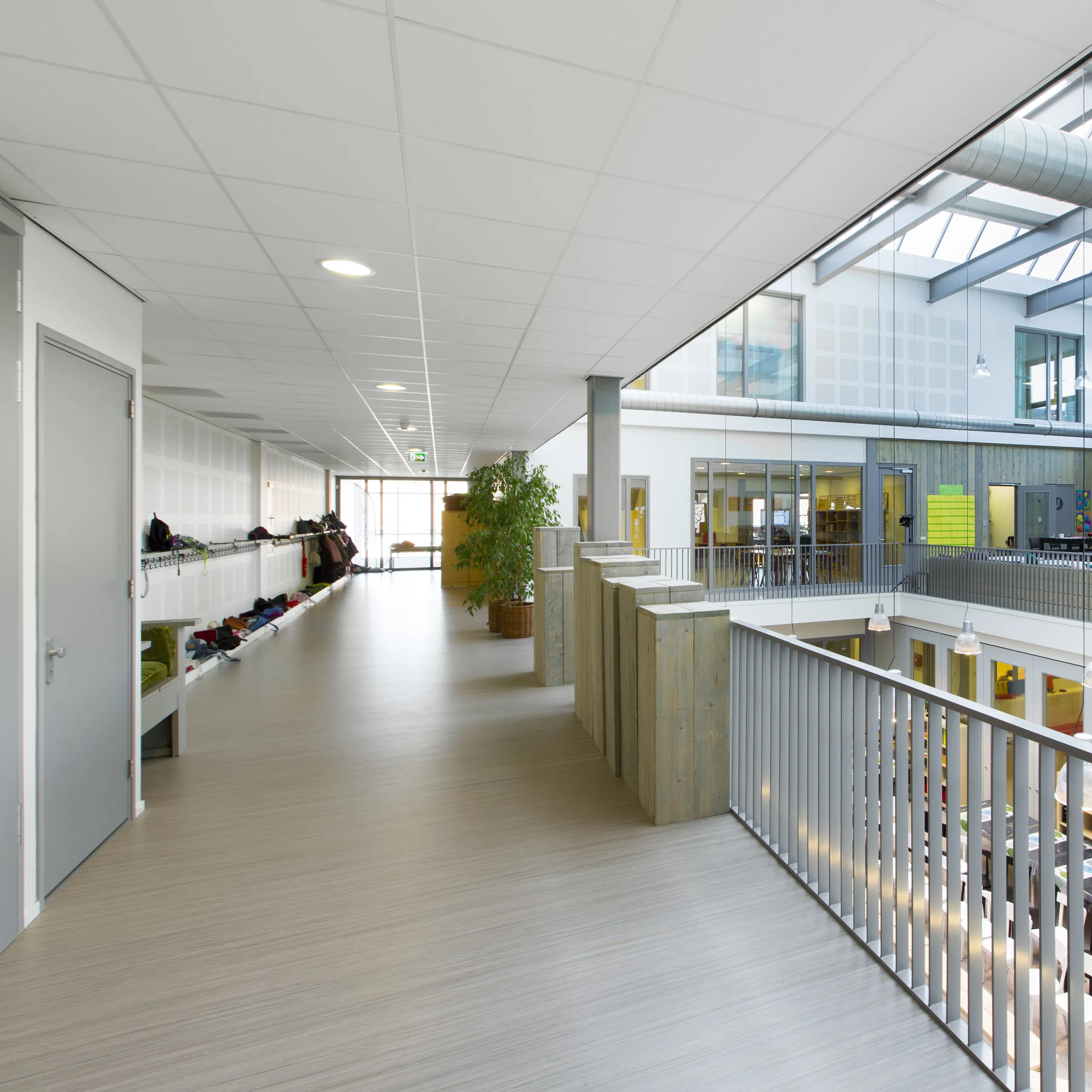

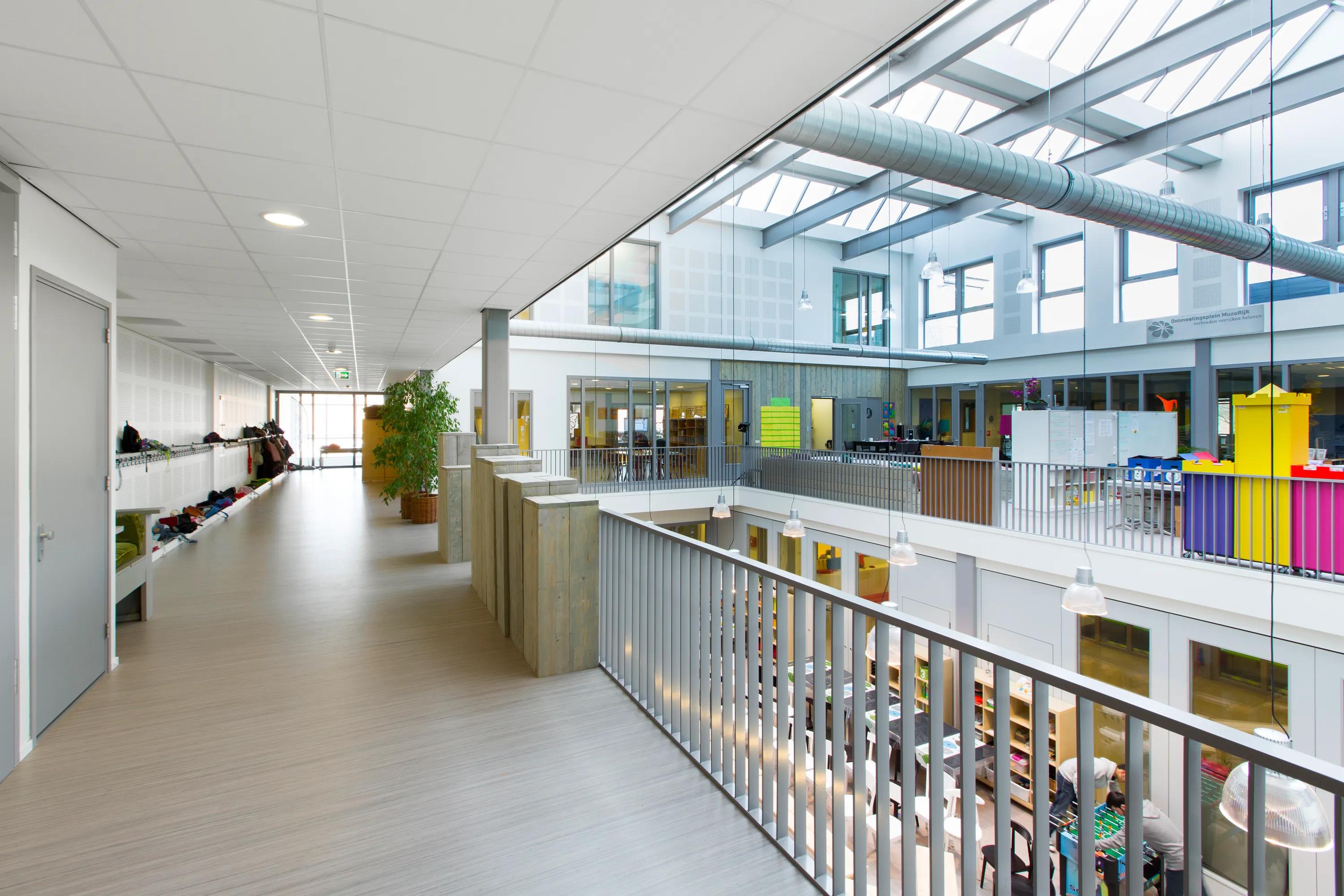

Chicago Metallic 75 mm Bandraster 3075

The 75 mm wide grid system is suitable for the flexible layout of large spaces and positioning of partition walls
Download Datasheet
Download Datasheet
Back
Suitable for the installation of acoustic and fire protection barriers in plenum spaces
System includes a wide range of spacers and accessories
Compatible with exposed, semi-concealed and concealed grid ceilings

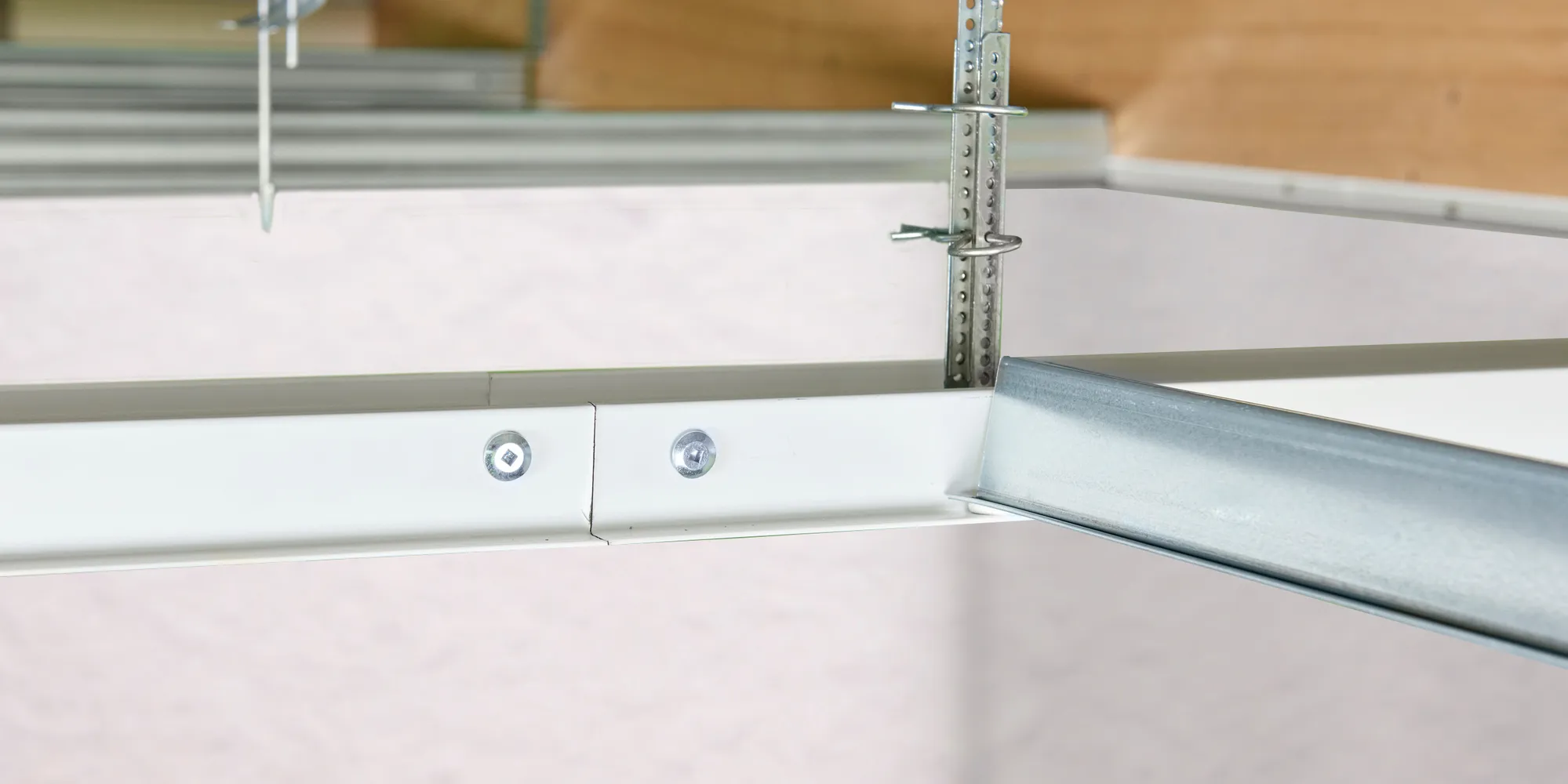

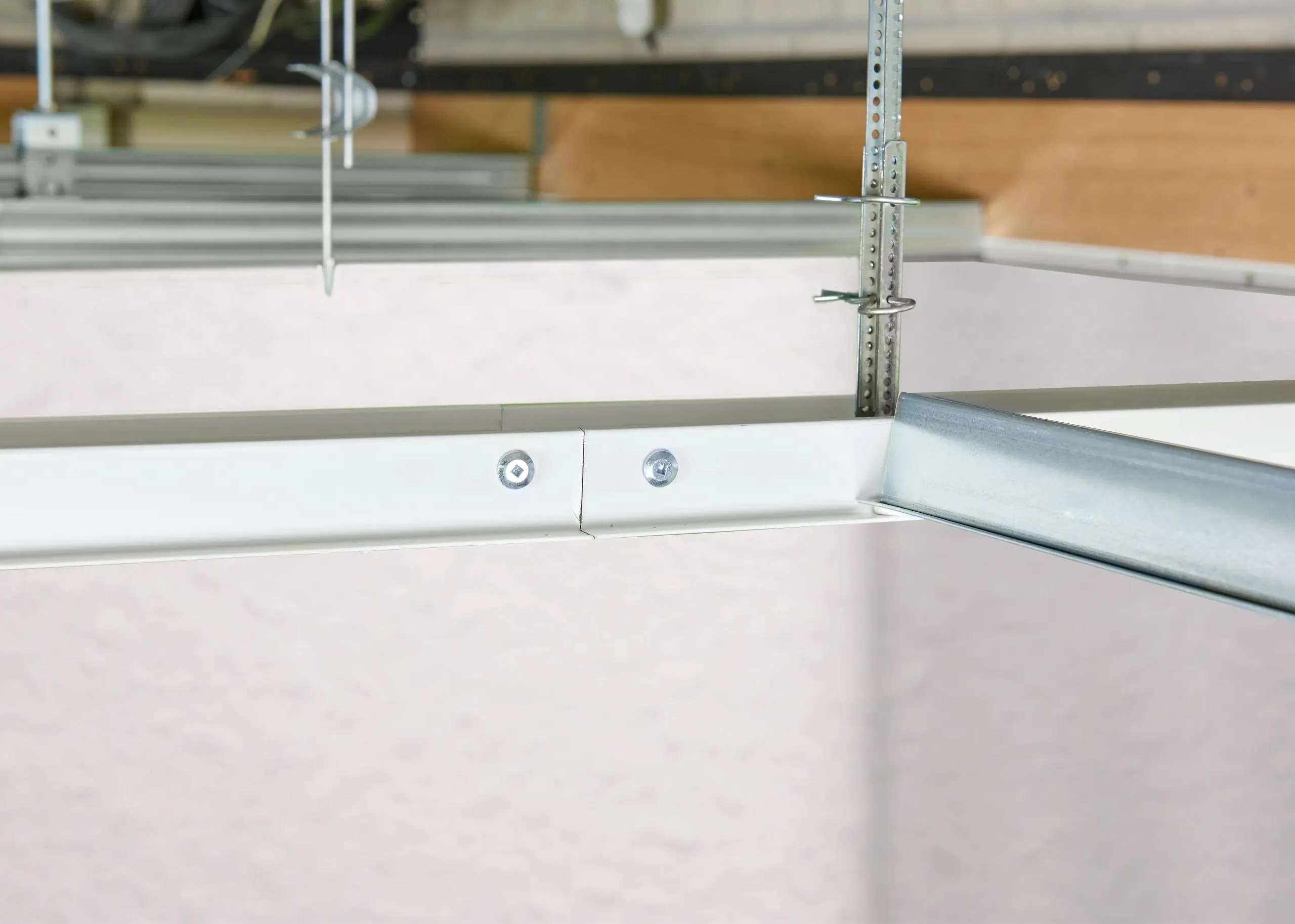

BR coupling

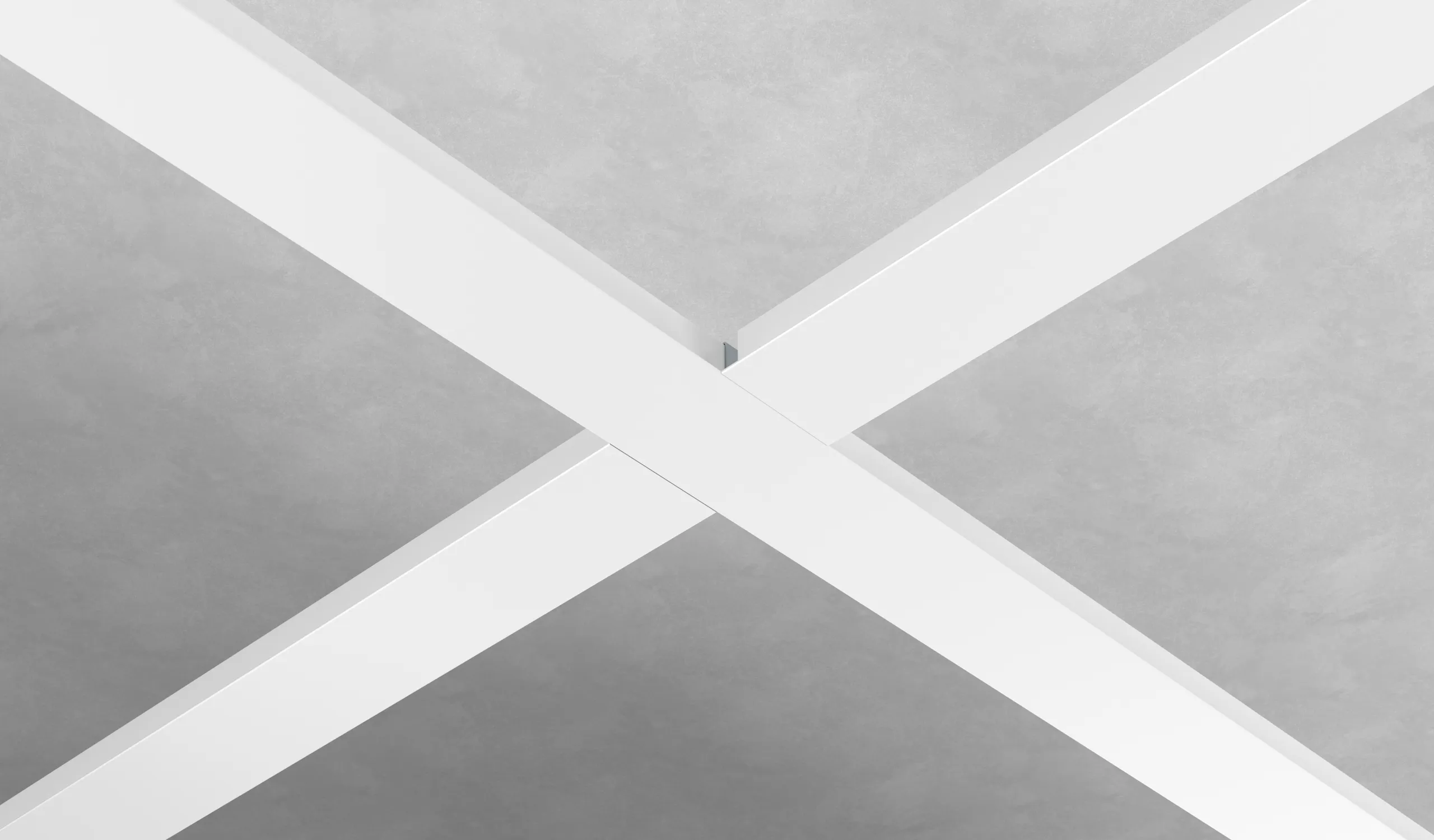

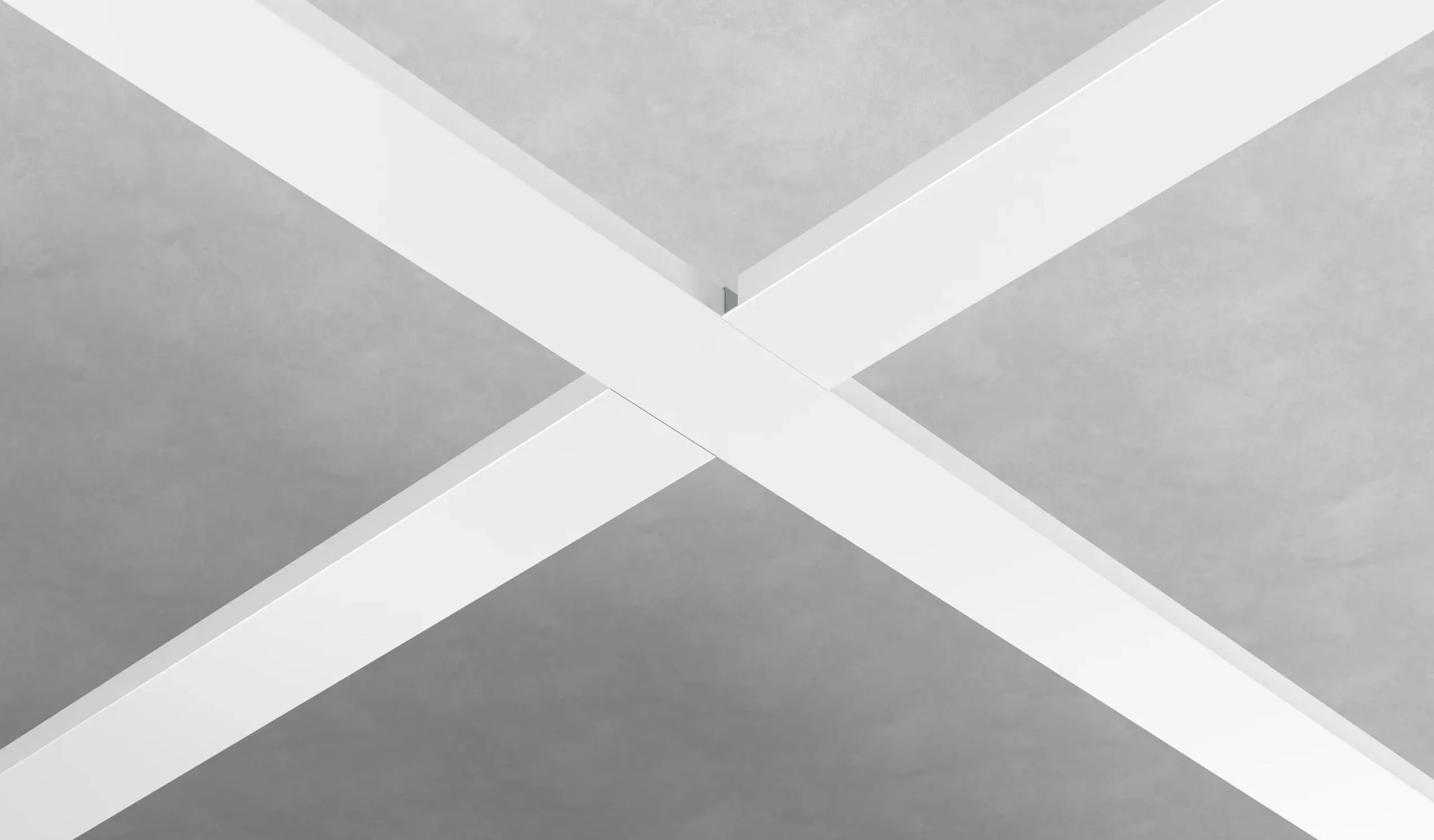

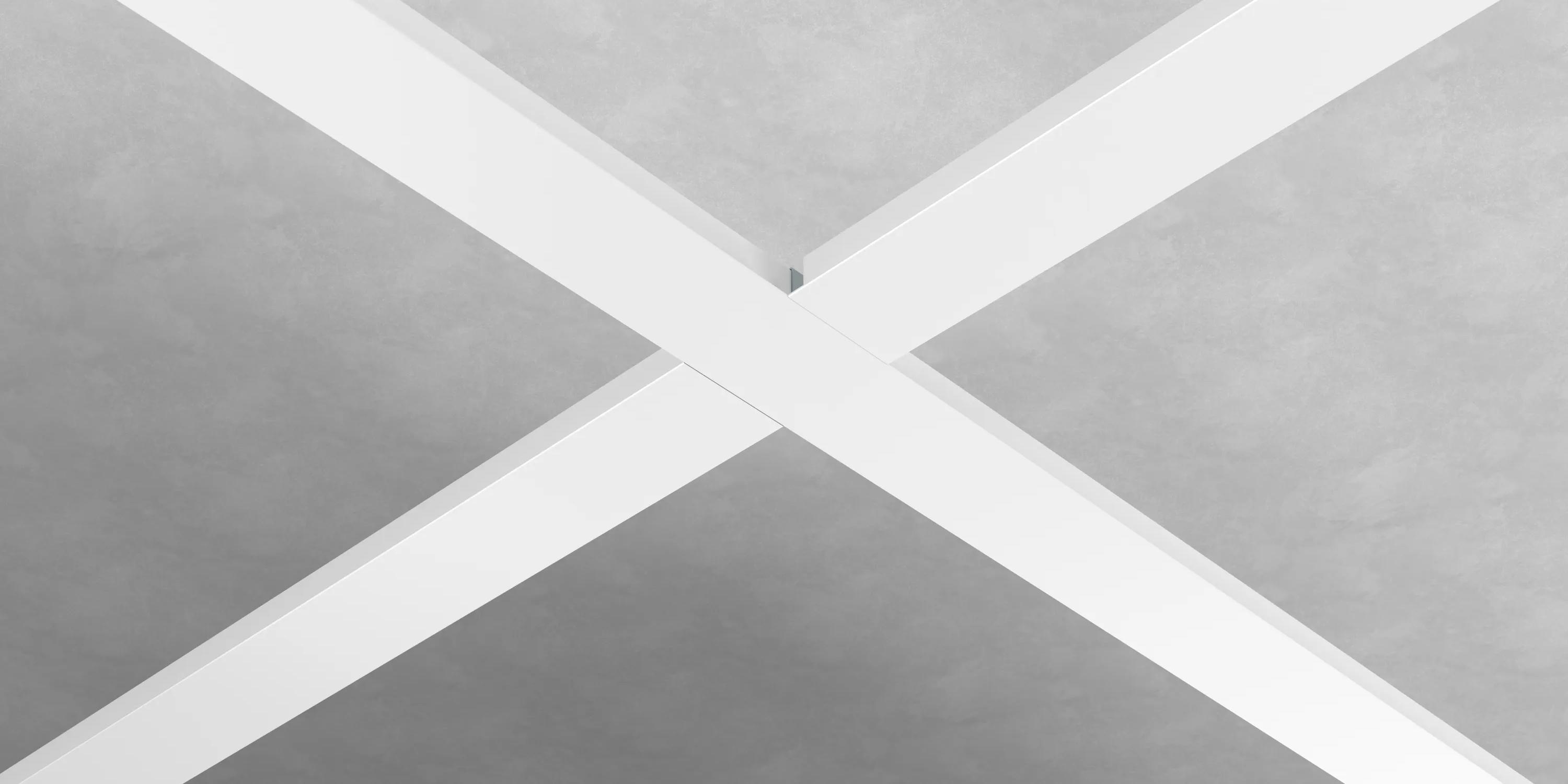

Coupling

Back

Performances

Load Bearing Load Bearing
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 1200 x 600 17.9 29.1
1200 1500 x 600 8.2 13.5
1200 1800 x 600 3.9 6.7
1200 2100 x 600 11.6* 19.5*
Corrosion Resistance Corrosion Resistance B
Reaction To Fire Reaction To Fire A1
Environment Environment Fully Recyclable
Back
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 1200 x 600 17.9 29.1
1200 1500 x 600 8.2 13.5
1200 1800 x 600 3.9 6.7
1200 2100 x 600 11.6* 19.5*
Back
Back
Back
Back

Profiles and Accessories

Z-section

Component Height Width Product number Colours Packaging
Z-section
Z40.tif Z-section 40 mm 40.6 19 Z40 Galva 00 See Packaging Dimensions
Z40H.tif Z-section 40 mm with hook 40.6 19 Z40 HOOK Galva 00 See Packaging Dimensions

Main runner

Component Length Height Width Product number Colours Packaging
Bandraster
3075.tif Bandraster main runner 75 mm 3600 35.4 75 BR75 Multiple colours See Packaging Dimensions

Cross tee

Component Height Width Product number Colours Packaging
Cross tee
-3846.tif Bandraster cross tee T15 Hook 38 15 BR100 T15 HD CT White 001 See Packaging Dimensions
-3846.tif Bandraster cross tee T24 Hook 38 24 BR100 T24 CT Multiple colours See Packaging Dimensions
-3846.tif Bandraster cross tee T24 Hook 38 24 BR100 T24 HD CT Multiple colours See Packaging Dimensions

Wall angle options

Component Length Height Width Product number Colours Packaging
L Profiles
-1420.tif L-wall angle 24x24 mm colour 3050 24 24 L24x24 Multiple colours See Packaging Dimensions
-1420.tif L-wall angle 24x24 mm white 3050 24 24 L24x24 White 001 See Packaging Dimensions
W Profiles
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x15x10x15 mm 3050 15 10 W10x15 Multiple colours See Packaging Dimensions

Accessories

Component Height Product number Packaging
Bandraster accessories
3076.tif Length coupling for bandraster 75 mm BR75 LC See Packaging Dimensions
3077.tif Flat hanger for bandraster 75 mm 100 BR75 H See Packaging Dimensions
3078.tif Cross connector for bandraster 75 mm BR75 CC See Packaging Dimensions
3079.tif Wall connector for bandraster 75 mm BR75 WC See Packaging Dimensions
3080.tif Bent hanger for bandraster 75 mm 84.7 BR75 HB See Packaging Dimensions
Tools & Pincers
916.tif Slot pincer for bandraster 50, 75, 100, 125, 150 mm PINC BR See Packaging Dimensions
