Chicago Metallic 50 mm Bandraster 3050

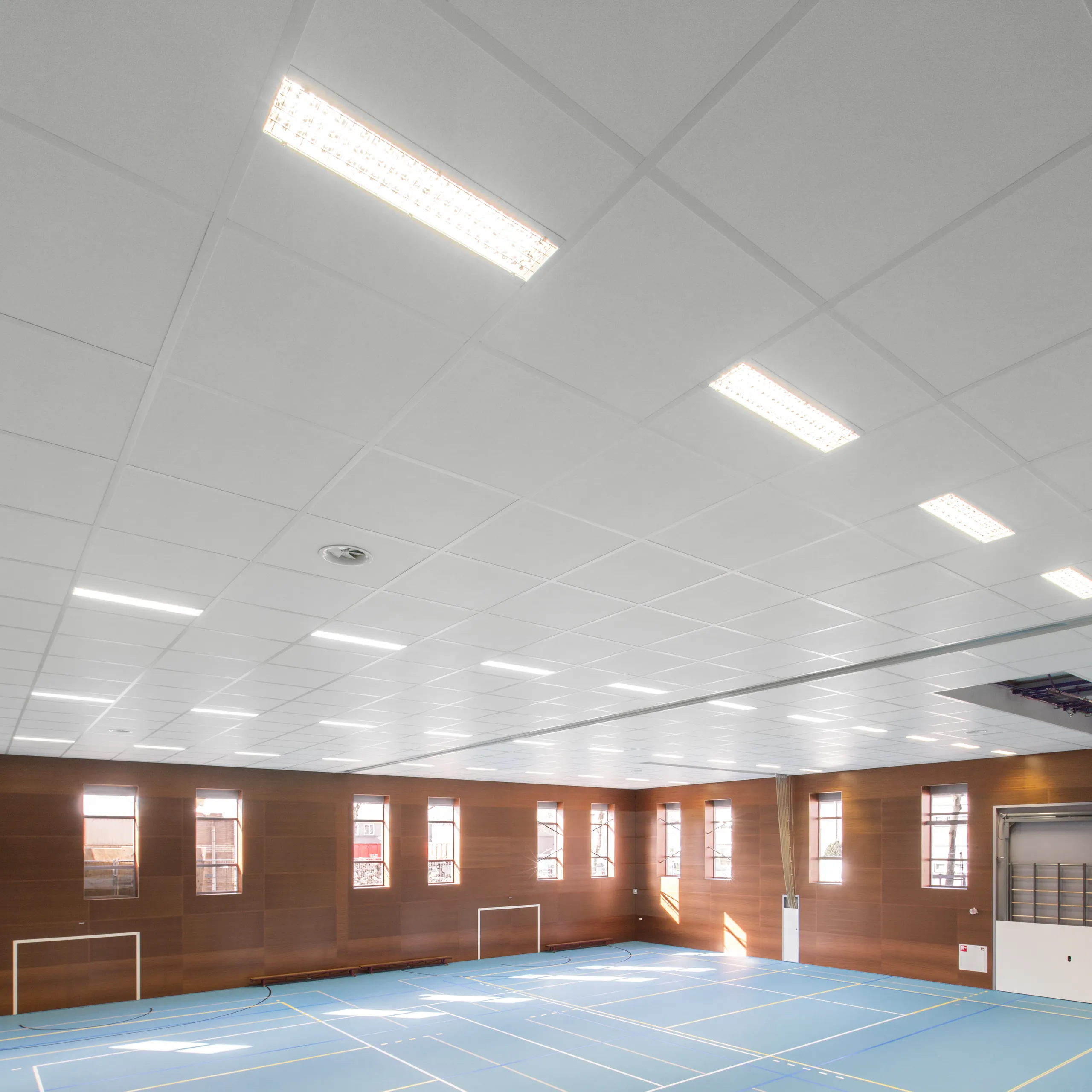

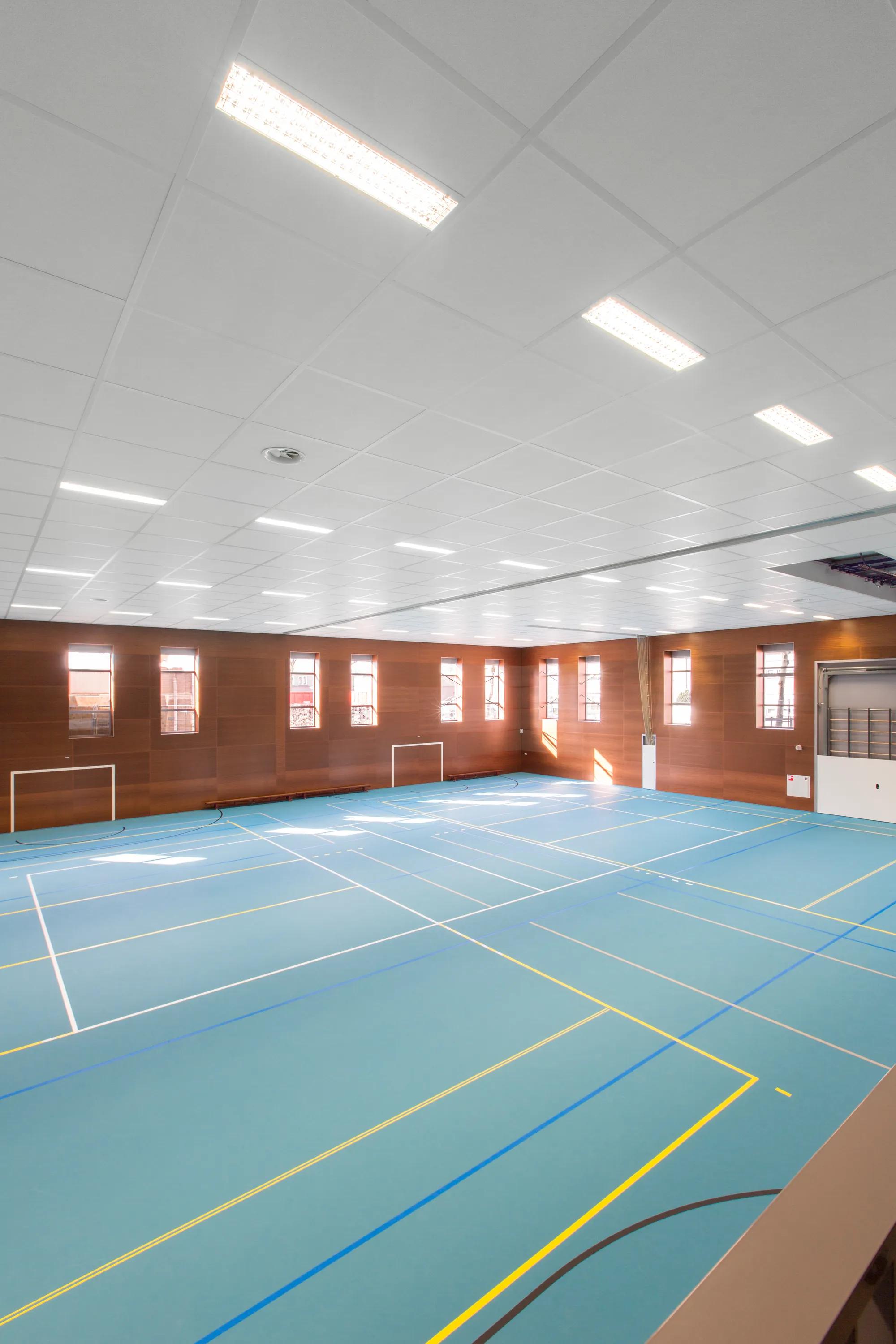

A 50mm ceiling grid with a bandraster main runner for Class 1A impact zones, large spans, linear designs, and slim partition wall layouts.
Download Datasheet
Download Datasheet
Back

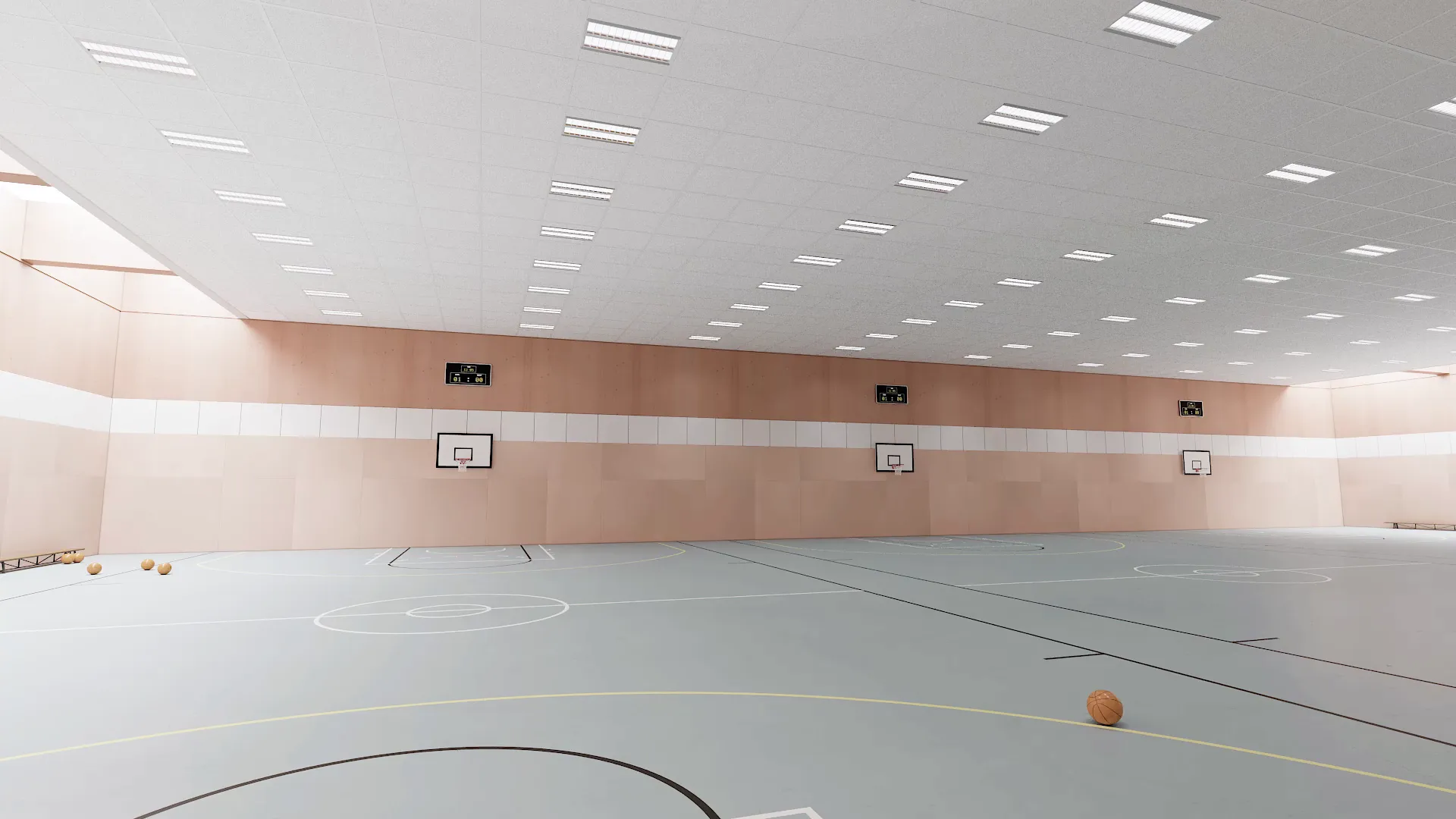

The 50mm wide bandraster system is used for 1A impact resistant ceilings Suitable for installation of acoustical barriers and fire protection in plenum spaces
System is compatible with a wide range of cross tees and accessories
Compatible with exposed grid ceilings

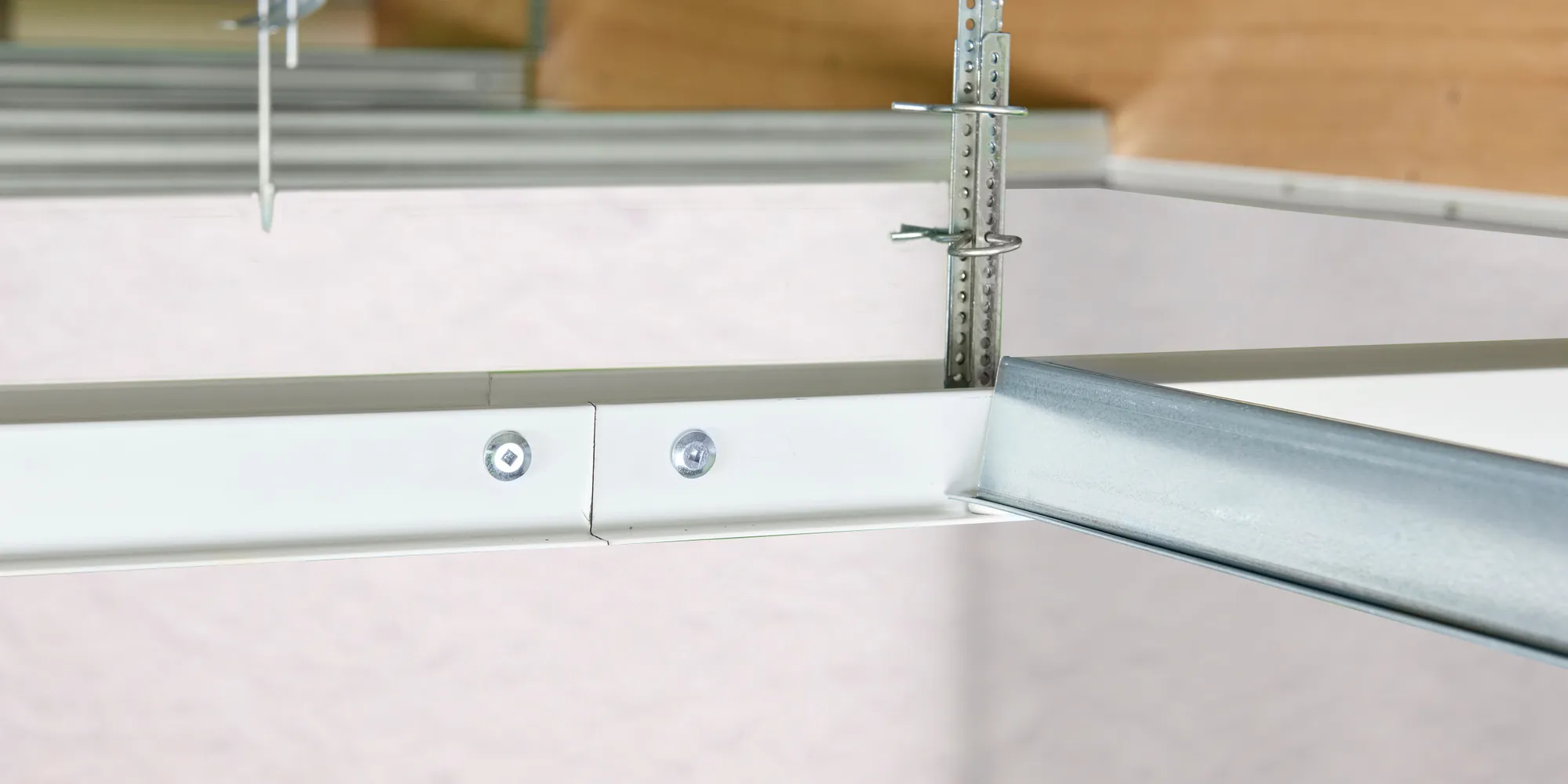

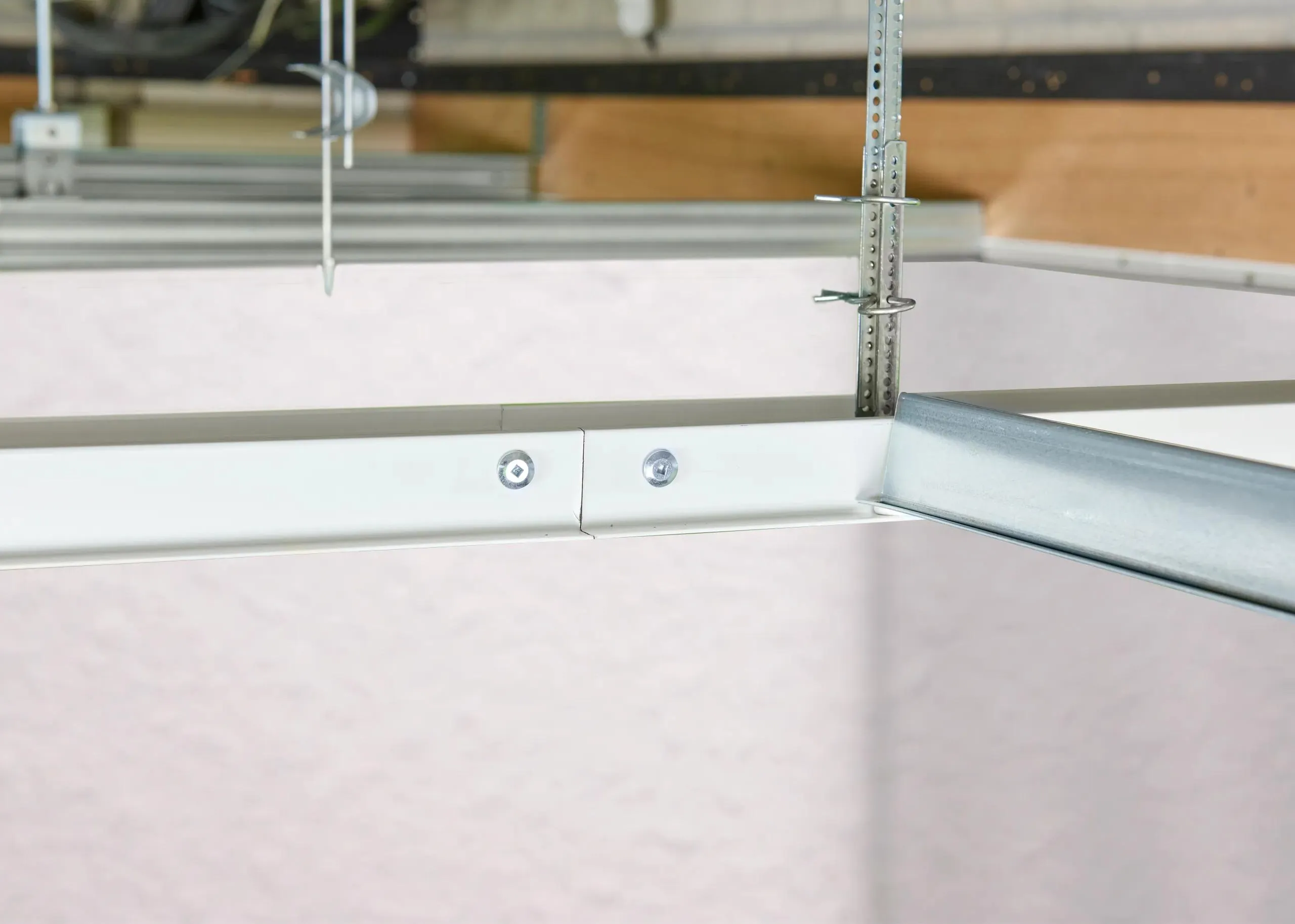

BR coupling

Coupling

Back

Performances

Corrosion Resistance Corrosion Resistance B
Reaction To Fire Reaction To Fire A1
Environment Environment Fully Recyclable
Back
Back
Back
Back

Profiles and Accessories

Z-section

Component Height Width Product number Colours Packaging
Z-section
Z40.tif Z-section 40 mm 40.6 19 Z40 Galva 00 See Packaging Dimensions
Z40H.tif Z-section 40 mm with hook 40.6 19 Z40 HOOK Galva 00 See Packaging Dimensions

Main runner

Component Length Height Width Product number Colours Packaging
Bandraster
3050 wo slots.tif Bandraster main runner 50 mm – without slots 3600 35.4 50 BR50 Multiple colours See Packaging Dimensions

Cross tee

Component Height Width Product number Colours Packaging
Cross tee
-3846.tif Bandraster cross tee T24 Hook 38 24 BR100 T24 CT Multiple colours See Packaging Dimensions
-3846.tif Bandraster cross tee T24 Hook 38 24 BR100 T24 HD CT Multiple colours See Packaging Dimensions
-3846.tif Bandraster cross tee T15 Hook 38 15 BR100 T15 HD CT Multiple colours See Packaging Dimensions

Wall angle options

Component Length Height Width Product number Colours Packaging
L Profiles
-1420.tif L-wall angle 24x24 mm colour 3050 24 24 L24x24 Multiple colours See Packaging Dimensions
-1420.tif L-wall angle 24x24 mm colour 3050 24 24 L24x24 Multiple colours See Packaging Dimensions
W Profiles
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x15x10x15 mm 3050 15 10 W10x15 Multiple colours See Packaging Dimensions

Accessories

Component Height Product number Packaging
Bandraster accessories
3052.tif Flat hanger for bandraster 50 mm 100 BR50 H See Packaging Dimensions

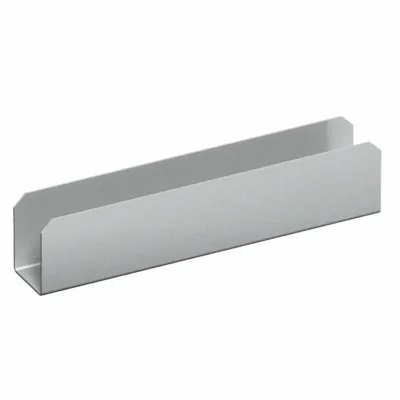

3051.tif Length coupling for bandraster 50 mm BR50 LC See Packaging Dimensions
3053.tif Cross connector for bandraster 50 mm BR50 CC See Packaging Dimensions
3054.tif Wall connector for bandraster 50 mm BR50 WC See Packaging Dimensions

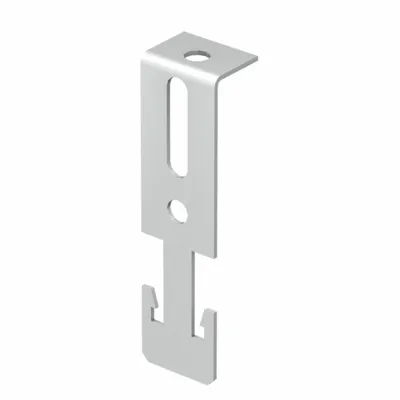

3055.tif Bent hanger for bandraster 50 mm 84.5 BR50 HB See Packaging Dimensions
Tools & Pincers
916.tif Slot pincer for bandraster 50, 75, 100, 125, 150 mm PINC BR See Packaging Dimensions
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
Chicago Metallic 50 mm Bandraster 3050 | Datasheet
Chicago Metallic 50 mm Bandraster 3050 | Datasheet

pdf
DoP-RFN-T2438MD-A03 - Bandraster cross tee T24 Hook
DoP-RFN-T2438MD-A03 - Bandraster cross tee T24 Hook

pdf
DoP-RFN-PTLR-A03 - L-wall angle 24x24 mm colour
DoP-RFN-PTLR-A03 - L-wall angle 24x24 mm colour

pdf
DoP-RFN-T2438ME-A02 - Bandraster cross tee T24 Hook
DoP-RFN-T2438ME-A02 - Bandraster cross tee T24 Hook

pdf
DoP-RFN-PTW-A02 - W-profile 15x15x10x15 mm
DoP-RFN-PTW-A02 - W-profile 15x15x10x15 mm

pdf
DoP-RFN-BRS50MF-A02 - Bandraster main runner 50 mm – without slots
DoP-RFN-BRS50MF-A02 - Bandraster main runner 50 mm – without slots

pdf
DoP-RFN-ACCBR-C02 - Wall connector for bandraster 50 mm
DoP-RFN-ACCBR-C02 - Wall connector for bandraster 50 mm

pdf
DoP-RFN-ACCSUSPBR-A02 - Bent hanger for bandraster 50 mm
DoP-RFN-ACCSUSPBR-A02 - Bent hanger for bandraster 50 mm

pdf
DoP-RFN-Z4019MF-A02 - Z-section 40 mm with hook
DoP-RFN-Z4019MF-A02 - Z-section 40 mm with hook

pdf
DoP-RFN-T1538BRSME-A02 - Bandraster cross tee T15 Hook
DoP-RFN-T1538BRSME-A02 - Bandraster cross tee T15 Hook

pdf
