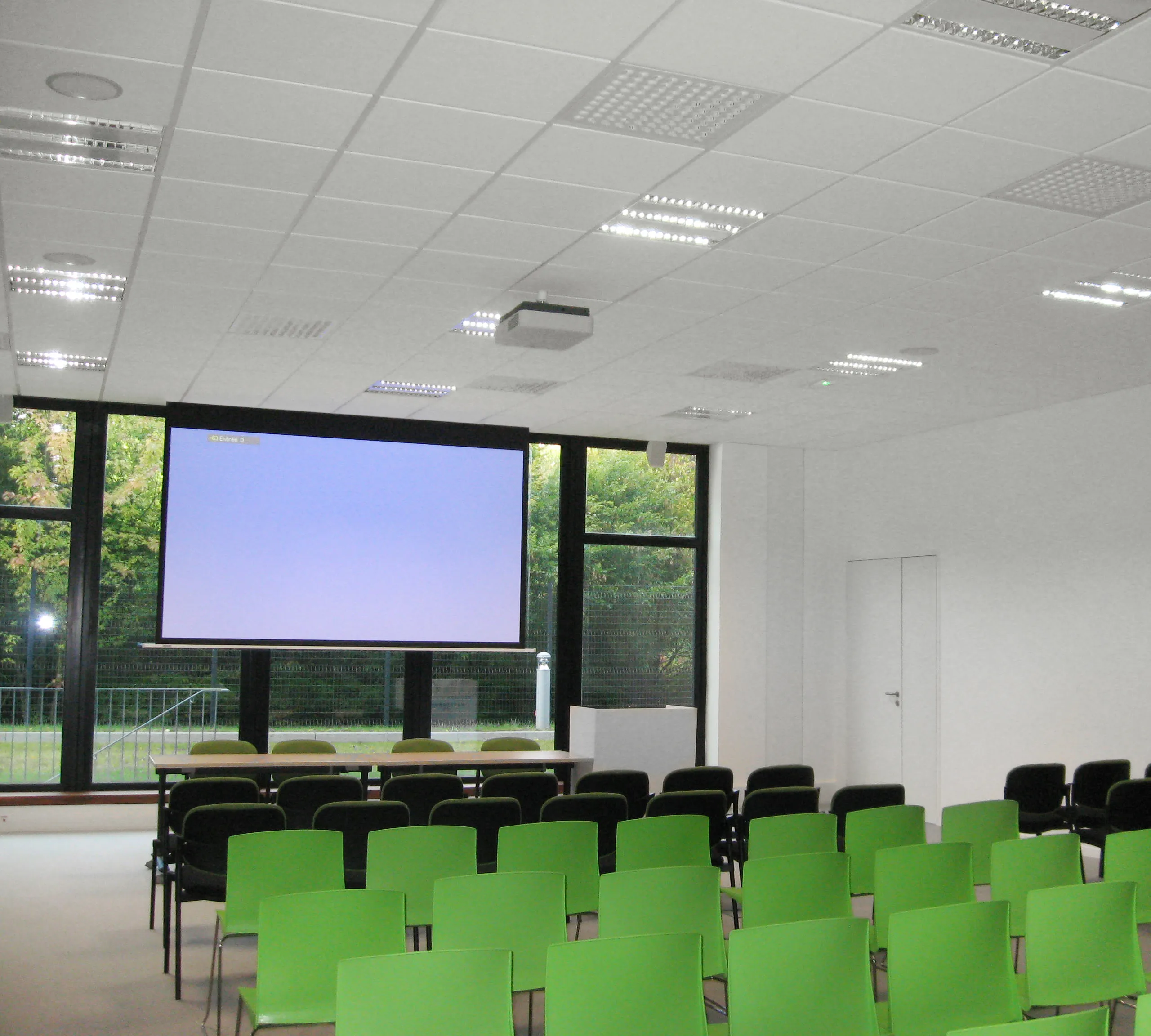

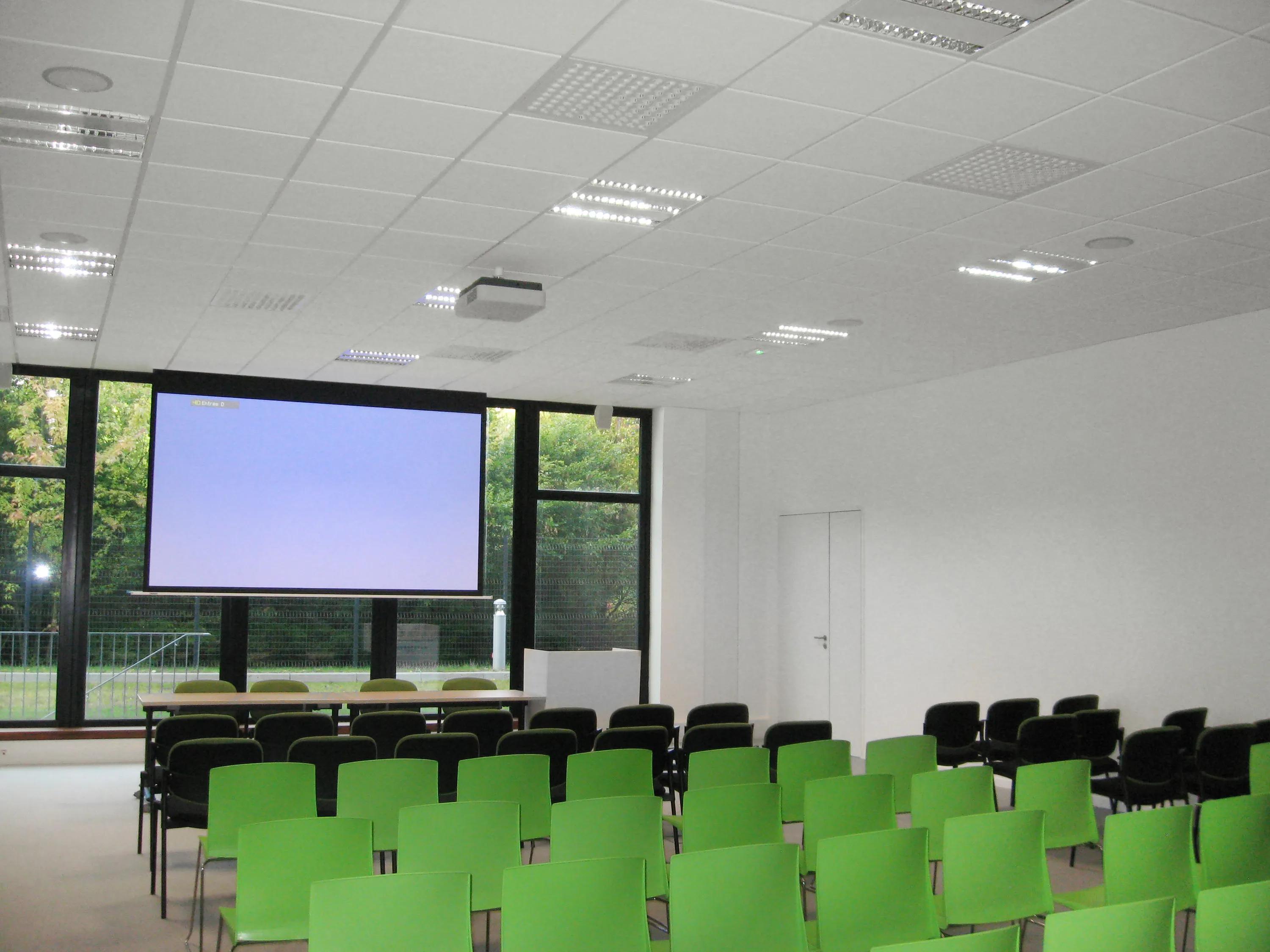

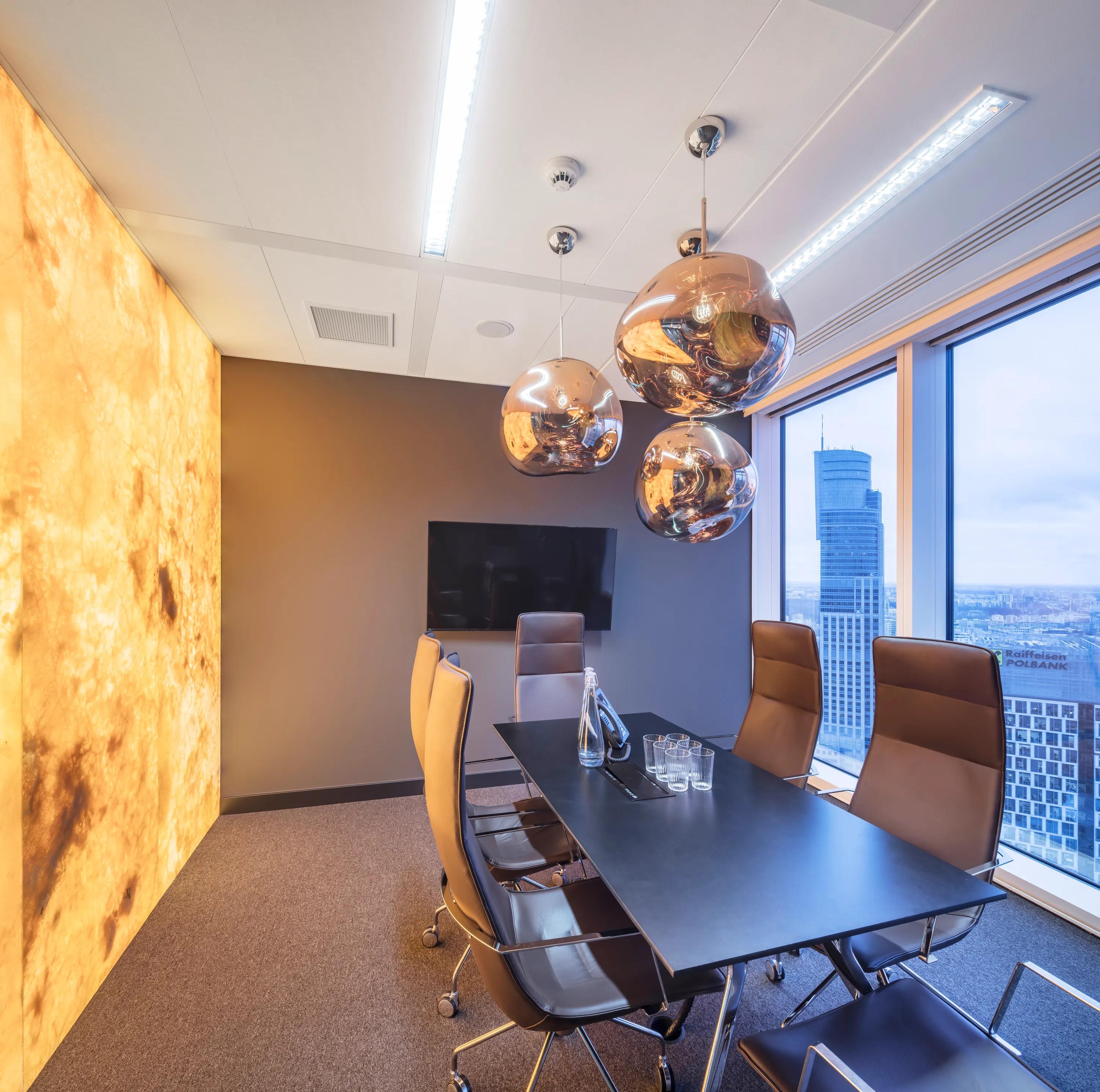

Chicago Metallic 150 mm Bandraster 3150

A 150mm ceiling grid with a bandraster main runner for large spans, linear designs, and ultra-wide partition wall layouts.
Download Datasheet
Download Datasheet
Back
The 150 mm wide grid system is suitable for the flexible layout of large spaces and positioning of very wide partition wallsSuitable for the installation of acoustic and fire protection barriers in plenum spaces
System includes a wide range of spacers and accessories
Compatible with exposed, semi-concealed and concealed grid ceilings

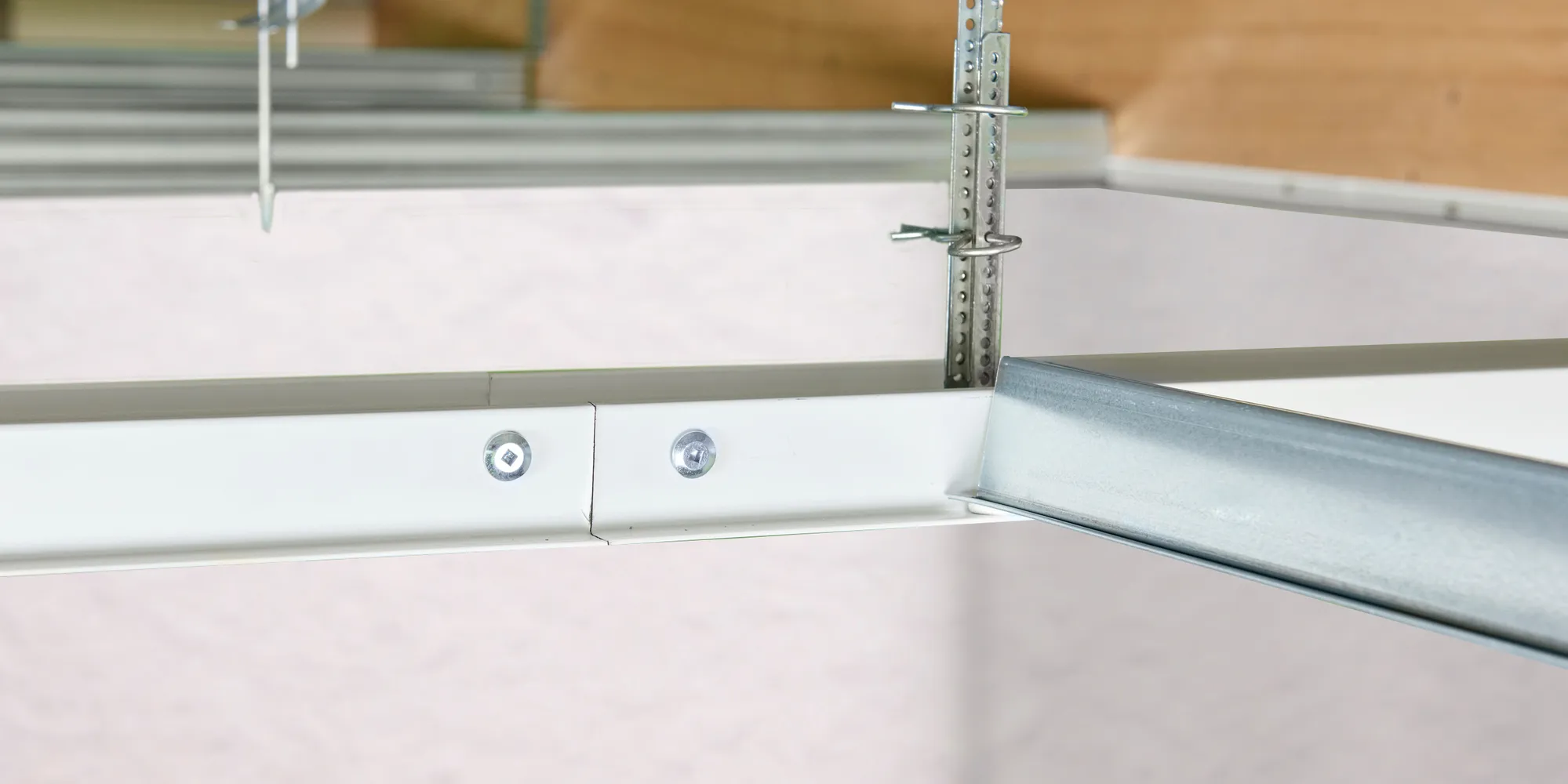

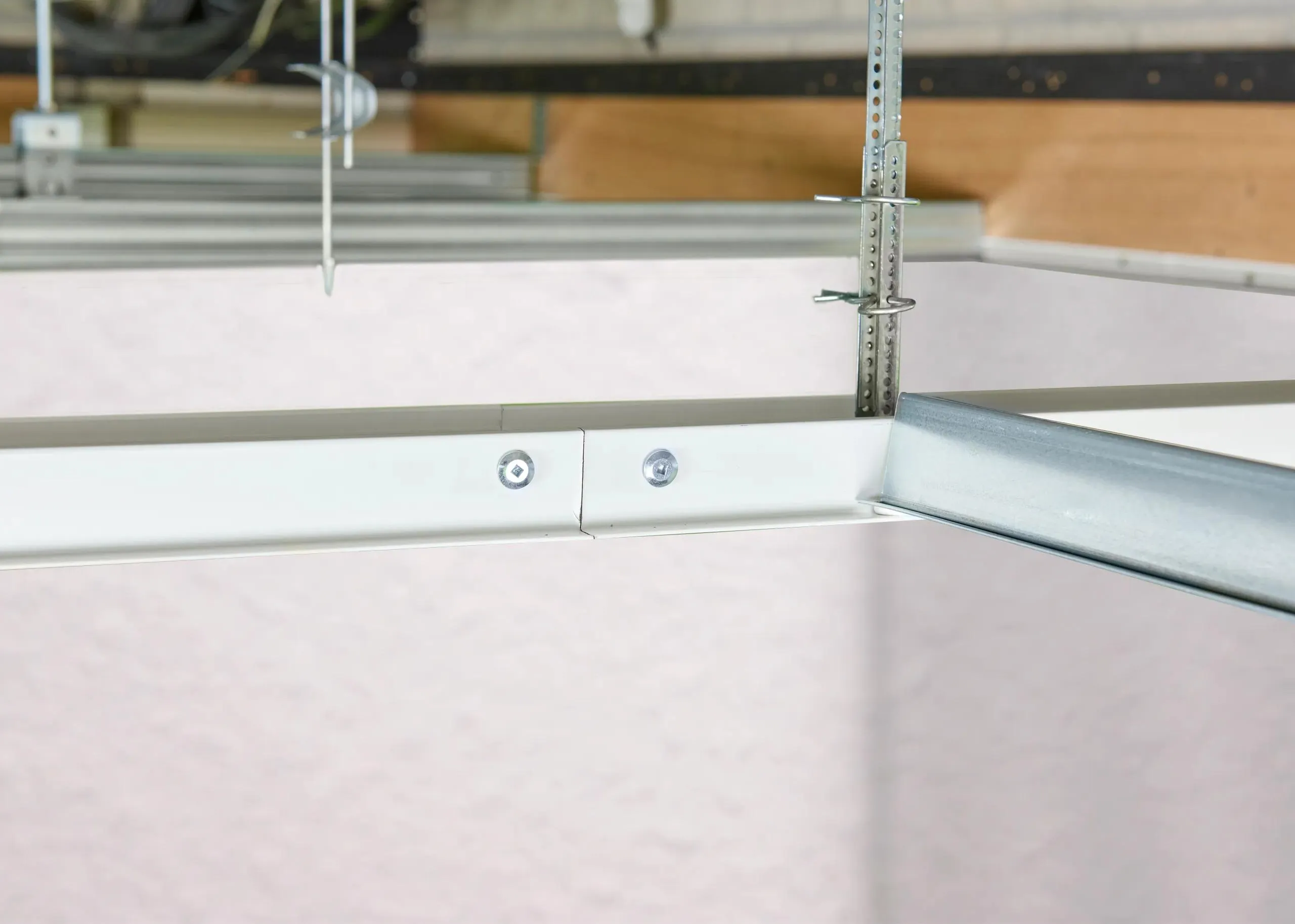

BR coupling

Coupling

Back

Performances

Corrosion Resistance Corrosion Resistance B
Reaction To Fire Reaction To Fire A1
Environment Environment Fully Recyclable
Back
Back
Back
Back

Profiles and Accessories

Z-section

Component Height Width Product number Colours Packaging
Z-section
Z40.tif Z-section 40 mm 40.6 19 Z40 Galva 00 See Packaging Dimensions
Z40H.tif Z-section 40 mm with hook 40.6 19 Z40 HOOK Galva 00 See Packaging Dimensions

Main runner

Component Length Height Width Product number Colours Packaging
Bandraster
3150.tif Bandraster main runner 150 mm 3600 35.4 150 BR150 Multiple colours See Packaging Dimensions

Cross tee

Component Height Width Product number Colours Packaging
Cross tee
-3846.tif Bandraster cross tee T24 Hook 38 24 BR100 T24 CT Multiple colours See Packaging Dimensions
-3846.tif Bandraster cross tee T24 Hook 38 24 BR100 T24 HD CT Multiple colours See Packaging Dimensions
-3846.tif Bandraster cross tee T15 Hook 38 15 BR100 T15 HD CT Multiple colours See Packaging Dimensions

Wall angle options

Component Length Height Width Product number Colours Packaging
L Profiles
-1420.tif L-wall angle 24x24 mm colour 3050 24 24 L24x24 Multiple colours See Packaging Dimensions
-1420.tif L-wall angle 24x24 mm colour 3050 24 24 L24x24 Multiple colours See Packaging Dimensions
W Profiles
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x15x10x15 mm 3050 15 10 W10x15 Multiple colours See Packaging Dimensions

Accessories

Component Height Product number Packaging
Tools & Pincers
916.tif Slot pincer for bandraster 50, 75, 100, 125, 150 mm PINC BR See Packaging Dimensions
Bandraster accessories

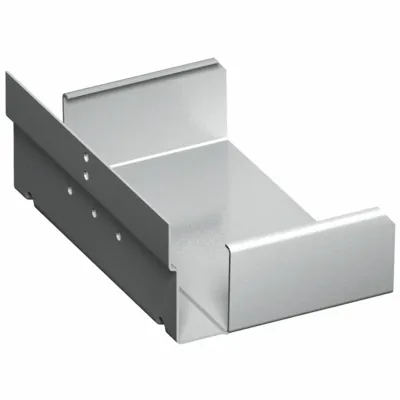

3154.tif Wall connector for bandraster 150 mm BR150 WC See Packaging Dimensions

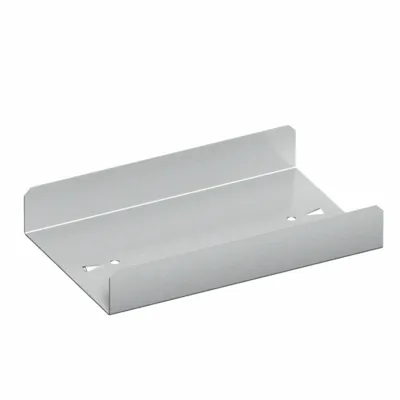

3151.tif Length coupling for bandraster 150 mm BR150 LC See Packaging Dimensions
3152.tif Flat hanger for bandraster 150 mm 100 BR150 H See Packaging Dimensions

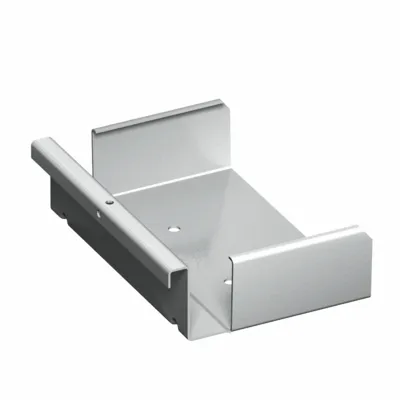

3153.tif Cross connector for bandraster 150 mm BR150 CC See Packaging Dimensions
3155.tif Bent hanger for bandraster 150 mm 84.5 BR150 HB See Packaging Dimensions
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
Chicago Metallic 150 mm Bandraster 3150 | Datasheet
Chicago Metallic 150 mm Bandraster 3150 | Datasheet

pdf
DoP-RFN-PTLR-A03 - L-wall angle 24x24 mm colour
DoP-RFN-PTLR-A03 - L-wall angle 24x24 mm colour

pdf
DoP-RFN-T2438MD-A03 - Bandraster cross tee T24 Hook
DoP-RFN-T2438MD-A03 - Bandraster cross tee T24 Hook

pdf
DoP-RFN-PTW-A02 - W-profile 15x15x10x15 mm
DoP-RFN-PTW-A02 - W-profile 15x15x10x15 mm

pdf
DoP-RFN-T2438ME-A02 - Bandraster cross tee T24 Hook
DoP-RFN-T2438ME-A02 - Bandraster cross tee T24 Hook

pdf
DoP-RFN-ACCSUSPBR-A02 - Bent hanger for bandraster 150 mm
DoP-RFN-ACCSUSPBR-A02 - Bent hanger for bandraster 150 mm

pdf
DoP-RFN-BRS150MG-A02 - Bandraster main runner 150 mm
DoP-RFN-BRS150MG-A02 - Bandraster main runner 150 mm

pdf
DoP-RFN-ACCBR-B02 - Wall connector for bandraster 150 mm
DoP-RFN-ACCBR-B02 - Wall connector for bandraster 150 mm

pdf
DoP-RFN-Z4019MF-A02 - Z-section 40 mm with hook
DoP-RFN-Z4019MF-A02 - Z-section 40 mm with hook

pdf
DoP-RFN-T1538BRSME-A02 - Bandraster cross tee T15 Hook
DoP-RFN-T1538BRSME-A02 - Bandraster cross tee T15 Hook

pdf
