Chicago Metallic™ 125 mm Bandraster 3125

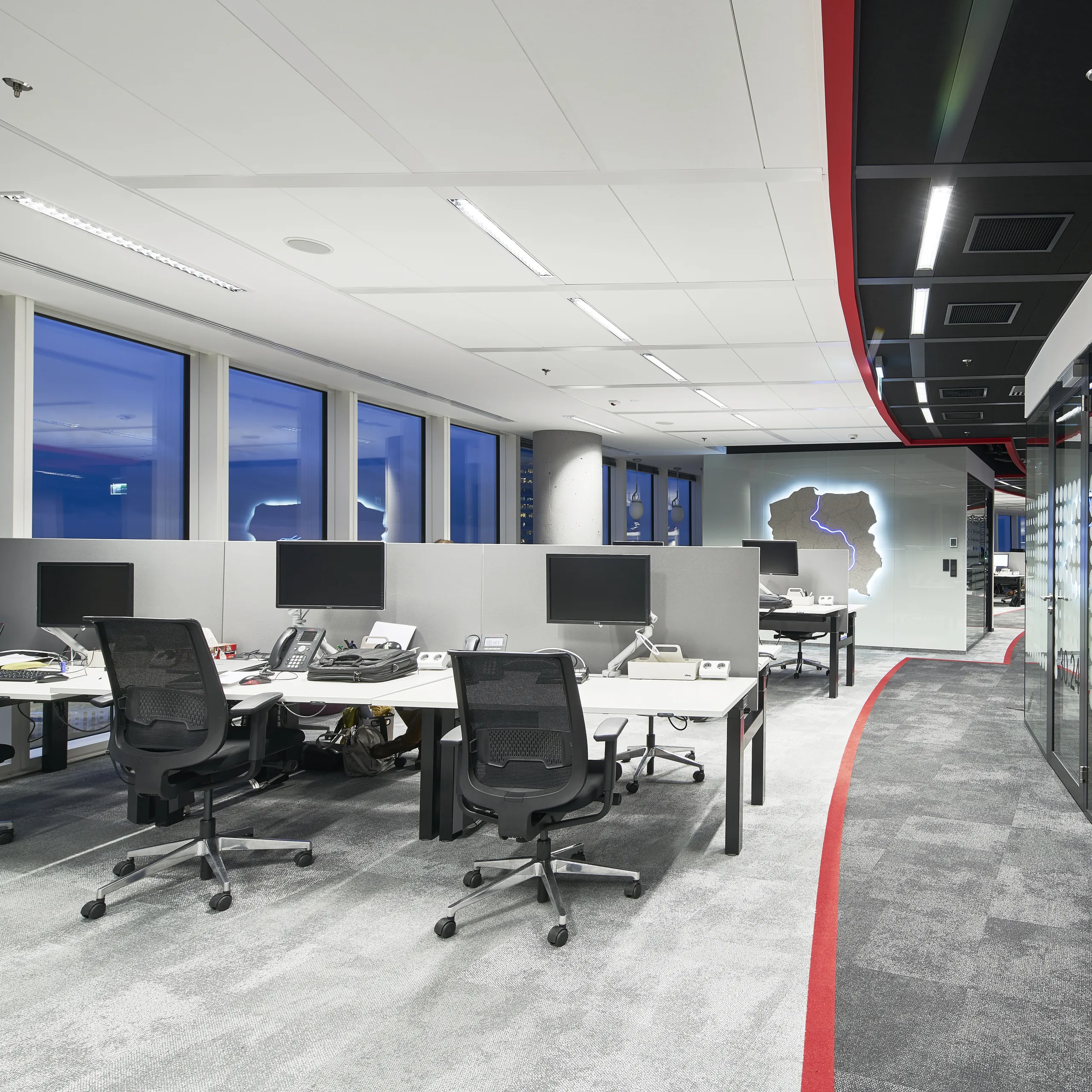

The 125 mm wide grid system is suitable for the flexible layout of large spaces and positioning of partition walls
Download Datasheet
Download Datasheet
Back
Suitable for the installation of acoustic and fire protection barriers in plenum spaces
System includes a wide range of spacers and accessories
Compatible with exposed, semi-concealed and concealed grid ceilings

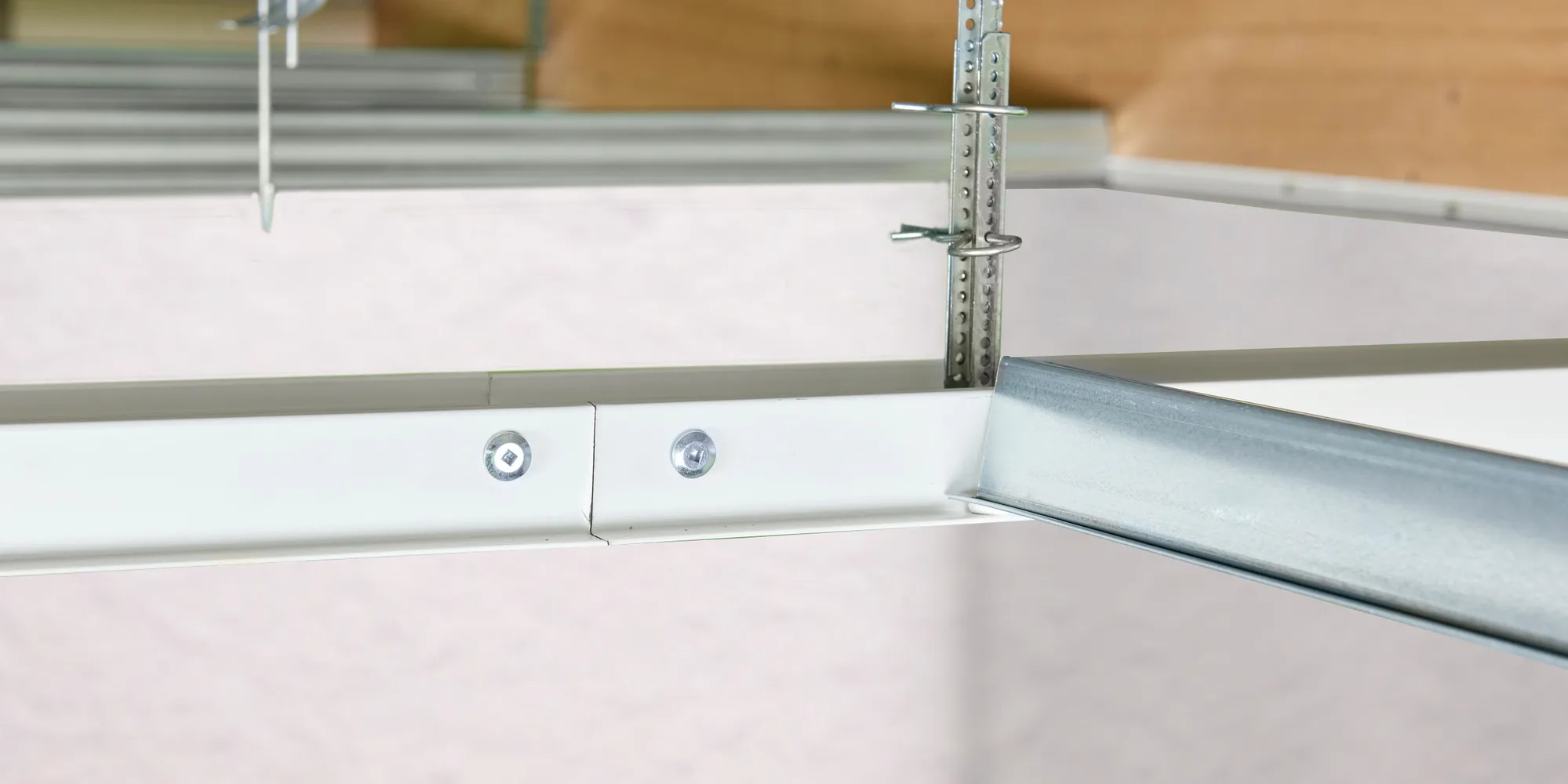

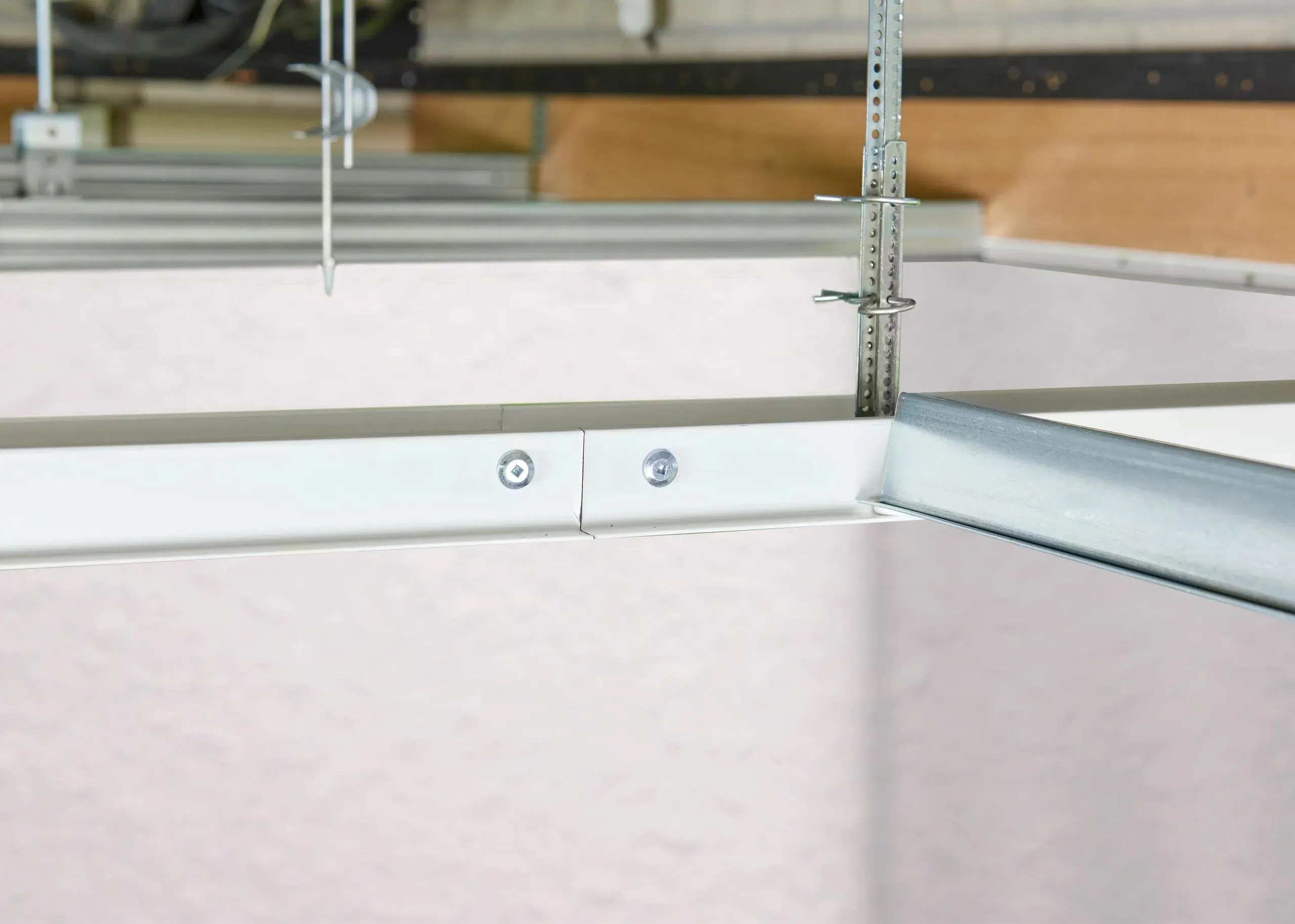

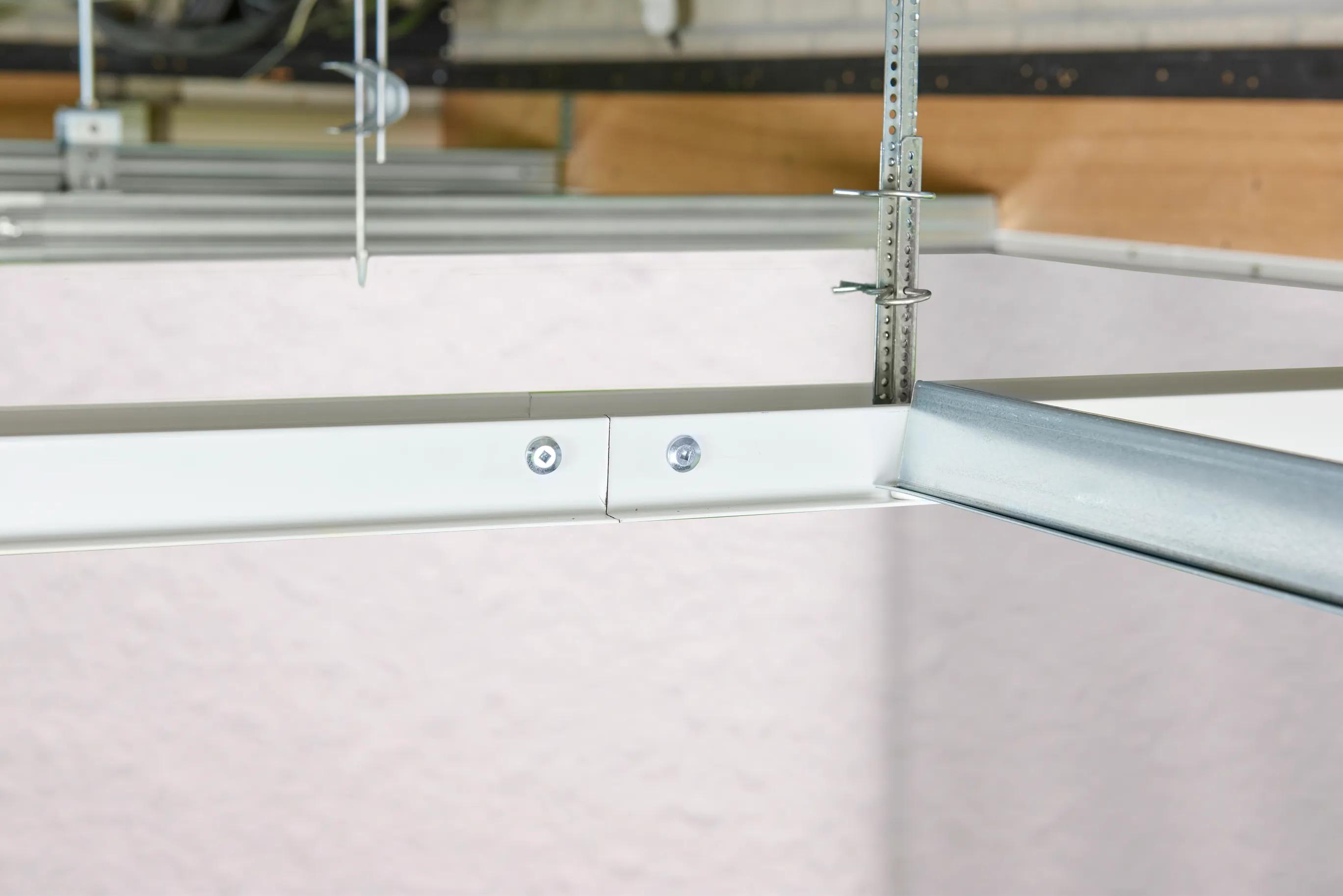

BR coupling

Coupling

Back

Performances

Load Bearing Load Bearing
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 1200 x 600 19.2 31.4
1200 1500 x 600 8.5 14.2
1200 1800 x 600 4 6.9
1200 2100 x 600 12.9* 21.5*
Corrosion Resistance Corrosion Resistance B
Reaction To Fire Reaction To Fire A1
Environment Environment Fully Recyclable
Back
 Kg/m²
Hanger distance (mm) Modulation (mm) Maximum deflection
2.5 mm 4.0 mm
1200 1200 x 600 19.2 31.4
1200 1500 x 600 8.5 14.2
1200 1800 x 600 4 6.9
1200 2100 x 600 12.9* 21.5*
Back
Back
Back
Back

Profiles and Accessories

Z-section

Component Height Width Product number Colours Packaging
Z-section

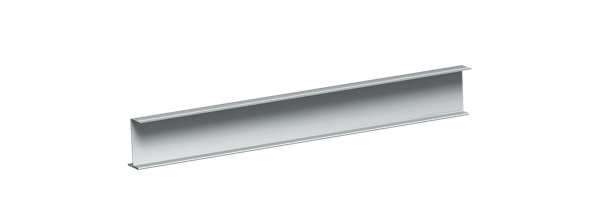

Z40.tif Z-section 40 mm 40.6 19 Z40 Galva 00 See Packaging Dimensions
Z40H.tif Z-section 40 mm with hook 40.6 19 Z40 HOOK Galva 00 See Packaging Dimensions

Main runner

Component Length Height Width Product number Colours Packaging
Bandraster
3125.tif Bandraster main runner 125 mm 3600 35.4 125 BR125 Multiple colours See Packaging Dimensions

Cross tee

Component Height Width Product number Colours Packaging
Cross tee

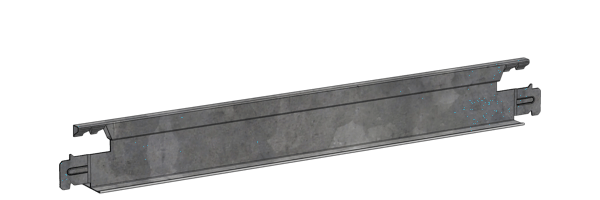

-3846.tif Bandraster cross tee T15 Hook 38 15 BR100 T15 HD CT White 001 See Packaging Dimensions
-3846.tif Bandraster cross tee T24 Hook 38 24 BR100 T24 CT Multiple colours See Packaging Dimensions
-3846.tif Bandraster cross tee T24 Hook 38 24 BR100 T24 HD CT Multiple colours See Packaging Dimensions

Wall angle options

Component Length Height Width Product number Colours Packaging
L Profiles
-1420.tif L-wall angle 24x24 mm colour 3050 24 24 L24x24 Multiple colours See Packaging Dimensions
-1420.tif L-wall angle 24x24 mm white 3050 24 24 L24x24 White 001 See Packaging Dimensions
W Profiles
W_shadow_Moulding_Wall_Angle_01_00kaal_WithText.png W-profile 15x15x10x15 mm 3050 15 10 W10x15 Multiple colours See Packaging Dimensions

Accessories

Component Height Product number Packaging
Bandraster accessories
3130.tif Bent hanger for bandraster 125 mm and C-bandraster 100 mm 84.5 BR125/C100,5 HB See Packaging Dimensions

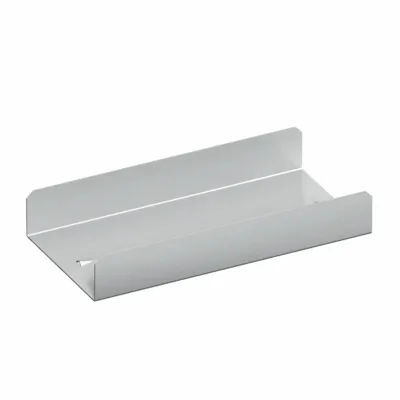

3126.tif Length coupling for bandraster 125 mm BR125 LC See Packaging Dimensions
3127.tif Flat hanger for bandraster 125 mm and C-bandraster 100 mm 100 BR125/C100,5 H See Packaging Dimensions

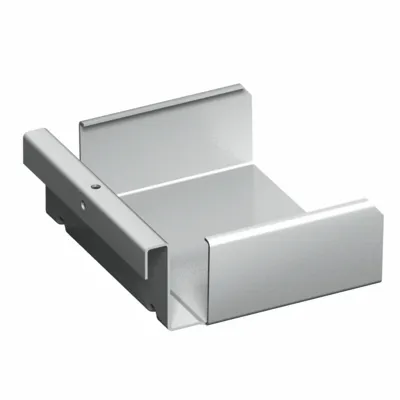

3128.tif Cross connector for bandraster 125 mm BR125 CC See Packaging Dimensions

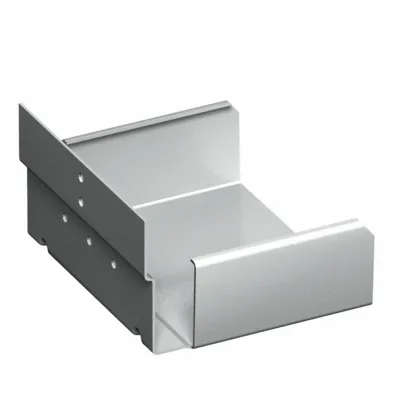

3129.tif Wall connector for bandraster 125 mm BR125 WC See Packaging Dimensions
Tools & Pincers
916.tif Slot pincer for bandraster 50, 75, 100, 125, 150 mm PINC BR See Packaging Dimensions
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back
Back

Downloads

documents





pdf
Chicago Metallic™ 125 mm Bandraster 3125 | Datasheet
Chicago Metallic™ 125 mm Bandraster 3125 | Datasheet

pdf
DoP-RFN-ACCBR-B02 - Cross connector for bandraster 125 mm
DoP-RFN-ACCBR-B02 - Cross connector for bandraster 125 mm

pdf
DoP-RFN-ACCSUSPBR-A02 - Flat hanger for bandraster 125 mm and C-bandraster 100 mm
DoP-RFN-ACCSUSPBR-A02 - Flat hanger for bandraster 125 mm and C-bandraster 100 mm

pdf
DoP-RFN-PTLR-A02 - L-wall angle 24x24 mm white
DoP-RFN-PTLR-A02 - L-wall angle 24x24 mm white

pdf
DoP-RFN-T1538BRSME-A02 - Bandraster cross tee T15 Hook
DoP-RFN-T1538BRSME-A02 - Bandraster cross tee T15 Hook

pdf
DoP-RFN-Z4019MF-A02 - Z-section 40 mm with hook
DoP-RFN-Z4019MF-A02 - Z-section 40 mm with hook

pdf
DoP-RFN-PTW-A02 - W-profile 15x15x10x15 mm
DoP-RFN-PTW-A02 - W-profile 15x15x10x15 mm

pdf
DoP-RFN-T2438MD-A02 - Bandraster cross tee T24 Hook
DoP-RFN-T2438MD-A02 - Bandraster cross tee T24 Hook

pdf
DoP-RFN-T2438ME-A02 - Bandraster cross tee T24 Hook
DoP-RFN-T2438ME-A02 - Bandraster cross tee T24 Hook

pdf
DoP-RFN-BRS125MG-A02 - Bandraster main runner 125 mm
DoP-RFN-BRS125MG-A02 - Bandraster main runner 125 mm

pdf
