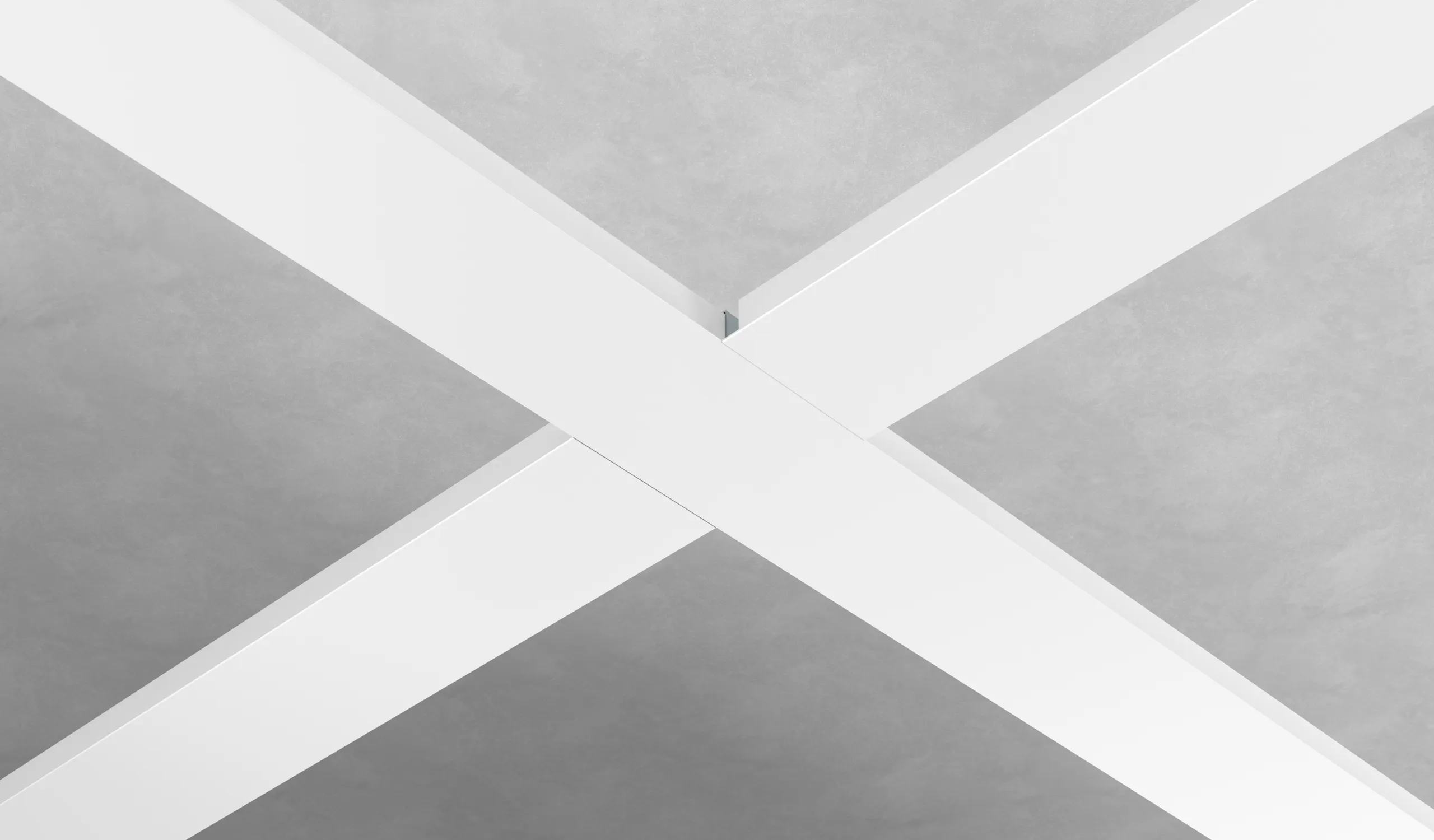

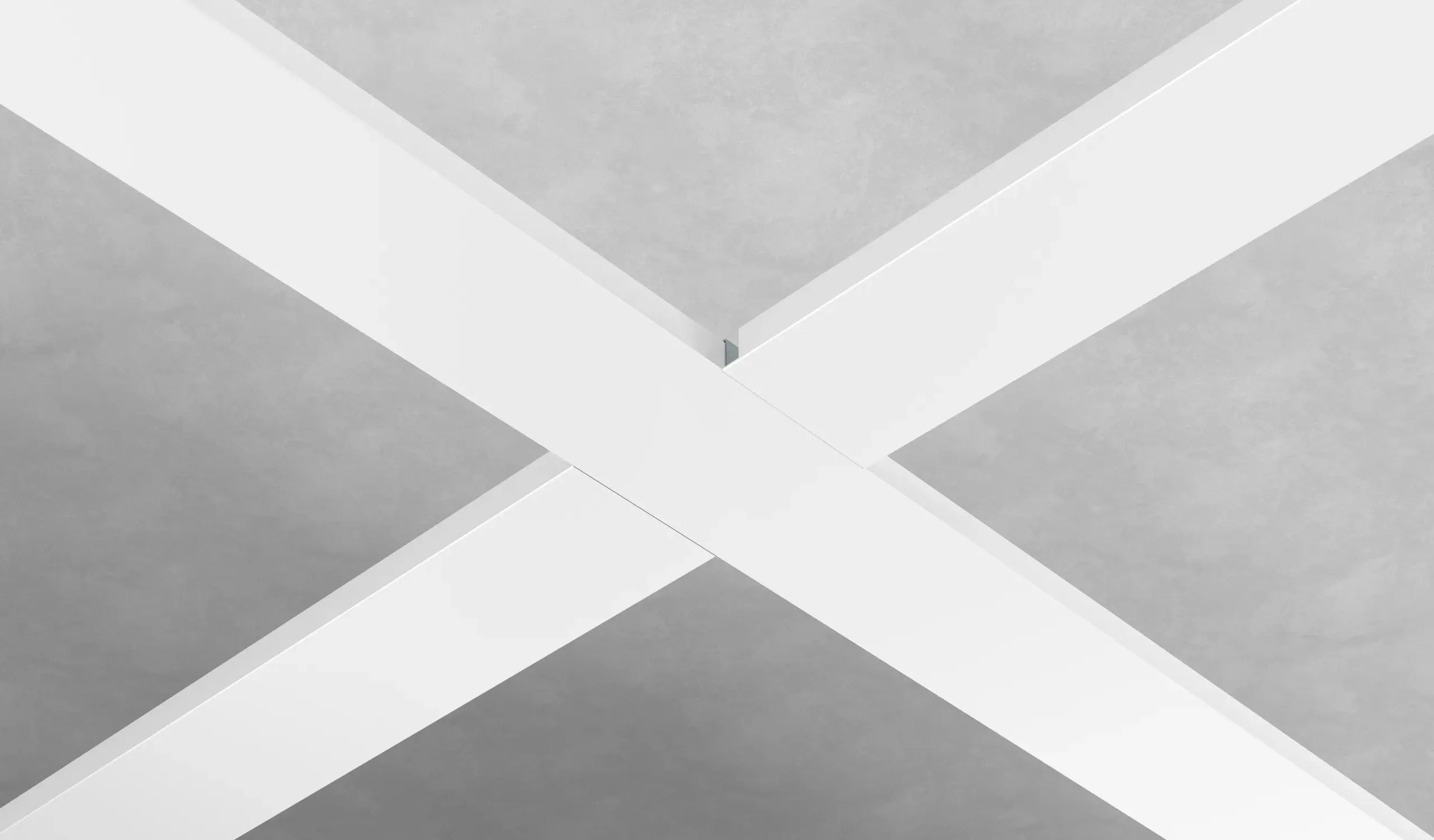

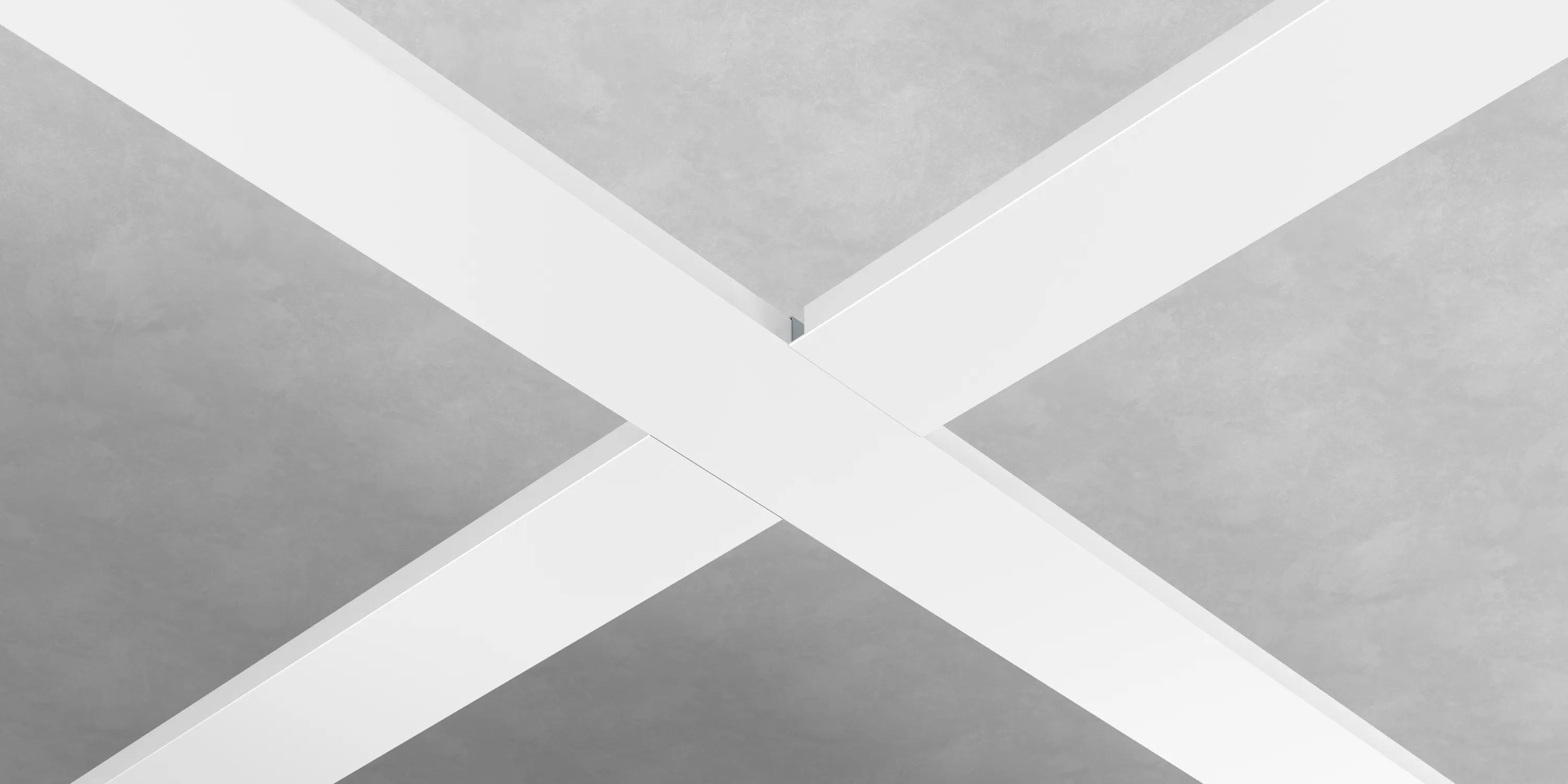

Chicago Metallic 100 mm Bandraster 3100

The 100 mm wide grid system is suitable for the flexible layout of large spaces and positioning of partition walls
Download Datasheet
Download Datasheet
Back
Suitable for the installation of acoustic and fire protection barriers in plenum spaces
System includes a wide range of spacers and accessories
Compatible with exposed, semi-concealed and concealed grid ceilings
Back

Performances

Corrosion Resistance B
Reaction To Fire A1
Environment Fully Recyclable
Back
Back
Back
Back

Profiles and Accessories

Z-section

Component Height Width Product number Colours Packaging
Z-section
Z-section 40 mm 40.6 19 Z40 Galva 00 See Packaging Dimensions
Z-section 40 mm with hook 40.6 19 Z40 HOOK Galva 00 See Packaging Dimensions

Main runner

Component Length Height Width Product number Colours Packaging

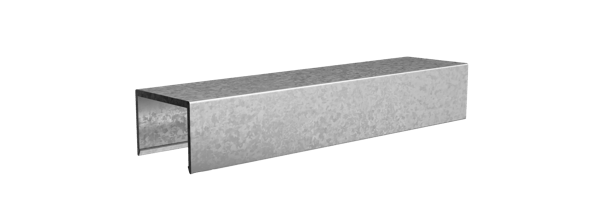

Bandraster
Bandraster main runner 100 mm - without slots 3600 35.4 100 BR100 Multiple colours See Packaging Dimensions

Cross tee

Component Height Width Product number Colours Packaging
Cross tee
Bandraster cross tee T15 Hook 38 15 BR100 T15 HD CT Multiple colours See Packaging Dimensions
Bandraster cross tee T24 Hook 38 24 BR100 T24 CT Multiple colours See Packaging Dimensions
Bandraster cross tee T24 Hook 38 24 BR100 T24 HD CT Multiple colours See Packaging Dimensions

Wall angle options

Component Length Height Width Product number Colours Packaging
L Profiles
L-wall angle 24x24 mm colour 3050 24 24 L24x24 Multiple colours See Packaging Dimensions
L-wall angle 24x24 mm white 3050 24 24 L24x24 White 001 See Packaging Dimensions
W Profiles
W-profile 15x15x10x15 mm 3050 15 10 W10x15 Multiple colours See Packaging Dimensions

Accessories

Component Height Product number Packaging
Bandraster accessories

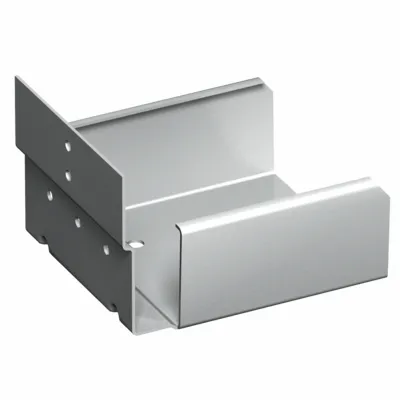

Wall connector for bandraster 100 mm BR100 WC See Packaging Dimensions

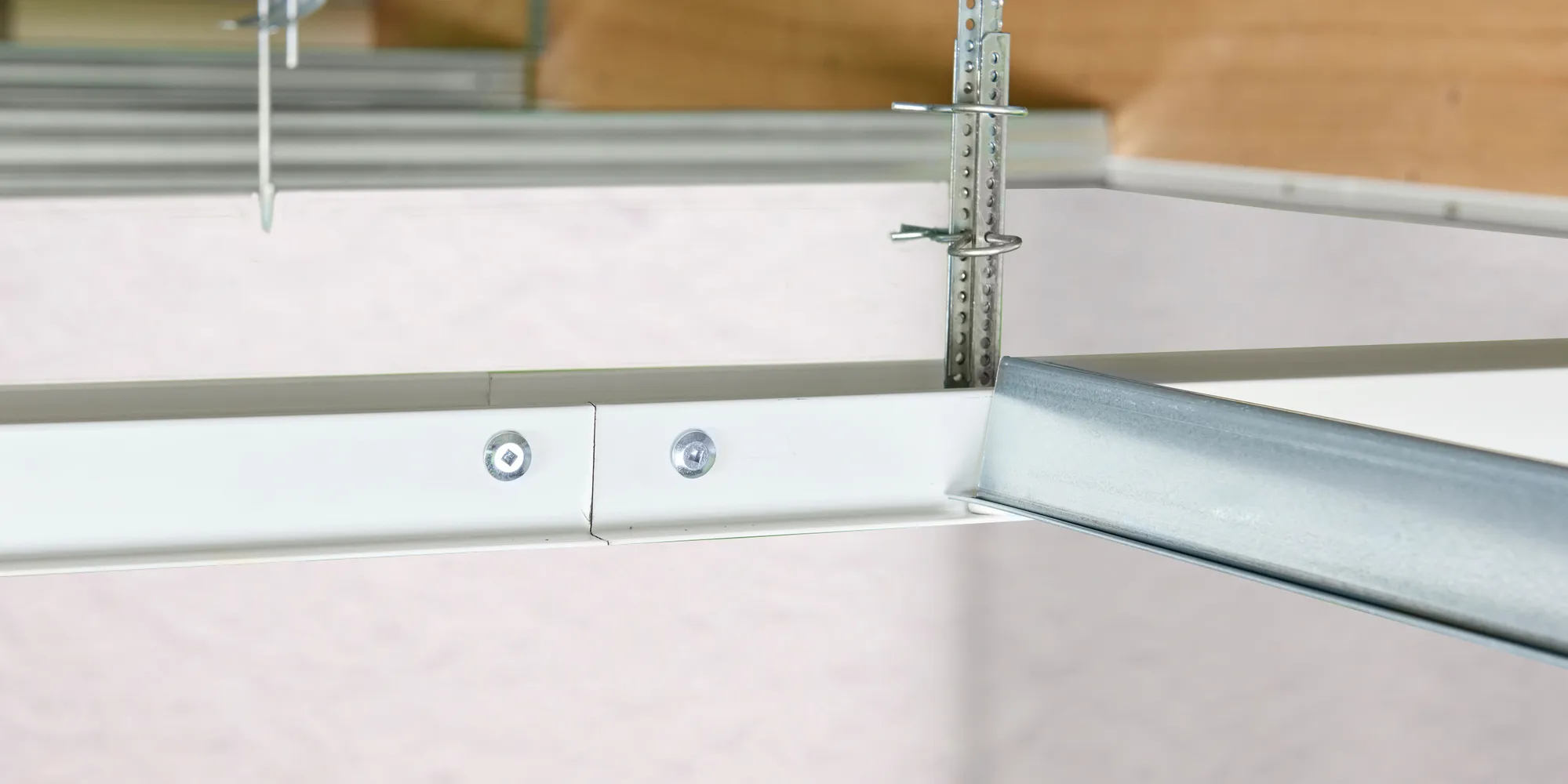

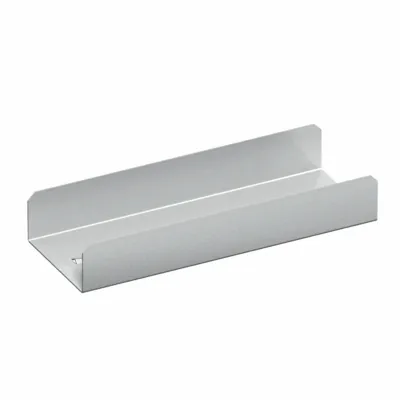

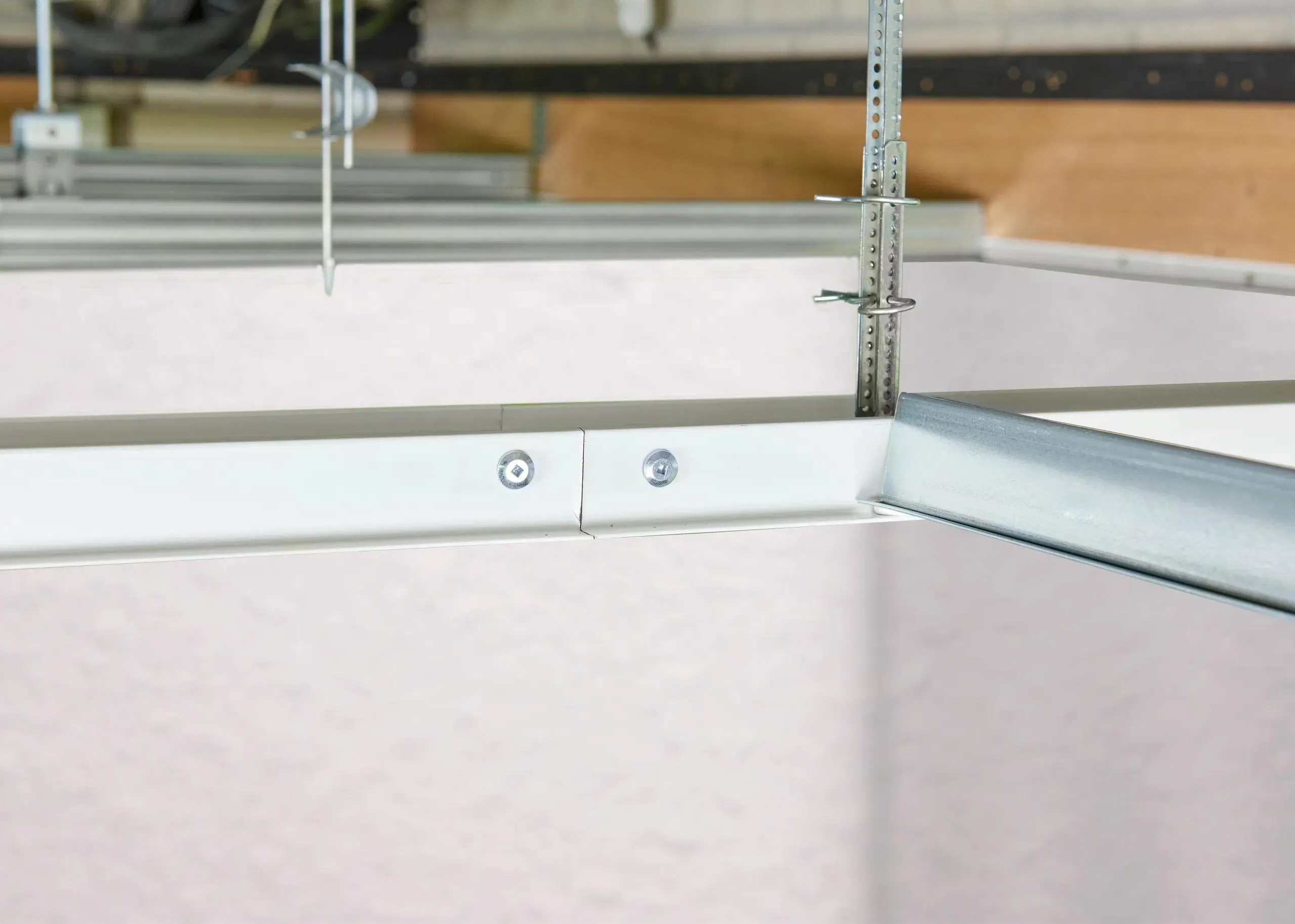

Length coupling for bandraster 100 mm BR100 LC See Packaging Dimensions
Flat hanger for bandraster 100 mm 100 BR100 H See Packaging Dimensions

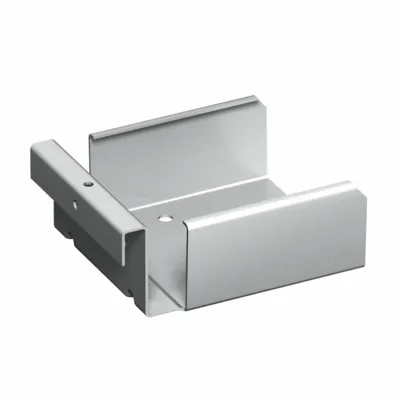

Cross connector for bandraster 100 mm BR100 CC See Packaging Dimensions
Bent hanger for bandraster 100 mm 84.7 BR100 HB See Packaging Dimensions
Tools & Pincers
Slot pincer for bandraster 50, 75, 100, 125, 150 mm PINC BR See Packaging Dimensions
